Enlarged BMW GS footpegs: extension or adjustable footpeg, what’s the difference?

BMW GS stock footpegs are narrow for standing riding

The issue is not build quality; it is the function they were designed for.

BMW designs the stock footpegs on the GS family primarily for seated riding: they are narrow, with a support surface designed for the foot to remain stable on the gear or brake pedal, not to support the rider's full weight while standing for consecutive minutes on dirt or gravel.

When standing riding becomes frequent, the limitation becomes noticeable: the load is concentrated on a narrow strip of the sole, the foot becomes fatigued sooner, and with a wet or muddy boot, the risk of slipping sideways toward the edge of the footpeg increases. On a GS loaded with panniers and a tank bag, where the center of gravity is already higher, this detail matters more than it may seem when looking at the stationary bike in the garage.

The aftermarket's response to this problem is not unique: there are two different technical approaches, and this is where most incorrect purchases originate.

There are two different solutions: the footpeg enlarger and the adjustable footpeg

The commercial name "oversized footpeg" is used for both, and it is the source of almost all the confusion when making a purchase.

Two very different product categories have been on the market for years, both aimed at the BMW GS range:

• The footpeg enlarger. It attaches above the original footpeg with a clamp and support pin. It increases the contact surface with the boot and adds grip with a dedicated non-slip pattern, but it does not affect the footpeg's height or geometry. Non-destructive installation, reversible in a few minutes.
• The adjustable footpeg. It replaces the entire original footpeg with a wider platform that, in many cases, also offers more height and setback positions. It is a more involved modification, often more expensive, and normally irreversible without reinstalling the stock footpeg.

The Endurrad catalog currently covers the first category for the BMW GS family with a single code, designed for simple installation and complete reversibility. We do not offer an adjustable footpeg for this model: if your goal is to change the height of the ergonomic triangle, it is better to work together with a handlebar riser rather than seek that kind of adjustment at the footpeg.

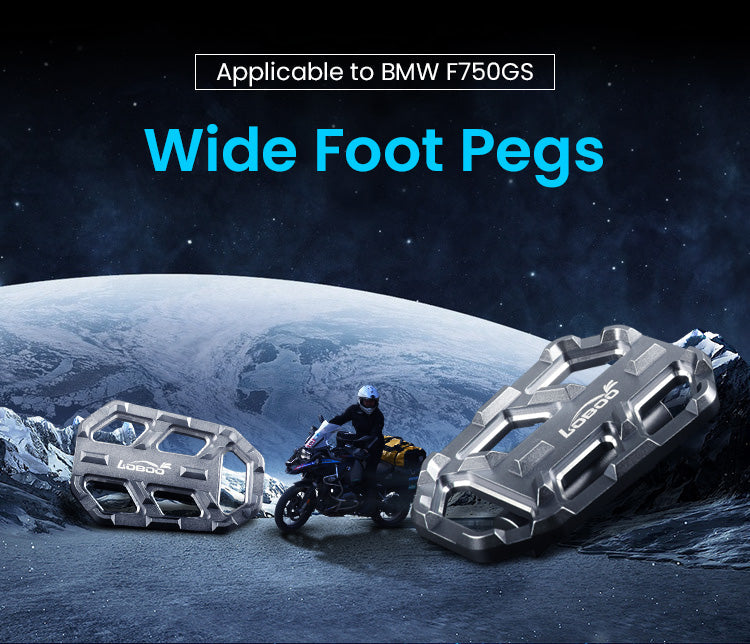

The LOBOO CJT010 extension adds surface area without touching the original footpeg

The CJT010 is a pair of extensions made from solid-block CNC-machined aluminum alloy, not stamped sheet metal: the structure is designed to support the rider's weight on a GS loaded with luggage, not just for aesthetics.

The specification worth noting is the tightening torque declared by the manufacturer: 12 N·m on the four M6×16 screws. It is a small but precise figure that lets you install the extension without relying on feel and without risking deformation of the mounting point or leaving play that could loosen with vibration.

Installation takes just a few minutes, and nothing needs to be removed

The LOBOO manual describes an installation that requires no workshop: the enlarger is positioned over the original footpeg, the support pin is inserted underneath in the indicated direction, and two M6×16 screws on each side secure the assembly. The required wrench is included in the package.

• There is no need to remove the original footpeg: it remains in place, intact beneath the enlarger.
• The manual recommends completing the adjustments first and fully tightening only at the end, in sequence, to 12 N·m.
• The modification is reversible: if you sell the motorcycle or take the GS to a workshop, the standard configuration can be restored by removing the enlarger.
• LOBOO recommends periodically checking the tightness of the screws, as with any component subject to continuous vibration.

Nine BMW models in the GS family are compatible, but not with rally footpegs

For the R 1200 GS and F 850 GS, the manufacturer's product page gives a slightly different summary of the compatibility list than the installation manual: the list above follows the CJT010 manual and the LOBOO «Applicable Models» sheet. If you are unsure of your motorcycle's model year, it is best to contact us before ordering.

Standing is easier with more surface area under your boot, not always with more height

Three practical questions to consider before deciding whether the enlarger is right for you.

Will it fit my motorcycle?

Only if your BMW GS has the standard OEM footpegs. If you already have rally, enduro, or another larger adjustable footpeg installed, the CJT010 will not attach: for models outside the GS range (Africa Twin, Ténéré 700, Tiger, KTM Adventure), Endurrad currently does not have a dedicated enlarger in its catalog with the same non-destructive design.

What do I actually receive?

More support area (85 × 60 mm) and more grip thanks to the CNC anti-slip pattern. You do not get a change in height, setback, or serration: the original footpeg geometry remains unchanged, simply with a larger contact area on top.

How do I install it?

You can install it yourself using the tool included in the package: place it on top of the original footpeg, position the pin underneath, and tighten the four screws to 12 N·m after checking the adjustment. No workshop is required, and no permanent modification to the motorcycle is made.

Those who ride standing for long periods on dirt roads, gravel, or technical sections will notice the benefit most clearly. Those who ride almost exclusively on asphalt and stand only occasionally to relieve their back on a rough stretch will still appreciate the added lateral stability, but the perceived difference will be less pronounced. On a GS loaded for a long trip, with side cases and a tank bag, the difference in managing the weight while standing tends to be felt most on unpaved-road transfers.

Frequently asked questions about BMW GS wide footpegs

What exactly is a motorcycle footpeg extender?

It is an accessory that attaches on top of the motorcycle's original footpeg to increase its support area without replacing it. It differs from an adjustable wide footpeg, which replaces the entire footpeg and can also change its height.

Do the LOBOO CJT010 wide footpegs change the footpeg height?

No. The extender only increases the support area (85 × 60 mm): the footpeg's position relative to the frame remains the motorcycle's original position.

Will they work if I already have rally or enduro footpegs installed?

No. The LOBOO manual explicitly states that the CJT010 is compatible only with standard BMW footpegs, the narrow ones. The extender does not attach correctly to wider, serrated rally or enduro footpegs.

Which BMW models are the CJT010 wide footpegs compatible with?

On nine models in the GS range: R 1300 GS (from 2023), R 1250 GS and R 1250 GS Adventure (from 2019), R 1200 GS (from 2013) and R 1200 GS Adventure (from 2014), F 850 GS (from 2021), F 750 GS (from 2017), G 310 GS (from 2017), and S 1000 XR (up to 2020).

Does installation require a workshop?

No. The kit includes the necessary tool and the manual in 8 languages, including Italian. Installation takes just a few minutes without removing the original footpeg.

How tightly should I tighten the extender screws?

The manufacturer specifies a torque of 12 N·m for the four M6×16 screws. The manual recommends completing the adjustments first and fully tightening only at the end, in sequence.

Is the installation reversible?

Yes. The extender attaches on top of the original footpeg without modifying it: removing it returns the motorcycle to its standard configuration, which is useful for resale or workshop servicing.

What material is used for the CJT010 enlarged foot pegs?

CNC-machined solid aluminum alloy, not stamped sheet metal, with a concave-convex, non-slip surface created by the machining itself.

What is the difference between an enlarger and an adjustable enlarged foot peg?

The enlarger is added on top of the original foot peg and only changes the support surface. The adjustable foot peg replaces the entire foot peg and in many cases also allows the height and rearward position to be adjusted: it is a more invasive modification and is generally less easily reversible.

Do I need an enlarger if I only ride on asphalt?

The main benefit concerns standing riding, typical of dirt roads, gravel, and technical sections. On pure asphalt, the advantage exists but is less pronounced: more surface area and grip still help during occasional standing sections, for example to take pressure off your back on a rough road.

Are the LOBOO enlarged foot pegs compatible with handlebar risers?

Yes, they are two complementary modifications: the enlarger increases the foot support surface, while the riser moves the handlebar grip position. On a GS set up for standing travel, they are often used together.

Why doesn’t Endurrad sell an enlarged foot peg for the Africa Twin, Ténéré 700, or KTM Adventure?

Today, the Endurrad catalog covers this product category only for the BMW GS family, under the LOBOO CJT010 code. For other adventure motorcycles, before offering an equivalent accessory, we verify that it meets the same non-destructive mounting standard and includes complete technical documentation.

What happens if I install the enlarger without observing the specified tightening torque?

Insufficient tightening can leave play that loosens with vibration; excessive tightening can damage the threads or deform the mounting seat. The manufacturer’s specified value of 12 N·m must be observed with a torque wrench, if available, or at least carefully, following the sequence indicated in the manual.
