Barkbusters BHG-080 handguard mounting kit for Triumph Scrambler 1200 XC and XE 2019-2023, 1200 X from 2024

The BHG-080 is the Barkbusters mounting kit designed for the handlebars of the Triumph Scrambler 1200 XC and 1200 XE from 2019 to 2023 and the Scrambler 1200 X from 2024. It is the structure onto which Barkbusters plastics are mounted: on its own, it protects levers and hands from impacts; with the plastics, it also provides protection from wind, cold, and branches.

Key features

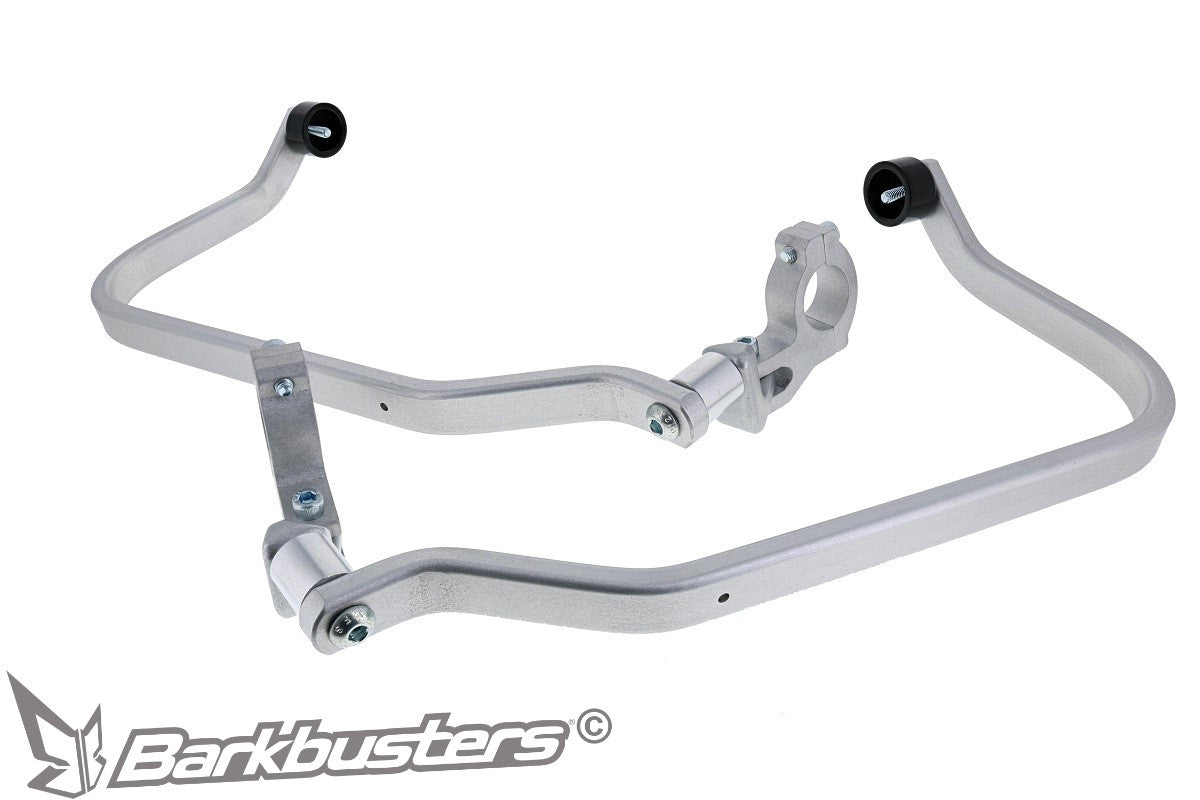

• Heat-treated aluminum bars, one right and one left.

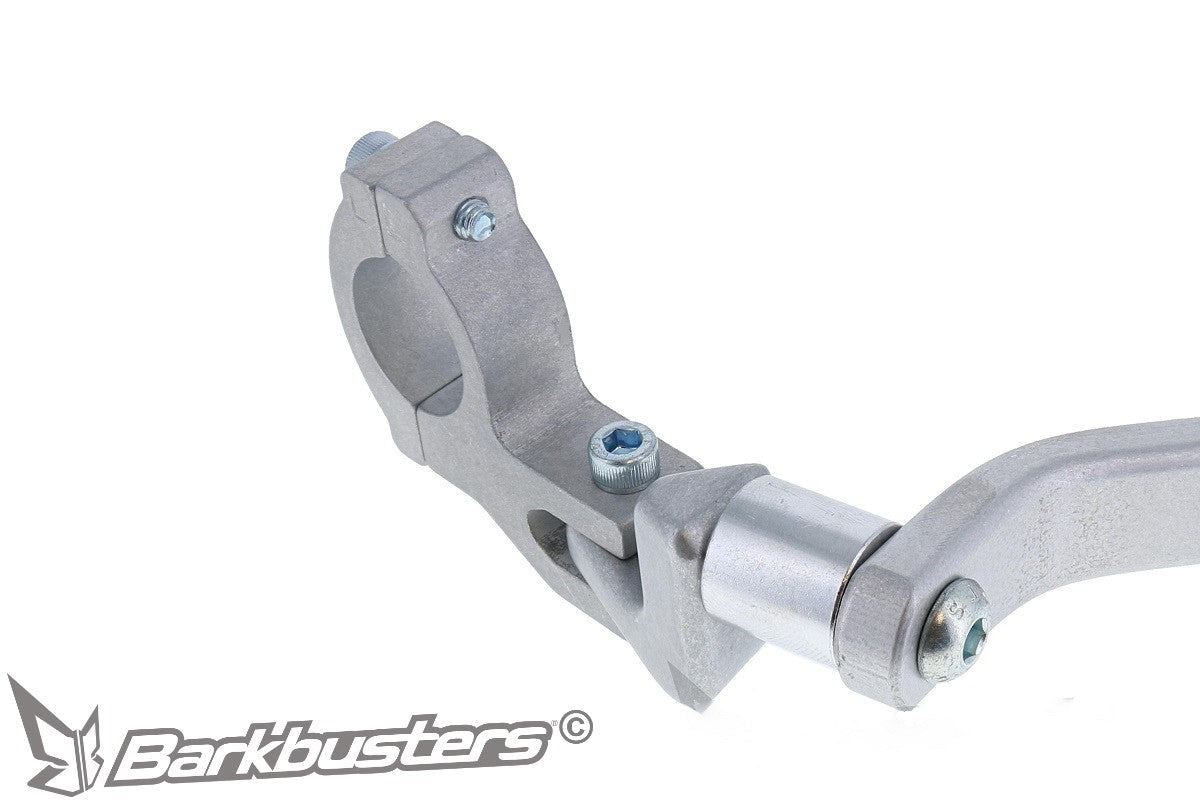

• Two-point mounting: at the handlebar end and on a multi-fit clamp, meaning an adjustable clamp that adapts to the tube profile.
• Compatible with JET-003, VPS-003, STM-003, and BCF-003 plastics, sold separately.
• End plugs included; bar-end weights not included.
• Official instructions with illustrated parts list and tightening torques.

Protection and use

Barkbusters clearly distinguishes between the two mounting configurations, and the two-point configuration, anchored both at the end and at the center of the handlebar, is the one the manufacturer specifies for impact protection. On Scrambler 1200 models, which readily venture off the asphalt, this means keeping the brake and clutch levers protected from falls, stones, and branches.

Materials and construction

Heat-treated aluminum bars (manufacturer code BAR-V-044) and MFC-L and MFC-R multi-fit clamps. The manufacturer does not specify the finish or the kit weight, so we do not report them.

Compatibility

Do you have a Scrambler 1200 XE from 2024? For this model, Barkbusters specifies a different kit, the BHG-138.

Barkbusters specifies this compatibility for motorcycles in original factory configuration. Aftermarket handlebars have different diameters, wall thicknesses, and end threading: the mounting must be checked before purchase.

Installation

Remove the original handguards and, if fitted, the stock bar-end weights. Fit the clamp onto the handlebar without tightening it, aligning the reference marks, then secure the bar at the end and to the clamp connector and position it horizontally when viewed from the side. Tighten in the order specified by the manufacturer. Specified torques: 10 Nm for the M6 bolts and 28 Nm for the M8 bolts, using medium-strength threadlocker and checking the tightening after the first 50 km.

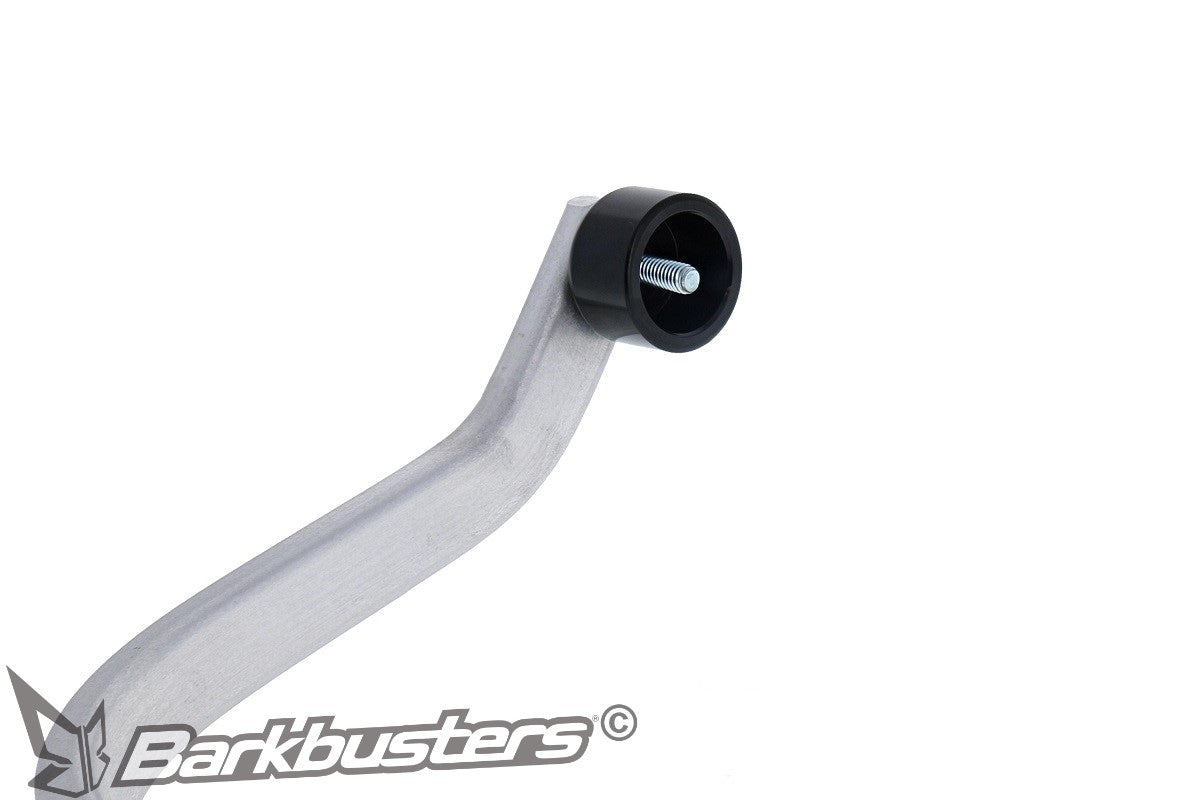

• End threading: the kit mounts in the handlebar's 6 mm hole using the included M6 bolts. For greater retention, the manufacturer recommends re-tapping it to 8 mm; the M8 bolts are not included in that case.
• 1200 XC only: install the four M6 washers included in the package.
• Throttle: leave approximately 3 mm of clearance between the throttle grip and the handguard.

Barkbusters recommends professional installation.

What you will find in the package

• 2 aluminum bars, one right and one left
• 2 complete multi-fit clamps, right and left, and 2 connectors
• 2 spacers and 2 end plugs
• 4 M6 washers, for the 1200 XC only
• Hardware: 2 M6x30 countersunk-head bolts, 2 M8x45 button-head bolts, 4 M6x20 bolts, 2 M6x30 bolts, and 2 M6 self-locking nuts
• Official INS-BHG-080 instructions

What is NOT included

• Protective plastics. The kit is the structure only: the plastics are purchased separately and selected from those specified by the manufacturer for this code.
• Handlebar weights: the parts list includes only the end plugs.
• The M8 bolts for those who choose to re-tap the thread, threadlocker, and tools.

Plastics to pair with it

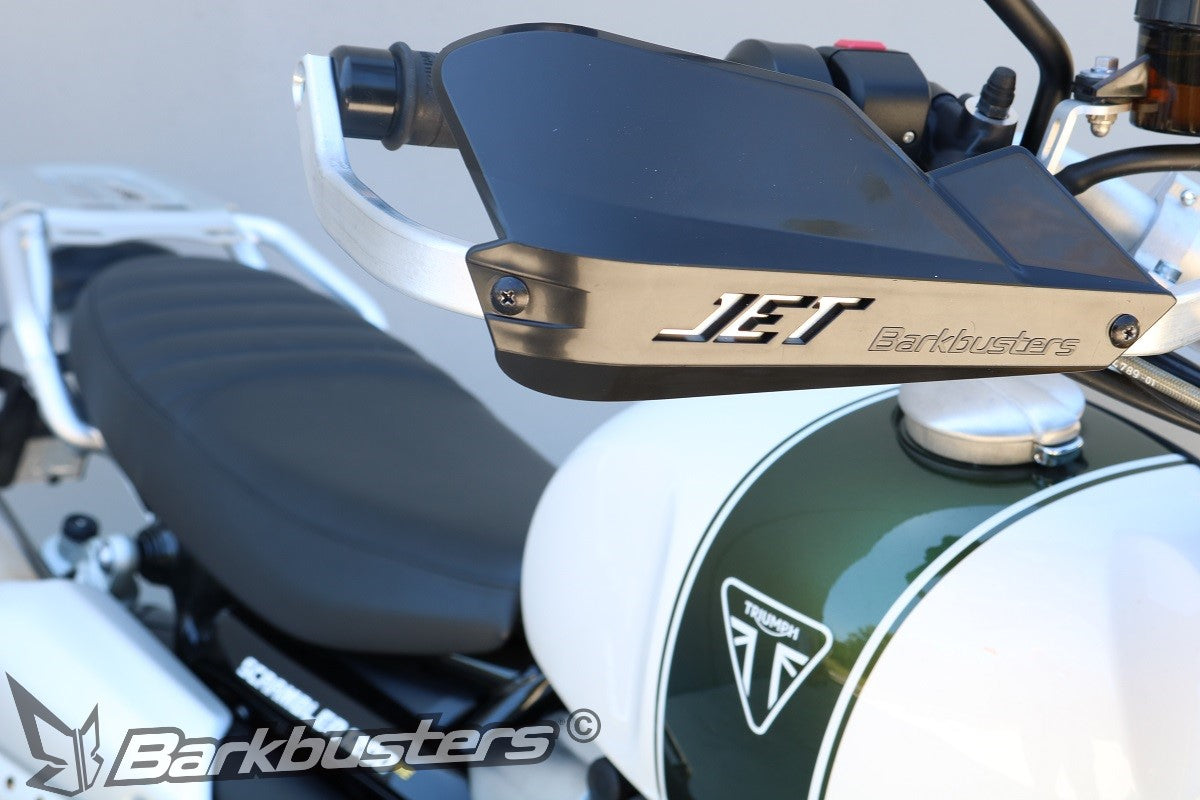

• JET-003: compact profile, for enduro and mixed use.

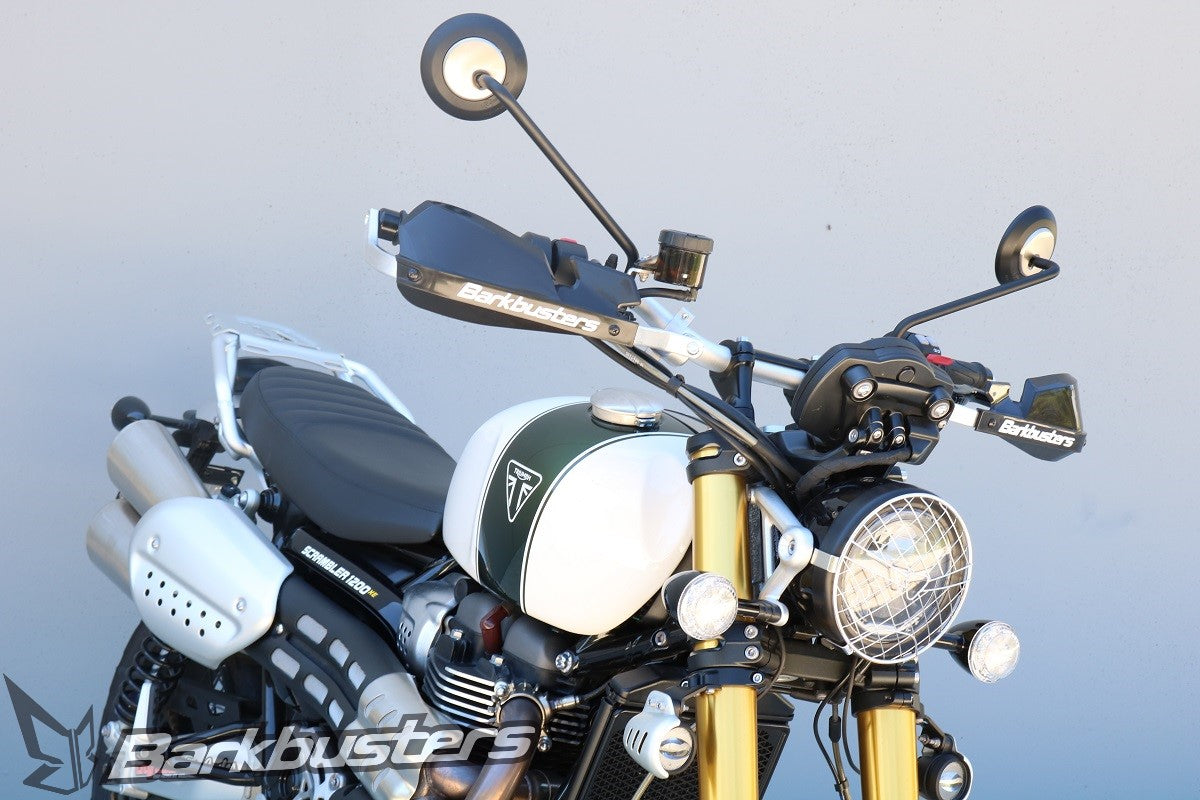

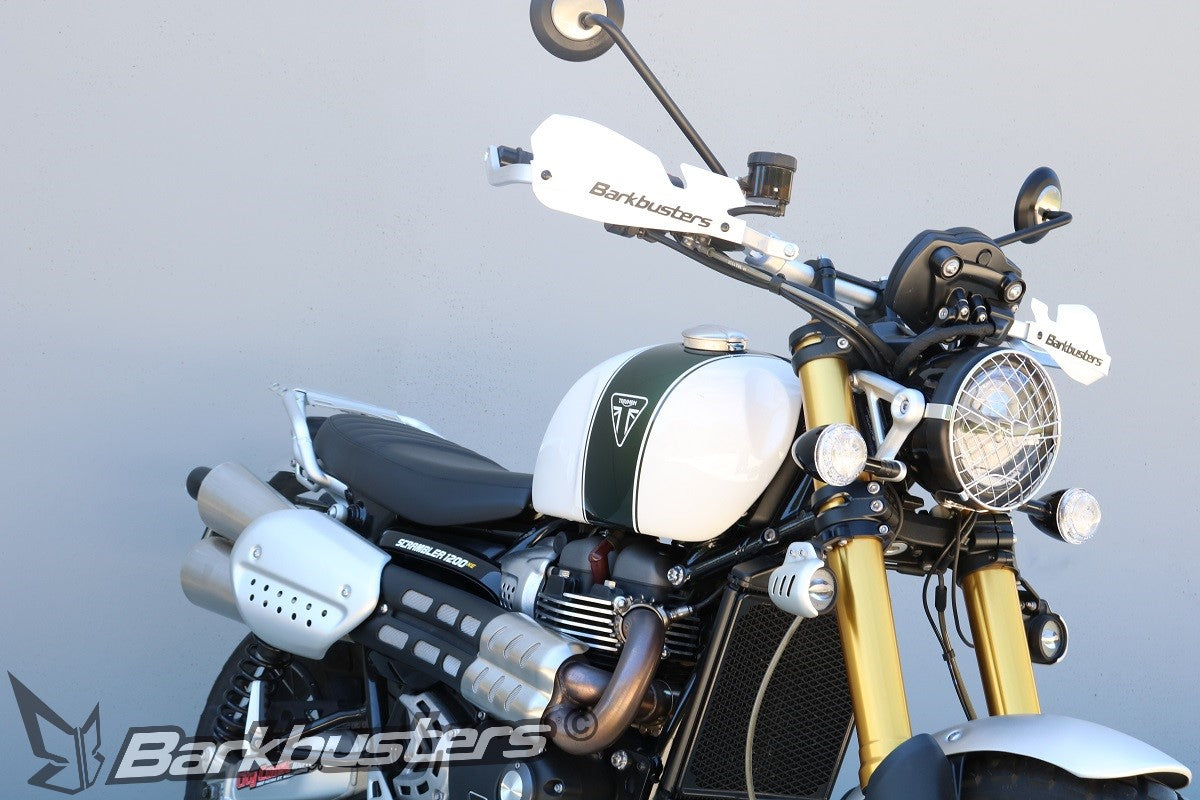

• VPS-003: two-position adjustable deflector, for adventure and touring. It is being phased out, and the catalog lists the VPS-203 as its replacement.

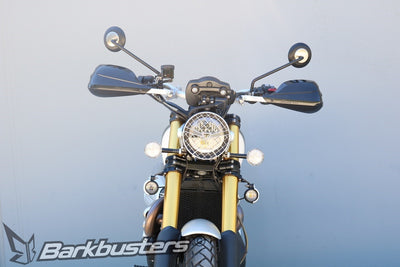

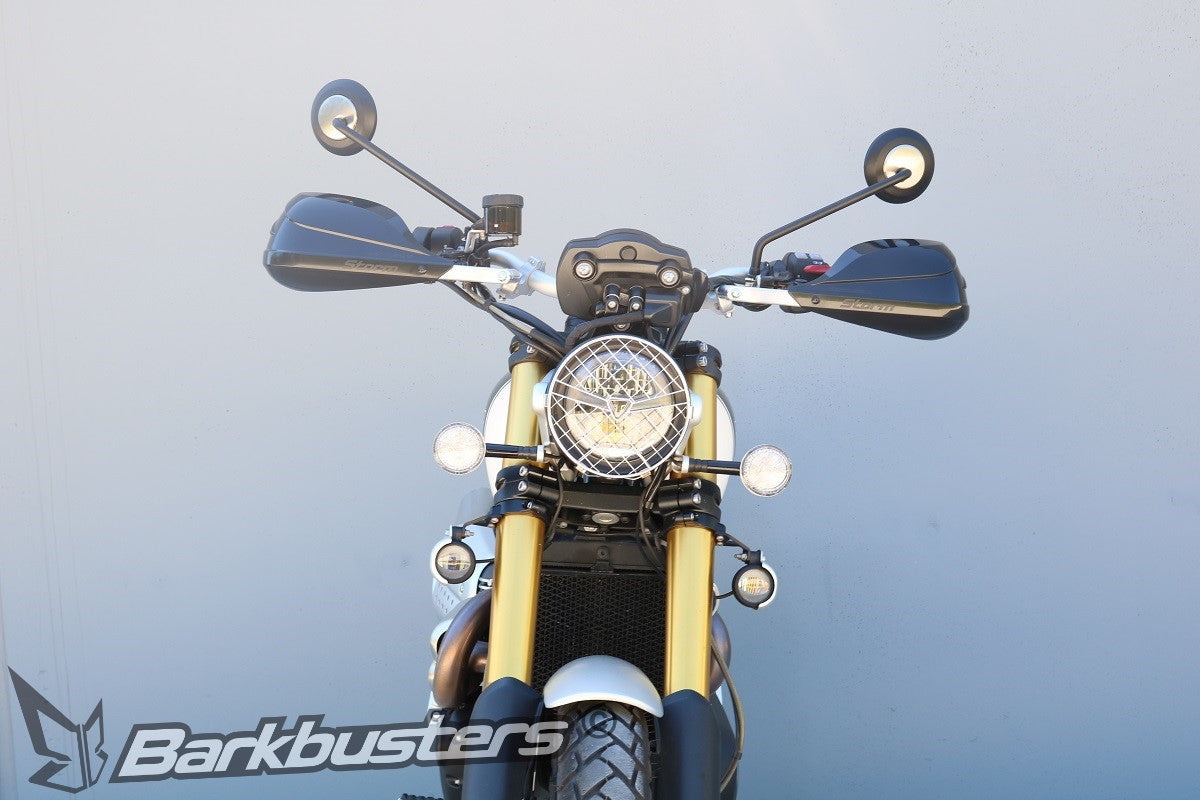

• STM-003, STORM series: more extensive coverage, for road use and cold months.

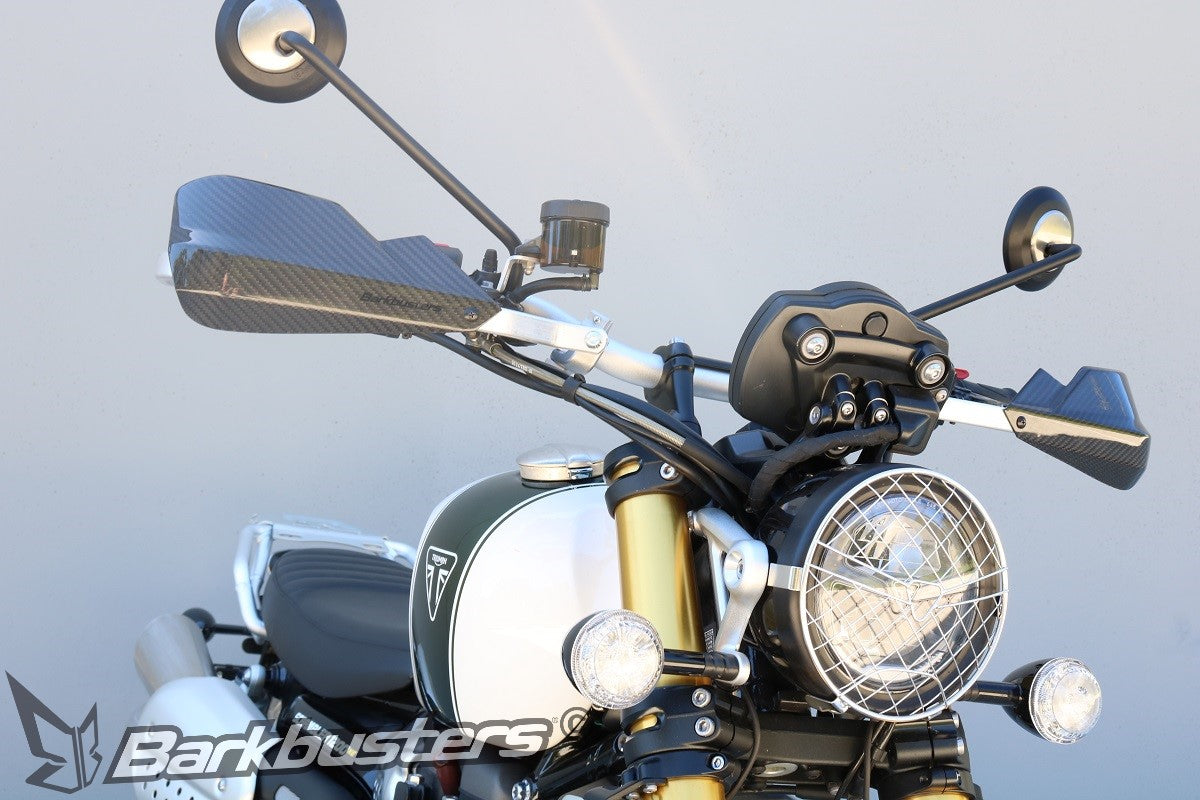

• BCF-003, CARBON series: made of carbon fiber.

Why choose Barkbusters

Barkbusters is an Australian brand owned by Rideworx Pty Ltd, specializing in motorcycle handguards. Each specific kit is developed around the geometry of a particular handlebar, with a published parts list and an installation PDF specifying the hardware, sequence, and torques. The structure and plastics remain separate: you can change the plastics series or color without replacing the kit.
