What torque should the screws be tightened to?

The manual specifies two values: 12 N·m for M6 screws and 20 N·m for all M8 screws. A torque wrench is required and is not included.The manual also advises against fully tightening everything immediately: first position all the parts and check the alignment and symmetry, then tighten each screw to the specified torque.

Are fasteners and threadlocker included?

Yes. The manual's parts list contains twenty-two items: the two frames, the crossbar, the two brackets for the passenger footrests, bushings and spacers, seven screw sizes from M6 to M8, the washers, and threadlocker.No tools are included in the package: a torque wrench is required to meet the specified torque values.

Is there a crossbar to install behind the license plate?

Yes, and it is included. It connects the two halves of the frame behind the license plate holder and stiffens the assembly: it is one of the final assembly steps. It is secured with M8 screws tightened to 20 N·m and does not require moving the license plate or license plate light.

What is the shock-absorbing structure of the frames used for?

LOBOO describes it as a structure at the frame mounting points that protects the motorcycle's rear subframe in the event of a fall, keeping the luggage mounting secure. The manufacturer does not publish test results.

How much weight can I load on each side?

LOBOO does not specify a maximum load for these frames, so we will not give you a figure that does not appear in any official document.The reference to use is the side-case limit indicated by BMW in the R 1300 GS owner’s manual, which also takes into account the motorcycle’s permitted total load.

Is the assembly manual in Italian?

Yes. The LOBOO manual is published in eight languages, including Italian, with an illustrated parts list, a numbered installation view, and photographs of every step. The PDF can be downloaded from this page.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Telai valigie laterali LOBOO JP131B per BMW R 1300 GS, coppia completa con staffe

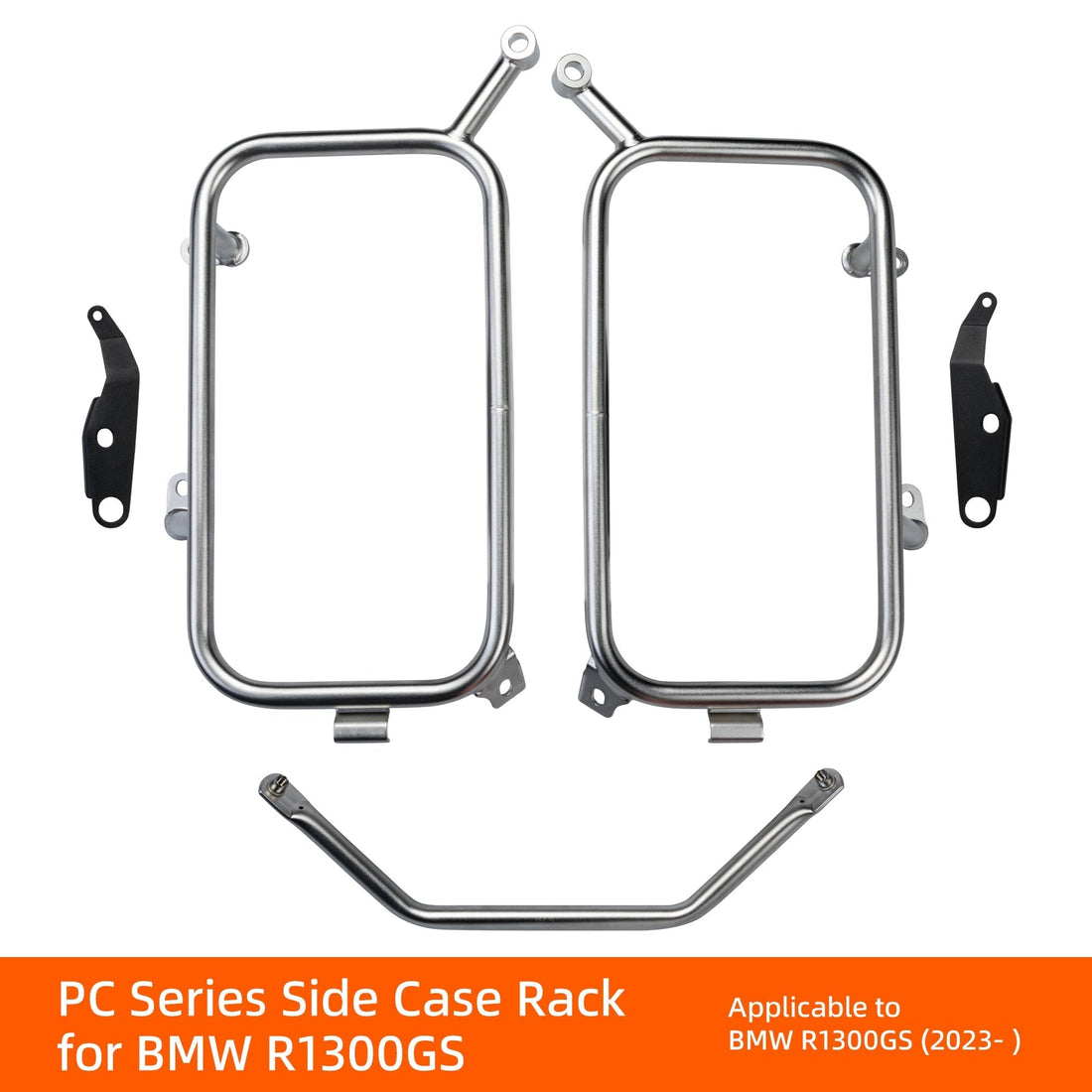

Telai laterali serie PC LOBOO per BMW R 1300 GS dal 2023, vista d'insieme

Telai valigie LOBOO montati sulla BMW R 1300 GS, dettaglio fiancata

Telai laterali e piastra top case LOBOO per BMW R 1300 GS, sistema completo

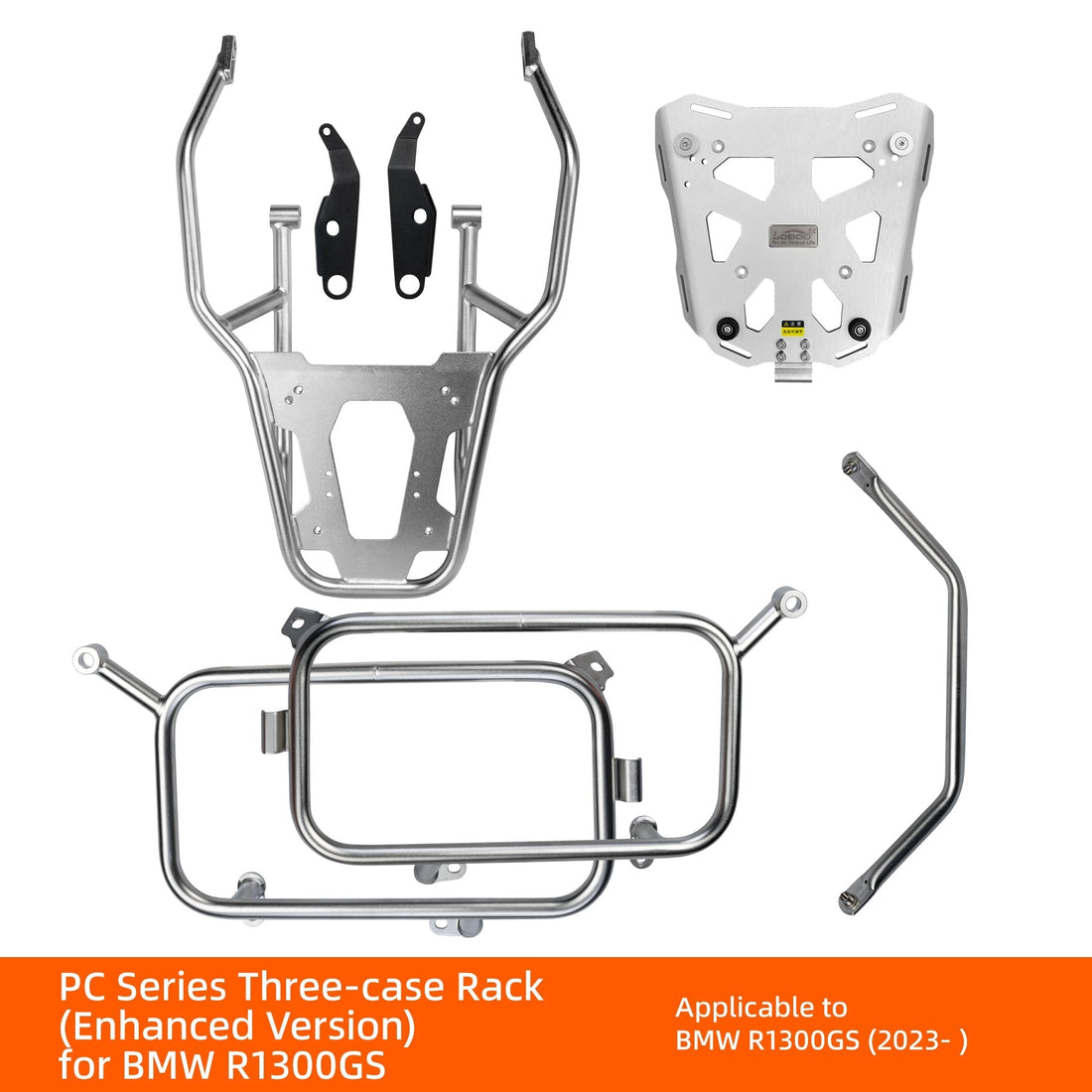

Sistema portapacchi tre valigie LOBOO per BMW R 1300 GS

Coppia di valigie laterali LOBOO PIKE TRACKER argento da 37+37 litri, configurazione simmetrica

Coppia di valigie laterali LOBOO PIKE TRACKER nere da 37+37 litri, configurazione simmetrica

Coppia di valigie laterali LOBOO PIKE TRACKER argento da 45+45 litri, 90 litri complessivi

Coppia di valigie laterali LOBOO PIKE TRACKER nere da 45+45 litri, 90 litri complessivi

-10%Consegna in 2-3 giorni lavorativi

JP131B LOBOO code

R 1300 GS Motorcycle

Three Families

22 Components

LOBOO ✓ Prodotto originale

Side case frames for BMW R 1300 GS from 2023 | for aluminum and semi-rigid cases and ALPS bags

€329,00 ~~€365,00~~Risparmi €36

Paga in 3 rate da €109,66 senza interessi

Va bene per la tua moto?

Progettato per: R 1300 GS.

Ultimi 3 pezzi disponibili🚚 Consegna in 2-3 giorni lavorativi

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

The steel base for symmetrical panniers up to 45+45 L on the BMW R 1300 GS.

Symmetrical load

allows for P37 plus P37 or P45 plus P45 configurations, for balanced weight on both sides.

Multi-system base

accepts rigid PIKE TRACKER, semi-rigid WANDERER, and ALPS bags.

Plug-and-play mounting

R 1300 GS OEM points, no drilling required.

Rigid steel structure

close-fitting profile to the motorcycle and stability when fully loaded.

Dal produttore LOBOO

Denominazione ufficiale: PIKE TRACKER & CONQUEROR Series Side Case Rack, modello JP131B, dichiarato dal produttore per BMW R1300GS dal 2023.

Produttore: Shenzhen Loboo Motor Accessories Co., Ltd — Building F, Tianji Industry Park, Laiyin Road, Xinsheng Community, Longgang District, Shenzhen, Guangdong, Cina.

Documentazione: manuale d'uso e montaggio in otto lingue, italiano compreso, con distinta illustrata, vista d'installazione numerata e sedici fasi fotografate.

Garanzia: si applica la garanzia legale di conformità di 24 mesi prevista dal Codice del Consumo per gli acquisti effettuati da consumatori.

Leggi la descrizione completa

Pair of side case racks for the BMW R 1300 GS from 2023 onward, with rear crossbar, brackets, and mounting hardware. This is the structure the side cases attach to: the side cases are not included.

LOBOO calls it the PIKE TRACKER & CONQUEROR Series Side Case Rack, code JP131B. On the R 1300 GS, the exhaust leaves room for two identical cases: 37+37 or 45+45 liters.

What you can mount on these racks

PIKE TRACKER aluminum cases P37 or P45, in matte black or polished silver: find them on the PIKE TRACKER aluminum cases page, or already paired with the racks in the side case kit for R 1300 GS.
CONQUEROR aluminum cases with a capacity of 45+45 liters: the JP131B manual also lists this series. Find them on the CONQUEROR cases for R 1300 GS page.
WANDERER semi-rigid bags with a capacity of 40+40 liters, which attach to 18 mm tubing: there is a WANDERER kit with racks for R 1300 GS.
ALPS inflatable bags with capacities of 23 and 30 liters, with supports and keyed anti-theft locks: find them on the ALPS inflatable bags page.

LOBOO aluminum cases can only be mounted on LOBOO racks. The reverse also applies: rigid cases from other manufacturers do not fit these racks.

Does it fit the R 1300 GS Adventure?

No. The Adventure has a different rear subframe and uses the JP151B side racks for R 1300 GS Adventure. The two codes are not interchangeable.

What's included

The manual lists 22 items: left and right racks, rear crossbar, two passenger footpeg brackets, six types of bushings and spacers, M6 × 16, M6 × 25, M8 × 20, M8 × 25, M8 × 30, M8 × 35, and M8 × 60 screws, M6 and M8 washers, and threadlocker.

How to install them

Sixteen illustrated steps, with no drilling required. Remove the seat, replace the original passenger footpeg brackets with those included in the kit, secure the two racks to the motorcycle's mounting points, and close the system with the crossbar behind the license plate.

Tighten the M6 screws to 12 N·m and the M8 screws to 20 N·m. LOBOO asks you not to fully tighten them immediately: first position all the parts, checking alignment, clearances, and symmetry, then apply the specified torque in sequence. Reinstall the removed original parts according to BMW's instructions.

Shock-absorbing structure and nine-point attachment

At the mounting points, LOBOO states that it uses a shock-absorbing structure, designed to protect the motorcycle's subframe in the event of a fall while keeping the cases securely attached. The aluminum cases and racks connect using a nine-point quick-release attachment system, covered by utility model patent ZL 2017 2 0624675.2.

Before ordering

With the short LOBOO exhaust, LOBOO also recommends the CPQ131 exhaust deflector, sold separately, which directs the gases away from the cases. If you don't know which exhaust you have, contact us before ordering.

Top case and three-case system

For the top case, LOBOO offers three solutions, each with its own page: the top case plate for the original luggage rack, the reinforced rear luggage rack, and the sliding upper luggage rack.

The JP131B manual does not specify the material, weight, or maximum load per side, so we do not provide them. All other accessories for BMW R 1300 GS are in the dedicated collection.

Nella confezione

✅ Original LOBOO pannier racks, new, in manufacturer's packaging.
📦 Included:the pair of side racks with screws and mounting hardware.
⚠️ Not included: side panniers.This page is for the racks only. The panniers can be purchased separately, or together with the racks on the complete kit page.
🔒 Closed system:LOBOO panniers can only be mounted on LOBOO racks, and only LOBOO panniers can be mounted on these racks. They are not compatible with racks or panniers from other brands.
🏍️ For the R 1300 GS with short exhaust, the CPQ131 deflector is required, sold separately.
🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
🛡️ 24-month legal guarantee for the consumer, according to current regulations.
💳 Payment also in installments with the services available at checkout.
🔧 Observe the indicated tightening torques and recheck the fastenings after the first few kilometers, especially with loaded panniers.

JP131B · BMW R 1300 GS from 2023 · 22 components · no drilling

How does it work, in detail?

Frames, compatible luggage, installation, and the three-luggage system, point by point.

Which code for which motorcycle

In the LOBOO table, the R 1300 GS and the R 1300 GS Adventure have different side frames. The sliding luggage rack is available only for the GS, while the plate for the original luggage rack fits both. LOBOO aluminum cases can only be mounted on LOBOO frames, without damaging the motorcycle.

Shock-absorbing structure at the attachment points

LOBOO states that the frame mounting points feature a shock-absorbing structure: it protects the motorcycle subframe in the event of a fall and keeps the luggage firmly attached.

Patented nine-point attachment

Panniers and frames connect at nine points, without vibrations even after prolonged use. LOBOO states that in a fall or slide, the panniers remain in place, while in a strong frontal impact they detach. Utility model patent ZL 2017 2 0624675.2.

Possible settings on the R 1300 GS

The LOBOO table combines the sets as follows: top case with the reinforced luggage rack or the sliding one, side cases with the JP131B frames, three cases with frames and the reinforced luggage rack, or with frames and the sliding luggage rack.

How does it fit on the R 1300 GS?

LOBOO photos of the equipped R 1300 GS: side cases on the JP131B frames and a top case, in matte black or glossy silver. The cases stay close to the motorcycle's profile.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Product

Code

JP131B Pair of side racks for panniers (Side Case Rack)

Official name

PIKE TRACKER & CONQUEROR Series Side Case Rack Product name as stated in the LOBOO manual

Content

Frames only Panniers and top cases not included

Compatibility

Motorcycle

R 1300 GS BMW, from 2023. The Adventure requires JP151B

Compatible suitcases

Aluminum

45+45 or 37+37 L PIKE TRACKER symmetrical, black or silver

CONQUEROR

45+45 L JP131B manual for the PIKE TRACKER and CONQUEROR series

Semi-rigid

BCB4040TBK WANDERER 40+40 L

ALPS Bags

Compatible 23 and 30 L inflatable products, with mounts and anti-theft protection

Structure

Shock-absorbing structure

At the attachment points LOBOO panel: protects the subframe in the event of a fall

Luggage attachment

9 points Quick release, patent ZL 2017 2 0624675.2

Materials

Material

Not specified for this code The JP131B manual does not state this.

Assembly

Mounting points

Motorcycle originals No drilling; after removing the original components specified in the manual

Original parts to remove

Passenger footboards brackets Replace them with the plates included in the kit

Rear crossmember

Included Connect the two halves of the frame behind the license plate holder

Torque pairs

12 and 20 N·m 12 N·m on the M6 screws, 20 N·m on the M8 screws

Installation steps

16 Sixteen stages illustrated with photographs in the manual

Equipment

Hardware included

7 sizes M6×16, M6×25, M8×20, M8×25, M8×30, M8×35 and M8×60, with M6 and M8 washers

Threadlocker

Including Item 21 on the bill of materials. The torque wrench is not included

Documentation

Assembly manual

8 languages Italian included, with an illustrated parts list and installation view

To be verified

Short exhaust version

CPQ131 Also requires the exhaust deflector, a separate item

Weight and maximum load

Not declared by the manufacturer The manual lists neither the frame weight nor a per-side load limit

Manuale d'uso JP131BDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Passaggi: sedici, tutti fotografati nel manuale, con le zone di smontaggio e di installazione segnate.
Smontaggio: sella e staffe originali delle pedane passeggero, che vengono sostituite dalle staffe del kit.
Telai: si fissano ai punti di attacco della moto, senza forature.
Traversa: si monta per ultima, dietro la targa, e collega i due telai.
Coppie di serraggio: 12 N·m sulle viti M6, 20 N·m sulle viti M8, con il frenafiletti incluso.
Sequenza: non serrare a fondo durante il montaggio. Prima tutti i pezzi in posizione, verificando allineamento, giochi e simmetria, poi la coppia in sequenza.
Parti originali: quelle rimosse si rimontano secondo le coppie e le indicazioni BMW.

Istruzioni complete e note di sicurezza

Passaggi: sedici, tutti fotografati nel manuale, con le zone di smontaggio e di installazione segnate.
Smontaggio: sella e staffe originali delle pedane passeggero, che vengono sostituite dalle staffe del kit.
Telai: si fissano ai punti di attacco della moto, senza forature.
Traversa: si monta per ultima, dietro la targa, e collega i due telai.
Coppie di serraggio: 12 N·m sulle viti M6, 20 N·m sulle viti M8, con il frenafiletti incluso.
Sequenza: non serrare a fondo durante il montaggio. Prima tutti i pezzi in posizione, verificando allineamento, giochi e simmetria, poi la coppia in sequenza.
Parti originali: quelle rimosse si rimontano secondo le coppie e le indicazioni BMW.

Il frenafiletti è nella confezione, la chiave dinamometrica no. Il produttore chiede di controllare periodicamente il serraggio delle viti.

Assembly and Notes

Plug-and-play installation on OEM points, no drilling or permanent modifications.
Respect the maximum load per side frame indicated by BMW in the motorcycle's manual.
Recheck the tightening after the first 100-200 km and periodically during the season.
Panniers are not included: the frames are the sole support structure.

These frames are suitable if you have a standard R 1300 GS and:

You already own LOBOO panniers and only need the frames
You want the option to alternate between hard and semi-rigid panniers on the same base

If you have the R 1300 GS Adventure, you need the JP151B frames, on a separate page: different geometry and additional compatibility with CONQUEROR panniers.

If you are starting from scratch, the Wanderer Semi-rigid Pannier kit for R 1300 GS already includes these frames.

Per moto Bmw

BMW

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which panniers can I mount on the frames for the R 1300 GS?

The aluminum PIKE TRACKER in the P37 + P37 or P45 + P45 configurations, the 45 + 45-liter aluminum CONQUEROR cases, the 40 + 40-liter semi-rigid WANDERER cases, and the inflatable ALPS bags.

The cases are not included and must be purchased separately, or they can already be paired with the racks in the dedicated kits.

Are suitcases included in the price?

No: this page sells the pair of frames, which is the part intended for the motorcycle. The panniers are chosen separately, which is why the frame is purchased only once: you can change the type of pannier in the future without redoing the installation.

If you prefer to buy everything together, Endurrad also offers the kit with frames and matching semi-rigid panniers.

Will they also fit the R 1300 GS Adventure?

No. The GS Adventure requires the JP151B frames, designed for its geometry and also compatible with the CONQUEROR cases. They are available on a separate page.

I have the R 1300 GS with the short exhaust: do I need anything else?

Yes. LOBOO documentation indicates that installing the racks with the short exhaust also requires the CPQ131 exhaust deflector, sold on a separate page.

If you’re not sure which exhaust your motorcycle has, contact us before placing your order and we’ll check it together.

What needs to be removed from the motorcycle to install the frames?

The manual describes sixteen stages and requires removing the original passenger footpeg brackets, which are replaced with the plates supplied with the kit.

The other original parts removed during the work must be reinstalled using the torque specifications indicated by BMW, as required by the manual itself.

Do you need to drill into or modify the motorcycle?

The manual does not indicate any drilling: the frame attaches to the anchoring points already present on the motorcycle. The modification is reversible because the original parts removed can be reinstalled exactly as they were.
