R 1300 GS

Motorcycle

3

Steps

20N·m

Pair

OEM

Hardware

Compatibility

Motorcycle

BMW R 1300 GS from 2023

Luggage systems

PIKE TRACKER, TIBET and CONQUEROR

Specifications stated in the JST131WC manual

Product code

JST131WC

Features

Type

Sliding upper luggage rack, replacing the original one

Equipment

Bill of materials components

1 piece, no hardware

The motorcycle’s original screws are reused

Assembly

Tightening torque

20

OEM value, on the motorcycle’s original screws

Installation steps

3, illustrated in the manual

Preliminary operations

Removal of the original luggage rack

Reversible operation: the standard luggage rack can be reinstalled

Drilling

None

Materials

Material

Not stated by the manufacturer

The manual for code JST131WC does not specify the material

Dati dichiarati dal manuale d'uso LOBOO del codice JST131WC, edizione in otto lingue.

JST131WC · R 1300 GS dal 2023 · un pezzo solo · viti originali

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description Sliding Upper Luggage Rack for BMW R 1300 GS from 2023 | replaces the original luggage rack

Sliding upper luggage rack for BMW R 1300 GS from 2023

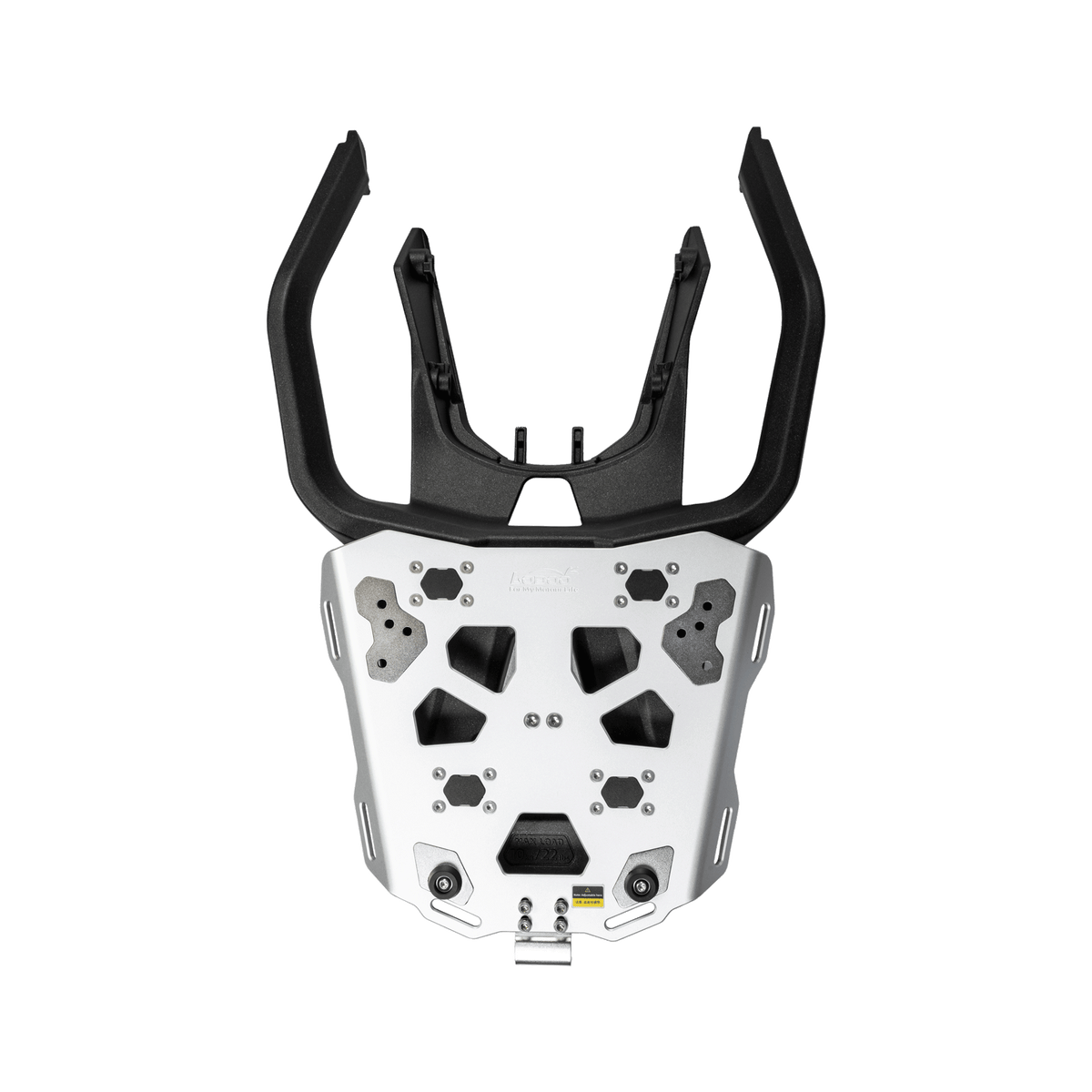

Code JST131WC. This is a single piece that replaces the motorcycle's original luggage rack: remove the OEM screws, dismantle the standard luggage rack, and install this one in its place, reusing the same screws tightened to 20 N·m. Three steps in total.

Only one piece is included

The luggage rack, and nothing else: no hardware, because the motorcycle's original hardware is reused. It is the only product in the range that can be installed without adding a single bolt.

Why sliding

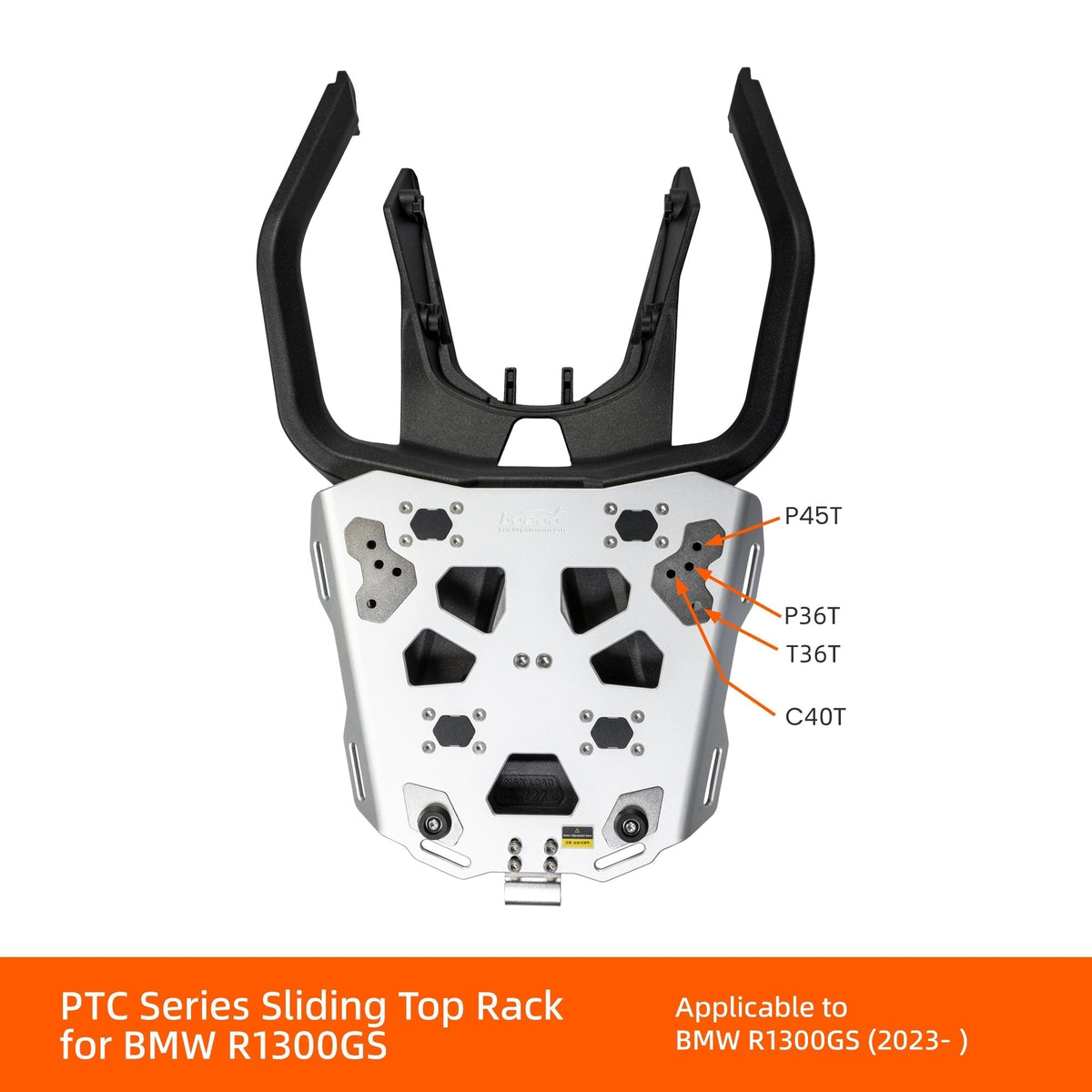

The loading platform is wider than the standard one and designed for attaching a top case, with the option to adjust its position forwards and backwards instead of having a fixed mount. On a loaded motorcycle, moving the top case's weight by a few centimetres changes how the rear end behaves.

Compatibility

BMW R 1300 GS from 2023. The product manual states compatibility with the PIKE TRACKER, TIBET and CONQUEROR luggage systems.

Why choose it

Perché è il montaggio più semplice della gamma: tre passaggi, nessuna viteria da aggiungere, nessun pezzo della moto da smontare oltre al portapacchi di serie. E perché il piano scorrevole permette di regolare la posizione del bauletto invece di subirla, che su una moto carica è quello che decide come si muove il retrotreno.

Who is it recommended for

A chi vuole un attacco per il top case senza affrontare uno smontaggio della coda, e a chi cambia spesso configurazione: si toglie e si rimette il portapacchi originale in pochi minuti, senza traccia. Ottimo anche per chi rivende la moto e vuole poter tornare allo stato di serie.

Chi invece cerca la struttura più robusta possibile per carichi pesanti guardi il portapacchi rinforzato: costa meno di questo ma sostituisce l'intera zona posteriore con una struttura dedicata.

Documents and manufacturer

LOBOO non pubblica omologazioni né dichiarazioni di conformità per questo codice, e il manuale non riporta marcature. Non riportiamo dati normativi che il produttore non dichiara. Avvertenze d'uso dal manuale: serrare le viti originali al valore OEM di 20 N·m, presentare il pezzo prima di stringere e ricontrollare periodicamente il serraggio.

How does it work, in detail?

FAQs

For more information, please see our FAQ.

Does it replace the original luggage rack, or is it added to it?

It replaces it. Remove the original screws, take off the standard luggage rack, and install this one in its place. The original luggage rack remains intact and can be reinstalled at any time.

What screws are needed?

None: reuse the motorcycle's original ones, tightened to the OEM torque of 20 N·m. The package contains only the luggage rack, and it is the only item in the range that can be installed without adding a bolt.

How long does it take to assemble it?

Three steps, and that's all: unscrew, replace, and retighten to the specified torque. It's by far the simplest installation among the luggage racks in the range; others require as many as twenty steps and removing the tail section.

What does “scorrevole” mean?

That the mounting plate is designed to adjust the top case's position forward and backward, rather than having a mount in a fixed position. On a loaded motorcycle, shifting the top case's weight by a few centimeters changes how the rear end behaves.

Will it fit my motorcycle?

It is specified for the BMW R 1300 GS from 2023 onward. The R 1300 GS Adventure has a different tail and its own code: if you have the Adventure, contact us and we’ll point you to the correct one.

Can I mount any top case on it?

The manual states compatibility with the PIKE TRACKER, TIBET, and CONQUEROR systems. For top cases from other brands, compatibility depends on the hole spacing: contact us with the model, and we’ll check before you place your order.

What material is it made of?

The JST131WC code manual does not specify the material, so we do not report it. We prefer leaving the field blank rather than providing an unsourced value.
