BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS side cases - Endurrad®BMW R 1300 GS Side Cases - Endurrad®BMW R 1300 GS Side Cases - Endurrad®
-10%Consegna in 2-3 giorni lavorativi
74 or 90 L Capacity
6,2 / 6,5 kg Luggage weight
9 points Hook
R 1300 GS Motorcycle

Panoramica

In breve

Complete system

JP131B frames and a pair of panniers in a single order.

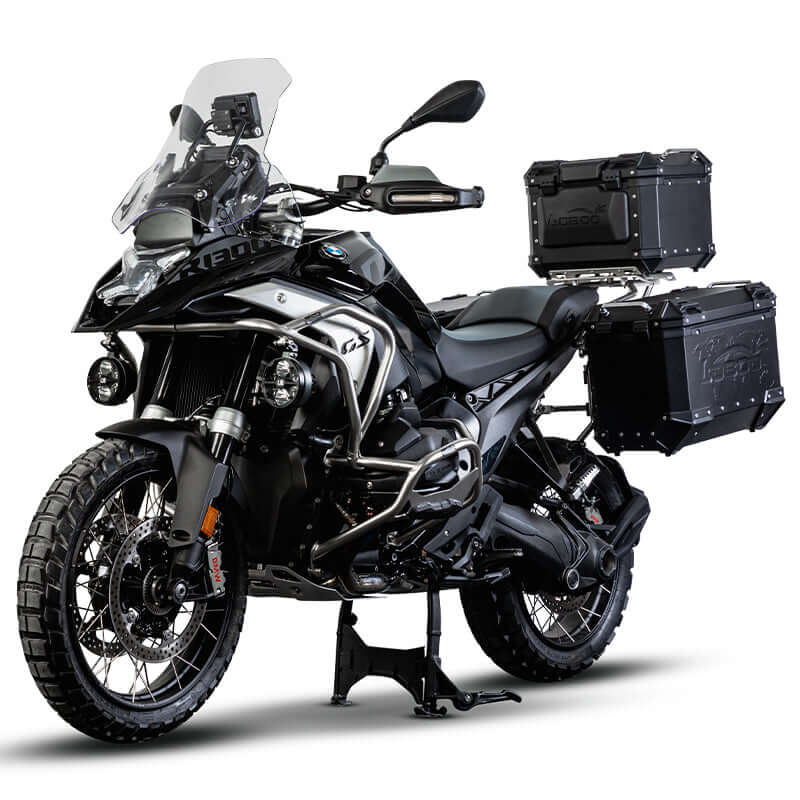

Symmetrical configurations

37+37 or 45+45, possible thanks to the geometry of the R 1300 GS.

Up to 90 litres

in the 45+45 version, for long trips or two-up riding.

High-strength aluminum

waterproof, with key locks, in black or silver.

Leggi la descrizione completa

Aluminum side case kit for the BMW R 1300 GS from 2023 onward: a pair of JP131B side racks and two identical PIKE TRACKER cases, available in 37+37 or 45+45 liters, in glossy silver or matte black. One order gets you the racks and cases already matched.

On the R 1300 GS, the exhaust leaves room for two cases of the same size: the weight remains balanced on both sides, and the load is distributed effortlessly.

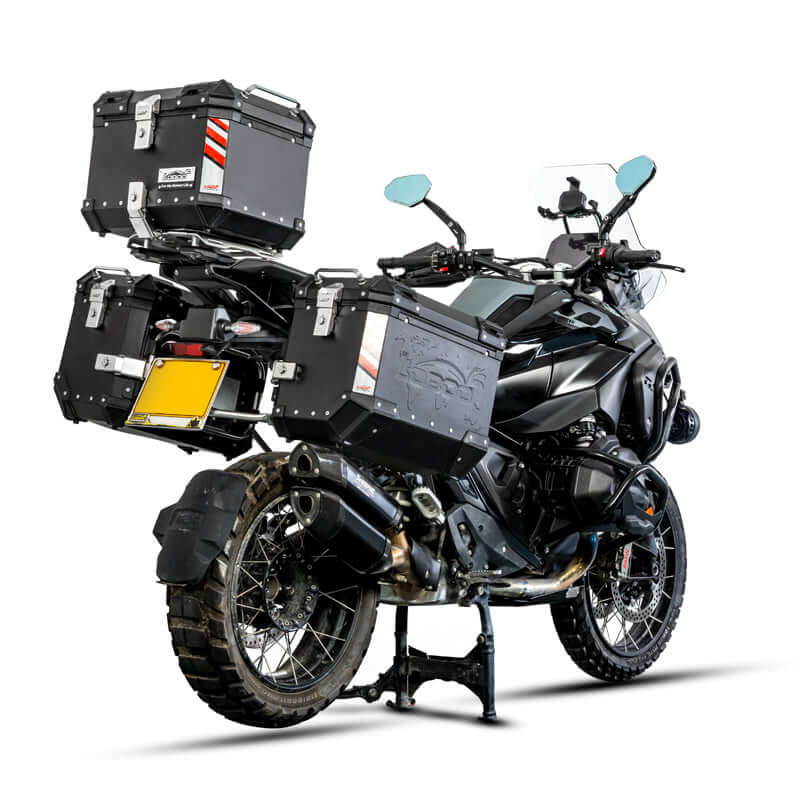

37 or 45 liters: what's the difference?

The length and height are the same; the width changes. Dimensions declared by LOBOO for one case:

  • P37: interior 490 × 230 × 362 mm, external dimensions with accessories 540 × 272 × 388 mm, 6.2 kg.
  • P45: interior 490 × 280 × 362 mm, external dimensions with accessories 540 × 321 × 388 mm, 6.5 kg.

The 37-liter cases keep the bike narrower, while the 45-liter cases provide 90 liters in total for long trips or two-up riding.

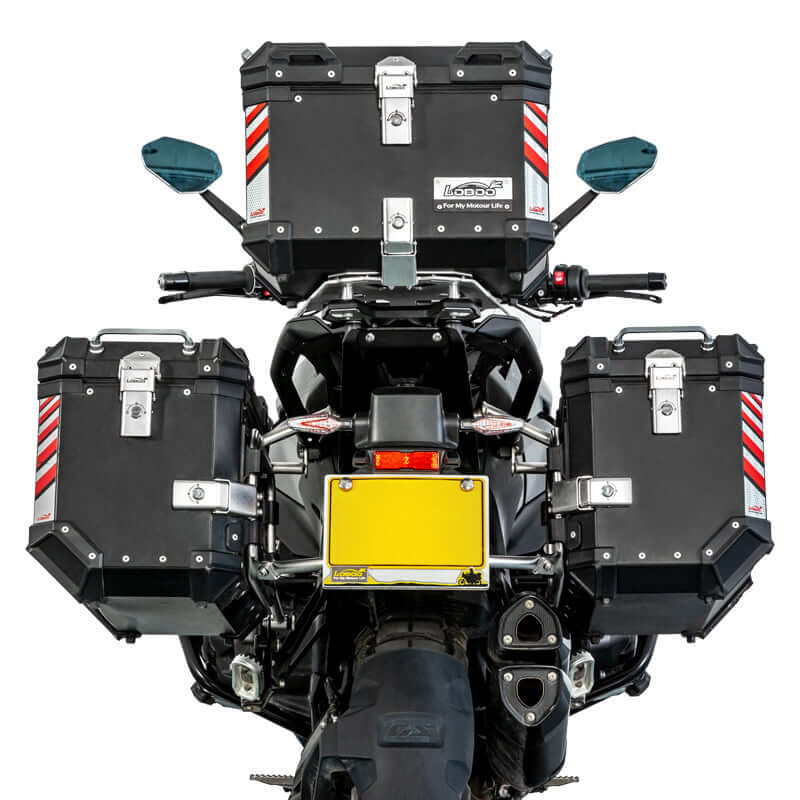

How the cases are made

  • High-strength aluminum alloy, designed to absorb impacts and protect the bike's subframe and its contents.
  • Riveted construction: damaged components can be replaced individually without replacing the case.
  • Corner protectors made of high-strength technical plastic, with large chamfers.
  • Water resistance provided by rivets, rubber seals, and structural adhesive: LOBOO also claims protection in heavy rain, without publishing an IP rating.
  • Flocked lining inside, a bag in the lid of the left case, and a mesh pocket in the right one.
  • Sensor light in each case: it turns on automatically, is magnetic, has four brightness levels and a flashing mode, is IP54-rated, and comes with a strap for use as a headlamp.

Nine-point mounting

The cases and racks connect at nine points, using the quick-release system covered by utility model patent ZL 2017 2 0624675.2. LOBOO states that the mounting does not develop play with use, keeps the cases in place in the event of a fall or slide, and allows them to detach in a severe frontal impact. The rack attachment points feature a shock-absorbing structure that protects the subframe.

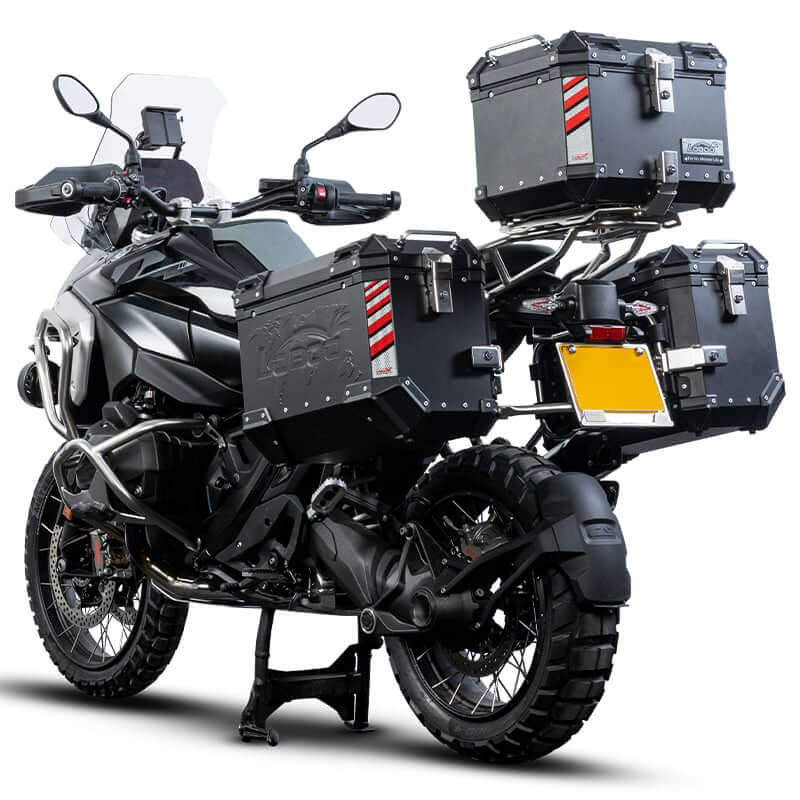

Does it fit the R 1300 GS Adventure?

No. This kit uses the JP131B racks, designed for the standard R 1300 GS. For the Adventure, there is the side case kit for the R 1300 GS Adventure, with JP151B racks.

Rack installation

The JP131B manual contains sixteen illustrated steps, with no drilling required: remove the seat, replace the passenger footpeg brackets with those supplied in the kit, secure the racks, and finish by installing the crossbar behind the license plate. Torque settings: 12 N·m for the M6 bolts and 20 N·m for the M8 bolts, using the included threadlocker. With the short exhaust, the CPQ131 deflector is also required and is sold separately.

Top case and three-case system

The top case is not included. To install one, LOBOO offers the top case plate for the original luggage rack, the reinforced luggage rack, or the sliding upper luggage rack, which accommodate the PIKE TRACKER aluminum top cases.

If you already have the racks, the cases alone are available on the PIKE TRACKER aluminum cases page. The same JP131B racks also accept the CONQUEROR, WANDERER, and ALPS inflatable bags. LOBOO does not specify a maximum load per case; the limit stated by BMW for the motorcycle applies.

Nella confezione

  • ✅ The complete, original, and new LOBOO kit, in manufacturer's packaging.
  • 📦 Included: the pair of JP131B side frames, the pair of PIKE TRACKER aluminum panniers in the chosen symmetrical configuration (37+37 or 45+45 liters), locks with keys, and mounting hardware.
  • ⚠️ Not included: top case. Top case and rear plate are purchased separately.
  • 🔒 Closed system: LOBOO panniers can only be mounted on LOBOO frames. By purchasing the kit, you already have the correct combination, without adapters.
  • 🏍️ Kit for the standard R 1300 GS, with JP131B frames. A dedicated kit for the R 1300 GS Adventure is available on a separate page.
  • 🔥 With a short exhaust, the CPQ131 deflector is required, sold separately.
  • 🚚 Tracked shipping throughout Italy, with product inspection before departure.
  • 🛡️ 24-month legal warranty for the consumer, in accordance with current regulations.
  • 💳 Payment also in installments with the services available at checkout.
  • 🔧 Observe the indicated tightening torques and recheck the fastenings after the first few kilometers, especially with loaded panniers.
AluminumMaterial
BLACK or SILVERColors

JP131B + P37 or P45 · BMW R 1300 GS from 2023 · 74 or 90 L · 9-point attachment

How does it work, in detail?

Luggage, frames, measurements, and assembly, step by step.

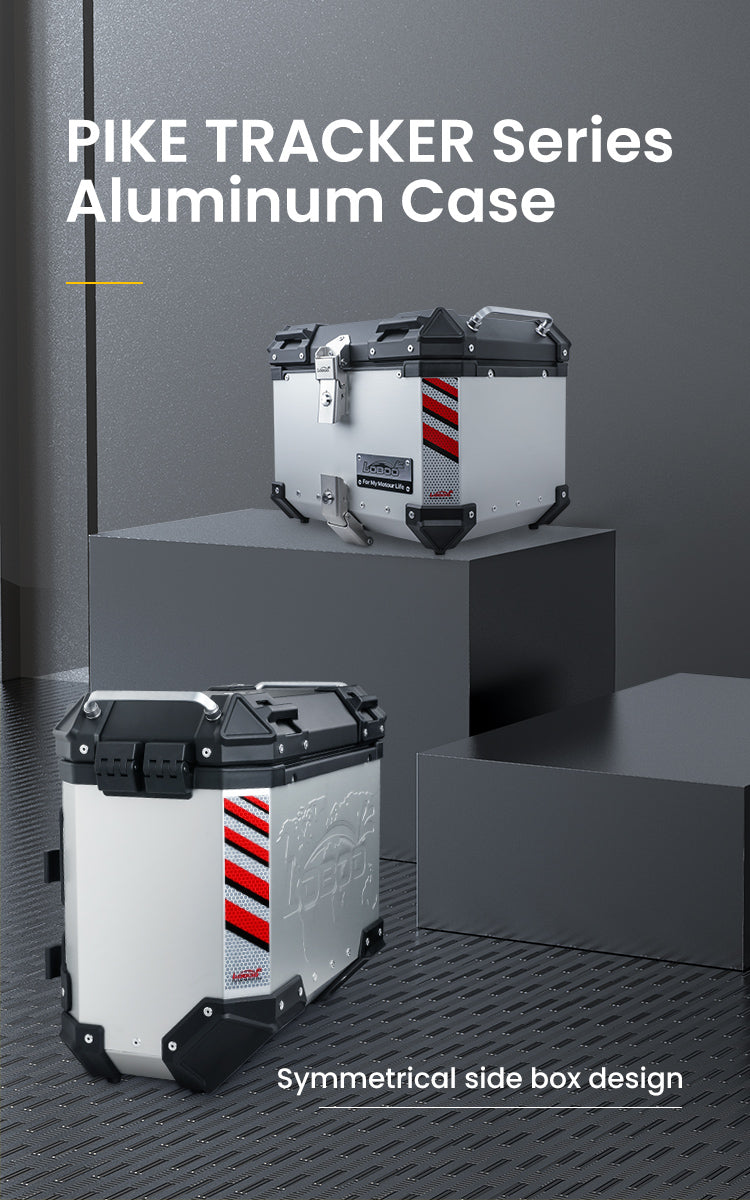

Two identical suitcases
01

Two identical suitcases

On the R 1300 GS, the PIKE TRACKER panniers are symmetrical: the same size on the left and right, 37+37 or 45+45 liters. The weight is distributed evenly, keeping the motorcycle balanced.

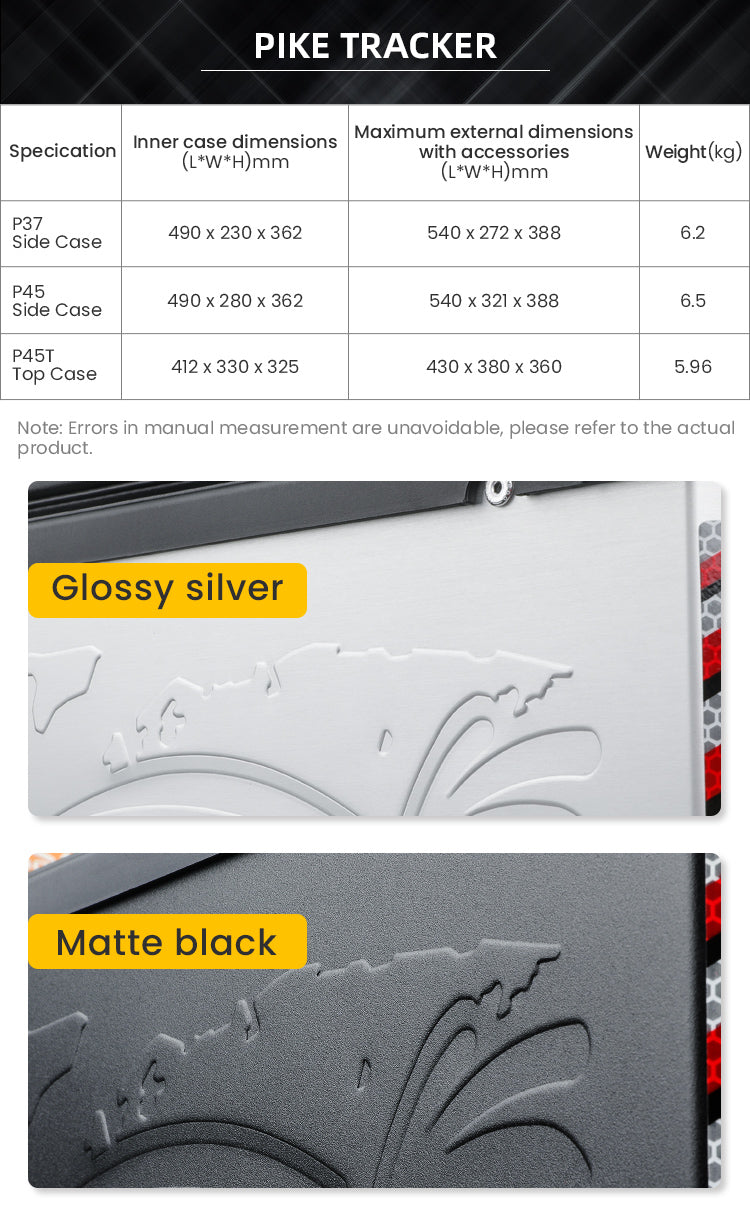

Declared measurements and weights
02

Declared measurements and weights

P37: internal 490 × 230 × 362 mm, overall 540 × 272 × 388 mm, 6.2 kg. P45: internal 490 × 280 × 362 mm, overall 540 × 321 × 388 mm, 6.5 kg. Finishes: glossy silver or matte black. LOBOO notes that the measurements are taken by hand and may have small tolerances.

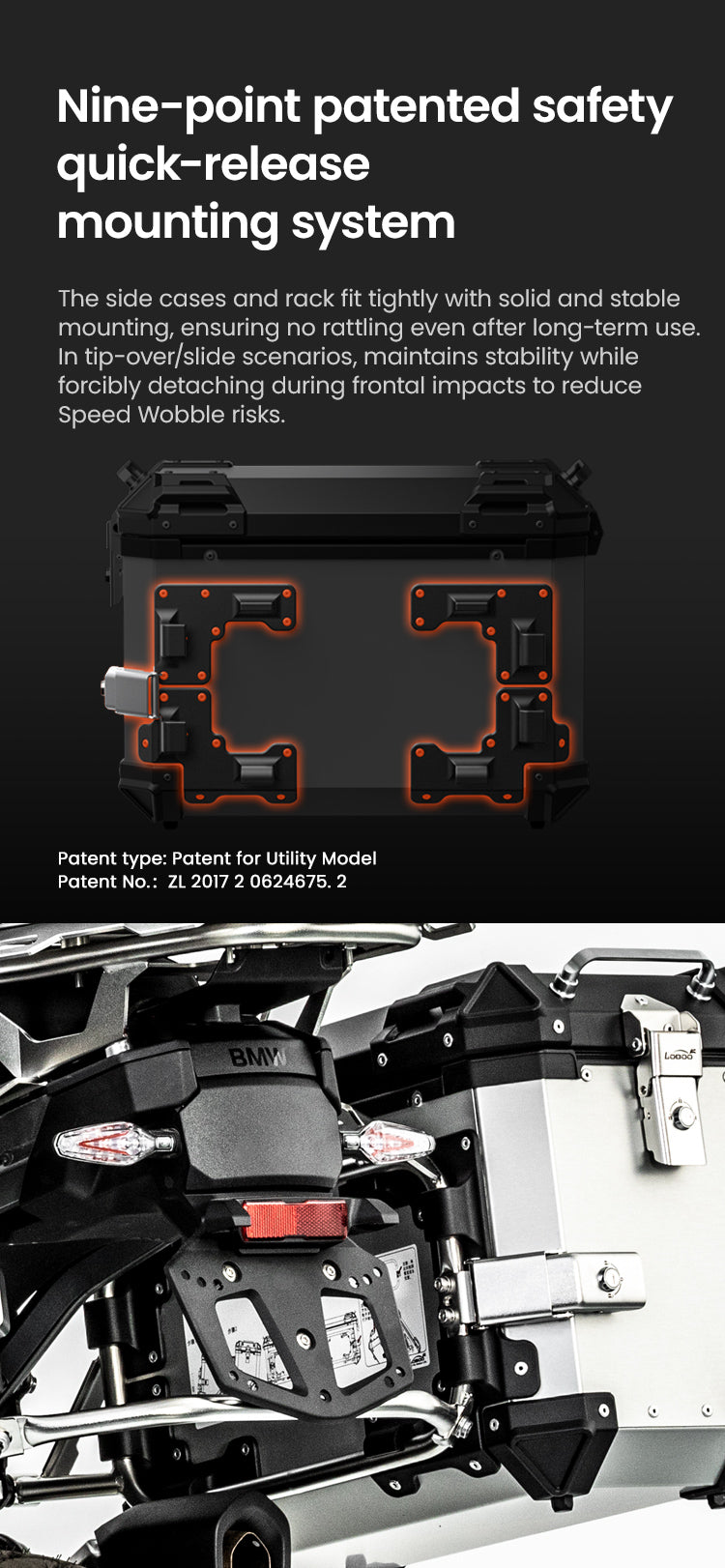

Patented nine-point attachment
03

Patented nine-point attachment

Panniers and frames connect at nine points, without vibrations even after prolonged use. LOBOO states that in a fall or slide, the panniers remain in place, while in a strong frontal impact they detach. Utility model patent ZL 2017 2 0624675.2.

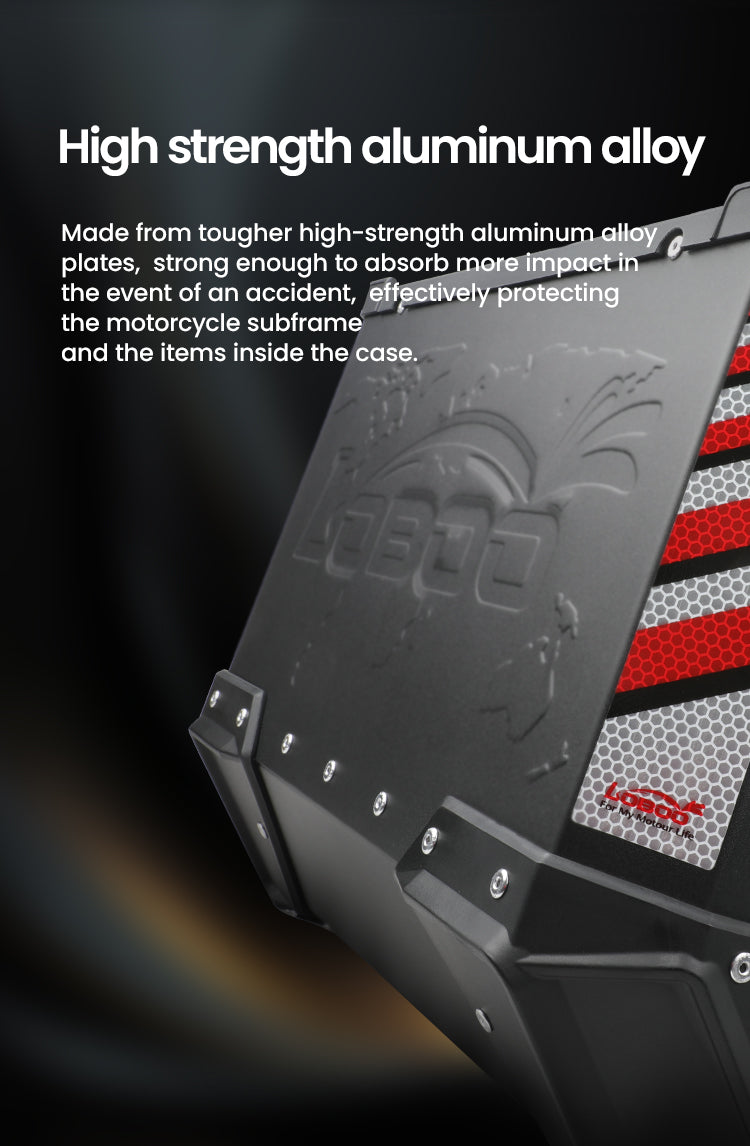

High-strength aluminum
04

High-strength aluminum

The suitcases are made of high-strength aluminum alloy sheet metal: LOBOO states that they absorb impacts better, protecting the motorcycle subframe and its contents.

Replaceable components
05

Replaceable components

The shell is riveted: if a component is damaged, it can be replaced on its own without replacing the suitcase, keeping repair costs low.

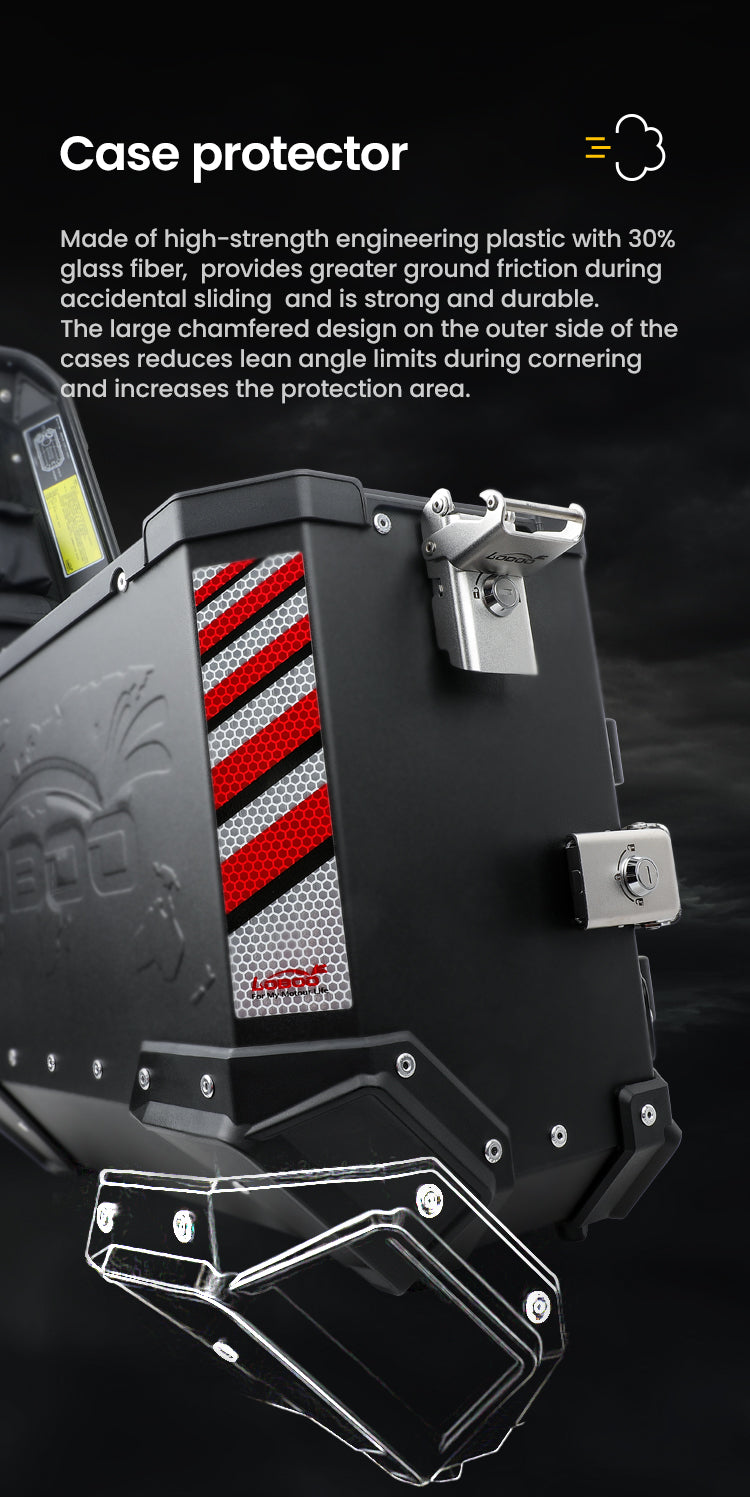

Corner bumpers
06

Corner bumpers

High-strength technical plastic on the lower edges, with large chamfers: according to LOBOO, when sliding, it increases friction with the ground, while the chamfers improve cornering limits.

Held up in the rain
07

Held up in the rain

German rivets, rubber gaskets, and Swiss structural adhesive seal the housing: LOBOO claims it remains watertight even in heavy rain, without publishing an IP rating.

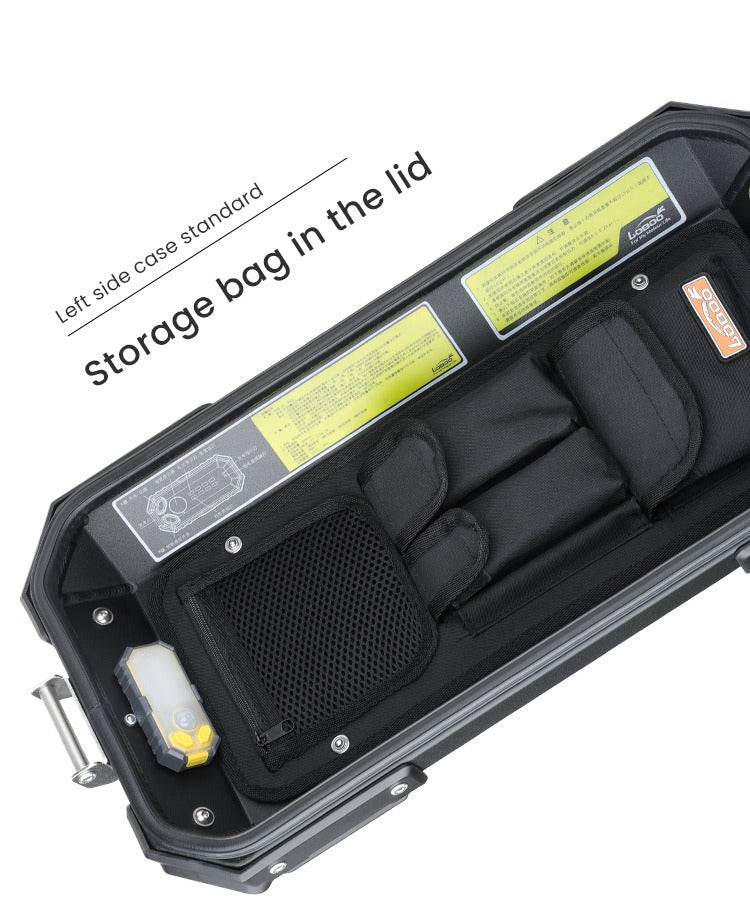

Pocket in the left lid
08

Pocket in the left lid

The left suitcase comes standard with a storage bag attached to the lid, featuring pockets and a mesh compartment: documents and small items stay organized and within easy reach.

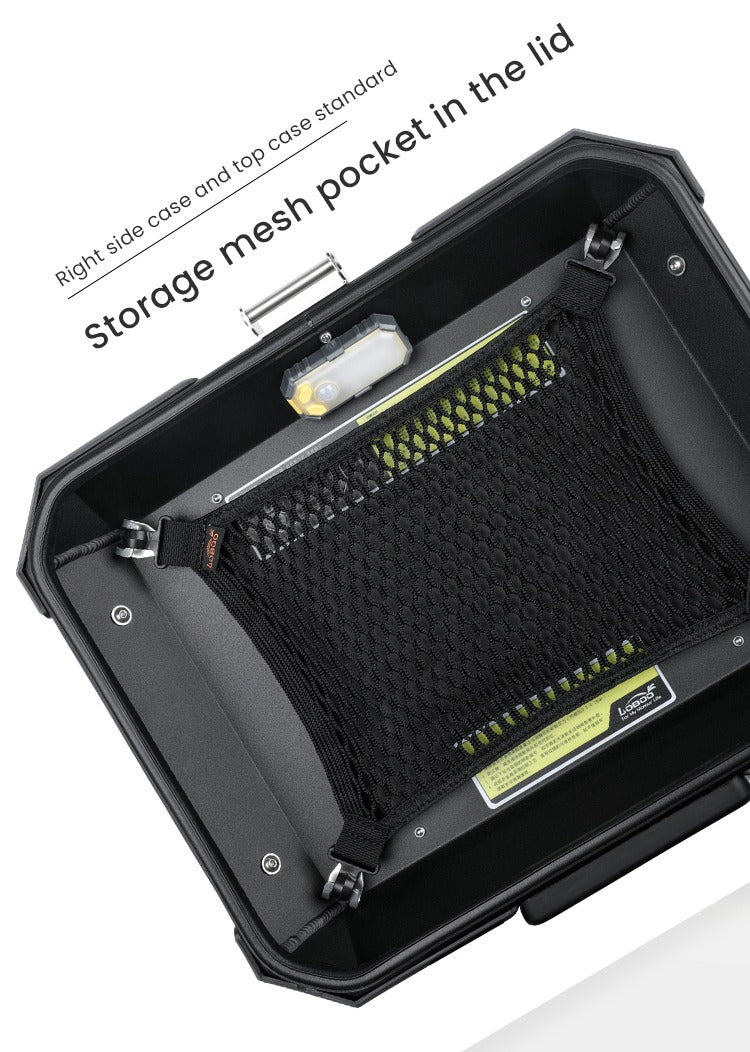

Mesh in the right cover
09

Mesh in the right cover

Like the top case, the right pannier comes standard with an elasticated net in the lid for gloves, rain gear, and items you need to grab quickly.

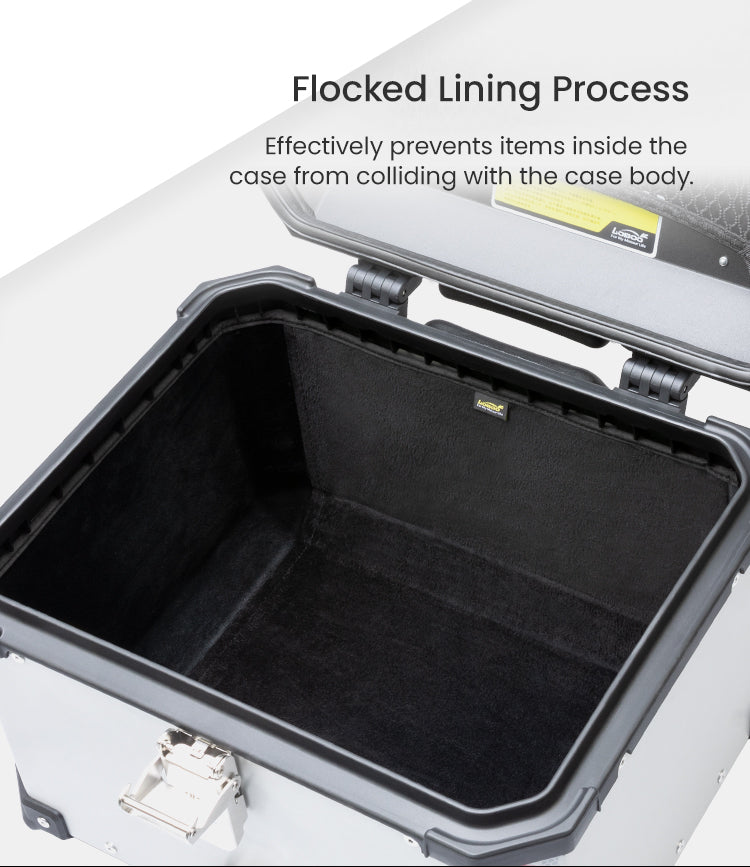

Flock-lined cover
10

Flock-lined cover

The inside is lined with flocked fabric that prevents objects from knocking against the shell.

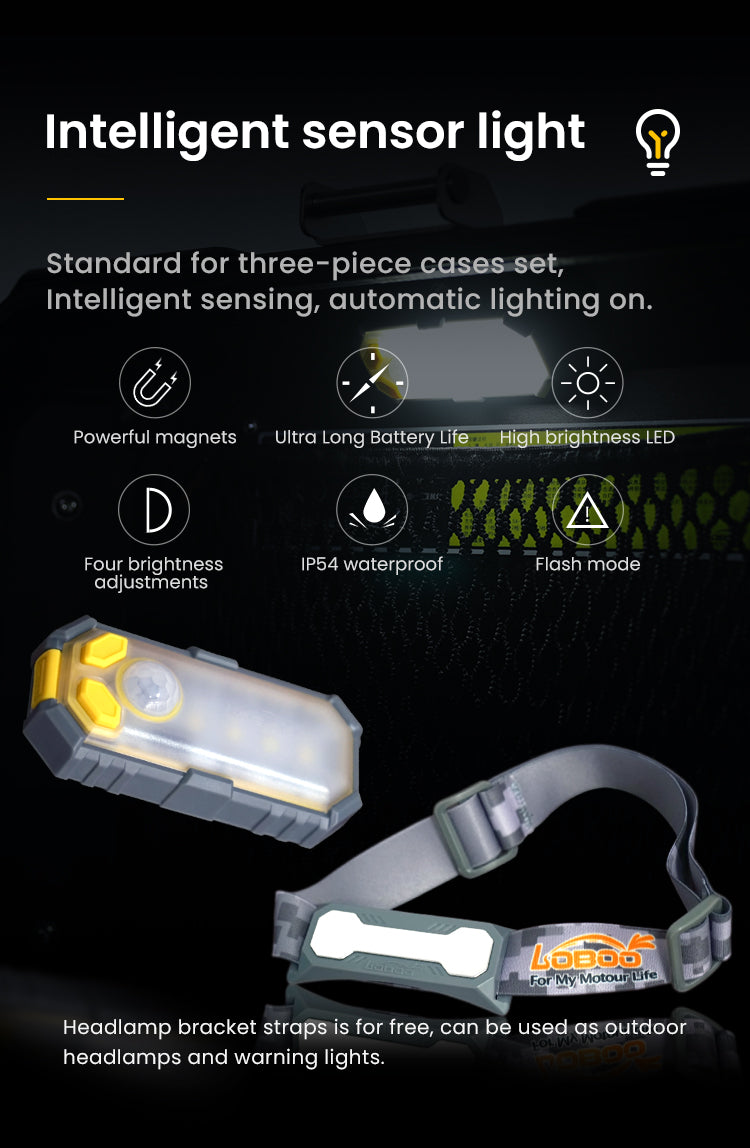

Sensor light in every suitcase
11

Sensor light in every suitcase

It turns on automatically when opened, attaches with magnets, features high-brightness LEDs with four brightness levels and a flashing mode, has a long-lasting battery, and is IP54-rated. The headband for using it as a headlamp is included.

A light to take away
12

A light to take away

Nighttime maintenance, hiking, camping, fishing: the light detaches from the lid and becomes a lamp you can use anywhere.

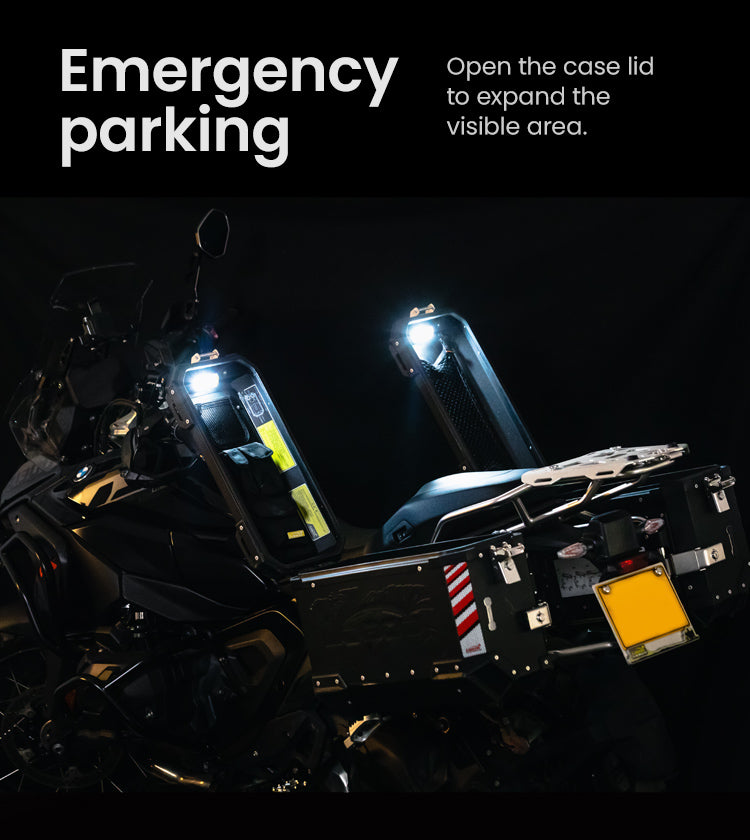

Emergency stop in the dark
13

Emergency stop in the dark

When you open the lid, the sensor light illuminates the area around the motorcycle: useful for an unexpected stop or nighttime repair.

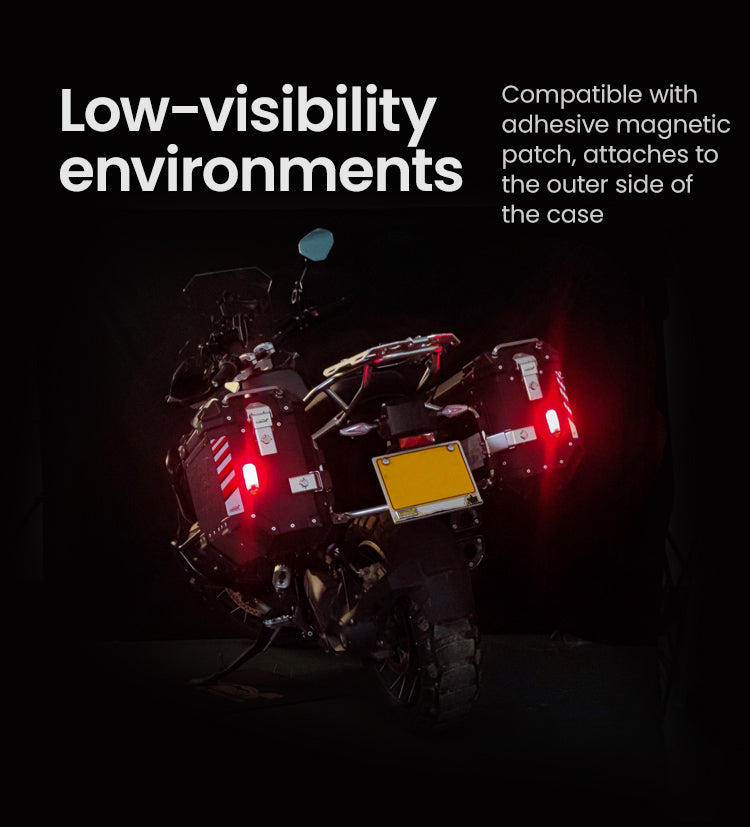

Visible when the light is out
14

Visible when the light is out

LOBOO declares the light compatible with an adhesive magnetic plate to be attached to the outside of the luggage: this makes the stationary motorcycle visible even in low visibility. The plate is not included in the equipment.

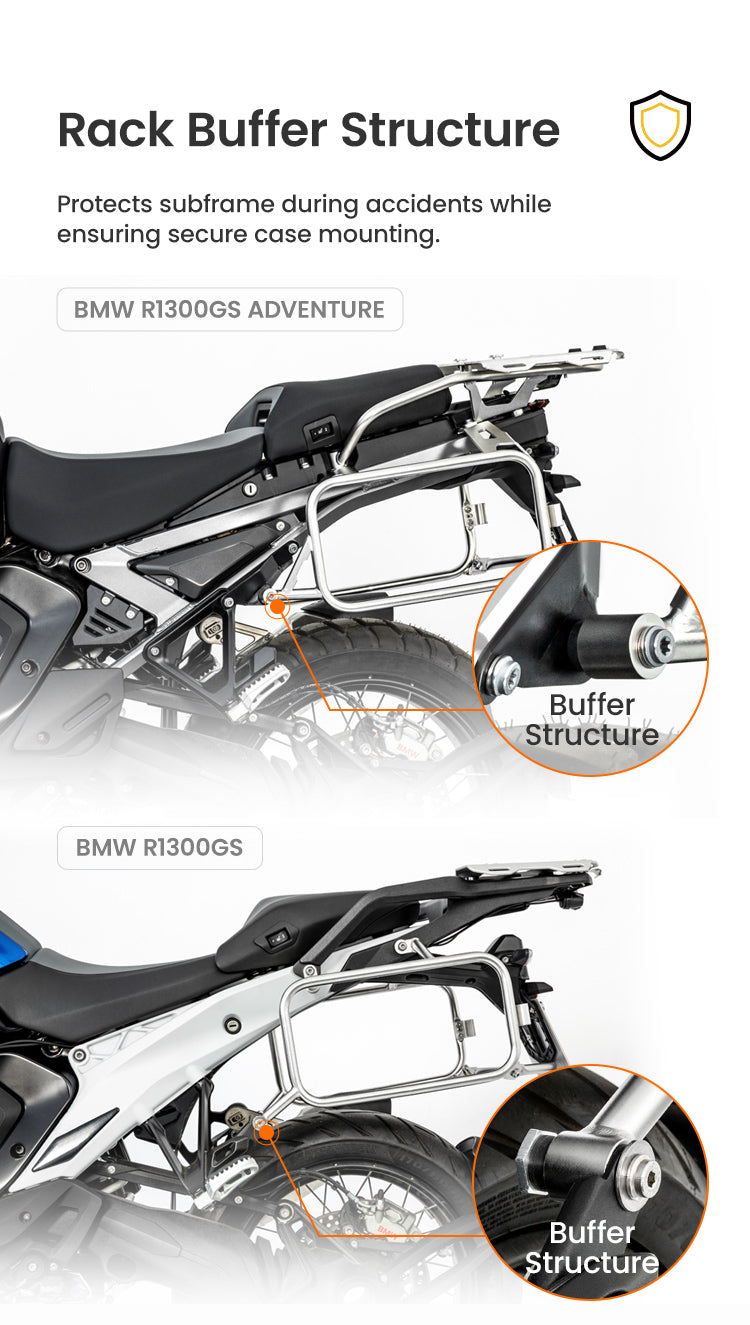

Shock-absorbing structure at the attachment points
15

Shock-absorbing structure at the attachment points

LOBOO states that the frame mounting points feature a shock-absorbing structure: it protects the motorcycle subframe in the event of a fall and keeps the luggage firmly attached.

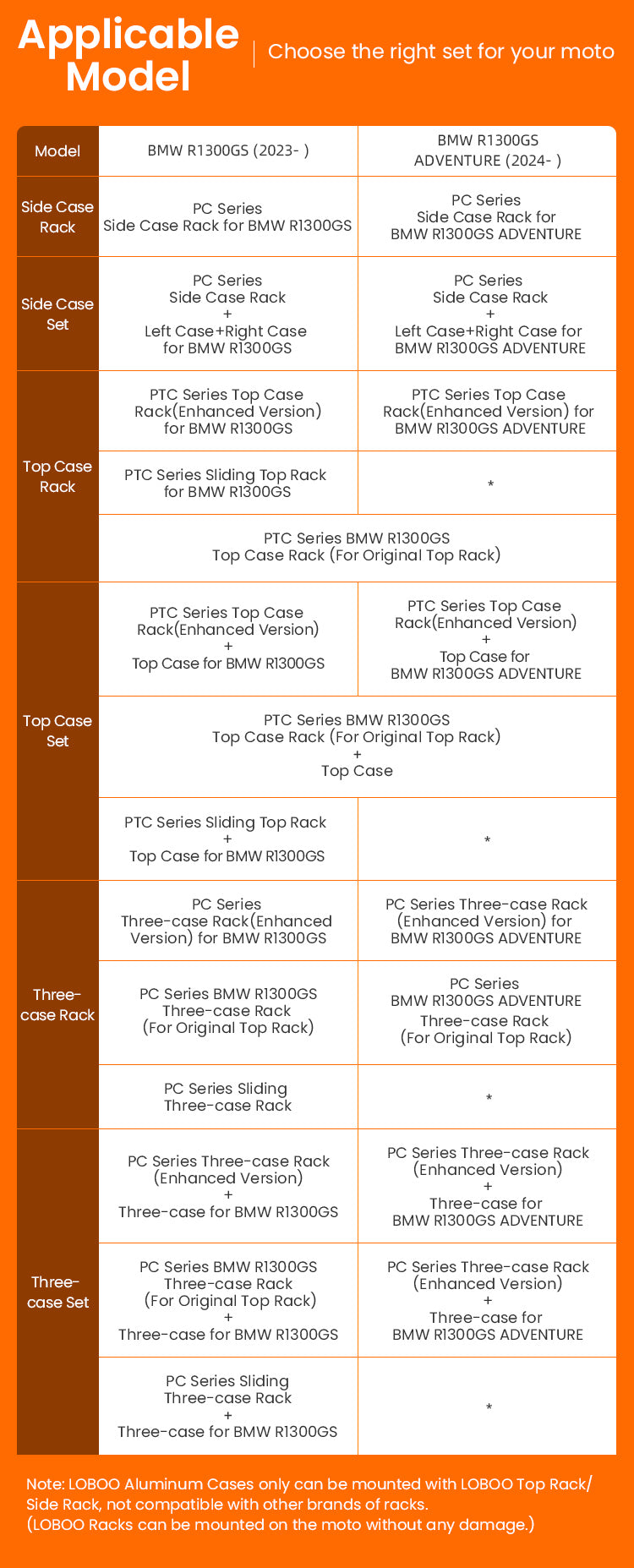

Which code for which motorcycle
16

Which code for which motorcycle

In the LOBOO table, the R 1300 GS and the R 1300 GS Adventure have different side frames. The sliding luggage rack is available only for the GS, while the plate for the original luggage rack fits both. LOBOO aluminum cases can only be mounted on LOBOO frames, without damaging the motorcycle.

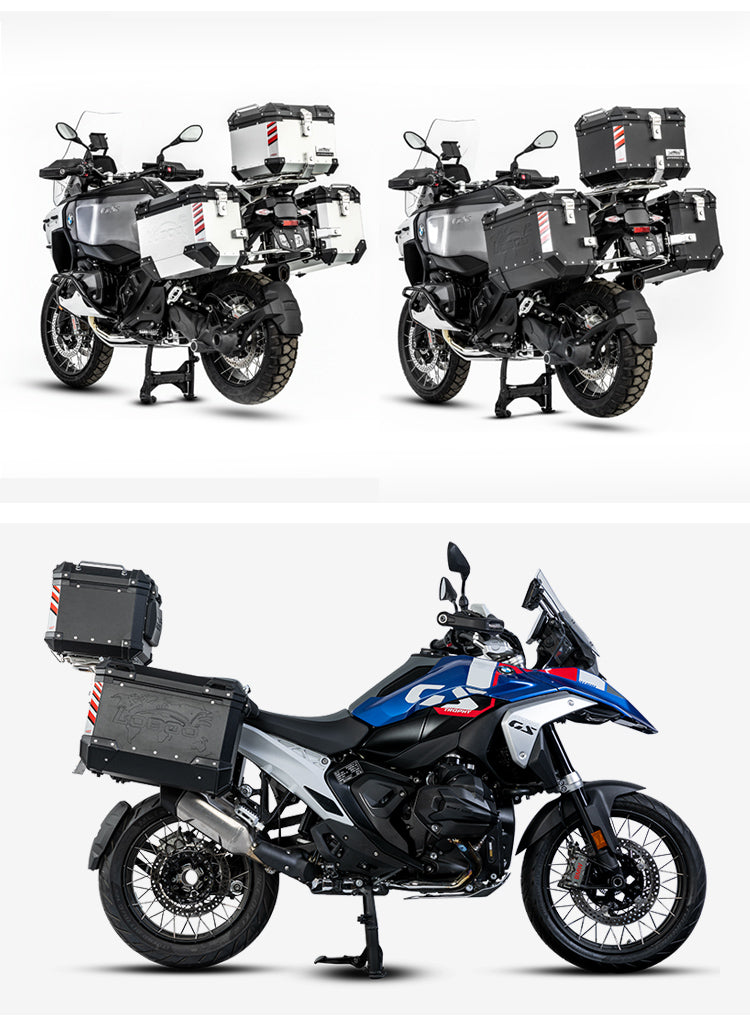

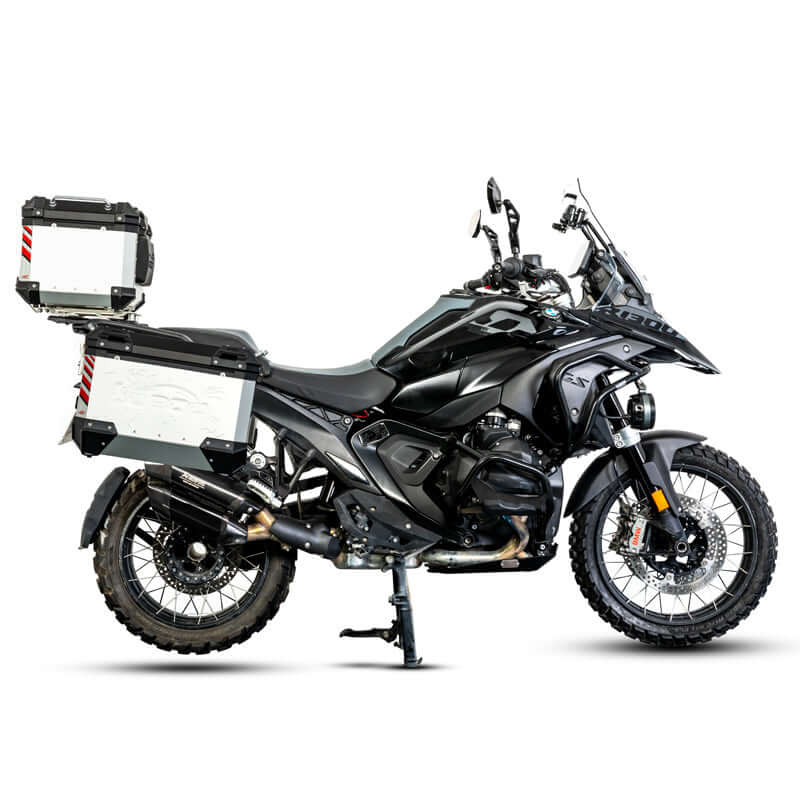

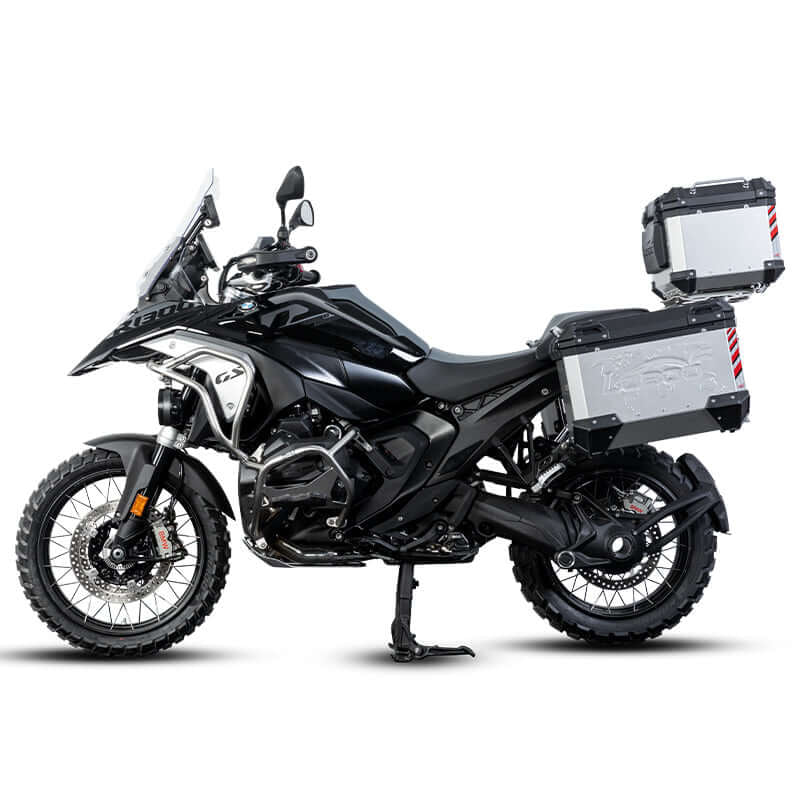

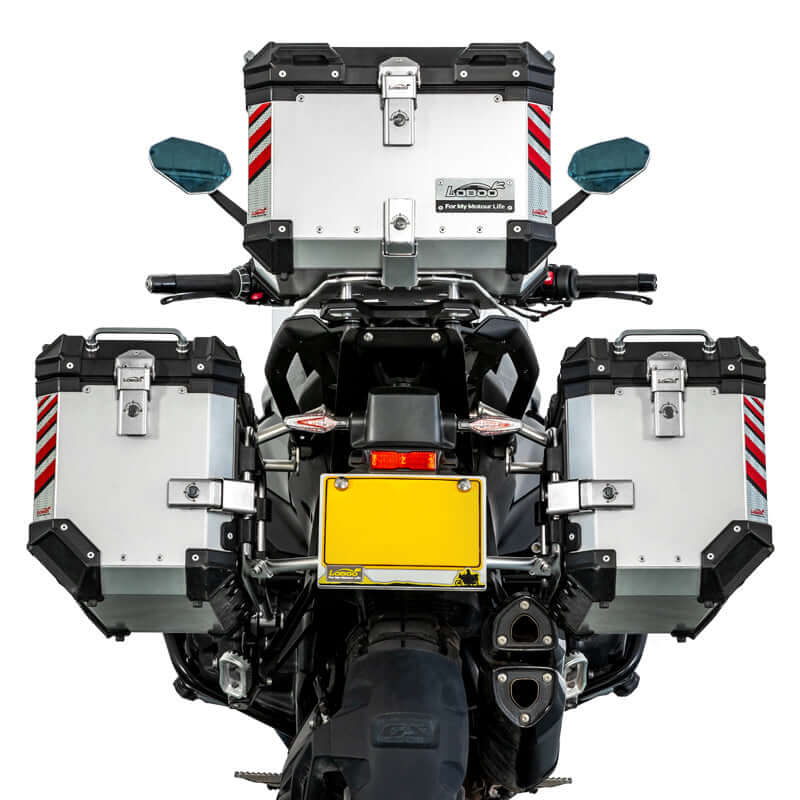

The customized motorcycle
17

The customized motorcycle

The R 1300 GS with the complete PIKE TRACKER system, side cases, and top case, in both finishes. The top case and its mount are sold separately.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Kit

Content
JP131B frames + 2 suitcases Pair of PIKE TRACKER suitcases in the selected configuration
Motorcycle
BMW R 1300 GS Since 2023. The Adventure uses JP151B frames
Configurations
37+37 or 45+45 L Identical suitcases on both sides
Finishes
Glossy silver or matte black

P37 suitcase

Internal dimensions
490 × 230 × 362 mm
External dimensions
540 × 272 × 388 mm With accessories
Weight
6,2 kg Single suitcase, empty

P45 suitcase

Internal dimensions
490 × 280 × 362 mm
External dimensions
540 × 321 × 388 mm With accessories
Weight
6,5 kg Single suitcase, empty

Construction

Material
High-strength aluminum alloy
Structure
Riveted Individually replaceable components
Corner bumpers
High-strength engineering plastic With large chamfers
Waterproof
Rivets, gaskets, structural adhesive IP rating not specified

Equipment

Internal
Flock-lined cover
Lid
Pocket on the left, mesh on the right
Sensor light
One per suitcase Magnetic, IP54, 4 levels, flashing, front band
Lock
Key mechanism

Hook

System
9 points, quick release Patent ZL 2017 2 0624675.2

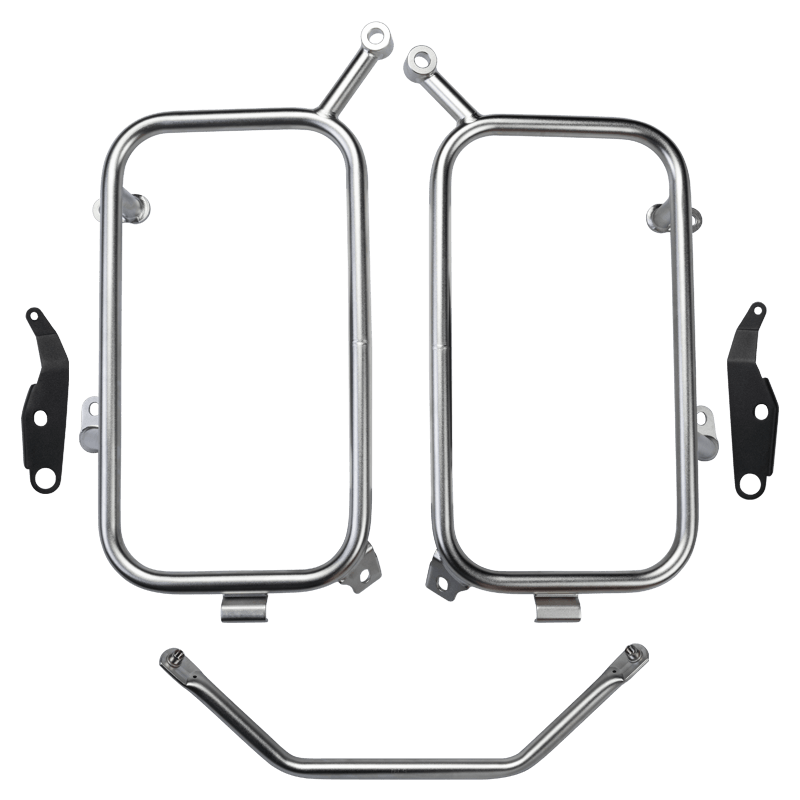

Frames

JP131B
22 items Shock-absorbing structure at the attachment points
Torque pairs
12 and 20 N·m 12 M6 screws, 20 M8 screws, threadlocker included

Load

Maximum load
Not declared by LOBOO The one specified by BMW is valid

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, please contact us before purchasing.

Manuale d'uso JP131B + P37L/P45L + P37R/P45RDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Telai: sedici passaggi fotografati, senza forature. Si smontano sella e staffe delle pedane passeggero, che vengono sostituite da quelle del kit.
  2. Coppie di serraggio: 12 N·m sulle viti M6, 20 N·m sulle M8, con il frenafiletti incluso.
  3. Sequenza: non serrare a fondo finché tutti i pezzi non sono in posizione; poi frenafiletti e coppia.
  4. Valigie: si agganciano ai telai con il sistema a nove punti e si chiudono a chiave.
  5. Dopo il montaggio: ricontrolla periodicamente le viti di fissaggio, come chiede il produttore.
Istruzioni complete e note di sicurezza
  • Telai: sedici passaggi fotografati, senza forature. Si smontano sella e staffe delle pedane passeggero, che vengono sostituite da quelle del kit.
  • Coppie di serraggio: 12 N·m sulle viti M6, 20 N·m sulle M8, con il frenafiletti incluso.
  • Sequenza: non serrare a fondo finché tutti i pezzi non sono in posizione; poi frenafiletti e coppia.
  • Valigie: si agganciano ai telai con il sistema a nove punti e si chiudono a chiave.
  • Dopo il montaggio: ricontrolla periodicamente le viti di fissaggio, come chiede il produttore.

Assembly and Notes

  • The kit includes side racks and a pair of panniers: the top case and its plate are not included.
  • Please respect the maximum load per side rack indicated by BMW in the manual: with the 45+45 configuration, the limit is reached more easily.
  • Recheck the tightening after the first 100-200 km.
  • The load must not cover the license plate and tail lights or extend beyond the limits of the Highway Code.

How to choose the configuration:

  • 37+37:Keeps the bike narrower, enough for multi-day trips.
  • 45+45:90 liters total for long trips or two-up riding, but widens the bike.

Please note the version:This kit uses JP131B frames, dedicated to the standard R 1300 GS. For the R 1300 GS Adventure, the kit with JP151B frames is required, available on a separate page.

If you prefer semi-rigid bags, the same frames accept the WANDERER BCB4040TBK with 40+40 liters capacity.

Per moto Bmw

BMW
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Recensioni

5,0
★★★★★1 recensioni
5★1
4★0
3★0
2★0
1★0
Arrigo Clauser16/03/2025
★★★★★

Tris valigie per bmw gs 1300

ottimo prodotto ad un prezzo eccezionale

Domande frequenti

Le domande che ci fate più spesso

What does the kit include?

The JP131B side frames for the R 1300 GS, with crossbar, brackets, hardware, and threadlocker, and the pair of PIKE TRACKER cases in the selected configuration, 37+37 or 45+45 liters. Each case has its own sensor light. The top case is not included.

What’s the difference between the 37- and 45-liter versions?

Length and height are the same; the width differs. The P37 measures 490 × 230 × 362 mm inside and 540 × 272 × 388 mm outside; the P45 measures 490 × 280 × 362 mm inside and 540 × 321 × 388 mm outside. They weigh 6.2 and 6.5 kg, respectively.

Why are the suitcases the same on both sides?

On the R 1300 GS, the exhaust leaves room for two panniers of the same size. The weight remains balanced, and you don't have to remember which side to put the heavy luggage on.

Is it compatible with the R 1300 GS Adventure?

No. The kit uses the JP131B frames, designed for the standard R 1300 GS. For the Adventure, there is a kit with the JP151B frames on a separate page.

How much do the suitcases weigh?

LOBOO states 6.2 kg for the P37 and 6.5 kg for the P45, unladen. The weight of the JP131B frames is not specified.

How much weight can I load?

LOBOO does not declare a maximum load for the PIKE TRACKER cases. The load specified by BMW for the motorcycle applies, including the rider, passenger, and luggage.
