What torque should the screws be tightened to?

The manual for this code specifies a single value: 18 N·m, for all three screw lengths listed in the parts list (M8×20, M8×25, and M8×40).It is different from the 20 N·m specified for the standard GS frames: it is worth checking the manual instead of relying on memory. A torque wrench is required and is not included.

Are fasteners and threadlocker included?

Yes. M8 × 20, M8 × 25, and M8 × 40 screws, washers, spacers, and threadlocker are included in the package, as listed in the manual.No tools are included in the package: a torque wrench is required to meet the specified 18 N·m.

How much weight can I load on each side?

LOBOO does not declare a maximum load for these frames, so we will not give you a number that does not appear in any official document.The reference to use is the side-case limit indicated by BMW in the owner's manual for the R 1300 GS Adventure, which also takes into account the motorcycle's total permitted load.

The manual mentions a rack for three suitcases: what is it?

The manual also refers, via a separate QR code, to the Three Case Rack: this is the support that adds the mounting point for the rear top case to the two side cases. It is a different item from this one, with its own code and manual.If you are interested in that configuration, write to us: we will check availability for your motorcycle before you place the order.

Is the assembly manual in Italian?

Yes. The LOBOO manual is published in eight languages, including Italian, with an illustrated, part-by-part bill of materials and a numbered installation view. The PDF can be downloaded from this page.

What is the shock-absorbing structure of the frames used for?

LOBOO describes it as a structure at the frame mounting points that protects the motorcycle's rear subframe in the event of a fall, keeping the luggage mounting secure. The manufacturer does not publish test results.

Can I add the top case too?

Yes. For the R 1300 GS Adventure, LOBOO offers the top case plate that mounts on the original luggage rack or the reinforced JP151WPRO rear luggage rack, each with its own page. With either one and the JP151B frames, you get the three-case system.

Is the installation reversible?

Yes. The manual does not require drilling: the original parts removed from the tail section are reinstalled at the end, and they can all be put back in place when you remove the frames.

BMW R 1300 GS Adventure Side Cases - Endurrad®

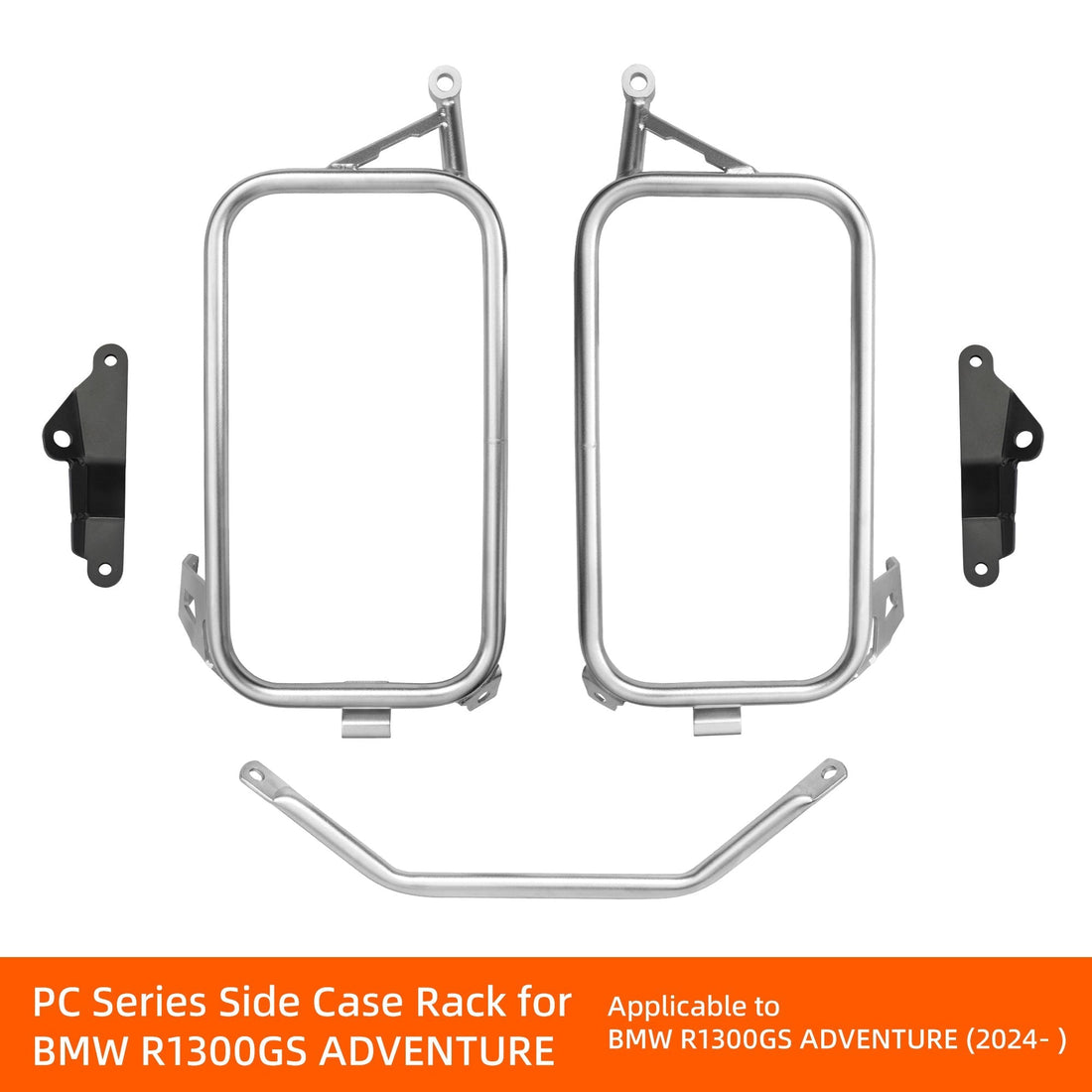

Telai valigie laterali LOBOO JP151B per BMW R 1300 GS Adventure, coppia completa

Telai laterali serie PC LOBOO per BMW R 1300 GS Adventure dal 2024

Struttura portaborse LOBOO installata su BMW R 1300 GS Adventure

Telai laterali e piastra top case LOBOO per BMW R 1300 GS Adventure

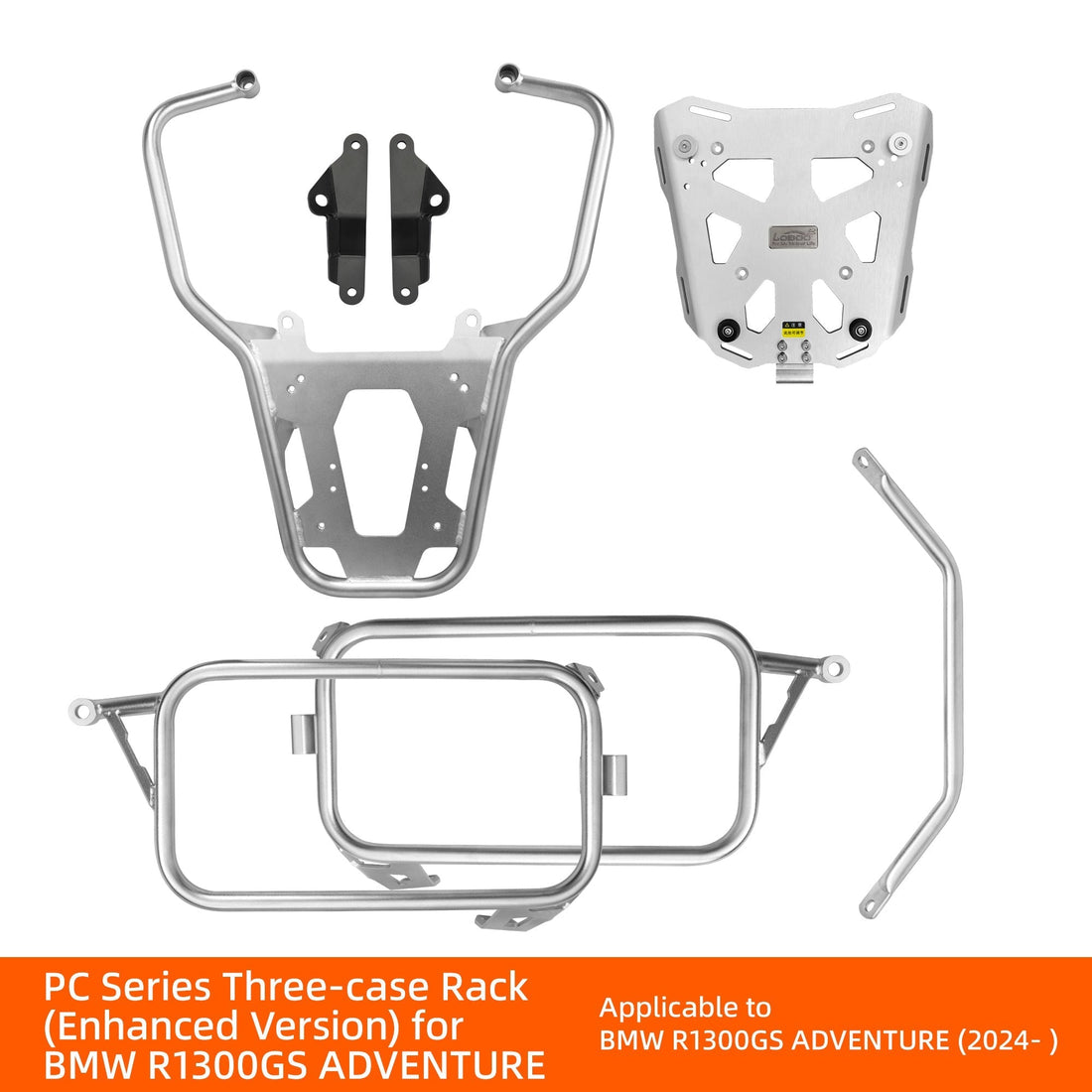

Sistema portapacchi tre valigie LOBOO per BMW R 1300 GS Adventure

Telai LOBOO per BMW R 1300 GS Adventure con portapacchi originale

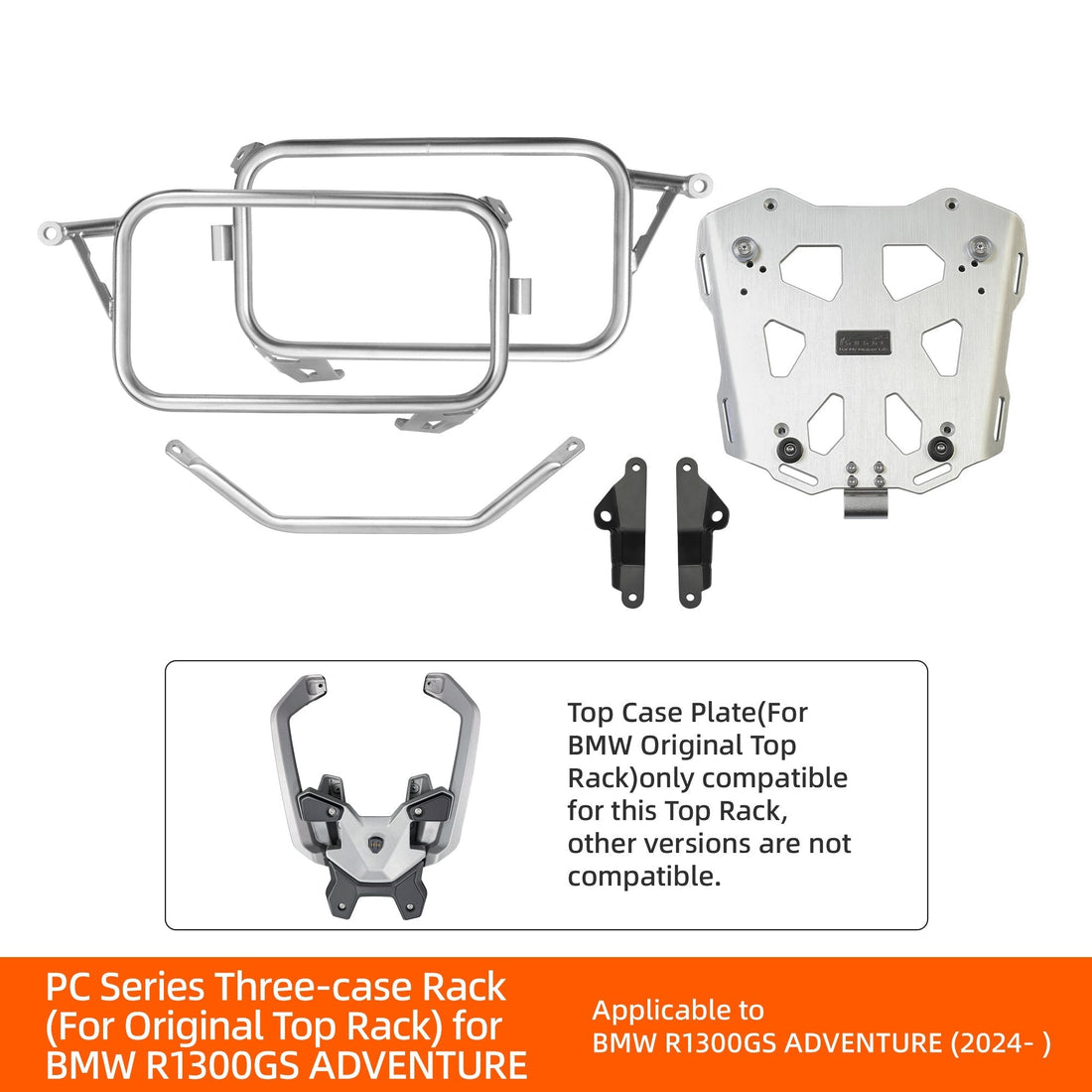

Kit portapacchi completo LOBOO per BMW R 1300 GS Adventure

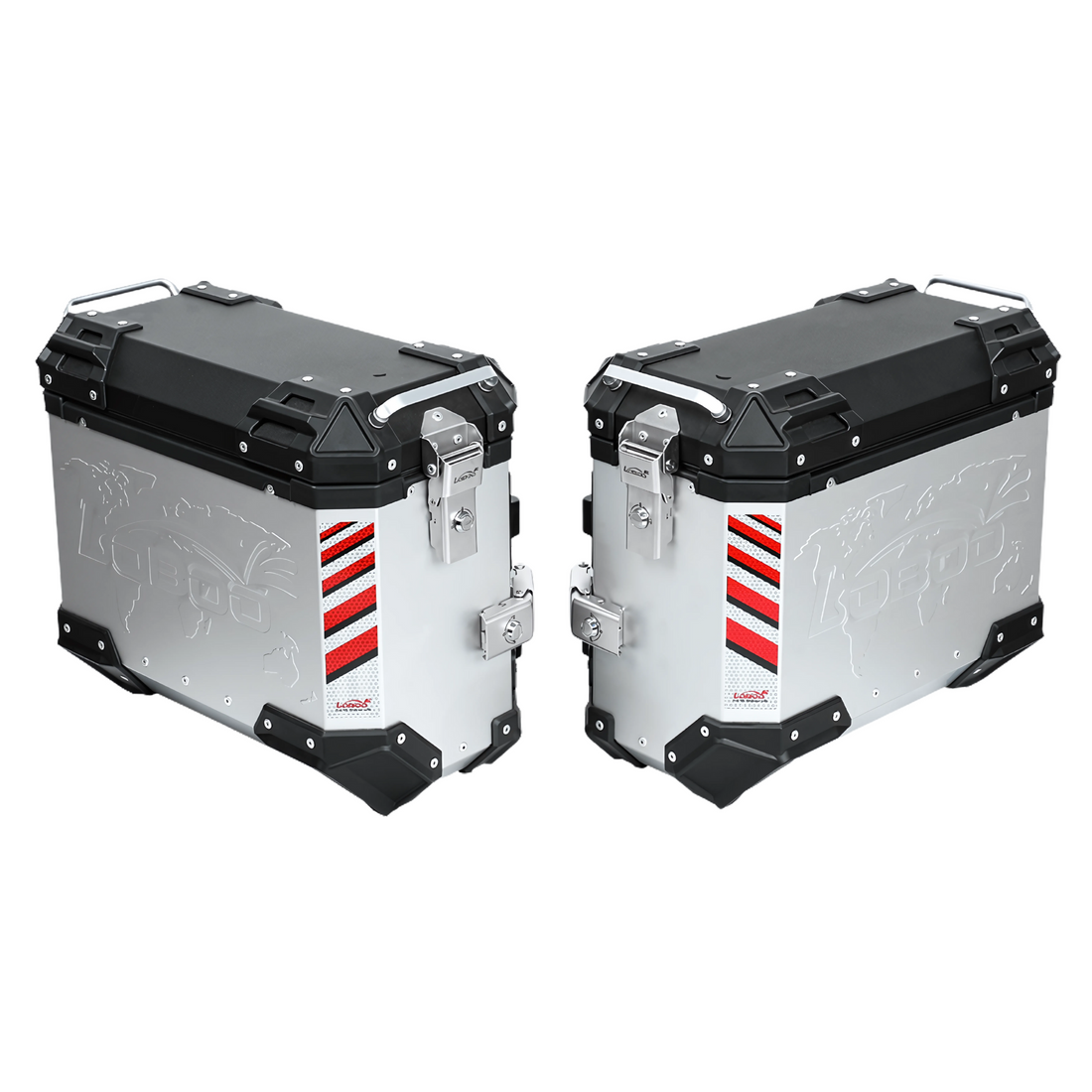

Coppia di valigie laterali LOBOO PIKE TRACKER argento da 37+37 litri, configurazione simmetrica

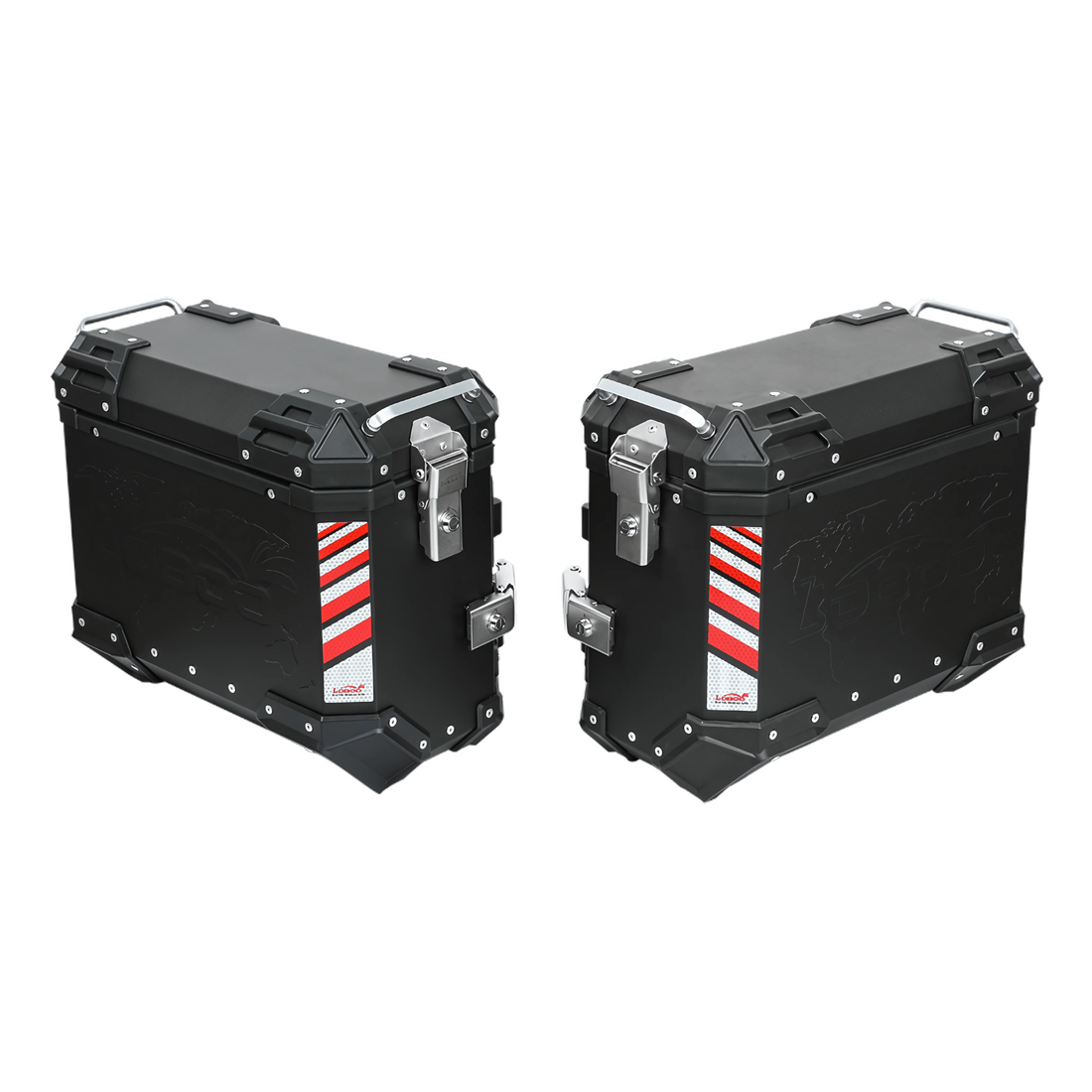

Coppia di valigie laterali LOBOO PIKE TRACKER nere da 37+37 litri, configurazione simmetrica

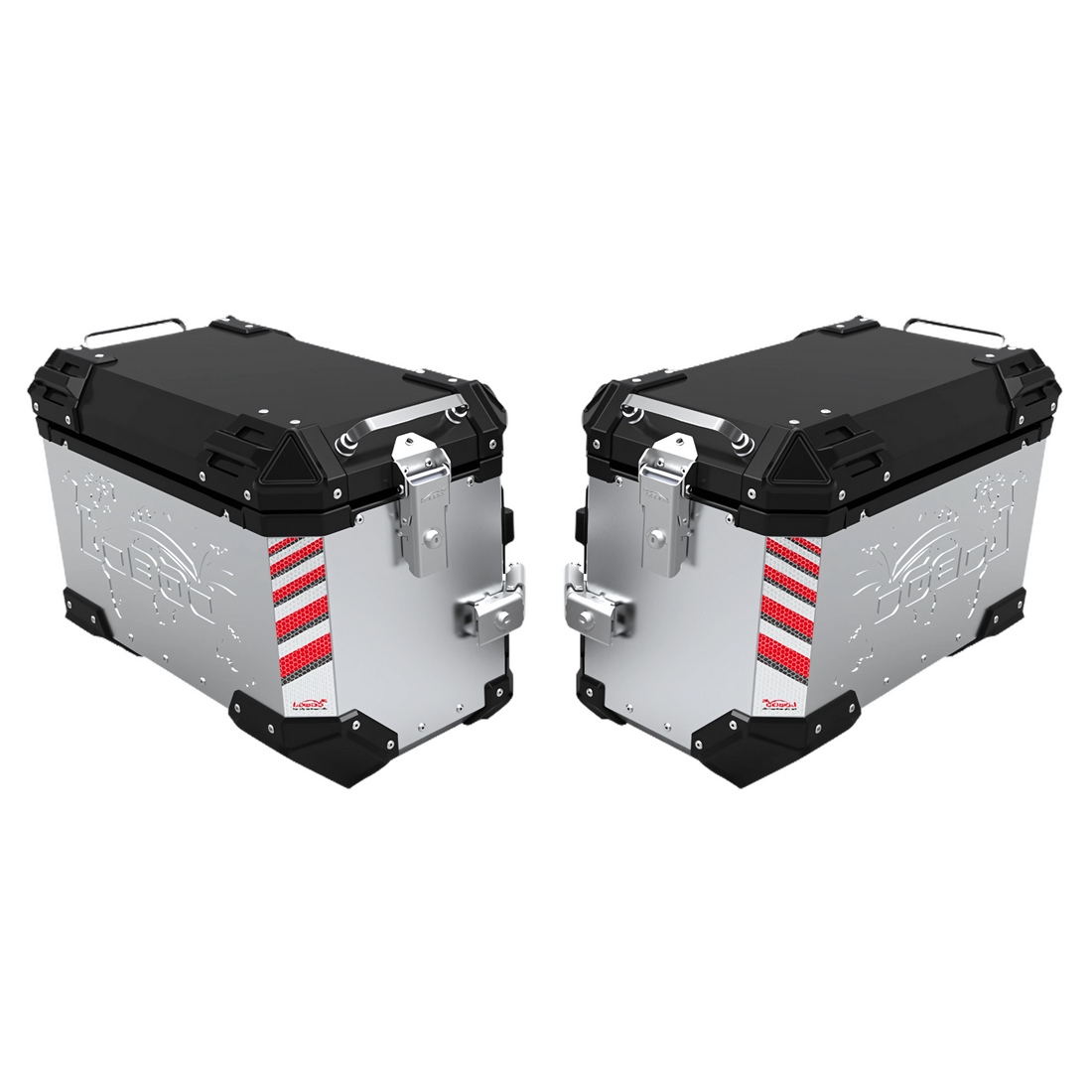

Coppia di valigie laterali LOBOO PIKE TRACKER argento da 45+45 litri, 90 litri complessivi

Coppia di valigie laterali LOBOO PIKE TRACKER nere da 45+45 litri, 90 litri complessivi

-10%Consegna in 2-3 giorni lavorativi

JP151B LOBOO code

R 1300 GS Adventure Motorcycle

Four Systems

17 Components

LOBOO ✓ Prodotto originale

Side case racks for BMW R 1300 GS Adventure from 2024 | for aluminum cases, semi-rigid cases, and ALPS bags

€329,00 ~~€365,00~~Risparmi €36

Paga in 3 rate da €109,66 senza interessi

Va bene per la tua moto?

Progettato per: R 1300 GS Adventure.

Ultimi 2 pezzi disponibili🚚 Consegna in 2-3 giorni lavorativi

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

The steel base for PIKE TRACKER or CONQUEROR cases on the BMW R 1300 GS Adventure.

CONQUEROR Compatibility

These are the only frames in the R 1300 range that also accept CONQUEROR C45L and C45R panniers.

Adventure Geometry

Sized to the subframe of the R 1300 GS Adventure, which is different from that of the standard GS.

Symmetrical Load

P37 plus P37 or P45 plus P45 configurations, with weight balanced on both sides.

Plug-and-play Mounting

OEM points, no drilling or modifications required.

Dal produttore LOBOO

Denominazione ufficiale: PIKE TRACKER & CONQUEROR Side Case Rack, modello JP151B, dichiarato dal produttore per BMW R1300GS Adventure dal 2024.

Produttore: Shenzhen Loboo Motor Accessories Co., Ltd — Building F, Tianji Industry Park, Laiyin Road, Xinsheng Community, Longgang District, Shenzhen, Guangdong, Cina.

Documentazione: manuale d'uso e montaggio in otto lingue, italiano compreso, con distinta illustrata e vista d'installazione numerata.

Garanzia: si applica la garanzia legale di conformità di 24 mesi prevista dal Codice del Consumo per gli acquisti effettuati da consumatori.

Leggi la descrizione completa

Pair of side case racks for the BMW R 1300 GS Adventure from 2024 onward, with rear crossbar, brackets, mounting hardware, and threadlocker. This is the structure onto which the side cases attach: the cases are not included.

LOBOO calls it the PIKE TRACKER & CONQUEROR Side Case Rack, code JP151B. On the Adventure, the two cases are identical: 37+37 or 45+45 liters.

What you can mount on these racks

PIKE TRACKER aluminum cases P37 or P45, in matte black or polished silver: you can find them on the PIKE TRACKER aluminum cases page, or already paired with the racks in the side case kit for the R 1300 GS Adventure.
CONQUEROR aluminum cases with a capacity of 45+45 liters: the JP151B manual is also labeled for this series. You can find them on the CONQUEROR cases for the R 1300 GS Adventure page.
WANDERER semi-rigid bags with a capacity of 40+40 liters, which attach to 18 mm tubing: there is a WANDERER kit with racks for the R 1300 GS Adventure.
ALPS inflatable bags with capacities of 23 and 30 liters, with mounts and keyed anti-theft protection: you can find them on the ALPS inflatable bags page.

LOBOO aluminum cases can only be mounted on LOBOO racks. The reverse also applies: hard cases from other manufacturers do not fit these racks.

Does it fit the R 1300 GS without Adventure?

No. The R 1300 GS has a different rear subframe and uses the JP131B side racks for the R 1300 GS. The two codes are not interchangeable.

What is included

The manual lists 17 items: left and right racks, crossbar, two pairs of plates, left and right brackets, 18 × 8.5 × 5 mm and 15 × 8.5 × 13 mm spacers, bushings, M8 × 20, M8 × 25, and M8 × 40 screws, eight M8 washers, one wide washer, and one threadlocker.

How they are installed

Eighteen illustrated steps, with no drilling required. Remove the seat, original luggage rack, and some tail section parts; install the plates and brackets; secure the two racks to the motorcycle's mounting points; and complete the system with the crossbar. Once finished, the original parts are put back in place.

All M8 screws must be tightened to 18 N·m: this differs from the 20 N·m specified for the racks for the R 1300 GS. LOBOO asks you not to fully tighten them immediately: make all adjustments first, then tighten to the specified torque in sequence. Reinstall the removed original parts according to BMW's instructions.

Shock-absorbing structure and nine-point attachment

At the mounting points, LOBOO states that it uses a shock-absorbing structure, designed to protect the motorcycle's subframe in the event of a fall while keeping the cases securely attached. The aluminum cases and racks connect using the nine-point quick-attachment system, covered by utility model patent ZL 2017 2 0624675.2.

Before ordering

With the short LOBOO exhaust, LOBOO also recommends the CPQ131 exhaust deflector, sold separately, which directs gases away from the cases. If you are not sure which exhaust you have, contact us before ordering.

Top case and three-case system

For a top case on the Adventure, LOBOO offers two solutions: the top case plate for the original luggage rack and the reinforced rear luggage rack JP151WPRO. With either one and the JP151B racks, you get a three-case system.

The JP151B manual does not state the material, weight, or maximum load per side: we do not specify them. All other accessories for the BMW R 1300 GS Adventure are in the dedicated collection.

Nella confezione

✅ New, original LOBOO pannier racks, in manufacturer's packaging.
📦 Included: A pair of side racks with screws and mounting hardware.
⚠️ Not included: side panniers. This page is for the racks only. The panniers can be purchased separately, or together with the racks on the complete kit page.
🔒 Closed system: LOBOO panniers can only be mounted on LOBOO racks, and only LOBOO panniers can be mounted on these racks. They are not compatible with racks or panniers from other brands.
🏍️ On the R 1300 GS Adventure with a short exhaust, the CPQ131 deflector is required, sold separately.
🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
🛡️ 24-month legal warranty for consumers, according to current regulations.
💳 Payment also available in installments with the services offered at checkout.
🔧 Observe the indicated torque settings and re-check the fastenings after the first few kilometers, especially with loaded panniers.

JP151B · BMW R 1300 GS Adventure from 2024 · 17 components · no drilling

How does it work, in detail?

Frames, compatible luggage, installation, and the three-luggage system, point by point.

Which code for which motorcycle

In the LOBOO table, the R 1300 GS and the R 1300 GS Adventure have different side frames: the JP151B is used on the Adventure. The sliding luggage rack is intended only for the GS. LOBOO aluminum cases can only be mounted on LOBOO frames, without damaging the motorcycle.

Shock-absorbing structure at the attachment points

LOBOO states that the frame mounting points feature a shock-absorbing structure: it protects the motorcycle subframe in the event of a fall and keeps the luggage firmly attached.

Patented nine-point attachment

Panniers and frames connect at nine points, without vibrations even after prolonged use. LOBOO states that in a fall or slide, the panniers remain in place, while in a strong frontal impact they detach. Utility model patent ZL 2017 2 0624675.2.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Product

Code

JP151B Pair of side racks for panniers (Side Case Rack)

Official name

PIKE TRACKER & CONQUEROR Side Case Rack Product name as stated in the LOBOO manual

Content

Frames only Panniers and top cases not included

Compatibility

Motorcycle

R 1300 GS Adventure BMW, from 2024 onward. The standard GS requires JP131B

Compatible suitcases

Aluminum

45+45 or 37+37 L PIKE TRACKER symmetrical, black or silver

CONQUEROR

45+45 L C45L and C45R: JP151B manual assigned to PIKE TRACKER and CONQUEROR

Materials

Material

Not specified for this code The JP151B manual does not state it

Assembly

Frame structure

Two halves plus a crossbar Left and right halves joined by a rear crossbar, with two dedicated reinforcement brackets

Mounting points

Motorcycle originals No drilling; after removing the original components specified in the manual

Tightening torque

18 N·m On all M8 screws, the specific value for this code

Equipment

Components

17 Manual bill of materials items, including fasteners and threadlocker

Hardware included

3 sizes M8×20, M8×25 and M8×40, with eight M8 washers

Spacers

Two types Ø18×Ø8,5×5 mm and Ø15×Ø8,5×13 mm, two of each type

Threadlocker

Including Item 16 on the parts list. The torque wrench is not included

Documentation

Assembly manual

8 languages Italian included, with an illustrated parts list and installation view

To be verified

Short exhaust version

CPQ131 The exhaust deflector is also required, sold separately

Weight and maximum load

Not declared by the manufacturer The manual lists neither the frame weight nor a per-side load limit

Compatible suitcases

ALPS Bags

Compatible 23 and 30 L inflatable products, with mounts and anti-theft protection

Structure

Shock-absorbing structure

At the attachment points LOBOO panel: protects the subframe in the event of a fall

Luggage attachment

9 points Quick release, patent ZL 2017 2 0624675.2

Assembly

Illustrated steps

18 With removal and restoration of parts of the tail section; no drilling

Manuale d'uso JP151BDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Passaggi: diciotto, tutti fotografati nel manuale, con le zone di smontaggio, installazione e ripristino segnate.
Smontaggio: sella, portapacchi originale e alcune parti del codone, che a fine lavoro tornano al loro posto.
Telai: si fissano ai punti di attacco della moto con piastre e staffe del kit, senza forature.
Traversa: collega i due telai sotto il codone.
Coppia di serraggio: 18 N·m su tutte le viti M8 (M8 × 20, M8 × 25, M8 × 40), con il frenafiletti incluso.
Sequenza: non serrare a fondo durante il montaggio. Prima tutte le regolazioni, poi la coppia in sequenza.
Parti originali: quelle rimosse si rimontano secondo le coppie e le indicazioni BMW.

Istruzioni complete e note di sicurezza

Passaggi: diciotto, tutti fotografati nel manuale, con le zone di smontaggio, installazione e ripristino segnate.
Smontaggio: sella, portapacchi originale e alcune parti del codone, che a fine lavoro tornano al loro posto.
Telai: si fissano ai punti di attacco della moto con piastre e staffe del kit, senza forature.
Traversa: collega i due telai sotto il codone.
Coppia di serraggio: 18 N·m su tutte le viti M8 (M8 × 20, M8 × 25, M8 × 40), con il frenafiletti incluso.
Sequenza: non serrare a fondo durante il montaggio. Prima tutte le regolazioni, poi la coppia in sequenza.
Parti originali: quelle rimosse si rimontano secondo le coppie e le indicazioni BMW.

Il frenafiletti è nella confezione, la chiave dinamometrica no. Il produttore chiede di controllare periodicamente le viti di fissaggio.

Assembly and Notes

Plug-and-play installation on OEM points, no drilling or permanent modifications.
Respect the maximum load per side frame indicated by BMW in the motorcycle's manual.
Recheck the tightening after the first 100-200 km and periodically throughout the season.
Panniers are not included: the frames are the sole support structure.

These frames are needed if you have an R 1300 GS Adventure and:

You want to install CONQUEROR panniers, which absolutely require these frames
You already own PIKE TRACKER or WANDERER panniers and are missing the base
You want to be able to switch between hard and semi-rigid panniers without changing frames

If you have the standard R 1300 GS, you need the JP131B frames, on a separate page: the geometry is not interchangeable.

Per moto Bmw

BMW

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which side cases can I mount?

The aluminum PIKE TRACKER in the P37 + P37 or P45 + P45 configurations, the 45 + 45-liter aluminum CONQUEROR cases, the 40 + 40-liter semi-rigid WANDERER cases, and the inflatable ALPS bags.

The cases are not included and must be purchased separately, or they can already be paired with the racks in the dedicated kits.

Are suitcases included in the price?

No: this page sells the pair of frames, which is the part dedicated to the motorcycle. The cases are selected separately, which is why the frame only needs to be installed once: you can change the type of case in the future without redoing the work.

If you prefer to buy everything together, Endurrad also offers the kit with frames and matching semi-rigid cases.

What changes compared with the frames for the R 1300 GS?

Geometry: the JP151B is sized for the rear subframe of the R 1300 GS Adventure, while the JP131B is sized for that of the R 1300 GS. The tightening torque also differs: 18 N·m here versus 20 N·m for the JP131B.

The compatible cases are the same: both manuals are labeled for the PIKE TRACKER and CONQUEROR series.

I have the R 1300 GS Adventure with the short exhaust: is anything else needed?

Yes. LOBOO documentation indicates that installing the racks with the short exhaust also requires the CPQ131 exhaust deflector, sold on a separate page.

If you’re not sure which exhaust your motorcycle has, contact us before placing your order and we’ll check it together.

What is the frame made of, and how many pieces does it consist of?

The frame arrives in two halves, left and right, joined by a crossbar. The parts list contains seventeen items: in addition to the two halves and the crossbar, there are two pairs of plates, left and right brackets, spacers and bushings, M8 screws in three lengths, eight M8 washers, one wide washer, and threadlocker.

Do you need to drill into or modify the motorcycle?

The manual does not indicate any drilling: the frame is secured to the anchoring points already present on the motorcycle, after removing the original components specified in the assembly steps. The modification is reversible.
