What torque specifications are needed?

Torque: 20 N·m on the M8 × 20 bolts and 18 N·m on the M8 × 25 and M8 × 45 bolts. Reused original motorcycle bolts must be tightened to the KTM torque specifications. Fully tighten only after completing the adjustments.

Do you need to disassemble anything on the motorcycle?

Yes: the original rear side plastics and rear luggage rack, which are then reinstalled. The manual does not call for drilling.

How are they assembled?

In seven steps: three for disassembly, then brackets and bushings, the left frame, the right frame, and reassembly of the original parts. If you don't have experience, rely on a workshop.

What material are they made of, and how much do they weigh?

For the frames of the PIKE TRACKER LOBOO system, it indicates stainless steel and aluminum alloy without specifying which part is made of which material. The weight of the frames is not stated.

How much weight can they hold?

LOBOO does not specify a maximum load for the frames. The limit to observe is the maximum total load indicated by KTM for the motorcycle, which includes the rider, passenger, and luggage.

Can I use suitcases from other brands?

Hard cases from other brands: no. LOBOO states that its aluminum cases can only be mounted on LOBOO racks, and the racks are designed for the LOBOO system. In addition to the PIKE TRACKER cases, you can mount the WANDERER semi-rigid cases and the ALPS inflatable cases.

Are these frames enough to mount the top case?

No. The top case mounts on the JP251W rear luggage rack, sold separately. The frames and luggage racks together form the three-case system.

Can I buy frames and suitcases together?

Yes: the side-case kit for the KTM 1290 Super Adventure includes the JP251B frames and the pair of PIKE TRACKER cases, 45 + 38 liters, in black or silver.

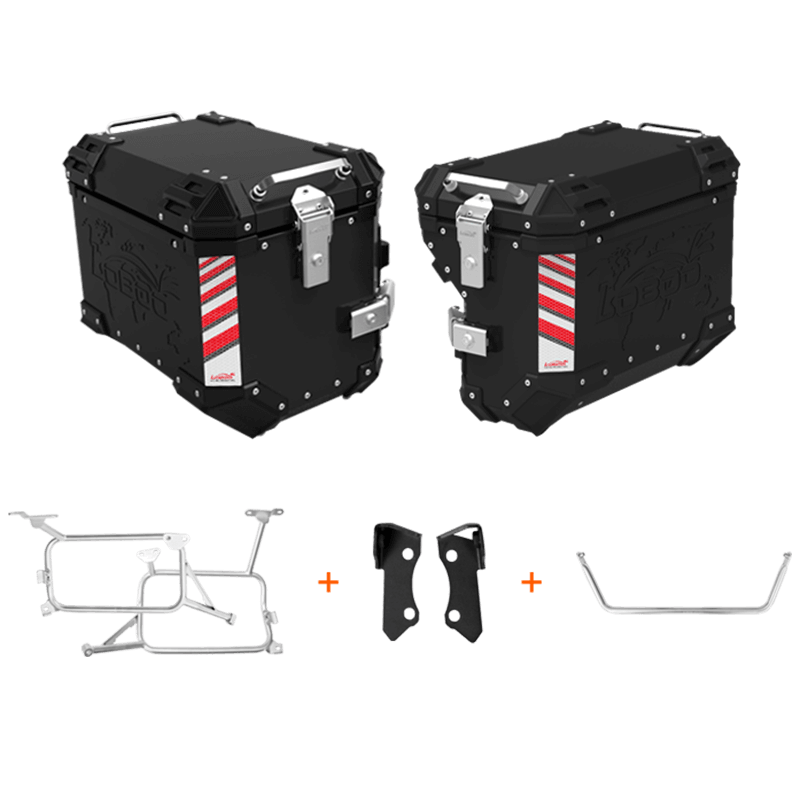

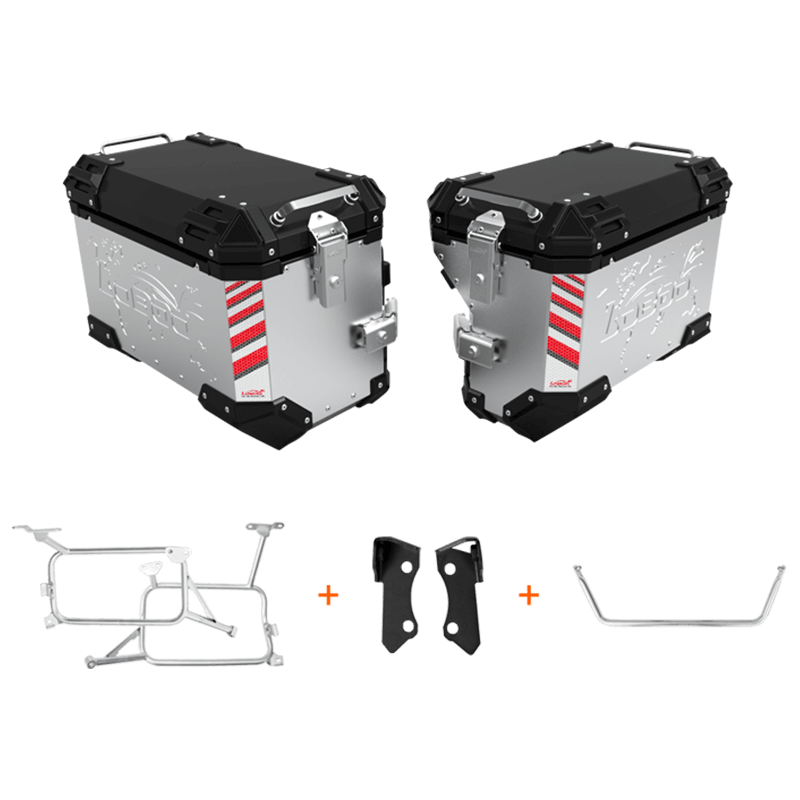

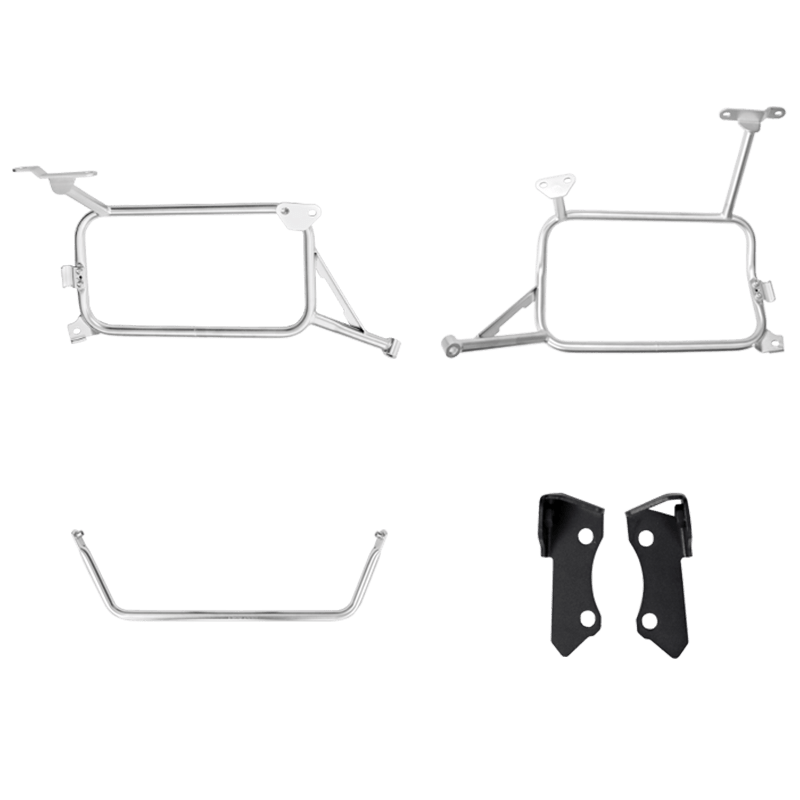

KTM 1290 Super Adventure R/S Side Cases - Endurrad®

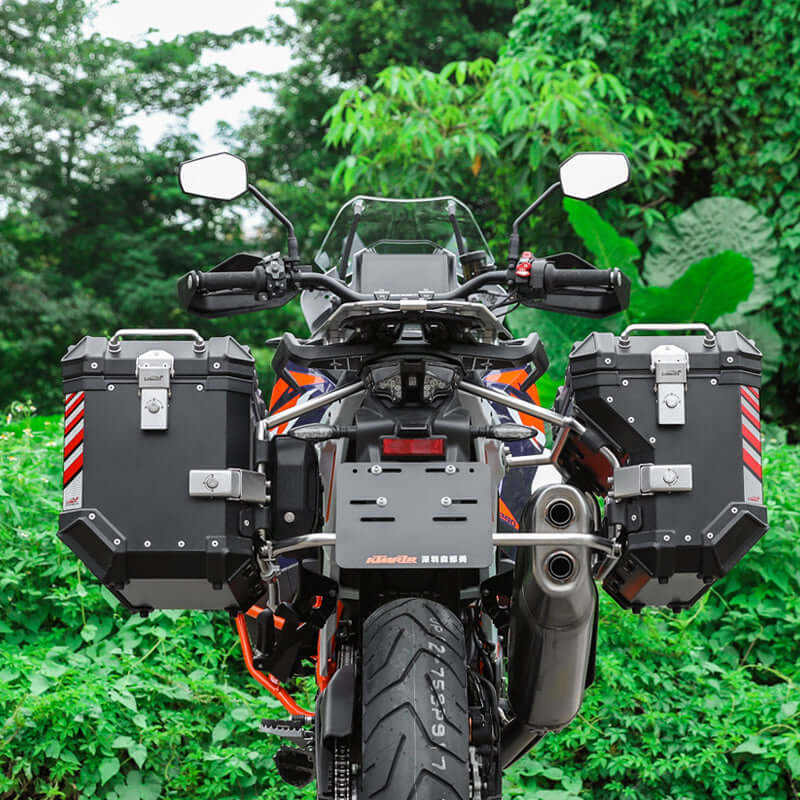

KTM 1290 Super Adventure R/S side case frames - Endurrad®

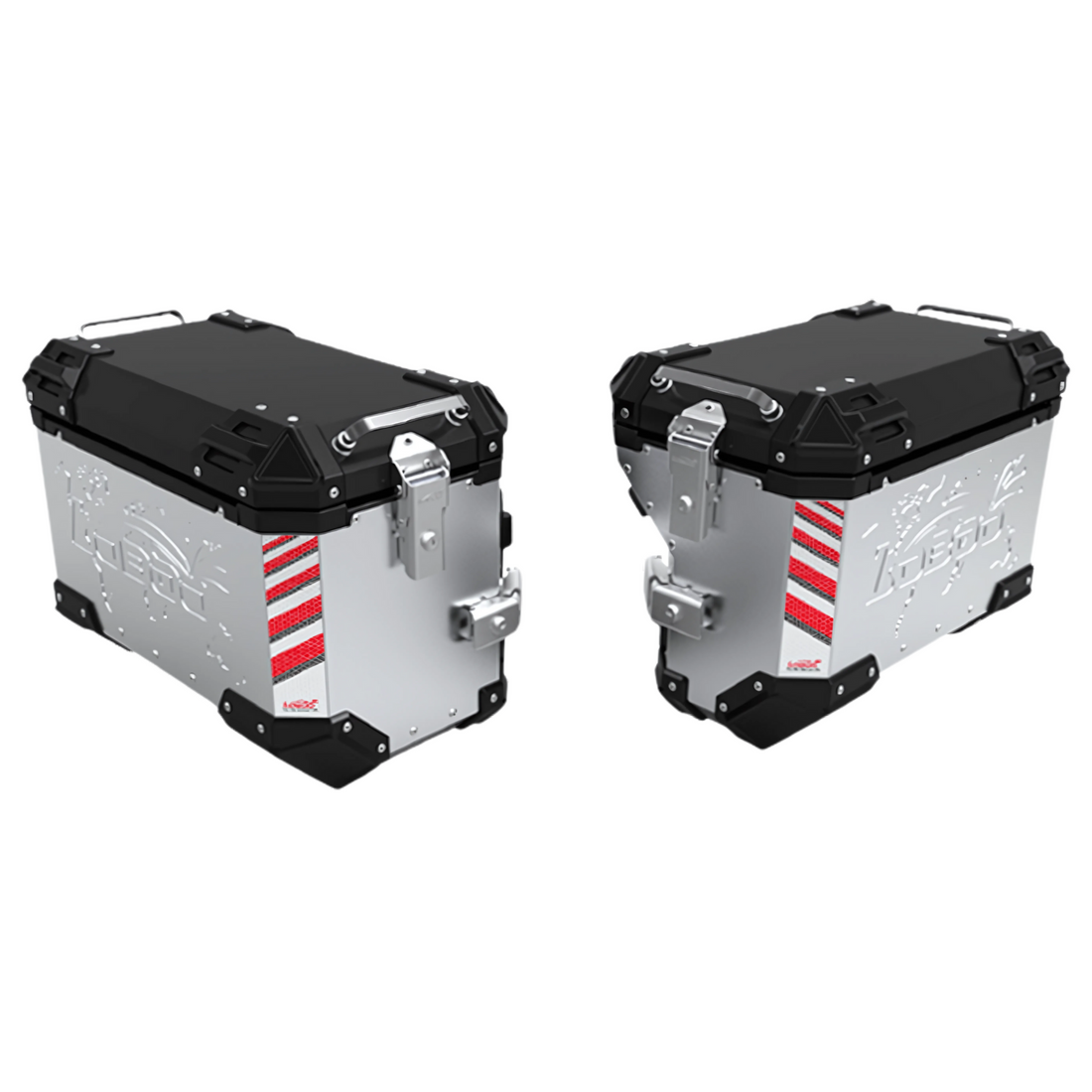

Valigie laterali LOBOO PIKE TRACKER argento 45+38 litri: la destra rientra per il terminale di scarico

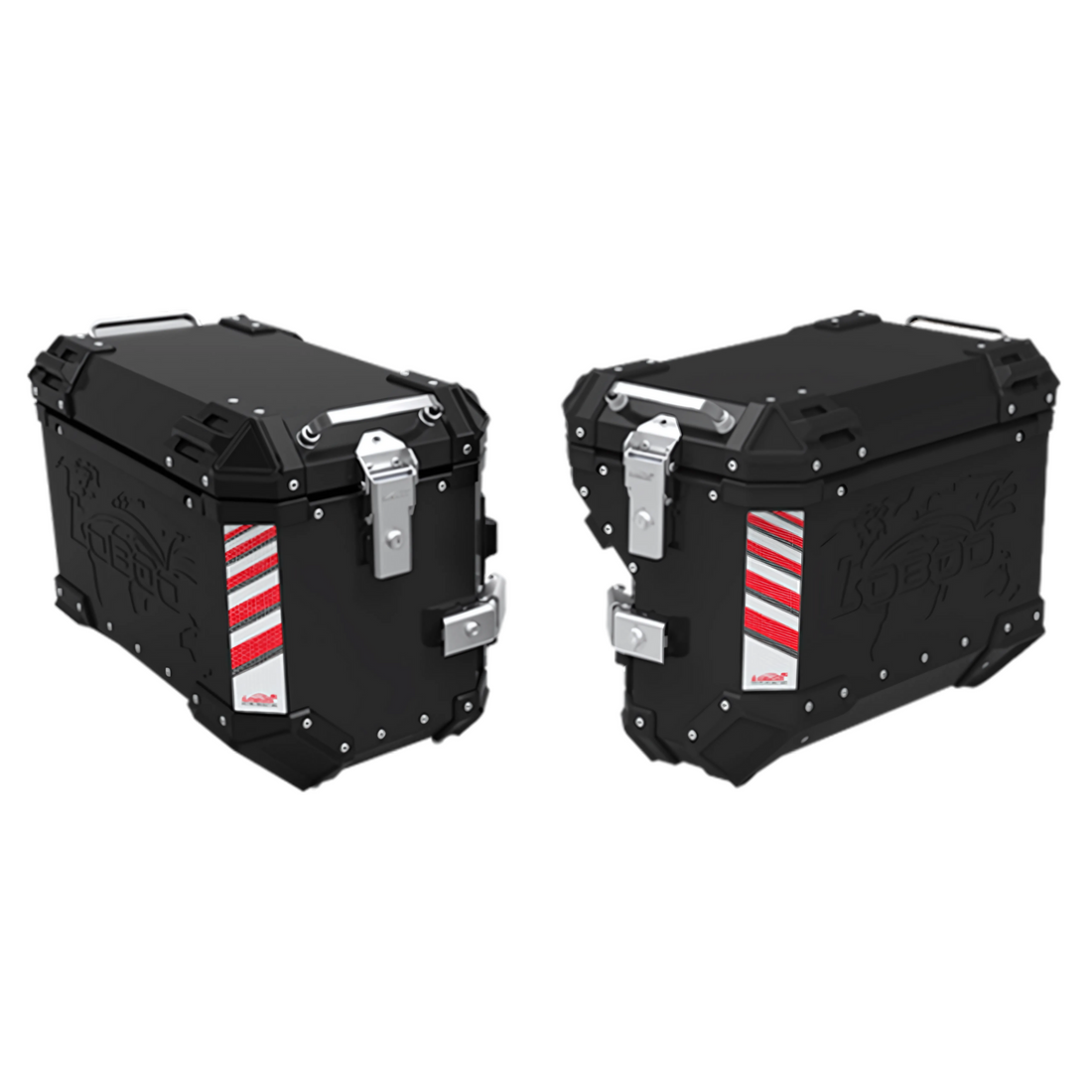

Valigie laterali LOBOO PIKE TRACKER nere 45+38 litri: la destra rientra per il terminale di scarico

-10%Consegna in 2-3 giorni lavorativi

45 + 38 L Aluminum

1290 S and R Motorcycle

20 / 18 N·m Torque pairs

7 Steps

LOBOO ✓ Prodotto originale

Side Case Frames for KTM 1290 Super Adventure S and R from 2022 | PIKE TRACKER

5,0 · 2 recensioni

€329,00 ~~€365,00~~Risparmi €36

Paga in 3 rate da €109,66 senza interessi

Va bene per la tua moto?

Progettato per: 1290 Super Adventure, 1290 Super Adventure R, 1290 Super Adventure S.

Ultimo pezzo disponibile🚚 Consegna in 2-3 giorni lavorativi

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

The steel base for cases and panniers on the KTM 1290 Super Adventure R and S.

83 liters, not 65

these racks support the PIKE TRACKER 45+38, the largest capacity configuration in the range along with BMW models. Most LOBOO racks stop at 35+30.

Same price as the 65-liter racks

the JP251B code costs the same as those for smaller motorcycles, with the same construction.

R and S with a single code

the 2022 1290 Super Adventure R and S share the subframe.

Combine with the JP251W plate

to add the top case and have three cases in total.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

Pair of side case racks for the KTM 1290 Super Adventure S and R from 2022 onward, as indicated by LOBOO. This is the structure the side cases attach to: the cases are not included.

LOBOO calls it the Side Case Rack, code JP251B, and states that it is intended for cases in the PIKE TRACKER and CONQUEROR series. With the PIKE TRACKER cases, the pair is 45 liters on the left and 38 liters on the right: the right case is shaped to clear the exhaust.

What you can mount on these racks

PIKE TRACKER aluminum cases P45L + P38R, in matte black or polished silver: 540 × 321 × 388 mm and 6.5 kg for the left case, 540 × 296 × 388 mm and 6.1 kg for the right. Complete measurements and equipment are on the PIKE TRACKER aluminum cases page.
WANDERER semi-rigid bags: LOBOO pairs them with PIKE TRACKER side racks with an 18 mm tube. You can find them on the WANDERER semi-rigid bags page.
ALPS inflatable cases of 23 and 30 liters, with keyed mounting brackets and anti-theft protection: you can find them on the ALPS inflatable motorcycle side cases page.

LOBOO aluminum cases can only be mounted on LOBOO racks, and hard cases from other manufacturers are not compatible with these racks.

What's included

The manual lists 12 items: left and right racks, a crossbar, a pair of left and right brackets, 4 Ø 20 × Ø 8.5 × 3 mm spacers, 4 M8 × 20 screws, 4 M8 × 25 screws, 2 M8 × 45 screws, 6 bushings, 2 Ø 20 plugs, 8 M8 washers, and threadlocker.

How to install them

Seven steps: three for removal, including the rear side panels and the original rear luggage rack, followed by four installation steps, after which the original parts are put back in place. Some of the motorcycle's original screws are reused: the manual identifies them as OEM.

There are two torque settings: 20 N·m for the M8 × 20 screws and 18 N·m for the M8 × 25 and M8 × 45 screws. LOBOO asks you not to fully tighten them until you have completed the adjustments.

Top case and complete kit

The top case requires the JP251W rear luggage rack, sold separately. If you want the racks and cases in a single order, there is the side case kit for the KTM 1290 Super Adventure.

For the PIKE TRACKER LOBOO system racks, LOBOO specifies stainless steel and aluminum alloy without stating which part is made from which material. The rack weight and maximum load are not specified.

Nella confezione

✅ Original, new LOBOO pannier racks, in manufacturer's packaging.
📦 Included: A pair of side racks with screws and mounting hardware.
⚠️ Not included: side panniers.This page is for the racks only. The panniers can be purchased separately, or together with the racks on the complete kit page.
🔒 Closed system:LOBOO panniers can only be mounted on LOBOO racks, and only LOBOO panniers can be mounted on these racks. They are not compatible with racks or panniers from other brands.
🏍️ Model-specific racks as indicated in the title: they mount to the original mounting points, without adapters.
🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
🛡️ 24-month legal warranty for consumers, according to current regulations.
💳 Payment also available in installments with the services available at checkout.
🔧 Observe the indicated tightening torques and recheck the fastenings after the first few kilometers, especially with loaded panniers.

JP251B · KTM 1290 Super Adventure S and R from 2022 · 45 + 38 L panniers · 20 and 18 N·m

How does it work, in detail?

Compatibility, compatible luggage, parts list and assembly, point by point.

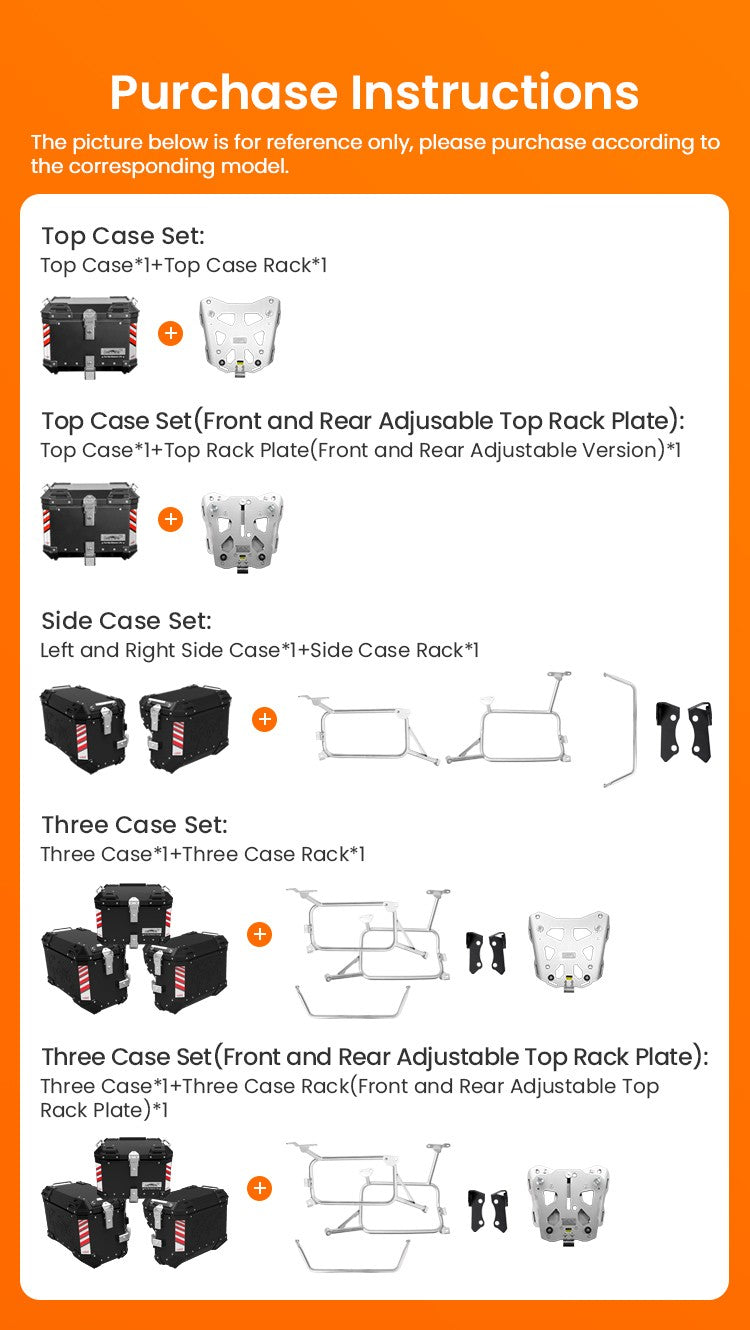

Top case only, side case set, or three cases

For the 1290 Super Adventure, LOBOO offers five sets: the top case with a fixed or adjustable luggage rack, the pair of side cases with frames, or all three cases together.

This product page is the basis of the side-case set: the JP251B frames.

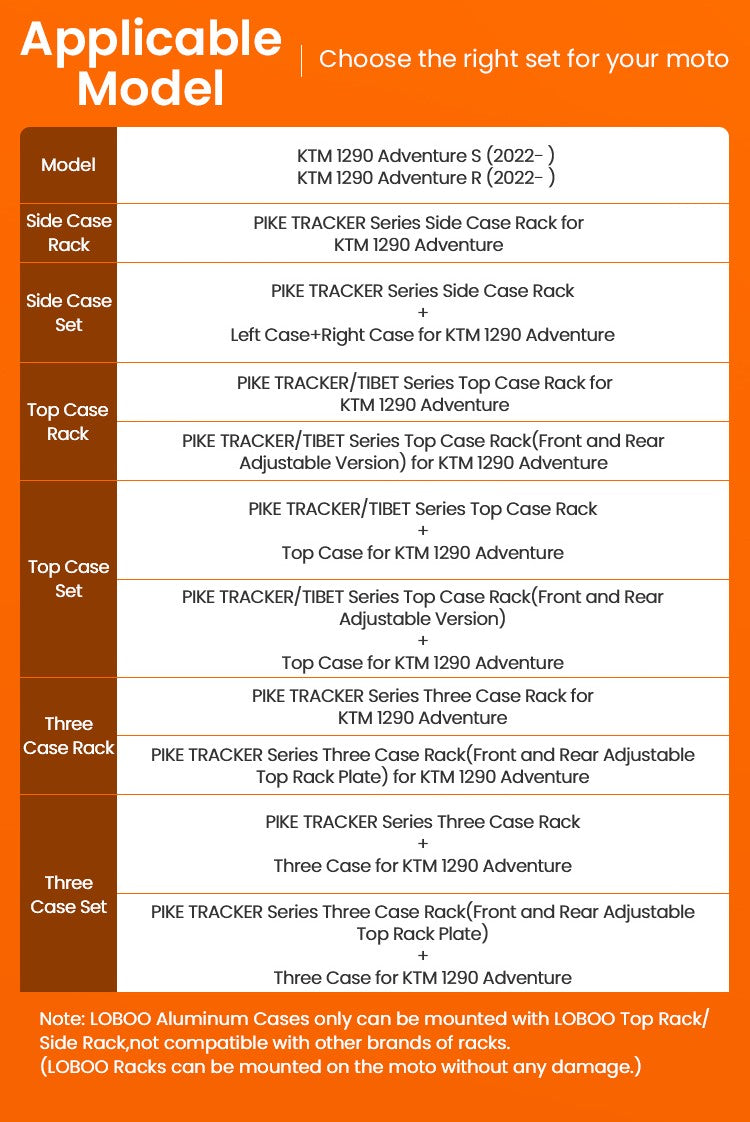

For the 1290 S and R from 2022, only on LOBOO frames

In the LOBOO table, the PIKE TRACKER side racks are listed for the KTM 1290 Super Adventure S and R from 2022 onward.

Manufacturer's note: LOBOO aluminum panniers can only be mounted on LOBOO racks and luggage racks, and the racks can be installed without damaging the motorcycle.

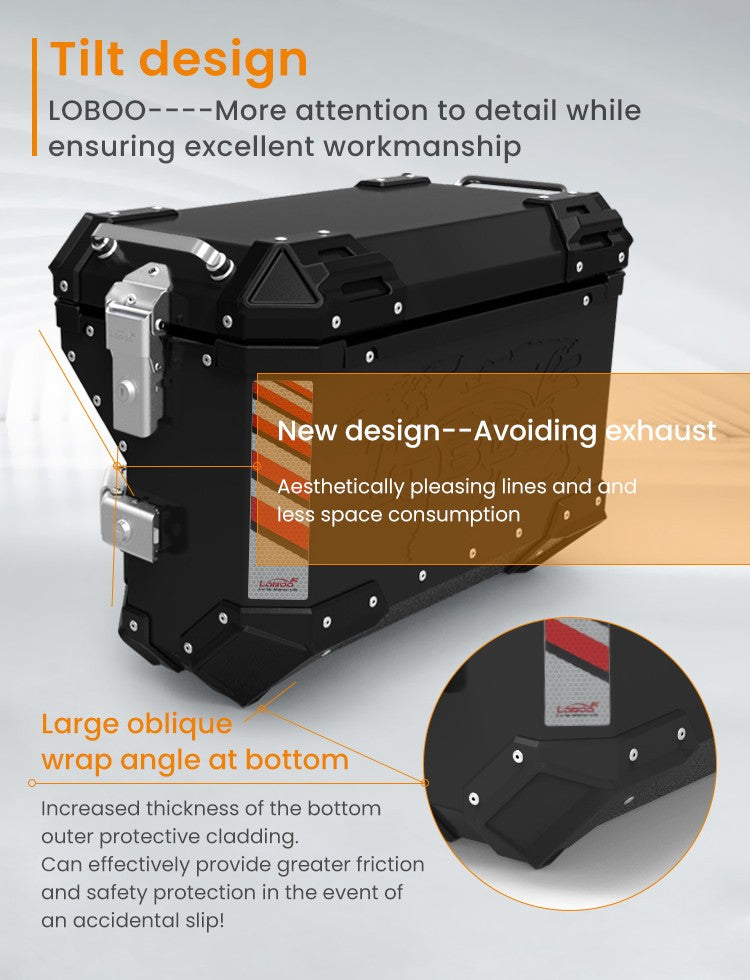

45 on the left, 38 on the right, because of the exhaust pipe

The right pannier has a recess that clears the exhaust outlet, with the lower corner angled and covered in technical plastic. As a result, the right side holds 38 liters and the left 45.

The bulkier luggage goes on the left.

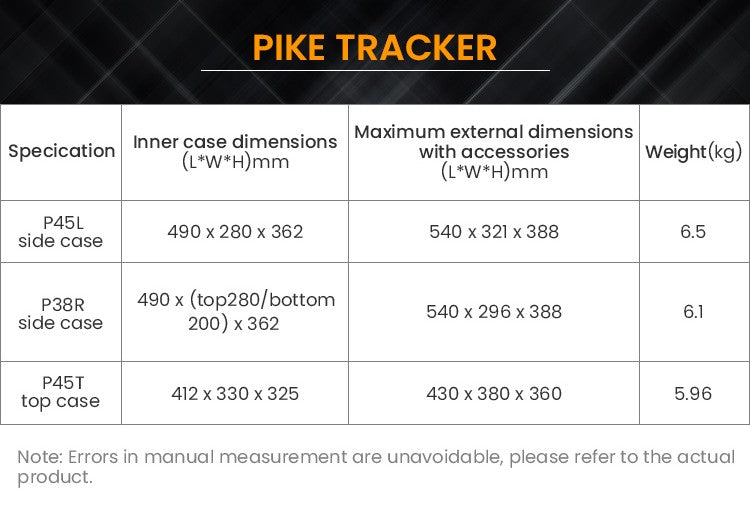

How bulky are the suitcases they hold?

The P45L measures 540 × 321 × 388 mm overall and weighs 6.5 kg. The P38R is 296 mm deep overall and weighs 6.1 kg; inside, it tapers from 280 mm at the top to 200 mm at the bottom to leave room for the exhaust.

These are measurements taken manually, with a tolerance declared by LOBOO.

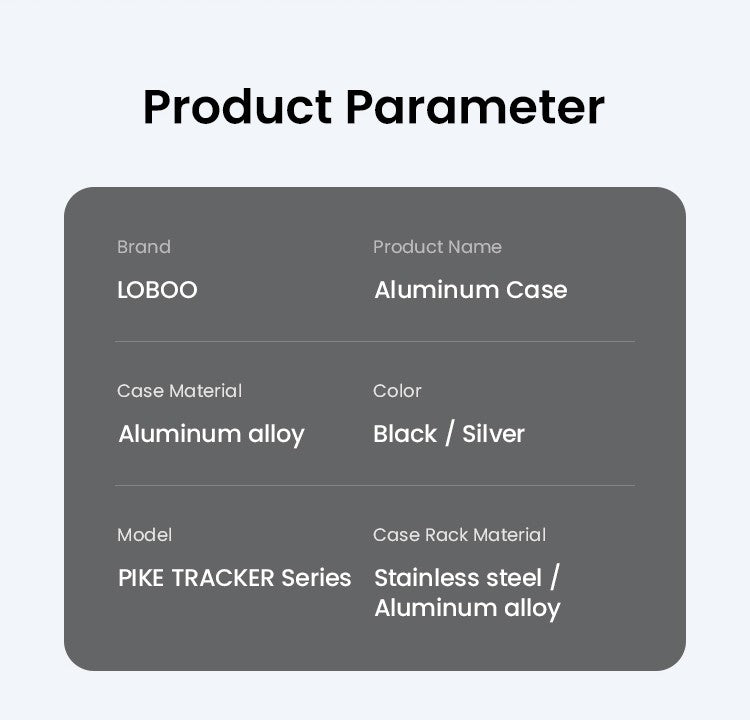

Materials declared by LOBOO

The product page for the PIKE TRACKER LOBOO system indicates stainless steel and aluminum alloy for the frames, without specifying which part is made of which material.

The cases are made of aluminum alloy, in black or silver.

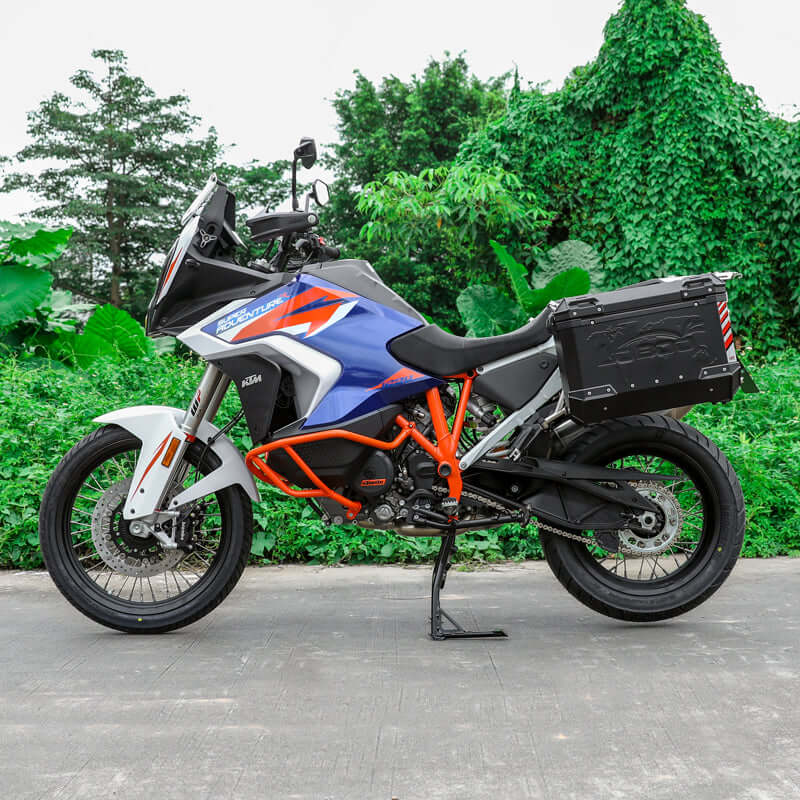

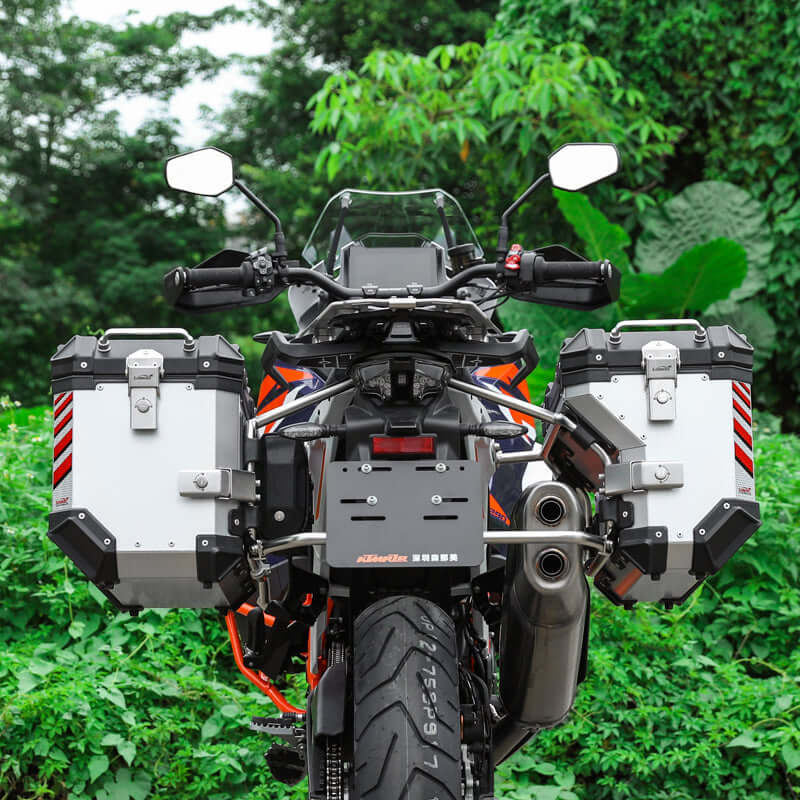

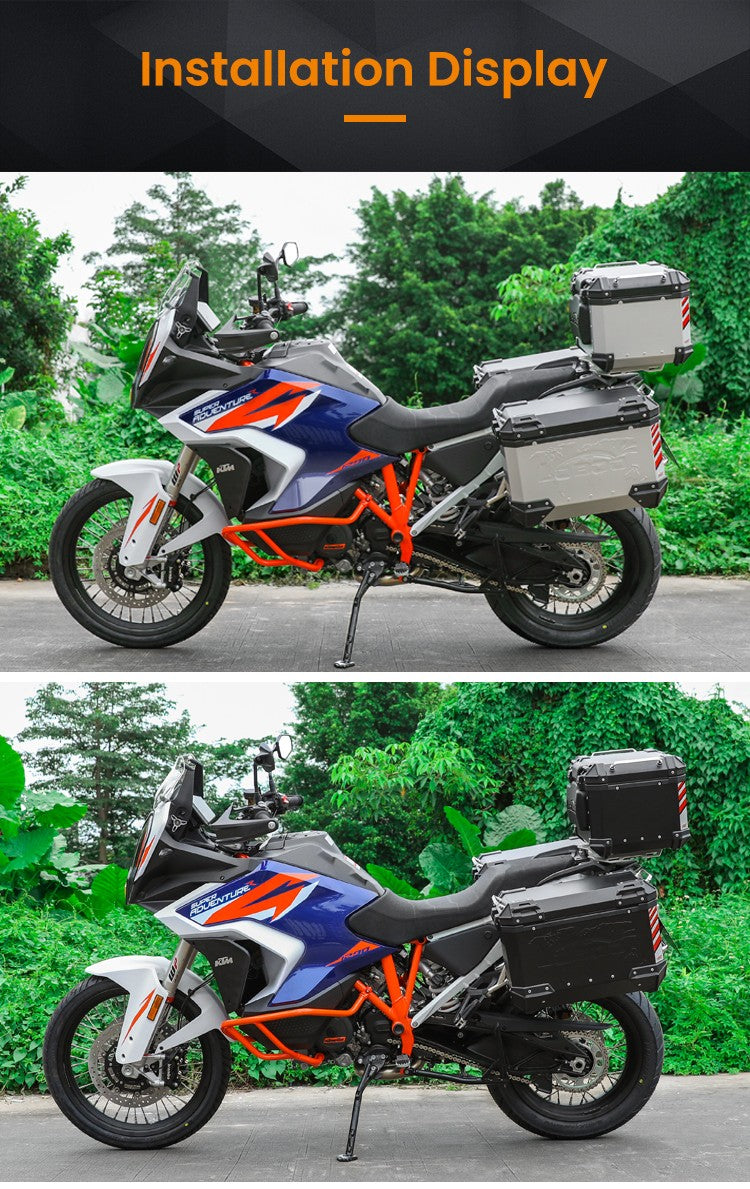

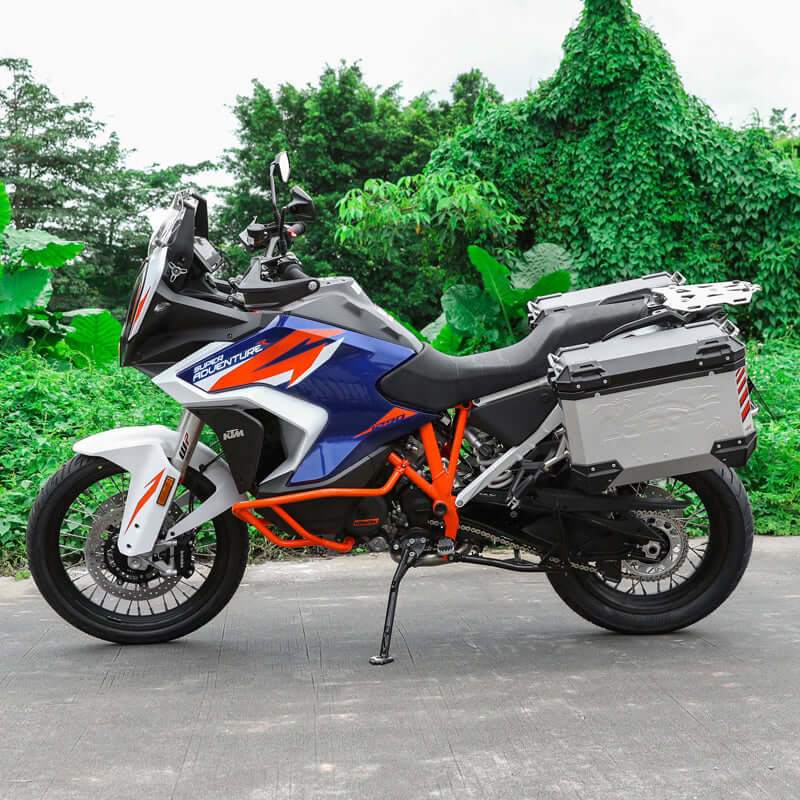

The equipped 1290 Super Adventure

The official LOBOO photos show the 1290 Super Adventure with silver and black PIKE TRACKER panniers on the JP251B frames.

The top case in the photos is a separate item and requires the JP251W luggage rack.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Product

Code

JP251B Side frame for luggage cases

LOBOO name

Side Case Rack PIKE TRACKER & CONQUEROR Series

Item number

11.6.01251.002.01 Official LOBOO code

EAN

6973227073680

Content

2 frames, crossbar, 2 brackets With hardware, bushings, caps, and threadlocker; cases excluded

Compatibility

Motorcycle

KTM 1290 Super Adventure S Since 2022, declared by LOBOO

Motorcycle

KTM 1290 Super Adventure R Since 2022, declared by LOBOO

Compatible suitcases

Aluminum

P45L + P38R PIKE TRACKER, matte black or polished silver

Semirigid

WANDERER Paired by LOBOO with PIKE TRACKER frames featuring an 18 mm tube

Inflatables

ALPS 23 + 30 L With mounts and key-operated locks

CONQUEROR Series

Declared The manual does not indicate the luggage codes

Maximum dimensions P45L

540 × 321 × 388 mm L × W × H with accessories

Maximum dimensions P38R

540 × 296 × 388 mm L × W × H with accessories

Structure

Tube diameter

18 mm PIKE TRACKER side frames

Material

Stainless steel / aluminum alloy Declared by LOBOO for the system frames, without a breakdown by part

Weight

Not stated by the manufacturer

Maximum load

Not stated by the manufacturer The maximum load of the motorcycle specified by KTM applies

Assembly

Pair of M8 × 20 screws

20 N·m Four screws

Pair of M8 × 25 and M8 × 45 screws

18 N·m Six screws

Spacers

4 Ø 20 × Ø 8.5 × 3 mm

Threadlocker

Including To be applied before tightening

Steps

7 3 for disassembly, 4 for installation, no drilling

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, please contact us before purchasing.

Manuale d'uso JP251BDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Sette passaggi: 1-3) si smontano le plastiche laterali posteriori e il portapacchi posteriore originale; 4) staffe e boccole; 5) telaio sinistro; 6) telaio destro; 7) si rimontano le parti originali.
Viti e coppie: 20 N·m sulle quattro M8 × 20; 18 N·m sulle quattro M8 × 25 e sulle due M8 × 45.
Viti originali: alcune viti della moto, indicate OEM sullo schema, si riutilizzano: vanno serrate alle coppie KTM, non a quelle LOBOO.
Frenafiletti: incluso, da applicare sulle viti prima del serraggio.
Sequenza: non serrare a fondo durante il montaggio. Presenta tutti i pezzi, completa le regolazioni, poi serra in sequenza alla coppia indicata.
Dopo il montaggio: ricontrolla periodicamente le viti di fissaggio, come chiede il produttore.

Istruzioni complete e note di sicurezza

Sette passaggi: 1-3) si smontano le plastiche laterali posteriori e il portapacchi posteriore originale; 4) staffe e boccole; 5) telaio sinistro; 6) telaio destro; 7) si rimontano le parti originali.
Viti e coppie: 20 N·m sulle quattro M8 × 20; 18 N·m sulle quattro M8 × 25 e sulle due M8 × 45.
Viti originali: alcune viti della moto, indicate OEM sullo schema, si riutilizzano: vanno serrate alle coppie KTM, non a quelle LOBOO.
Frenafiletti: incluso, da applicare sulle viti prima del serraggio.
Sequenza: non serrare a fondo durante il montaggio. Presenta tutti i pezzi, completa le regolazioni, poi serra in sequenza alla coppia indicata.
Dopo il montaggio: ricontrolla periodicamente le viti di fissaggio, come chiede il produttore.

Assembly and Notes

Panniers are not included: the frames are the only support structure.
Observe the maximum load per side frame indicated by KTM in the motorcycle's manual.
Re-check the tightening after the first 100-200 km.
The load must not cover the license plate and tail lights or extend beyond the limits of the Highway Code.

Compatible cases, to be purchased separately:

PIKE TRACKER aluminium: P35L+P30R in black or silver.
WANDERER semi-rigid: BCB4030TBK 40+30 litres.

Compatibility: KTM 1290 Super Adventure from 2022, R and S versions. Verify year and version before purchasing.

Per moto Ktm

KTM

Come verificare la compatibilità

Per verificare la compatibilità indicaci marca, modello, anno e versione della moto.

Verificata: KTM 1290 Super Adventure S e R dal 2022 (manuale LOBOO JP251B e tabella dei modelli compatibili).
Non dichiarata: KTM 1290 Super Adventure fino al 2020 e 1290 Super Adventure T: non nominate dal produttore.
Valigie compatibili: PIKE TRACKER P45L + P38R (nero o argento); borse semirigide WANDERER; valigie gonfiabili ALPS 23 + 30 L; serie CONQUEROR, dichiarata dal manuale senza indicare i codici.
Non compatibili: valigie rigide di altre marche. Le valigie in alluminio LOBOO si montano solo su telai LOBOO.

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Recensioni

5,0

★★★★★2 recensioni

5★2

4★0

3★0

2★0

1★0

Domenico Rabbini19/10/2024

★★★★★

Telai valigie x Ktm 1290 super adv 2024

Perfetti; occorre del materiale quasi professionale x montarle ma poi, in una mezz'oretta si fa' il montaggio

Domenico Rabbini19/10/2024

★★★★★

Telai valigie x Ktm 1290 super adv 2024

Perfetti; occorre del materiale quasi professionale x montarle ma poi, in una mezz'oretta si fa' il montaggio

Domande frequenti

Le domande che ci fate più spesso

Which KTM models are JP251B frames mounted on?

LOBOO lists them for the KTM 1290 Super Adventure S and R from 2022 onward. Earlier versions and the 1290 Super Adventure T are not listed by the manufacturer: contact us with the model and year before ordering.

Are bags included?

No. The package contains only the racks with the hardware. The cases are purchased separately, or together with the racks in the side case kit for the KTM 1290 Super Adventure.

Which aluminum suitcases can I mount?

The PIKE TRACKER P45L on the left and P38R on the right, with capacities of 45 and 38 liters, in matte black or glossy silver. The manual also mentions the CONQUEROR series without specifying its codes: write to us and we’ll verify which ones.

Why is the suitcase on the right smaller?

Because the exhaust is on the right. The P38R has an interior that goes from 280 mm deep at the top to 200 mm at the bottom to clear it, and therefore holds 38 liters compared with the P45L's 45.

Can I install soft bags instead of aluminum cases?

Yes, two types: the WANDERER semi-rigid cases, which LOBOO pairs with the PIKE TRACKER side racks with 18 mm tubing, and the 23- and 30-liter ALPS inflatable cases. You can find them on their respective product pages.

What's in the package?

Twelve items: left and right frames, crossbar, pair of brackets, 4 spacers Ø 20 × Ø 8.5 × 3 mm, 4 M8 × 20 screws, 4 M8 × 25 screws, 2 M8 × 45 screws, 6 bushings, 2 Ø 20 caps, 8 M8 washers, and a threadlocker. Plus the manual.
