40+40 L Semi-Rigid Luggage Kit with Racks for BMW R 1300 GS - Wanderer

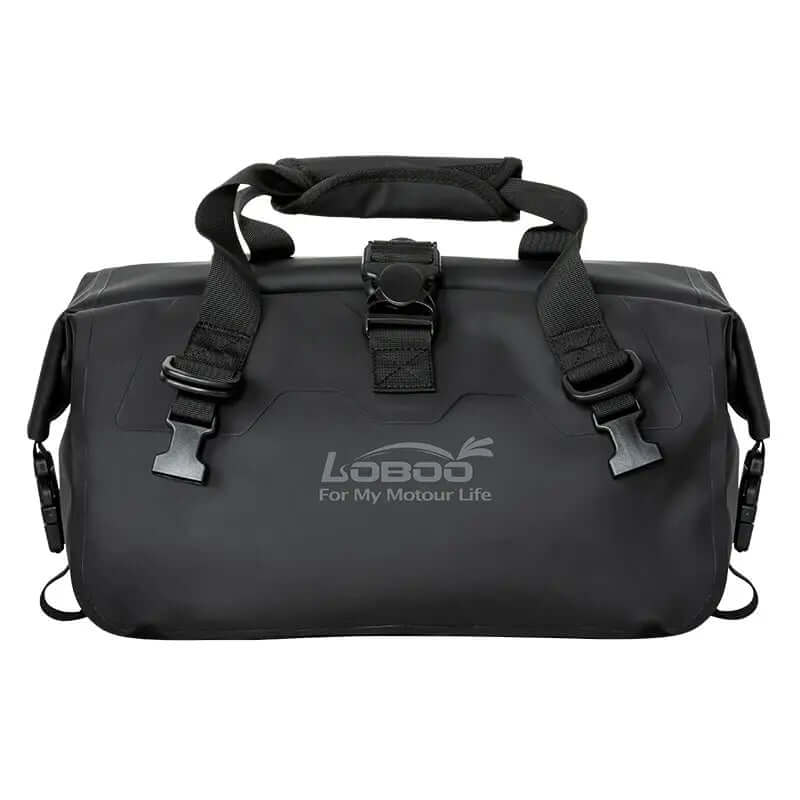

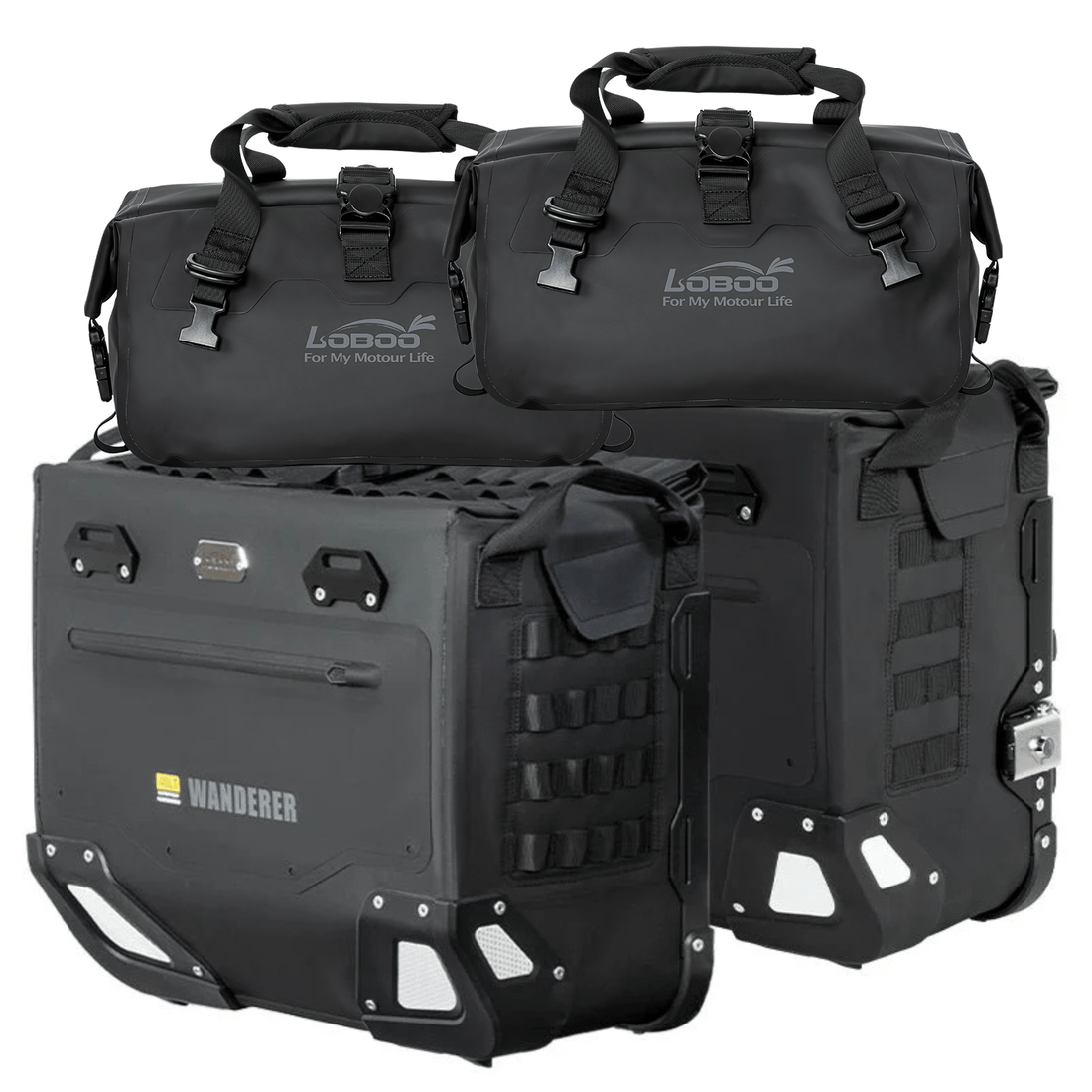

Yes. The kit includes LOBOO JP131B steel side frames, designed for the BMW R 1300 GS, as well as two 40 L panniers and two 20 L waterproof bags. You don’t need to purchase anything else to mount the panniers.

No. You need the dedicated Loboo side frames for the R 1300 GS, designed for quick attachment of the Wanderer cases and the new geometry of the rear subframe.

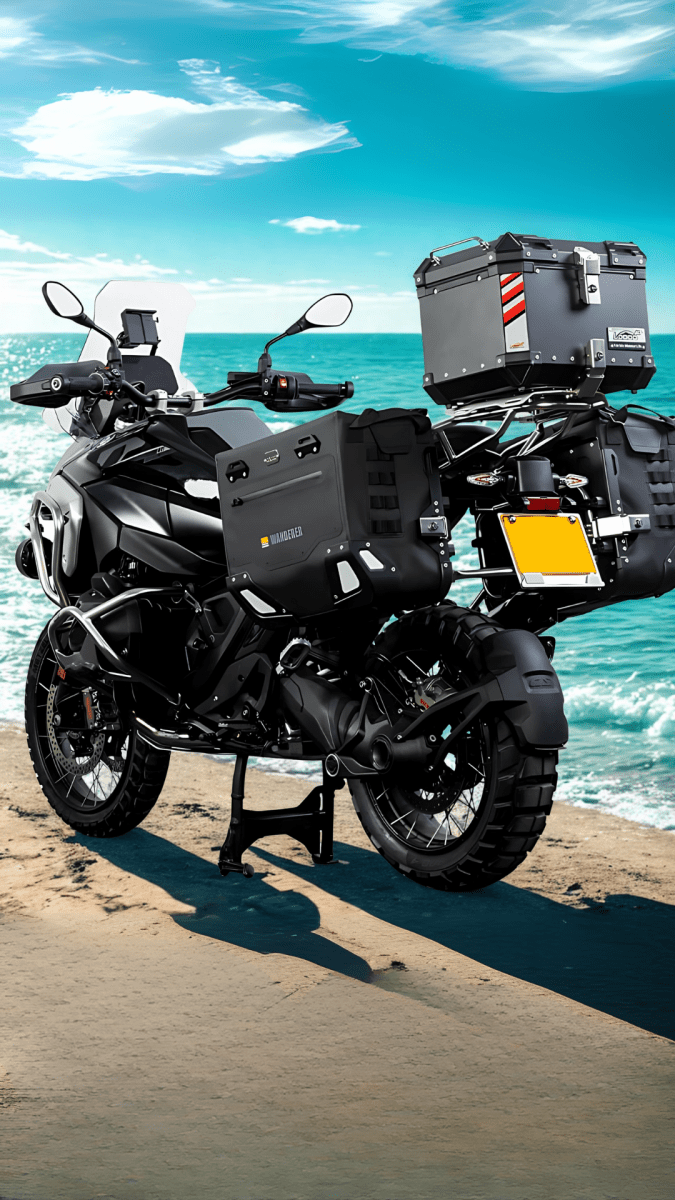

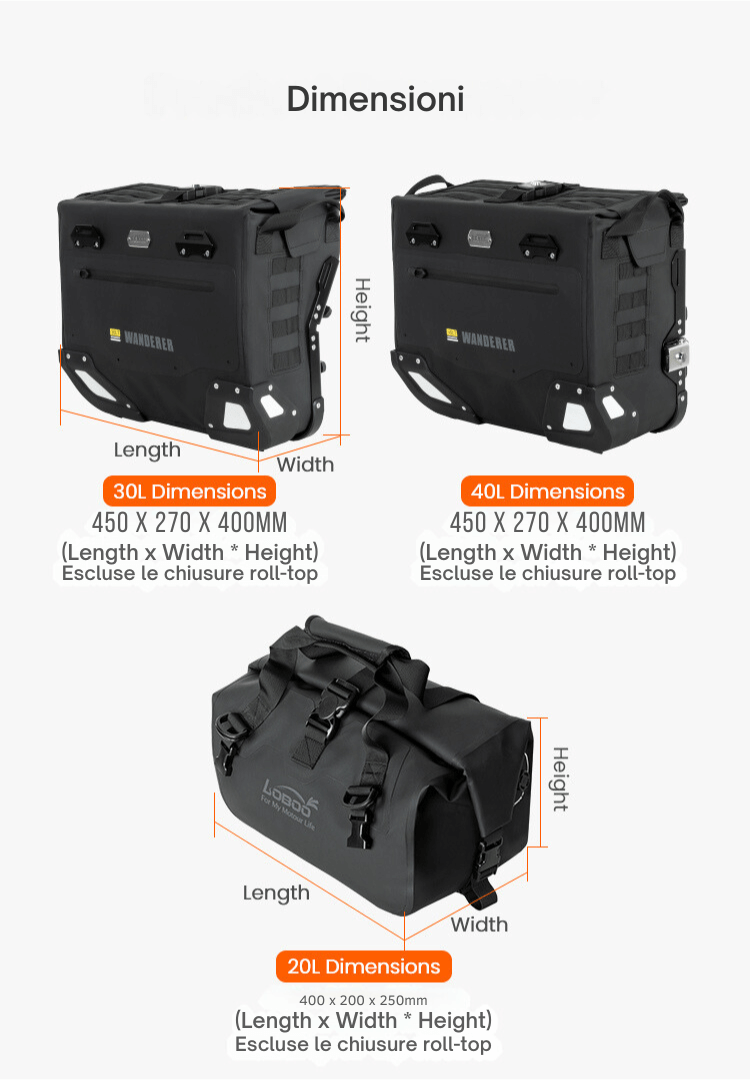

On the R 1300 GS, the dedicated JP131B side frame enables a symmetrical 40/40 configuration without interference with the exhaust. The result is 120 L in total, including the two 20 L bags, with a balanced load on both sides.

They have the same capacity, but they are not the same item: according to the manual, they are two distinct codes, one for the left side and one for the right side, with mirrored mounting hardware. The kit already includes the correct pair.

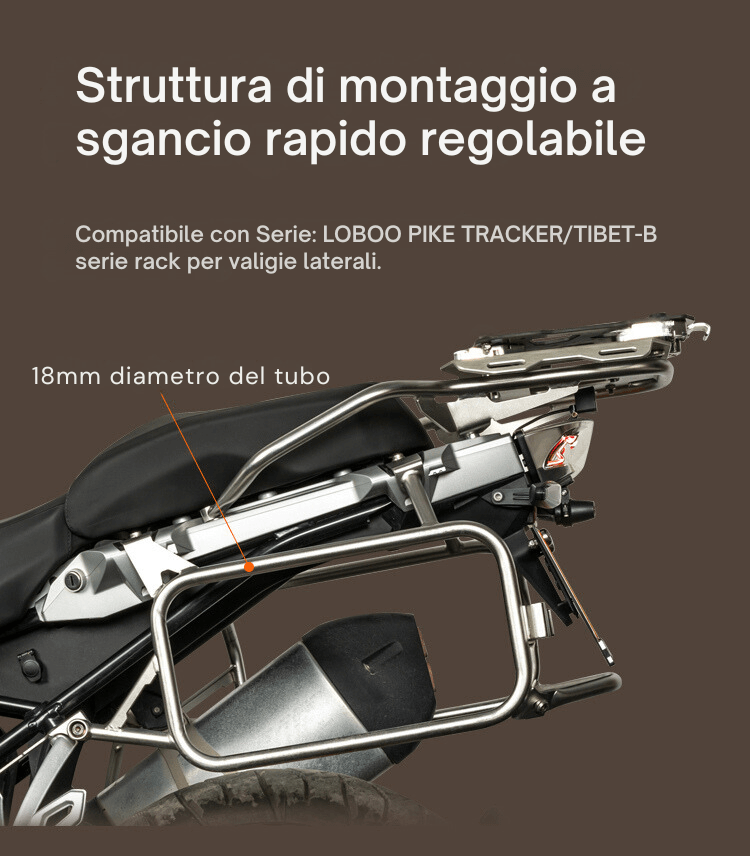

Yes. The frame is specific to the motorcycle, but the cases are not: WANDERER cases attach to any frame with an 18 mm diameter tube. On Endurrad, you can also find the cases alone, without frames.

The frame manual describes sixteen stages and calls for removing the original passenger-footpeg brackets, which are replaced with the plates included in the kit.

The removed original parts that remain in use must be reinstalled using the torque values specified by the motorcycle manufacturer, as required by the manual itself.

Yes. The kit includes a crossbar that connects the two halves of the frame behind the license plate holder and stiffens the assembly: it is the final installation step before the load test.

It is secured with M8 screws and washers, always tightened to 20 Nm, and does not require moving the license plate or license plate light.

The manual specifies two distinct values: 12 Nm for the M6 screws and 20 Nm for all M8 screws, in the four lengths listed in the parts list (M8×20, M8×25, M8×30, M8×35, and M8×60).

A torque wrench is required. The manual advises against fully tightening the screws immediately; instead, position all the parts, check alignment and symmetry, and only then tighten the screws to the specified torque.

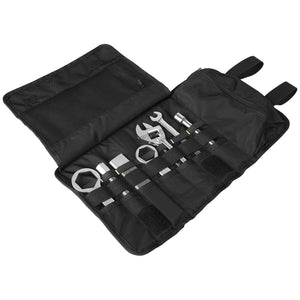

No. The frame parts list contains twenty-two items and includes all the necessary hardware — M6 and M8 screws, washers, bushings, and spacers — plus the service key.

The only tool not included is the torque wrench, which is necessary to comply with the specified torque values.

Yes. The frame and luggage manuals are published in eight languages, including Italian, with the warnings translated and every step illustrated with photographs. The PDF can be downloaded from this page.

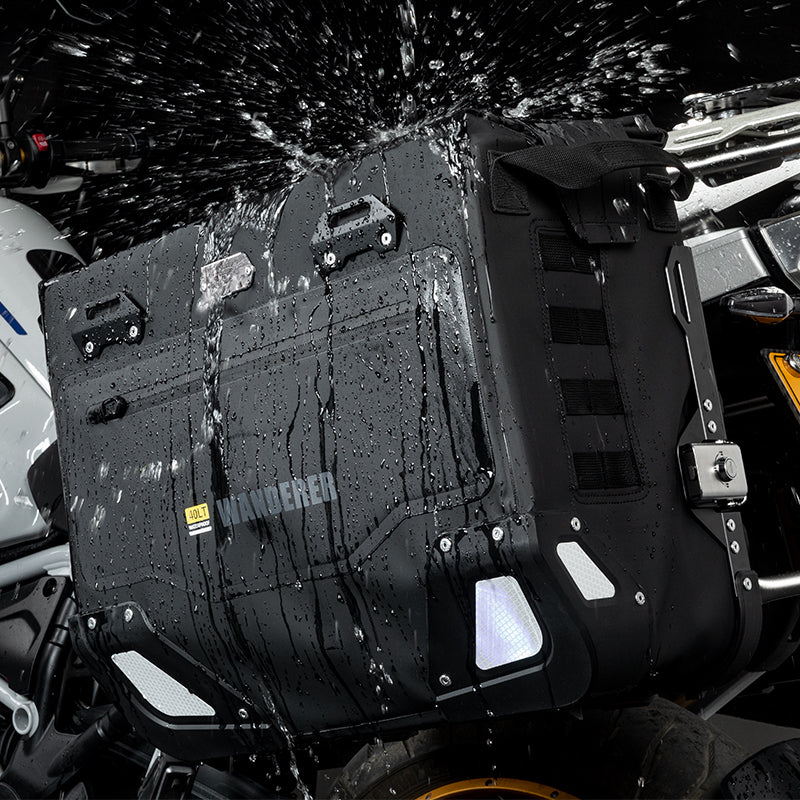

The IPX6 rating covers high-pressure water jets. However, avoid aiming a pressure washer at close range at the seams and magnetic roll-top closure.

The kit exists to simplify the purchase, not to leverage the price: on a single page, you’ll find the combination already verified for the R 1300 GS, without having to cross-reference the frame code with the pannier code.

If you prefer to put together your own setup—for example, 40+30 L panniers, or PIKE TRACKER aluminum panniers on the same frames—you’ll also find the two items separately on Endurrad. Write to us and we’ll point you to the correct combination.

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.
