Barkbusters BHG-092 handguard mounting kit for Kawasaki KLR650 from 2022

The BHG-092 is the Barkbusters mounting kit designed for the handlebars of the Kawasaki KLR650 from 2022 onward. It is the structure onto which Barkbusters guards are mounted: on its own, it protects levers and hands from impacts; with the guards fitted, it also adds protection from wind, cold, and branches.

Main features

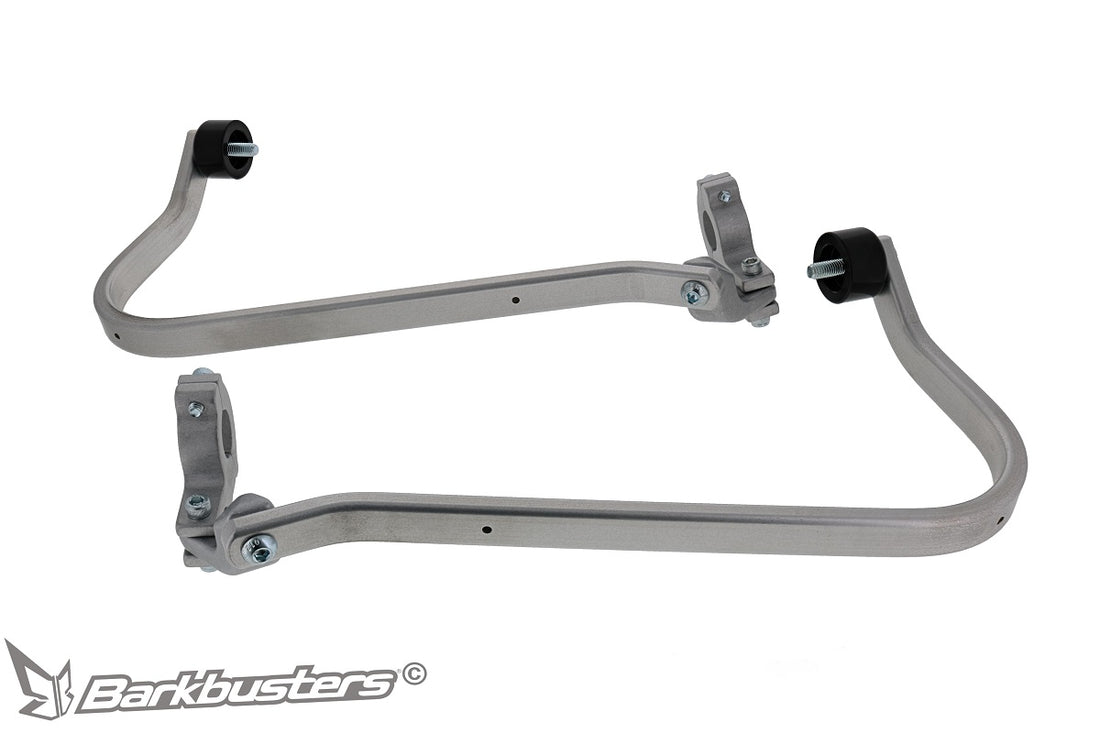

• Heat-treated aluminum bars, one right and one left.

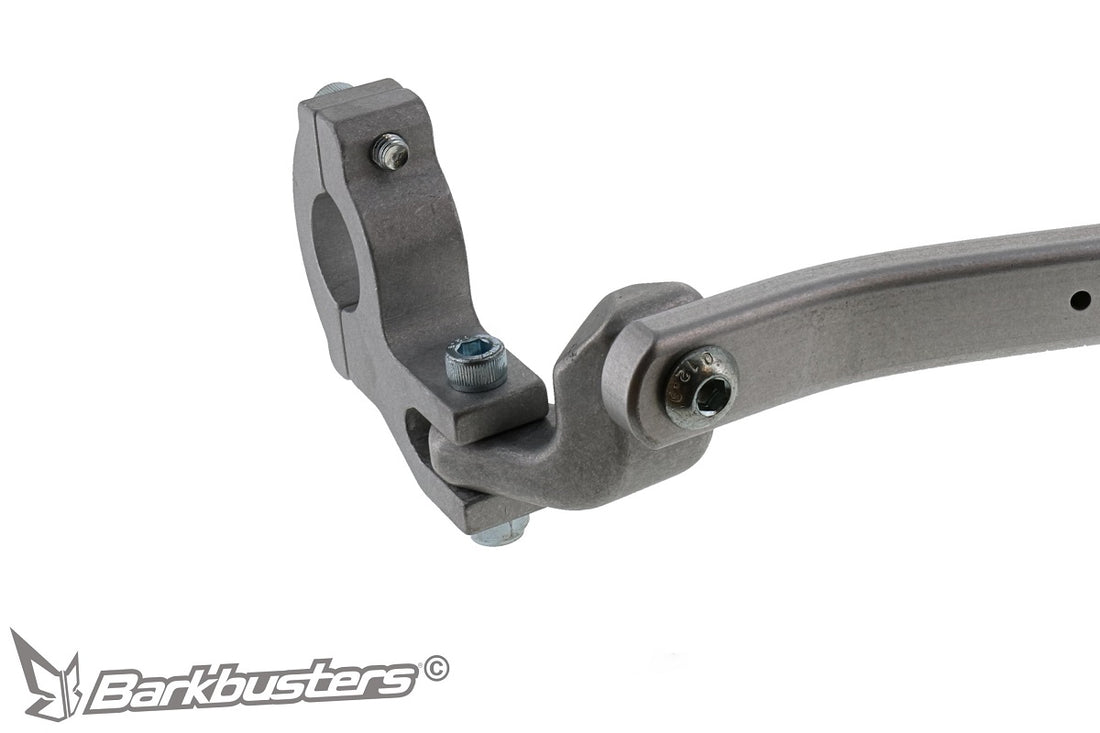

• Two-point mounting: at the handlebar end and on a 22 mm multi-fit clamp, an adjustable clamp that adapts to the tube profile.

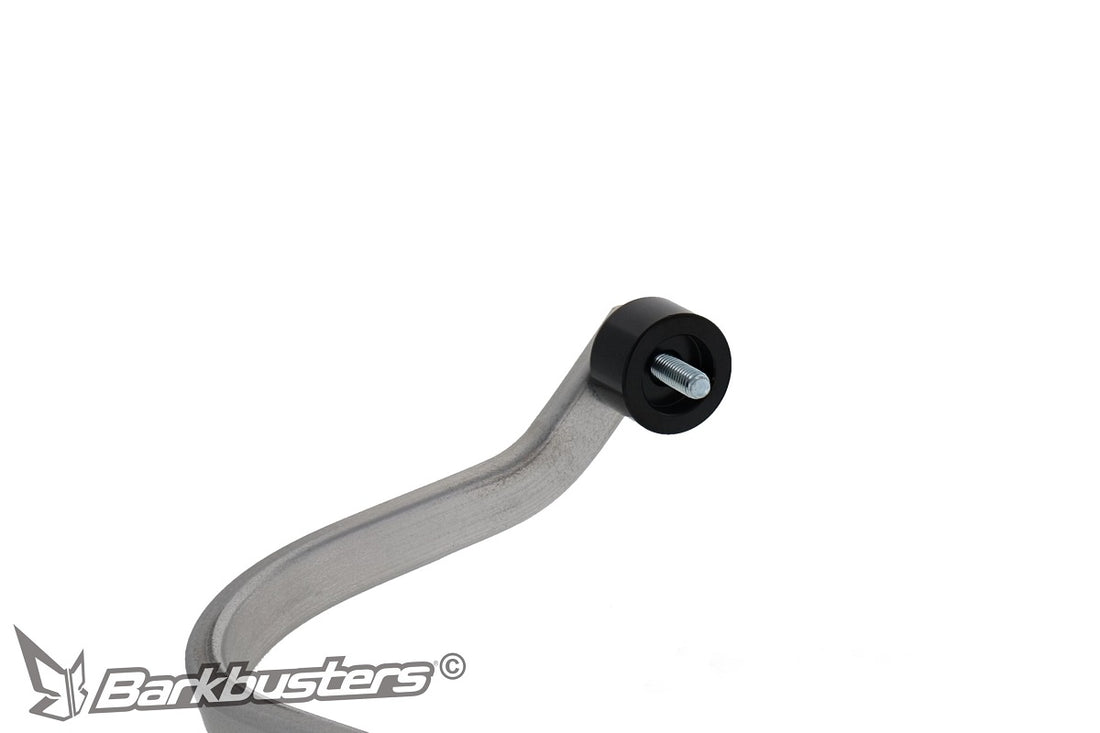

• Handlebar weights included: two Barkbusters BEW35.
• Compatible with JET-003, VPS-003, STM-003, and BCF-003 guards, sold separately.
• Official instructions with advice for removing the original handlebar weights.

Protection and use

Barkbusters clearly distinguishes between the two mounting configurations, and the two-point configuration, anchored at both the end and center of the handlebar, is the one the manufacturer specifies for impact protection. On the KLR650, a dual-sport bike designed for off-road travel as well, this means protecting the brake and clutch levers from falls, rocks, and branches.

Materials and construction

Heat-treated aluminum bars (manufacturer code BAR-V-043), MFC-22 multi-fit clamps with right and left CP8 connectors. The manufacturer does not state the finish or weight of the kit, so we do not report them.

Compatibility

This code is not specified for the KLR650 before 2022. Barkbusters states compatibility for motorcycles in original factory configuration, with the standard 22 mm handlebar.

Installation

Remove the handlebar weights and any original handguards. The original handlebar weights are installed with threadlocker, so considerable torque may be required to unscrew them; the manufacturer then recommends cleaning up the threads with a tap before installing the kit's 8 mm bolt. The wiring attached to the handlebar must be moved to make room for the clamp.

Install the clamp without tightening it, secure the bar at the end and to the connector, position it horizontally when viewed from the side, and tighten in the specified order: end bolt, bar bolt, clamp bolts, connector bolt. Specified torque values: 10 Nm for the M6 bolts and 28 Nm for the M8 bolts, using medium-strength threadlocker and checking again after the first 50 km. Leave approximately 3 mm of clearance between the throttle grip and the handguard.

Clearance with the fairing: the handlebar must be kept in the neutral position. If it is rotated forward, the handguard may touch the fairing; depending on the riding position, a 10 mm riser and lever adjustment may be required. Barkbusters recommends installation by a workshop.

What you get in the box

• 2 aluminum bars, one right and one left
• 2 22 mm multi-fit clamps with the right and left connectors
• 2 BEW35 handlebar weights
• Hardware: 2 M8 countersunk bolts for the end, 2 M8x25 button-head bolts, 4 M6x20 bolts, 2 M6x30 bolts, and 2 M6 self-locking nuts
• Official INS-BHG-092 instructions

What is NOT included

• Protective guards. The kit is the structure only: the guards must be purchased separately from those listed by the manufacturer.
• Any 10 mm handlebar riser, tap for cleaning up the threads, threadlocker, and tools.

Guards to pair with it

• JET-003: compact profile, for enduro and dirt riding.
• VPS-003: two-position adjustable deflector, for touring. It is being discontinued, and the price list indicates VPS-203 as its replacement.
• STM-003, STORM series: greater coverage, for the colder months.
• BCF-003, CARBON series: made of carbon fiber.

Why choose Barkbusters

Barkbusters is an Australian brand owned by Rideworx Pty Ltd, specializing in motorcycle handguards. Each specific kit is designed around the geometry of a particular handlebar, with a published parts list and an installation PDF specifying the hardware, sequence, and torque values. The structure and guards remain separate: you can change the guard series or color without changing the kit.
