CFMOTO 800MT X side case frames - ENDURRADCFMOTO 800MT-X di lato con valigie laterali e bauletto LOBOO PIKE TRACKER neriCFMOTO 800MT-X di tre quarti anteriore con valigie e bauletto LOBOO PIKE TRACKER argentoCFMOTO 800MT-X di tre quarti anteriore con valigie e bauletto LOBOO PIKE TRACKER neriCFMOTO 800MT-X di tre quarti posteriore con valigie e bauletto LOBOO PIKE TRACKER argentoCFMOTO 800MT-X di tre quarti posteriore con valigie e bauletto LOBOO PIKE TRACKER neriCFMOTO 800MT-X vista da dietro con valigie laterali e bauletto LOBOO PIKE TRACKER argentoCFMOTO 800MT-X vista da dietro con valigie laterali e bauletto LOBOO PIKE TRACKER neriTelai laterali LOBOO JP603B e portapacchi posteriore montati sulla CFMOTO 800MT-X, dettaglioCFMOTO 800MT X side case frames - ENDURRADCoppia di valigie laterali LOBOO PIKE TRACKER P35L e P30R argentoCoppia di valigie laterali LOBOO PIKE TRACKER P35L e P30R nere
-10%Consegna in 2-3 giorni lavorativi
65 L Total volume
11,6 kg Weight of the pair of suitcases
JP603B Side frames
800MT-X Motorcycle

Panoramica

In breve

Telai JP603B e coppia di valigie in alluminio 35+30 L per CFMOTO 800MT-X e 1000MT-X

Complete system

JP603B frames and a pair of panniers in a single order.

PIKE TRACKER aluminum panniers

keyed locks and waterproof seals.

Two finishes

black or silver, with the same construction.

Specific for the 800 MT-X

the MT has a dedicated kit on a separate page.

Leggi la descrizione completa

Complete kit for CFMOTO 800MT-X from 2024: the pair of JP603B side frames plus the two PIKE TRACKER aluminum cases of 35 and 30 liters, in the selected finish. One order, nothing to match up. LOBOO also lists the same frame for the CFMOTO 1000MT-X from 2026.

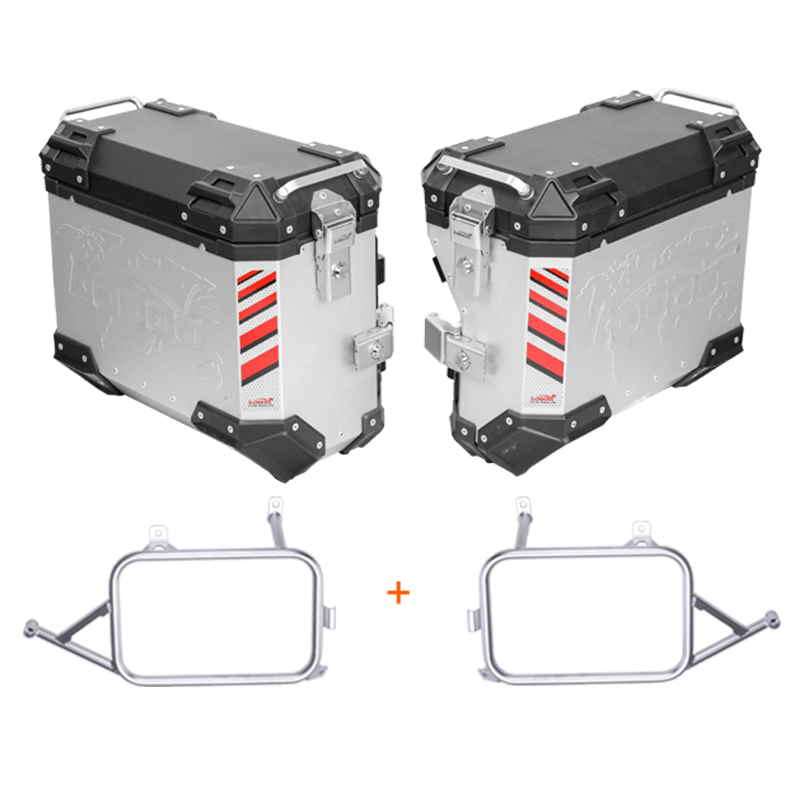

Why the two sides have different capacities

The right P30R case is shaped to clear the exhaust: it is deeper at the top (244 mm) than at the bottom (208 mm), which is why it holds 30 liters. The left P35L, without that constraint, holds 35 liters.

Dimensions and weights declared by LOBOO

  • Left P35L: internal 451 × 227 × 381 mm, overall 498 × 268 × 408 mm, 6 kg
  • Right P30R: internal 451 × 227/167 × 381 mm, overall 498 × 244/208 × 408 mm, 5.6 kg

The pair weighs 11.6 kg empty, excluding the frames. These dimensions are based on manual measurements, so there is some tolerance.

Construction

  • High-strength aluminum alloy, with lower corners covered in technical plastic
  • Key lock with a five-lever cylinder, designed to keep out water and dust; retractable key
  • Numbered spare key: by providing the number, LOBOO can supply a replacement
  • Scratch-resistant inner lining, bag in the lid of the left case, storage net in the right one
  • Lid opening stop to prevent it from hitting the case body
  • 3M reflective inserts

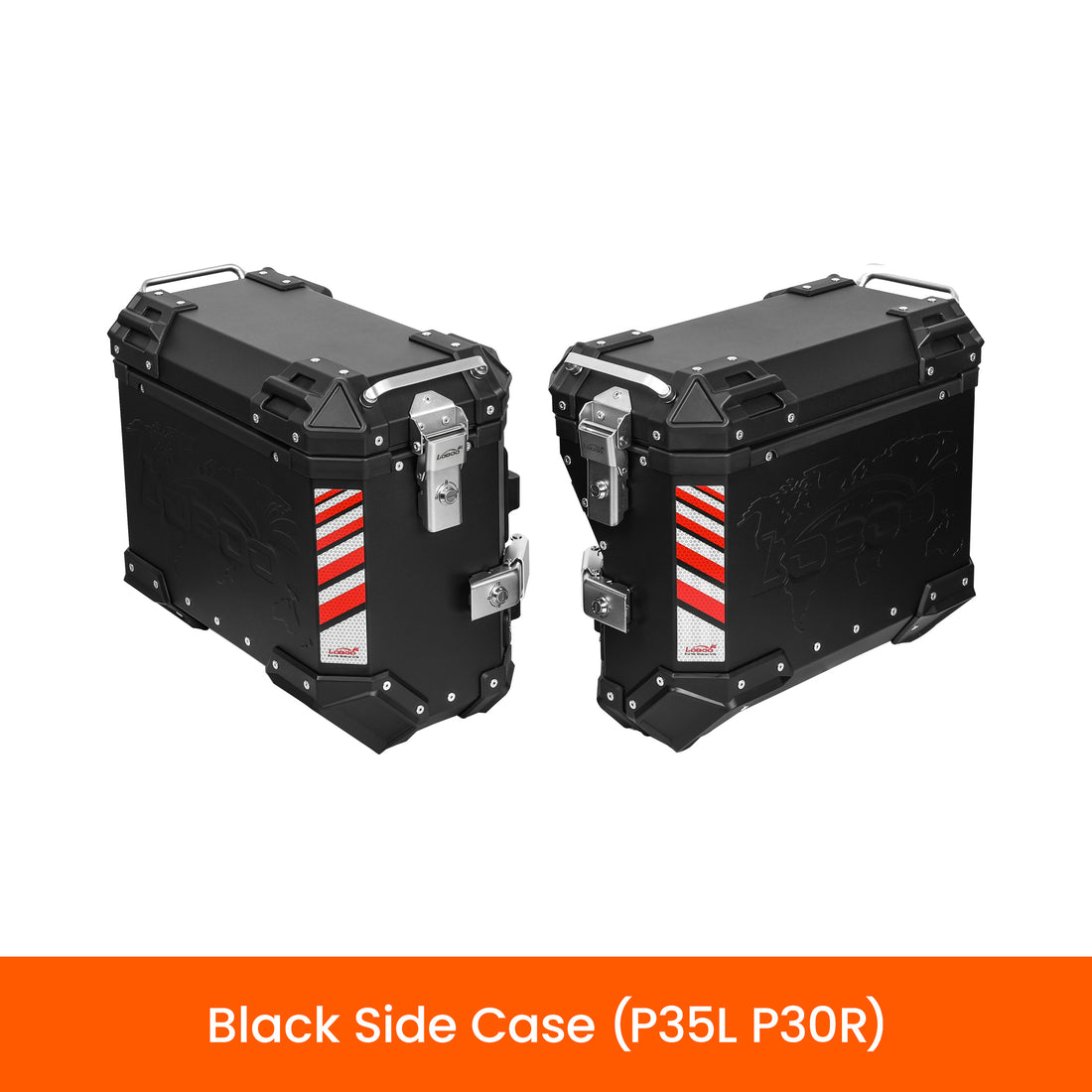

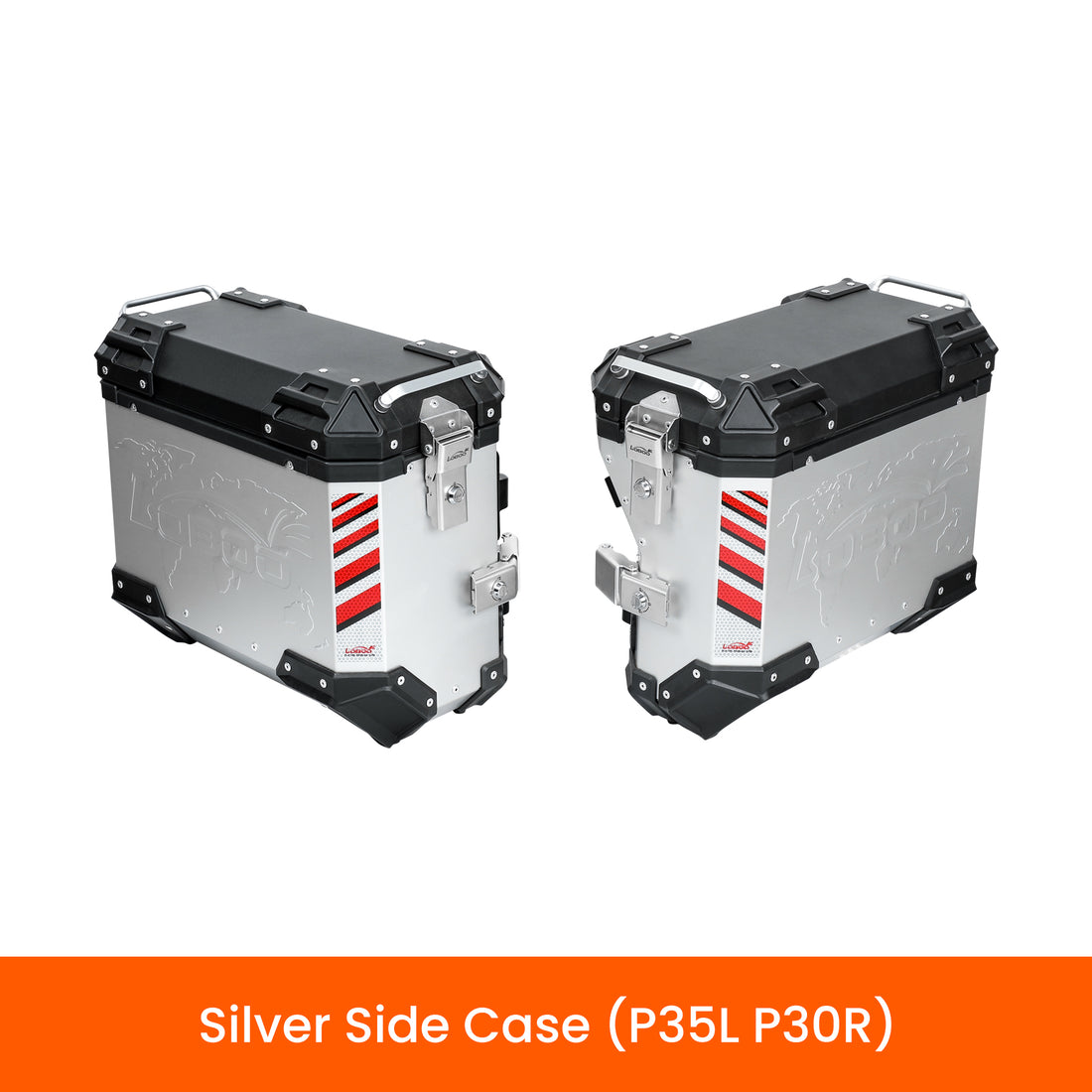

  • Finishes: polished silver or matte black

LOBOO states that the cases keep water out even in heavy rain, but does not publish an IP rating: we do not indicate one.

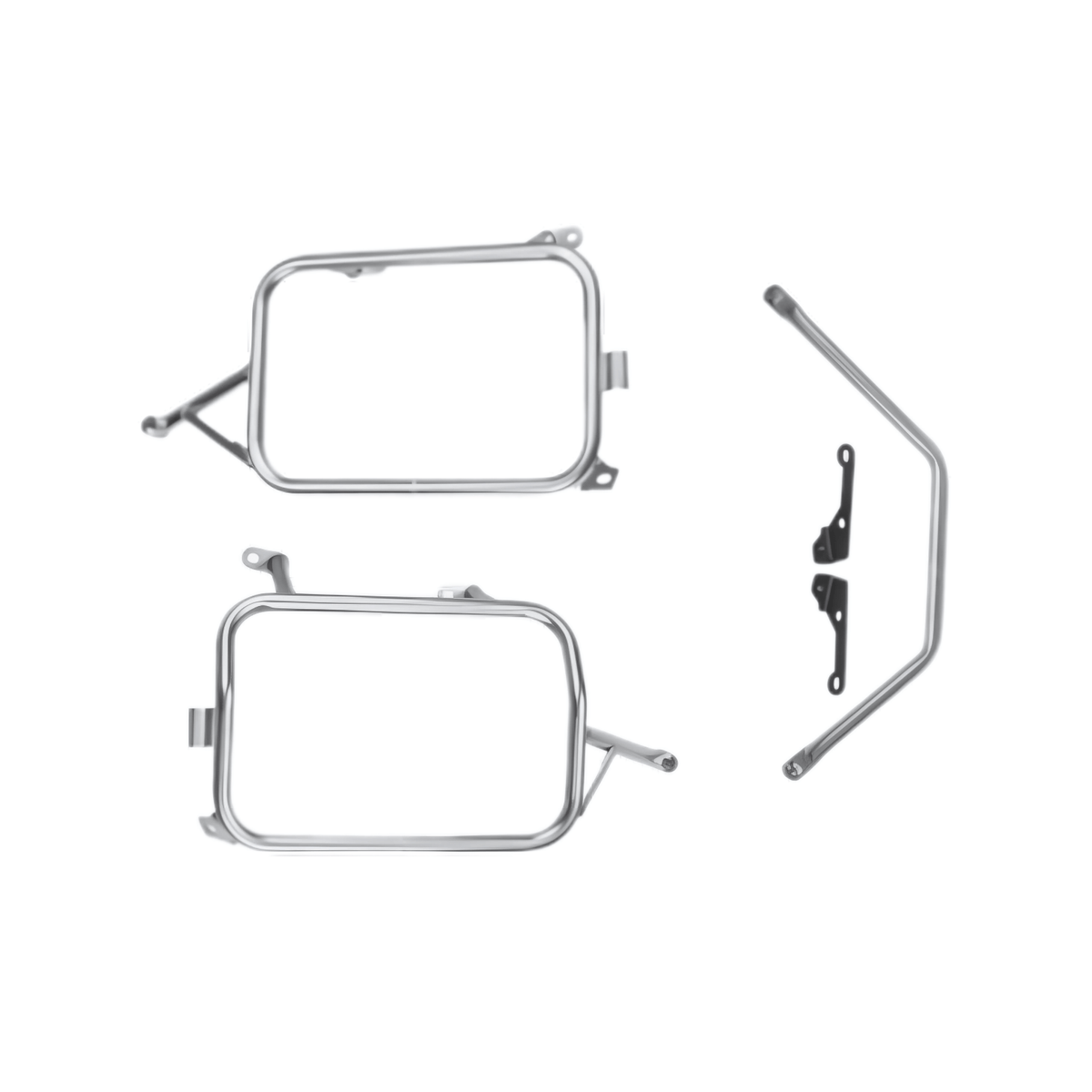

The frames and installation

The JP603B frames are installed in three steps, without drilling, using M8 bolts tightened to 22 N·m and threadlocker already included in the package. The parts list and sequence are on the page for side frames for CFMOTO 800MT-X. The cases attach only to LOBOO frames.

What is not included

The top case and the JP601W rear rack are purchased separately. Each case has its own sensor light in the lid: the kit includes two, one for each side.

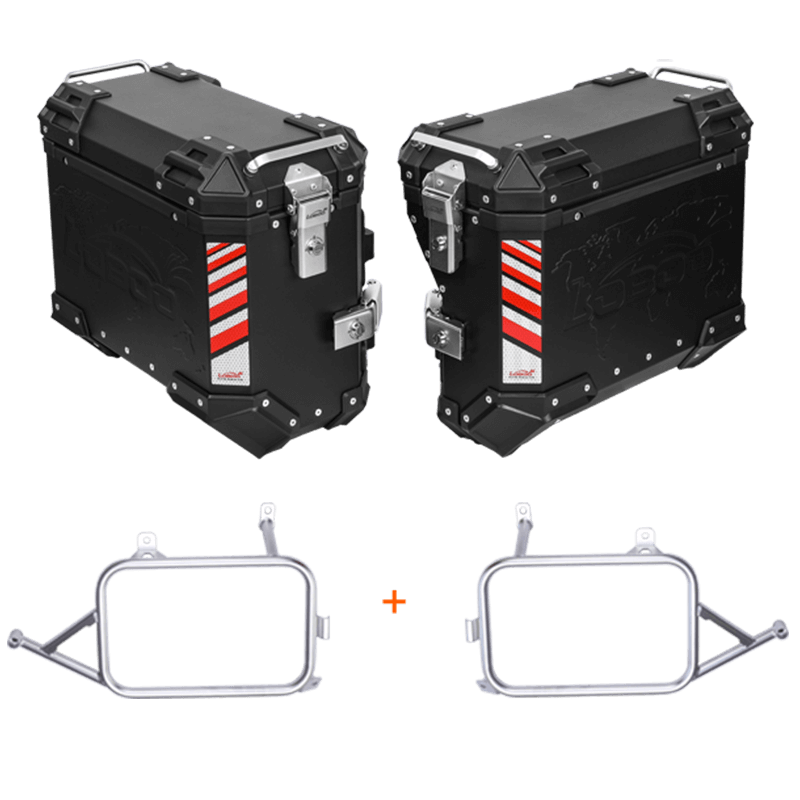

Before ordering

The kit is for the 800MT-X, not the 800MT: for that model, there is the side case kit for CFMOTO 800MT. If you already have the frames, you can purchase the cases only from the PIKE TRACKER series page. LOBOO does not specify a maximum load per case: the maximum load specified by CFMOTO for the motorcycle applies.

Nella confezione

  • ✅ The complete, original, and new LOBOO kit, in manufacturer's packaging.
  • 📦 Included: JP603B side frame pair, PIKE TRACKER P35L and P30R aluminum pannier pair, locks with keys, and mounting hardware.
  • ⚠️ Not included: top case. Top case and rear plate are purchased separately.
  • 🔒 Closed system: LOBOO panniers can only be mounted on LOBOO frames. By purchasing the kit, you already have the correct pairing, no adapters needed.
  • 🏍️ Check the version: this kit is for the 800 MT-X. For the 800 MT, the kit with JP601B frames is required, on a separate page.
  • ↔️ Asymmetrical configuration, 35 liters on the left and 30 on the right: the narrower right pannier provides space for the exhaust.
  • 🚚 Tracked shipping throughout Italy, with product inspection before departure.
  • 🛡️ 24-month legal guarantee for consumers, according to current regulations.
  • 💳 Payment also in installments with the services available at checkout.
  • 🔧 Observe the indicated torque settings and recheck fasteners after the first few kilometers, especially with loaded panniers.
BLACK or SILVERColors
SteelMaterial
AluminumMaterial

JP603B + P35L + P30R · CFMOTO 800MT-X from 2024 · 65 L · 11.6 kg per pair

How does it work in detail

Luggage, frames, measurements, and assembly, step by step.

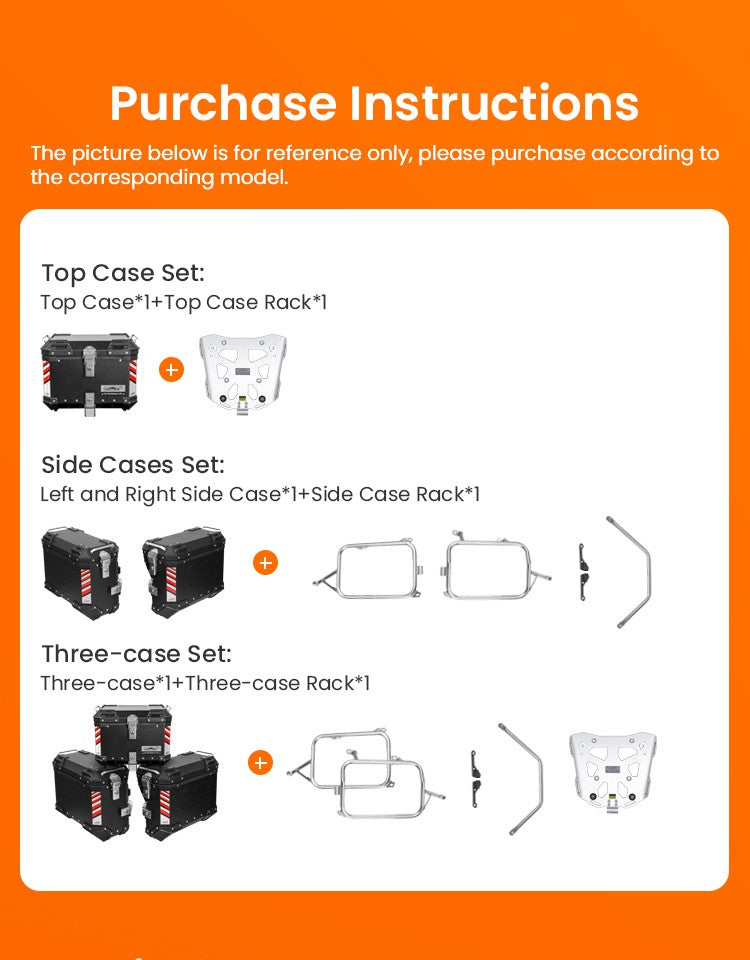

The side set, within the LOBOO system
01

The side set, within the LOBOO system

For the 800MT-X, LOBOO offers three sets: the top case with the luggage rack, the pair of side cases with the frames, or all three cases together.

This kit is the side set: JP603B frames plus P35L and P30R cases.

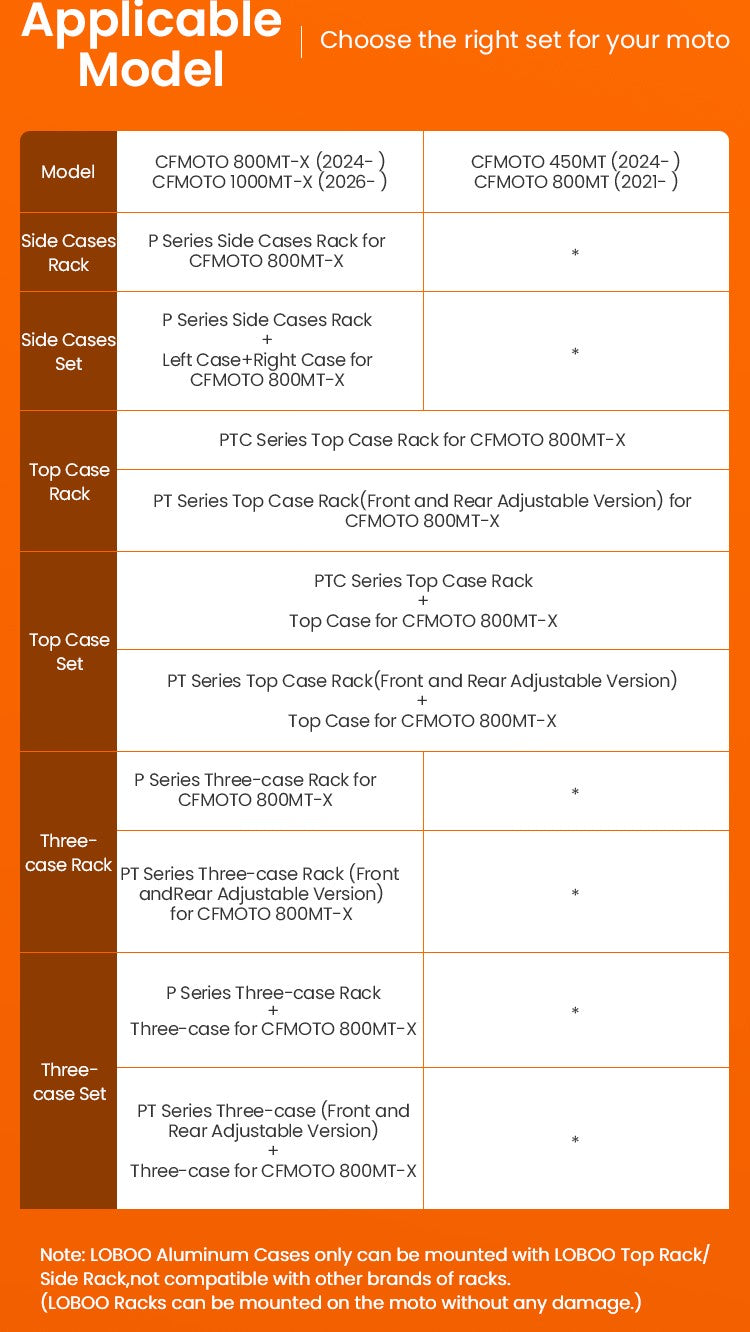

For 800MT-X and 1000MT-X, only on LOBOO frames
02

For 800MT-X and 1000MT-X, only on LOBOO frames

In the LOBOO table, the side case set is listed for the CFMOTO 800MT-X from 2024 and the 1000MT-X from 2026: left case plus right case, on P Series frames.

LOBOO aluminum cases can only be mounted on LOBOO frames and luggage racks, and the frames can be installed without damaging the motorcycle.

The PIKE TRACKER, with the right side avoiding the discharge outlet
03

The PIKE TRACKER, with the right side avoiding the discharge outlet

This is LOBOO's aluminum luggage series. On the 800MT-X, the right case has a shaped side panel to leave room for the exhaust.

High-strength aluminum alloy
04

High-strength aluminum alloy

LOBOO states a high-strength aluminum alloy: a robust shell that is not easily broken and absorbs impacts better.

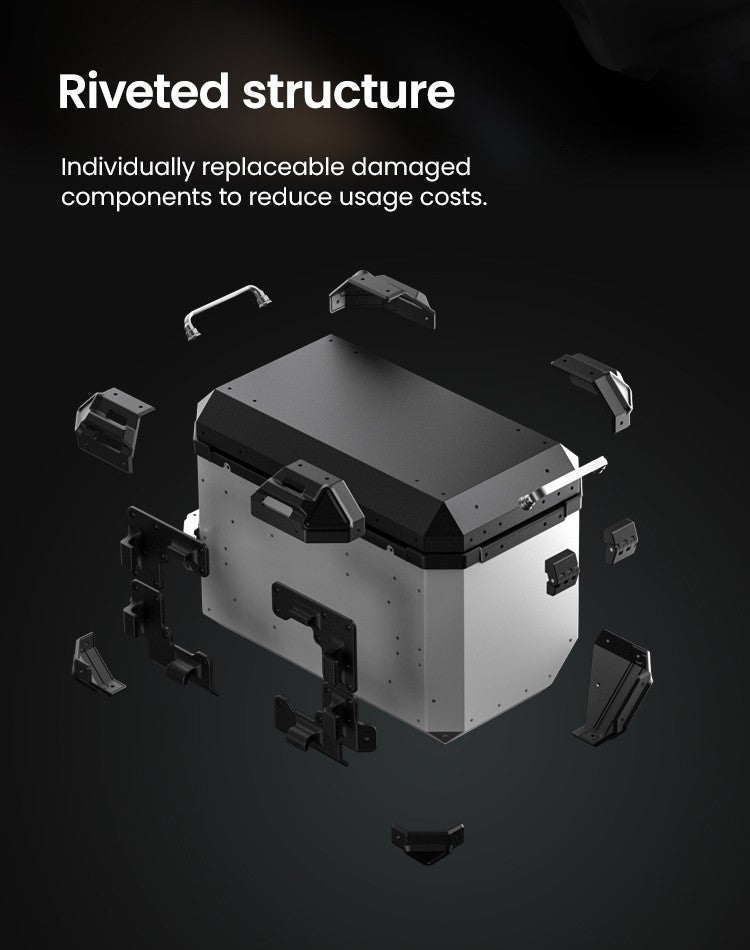

Riveted structure, replaceable parts
05

Riveted structure, replaceable parts

The shell is assembled with rivets. According to LOBOO, if a component is damaged, you can replace it yourself without changing the suitcase: it costs less to repair it.

Lower corners in technical plastic
06

Lower corners in technical plastic

The lower edge of the suitcases is angled and covered with high-strength technical plastic. You gain clearance in tight spaces, and in a slide, the corner protects the suitcase.

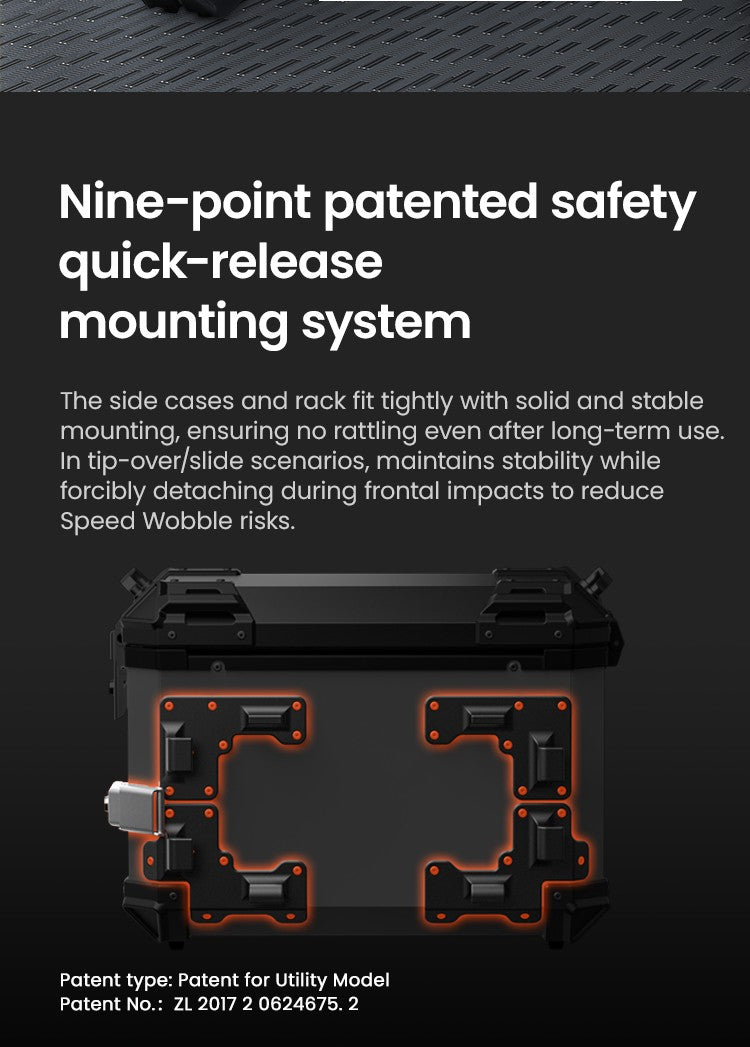

Patented nine-point attachment system
07

Patented nine-point attachment system

The case and frame connect at nine points using a system patented by LOBOO (utility model ZL 2017 2 0624675.2): a secure fit, without play or noise even after prolonged use.

According to the manufacturer, in the event of a fall or slide, the case remains firmly attached, while in a violent frontal impact it detaches to reduce the risk of oscillation (speed wobble).

Retractable key, with spare number
08

Retractable key, with spare number

The key is retractable and CNC-machined. A number is printed on the spare key: if you lose all the keys, LOBOO can provide a new one using that number.

Five-lever lock
09

Five-lever lock

The cylinder has five plates and is designed to protect against water and dust.

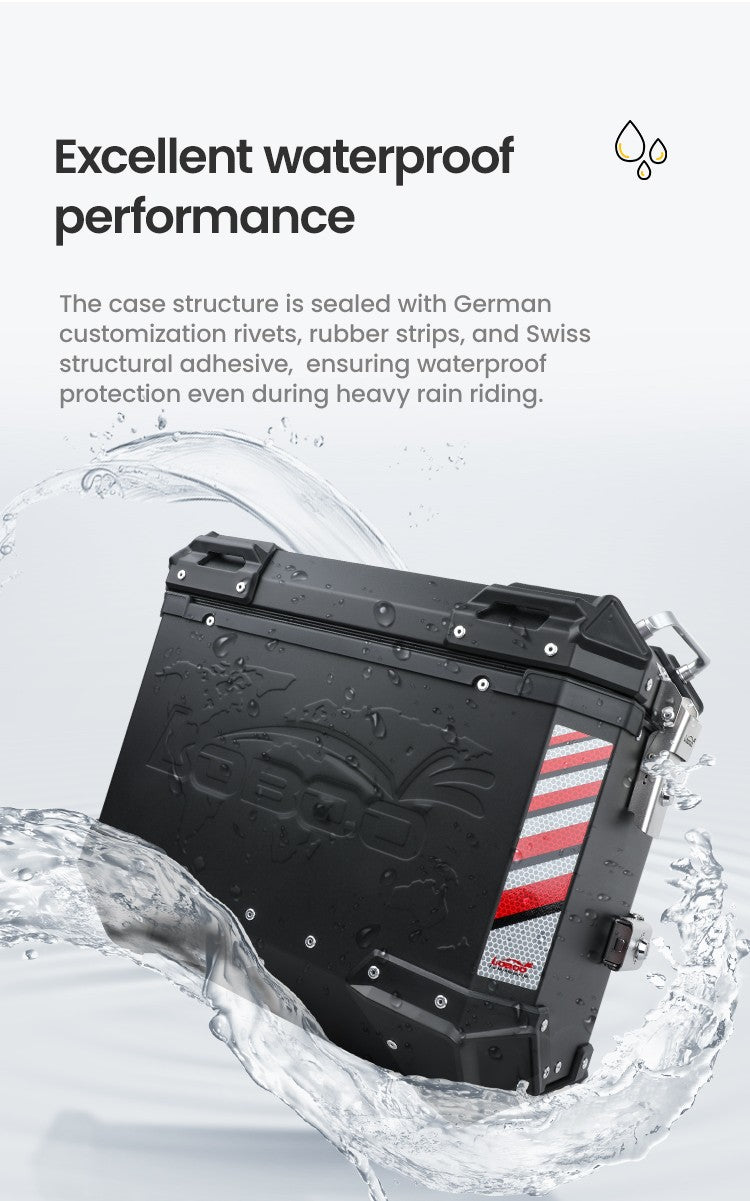

Water-resistant
10

Water-resistant

LOBOO states that the shell is sealed with custom-made German rivets, rubber gaskets, and Swiss structural adhesive to keep water out even in heavy rain.

The manufacturer does not publish an IP rating, so we do not provide one.

3M reflective strips
11

3M reflective strips

The sides feature high-visibility 3M reflective inserts, making you more visible at night.

Pocket in the left lid
12

Pocket in the left lid

The left pannier comes standard with a bag in the lid. The lid opens wide and has a stop, so it doesn’t hit the pannier.

Net in the right cover
13

Net in the right cover

The right pannier comes standard with a mesh pocket in the lid to keep small items separate.

Scratch-resistant lining
14

Scratch-resistant lining

The interior is lined to prevent the contents from being scratched against the aluminum during travel.

Measurements and weights of the two suitcases
15

Measurements and weights of the two suitcases

P35L: 451 × 227 × 381 mm inside, 498 × 268 × 408 mm overall, 6 kg. P30R: 451 × 227/167 × 381 mm inside, 498 × 244/208 × 408 mm overall, 5.6 kg.

The finishes are glossy silver and matte black.

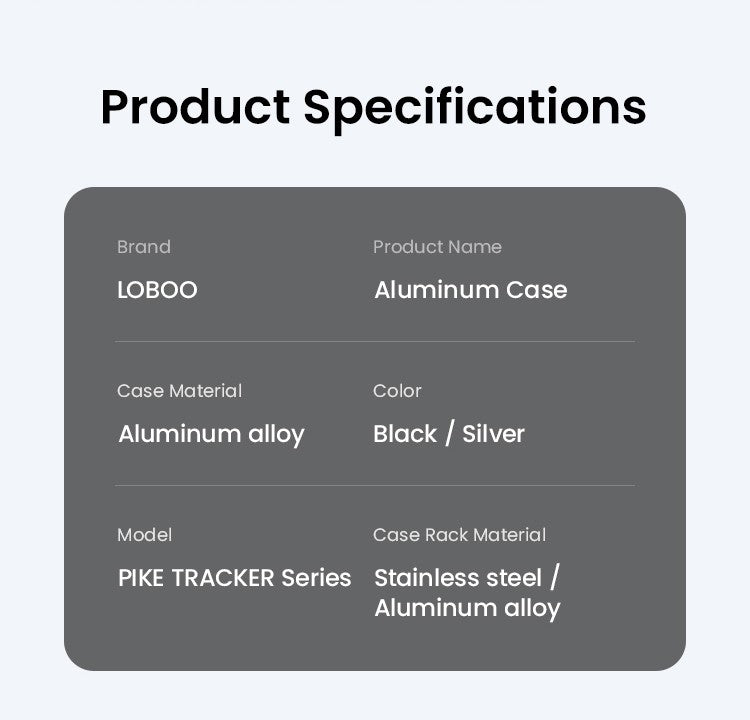

Materials declared by LOBOO
16

Materials declared by LOBOO

Aluminum alloy suitcases, black or silver. For the frames of the PIKE TRACKER LOBOO system, it indicates stainless steel and aluminum alloy without specifying which part is made of which material.

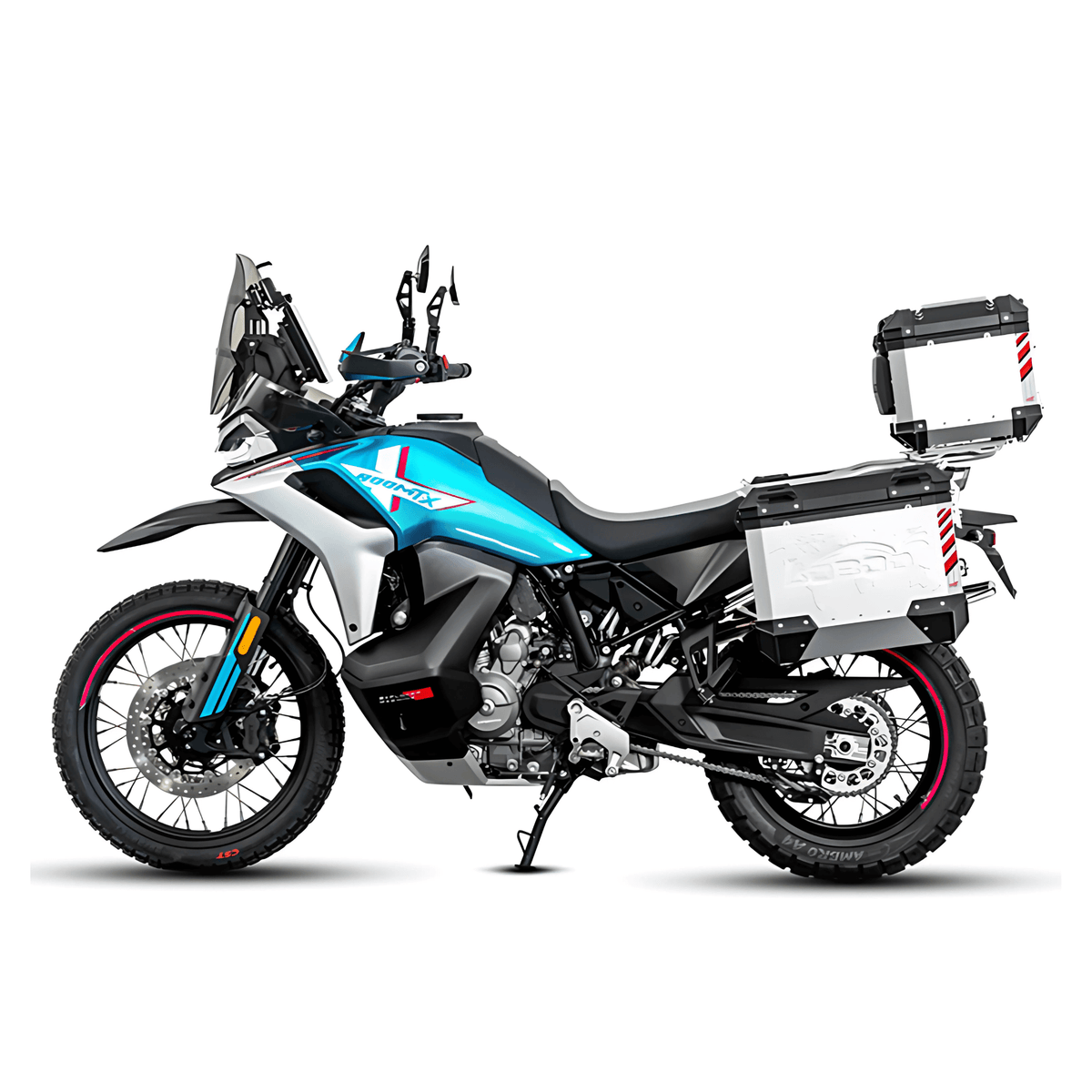

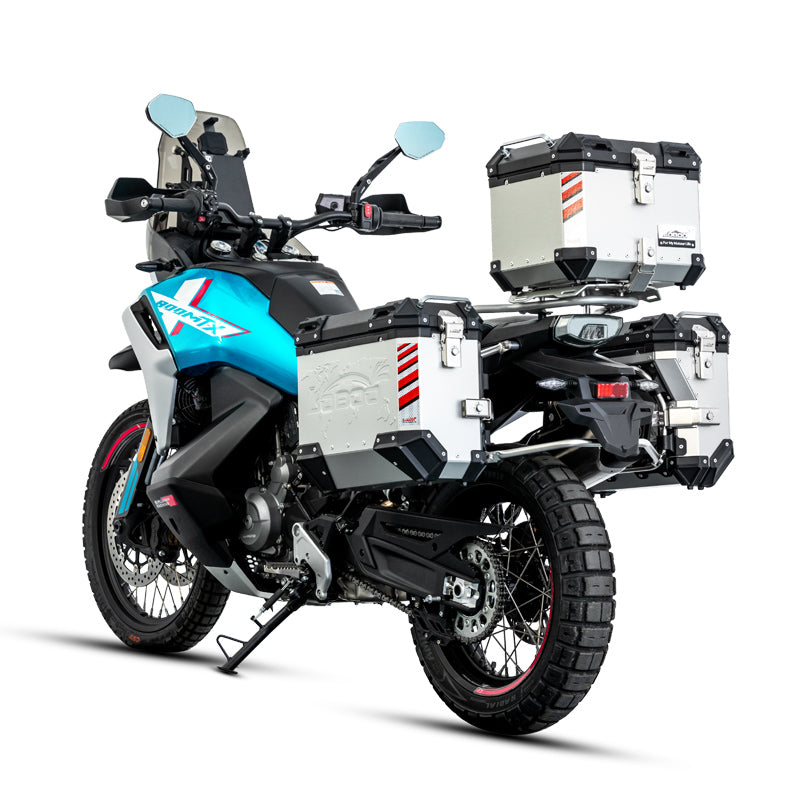

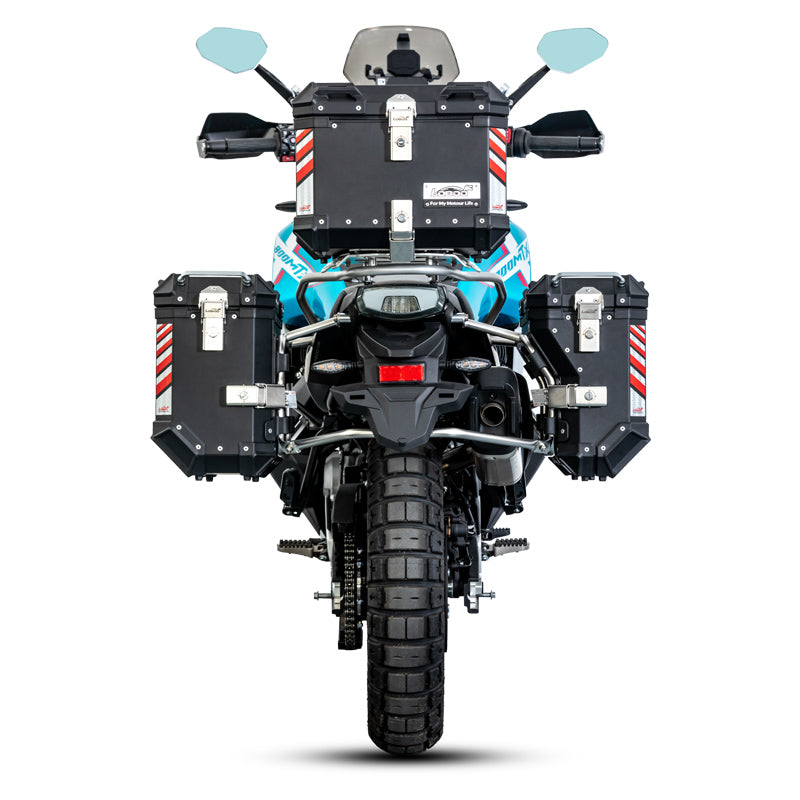

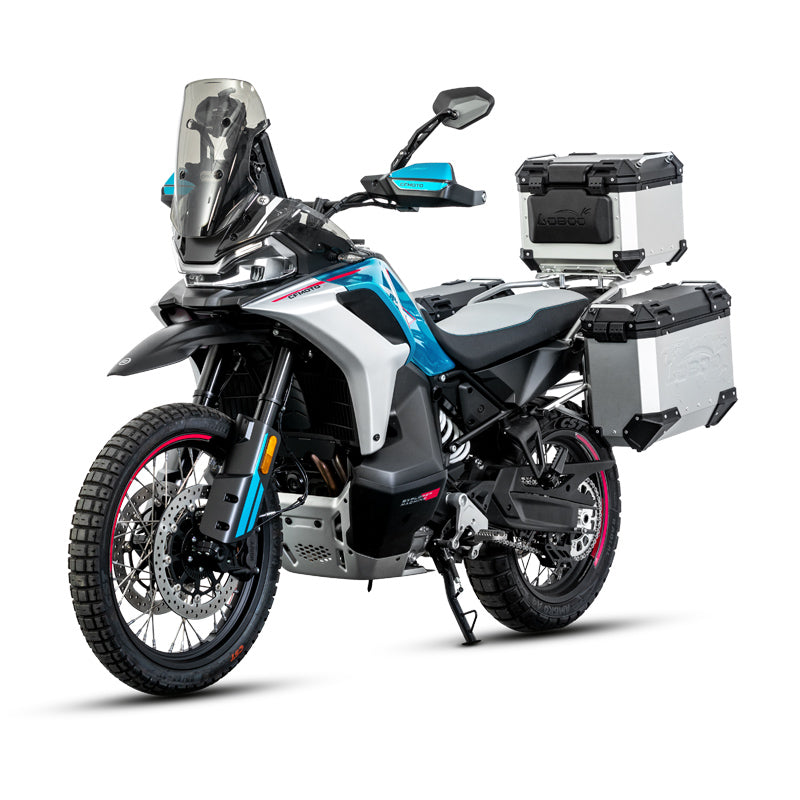

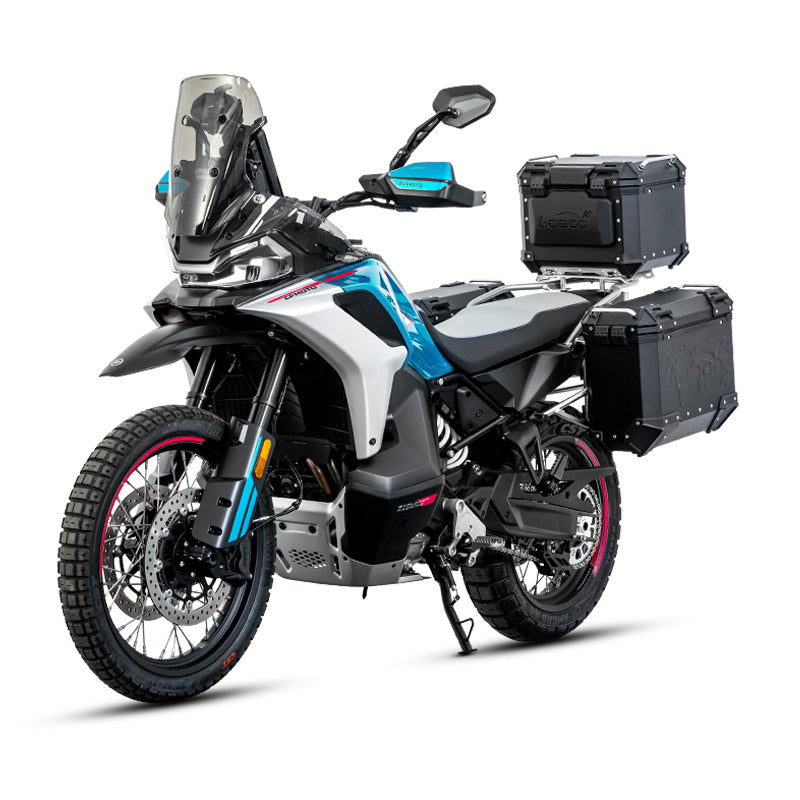

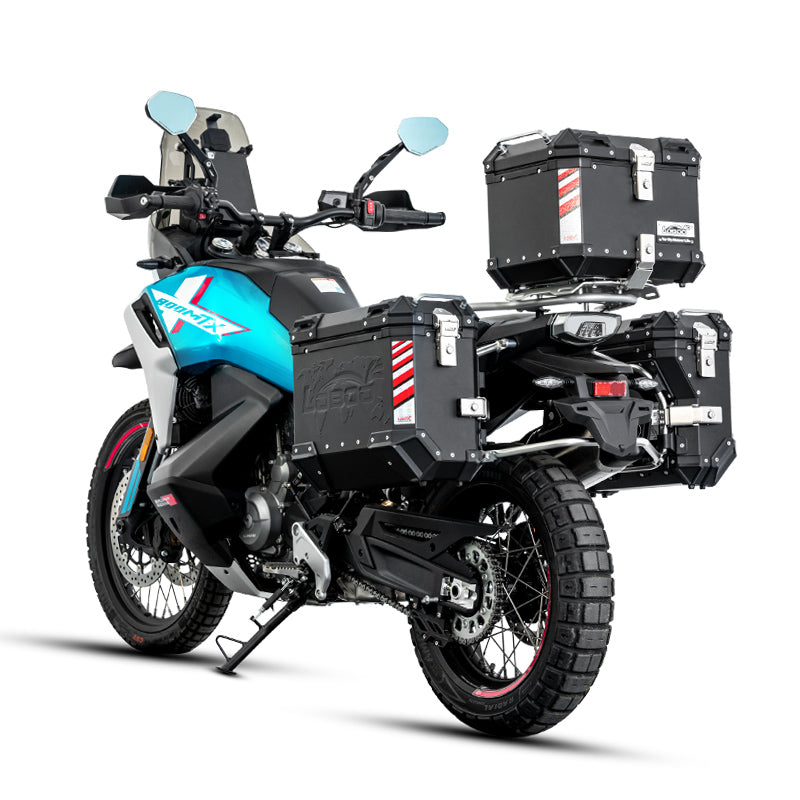

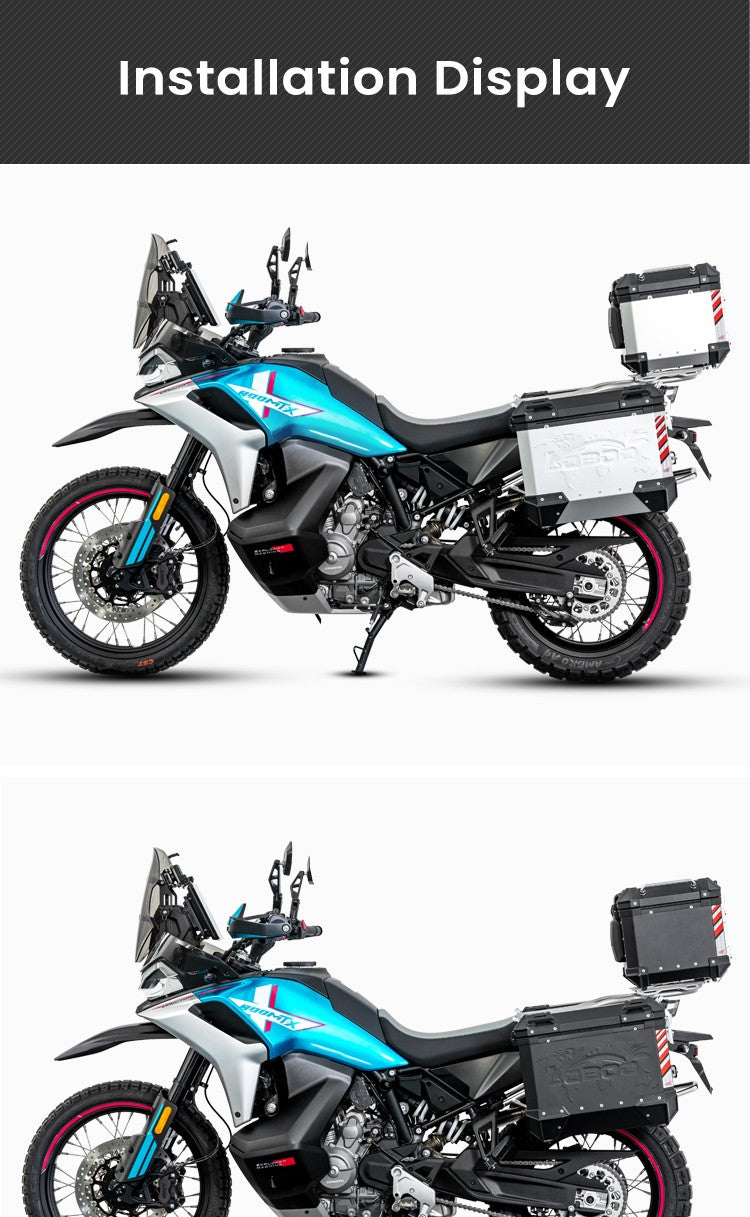

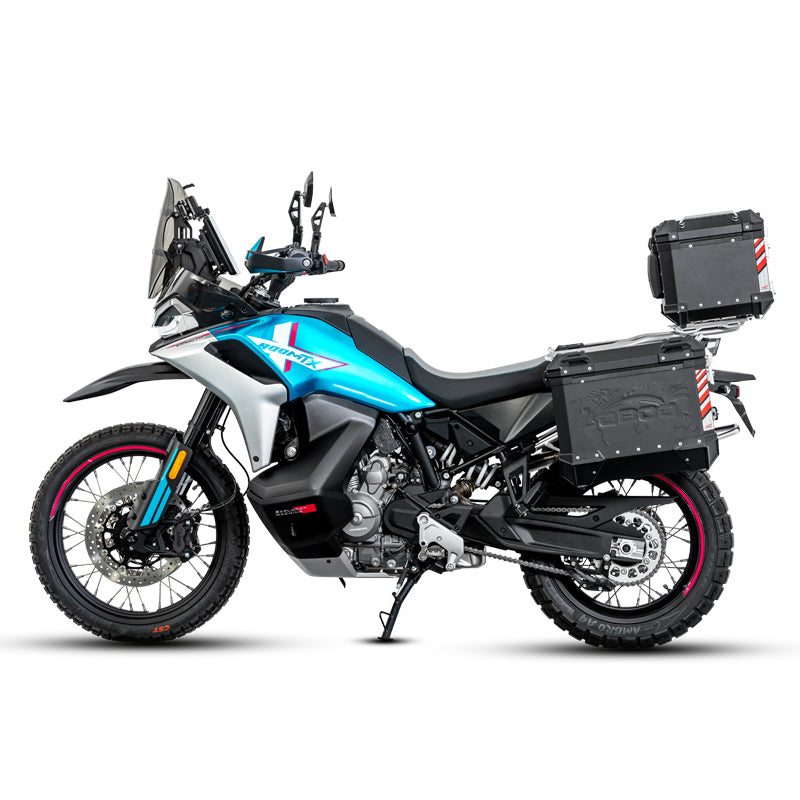

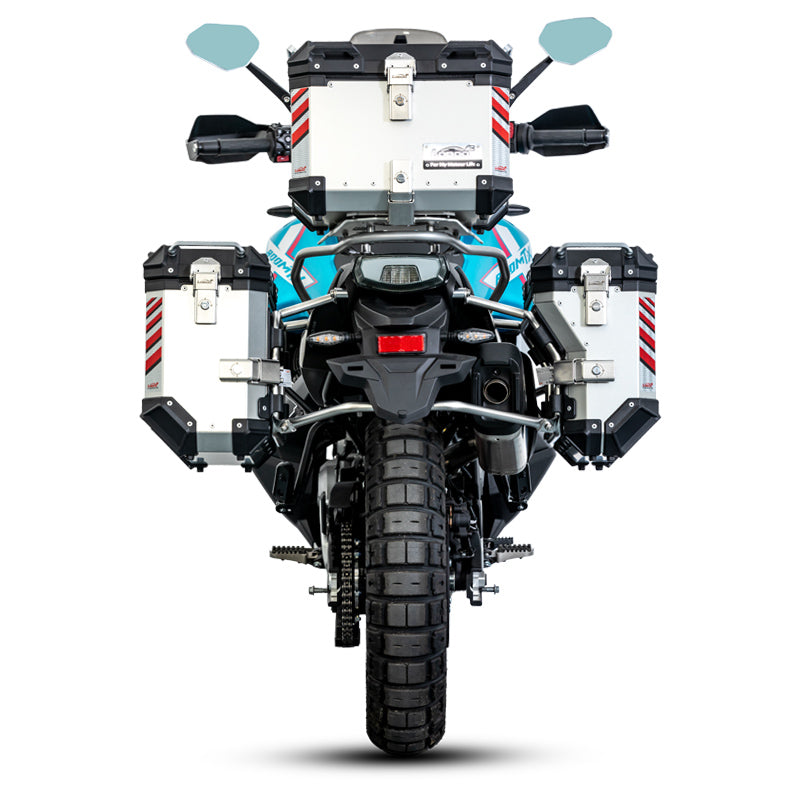

The equipped 800MT-X
17

The equipped 800MT-X

The official LOBOO photos show the 800MT-X with the PIKE TRACKER panniers in silver and black.

The top case in the photos is not part of this kit.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Capacity

Settings
35+30 L Asymmetrical: the right side leaves room for the exhaust pipe
Total volume
65 L 35 L on the left, 30 L on the right

Kit contents

Side frames
JP603B Includes screws, plugs, and threadlocker
Suitcases
P35L + P30R Aluminum PIKE TRACKER, top case not included

Compatibility

Motorcycle
CFMOTO 800MT-X From 2024; the frames also apply to the 1000MT-X from 2026.
Semi-rigid alternative
BCB40T + BCB30T WANDERER 40 + 30 L on the same frames

Dimensions

Left suitcase interior
451 x 227 x 381 mm Length × depth × height
Left suitcase external dimensions
498 x 268 x 408 mm Mounted accessories included
Right suitcase interior
451 x 227/167 x 381 mm The two measurements are the upper part and the lower part.
Right suitcase external dimensions
498 x 244/208 x 408 mm Mounted accessories included

Closure

Lock
By key Five-disc cylinder resistant to water and dust, retractable key

Water resistance

IP rating
Undeclared LOBOO claims water and dust resistance without publishing a rating

Weight

Left P35L pannier
6 kg Declared by LOBOO
Right P30R pannier
5,6 kg Declared by LOBOO
Pair of suitcases
11,6 kg Empty, frames excluded

Construction

Luggage materials
Aluminum alloy High resistance, declared by LOBOO
Lower corners
Technical plastic Slanted and coated edge
Reflective elements
3M On the sides
Internal
Scratch-resistant cover Pocket in the lid on the left, net on the right

Closure

Key
Retractable Numbered spare key for replacement

Finishes

Colors
Glossy silver or matte black

Frame assembly

Tightening torque
22 N·m All M8 screws, threadlocker included

Dati dichiarati dal produttore LOBOO. In caso di dubbio sulla compatibilità con la tua versione, contattaci prima dell'acquisto.

Manuale d'uso JP603B + P35L + P30RDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Telai: tre passaggi senza forature (telaio sinistro, telaio destro, traversa), viti M8 a 22 N·m con il frenafiletti incluso. Non serrare a fondo finché non hai completato le regolazioni.
  2. Valigie: si agganciano solo a telai LOBOO.
  3. Il nostro consiglio: ricontrolla i fissaggi dopo i primi chilometri e distribuisci il peso fra i due lati, il più in basso possibile.
Istruzioni complete e note di sicurezza
  • Telai: tre passaggi senza forature (telaio sinistro, telaio destro, traversa), viti M8 a 22 N·m con il frenafiletti incluso. Non serrare a fondo finché non hai completato le regolazioni.
  • Valigie: si agganciano solo a telai LOBOO.
  • Il nostro consiglio: ricontrolla i fissaggi dopo i primi chilometri e distribuisci il peso fra i due lati, il più in basso possibile.

Assembly and Notes

  • The kit includes side racks and a pair of panniers: the top case is not included.
  • Observe the maximum load per side rack indicated by CFMOTO in the motorcycle's manual.
  • Recheck the tightening of all fasteners after the first 100-200 km and periodically with off-road use.
  • The load must not obstruct the license plate and taillights or extend beyond the limits set by the Highway Code.

Check the version:this kit is for the CFMOTO 800 MT-X. For the 800 MT, there is a dedicated kit with JP601B frames, on a separate page.

  • If you already have JP603B frames:purchase only the cases from the PIKE TRACKER series page.
  • If you prefer semi-rigid bags:the same frames fit the 40+30 liter WANDERER bags.

Per moto Cfmoto

CFMoto
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which CFMOTO models is the kit compatible with?

On the CFMOTO 800MT-X from 2024 and the CFMOTO 1000MT-X from 2026: these are the two motorcycles that LOBOO lists in the JP603B frame manual.

Is the kit also compatible with the CFMOTO 800MT?

No. The JP603B frames in the kit are listed by LOBOO for the 800MT-X from 2024 and the 1000MT-X from 2026. For the 800MT, there is a dedicated kit with JP601B frames.

What’s in the kit?

The pair of JP603B side frames with hardware, caps, and threadlocker, and the PIKE TRACKER P35L and P30R cases, with locks and keys, in the selected finish. Top case and luggage rack are not included.

Why do the two suitcases have different capacities, 35 and 30 liters?

Because the exhaust runs along the right side. The P30R has a narrower lower section (208 mm compared with 244 mm at the top) to clear it, which is why it holds 30 liters compared with the P35L’s 35.

How much do the suitcases weigh?

6 kg for the P35L and 5.6 kg for the P30R, so 11.6 kg for the pair without accessories. The weight of the frames is not specified by the manufacturer.

How bulky are the mounted panniers?

The P35L measures 498 × 268 × 408 mm overall, while the P30R measures 498 × 244 × 408 mm at the upper section. LOBOO does not state the total width of the equipped motorcycle.
