Centralina CANsmart DENALI per Yamaha Ténéré 700 fino al 2024
Centralina CANsmart DENALI per Yamaha Ténéré 700 fino al 2024 – vista 2
Centralina CANsmart DENALI per Yamaha Ténéré 700 fino al 2024 – vista 3

Vendor:DENALI

CANsmart accessory controller for Yamaha Ténéré 700 up to 2024

€376,00

Specifica per Ténéré 700 fino al 2024

DNLWHS24900 — Cosa è compreso nel prezzo
  • La centralina CANsmart GEN II con il cablaggio plug and play per Ténéré 700.
  • Cavo di programmazione micro USB per collegarla al computer.
  • Fascette di fissaggio per il montaggio.
  • Faretti, clacson e luce freno non compresi la centralina li comanda, non li contiene.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal guarantee of conformity

Original DENALI product — 24-month warranty

4accessories

Available circuits

10To continue

Circuit current

30A

Total current

GEN IIupdatable

Generation

Features

Accessory circuits

4, each reconfigurable

Preconfigured for two sets of DENALI lights, a SoundBomb horn, and a B6 brake light

Command

Wonder Wheel BMW or the CANsmart Accessory Manager

Electric

Circuit current

10

30 A total for the control unit

Installation

Plug and play on the original connectors

No wire cutting, no additional relay

Compatibility

Covered motorcycles

Yamaha Ténéré 700 from 2019 to 2024, all versions

T7 2019-2024, Rally Edition 2020-2024, World Raid 2022-2024, Extreme and Explore Edition 2023-2024. It does not support the T7 from 2025 onward

Equipment

Package contents

CANsmart control unit, cable ties, micro USB programming cable

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale del CANsmart GEN II.

Quattro accessori comandati dai pulsanti originali della T7

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description CANsmart accessory controller for Yamaha Ténéré 700 up to 2024

Code DNLWHS24900 — DENALI code DNL.WHS.24900

The control unit that uses your Ténéré 700's CANbus to control up to four accessories from the original handlebar buttons, without adding switches or loose relays. It plugs into the factory connectors: no cutting or drilling required.

Four circuits rated at 10 A continuous each, 30 A total, preconfigured for two sets of DENALI auxiliary lights, a SoundBomb horn, and the B6 brake light, all configurable through the CANsmart Accessory Manager software along with dozens of other settings.

Supported motorcycles: both generations of the T7, with either an LCD or TFT dashboard — Ténéré 700 from 2019 to 2024, Rally Edition 2020–2024, World Raid 2022–2024, Extreme Edition and Explore Edition 2023–2024.

Pay attention to the year: DENALI states that the 2025-and-later Ténéré 700 is not supported by this control unit. For that motorcycle, you need the universal CANsmart with the dedicated adapter.

Why choose it

La Ténéré 700 è una moto essenziale che quasi tutti allestiscono: faretti, clacson, presa per il navigatore. Il CANsmart evita che ogni pezzo si porti dietro un relè e un interruttore, e porta tutto sui comandi originali al manubrio.

  • Quattro circuiti da 10 A continui, 30 A totali.
  • Copre entrambe le generazioni, cruscotto LCD e TFT.
  • Installazione plug and play, reversibile senza tracce.
  • Fusibile elettronico per circuito e decine di regolazioni dal software.
Who is it recommended for

A chi ha una Ténéré 700 immatricolata fino al 2024, in qualsiasi versione: base, Rally Edition, World Raid, Extreme o Explore Edition, con cruscotto LCD o TFT.

Se hai la Ténéré 700 dal 2025 questa centralina non è quella giusta: DENALI dichiara che non è supportata e per quella moto serve il CANsmart universale con l'adattatore dedicato. Scrivici e ti diciamo cosa serve.

Complete technical specification sheet
Technical data
  • Circuiti: 4, ognuno riconfigurabile dal software
  • Corrente: 10 A continui per circuito, 30 A totali
  • Compatibilità: Ténéré 700 2019-2024, Rally Edition 2020-2024, World Raid 2022-2024, Extreme ed Explore Edition 2023-2024
  • Non supportata: Ténéré 700 dal 2025, che richiede il CANsmart universale con adattatore dedicato
  • Comando: pulsanti originali al manubrio o software CANsmart Accessory Manager
  • Installazione: plug and play sui connettori originali, senza tagliare cavi
  • Generazione: GEN II, aggiornabile via software
Documents and manufacturer

La centralina non modifica l'impianto originale della moto: si innesta sui connettori di serie e può essere rimossa riportando la moto allo stato di fabbrica. Ogni circuito ha un fusibile elettronico impostabile dal software.

Gli accessori collegati restano soggetti alle regole del codice della strada che li riguardano: i fari supplementari vanno montati in numero pari e simmetrici, il clacson deve rispettare i limiti previsti.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • Four accessories controlled by the buttons on the Ténéré’s handlebar.

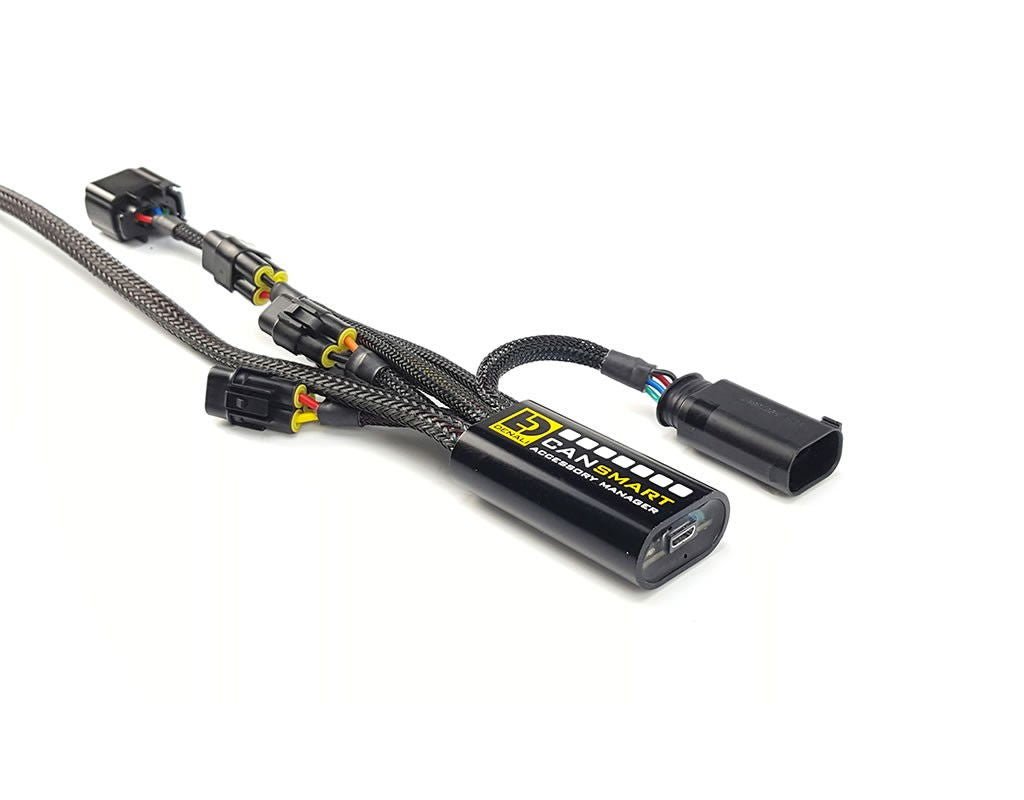

Four accessories controlled by the Wonder Wheel

Four accessories controlled by the Wonder Wheel

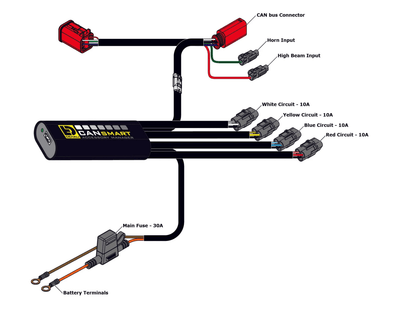

The control unit connects to the motorcycle’s CAN bus and provides four circuits for accessories. From then on, auxiliary lights, the horn, and the brake light can be switched on, switched off, and adjusted using the BMW Wonder Wheel, with no additional switches on the handlebar and no loose relays under the seat.

Plug-and-play installation, with no wire cutting

Plug-and-play installation, with no wire cutting

It plugs into the motorcycle’s original connectors: nothing needs to be cut or drilled, and no relays need to be added. The control unit comes preconfigured for two sets of DENALI lights, a SoundBomb horn, and the B6 brake light, so in most cases it’s simply a matter of installing it and using it.

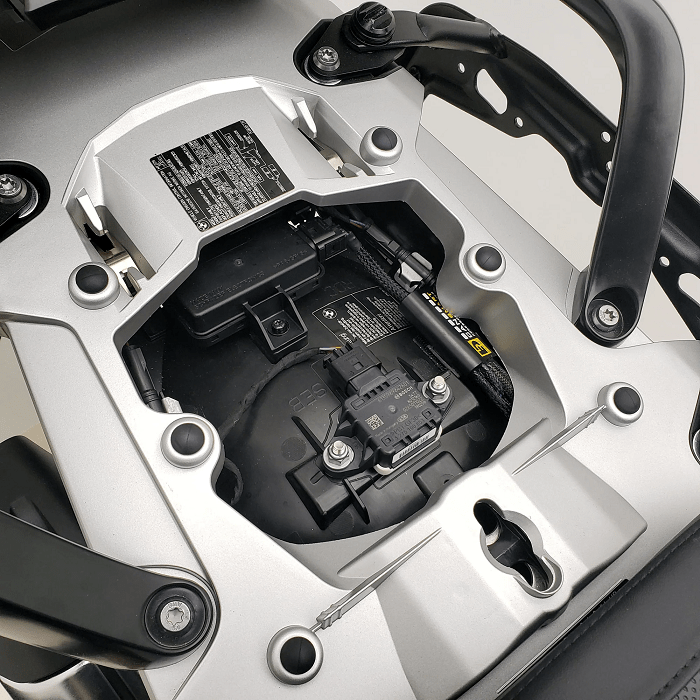

Dozens of software settings

Dozens of software settings

By connecting the control unit to the computer with the included micro USB cable, the CANsmart Accessory Manager software opens up dozens of settings: flashing with the high beams, strobing with the horn, automatic shutoff with the turn signals, an electronic fuse for each circuit, five-level heated clothing control, and activation only when the engine is running.

FAQs

For more information, see our FAQ of frequently asked questions.

Is it suitable for my Ténéré 700?

Covers both T7 generations, with either an LCD or TFT dashboard: Ténéré 700 2019-2024, Rally Edition 2020-2024, World Raid 2022-2024, Extreme Edition and Explore Edition 2023-2024. It is important to know that DENALI states it does not support the Ténéré 700 from 2025 onward; for that model, you need the universal CANsmart with the dedicated adapter.

What’s the difference between GEN I and GEN II?

This is the GEN II, with more available current and more settings. DENALI stopped developing new features for GEN I devices in February 2024: if you find a cheaper GEN I controller out there, be aware that it no longer receives updates.

Do you need to know how to work on the electrical system?

No. The control unit plugs into the motorcycle’s original connectors: nothing needs to be cut or drilled. The part requiring the most attention is reaching the connection point, which is located differently on each model: the official DENALI manual shows it step by step.

Can I connect non-DENALI accessories to it?

Yes. The four circuits come preconfigured for DENALI accessories, but each can be reconfigured through the software and supports 10 A continuously: you can connect a USB socket, GPS, dashcam, heated grips, or any other accessory within that limit.
