Kit accessori LOBOO CFCK001: due morsetti, due blocchetti sagomati e due tamponi
Componenti del kit LOBOO CFCK001 per l'archetto dei paramani, vista d'insieme

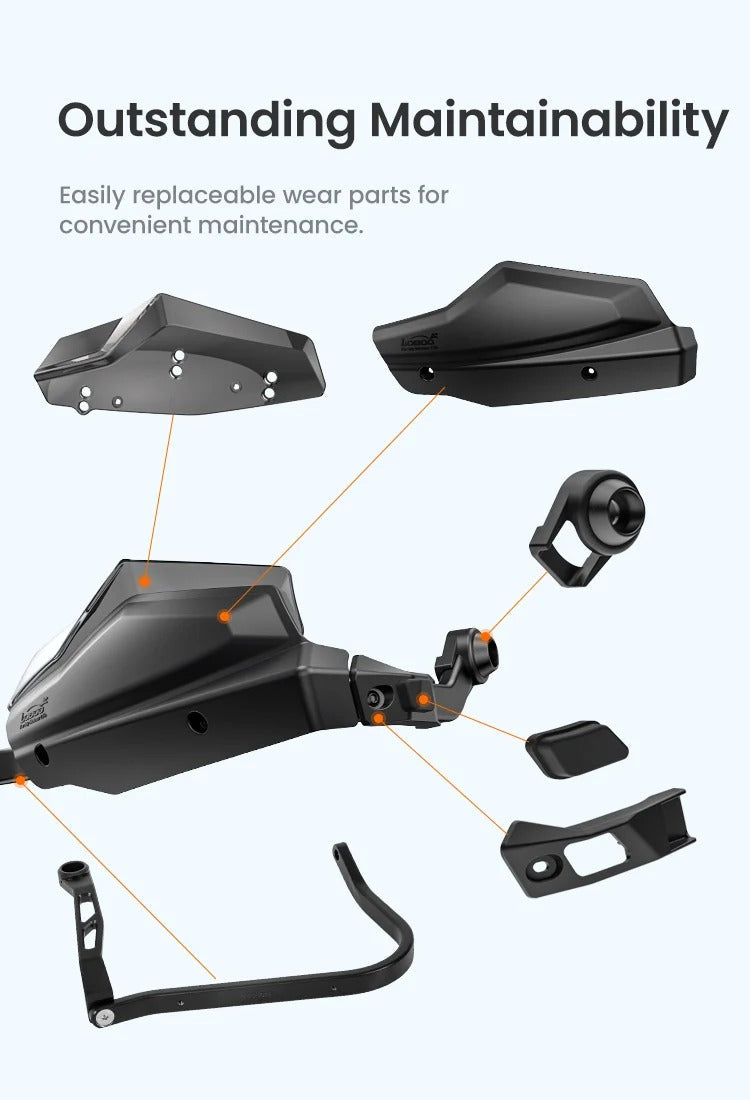

Esploso LOBOO delle parti di ricambio dei paramani: scudo, deflettore, morsetti e tamponi
Istruzioni LOBOO: per un set completo servono staffe, scudo e kit archetto acquistati separatamente

Vendor:LOBOO

Bump stops and clamps for aluminum handguards

Sale price€18,00Regular price €20,00
Out of stock

6 pezzi · copre entrambi i lati · solo su paramani LOBOO · viteria non inclusa

CFCK001BK — Cosa è compreso nel prezzo

Nella confezione, sei pezzi:

  • 2 morsetti per il fissaggio dell'archetto al collarino del manubrio
  • 2 blocchetti antiscivolo sagomati per l'archetto
  • 2 tamponi paracolpi laterali

Non è incluso:

  • La viteria di fissaggio, che fa parte del kit staffe
  • Il kit staffe, specifico per ogni moto
  • Lo scudo CHP001, venduto separatamente
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal conformity warranty

Original LOBOO product, guaranteed

6 pieces

Content

Both sides

Cobre

LOBOO Handguards

Compatibility

Identification

Product code

CFCK001BK

LOBOO Name: Motorcycle Handguard Slider

Manufacturer SKU

11.3.34603.004.11

Package contents

6 pieces

2 bow clamps, 2 non-slip blocks, 2 impact buffers

Color

Nero

Compatibility

Application

LOBOO handguard universal mount

Not compatible with original handguards or those from other brands

Assembly

Terminal tightening torque

10

As stated in the LOBOO installation manual. Fasteners not included

Data not provided by the manufacturer

Material, weight, and IP rating

Undeclared

Dati dal manuale di installazione e dal listino ufficiale LOBOO. Materiale, peso e grado IP non sono dichiarati dal produttore.

LOBOO CFCK001 · sei pezzi per l'archetto · morsetti, blocchetti e tamponi · per paramani LOBOO

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description Bump stops and clamps for aluminum handguards

Kit of six replacement accessories for the LOBOO handguard braces: two clamps, two anti-slip blocks, and two impact pads, enough for both sides of the motorcycle.

They fit LOBOO handguards only. They are not compatible with the motorcycle’s original handguards or those from other brands.

These are the sacrificial parts

The side impact pads protrude slightly beyond the handguard profile: in contact with a branch, a post, or asphalt, they are the first parts to touch and work by deforming. This is why LOBOO makes them replaceable rather than integrating them into the shield. After an impact, it is worth checking them: if they are crushed or marked, they have already done their job.

The clamps and blocks, on the other hand, are the small parts that can get lost during reassembly. Without this kit, replacing them would mean buying a complete set just to recover two components weighing a few grams.

One of the three items that make up a handguard

In its purchasing instructions, LOBOO states that a complete handguard set consists of a motorcycle-specific bracket kit, shield, and brace kit, and that replacement parts must be purchased separately. This product code is classified as universal: the same accessories are used on sets for the BMW GS, KTM 790 and 890 Adventure, Husqvarna Norden 901, Benelli TRK 552X, CFMOTO 450MT, 700MT, 800MT and 800MT-X, and Triumph Scrambler 1200XE.

Technical specifications

Item Value
Product code CFCK001BK
Manufacturer SKU 11.3.34603.004.11
Contents 6 pieces: 2 clamps, 2 anti-slip blocks, 2 impact pads
Coverage Both sides of the motorcycle
Color Black
Application Universal for LOBOO handguards
Clamp tightening torque 10 N·m
Hardware Not included; part of the bracket kit
Material, weight, and IP rating Not declared by the manufacturer

What you need to know before ordering

  • LOBOO handguards must already be installed: this is a replacement parts kit, not a complete set
  • The kit is indivisible: all six pieces are sold together
  • Hardware is not included: if you are replacing worn parts, reuse the existing hardware with threadlocker
  • If you are starting from scratch, choose the listing for the complete set for your motorcycle, which already includes these accessories

Data from the LOBOO installation manual and official price list. Where the manufacturer does not declare a value, we indicate it as not declared rather than estimating it.

Why choose it
  • Sono i pezzi sacrificali. I tamponi sporgono e toccano per primi: lavorano deformandosi, ed è giusto che si consumino.
  • Sei pezzi, non uno. Morsetti, blocchetti e tamponi per entrambi i lati in un'unica confezione.
  • Costano una frazione dello scudo. Cambiarli in tempo evita di dover sostituire pezzi più grossi.
  • Valgono per tutta la gamma. Gli stessi accessori dei set BMW, KTM, Husqvarna, Benelli, CFMOTO e Triumph.
Who is it recommended for

È la scelta giusta se

  • Hai i paramani LOBOO e i tamponi sono schiacciati o segnati dopo una caduta
  • Hai perso morsetti o blocchetti smontando i paramani
  • Esci dall'asfalto con regolarità e vuoi tenere un kit di scorta

È da valutare con attenzione se

  • Non hai paramani LOBOO: non si montano su paramani originali né di altre marche.
  • Stai partendo da zero: ti serve il set completo della tua moto, che comprende già questi accessori.
  • Ti serve un solo pezzo: il kit è indivisibile, i sei componenti si acquistano insieme.
  • Ti serve anche la viteria: non è inclusa, fa parte del kit staffe.
Documents and manufacturer
  • I paramani riducono l'esposizione di mani e leve, ma non sono un dispositivo di sicurezza omologato e non sostituiscono guanti e abbigliamento protettivo.
  • Rispetta la coppia dichiarata sul morsetto dell'archetto: 10 N·m. Un morsetto lasco può far ruotare il paramano in marcia.
  • Dopo la sostituzione verifica che lo sterzo arrivi a fine corsa da entrambi i lati e che cavi e comandi restino liberi.
  • Un tampone schiacciato ha esaurito la sua funzione: va sostituito, non riutilizzato.

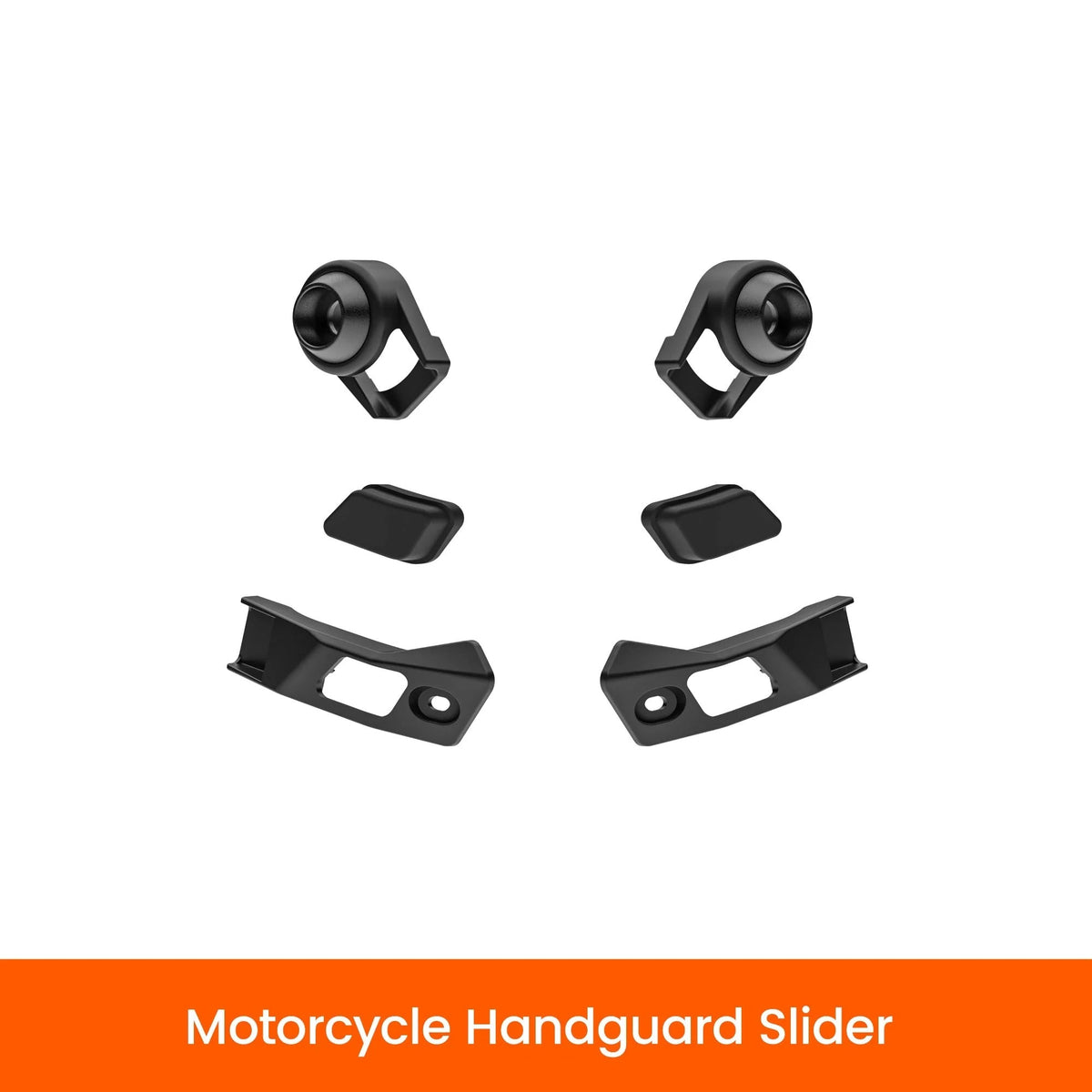

What’s in the kit

Six pieces: two clamps, two blocks, two pads

Six pieces: two clamps, two blocks, two pads

The kit includes all the small hardware for the arch: the two clamps that secure it to the handlebar collar, the two shaped blocks that wrap around it, and the two side bumpers that absorb impacts. In the assembly manual, these are items 3, 4, 5, 6, and 11.

These are the small parts that can be lost during reassembly or wear out with use, and without this kit would require buying a complete set. They are also the only components of the system designed to be sacrificial: they work by deforming.

The bumpers take the scratches instead of the shield.

The bumpers take the scratches instead of the shield.

The side bumpers protrude slightly beyond the handguard’s profile: if you hit a branch, pole, or asphalt, they make contact first. That’s why LOBOO makes them individually replaceable instead of integrating them into the shield.

After an impact, it’s worth checking them: if they’re crushed or marked, they’ve already done their job, and replacing them costs a fraction of a new shield.

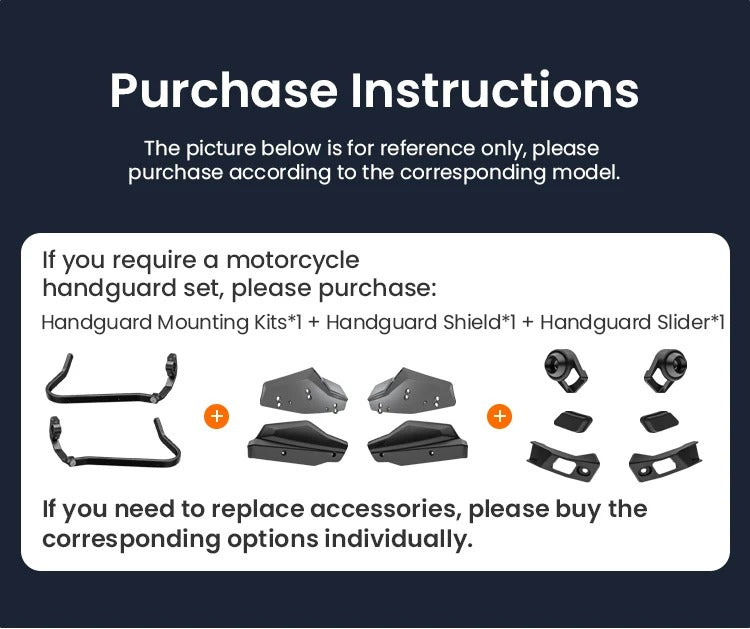

One of the three pieces that make up a LOBOO handguard

One of the three pieces that make up a LOBOO handguard

In its purchasing instructions, LOBOO states that a complete handguard set consists of three items: the motorcycle-specific bracket kit, the shield, and this bow kit. It also adds that replacement parts must be purchased individually.

This part number is classified as universal: the same clamps, blocks, and bumpers are used on the sets for BMW, KTM, Husqvarna, Benelli, CFMOTO, and Triumph. Only the brackets vary depending on the motorcycle.

FAQs

For more information, please see our FAQ.

What exactly does the kit contain?

Six pieces, enough for both sides: two clamps for attaching the hoop to the collar, two shaped non-slip blocks that wrap around the hoop, and two side bumpers. In the LOBOO assembly manual parts list, these are items 3, 4, 5, 6, and 11.

Will it fit the handguards on my motorcycle?

If they are LOBOO handguards, yes, regardless of the motorcycle: the manufacturer classifies this part number as universal, because the brackets are what change from model to model. It cannot be mounted on original handguards or those from other brands.

When is it worth replacing it?

After an impact or a fall, when the pads are crushed or marked, they have already absorbed what they were designed to absorb. The same applies when parts are lost during disassembly, which is not uncommon with clamps and blocks. Replacing them costs a fraction of the price of a new shield.

Can I buy just the pads or just the clamps?

No, LOBOO distributes them as a single kit: the six pieces are purchased together. That’s also why it’s a good idea to keep a spare one if you ride off-road.

Do they need hardware for mounting?

The hardware is part of the bracket kit, not this one. If you are replacing worn parts, reuse the screws you already have, applying threadlocker. The torque specified by the manufacturer for the bow clamp is 10 N·m.

What else is needed to have a complete handguard?

The manufacturer states it explicitly: a bracket kit specific to your motorcycle, the CHP001 shield, and this bow kit. If you’re starting from scratch, it’s best to use the product page for the complete set for your motorcycle; this code is for replacement or keeping as a spare.
