KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®KTM 1290 Super Adventure R/S Side Cases - Endurrad®
-10%Consegna in 2-3 giorni lavorativi
83 L Total volume
12,6 kg Pair of suitcases
JP251B Side frames
1290 S and R Motorcycle

Panoramica

In breve

Telai JP251B e coppia di valigie in alluminio 45 + 38 L per KTM 1290 Super Adventure S e R

Complete system

frames and a pair of cases in a single order.

PIKE TRACKER aluminum cases

key locks and waterproof.

Two finishes

black or silver, with the same construction.

Asymmetrical configuration

leaves space for the exhaust on the right side.

Dal produttore LOBOO
  • Produttore: LOBOO
  • Contenuto: telai laterali JP251B (Side Case Rack) e valigie PIKE TRACKER P45L e P38R
  • Numero articolo telai: 11.6.01251.002.01
  • EAN telai: 6973227073680
  • Garanzia: garanzia legale di conformità di 24 mesi.
Leggi la descrizione completa

Complete kit for KTM 1290 Super Adventure S and R from 2022 onward: the pair of JP251B side frames plus the two PIKE TRACKER aluminum cases measuring 45 and 38 liters, in the selected finish. One order, nothing to match up.

Why 45 liters on the left and 38 on the right

The exhaust runs along the right side. The right P38R case has an interior depth that tapers from 280 mm at the top to 200 mm at the bottom to clear it, which is why it holds 38 liters. The left P45L reaches 45 liters.

Dimensions and weights stated by LOBOO

  • Left P45L: interior 490 × 280 × 362 mm, overall 540 × 321 × 388 mm, 6.5 kg
  • Right P38R: interior 490 × 280/200 × 362 mm, overall 540 × 296 × 388 mm, 6.1 kg

The pair weighs 12.6 kg when empty, excluding the frames. These dimensions were measured manually, so some tolerance applies.

Construction

  • High-strength aluminum alloy, with the lower corner angled and covered in technical plastic
  • Riveted construction: accessories can be replaced separately
  • Special sealing rivets: LOBOO states that no water gets in, even in heavy rain or under a high-pressure jet
  • Inner lining, storage bag in the left case, mesh pocket in the right
  • Handles on both sides and lid with an opening stop
  • Finishes: polished silver or matte black

The manufacturer does not publish an IP rating, so we do not state one.

The frames and installation

The JP251B frames are installed in seven steps, removing and then reinstalling the side plastics and original luggage rack, with M8 bolts tightened to 20 and 18 N·m and threadlocker included. The parts list and sequence are on the KTM 1290 Super Adventure side frames page.

What is not included

The top case and the JP251W rear luggage rack are sold separately. Each case has its own sensor light in the lid: the kit includes two, one for each side.

Before ordering

If you already have the frames, you can purchase the cases alone from the PIKE TRACKER series page. LOBOO does not state a maximum load for each case: the motorcycle's maximum load specified by KTM applies.

Nella confezione

  • ✅ The complete, original, and new LOBOO kit, in manufacturer's packaging.
  • 📦 Included: JP251B side frame pair, PIKE TRACKER aluminum pannier pair P45L and P38R, locks with keys, and mounting hardware.
  • ⚠️ Not included: top case. Top case and rear plate are purchased separately.
  • 🔒 Closed system: LOBOO panniers are exclusively mounted on LOBOO frames. By purchasing the kit, you already have the correct combination, without adapters.
  • 🏍️ Compatible with KTM 1290 Super Adventure from 2022, R and S versions.
  • ↔️ Asymmetrical configuration, 45 liters on the left and 38 on the right: the narrower right pannier leaves space for the exhaust.
  • 🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
  • 🛡️ 24-month legal warranty for consumers, according to current regulations.
  • 💳 Payment also in installments with services available at checkout.
  • 🔧 Observe the indicated tightening torques and recheck the fastenings after the first few kilometers, especially with loaded panniers.
BLACK or SILVERColors
SteelMaterial
AluminumMaterial

JP251B + P45L + P38R · KTM 1290 Super Adventure S and R from 2022 · 83 L · 12.6 kg per pair

How does it work, in detail?

Luggage, frames, measurements, and assembly, step by step.

The side set, within the LOBOO system
01

The side set, within the LOBOO system

For the 1290 Super Adventure, LOBOO offers five sets: the top case with a fixed or adjustable luggage rack, the pair of side cases with their frames, or all three cases together.

This kit is the side case set: JP251B frames plus P45L and P38R cases.

For the 1290 S and R from 2022, only on LOBOO frames
02

For the 1290 S and R from 2022, only on LOBOO frames

In the LOBOO table, the side-case set is listed for the KTM 1290 Super Adventure S and R from 2022 onward: left case plus right case, on PIKE TRACKER frames.

LOBOO aluminum cases can only be mounted on LOBOO frames and luggage racks.

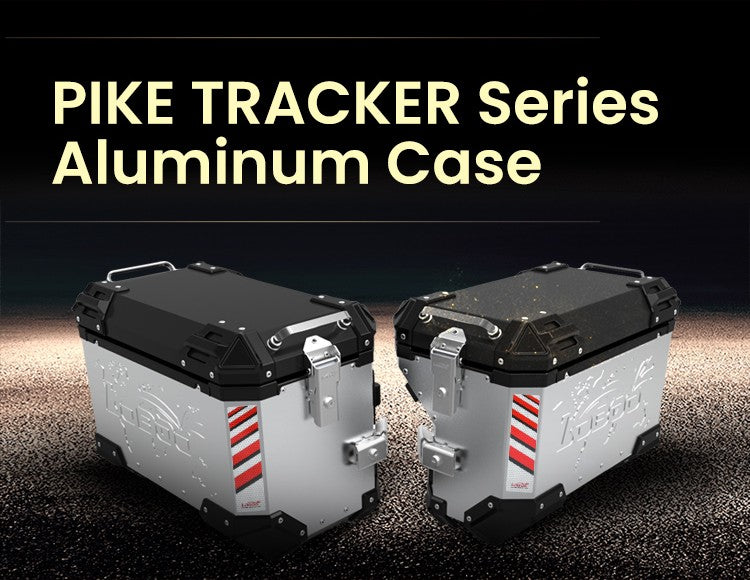

The PIKE TRACKER
03

The PIKE TRACKER

It is LOBOO's aluminum luggage series, in glossy silver or matte black.

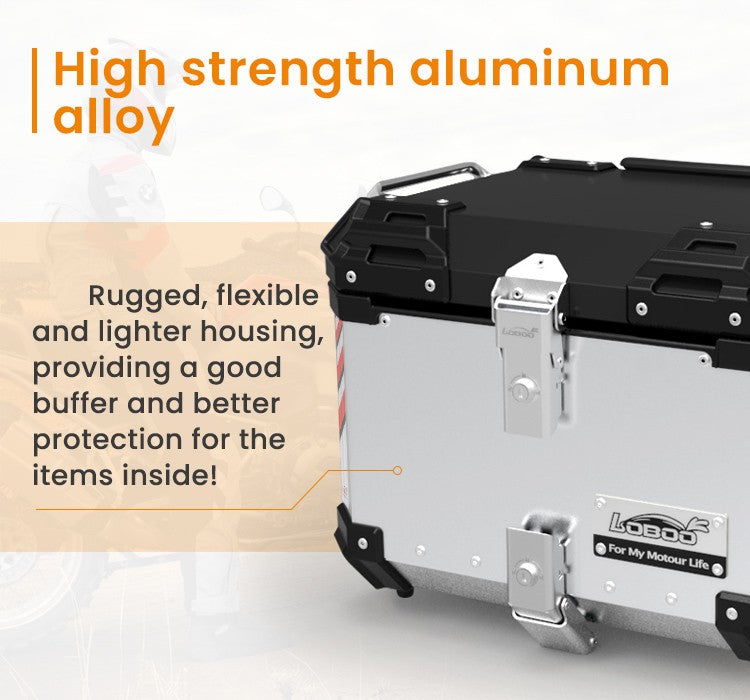

High-strength aluminum alloy
04

High-strength aluminum alloy

LOBOO states that it has a robust, flexible shell that is lighter, absorbs impacts better, and protects the contents.

45 on the left, 38 on the right, because of the exhaust pipe
05

45 on the left, 38 on the right, because of the exhaust pipe

The right pannier has a recess that clears the exhaust outlet. The lower corner is angled and has a thicker technical plastic coating: you gain clearance when cornering, and in a slide it protects the pannier.

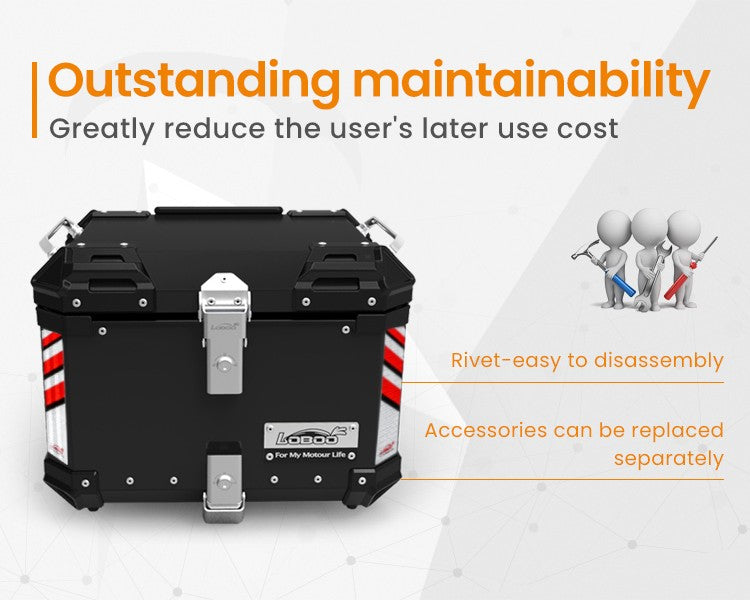

Riveted structure, replaceable parts
06

Riveted structure, replaceable parts

The shell is assembled with rivets that are easy to remove. According to LOBOO, the accessories can be replaced separately, so a damaged suitcase can be repaired without replacing it.

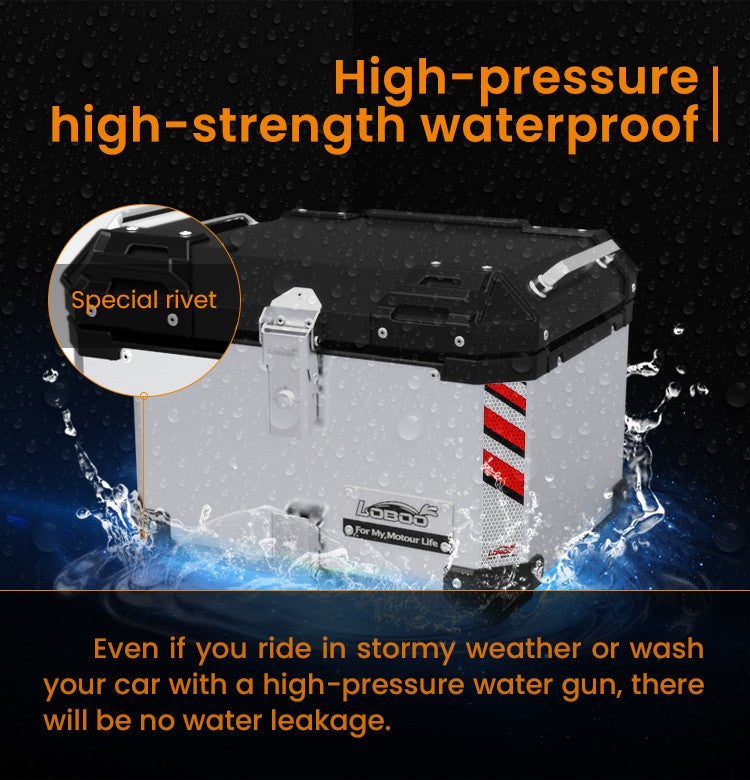

Water-resistant, with special rivets
07

Water-resistant, with special rivets

LOBOO states that no water gets in even when riding in heavy rain or washing the motorcycle with a high-pressure jet.

The manufacturer does not publish an IP rating, so we do not indicate one.

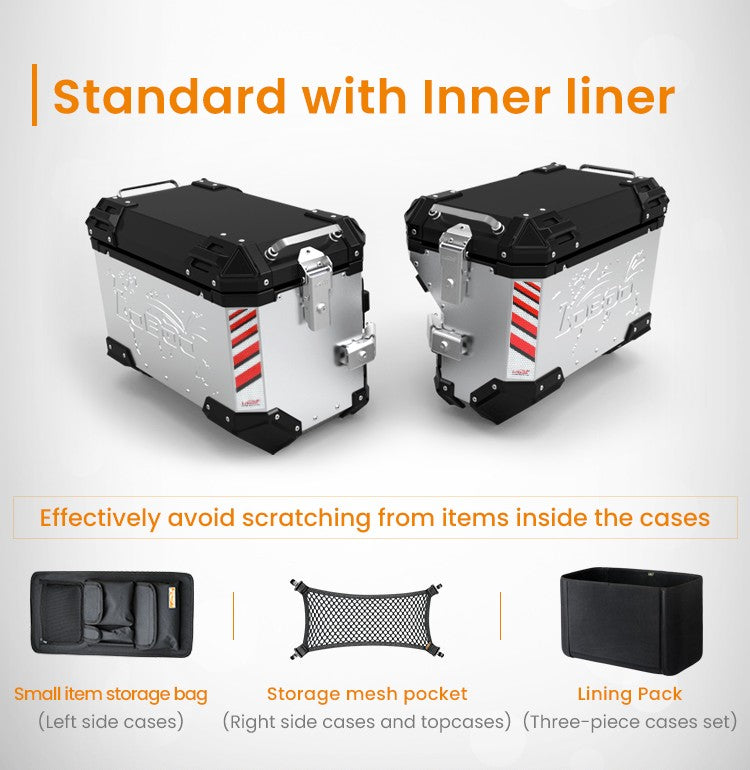

Carrying case, bag, and net included
08

Carrying case, bag, and net included

The interior is lined to prevent scratching the contents. The left suitcase comes standard with a storage bag, while the right one has a mesh pocket.

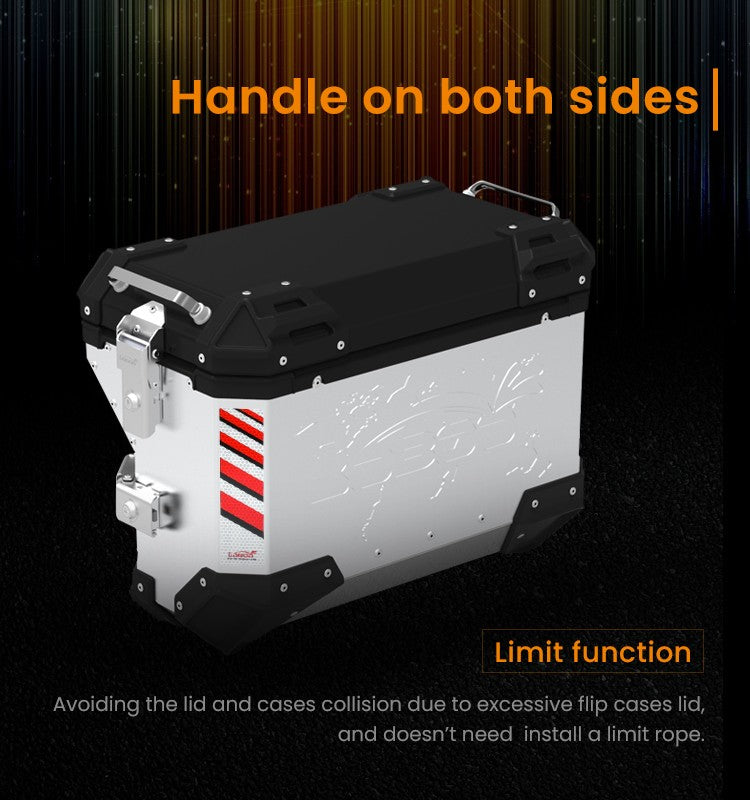

Handles on both sides
09

Handles on both sides

The suitcases have a handle on each side for carrying them by hand once they are unclipped. The lid has a stop that limits how far it opens, so there is no need for a strap.

Measurements and weights of the two suitcases
10

Measurements and weights of the two suitcases

P45L: 490 × 280 × 362 mm inside, 540 × 321 × 388 mm overall, 6.5 kg. P38R: 490 × 280/200 × 362 mm inside, 540 × 296 × 388 mm overall, 6.1 kg.

These are measurements taken manually and may have a margin of error.

Materials declared by LOBOO
11

Materials declared by LOBOO

Aluminum alloy suitcases, black or silver. For the frames of the LOBOO system, specify stainless steel and aluminum alloy.

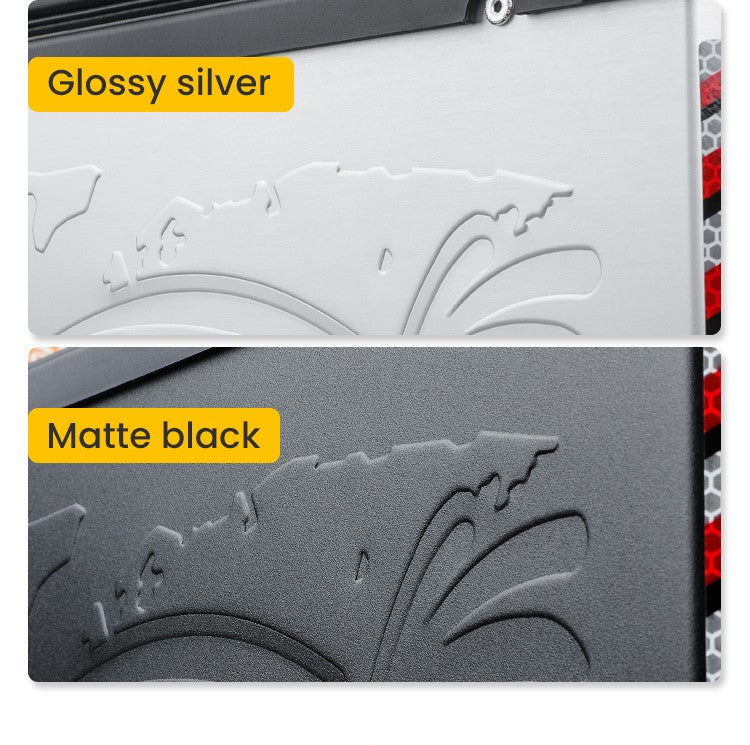

Glossy silver or matte black
12

Glossy silver or matte black

The two finishes have the same construction, dimensions, and equipment: only the appearance changes.

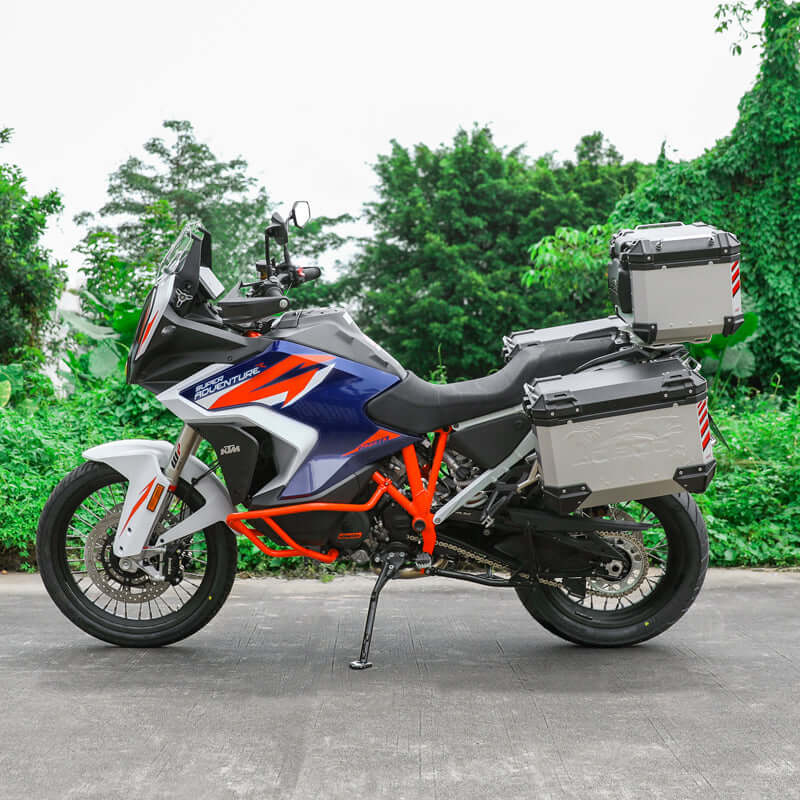

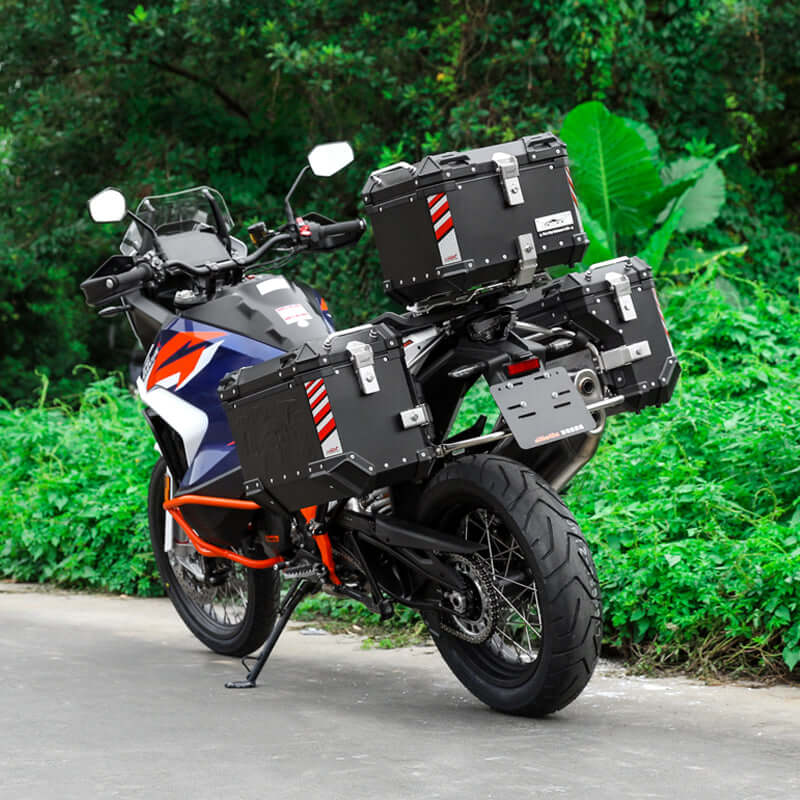

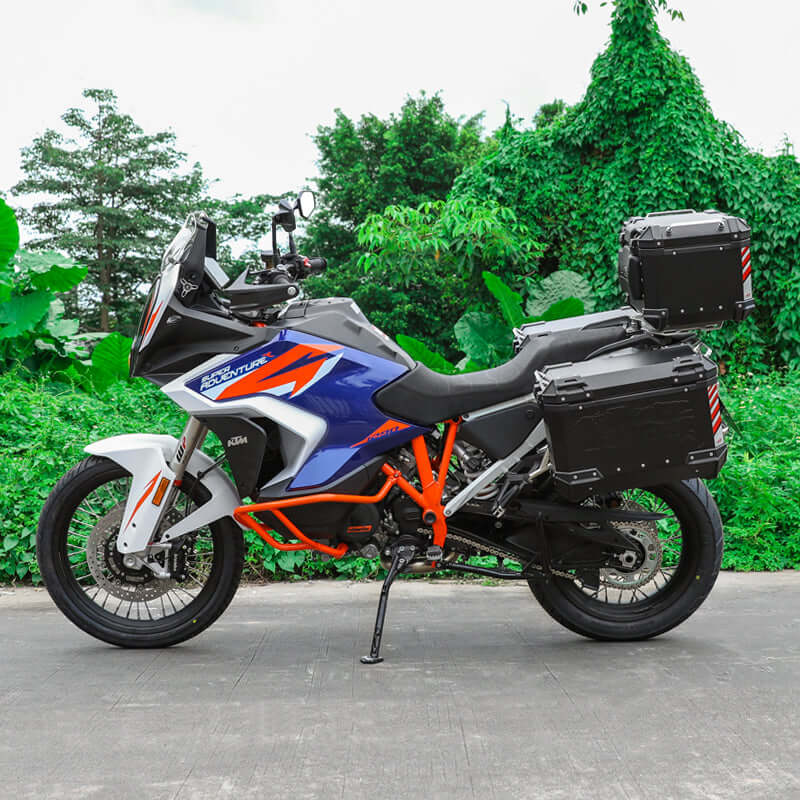

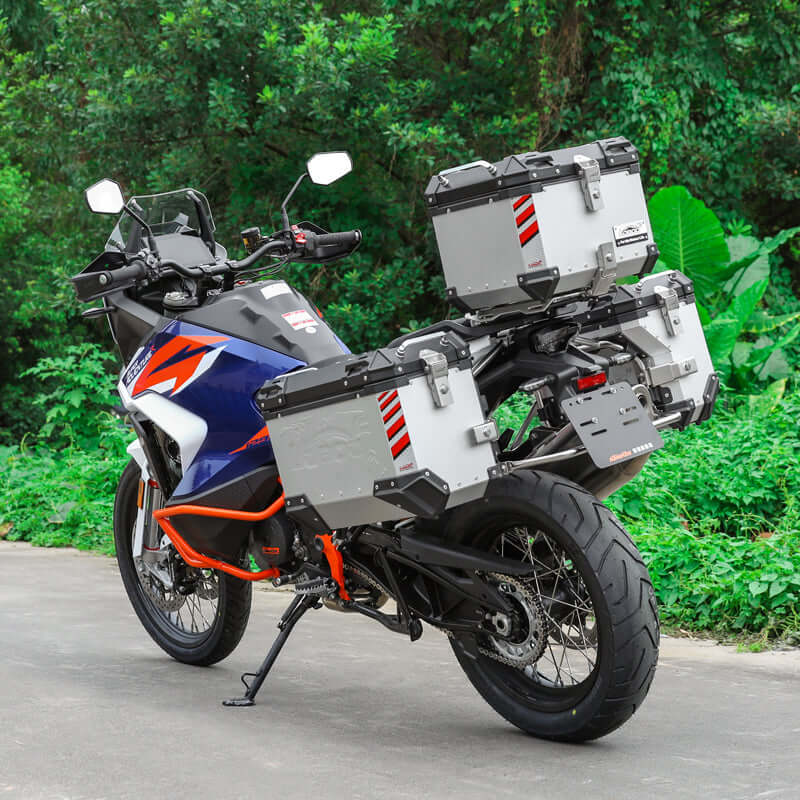

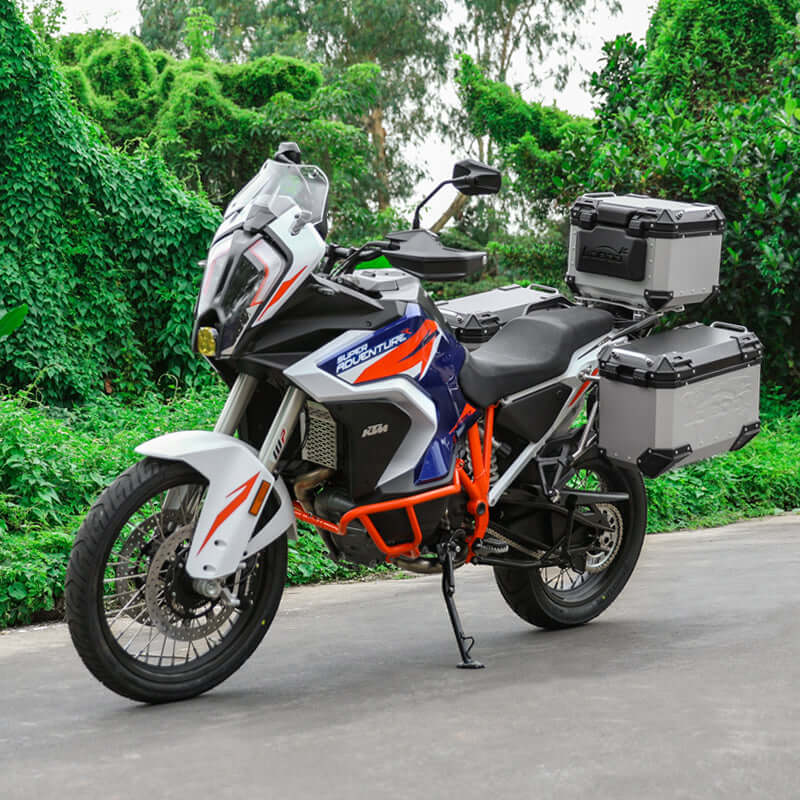

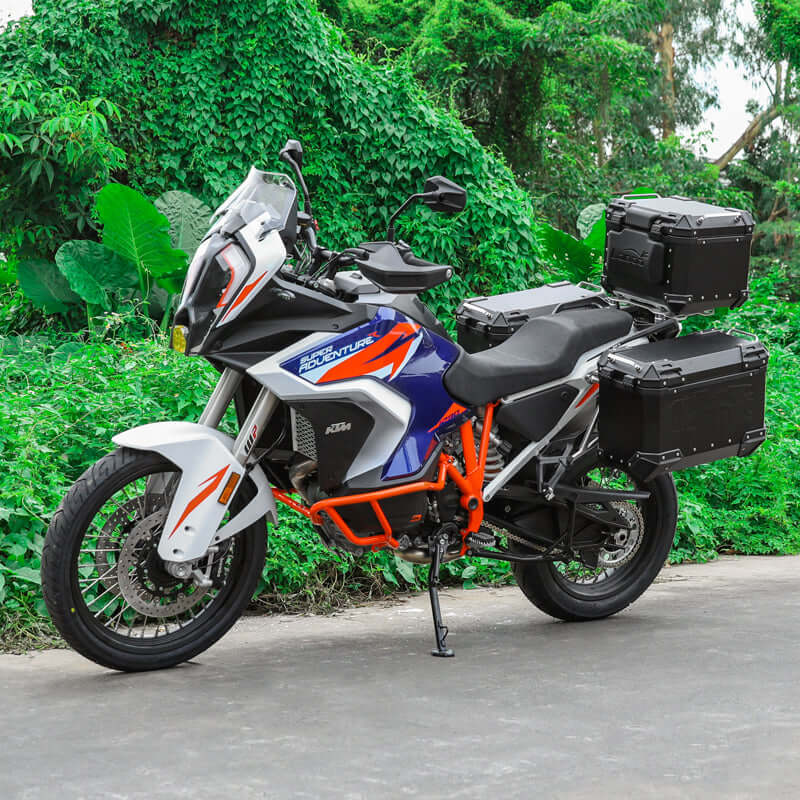

The equipped 1290 Super Adventure
13

The equipped 1290 Super Adventure

The official LOBOO photos show the 1290 Super Adventure with PIKE TRACKER panniers in silver and black.

The top case shown in the photos is not part of this kit.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Kit contents

Side frames
JP251B Included, with screws and threadlocker
Suitcases
P45L + P38R Aluminum PIKE TRACKER, top case excluded

Compatibility

Motorcycle
KTM 1290 Super Adventure S and R Since 2022

Capacity

Left suitcase
45 L P45L
Right suitcase
38 L P38R, shaped around the exhaust cutout

Dimensions

P45L interior
490 × 280 × 362 mm L × W × H
P45L footprint
540 × 321 × 388 mm With accessories
P38R inner liner
490 × 280/200 × 362 mm Top and bottom depth
P38R dimensions
540 × 296 × 388 mm With accessories

Weight

Left P45L case
6,5 kg Declared by LOBOO
Right P38R suitcase
6,1 kg Declared by LOBOO
Pair of suitcases
12,6 kg Empty, frames excluded

Construction

Luggage materials
Aluminum alloy High resistance
Lower corner
Technical plastic Angled and coated
Structure
Riveted Separately replaceable accessories
Internal
Lining Pocket on the left, mesh pocket on the right
Handles
On both sides Lid with opening latch

Waterproofing

IP rating
Undeclared LOBOO also declares resistance to high-pressure water jets

Finishes

Colors
Glossy silver or matte black

Frame assembly

Torque pairs
20 / 18 N·m M8 × 20 / M8 × 25 and × 45

Frame structure

Material
Stainless steel / aluminum alloy Declared by LOBOO for system frames

Load

Maximum weight per suitcase
Not stated by the manufacturer The maximum load of the motorcycle specified by KTM applies

Dati dichiarati dal produttore LOBOO. In caso di dubbio sulla compatibilità con il tuo allestimento, contattaci prima dell'acquisto.

Manuale d'uso JP251B + P45L + P38RDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Telai: sette passaggi, smontando e rimontando plastiche laterali e portapacchi originale; viti M8 a 20 N·m (M8 × 20) e 18 N·m (M8 × 25 e × 45), frenafiletti incluso.
  2. Valigie: si agganciano solo a telai LOBOO.
  3. Il nostro consiglio: ricontrolla i fissaggi dopo i primi chilometri e distribuisci il peso fra i due lati, il più in basso possibile.
Istruzioni complete e note di sicurezza
  • Telai: sette passaggi, smontando e rimontando plastiche laterali e portapacchi originale; viti M8 a 20 N·m (M8 × 20) e 18 N·m (M8 × 25 e × 45), frenafiletti incluso.
  • Valigie: si agganciano solo a telai LOBOO.
  • Il nostro consiglio: ricontrolla i fissaggi dopo i primi chilometri e distribuisci il peso fra i due lati, il più in basso possibile.

Assembly and Notes

  • The kit includes side racks and a pair of panniers: the top case and its plate are not included.
  • Observe the maximum load per side rack indicated by KTM in the motorcycle's manual.
  • Recheck the tightening after the first 100-200 km and periodically with off-road use.
  • The load must not cover the license plate and tail lights or extend beyond the limits of the Highway Code.
  • If you're starting from scratch:it's the most straightforward solution, all compatible in a single order.
  • If you already have the JP251B frames:purchase only the cases from the PIKE TRACKER series page.
  • If you prefer semi-rigid luggage:the same frames accept the 40+30 litre WANDERER bags.

Compatible with KTM 1290 Super Adventure from 2022, R and S versions. For the top case, the JP251W plate is required, found on a separate page.

Per moto Ktm

KTM
Come verificare la compatibilità

Per verificare la compatibilità indicaci marca, modello, anno e versione della moto.

  • Verificata: KTM 1290 Super Adventure S e R dal 2022 (manuale LOBOO JP251B e tabella dei modelli compatibili).
  • Non dichiarata: KTM 1290 Super Adventure fino al 2020 e 1290 Super Adventure T.
  • Valigie: si montano solo su telai LOBOO.
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which KTM models is the kit installed on?

For the KTM 1290 Super Adventure S and R from 2022 onward, as indicated by LOBOO. For other versions, write to us with the model and year before ordering.

What’s in the kit?

The pair of JP251B side frames with hardware, bushings, caps, and threadlocker, plus the PIKE TRACKER P45L and P38R cases in the selected finish, with lining, storage bag, and mesh pocket. Top case and luggage rack are not included.

Why do the two suitcases have different capacities?

Because the exhaust runs along the right side. The P38R has an interior that tapers from 280 mm deep at the top to 200 mm at the bottom, which is why it holds 38 liters compared with the P45L's 45.

How much do the suitcases weigh?

6.5 kg for the P45L and 6.1 kg for the P38R, so 12.6 kg for the pair when empty. The weight of the frames is not stated.

How bulky are the mounted panniers?

The P45L measures 540 × 321 × 388 mm overall, while the P38R measures 540 × 296 × 388 mm. LOBOO does not state the total width of the equipped motorcycle.

How much weight can I pack in each suitcase?

LOBOO does not specify a maximum load per case. The limit to observe is the motorcycle's maximum load specified by KTM, which includes the rider, passenger, and luggage.
