Specifications and details for Barkbusters handguard mounting kit for Honda XL600V TRANSALP / XL650V TRANSALP — two-point mount

Product Details

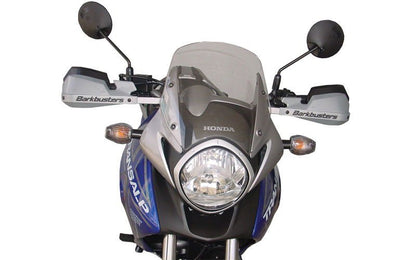

Barkbusters two-point handguard mounting kit, designed for XL600V TRANSALP / XL650V TRANSALP / XL700V TRANSALP. Covers 3 Honda models — the table shows make, model, and years.

Overview

  • Attachment: Two-point, for impact protection.
  • Compatible models: 3, including XL600V TRANSALP / XL650V TRANSALP / XL700V TRANSALP.
  • Make: Honda.

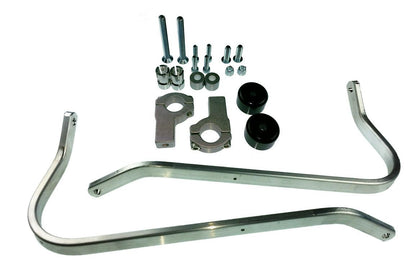

  • Construction: Two-point attachment on a wrap-around aluminum frame.
  • In the box: Handlebar weights included in the kit.
  • Shipping and warranty: Free shipping in Italy over €100, 14-day returns, 1-year warranty.

Compatible models

Make Model Years
Honda XL600V TRANSALP all years
Honda XL650V TRANSALP all years
Honda XL700V TRANSALP all years

Barkbusters compatibility data, referring to the standard configuration. Unsure about your model? Contact us.

Installation

  1. Remove the original handlebar weights.
  2. Position the frame without tightening and check for full steering lock freedom.
  3. First, secure the inner point, then the outer.
  4. Tighten to the manufacturer's specified torque and recheck after 100 km.

Torque specifications and full sequence in the official Barkbusters instructions (INS-BHG-018-04-NP).

Frequently asked questions

My Honda is not in the table: can I still install it?
No. The kit is designed for the handlebar geometry of the 3 models listed. Both the model and year are needed: a Honda XL600V TRANSALP from a different year may require a different kit.

Are the protection plastics included?
No. Barkbusters sells the frame and plastics separately: here you only get the aluminum frame with the screws. JET, VPS, STORM, and CARBON plastics are ordered separately and are interchangeable.

Do I need to reuse the original weights?
No, the kit includes its own handlebar weights and replaces the standard ones.
