65L

Total volume

10kg

Maximum weight per suitcase

11,6kg

Weight of the pair of suitcases

JP581B

Side frames

Capacity

Settings

35+30

Asymmetrical: the right side leaves room for the exhaust pipe

Total volume

65

35 L on the left, 30 L on the right

Kit contents

Side frames

JP581B

Included, in steel

Suitcases

P35L + P30R

Aluminum PIKE TRACKER, top case not included

Compatibility

Motorcycle

Desert X

Ducati, since 2023

Semi-rigid alternative

BCB4030TBK

WANDERER 40+30 L on the same frames

Dimensions

Left suitcase interior

451 x 227 x 381

Length × depth × height

Left suitcase external dimensions

498 x 268 x 408

Mounted accessories included

Right suitcase interior

451 x 227/167 x 381

The two measurements are the upper part and the lower part.

Right suitcase external dimensions

498 x 244/208 x 408

Mounted accessories included

Closure

Lock

By key

Five-pin tumbler cylinder, removable and replaceable

Water resistance

IP rating

Undeclared

LOBOO claims water and dust resistance without publishing a rating

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description Ducati Desert X side cases

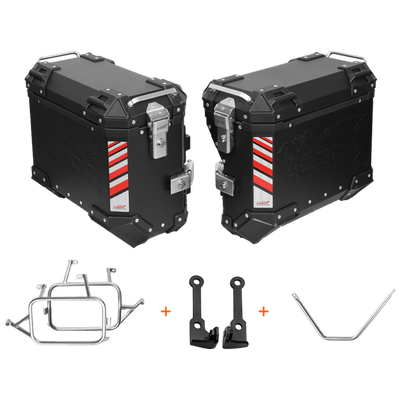

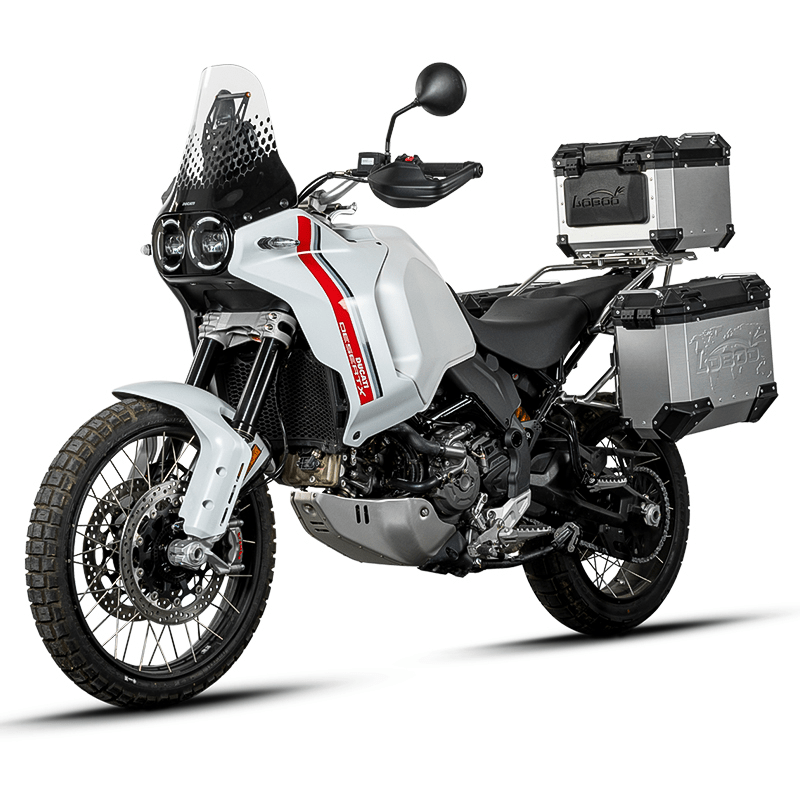

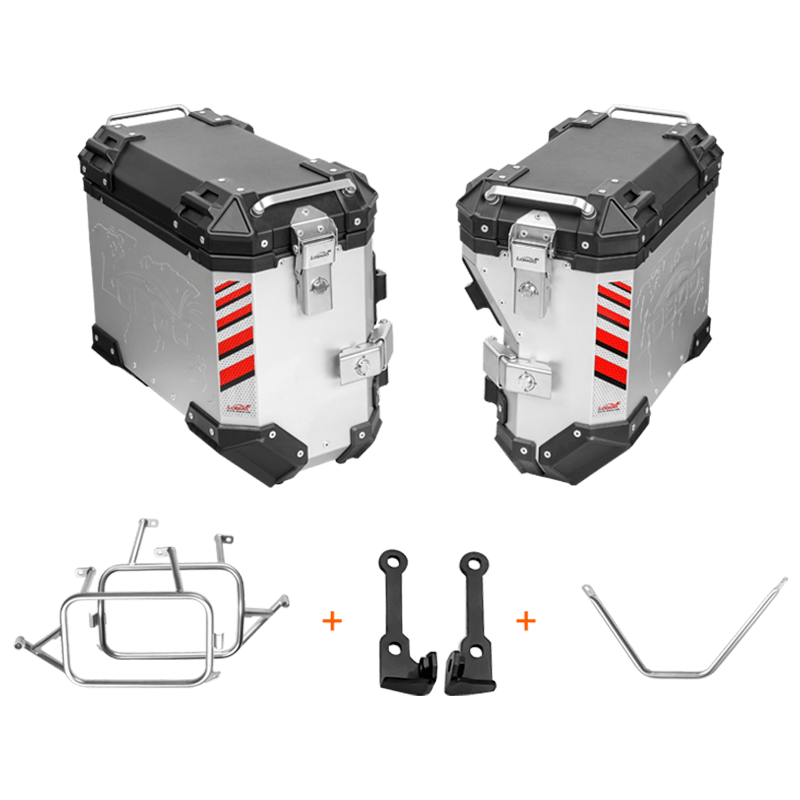

Complete kit for Ducati Desert X: the pair of JP581B side racks with mounting hardware, plus the two PIKE TRACKER aluminum panniers measuring 35 and 30 liters, in your chosen finish. One order, nothing else to match.

Why the two sides have different capacities

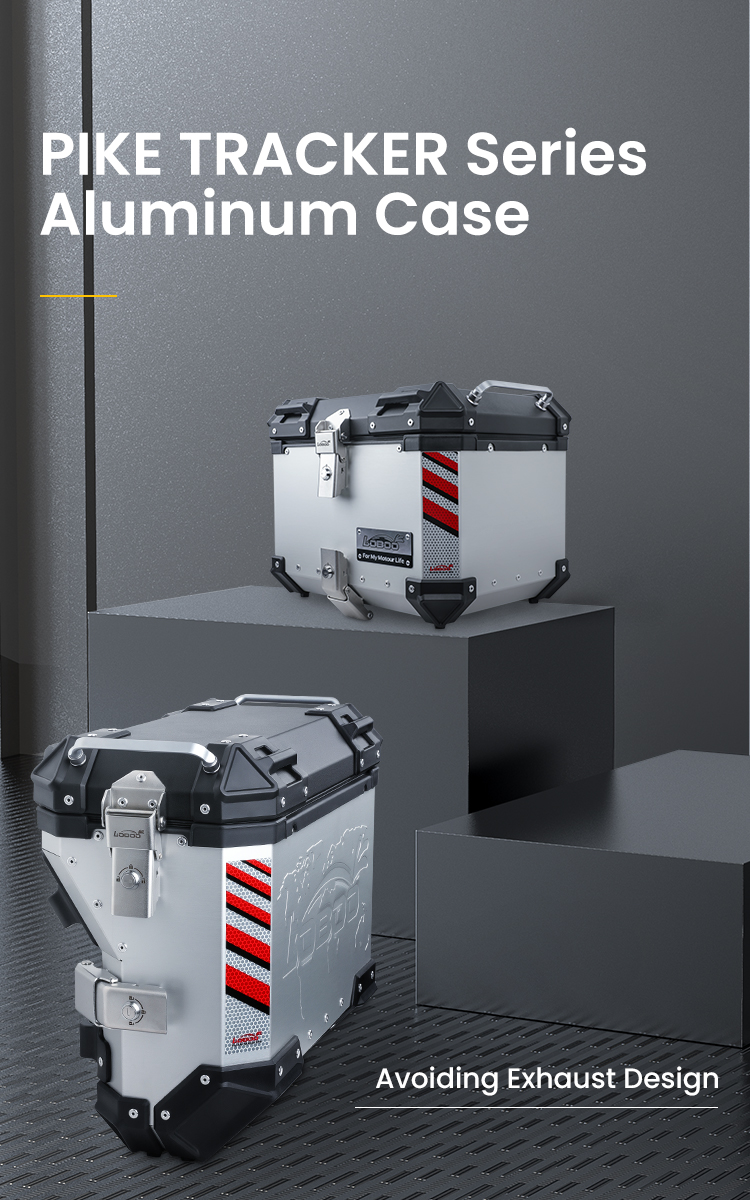

The right pannier holds 30 liters instead of 35 because it is shaped around the exhaust: this is the version LOBOO calls exhaust avoidance, with a recessed lower wall. It prevents the motorcycle from becoming wider than necessary on the hot side. The left pannier, without that constraint, retains its full 35-liter capacity.

How much they hold and how much they can weigh

LOBOO specifies a maximum load of 10 kg per side pannier. The pair weighs 11.6 kg when empty, excluding the racks: 6 kg for the left pannier and 5.6 kg for the right.

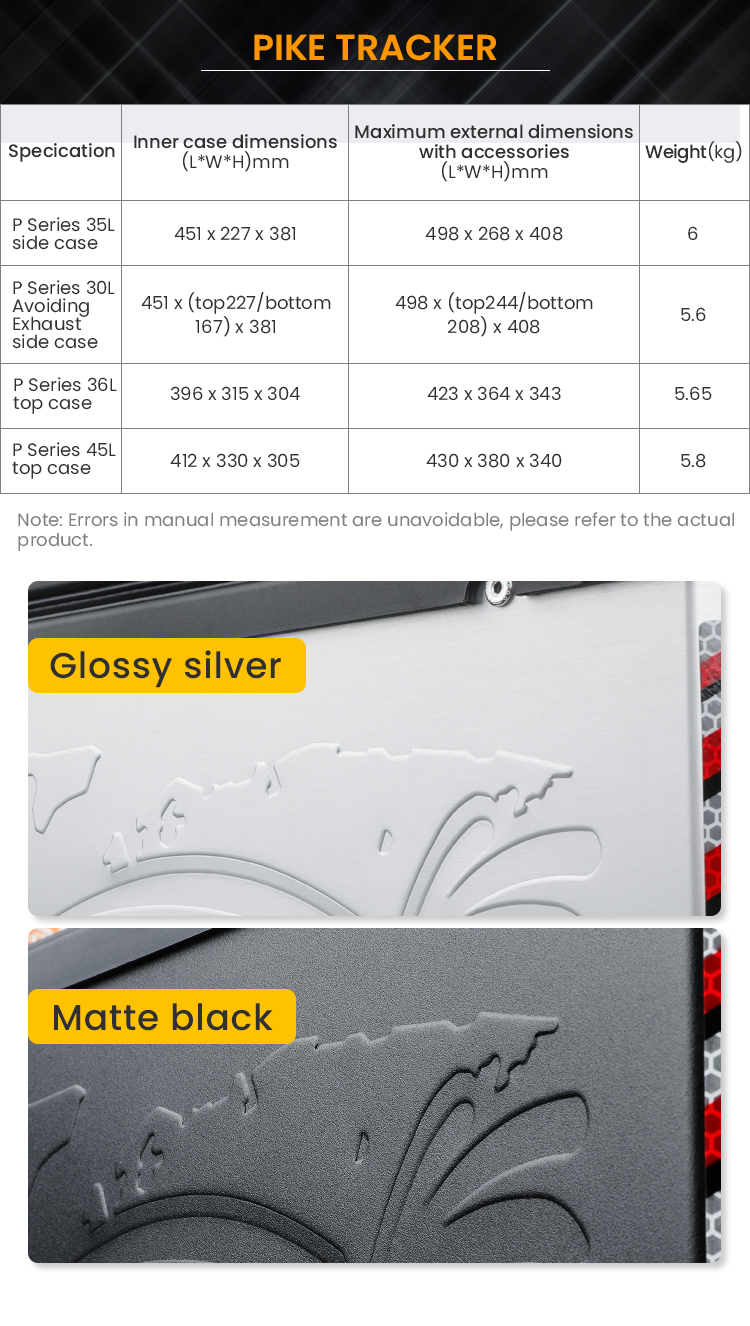

  • Left P35L — internal dimensions 451 x 227 x 381 mm, external dimensions 498 x 268 x 408 mm
  • Right P30R — internal dimensions 451 x 227/167 x 381 mm, external dimensions 498 x 244/208 x 408 mm

The two measurements for the right pannier refer to the upper and lower sections, where it recesses for the exhaust. These dimensions are provided by the manufacturer based on manual measurements, so some tolerance should be expected.

Construction

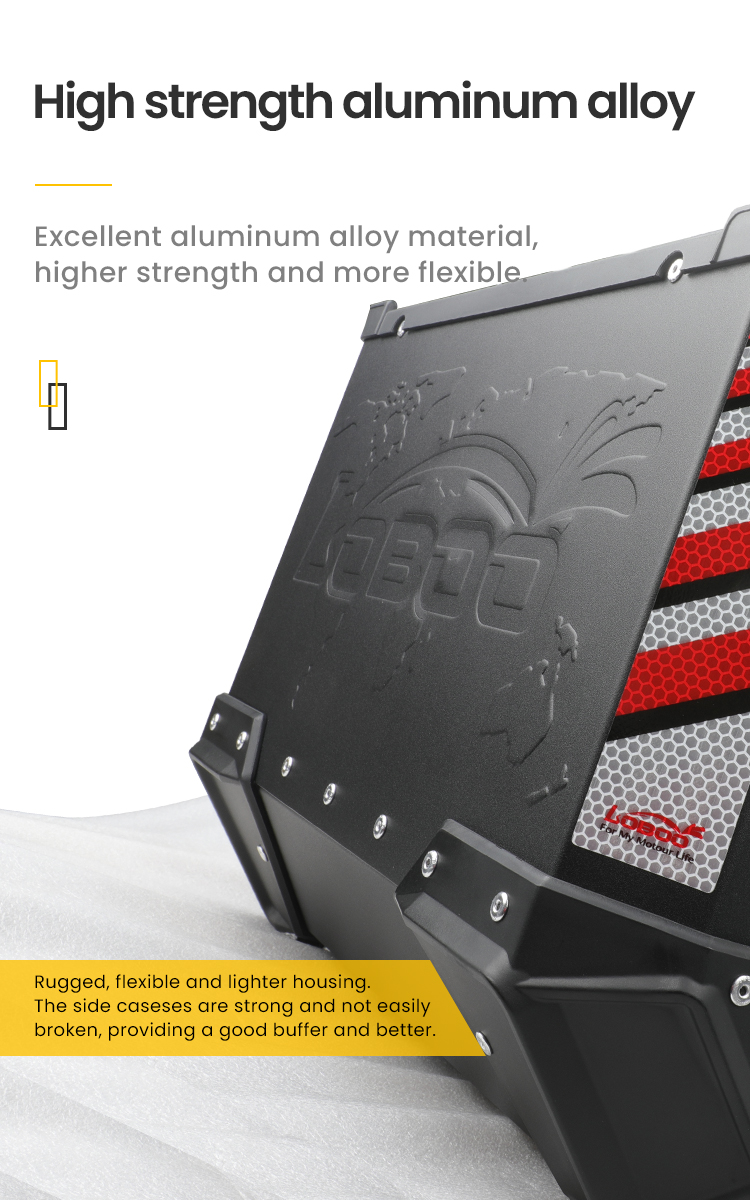

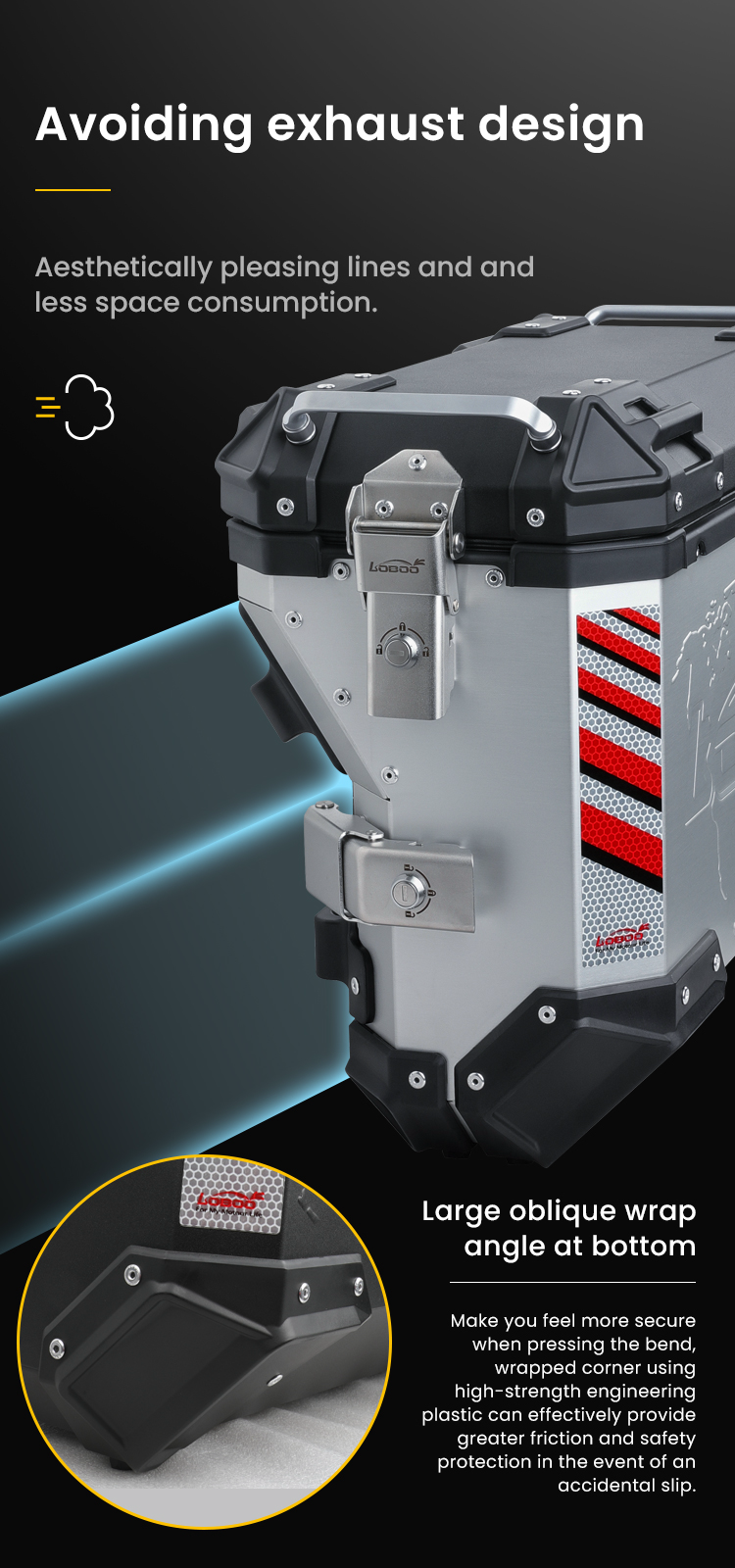

  • High-strength aluminum, with the lower corners protected by structural plastic bumpers

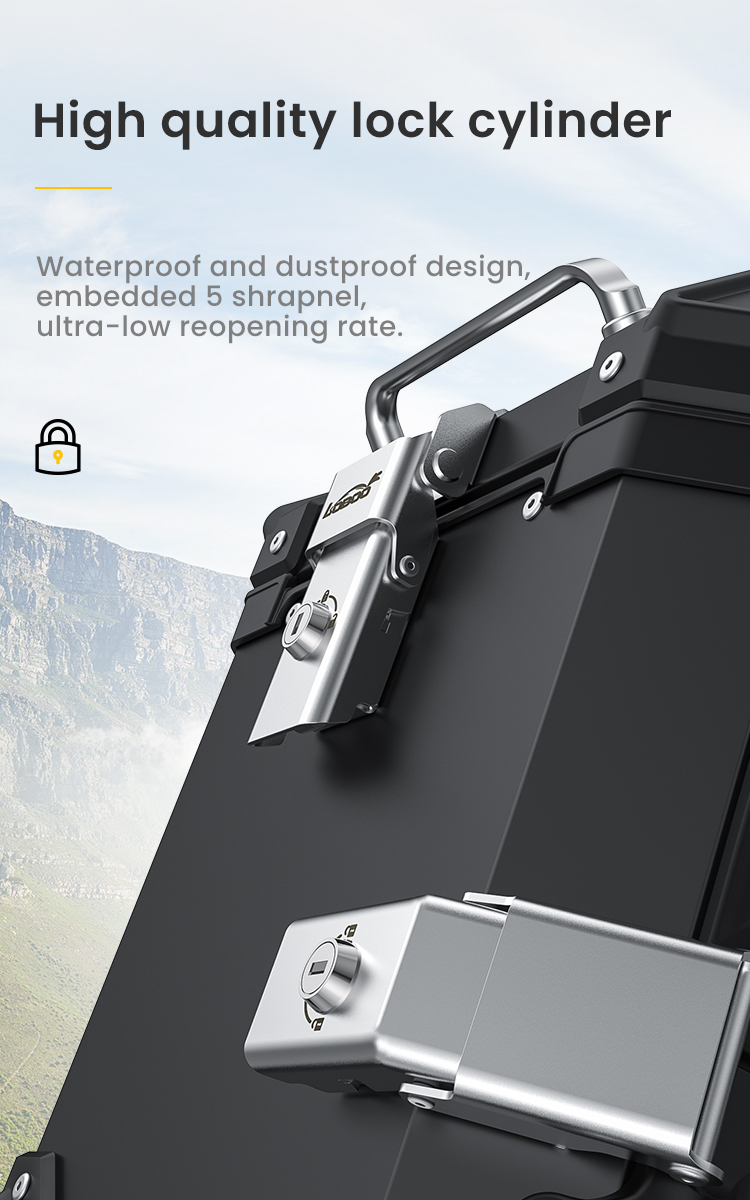

  • Key lock with a five-wafer cylinder, removable and replaceable without changing the pannier

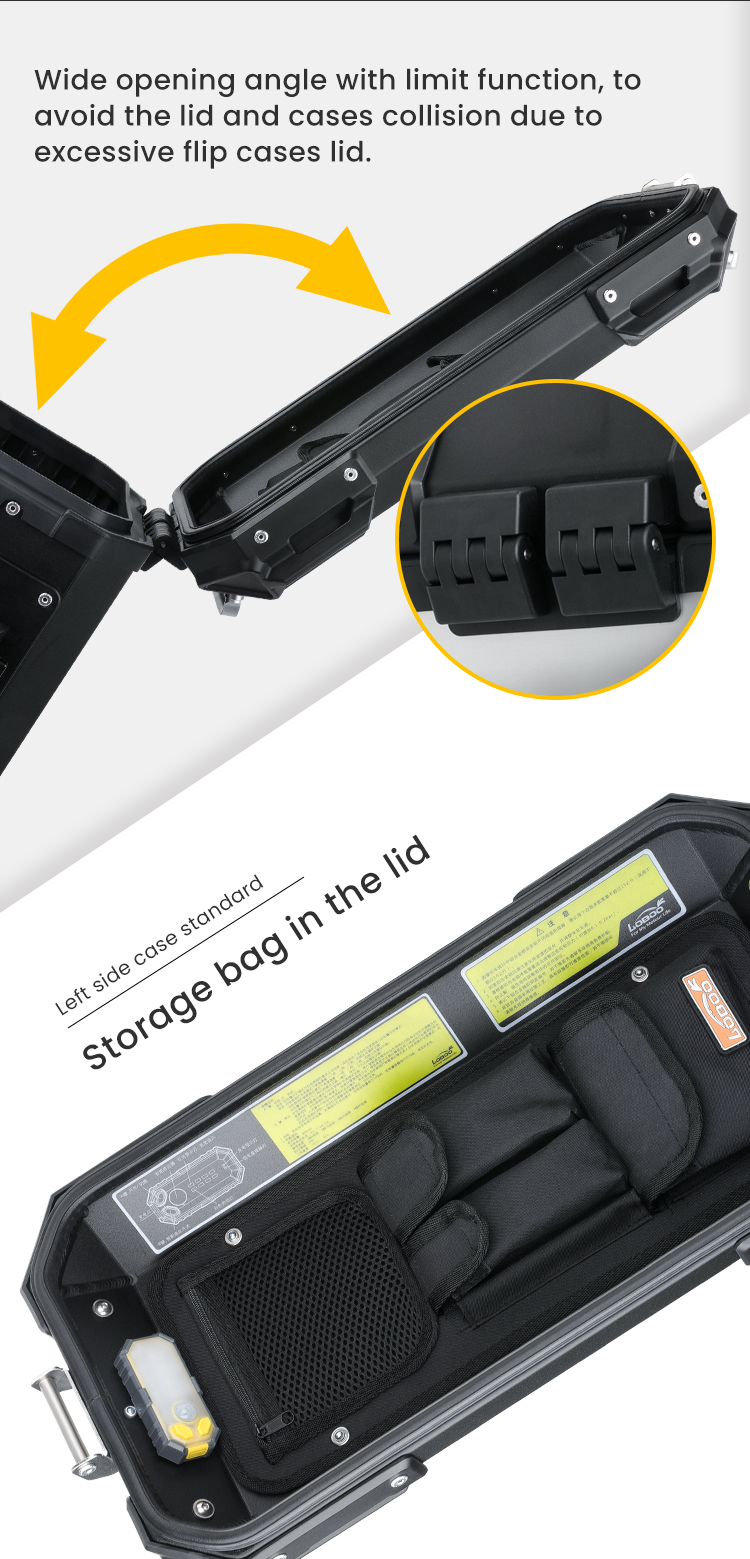

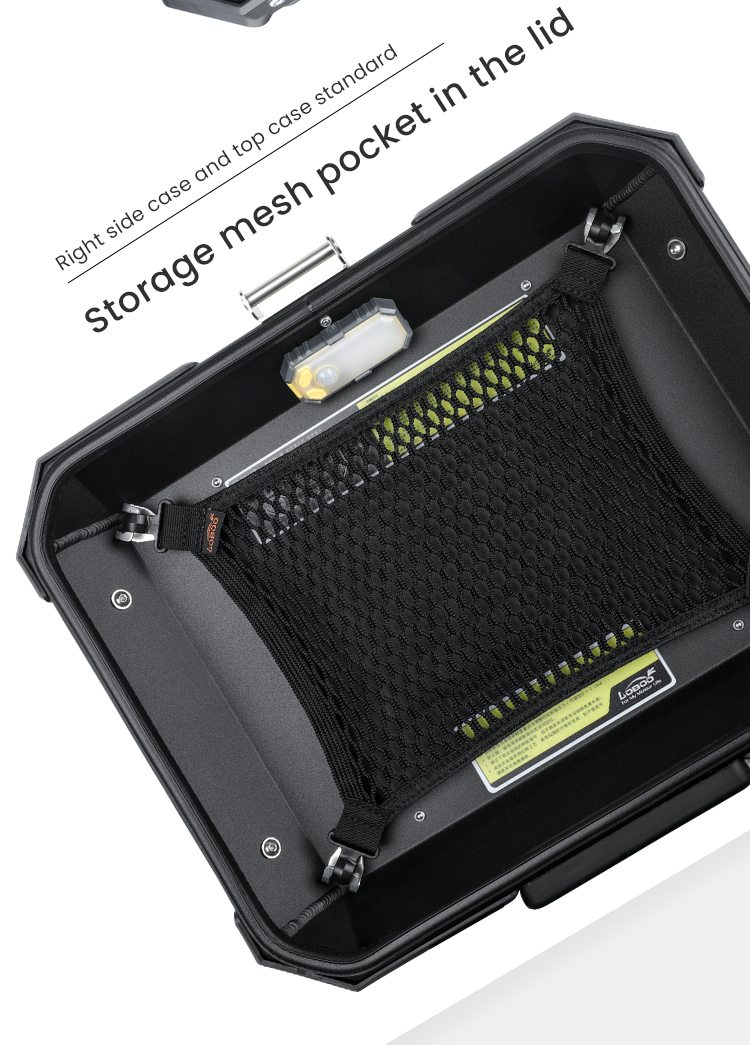

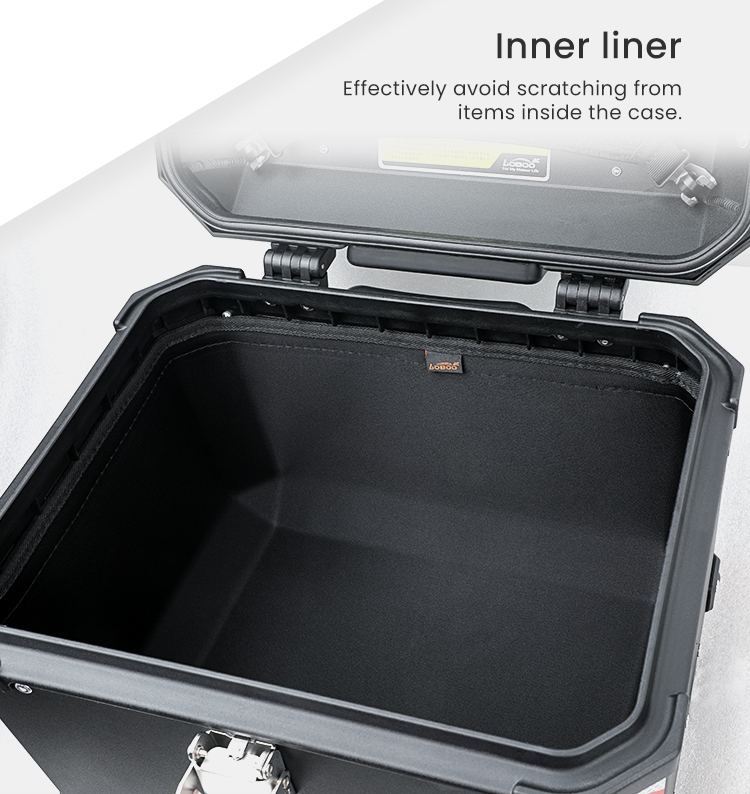

  • Scratch-resistant inner lining, fabric pocket in the left lid, and storage net on the right
  • Lid opening stop to prevent it from hitting the rack

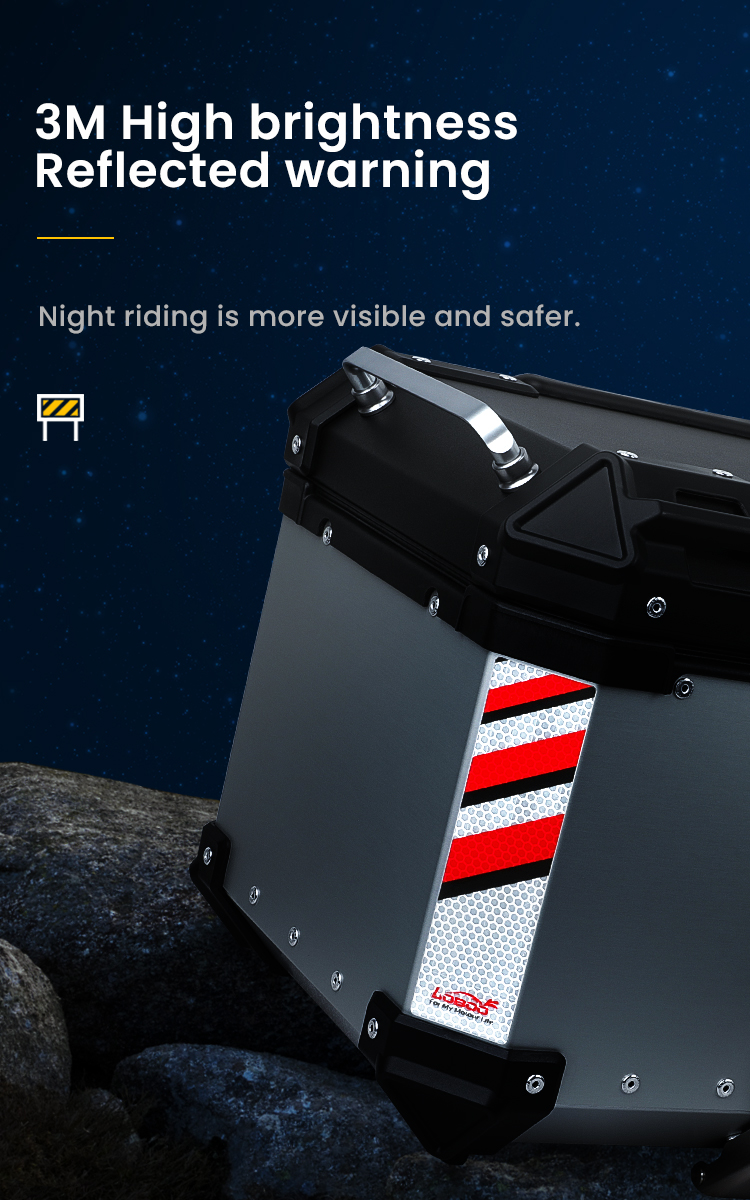

  • 3M reflective inserts on the outer side

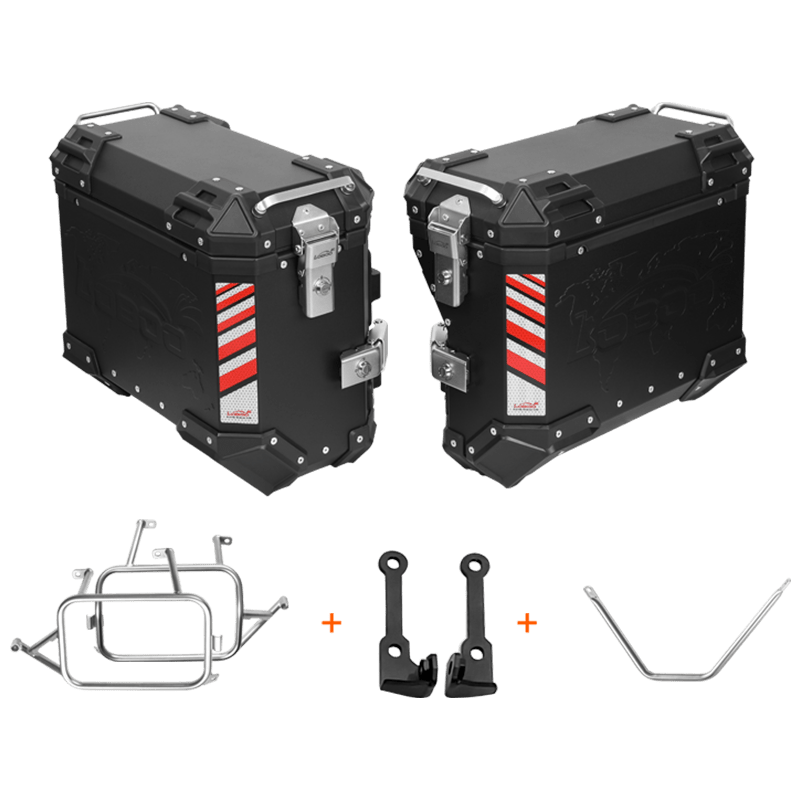

  • Finishes: glossy silver or matte black

LOBOO states that the series is water- and dust-resistant, but does not publish an IP rating, so we do not report one because it is not a manufacturer-certified specification.

What is not included

The top case and its JP581W plate are sold separately. The LR06 LED light with sensor is supplied by LOBOO only with the three-pannier set, so it is not included in this kit.

Alternatives for the same racks

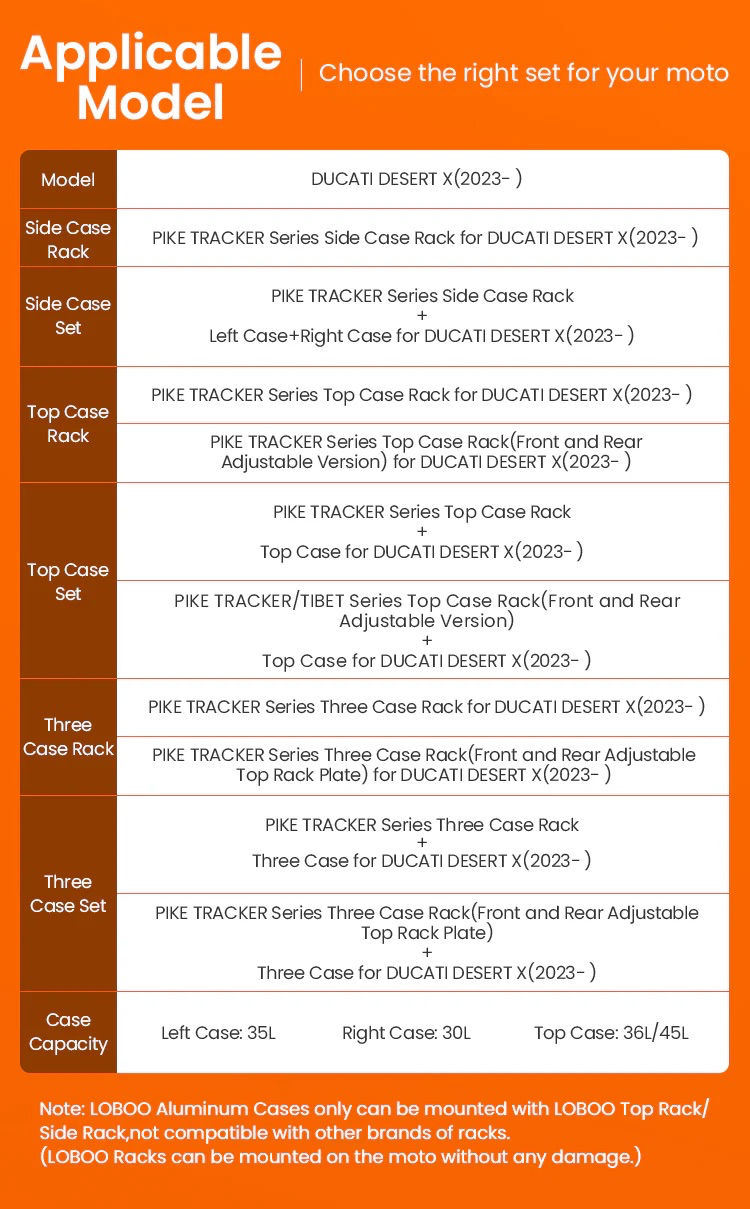

The JP581B racks also accept the 40+30-liter WANDERER soft panniers if you prefer a lighter solution. If you already have the racks, you can purchase only the panniers from the PIKE TRACKER series page. However, LOBOO panniers fit only LOBOO racks: they are not interchangeable with supports from other brands.

Maintenance

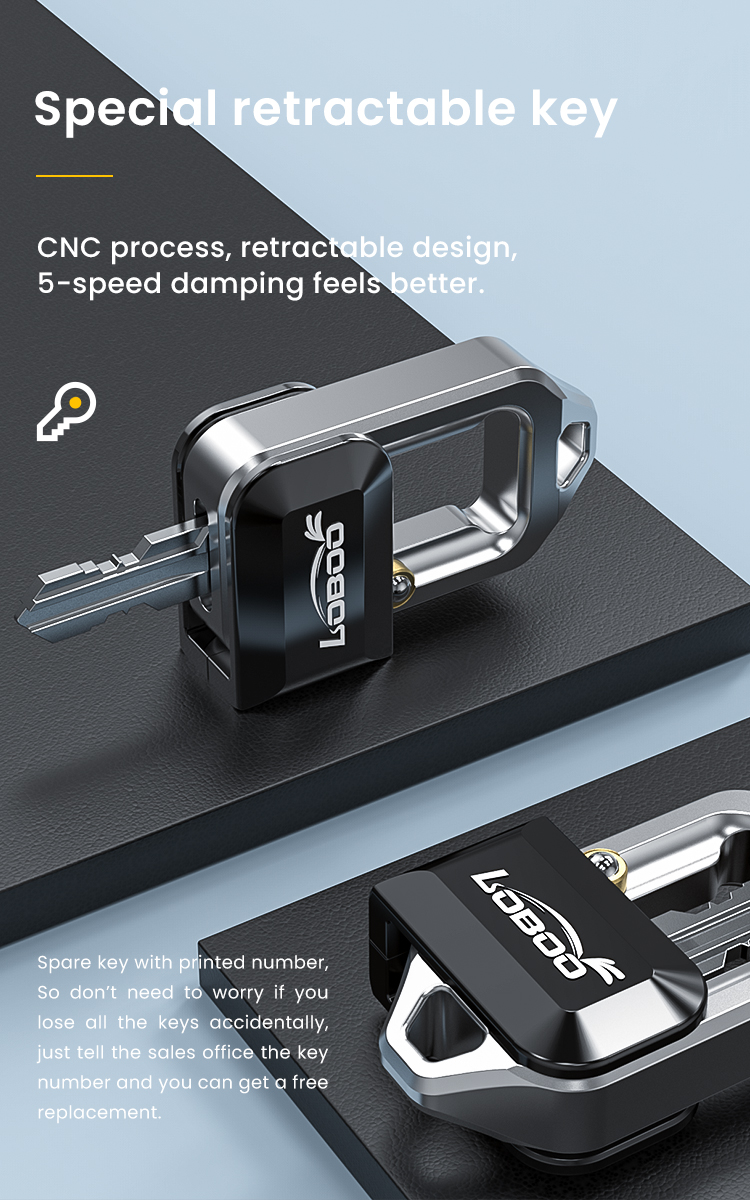

Wash with a water jet held at least one meter away, use a neutral detergent, and dry immediately afterward. Avoid acidic or alkaline products. Make a note of the number stamped on the key: you will need it to have a duplicate made.

Why choose it
  • Complete system:JP581B frames and a pair of panniers in a single order, no need to search for separate parts.
  • PIKE TRACKER aluminum panniers:P35L and P30R, with key locks and waterproof seals.
  • Two finishes:black or silver, with identical construction.
  • Geometry designed around the exhaust:the narrower right pannier keeps the bike compact in difficult passages.
Who is it recommended for

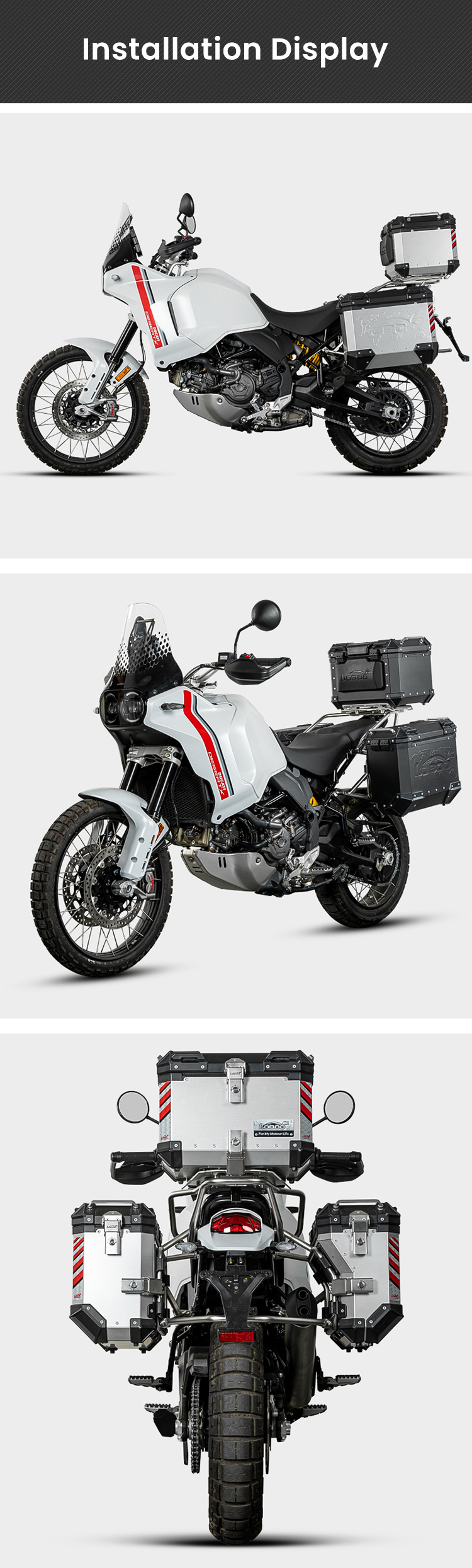

This page offers the complete system for the Desert X: frames plus panniers.

  • If you're starting from scratch:this is the most direct solution, everything compatible and in a single order.
  • If you already have the JP581B frames:purchase only the panniers from the PIKE TRACKER series page.
  • If you prefer semi-rigid bags:the same frames accept the 40+30 liter WANDERER bags.

To complete the setup with a top case, you will need the JP581W top case plate, available on a separate page.

Documents and manufacturer

Assembly and notes

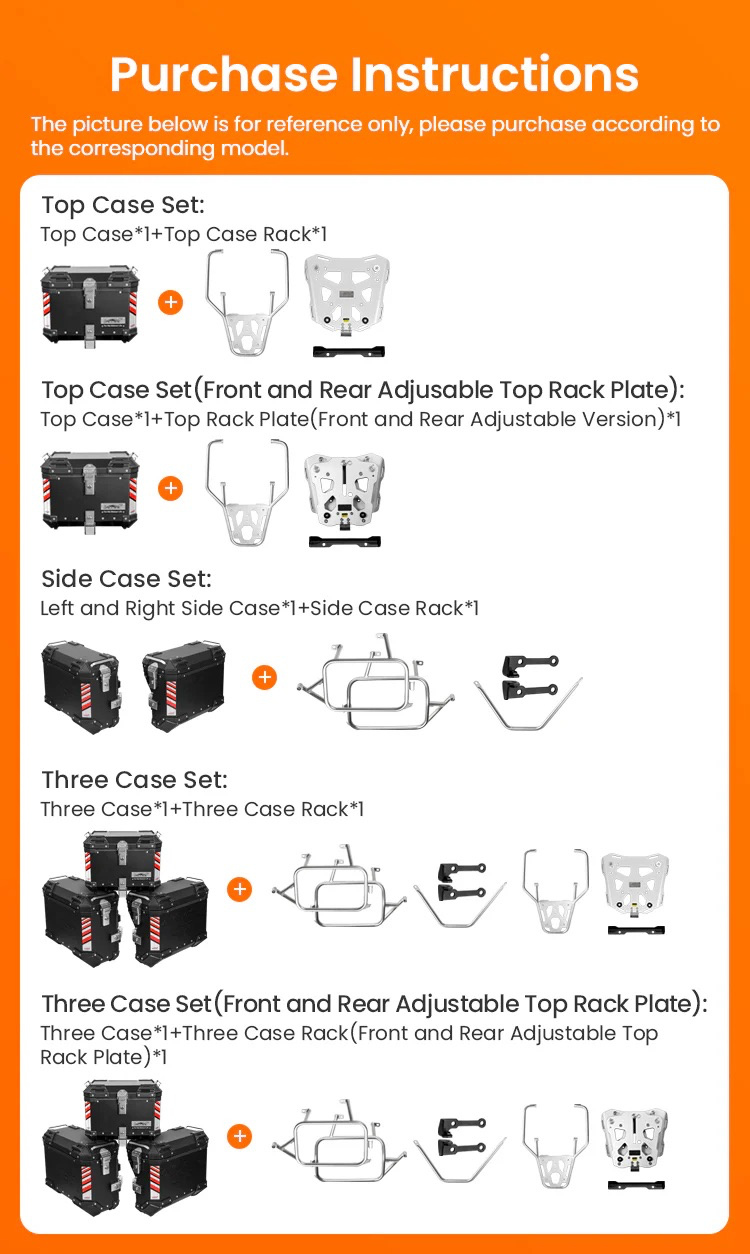

  • The kit includes side frames and a pair of panniers: the top case and its plate are not included.
  • Respect the maximum load per side frame indicated by Ducati in the motorcycle's manual.
  • Retighten fasteners after the first 100-200 km and periodically with off-road use.
  • The load must not cover the license plate and tail lights or protrude beyond the limits of the Highway Code.

Key Specifications

  • Quantity: 3 PCS

  • Water resistance: Waterproof IP68

  • Colors: BLACK or SILVER

  • Material: Steel

  • Material: Aluminum

How does it work, in detail?

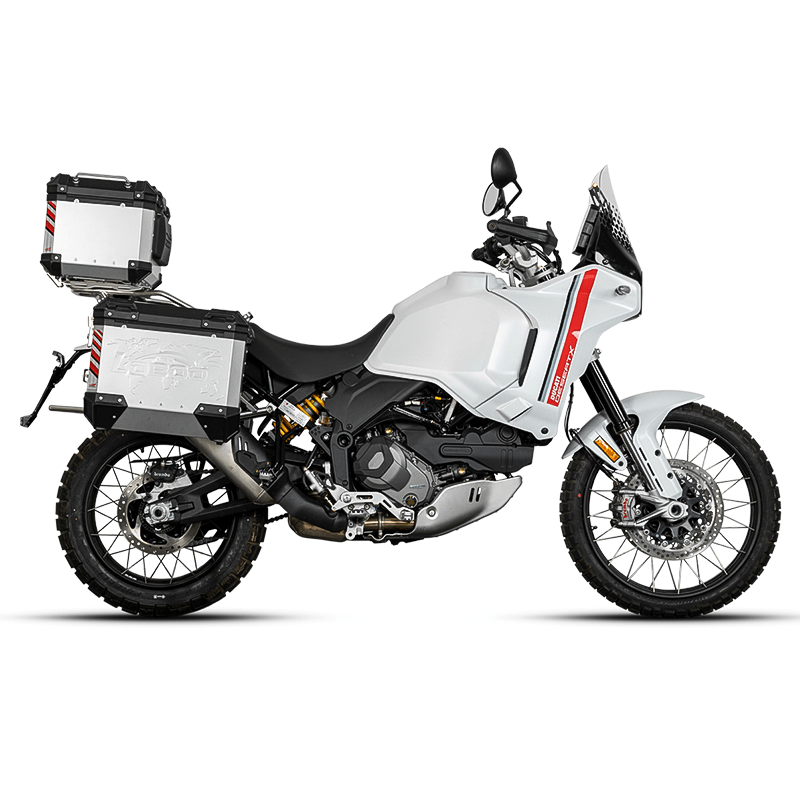

Why 35 on the left and 30 on the right?

Why 35 on the left and 30 on the right?

The exhaust runs along the right side of the Desert X. The narrower pannier leaves the necessary space and prevents the motorcycle from becoming wider on that side.

On a motorcycle designed for the desert and rough terrain, this makes a noticeable difference in technical sections.

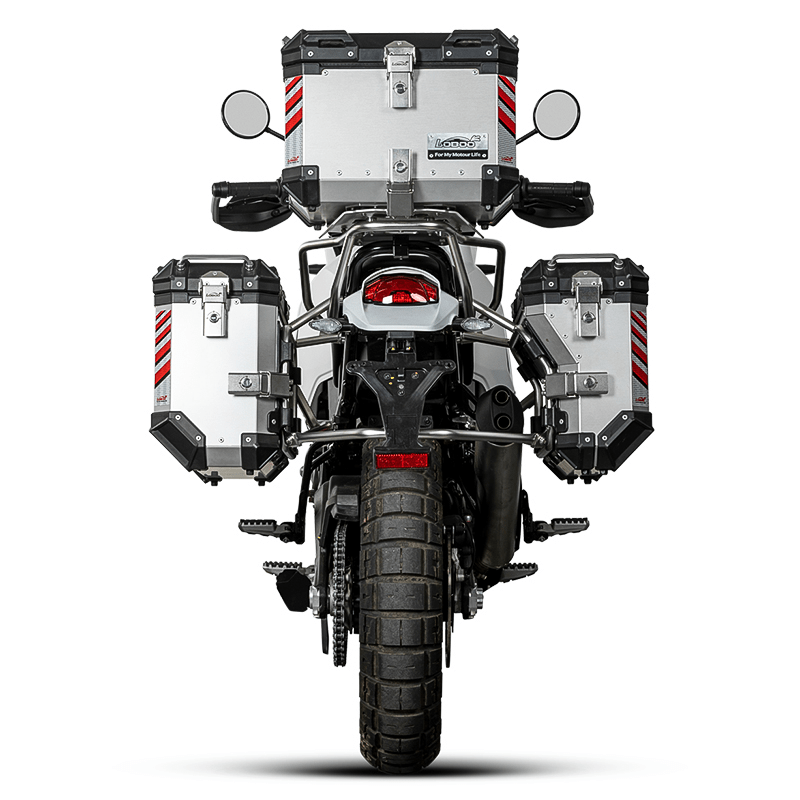

Aluminum, key locks, waterproofness

Aluminum, key locks, waterproofness

The PIKE TRACKER cases are made of high-strength aluminum alloy, with perimeter seals and keyed locks on each case.

It is the most popular series in the LOBOO range: the same case can be mounted on more than fifteen different motorcycles by changing only the frame.

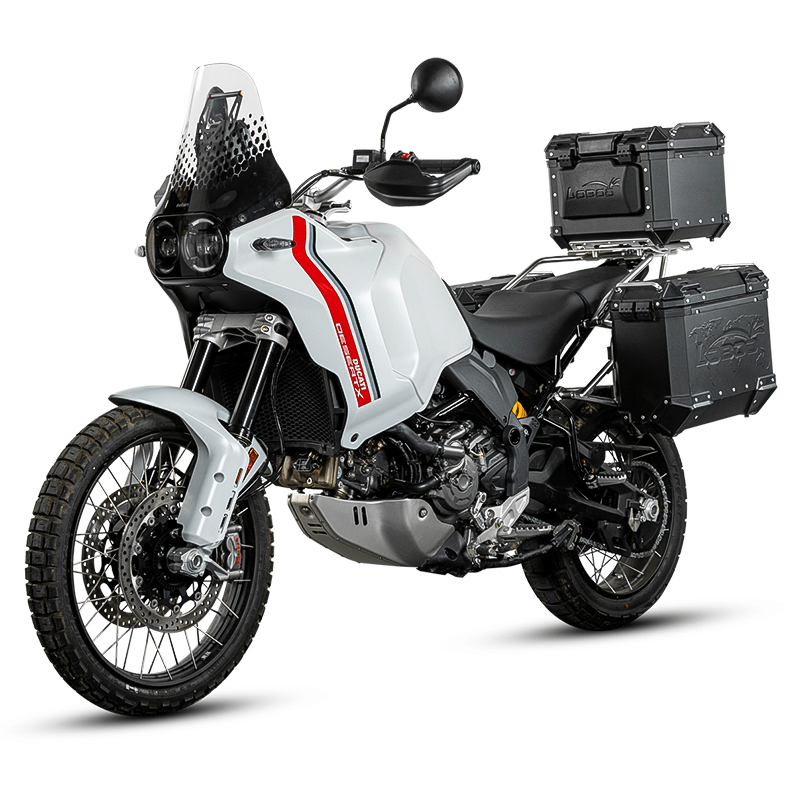

The JP581B frames are included

The JP581B frames are included

You don’t need to look for them separately: the steel frame designed for the Desert X is included in the order, with installation on the mounting points provided by Ducati.

If you already have the frames installed, you can purchase just the panniers from the PIKE TRACKER series page.

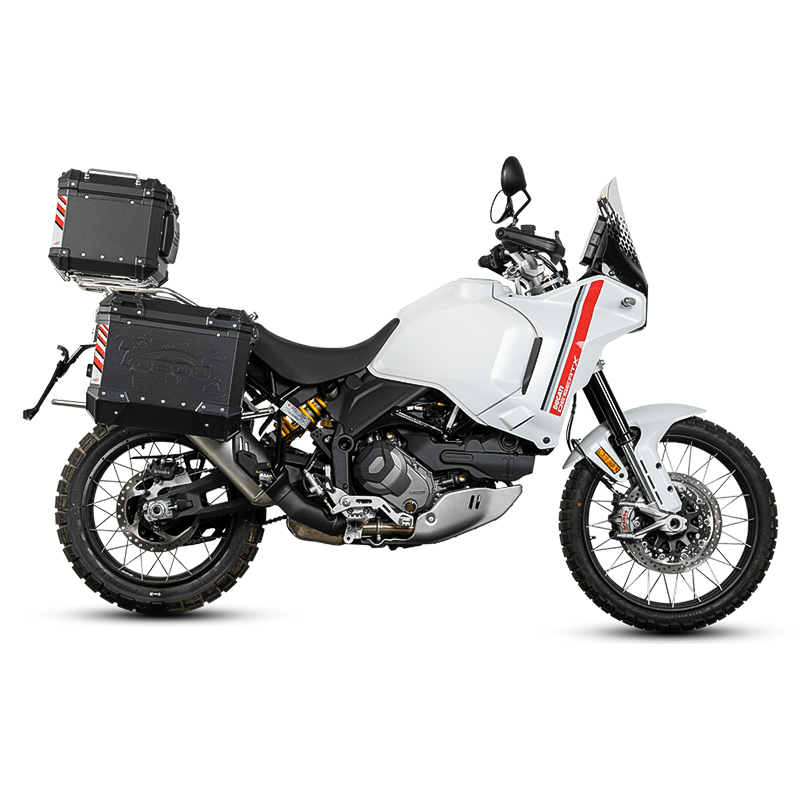

Do the same frames accommodate semi-rigid ones?

Do the same frames accommodate semi-rigid ones?

If in the future you prefer the 40+30-liter WANDERER cases, you don’t need to rebuild the structure: the JP581Bs accept them without modifications.

Aluminum provides better protection and can be locked, while soft cases weigh less and absorb impacts: the choice depends on how you use the motorcycle, not on what you bought before.

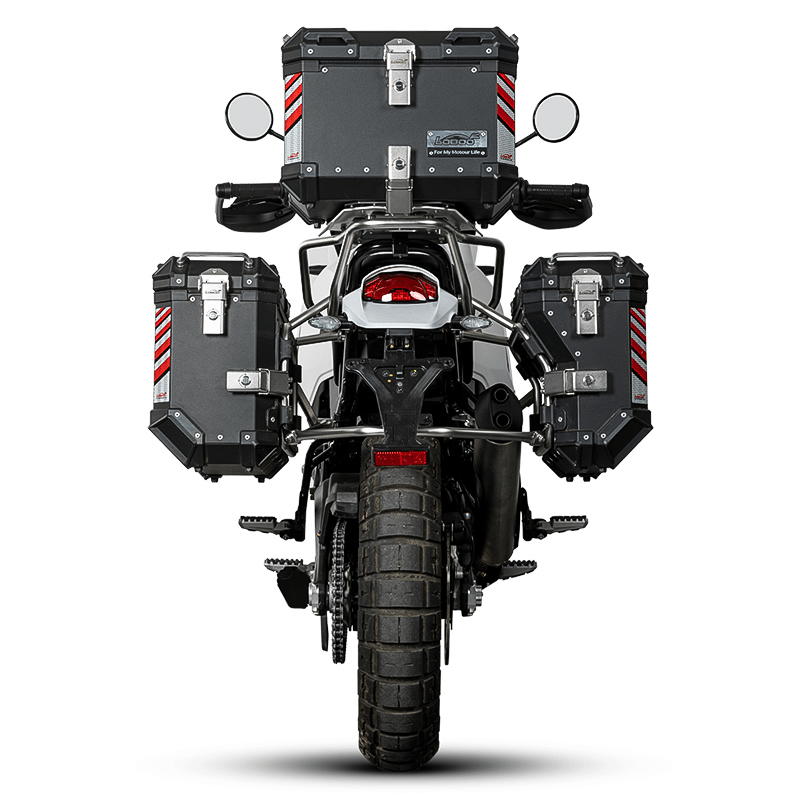

Black or silver, same construction

Black or silver, same construction

The two finishes make no technical difference: same aluminum, same locks, same weather resistance. The choice is purely aesthetic.

On the Desert X, silver echoes the rally-raid aesthetic that inspired the motorcycle, while black maintains a more understated profile.

FAQs

For more information, please see our FAQ.

Does the kit include frames and cases?

Yes: this page offers the complete system, JP581B frames plus a pair of PIKE TRACKER P35L and P30R cases in the selected finish. If you already have the frames installed, you can purchase just the cases from the PIKE TRACKER series page.

Why do the two suitcases have different capacities, 35 and 30 liters?

Because the exhaust runs along the right side, the narrower pannier keeps the motorcycle from becoming too wide and reduces the risk of contact. It’s a design choice, not a limitation of the range.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return the product if it isn’t suitable?

Yes, you are entitled to return the item within 14 days of delivery under online purchase regulations. The product must be intact and in its original packaging: contact us and we’ll guide you through the process.

How does shipping work?

Tracked shipping throughout Italy: the product is carefully inspected and prepared before leaving our warehouse. The mounting accessories included in the original package are included.

Can I pay in installments?

Yes: at checkout, installment payment services are available directly among the payment methods, with no additional paperwork.

Is it an original LOBOO product?

Yes: we sell exclusively original LOBOO products, new and in the packaging provided by the manufacturer, with official documentation.
