Vendor:LOBOO

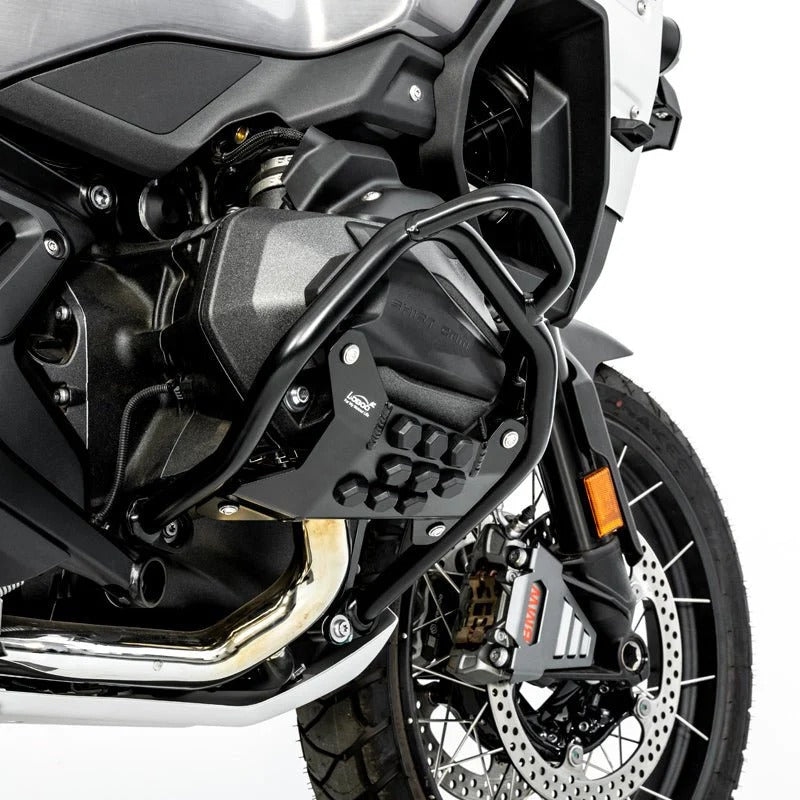

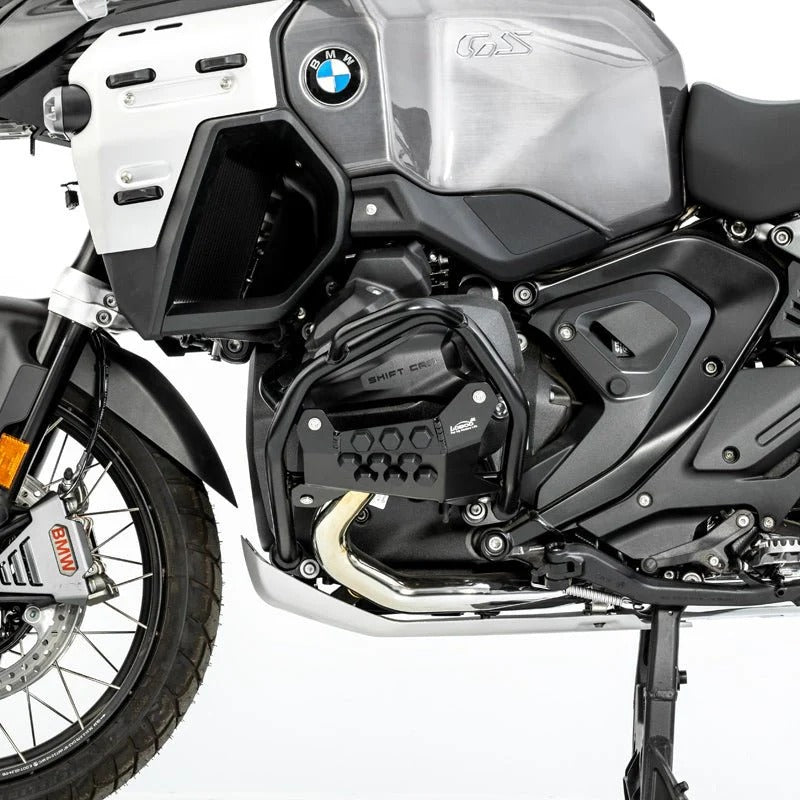

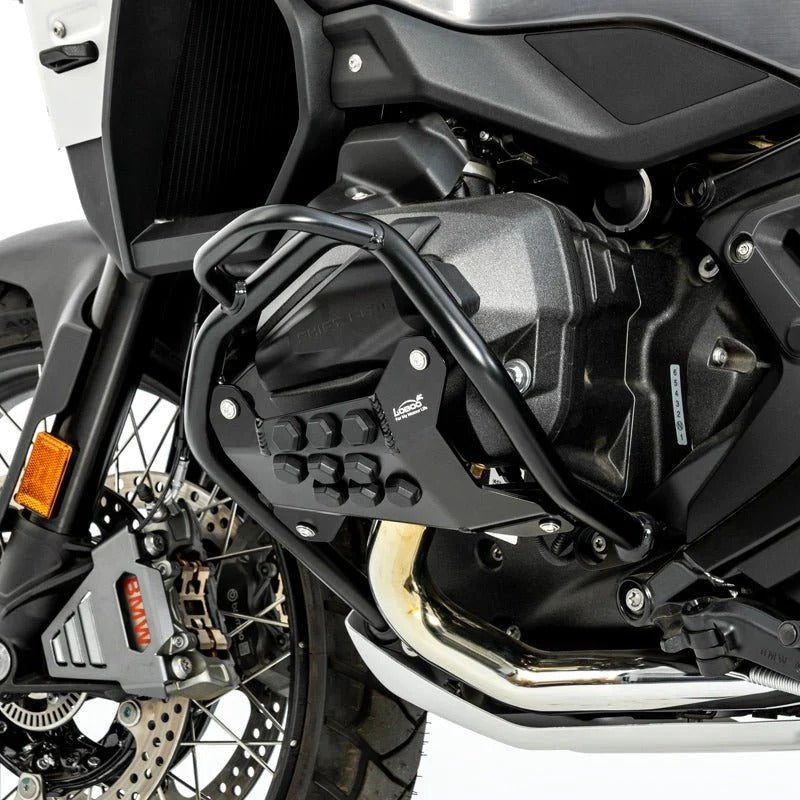

LOBOO CGTBH151BK cylinder head protectors for BMW R 1300 GS and Adventure

Sale price€130,50Regular price €145,00
In stock, ready to ship

It protects the most protruding point of the boxer

Cosa è compreso nel prezzo

Nella confezione:

  • Due piastre di protezione testata in lega di alluminio, destra e sinistra, speculari
  • Tamponi in gomma per i fori di fissaggio
  • Blocchi ammortizzatori in nylon e silicone
  • Ferramenta di montaggio prevista dalla dotazione originale

Non è incluso:

  • Barre paramotore, che coprono una zona diversa e si acquistano a parte
  • Blocchi ammortizzatori di ricambio, da ordinare separatamente quando saranno da sostituire
  • La piastra di protezione inferiore originale, che deve già essere sulla moto: questo prodotto la sostituisce

Hai dubbi sulla compatibilità? Contattaci prima dell’acquisto →

LOB_CGTBH151BK

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal conformity warranty

Original LOBOO product, guaranteed

4mm

Plate thickness

2mm

Original BMW plate

1 pair

Content

Aluminum alloy

Material

Identification

Product code

CGTBH151BK

LOBOO Name: Cylinder Head Guard

Manufacturer SKU

11.3.38151.001.11

Function

Replacement for the original head guard

It is not an add-on: it replaces the standard lower plate.

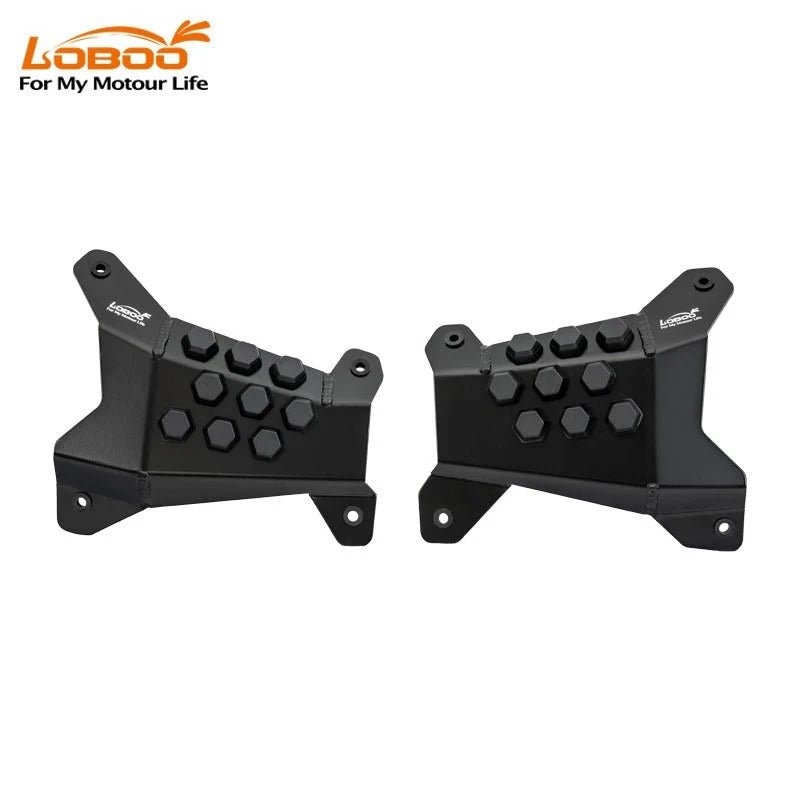

Package contents

1 pair

Right and left plates, one per cylinder head

Materials and construction

Plate material

High-strength aluminum alloy

Plate thickness

4

0.157 inches. The original BMW plate measures 2 mm

Finish

Electrostatic spray painting

Black color

Shock absorber blocks

Nylon and silicone

Individually replaceable without changing the plate

Protection

Protected area

Boxer engine cylinder heads

The motorcycle’s furthest protruding point

Damping system

Double

Rubber grommets in the mounting holes plus a silicone shock-absorbing block

Maintenance after impact

Shock absorber assembly only

The shock absorber is replaced, not the entire plate.

Assembly

Installation type

In replacement of the original

Requires the motorcycle to have the standard lower skid plate.

Motorcycle puncture

Not requested

Holes derived from the vehicle’s original data

Installation Guide

Available from the manufacturer

Compatibility

Compatible motorcycles

BMW R 1300 GS from 2023, R 1300 GS Adventure from 2024

One code for both: same engine, same head position

Weight and dimensions

Not declared by the manufacturer

Dati dichiarati da LOBOO nella documentazione ufficiale del prodotto. Peso e dimensioni non sono dichiarati dal produttore.

LOBOO CGTBH151BK · ricambio della piastra originale · alluminio da 4 mm contro i 2 mm di serie · coppia

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description LOBOO CGTBH151BK cylinder head protectors for BMW R 1300 GS and Adventure

The LOBOO CGTBH151BK cylinder-head protector is not added to the motorcycle: it replaces the original lower protective plate on the BMW R 1300 GS. Remove the stock plate and install this one in its place, using the same mounting holes. The difference lies in the material: 4 mm of aluminum alloy compared with the 2 mm of the BMW plate—exactly twice as thick.

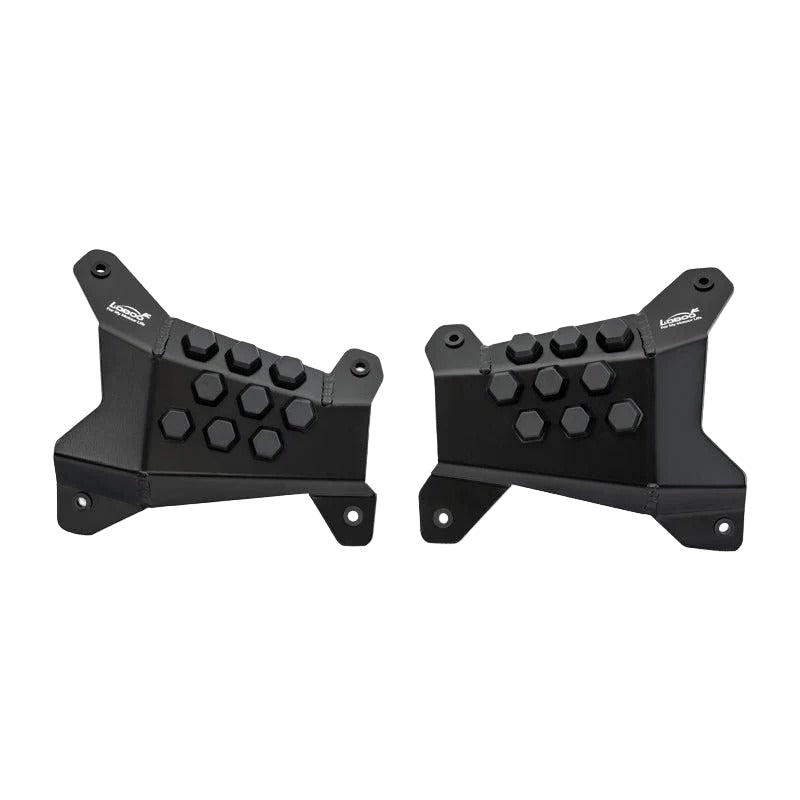

Why two extra millimeters make a difference

On the boxer engine, the cylinder heads are the motorcycle's most protruding parts: in a stationary or low-speed fall, they are the first point to touch the ground, even before the bodywork. With a flat plate, doubling the thickness does not merely double its resistance to bending—it increases it by much more, which is why this replacement part exists.

The plate alone, however, is not enough. If it were bolted on rigidly, it would transmit the impact directly to the cylinder head—the very component it is meant to protect.

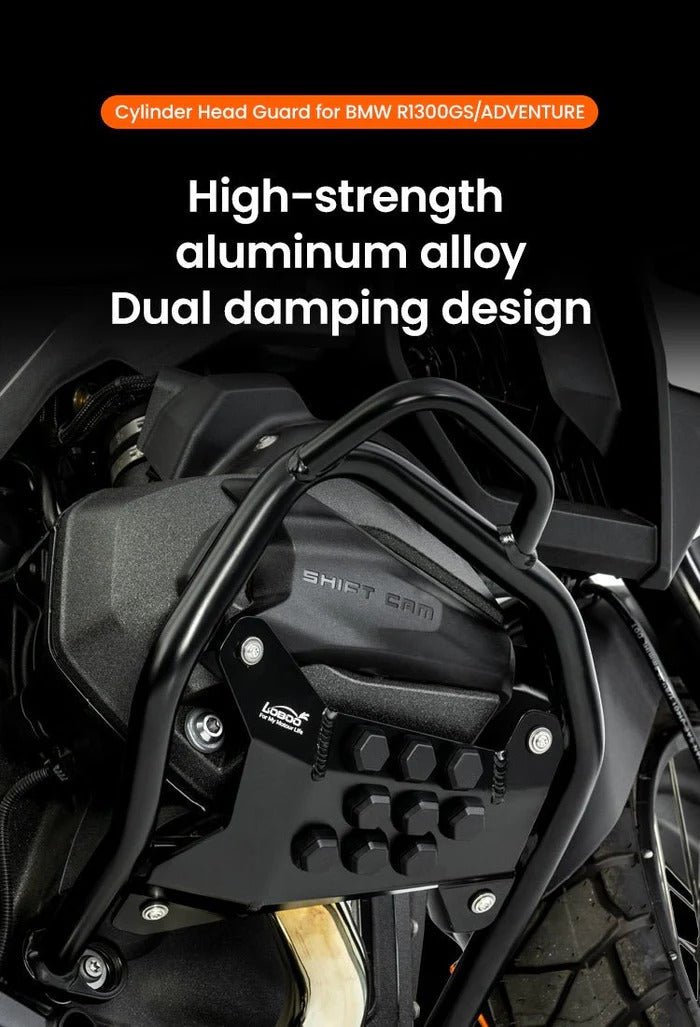

How the dual damping system works

Rubber buffers are housed in the mounting holes, while a silicone shock-absorbing block works beneath the plate. The two elements have different jobs: the buffers isolate normal engine vibrations, while the block absorbs impact energy. This is what LOBOO calls a dual-damping design.

The blocks are made of nylon and silicone and can be replaced individually. They are the sacrificial part of the system: they work by deforming, and when they are worn, they can be replaced without touching the plate. On a component designed to take impacts, that is the difference between maintenance and replacement.

Technical specifications

Item Value
Product code CGTBH151BK
Manufacturer SKU 11.3.38151.001.11
Function Replacement for the original cylinder-head protection plate
Contents 1 pair, right and left
Material High-strength aluminum alloy
Plate thickness 4 mm (original BMW: 2 mm)
Finish Black electrostatic spray coating
Damping Dual: rubber inserts in the holes and a silicone block
Shock-absorbing blocks Nylon and silicone, individually replaceable
Motorcycle drilling Not required
Compatibility BMW R 1300 GS from 2023, R 1300 GS Adventure from 2024
Weight and dimensions Not provided by the manufacturer

What to check before ordering

LOBOO states this explicitly: this product is intended solely to replace the original lower protective plate. If your motorcycle does not have one, or already has a replacement from another brand, installation is not предусмотрed. It takes thirty seconds to check with the motorcycle on its stand, and this is the most likely reason for a return with this item: if in doubt, send us a photo of the area beneath the cylinder heads.

The holes are based on the vehicle's original design data, so they match the stock mounting points: no drilling, enlarging, or modification is required. A single code covers both the GS and the GS Adventure because they use the same engine and the cylinder heads are in the same position.

Usage limitations

This is not an approved safety device and does not replace careful riding. Engine guards cover a different area—the motorcycle's perimeter—and remain a separate purchase: if you already have aftermarket guards installed, send us the model and we will check that the brackets do not interfere. Keep the original plate you remove: you may need it when reselling the motorcycle or for warranty work.

Data declared by LOBOO in the product's official documentation. Where the manufacturer does not provide a value, we identify it as not provided rather than estimating it.

Why choose it
  • Covers the critical point: on a boxer engine, the cylinder heads are the most prominent part and the first to make contact in a fall.
  • Avoids costly repairs: damage to cylinder heads is among the most expensive to fix.
  • Complements the engine guard: the bars cover the perimeter, this protection covers the direct point of contact.
  • Broad coverage: R 1300 GS from 2023 and R 1300 GS Adventure from 2024.
Who is it recommended for

You need it if with your R 1300 GS or GS Adventure:

  • You go off-road, where a fall from a standstill or at low speed is always possible
  • You park on soft ground and want to reduce the consequences of the bike leaning over
  • You already have engine guards and want to complete the protection at the direct contact point

If you already have an engine guard installed, please check for any interference with the brackets before purchasing: write us the model you have installed.

Documents and manufacturer

Assembly and notes

  • Check for any interference with engine guards or other protections already installed.
  • Re-tighten after the first 100-200 km and periodically with off-road use.
  • After an impact, check that the protection is not deformed and does not rest on the engine.
  • It is not an approved safety device and does not replace careful driving.
Delivery
  • Il prodotto viaggia nel suo imballo originale LOBOO, in un unico collo.
  • La confezione contiene entrambe le piastre, destra e sinistra, e la ferramenta prevista dalla dotazione originale.
  • Peso e dimensioni dell'imballo non sono dichiarati dal produttore.
  • Prima di ordinare, verifica che la tua moto abbia ancora la piastra di protezione inferiore originale: è la condizione per il montaggio.
Manufacturer

Denominazione ufficiale: Cylinder Head Guard, prodotta da LOBOO.

  • Codice prodotto: CGTBH151BK
  • SKU produttore: 11.3.38151.001.11
  • Categoria LOBOO: Modification Parts
  • Applicazione dichiarata: BMW R1300GS dal 2023, BMW R1300GS Adventure dal 2024

LOBOO è stata fondata nel 2013 e sottopone i propri prodotti a prove su strada di lunga durata prima della commercializzazione. Peso e dimensioni di questo articolo non sono al momento dichiarati dal produttore.

Warranty
  • Garanzia legale di conformità: 24 mesi, prevista dal Codice del Consumo per l'acquirente consumatore. In caso di difetto di conformità gestiamo noi la pratica con il produttore.
  • Garanzia commerciale del produttore: 12 mesi, aggiuntiva e non sostitutiva di quella legale.
  • Diritto di recesso: 14 giorni dalla consegna, come previsto per gli acquisti a distanza. Il prodotto va restituito integro e nella confezione originale.
  • Non sono coperti i danni da urto, caduta, uso improprio o montaggio non conforme. Il consumo dei blocchi ammortizzatori è normale usura: sono progettati per essere sostituiti.

What does it look like in detail?

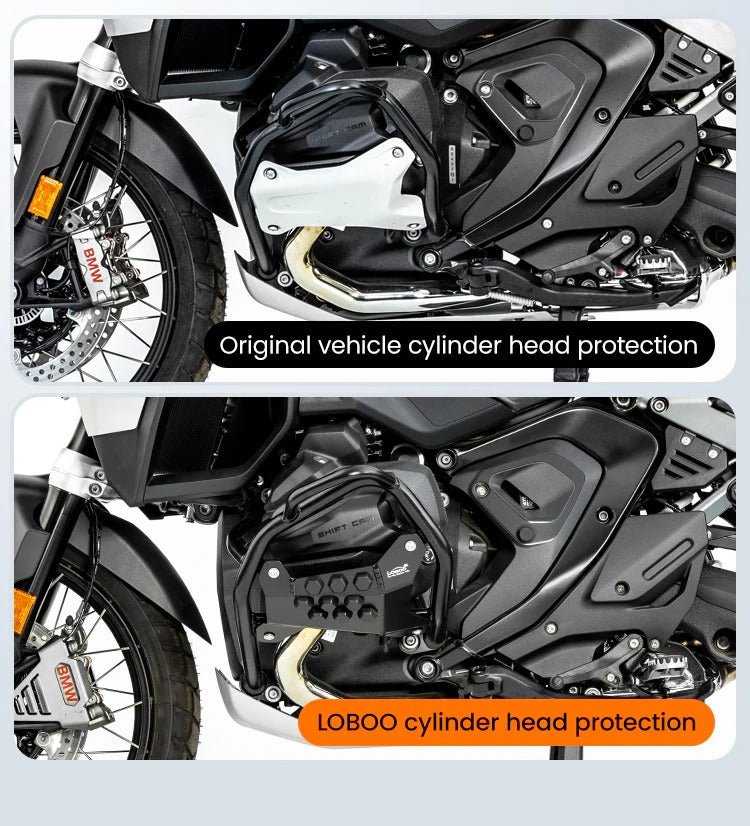

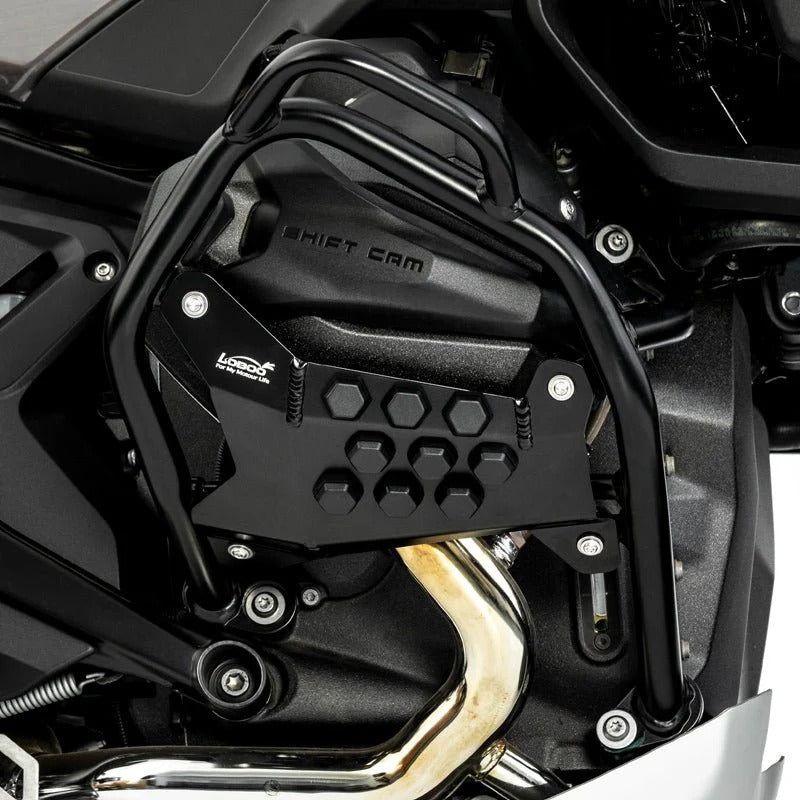

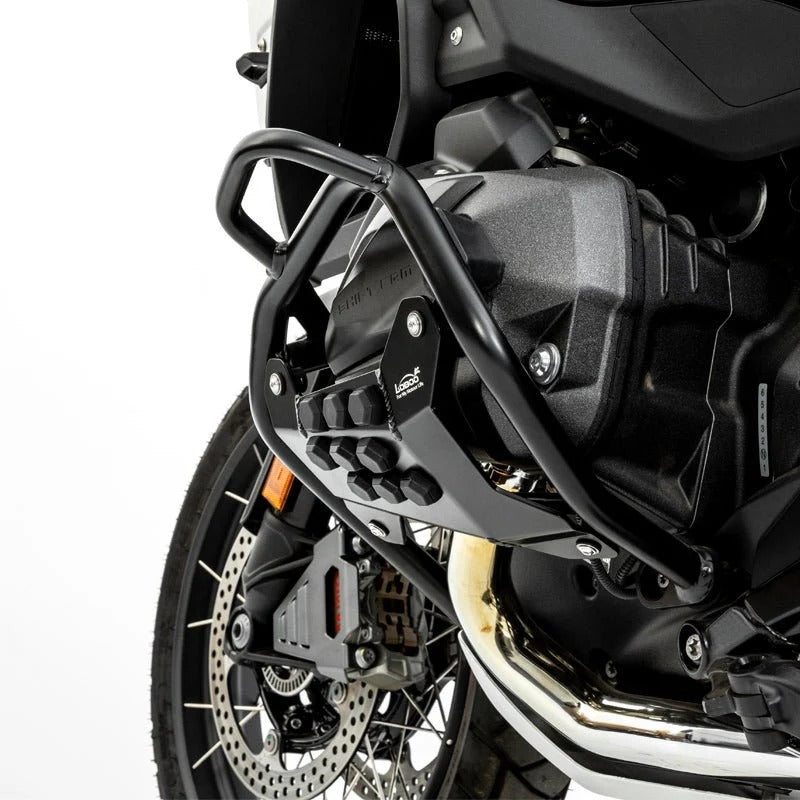

It isn’t added: it replaces the one you already have.

It isn’t added: it replaces the one you already have.

The R 1300 GS comes from the factory with a protective plate under each cylinder head. This one does not supplement them; it replaces them: remove the original and install the LOBOO in its place, using the same mounting holes.

That is the difference that matters when you compare prices. You are not buying an extra accessory to attach to the motorcycle; you are replacing a standard component with one built to withstand more.

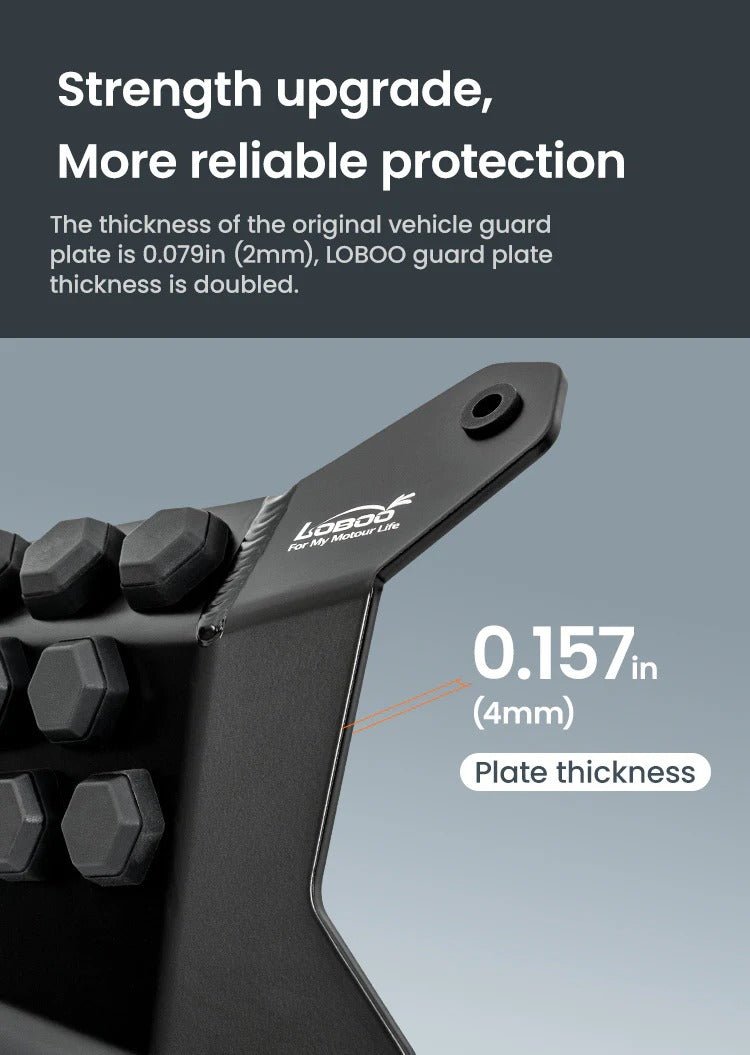

Two millimeters versus four

Two millimeters versus four

The original BMW plate is two millimeters thick. This one measures four: exactly twice as thick, as stated by the manufacturer.

On a flat plate, doubling the thickness does not double the bending strength; it increases it by much more. That is why an additional two millimeters of aluminum changes the outcome of a side stand, and is not merely a technical specification detail.

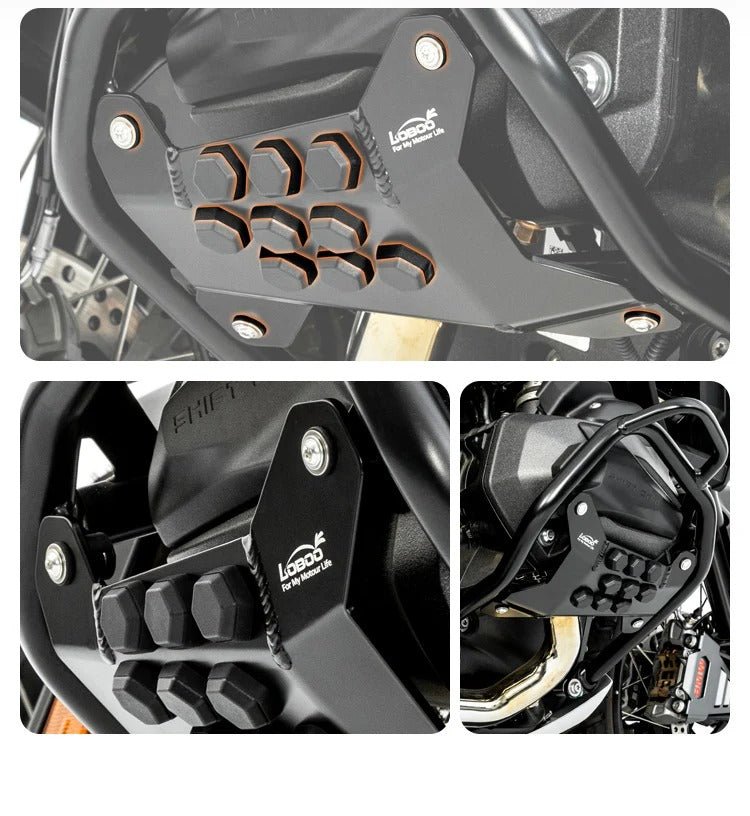

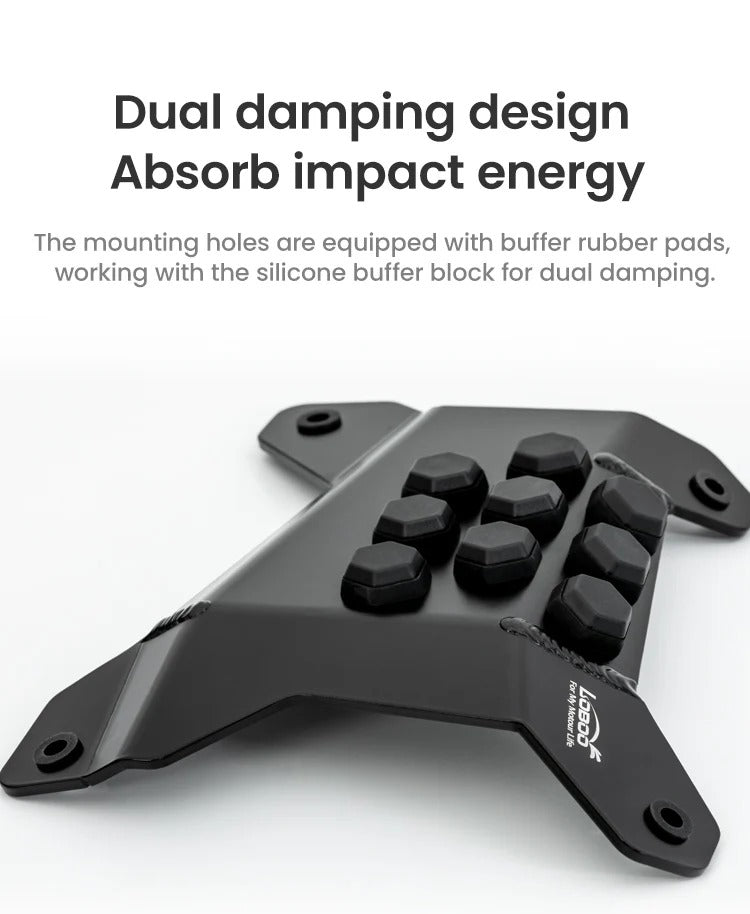

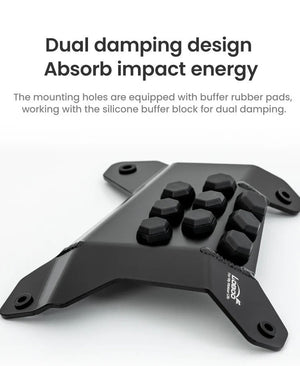

Damping operates on two levels

Damping operates on two levels

The mounting holes have rubber pads, and there is a silicone shock-absorbing block beneath the plate. The two components work together: the first isolates normal vibrations, while the second absorbs the energy from an impact.

A rigid bolted plate transmits the blow directly to the cylinder head—the very part it is supposed to protect. Placing deformable material in between helps dissipate the energy before it reaches the engine.

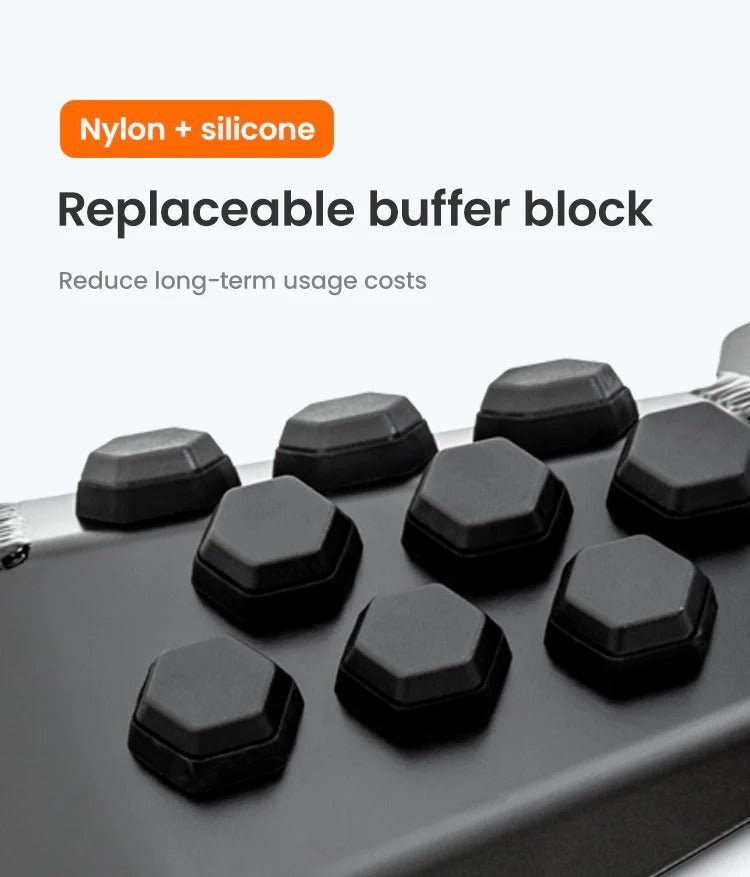

After an impact, replace the pad, not the plate.

After an impact, replace the pad, not the plate.

The shock-absorbing blocks are made of nylon and silicone and can be replaced individually. They are the sacrificial part of the system: they do their job by deforming, and when they wear out, they are replaced.

Without this option, a crushed shock absorber would mean throwing away the entire protective system. It is the kind of design choice you appreciate after two years, not on the day of installation.

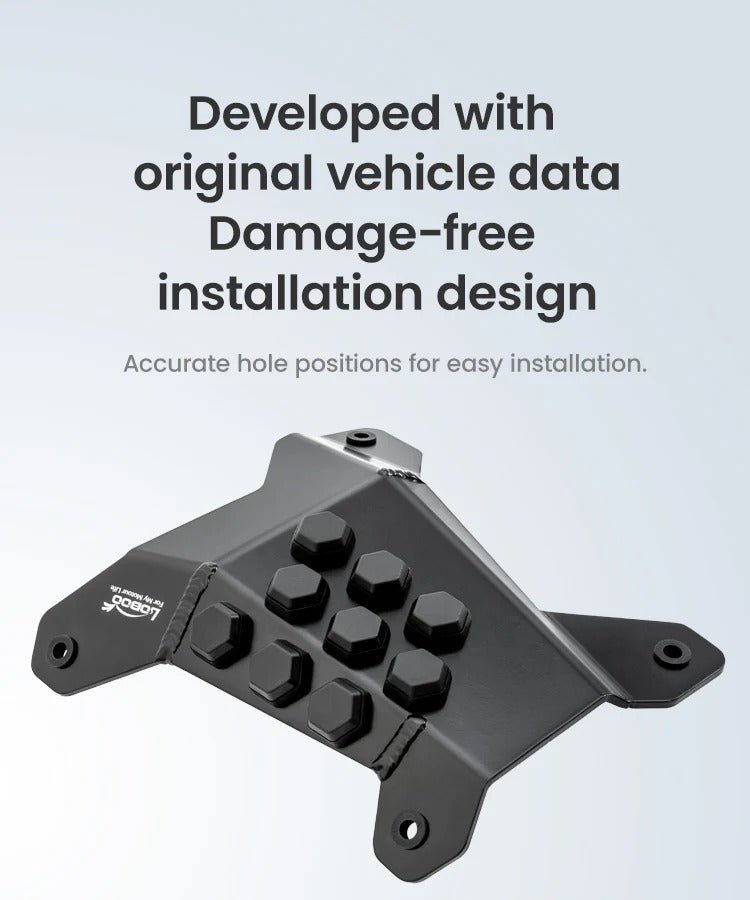

Holes derived from the vehicle’s original data

Holes derived from the vehicle’s original data

The manufacturer developed the plate based on the motorcycle’s construction data, so the hole locations match the original ones. No drilling, enlarging, or modification is needed.

For an accessory designed to be removed and reinstalled—after an impact or when reselling the motorcycle—this means the chassis returns exactly to its original condition.

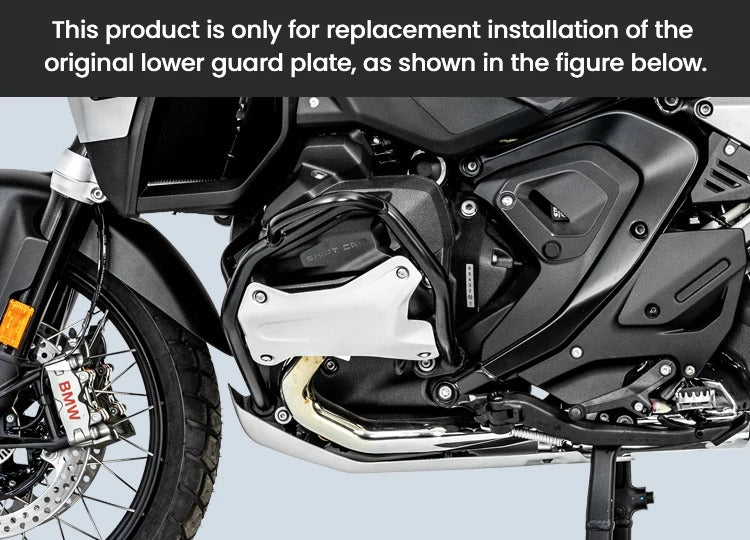

Check first: the original plate is required

Check first: the original plate is required

LOBOO states it explicitly: this product is intended solely to replace the original lower skid plate. If your motorcycle does not have one, or already has an aftermarket replacement installed, it is not designed to be fitted.

This is the check to perform before ordering, and it takes thirty seconds with the motorcycle on its stand. If in doubt, send us a photo of the area beneath the cylinder heads.

A code only for GS and Adventure

A code only for GS and Adventure

The CGTBH151BK fits both the R 1300 GS from 2023 onward and the GS Adventure from 2024 onward: the engine is the same and the cylinder heads are in the same position, so you don’t need to check which version you have.

The package includes two mirror-image plates, one for the right side and one for the left: one for each cylinder head. There’s no need to order two.

FAQs

For more information, please see our FAQ.

Does it add to the original protection or replace it?

It replaces it. Remove the original lower cylinder-head protection plate and install this one in its place, using the same mounting points. It is not an accessory added to the standard one.

If I don’t have the original plate, can I still install it?

No. LOBOO specifies that the product is intended solely to replace the original lower protective plate: if the motorcycle does not have one, or already has a replacement from another brand, installation is not supported. Check this before ordering and, if you have any doubts, send us a photo of the area beneath the cylinder heads.

How much thicker is it than the original?

Twice as much. The original BMW plate measures 2 mm, while this one is 4 mm; both figures are stated by the manufacturer. On a flat plate, doubling the thickness increases resistance to bending by considerably more than twice as much.

Does the package contain one or two plates?

Two: right and left, mirror images of each other, one for each cylinder head. The boxer engine has two opposed cylinders, and both need to be protected, so there’s no need to order two packages.

What does the dual-damping system do?

They are two components that work together: rubber buffers housed in the mounting holes and a silicone shock-absorbing block. The former isolate ordinary vibrations, while the latter absorbs the energy of an impact before it reaches the cylinder head. A rigid bolted plate would transmit the blow directly to the part it is meant to protect.

Do shock absorber mounts wear out? Can they be replaced?

Yes to both. They are made of nylon and silicone and work by deforming, so it is normal for them to wear out: LOBOO designed them to be replaced individually, without changing the plate. After an impact, replace the shock absorber and the protection becomes effective again.

Do I need to drill or modify the motorcycle?

No. The manufacturer derived the hole locations from the vehicle’s original construction data, so they match the factory ones: no drilling, enlarging, or adapting is required. LOBOO provides an installation guide.

Can I keep it together with the engine guards?

They are two different things and cover different areas: the bars work around the perimeter, while this plate sits directly on the cylinder head in place of the original. In the manufacturer's images, the two solutions are shown installed together. If you already have an engine guard installed, write to us with the model and we'll check that it won't interfere with the brackets before you purchase.

What material is it made of, and what is its finish?

High-strength aluminum alloy with a black electrostatic spray coating. This is the same type of treatment used on motorcycle components exposed to the elements, and it is more resistant to abrasion and corrosion than traditional paint.

What should I check after a fall?

Check that the plate is not deformed and is not resting against the cylinder head; otherwise, it would transmit vibrations instead of isolating them. Also check the condition of the shock absorber block, which is the part intended to wear out first, and recheck the tightness of the fasteners.

Is it suitable for both the GS and the GS Adventure?

Yes, a single code covers both: the R 1300 GS from 2023 and the R 1300 GS Adventure from 2024. The engine is the same and the cylinder heads are in the same position, so there is no need to distinguish between versions when ordering.

How much does it weigh?

LOBOO does not provide the weight or dimensions for this item in any of its catalogs or technical specifications, so we do not publish an estimated value. Since it is a replacement for a plate already installed on the motorcycle, the difference from the original is nevertheless minimal.

Didn't find the answer you were looking for?

Do not hesitate to contact us

Buying guides, technical comparisons, and news on adventure motorcycle accessories

Before choosing

View all

Navigatore per moto JADO con CarPlay montato sul manubrio di una maxi enduro, davanti alla strumentazione TFT, in controluce

Motorcycle GPS: how to really choose one in 2026

There is no single "best motorcycle navigator": there is a right category for how you use your motorcycle. Dedicated GPS navigators, CarPlay smart displays, smartphones, and arrow-based devices compared, along with technical criteria that price lists don't highlight.

Read moreabout Motorcycle GPS: how to really choose one in 2026

Prototipo BMW M 1300 GS coperto da telo con ruota anteriore da 21 pollici, foto spia 2026

BMW M 1300 GS: Spy photos confirm the third GS, and it has a 21" front wheel

Two prototypes under the same cover, an M logo and a 21-inch wheel. The spy photos do not announce the R 1350 GS: they tell of a GS that is changing its nature. Facts, rumors and speculations clearly separated.

Read moreabout BMW M 1300 GS: Spy photos confirm the third GS, and it has a 21" front wheel

L'Intelligenza Artificiale arriva sulle moto: rivoluzione reale o semplice marketing? - Endurrad®

Artificial Intelligence comes to motorcycles: real revolution or mere marketing?

"AI-enhanced", "smart", "neural": the lexicon of artificial intelligence is now everywhere in motorcycle marketing. But how much AI is really on today's motorcycles? Between Bosch radar, machine learning, patents, and shipwrecked promises, an investigation that separates real technology from slogans — with a reliability index for each claim.

Read moreabout Artificial Intelligence comes to motorcycles: real revolution or mere marketing?

Let customers speak for us

from 1125 reviews

Excellent quality
Good price
Very fast shipping and very well managed

Lea Rosset
6L Waterproof Crash Bar Bags
Waterproof Crash Bar Bags 6L
Premium upgrade on my BMW GS

I installed the JADO S6 on my BMW GS (non-"dedicated" version), and although I don't use the BMW base, the display and features are still top notch. The night visibility is impressive, and the "X-Ray" mode, as they call it, makes evening riding much safer. I also appreciate Endurrad's quick support for pre-purchase clarifications: fast shipping, careful packaging. A product that is really worth the expense for a premium upgrade.

Andrea
JADO S6 smart motorcycle driving system
JADO S6 smart motorcycle guidance system
Robust, complete, and perfect for long trips

As a motorcyclist who travels many miles, both on asphalt and off-road, I was looking for a solid display with advanced features: well, the JADO S6 exceeded my expectations. The body is sturdy, and the IP69K waterproof rating won me over from the very first downpour. The WiFi/BT connection is stable, and the dedicated app makes downloading dashcam videos super fast. All in one device, without having to mount 3-4 different accessories. Excellent value for money.

Filippo
JADO S6 smart motorcycle driving system
JADO S6 smart motorcycle driving system
The ultimate system for motorcycle travelers

Installed a few weeks ago on my adventure bike: the JADO S6 is truly a quantum leap in quality. The 6" screen is ultra-bright (even in direct sunlight it is perfectly visible) and the CarPlay/Android Auto interface works first time. The integrated dual dashcam gives me peace of mind on every trip. Installation was simple, with a clean fit without any invasive systems. Highly recommended for serious travelers who want a single smart control unit that does everything.

Giordi
JADO S6 smart motorcycle driving system
JADO S6 smart motorcycle guidance system
PROTECTION FOR MOTORCYCLE CRASH BARS

Excellent product, highly recommended. Be aware that it sells like hot cakes and is often out of stock... As soon as it's available, I'll buy more...

Eugenio
Protection for motorcycle crash bars - Endurrad
Protection for motorcycle crash bars - Endurrad

Bottle holder for motorcycle trips

Franco Della Porta
Bottle holder for motorcycle trips
Bottle holder for motorcycle trips
Great product, good value for money

The bag is of excellent quality and comes with all the necessary straps and a shoulder strap. The two methods of attaching it to the motorcycle are well designed and offer a range of options. I will also buy the larger model.

Andra Frois
Additional 20L Bag for Suitcases
20L Additional Bag for Suitcases

Excellent service

Manuele Mazzocato
Smart Protection for 12V Motorcycle Battery - Loboo CB20
Smart Protection for 12V Motorcycle Battery - Loboo CB20
Very satisfied

I saw the Endurrad ad on Facebook and immediately set about getting Loboo inflatable bags for my motorcycle...... But due to a technical error, I entered the wrong information on the order, which had already been shipped. Alarmed, I sent emails to the Endurrad staff, who, with their professionalism (and I must add, their patience), corrected the information both in the registration and with the courier, who was already on his way to deliver the order...Within two days, I received the bags and immediately tried them out and fitted them to my motorcycle. So I must say with great satisfaction that I was very pleased with the staff, with the product, and above all with the professionalism with which the marketing of all these products was carried out..... 🙂

Walter Fanale
Wanderer Inflatable Bags for Crash Bars - Endurrad
Wanderer Inflatable Bags for Crash Bars - Endurrad

CGRC CAN for AIO 5 Play BMW - Endurrad

Fabrizio Ghione
CGRC CAN for AIO 5 Play BMW - Endurrad
CGRC CAN for AIO 5 Play BMW - Endurrad
Excellent

Excellent product... Fast and punctual shipping. Giuseppe is knowledgeable, kind, and helpful.

CONTU ROBERTO
KOVE 800 X Side Cases - LOBOO PIKE TRACKER
KOVE 800 X Side Cases - LOBOO PIKE TRACKER
The most beautiful hand guards around

Materials, design, ease of assembly, height-adjustable spoiler, alloy core, all really beautiful and functional

Franco Pesci
Gloves for BMW GS: Protection and Comfort on Every Adventure
Handguards for BMW GS: Protection and Comfort in Every Adventure
Loboo L 11 spotlights

Very powerful light, very easy to install, even for someone like me who knows nothing about electrical systems.
Very happy

Franco Pesci
L11 15,000 Lumen Motorcycle Spotlights - Endurrad
L11 15,000 Lumen Motorcycle Spotlights - Endurrad
Untitled... just one thing: SERIOUS

I would say serious, honest, friendly professionals without controversy, because advertising is the basis of sales! As a motorcyclist, only excellent reviews!

Andrea Azzaroni
Wanderer Inflatable Bags for Crash Bars - Endurrad
Wanderer Inflatable Bags for Crash Bars - Endurrad
Loboo motorcycle bags

Reliability and professionalism...product as described...I was surprised by the quality of the details, starting with the box and everything else...top..top.....top

Carlo Di Domenico
6L Waterproof Crash Bar Bags
Waterproof Crash Bar Bags 6L
