LOBOO CHG581 Crash Bar for Ducati DesertX | 304 stainless steel, Ø 25 mm, black or silver

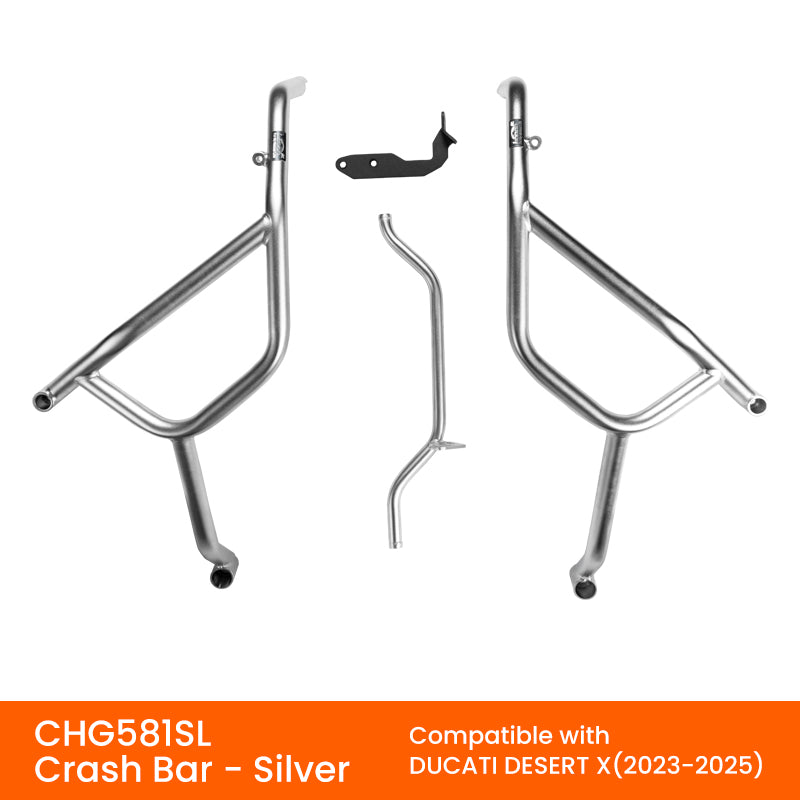

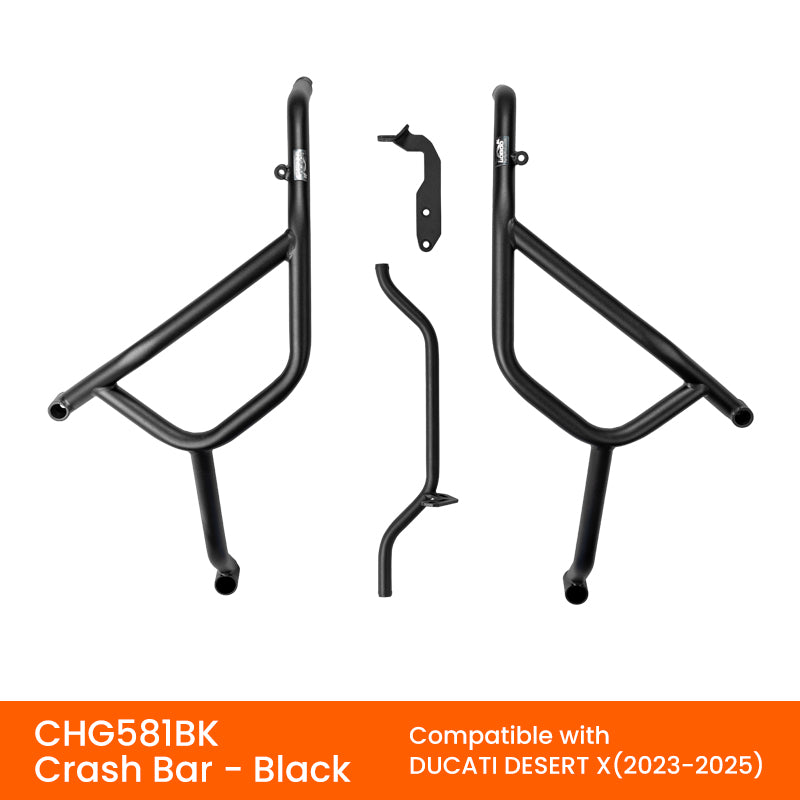

The LOBOO assembly manual and official price list specify DUCATI DESERT X (2023-), meaning from 2023 onward with no upper limit. However, the labeled product images show a closed range, 2023–2025. We publish the manual version, but for newer model years and the Rally version, please contact us before ordering.

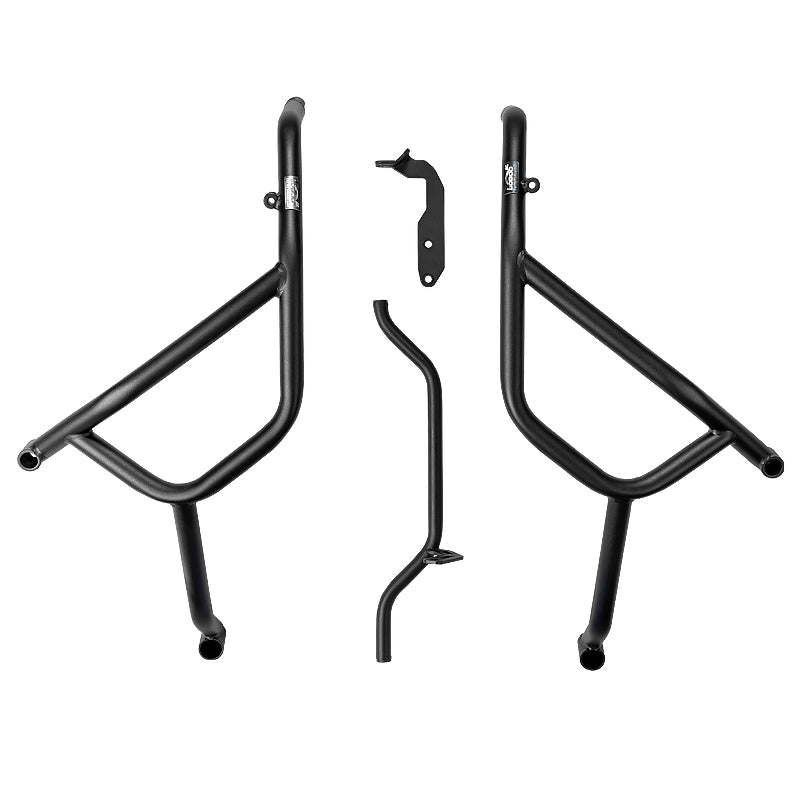

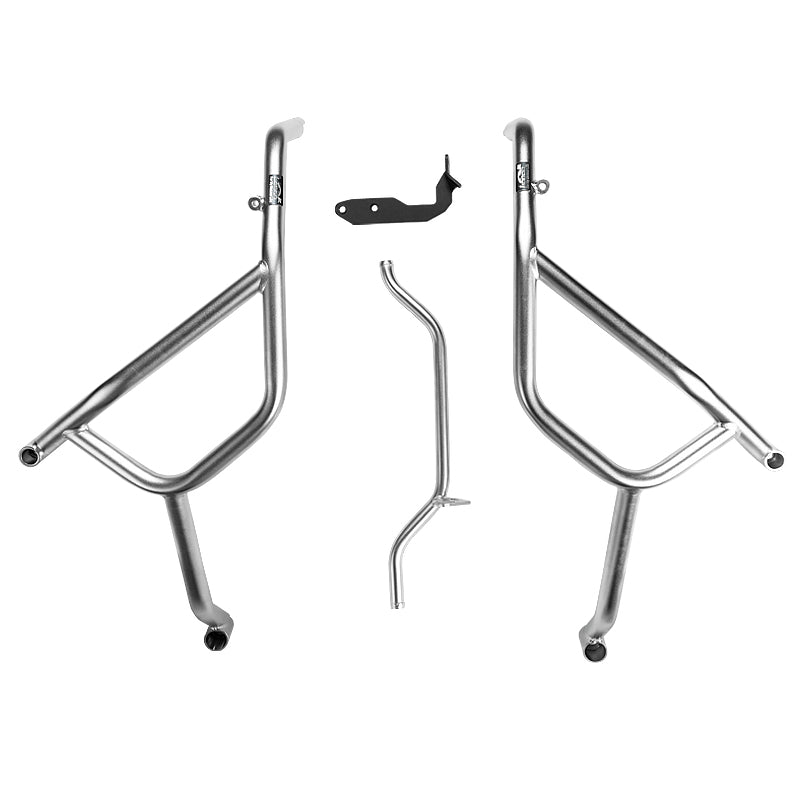

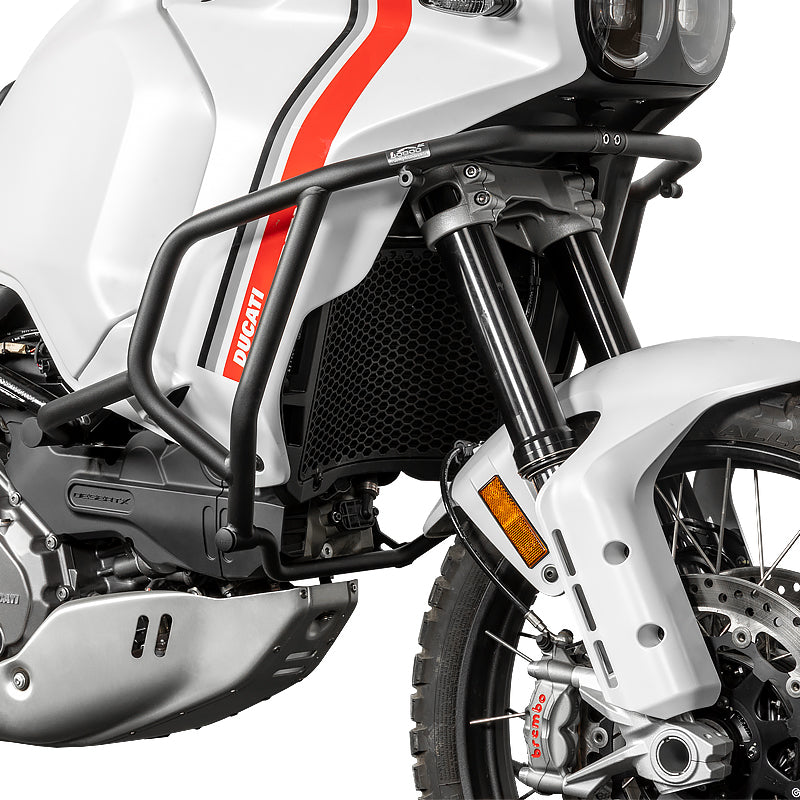

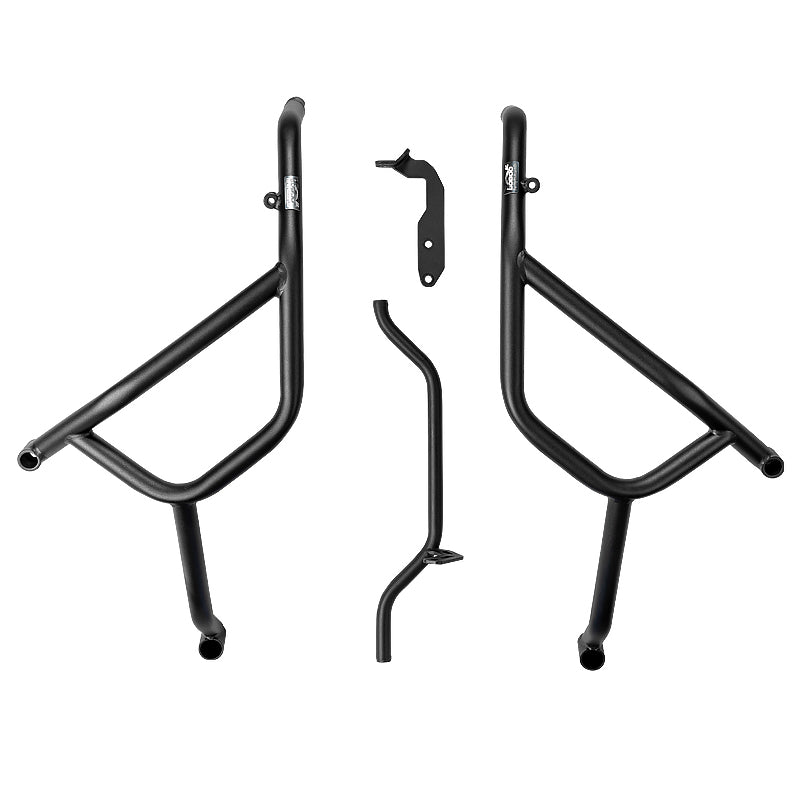

Made up of four structural elements: the left bar, the right bar, a connecting brace that runs in front of the radiator, and a connecting bracket that joins the two sides at the top. They are not two independent guards, but a closed structure.

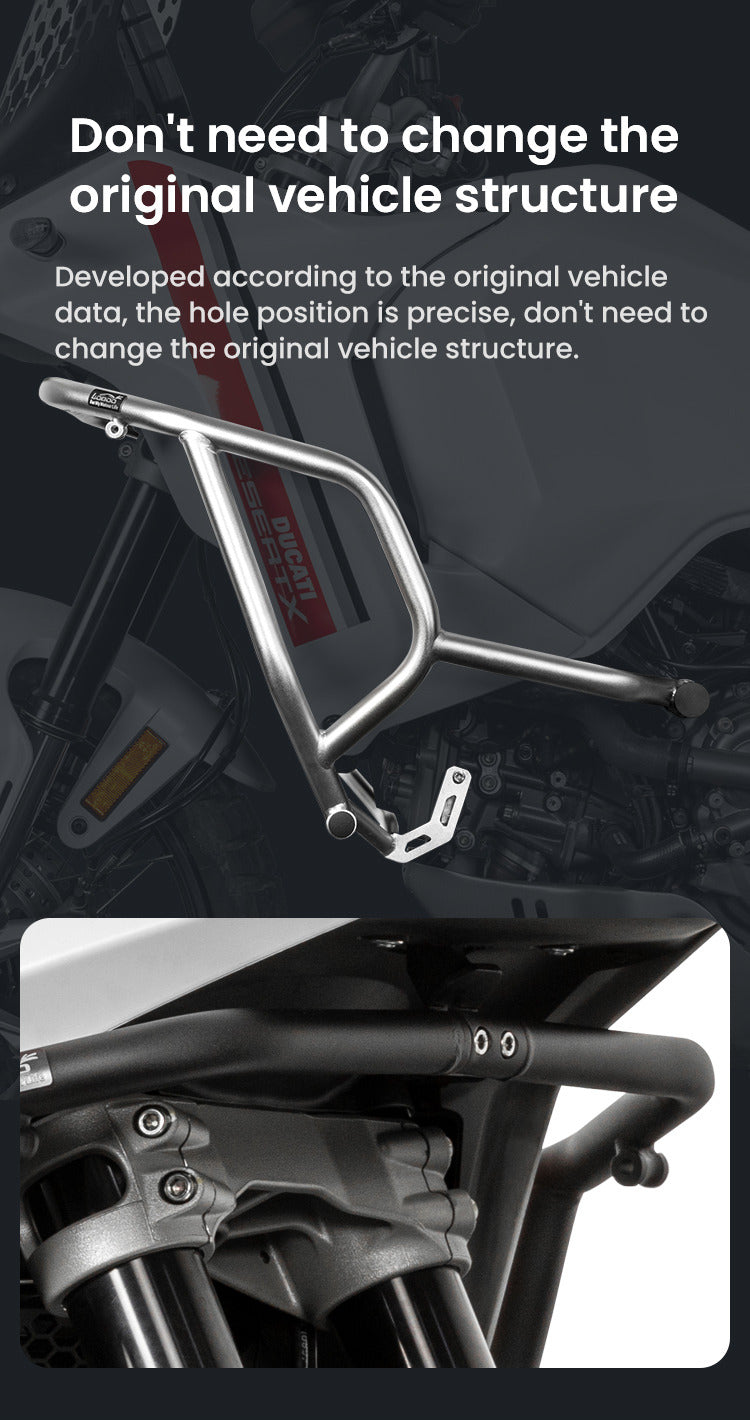

No cutting, drilling, or welding: it attaches to the points already present on the frame. However, the manual does require removing the original screws, clips, and decorative plate in the area above the fork, which are then reinstalled. Once the crash bar is removed, the motorcycle returns exactly to its original condition.

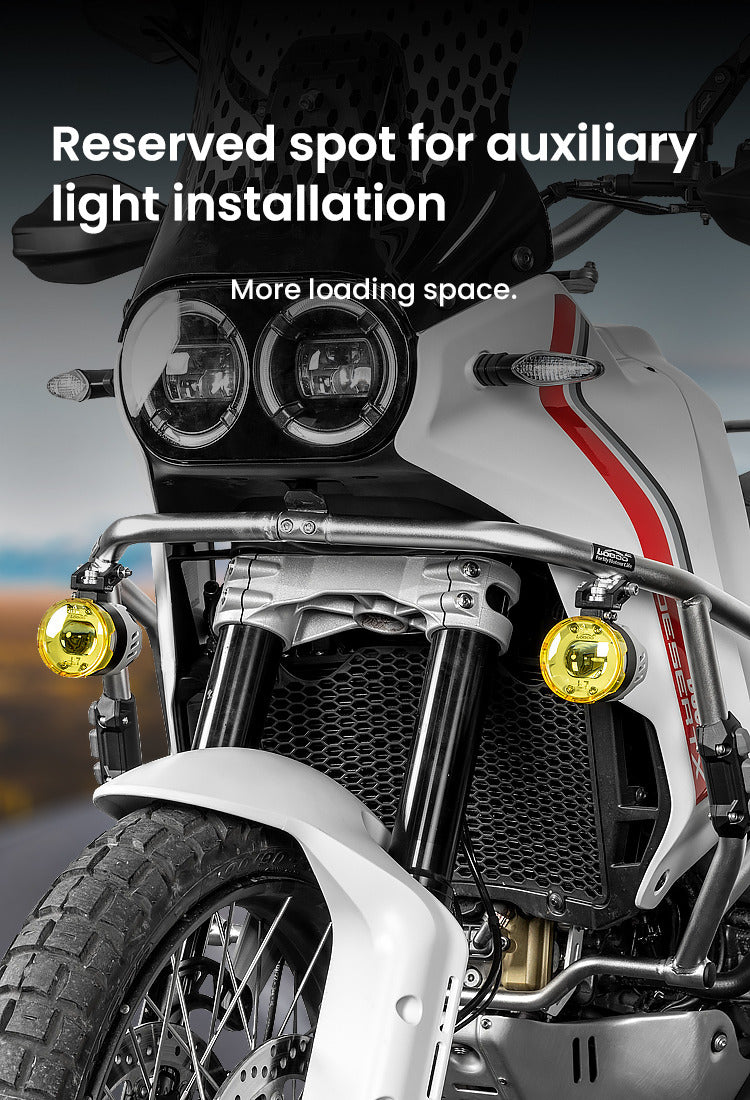

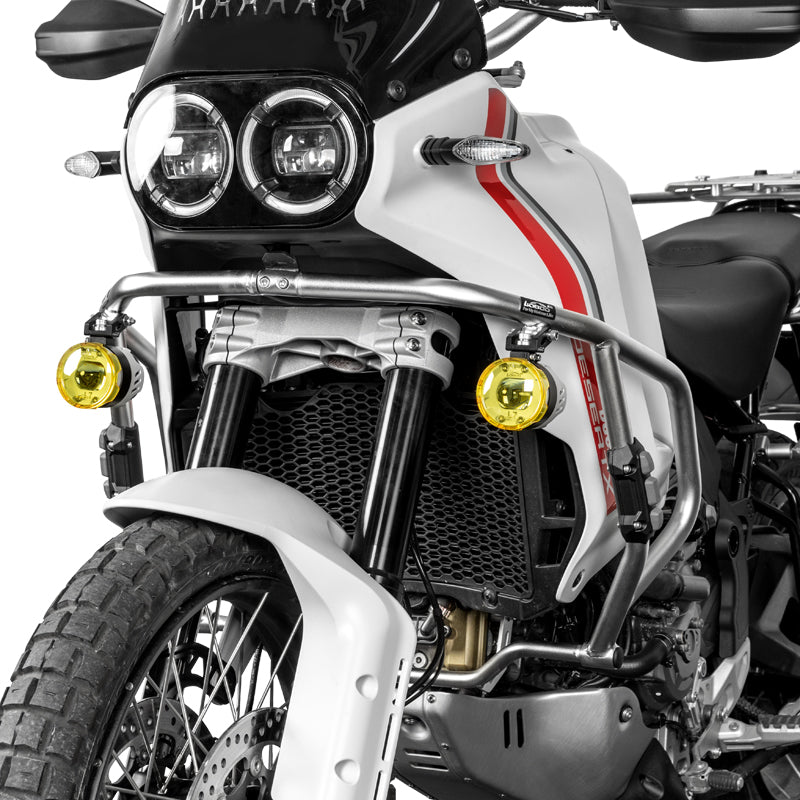

Yes: there are pre-made mounting points on the upper section, so universal clamps tightened around the tube are not needed. The manufacturer's images show two spotlights mounted on the sides of the radiator.

Spotlights and mounting brackets are not included. The exact hole diameter has not been published; if you have already chosen your spotlights, write to us and we will verify the measurement on the part before you place your order.

The manual’s parts list includes 19 items: the four structural elements, two M8×35 screws, two M8×20 screws, two M8×25 screws, one M6×30 screw, two M6×25 screws, six M8 washers and three M6 washers, two M6 self-locking nuts, two conical aluminum nuts, two nylon bushings, three spacers, two cable ties, and threadlocker.

Spotlights, brackets, cases, and small frames visible in the manufacturer’s images are not included.

Yes, and here more than anywhere else: the manual specifies three different torque values, 20 N·m for the M8 bolts, 12 N·m for the M6×30 bolts, and 10 N·m for the M6×25 bolts. You can't tell them apart by feel, and the M6 bolts are used in more delicate areas. Threadlocker is included and should be applied before final tightening.

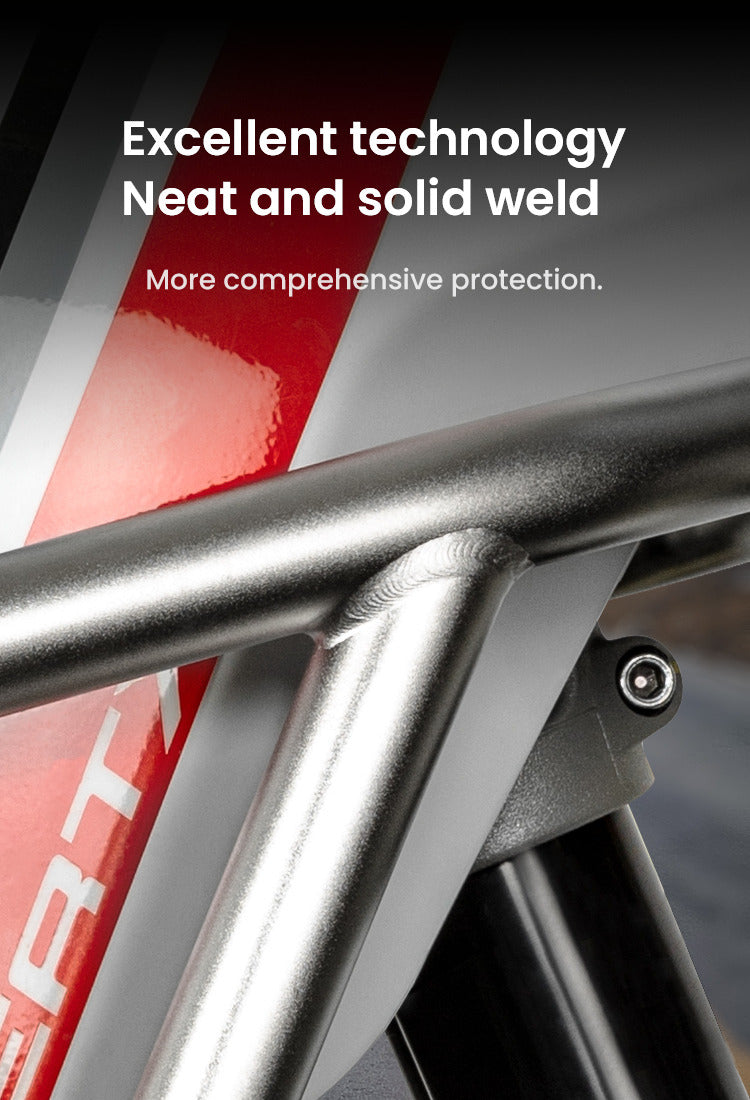

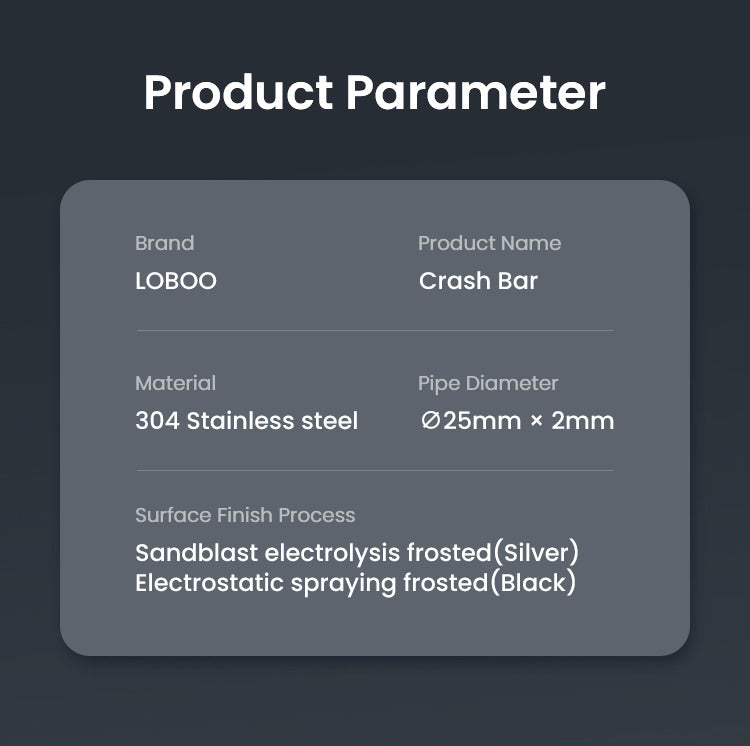

304 stainless steel, with a Ø 25 mm tube and a 2 mm wall thickness. It’s the same material beneath and above the finish, so when the surface treatment wears away, rust doesn’t start as it would on a painted tube.

They are placed at the contact points between the structure and the frame, preventing direct steel-to-steel contact. Together with the aluminum conical nuts, they are part of the original equipment and are listed in the manual's parts list.

Recommended. In a scrape, the bumper takes the damage, not the bar: it can be replaced for a few euros instead of ending up with a scratched bar. LOBOO bumpers for 25 mm tubing are available on a separate page.

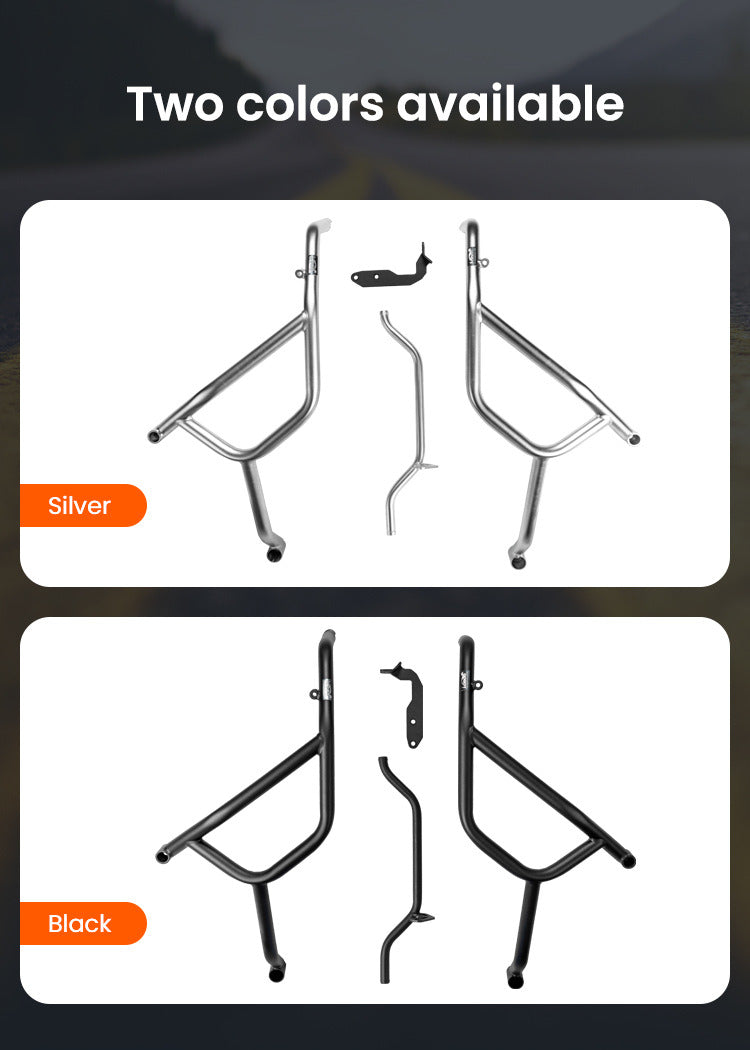

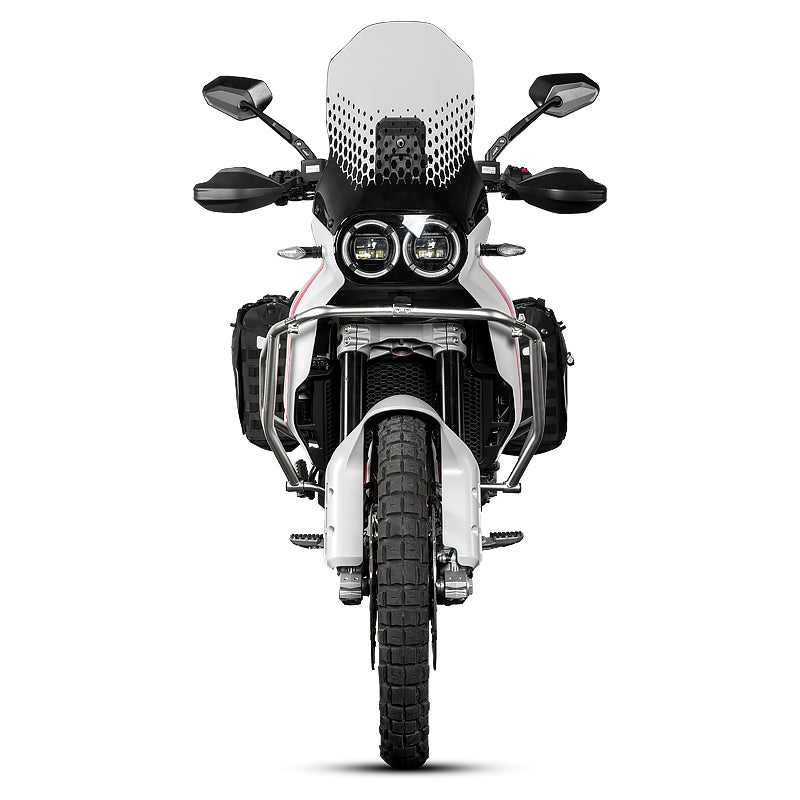

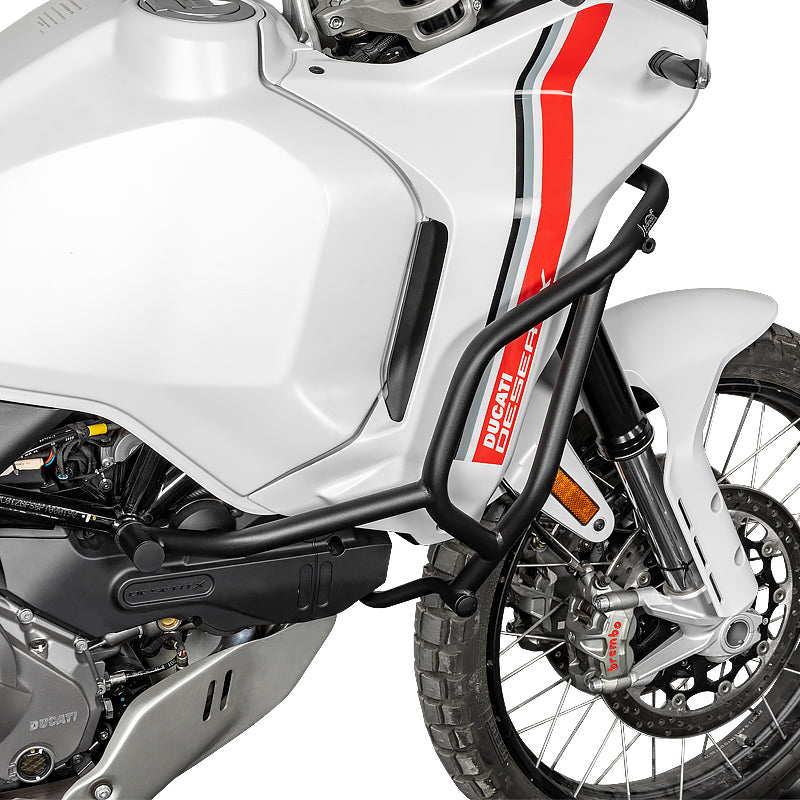

Only the surface treatment differs. The silver finish is sandblasted and electropolished, leaving the steel exposed; the black finish has a matte powder coating. Beneath the finish, the material is the same 304 stainless steel, and the dimensions, fittings, and package contents are identical.

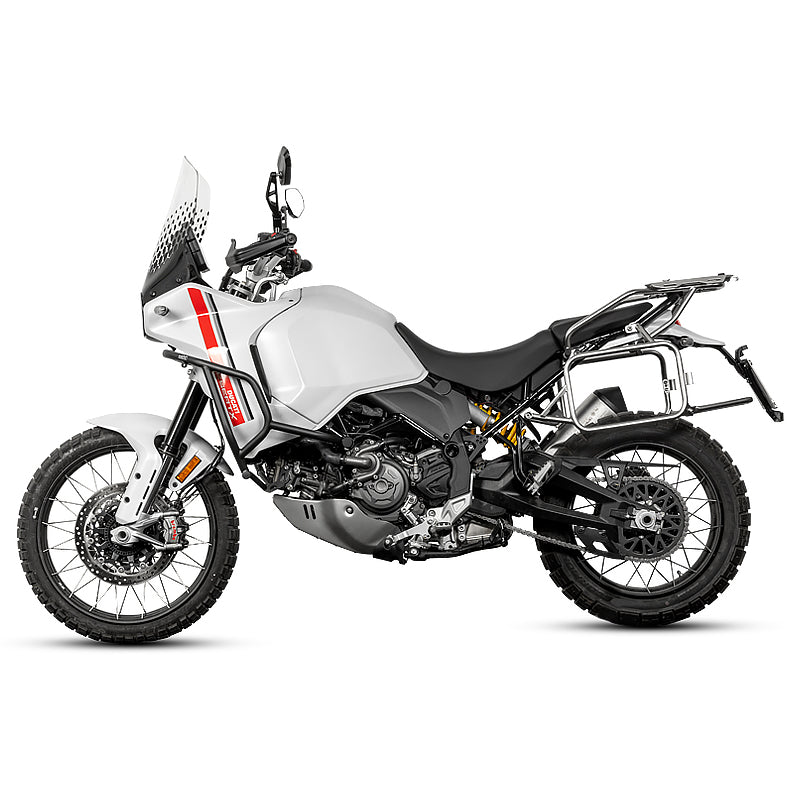

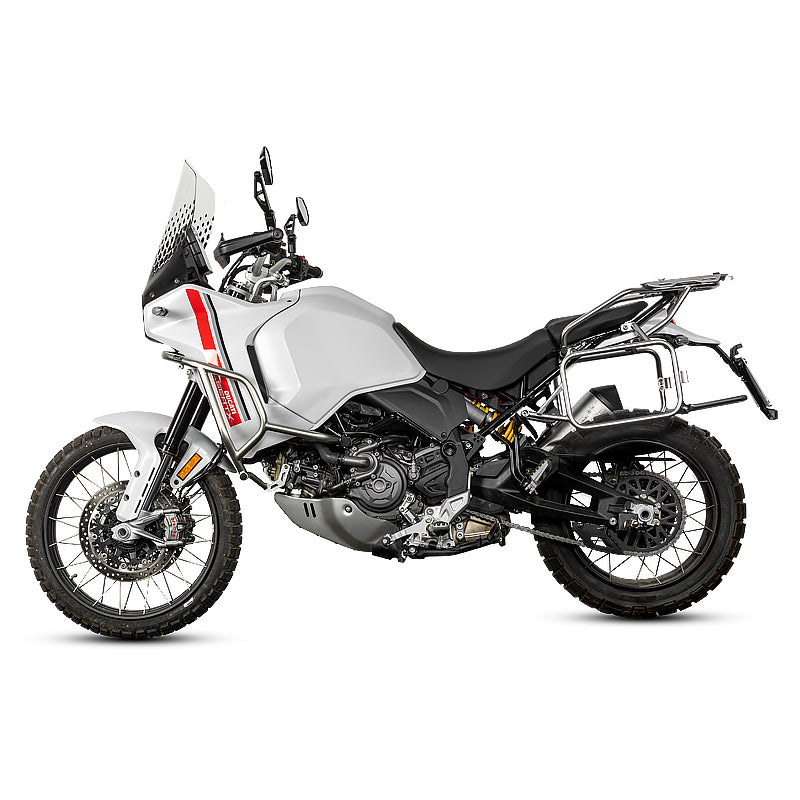

In the manufacturer’s images, the DesertX has crash bars and pannier racks fitted together because they protect different areas of the motorcycle. The racks are not included with this item: LOBOO produces them separately under code JP581B.

If you already have racks from other brands, contact us before ordering and we’ll check for any interference.

LOBOO does not state the weight of this code in either the manual or the price list, and we prefer not to publish an estimate. If you need this information, contact us: we will weigh it in the warehouse and tell you the actual value.

A crash bar reduces the damage from a fall; it does not eliminate it. LOBOO does not publish load tests for this code, so we do not state impact-resistance thresholds: that would be an invented number. After an impact, check that the structure is not deformed and is not resting against the fairings, radiator, or engine.

Yes: all LOBOO products sold by Endurrad are covered by the 24-month statutory conformity warranty for consumers provided under Italian law, and in the event of a defect, we handle the claim with the manufacturer.

You also have the right to return the product within 14 days of receiving the last item in your order: the product must be intact and in its original packaging.
