KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X Side Case Frames - PIKE TRACKER - Endurrad®KOVE 800 X side cases - Loboo - Endurrad®KOVE 800 X side cases - Loboo - Endurrad®
-10%Consegna in 2-3 giorni lavorativi
65 L Total volume
11,6 kg Weight of the pair of suitcases
JP661B Side frames
20 N·m Frame tightening torque

Panoramica

In breve

Telai JP661B e valigie PIKE TRACKER 35+30 L in alluminio per KOVE 800X dal 2023.

Sistema completo

telai JP661B e coppia di valigie in un unico ordine.

Valigie PIKE TRACKER in alluminio

serratura a chiave a cinque lamelle, fodera antigraffio, borsa e rete nei coperchi.

Destra sagomata sullo scarico

35 litri a sinistra, 30 a destra, con la P30R che scavalca il terminale.

Montaggio documentato

telai in quattro passaggi, senza forature, viti M8 a 20 N·m.

Luce a sensore in ogni valigia

si accende all'apertura, utile quando carichi o cerchi qualcosa di sera.

Telai aperti anche alle semirigide

gli stessi JP661B accettano le WANDERER.

Dal produttore LOBOO

Produttore: LOBOO.

Denominazione ufficiale: PIKE TRACKER Series Side Case Rack + Left Case + Right Case for KOVE 800X.

Codici: telai JP661B, valigie P35L e P30R; numero articolo LOBOO della coppia di valigie 01.5.01351.005.21 (argento) e 01.5.01351.005.11 (nero).

Leggi la descrizione completa

Complete kit for KOVE 800X from 2023 onward: the pair of JP661B side racks plus the two PIKE TRACKER aluminum panniers with capacities of 35 and 30 liters, in the finish of your choice. One order, nothing else to match.

Why the two sides have different capacities

The right P30R pannier is shaped to clear the exhaust: it is deeper at the top (227 mm internal) than at the bottom (167 mm), which is why it holds 30 liters. The left P35L, without that constraint, holds 35 liters.

Dimensions and weights stated by LOBOO

  • Left P35L: internal 451 × 227 × 381 mm, overall 498 × 268 × 408 mm, 6 kg
  • Right P30R: internal 451 × 227/167 × 381 mm, overall 498 × 244/208 × 408 mm, 5.6 kg

The pair weighs 11.6 kg when empty, excluding the racks. These dimensions are based on manual measurements and therefore have a tolerance.

Construction

  • High-strength aluminum alloy, with the lower corners covered in technical plastic
  • Key lock with a five-lever cylinder, designed to resist water and dust
  • Scratch-resistant inner lining, a bag in the lid of the left pannier, and a storage net in the right one
  • Lid opening stop to prevent it from hitting the pannier body
  • 3M reflective inserts
  • Finishes: glossy silver or matte black

LOBOO states that the panniers do not let water in, even in heavy rain, but does not publish an IP rating, so we do not state one.

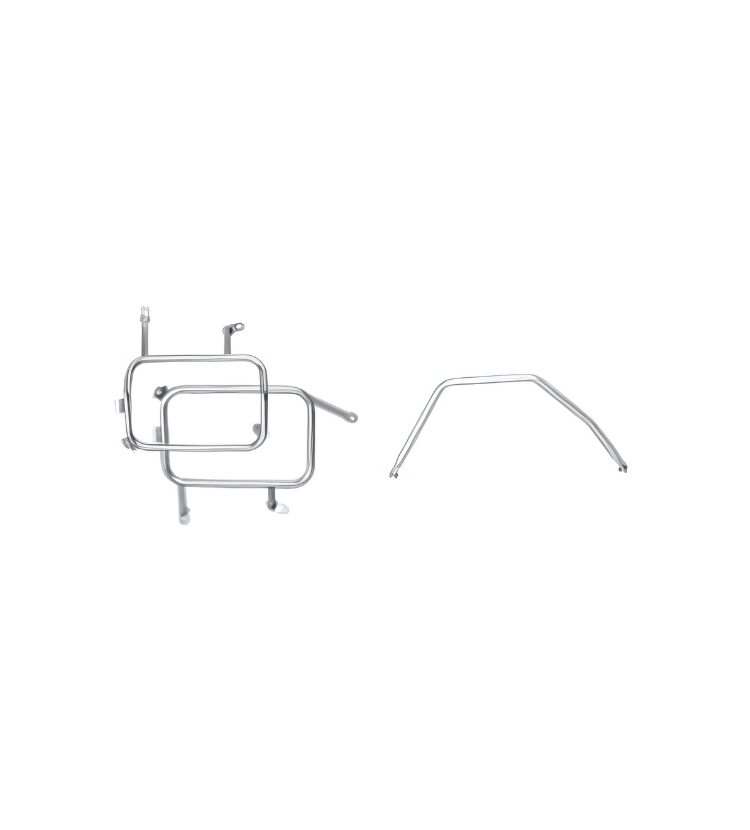

The racks and installation

The JP661B racks are installed in four steps, one for removal and three for installation, without drilling, using M8 bolts tightened to 20 N·m and threadlocker included in the package. The parts list and sequence are on the KOVE 800X side racks page, together with the downloadable manual. The panniers attach only to LOBOO racks.

What is not included

The top case and the JPT661W top case plate are sold separately. Each pannier has its own sensor light in the lid: the kit includes two, one for each side.

Before ordering

If you already have the racks, you can purchase just the panniers from the PIKE TRACKER series page. If you prefer semi-rigid panniers, the same racks accept the WANDERER panniers. LOBOO does not state a maximum load for each pannier: the maximum load specified by KOVE for the motorcycle applies.

Nella confezione

  • ✅ The complete, original, and new LOBOO kit, in manufacturer's packaging.
  • 📦 Included: the pair of JP661B side racks, the pair of PIKE TRACKER aluminum panniers P35L and P30R, locks with keys, and mounting hardware.
  • ⚠️ Not included: the top case. Top case and rear plate are purchased separately.
  • 🔒 Closed system: LOBOO panniers can only be mounted on LOBOO racks. By purchasing the kit, you already have the correct combination, without adapters.
  • 🏍️ Specific racks for the KOVE 800 X: they mount on the original fastening points, without adapters.
  • ↔️ Asymmetrical configuration, 35 liters on the left and 30 on the right: the narrower right pannier leaves space for the exhaust.
  • 🚚 Tracked shipping throughout Italy, with product inspection before departure.
  • 🛡️ 24-month legal warranty for the consumer, in accordance with current regulations.
  • 💳 Payment also in installments with the services available at checkout.
  • 🔧 Observe the indicated torque settings and recheck the fastenings after the first few kilometers, especially with loaded panniers.
BLACK or SILVERColors
SteelMaterial
AluminumMaterial

JP661B + P35L + P30R · aluminum · 35 + 30 L · frames included

How does it work in detail

Dimensions, weights, and installation of PIKE TRACKER panniers on the KOVE 800X.

Aluminum PIKE TRACKER suitcases
01

Aluminum PIKE TRACKER suitcases

LOBOO's aluminum series, with the right case shaped around the exhaust. The KOVE 800X kit includes the P35L on the left and the P30R on the right: 65 liters in total.

The right side bypasses the drain.
02

The right side bypasses the drain.

The P30R is deeper at the top (227 mm internal) than at the bottom (167 mm), allowing it to clear the muffler. The lower corner has a large radius covered in high-strength engineering plastic, which protects the edge of the case in the event of a slide.

Measurements and weights declared by LOBOO
03

Measurements and weights declared by LOBOO

P35L: internal 451 × 227 × 381 mm, external 498 × 268 × 408 mm, 6 kg. P30R: internal 451 × 227/167 × 381 mm, external 498 × 244/208 × 408 mm, 5.6 kg. The panel also shows the P36T and P45T top cases, which are not part of this kit.

High-strength aluminum alloy
04

High-strength aluminum alloy

The shell is made of high-strength aluminum alloy: LOBOO describes it as sturdy, lighter, and difficult to break. The lower corners are protected by plastic bumpers.

Five-lever lock
05

Five-lever lock

Every suitcase locks securely. The cylinder has five internal plates and is designed to resist water and dust.

Held up in the rain
06

Held up in the rain

LOBOO states that water does not get in even during thunderstorms, but it does not publish an IP rating for the cases. For electronics and documents, an internal dry bag is still advisable.

The lid doesn't slam shut
07

The lid doesn't slam shut

The lid opens to a wide angle but has a stop: when it reaches its limit, it locks in place without hitting the suitcase body.

Pocket in the left lid
08

Pocket in the left lid

In the lid of the P35L, there is an organizer bag with pockets and a zippered mesh pocket: documents, gloves, and small items stay within easy reach.

Net in the right cover
09

Net in the right cover

Inside the lid of the P30R there is an elastic storage net, the same one that LOBOO installs in the cases of the series.

Scratch-resistant lining
10

Scratch-resistant lining

The interior is lined with a lining that prevents the items being carried from getting scratched against the aluminum.

Sensor light in the lid
11

Sensor light in the lid

It turns on automatically when you open the suitcase. It attaches with magnets, features high-brightness LEDs, four intensity levels, a flashing mode, and an IP54 rating. With the included strap, it becomes a headlamp. The kit includes one for each suitcase.

3M reflective strips
12

3M reflective strips

The 3M reflective strips on the outer side make the motorcycle more visible when you ride in the evening or at night.

Glossy silver or matte black
13

Glossy silver or matte black

The two finishes differ only in appearance: dimensions, weights, and included equipment are the same. Choose the color from the kit variant.

Series data sheet
14

Series data sheet

Aluminum alloy suitcases, black or silver, PIKE TRACKER series. For the frames, the panel generically indicates stainless steel or aluminum alloy; the JP661B frame manual does not specify the material.

Compatible with the KOVE 800X from 2023 onward
15

Compatible with the KOVE 800X from 2023 onward

The LOBOO table indicates the side case set for the KOVE 800X: frames plus left and right cases. LOBOO aluminum cases can only be mounted on LOBOO frames, which can be installed without damaging the motorcycle.

Side cases, top case, or three cases
16

Side cases, top case, or three cases

LOBOO offers three sets: side cases, top case, and three cases. This is the side case set, with JP661B frames and a pair of cases. The top case can be added with the JPT661W plate, sold separately.

The backrest is for the top case
17

The backrest is for the top case

The two backrest pads for the passenger are mounted on the PIKE TRACKER top case, which is not included in this kit. If you add it, you need the JPT661W plate.

Mounted on the KOVE 800X
18

Mounted on the KOVE 800X

The KOVE 800X with the black panniers, with the silver ones, and with the three-pannier set. The top case shown in the photos is not included in this kit.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Capacity

Settings
35+30 L Asymmetrical: the right side leaves room for the exhaust pipe
Total volume
65 L 35 L on the left, 30 L on the right

Kit contents

Side frames
JP661B Included, with screws and threadlocker; the manual does not specify the material
Suitcases
P35L + P30R Aluminum PIKE TRACKER, top case not included

Compatibility

Motorcycle
KOVE 800X Since 2023, according to the LOBOO frames and panels manual
For the top case
JPT661W Top case mounting plate, on a separate page

Dimensions

Left suitcase interior
451 x 227 x 381 mm Length × depth × height
Left suitcase external dimensions
498 x 268 x 408 mm Mounted accessories included
Right suitcase interior
451 x 227/167 x 381 mm The two measurements are the upper part and the lower part.
Right suitcase external dimensions
498 x 244/208 x 408 mm Mounted accessories included

Closure

Lock
By key Five-pin tumbler cylinder, designed to resist water and dust

Water resistance

IP rating for suitcases
Undeclared LOBOO states that no water gets in even under heavy rain, without publishing an IP rating

Weight

Left P35L luggage weight
6 kg Empty
Right suitcase weight P30R
5,6 kg Empty

Construction

Luggage materials
Aluminum alloy Lower corners coated in high-strength engineering plastic
Finishes
Glossy silver or matte black Same dimensions and equipment

Assembly

Frame tightening torque
20 N·m All M8 screws, with threadlocker
Frame assembly
Puncture-free Four steps: one for disassembly and three for installation

Load

Maximum weight per suitcase
Not stated by the manufacturer The motorcycle’s maximum load specified by KOVE applies

Equipment

Interior equipment
Scratch-resistant cover Pocket in the left lid, mesh in the right lid
Sensor light
One per suitcase Automatic activation when opened, IP54
Reflective inserts
3M On the outer side of the suitcases

Dati dai pannelli LOBOO PIKE TRACKER KOVE 800X e dal manuale dei telai JP661B. Codici: JP661B + P35L + P30R.

Manuale d'uso JP661B + P35L + P30RDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Telai JP661B, distinta di 11 voci per 23 pezzi: telaio sinistro, telaio destro, traversa inferiore, 2 distanziali Ø20×Ø8,5×7 mm, 1 da Ø20×Ø8,5×3 mm, 4 viti M8×20, 1 M8×25, 2 M8×30, 1 M8×50, 8 rondelle M8 e il frenafiletti.
  2. Coppia di serraggio: 20 N·m, uguale su tutte le viti M8.
  3. Tre viti sono in pezzo singolo, la M8×25, la M8×50 e uno dei distanziali: non distribuirle a caso, guarda lo schema.
  4. Il montaggio riutilizza anche viti originali della moto, indicate come OEM sullo schema: rimontale alle coppie KOVE.
  5. Le valigie si agganciano ai telai a sgancio rapido, senza attrezzi, e si montano solo su telai LOBOO.
Istruzioni complete e note di sicurezza

Il kit comprende i telai laterali e la coppia di valigie. I telai si montano in quattro passaggi: uno di smontaggio e tre di installazione, senza forature.

  • Telai JP661B, distinta di 11 voci per 23 pezzi: telaio sinistro, telaio destro, traversa inferiore, 2 distanziali Ø20×Ø8,5×7 mm, 1 da Ø20×Ø8,5×3 mm, 4 viti M8×20, 1 M8×25, 2 M8×30, 1 M8×50, 8 rondelle M8 e il frenafiletti.
  • Coppia di serraggio: 20 N·m, uguale su tutte le viti M8.
  • Tre viti sono in pezzo singolo, la M8×25, la M8×50 e uno dei distanziali: non distribuirle a caso, guarda lo schema.
  • Il montaggio riutilizza anche viti originali della moto, indicate come OEM sullo schema: rimontale alle coppie KOVE.
  • Le valigie si agganciano ai telai a sgancio rapido, senza attrezzi, e si montano solo su telai LOBOO.

Il produttore chiede di non serrare a fondo durante il montaggio: si presentano i pezzi, si completano le regolazioni e solo alla fine si dà la coppia in sequenza, con una chiave dinamometrica.

Fonti. Manuale di montaggio LOBOO JP661B per KOVE 800X (2023-) e pannelli LOBOO PIKE TRACKER per KOVE 800X, che riportano dimensioni, pesi e materiali delle valigie.

Compatibilità. Manuale e pannelli dichiarano la sola KOVE 800X dal 2023.

Impermeabilità. Nessun grado IP dichiarato per le valigie; la luce a sensore è IP54.

Carico. LOBOO non dichiara un carico massimo per valigia né per telaio: vale il carico massimo della moto indicato da KOVE.

Uso su strada. Il carico non deve coprire targa e luci posteriori né sporgere oltre i limiti del Codice della Strada.

  • Chi ha una KOVE 800X e parte da zero: telai e valigie compatibili in un solo ordine.
  • Chi viaggia con bagaglio da proteggere: valigie rigide in alluminio, chiuse a chiave.
  • Chi ha già i telai JP661B: meglio le sole valigie dalla pagina della serie PIKE TRACKER.
  • Chi preferisce le semirigide: gli stessi telai accettano le WANDERER.
  • Chi vuole anche il bauletto: aggiunge la piastra JPT661W, venduta a parte.
