Is it mounted vertically or horizontally?

In both configurations: on the 25 mm tube, the mounting angle can be changed by 90°, so the container stays upright on both vertical and horizontal sections of the paramotor frame.

What tools are needed to assemble it?

The package includes 3 mm and 4 mm hex keys, a 5.5 mm bit, and threadlocker. You only need the 4 mm key for the engine guard. For mounting on a case, you'll also need a drill to fit the bit.

What is the tightening torque for the screws?

5 N·m for all M5×10 screws, both the collar screws and the top case screws. The manual says not to tighten them right away: assemble everything, apply threadlocker to every screw, and only then tighten them to the specified torque. The screws should be checked periodically.

1 bottle cage2 clamps for 25 mm tube4 M5×10 screws for the clamps4 M5×10 screws for the top case and panniers4 M5 washers4 O-rings Ø 10 × 1.5 mm1 adhesive drilling template1 Ø 5.5 mm twist drill bit1 3 mm Allen key and 1 4 mm Allen key1 threadlocker

How do you insert and lock the water bottle?

Unhook the handle from the lower buckle and open the support. Insert the container, hold it from underneath with one hand, and with the other pull the handle upward until the elastic cord is taut, then hook the handle into the most suitable of the three available positions.

Does the water bottle get scratched or move around while you ride?

Inside, there are non-slip silicone inserts: according to LOBOO, they keep the container stable, preventing it from shifting or getting damaged. The tensioned elastic cord completes the grip.

How much does it weigh, and how much space does it take up when empty?

It weighs 191 g. When empty, it folds up: tighten the cable, fasten the handle into the buckle at the bottom, and its size shrinks to 179 × 57.9 × 38.4 mm, according to the manufacturer.

What material is it made of?

The body is made of high-strength engineering plastic, with non-slip silicone inserts inside. The manufacturer does not specify any other material properties, such as UV resistance.

What warranty does it have?

LOBOO offers a 12-month warranty from the date of purchase for defects arising during normal use; damage caused by improper use, disassembly, modifications, or use beyond the specified limits is excluded. The 24-month statutory warranty of conformity remains in effect in all cases.

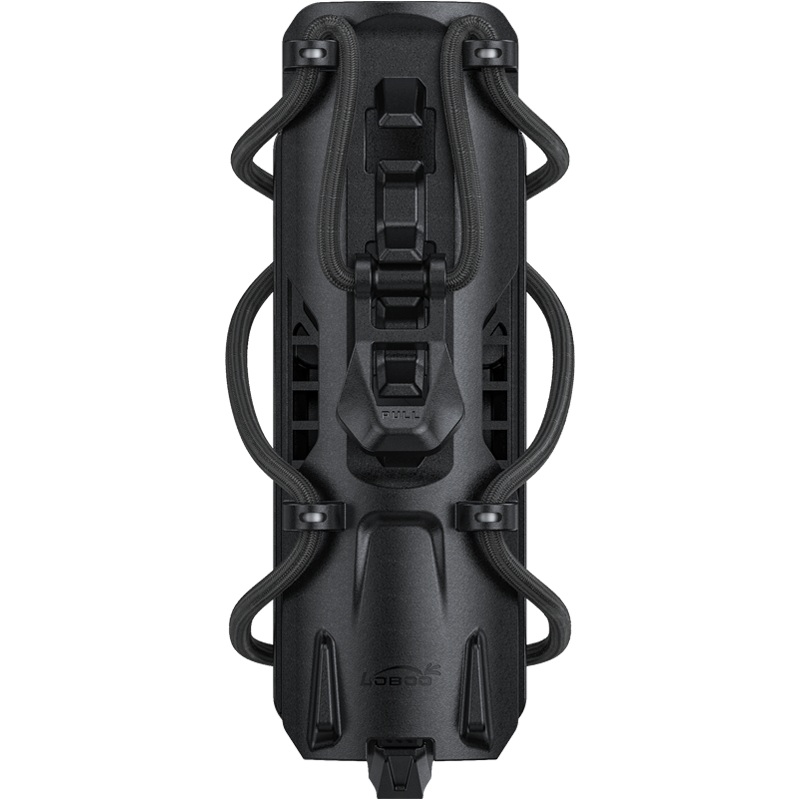

Portaborraccia moto LOBOO CSHJ-1 nero visto di fronte, con cavo elastico e maniglia di aggancio, su sfondo bianco

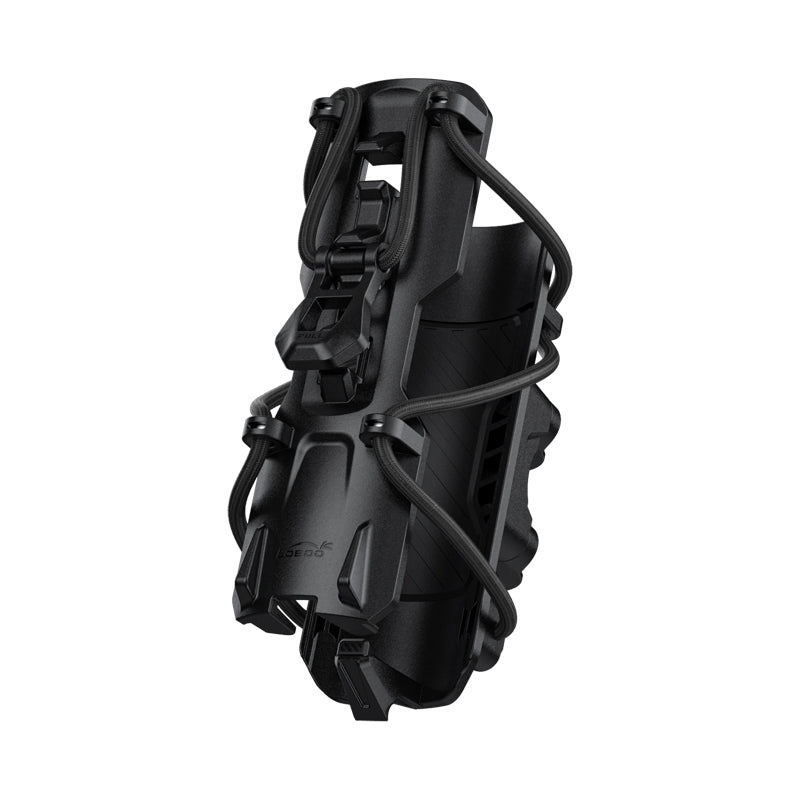

Portaborraccia moto LOBOO CSHJ-1 in vista di tre quarti, con il cavo elastico teso attorno al supporto

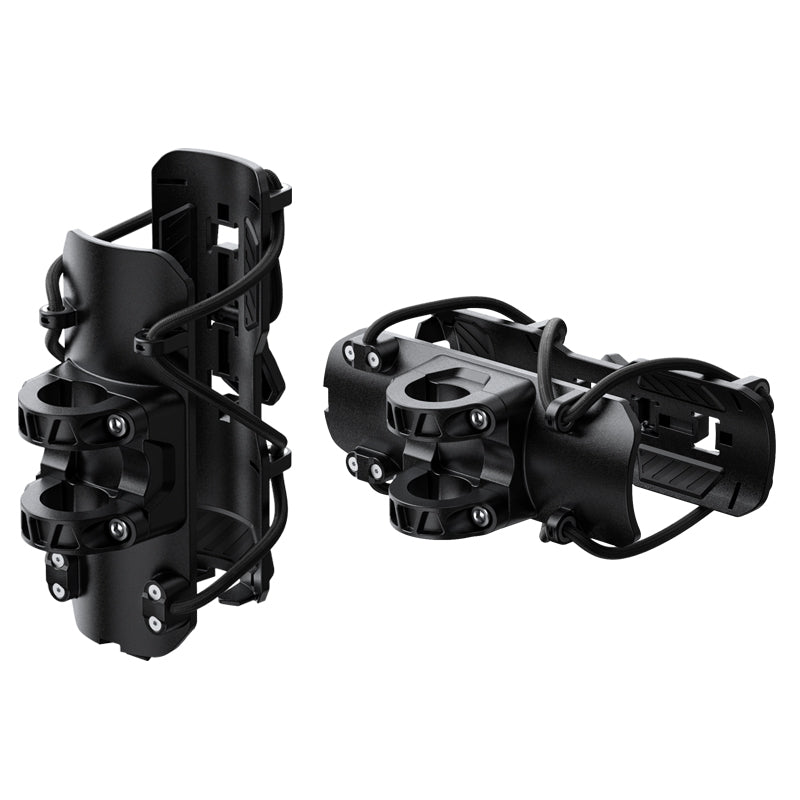

Portaborraccia LOBOO CSHJ-1 con i due collari per tubo da 25 mm, in posizione verticale e orizzontale

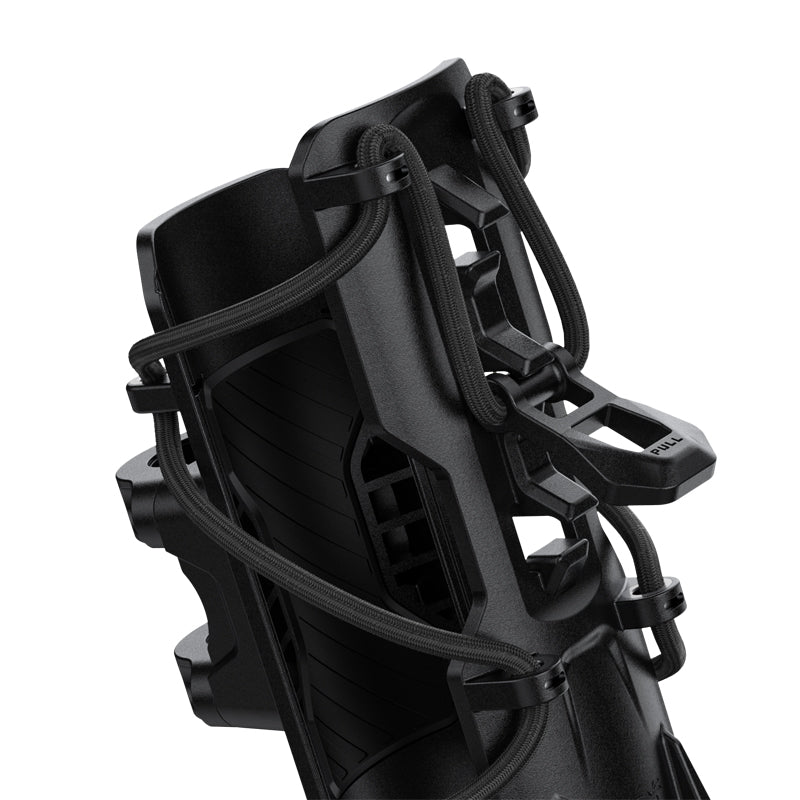

Dettaglio del cavo elastico e della maniglia del portaborraccia LOBOO CSHJ-1

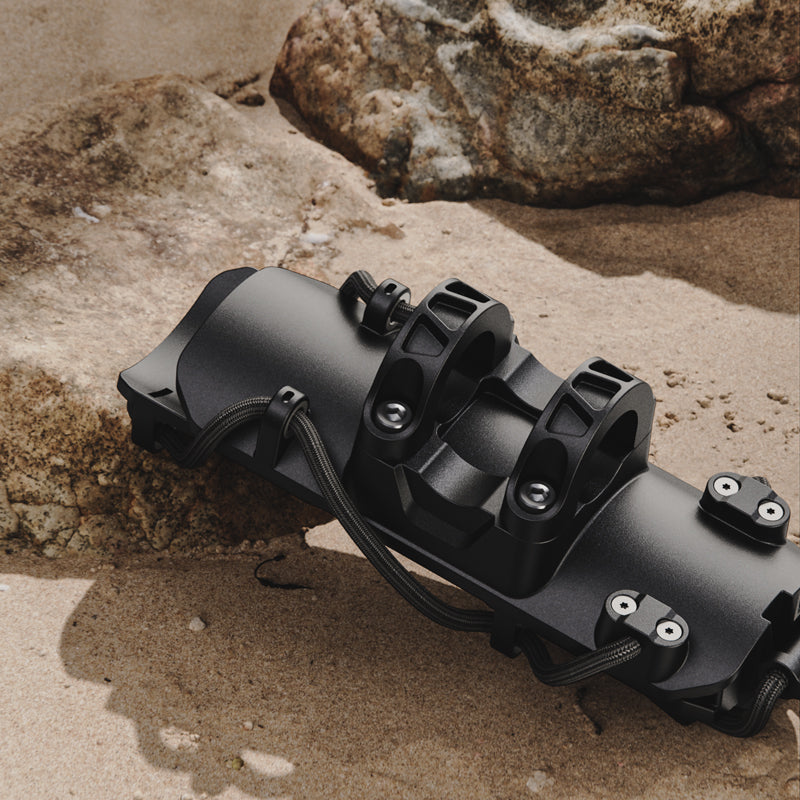

Portaborraccia LOBOO CSHJ-1 appoggiato su sabbia e roccia, con i collari di fissaggio in primo piano

Portaborraccia LOBOO CSHJ-1 montato sulla crash bar laterale di una BMW GS

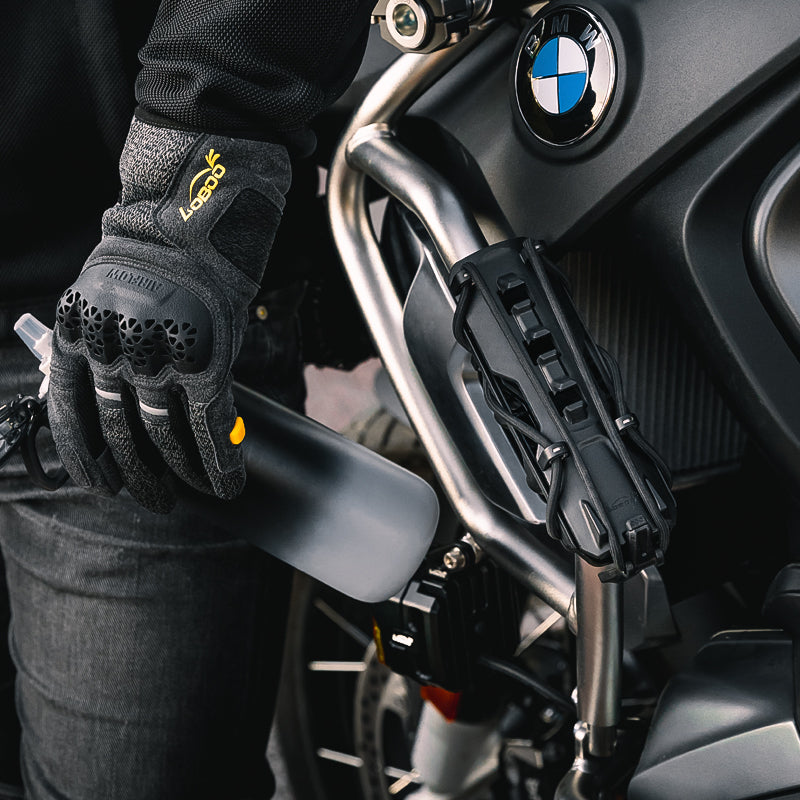

Motociclista con guanti inserisce una borraccia nel portaborraccia LOBOO CSHJ-1 sulla crash bar di una BMW

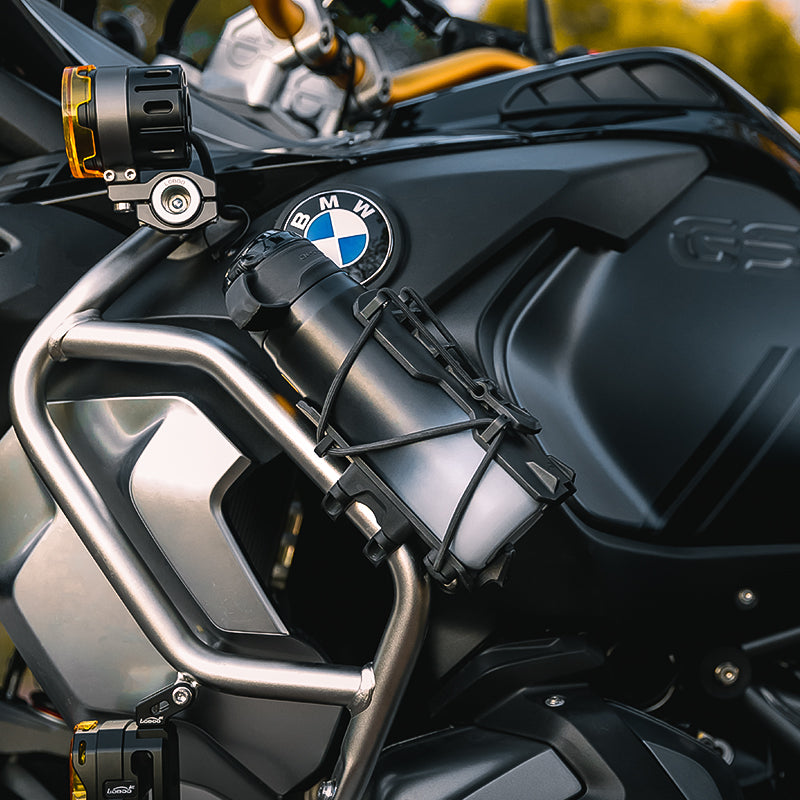

Portaborraccia LOBOO CSHJ-1 con borraccia agganciato alla crash bar di una BMW GS, accanto al serbatoio

-10%Consegna in 2-3 giorni lavorativi

58–78 mm Container diameter

25 mm Mounting tube

191 g Weight

3 Mounting positions

LOBOO ✓ Prodotto originale

Motorcycle bottle holder for Ø 25 mm engine guard and top case, adjustable from 58 to 78 mm

5,0 · 1 recensioni

€45,00 ~~€50,00~~Risparmi €5

Paga in 3 rate da €15,00 senza interessi

Va bene per la tua moto?

Scrivici marca, modello e anno della moto: verifichiamo noi la compatibilità.

Esaurito🚚 Consegna in 2-3 giorni lavorativi

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

Portaborraccia moto per contenitori da 58 a 78 mm: si fissa al paramotore con tubo da 25 mm, in verticale o in orizzontale, oppure al bauletto con viti passanti. Cavo elastico con tre posizioni di aggancio, silicone antiscivolo, 191 g.

Contenitori da 58 a 78 mm

borracce, bottiglie, lattine, thermos ed estintore portatile nello stesso supporto, così in viaggio porti a bordo quello che ti serve.

Paramotore senza forare

due collari sul tubo da 25 mm e la moto resta intatta; lo togli o lo sposti quando vuoi.

Anche su bauletto e valigie

con dima e punta incluse si fissa alla parete con viti dall'interno, se preferisci tenerlo dietro.

Verticale o orizzontale

l'angolo di montaggio cambia di 90° e il contenitore resta in piedi sul tratto di tubo che scegli.

Silicone antiscivolo

per LOBOO il contenitore resta fermo e non si segna.

191 g e si richiude da vuoto

con il cavo teso e la maniglia nella fibbia in basso ingombra 179 × 57,9 × 38,4 mm.

Dal produttore LOBOO

Prodotto originale LOBOO. Denominazione sul manuale: Bottle Holder, Model CSHJ-1; sulla pagina del produttore: Quick-Adjust Motorcycle Drink Holder (CSHJ-1). Codice modello CSHJ-1, numero d'articolo LOBOO 11.3.24001.001.01.

Garanzia convenzionale del produttore: 12 mesi dalla data d'acquisto, come da certificato di garanzia nel manuale, esclusi danni da uso scorretto, smontaggio, modifiche o impiego oltre i limiti indicati. Resta la garanzia legale di conformità di 24 mesi.

Leggi la descrizione completa

The LOBOO CSHJ-1 motorcycle bottle holder keeps your water bottle, bottle, can, or thermos within reach while you travel: attach it to a 25 mm tubular crash bar with two clamps, or to the wall of a top case or side case with through-bolts. The elastic cord with three attachment positions secures containers measuring 58 to 78 mm in diameter, while the non-slip silicone inserts hold them in place without marking them. It weighs 191 g.

What you can put in it

Sports water bottles and water bottles
Cans
Thermoses and insulated cups
A portable fire extinguisher

It’s the diameter that matters, not the capacity: the container must measure between 58 and 78 mm. LOBOO does not specify a maximum carrying weight.

How it works

Elastic cord with handle: unhook the handle from the buckle at the bottom, open the holder, insert the container, then hold it from underneath and pull the handle up until the cord is taut.
Three preset positions for attaching the handle, depending on the container’s diameter.
Non-slip silicone inside: LOBOO says it keeps the container stable, preventing movement and damage.
Folds away when empty: close the holder, tighten the cord, and hook the handle into the buckle at the bottom. When closed, it measures 179 × 57,9 × 38,4 mm.

Where to mount it

Crash bar or frame with a Ø 25 mm tube: two clamps and four M5×10 screws tightened to 5 N·m, with no drilling required. It can be mounted vertically or horizontally: the mounting angle changes by 90°.
Top case or side cases: adhesive drilling template, supplied Ø 5,5 mm drill bit, O-rings on the back, and screws tightened from the inside. Requires drilling the case, and LOBOO warns that installation may damage it.

The clamp is designed only for 25 mm tubes: measure your crash bar’s diameter before buying.

In the box

Bottle holder, 2 clamps, 8 M5×10 screws (4 for the clamps, 4 for the top case), 4 M5 washers, 4 Ø 10 × 1,5 mm O-rings, adhesive drilling template, Ø 5,5 mm twist drill bit, 3 and 4 mm hex keys, threadlocker, and installation manual.

You can also attach the Wanderer inflatable bags to the same 25 mm crash bars. To complete your gear for long trips, explore the LOBOO Ergonomics and Comfort range.

Nella confezione

PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI nella dotazione originale, con supporti, telai o adattatori venduti separatamente indicati nella descrizione.
MANUALE DI MONTAGGIO incluso nella confezione.
COMPATIBILITÀ VERIFICABILE PRIMA DELL'ACQUISTO, comunicando marca, modello, anno e versione della moto.

CSHJ-1 · bottles from 58 to 78 mm · engine guard Ø 25 mm · 191 g

How does it work, in detail?

Attachment, mounting on the motorcycle and top case, compatible containers: every aspect explained point by point.

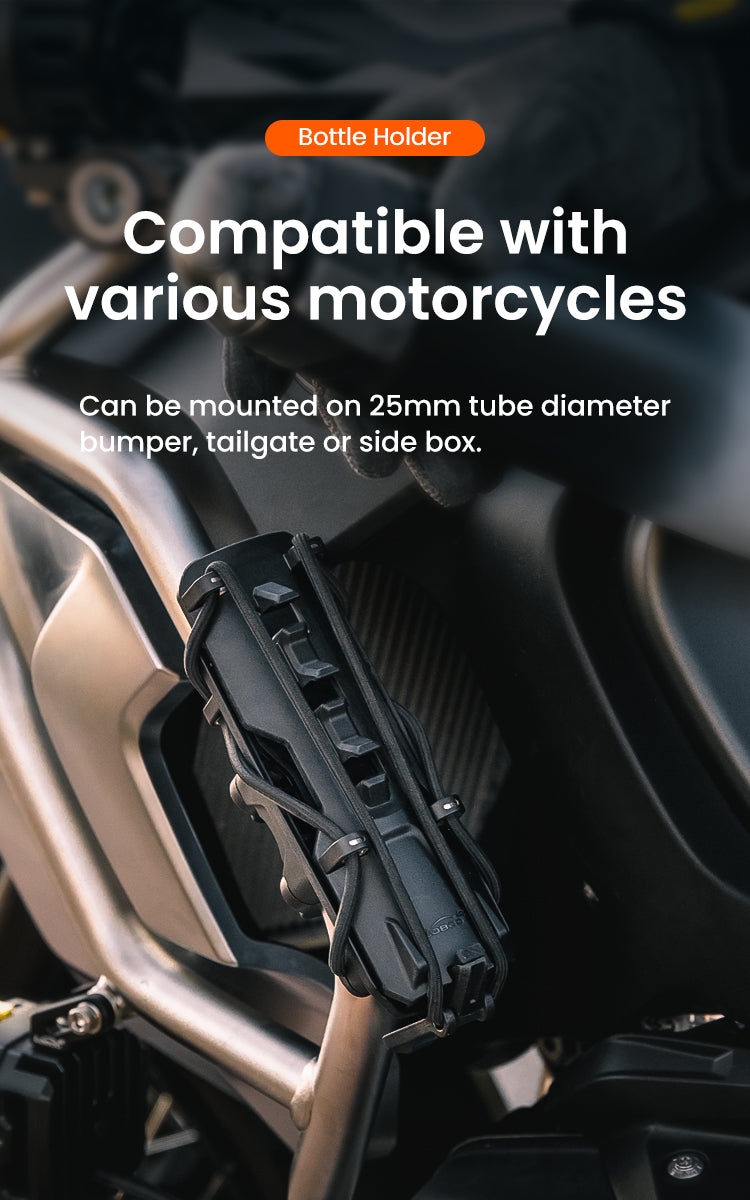

One bottle cage, three mounting points

25 mm tubular engine guard, top case, or side case: the CSHJ-1 depends not on the motorcycle model, but on where you mount it.

For the engine guard, only the tube diameter matters: 25 mm. On top cases and side cases, it mounts with through-bolts, drilled through the wall.

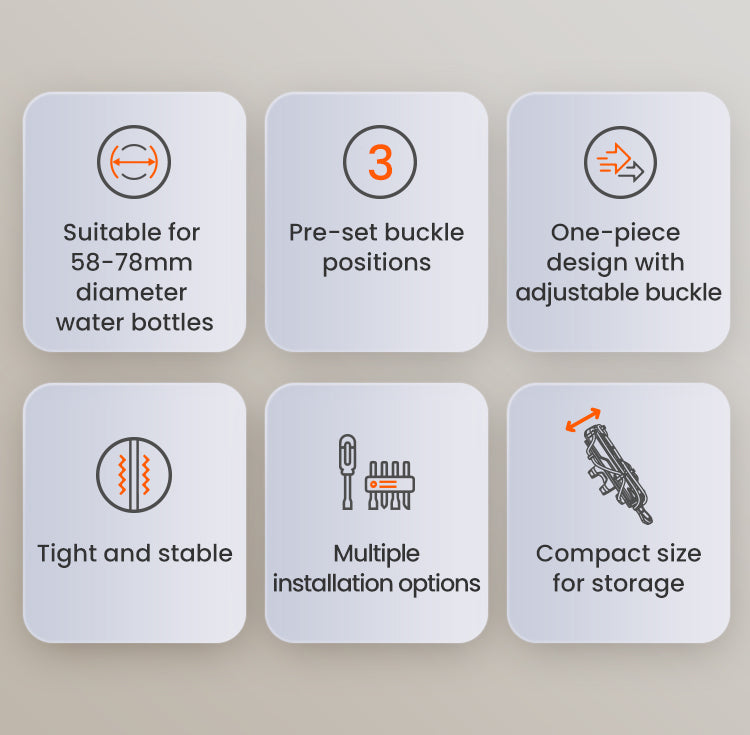

The six characteristics, in brief

Containers from 58 to 78 mm in diameter
Three preset attachment positions
One-piece body with adjustable buckle
Firm, stable grip
More mounting options
Compact when empty

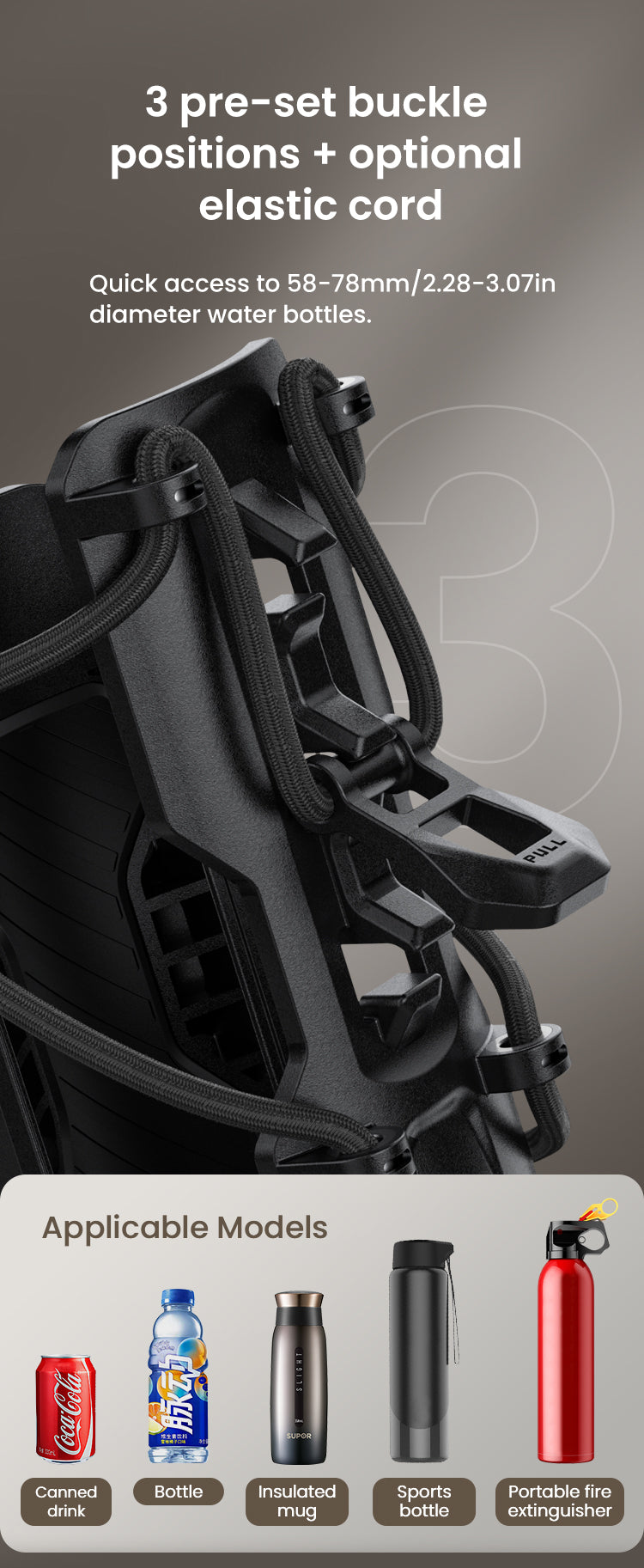

From the can to the fire extinguisher

Three preset positions plus the adjustable elastic cord accommodate diameters from 58 to 78 mm.

LOBOO shows it with a can, water bottle, insulated cup, sports bottle, and portable fire extinguisher: on the go, carry what you really need on board.

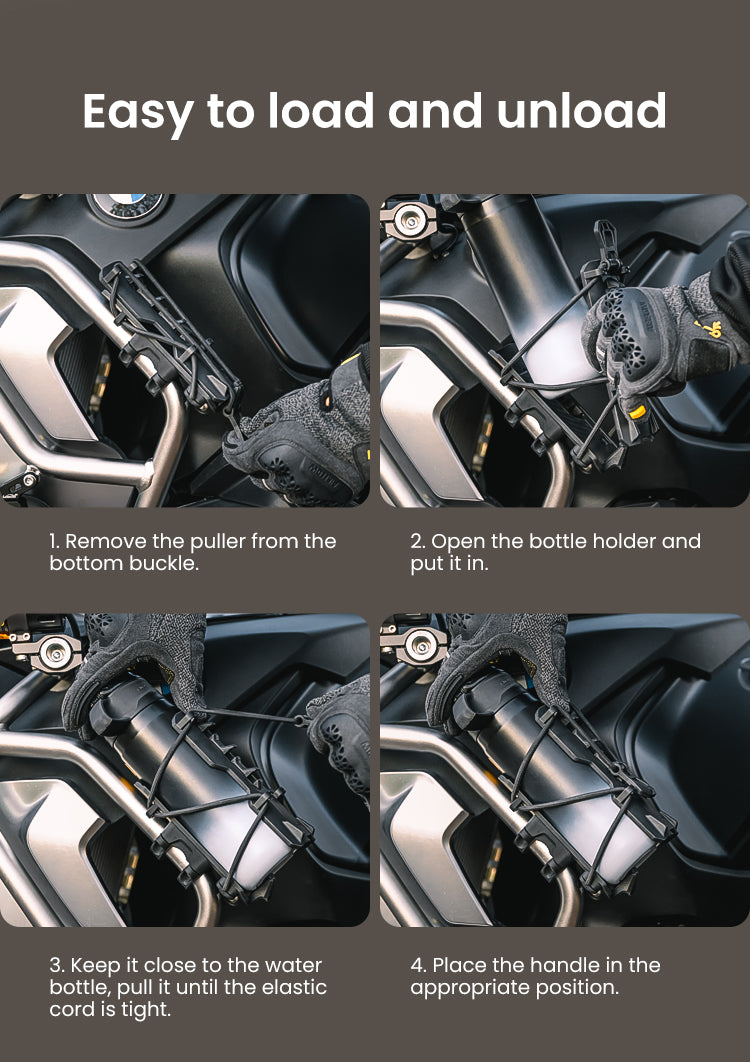

It loads in four gestures

Unhook the handle from the buckle at the bottom, open the holder, and insert the container.

Hold it against the surface and pull the handle until the elastic cord is taut, then hook it into the right position. To release it, reverse the process.

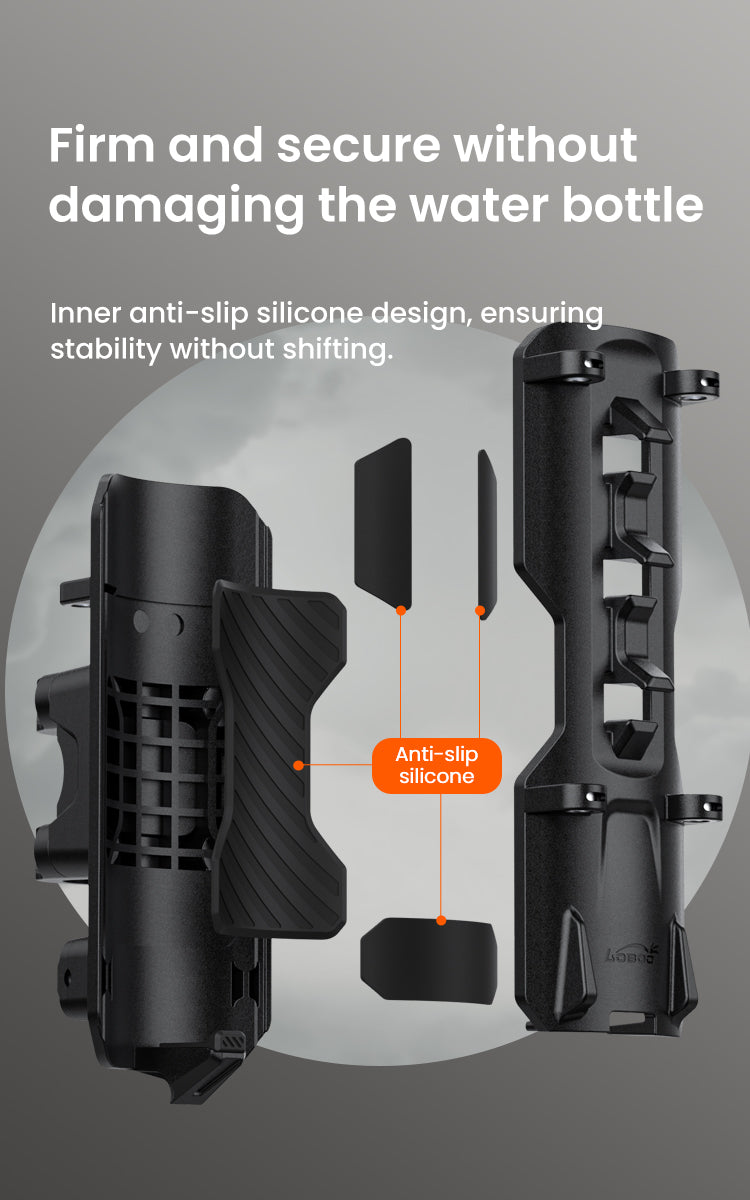

Non-slip silicone, no scratches

The holder has non-slip silicone inserts inside.

According to LOBOO, they keep the container securely in place without shifting and without damaging the water bottle.

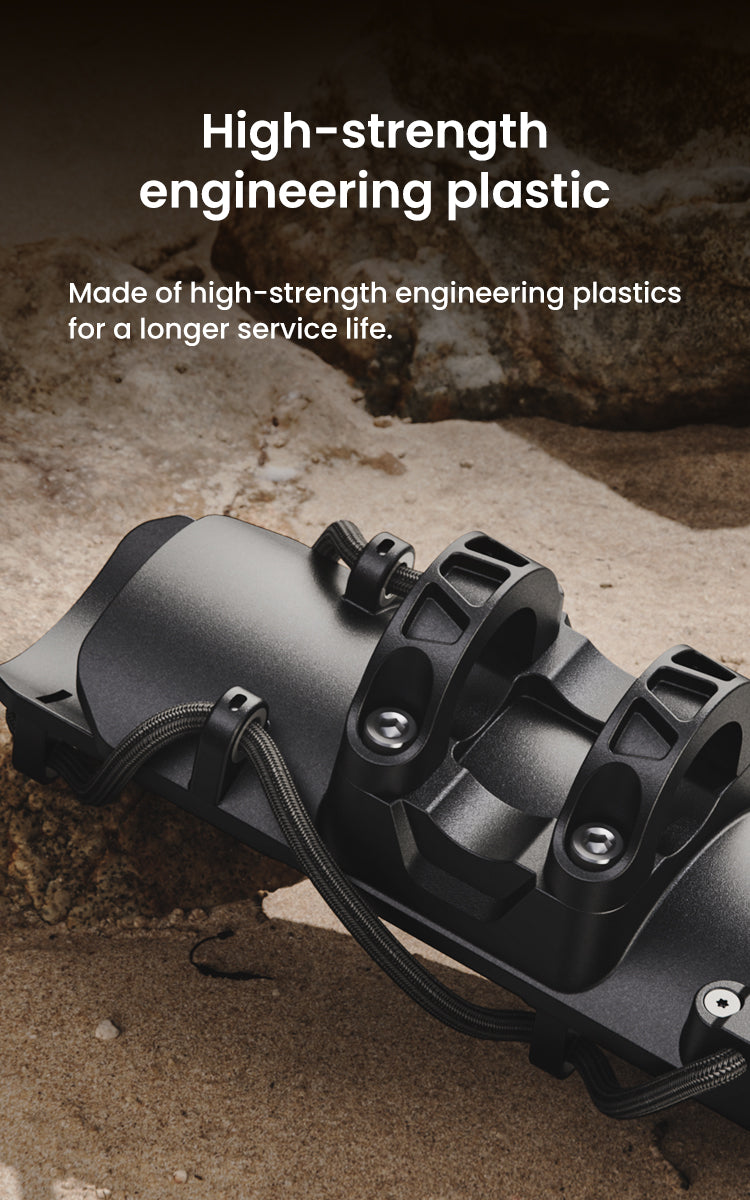

High-strength engineering plastic

The body is made of high-strength technical plastic, chosen by the manufacturer for greater durability.

The weight remains low: 191 g in total.

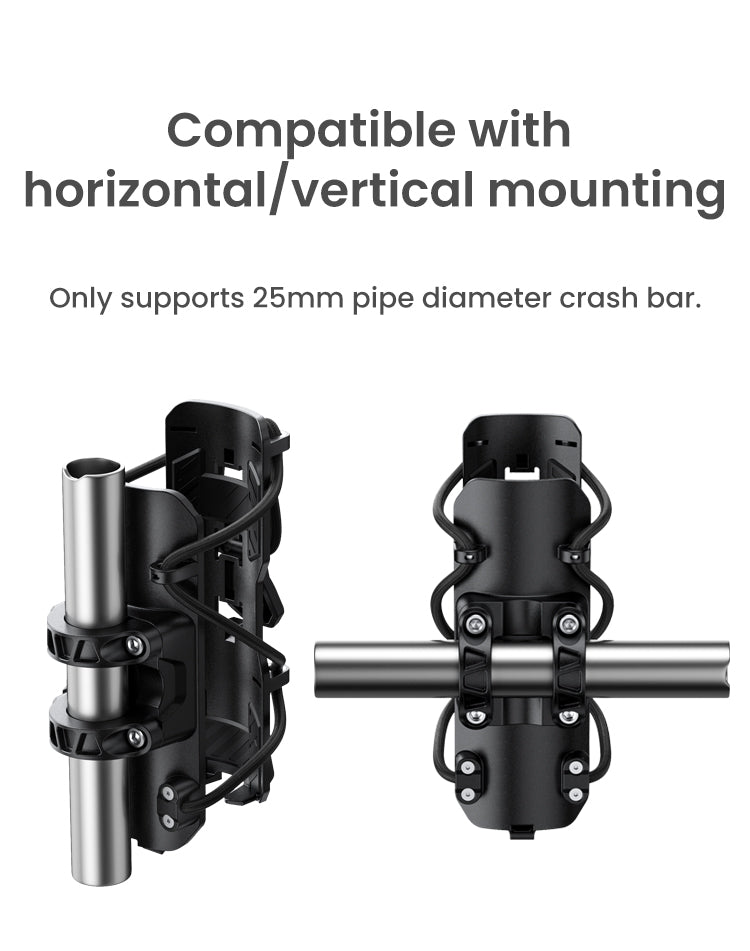

Vertically or horizontally, on the 25 mm tube

The two clamps let you rotate the bottle holder by 90°: it mounts on a vertical or horizontal section of the crash bar, and the container stays upright.

Warning: the clamp only fits crash bars with 25 mm tubing.

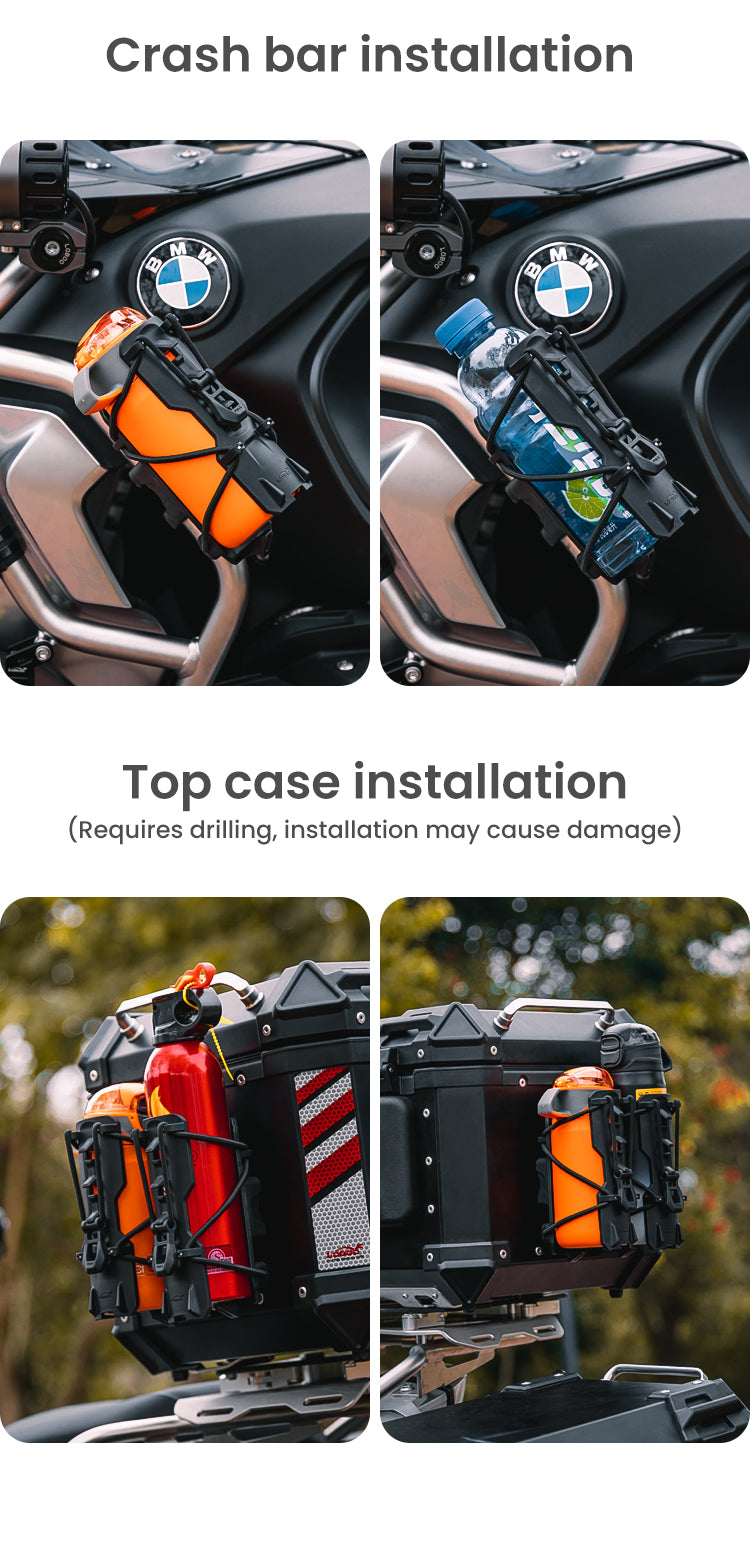

No-drill crash bars, top case with template

On the engine guard, it attaches with two clamps and four M5×10 screws, without touching the motorcycle.

On the top case or side cases, you need to drill through the wall using the included adhesive template and Ø 5.5 mm drill bit: LOBOO warns that installation may damage the case.

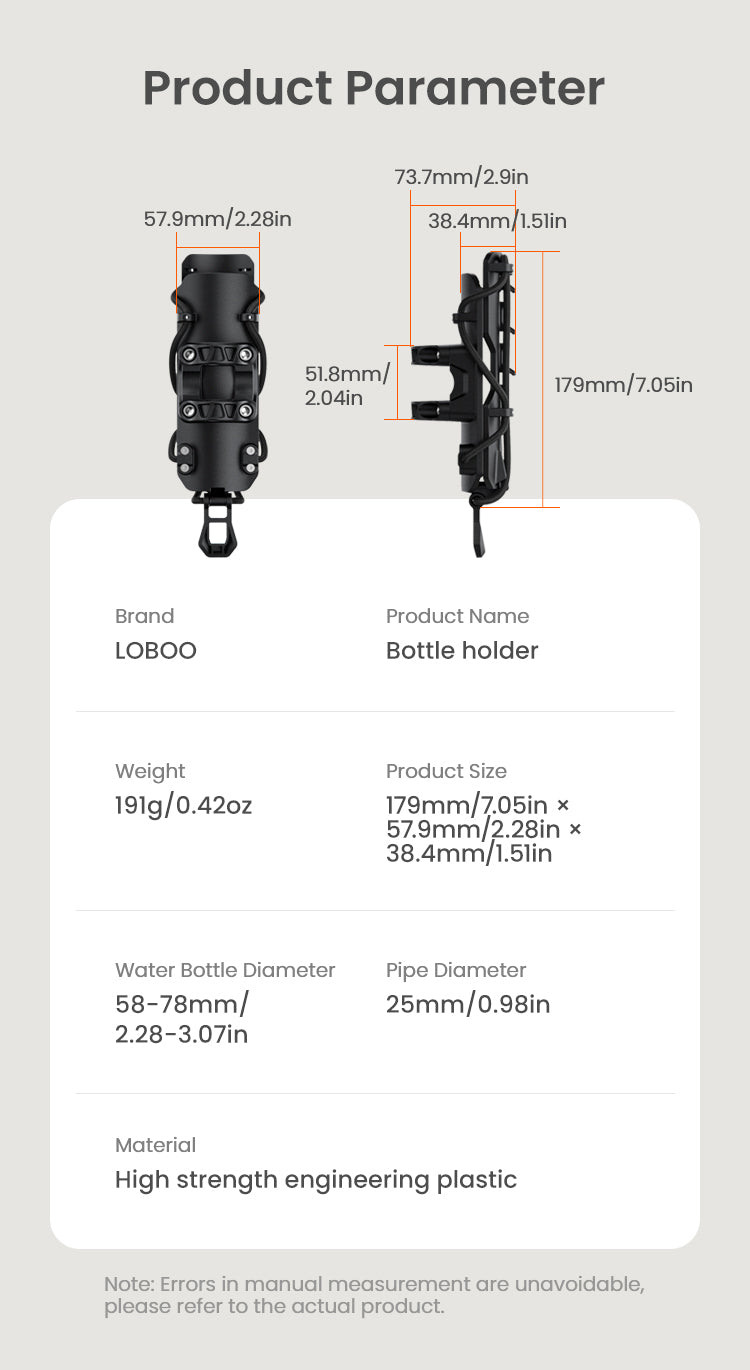

The numbers of the CSHJ-1

Dimensions: 179 × 57.9 × 38.4 mm
Weight: 191 g
Containers: diameter 58–78 mm
Mounting tube: 25 mm
Material: high-strength technical plastic

Measurements taken by hand by the manufacturer.

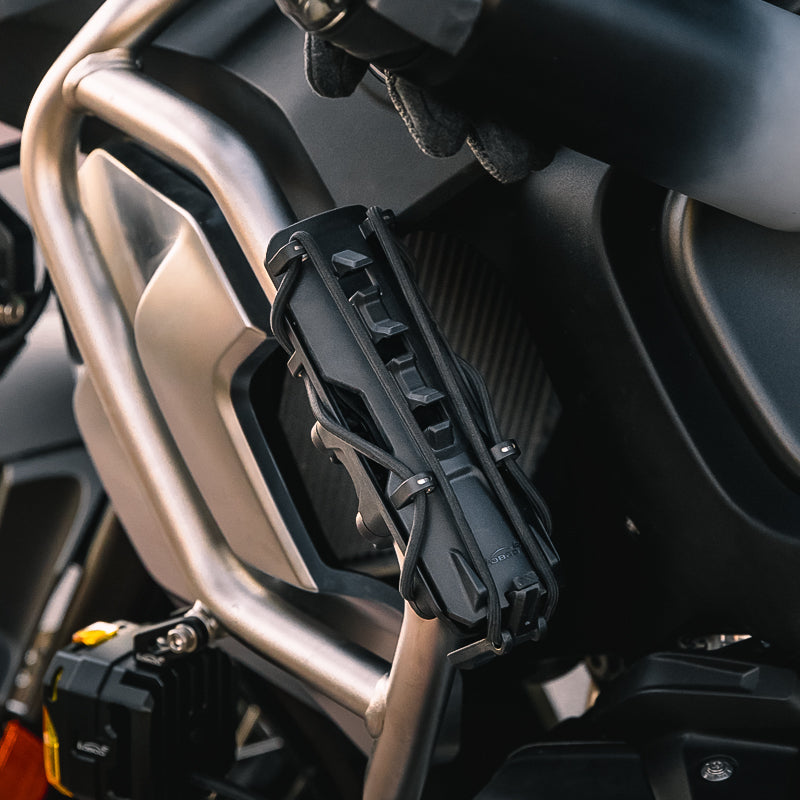

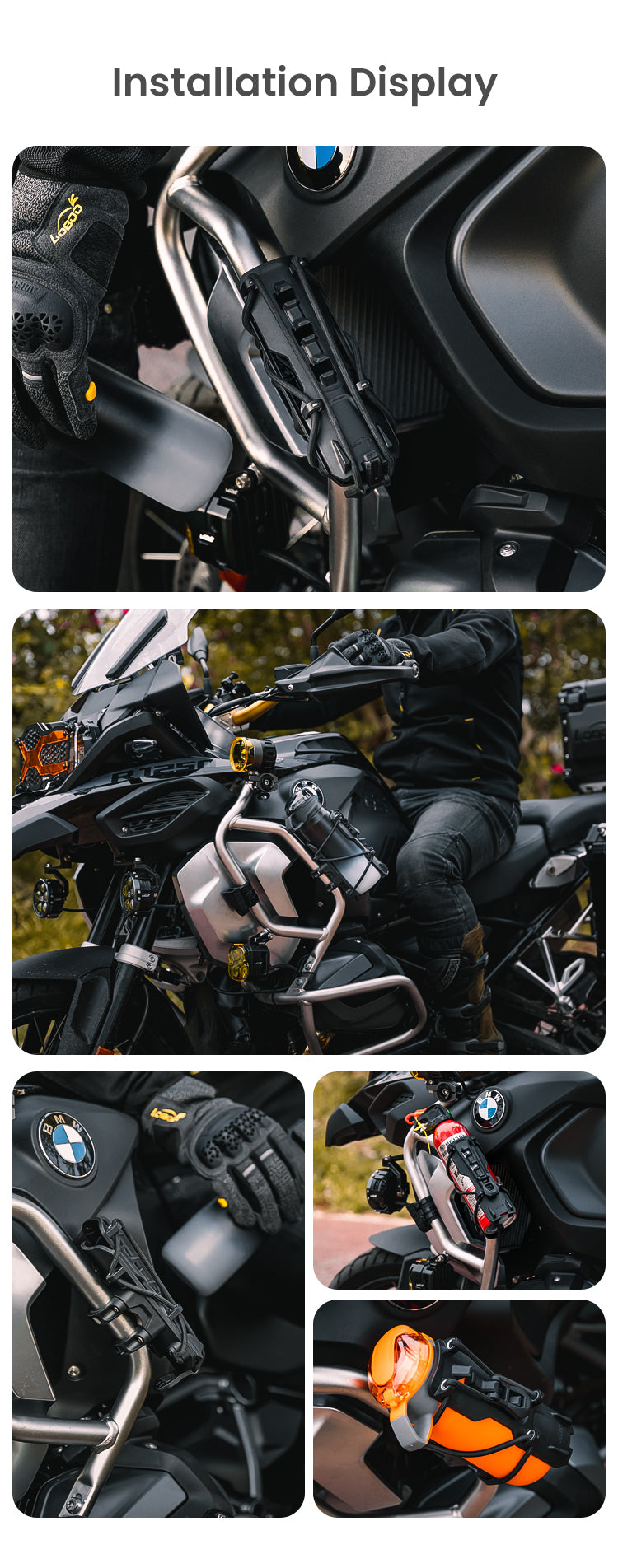

Mounted on a BMW GS maxi enduro motorcycle

In the LOBOO photos, the bottle holder is mounted on the side crash bars of a BMW GS, with water bottles and a fire extinguisher.

It’s the most convenient position for keeping it close at hand during stops, without opening bags or cases.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Official name

Bottle Holder Name on the LOBOO manual, Model CSHJ-1

Product code

CSHJ-1

LOBOO article number

11.3.24001.001.01 From the manufacturer's product page

Type

Motorcycle bottle holder

Dimensions and weight

Dimensions

179 × 57,9 × 38,4 mm Hand-picked by the producer

Weight

191 g

Container diameter

58–78 mm Water bottles, bottles, cans, thermoses

Mounting tube diameter

25 mm 25 mm tubes only

Construction

Material

High-strength engineering plastic

Interior

Non-slip silicone inserts

Closure

Elastic cord with handle 3 preset attachment positions

Assembly

On your motorcycle

2 collars and 4 M5×10 screws No drilling needed

Orientation

Vertical or horizontal Variable 90° mounting angle

On a top case or suitcase

4 M5×10 screws from the inside Requires drilling with a Ø 5.5 mm bit

Template hole spacing

38,80 mm

Tightening torque

5 N·m All M5×10 screws

Threadlocker

Even To be applied at the end of assembly

Use

Indicated containers

Water bottles, bottles, cans, thermoses, portable fire extinguisher

Compatibility

Universal for 25 mm diameter tubes, top cases and suitcases On your suitcases with drilling

Manufacturer's warranty

12 months From the date of purchase

Dati dal manuale LOBOO CSHJ-1, dai pannelli descrittivi 01-10 e dalla pagina del produttore. Misure rilevate a mano.

Manuale d'uso CSHJ-1Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Abbraccia il tubo con i due collari e fissali al portaborraccia con le 4 viti M5×10 e le rondelle M5, usando la chiave esagonale da 4 mm.
Scegli l'orientamento: verticale o orizzontale, l'angolo cambia di 90°.

Istruzioni complete e note di sicurezza

Difficoltà: facile sul paramotore, con le chiavi incluse; sul bauletto serve anche un trapano.

Su paramotore o telaio da 25 mm

Abbraccia il tubo con i due collari e fissali al portaborraccia con le 4 viti M5×10 e le rondelle M5, usando la chiave esagonale da 4 mm.
Scegli l'orientamento: verticale o orizzontale, l'angolo cambia di 90°.

Su bauletto o valigia laterale

Togli la sacca interna, incolla la dima adesiva nel punto scelto e fora sulle croci con la punta Ø 5,5 mm inclusa. Interasse dei fori: 38,80 mm.
Inserisci i 4 O-ring Ø 10 × 1,5 mm nella scanalatura sul retro del portaborraccia e fissalo dall'interno con le 4 viti M5×10 e la chiave da 3 mm.

Serraggio

Non serrare subito: monta tutto, applica il frenafiletti incluso su ogni vite, poi serra tutte le viti a 5 N·m.
Ricontrolla periodicamente il serraggio.

Documenti del produttore

Manuale d'uso LOBOO «Bottle Holder Model CSHJ-1»: distinta componenti, coppie di serraggio, montaggio su tubo da 25 mm e su bauletto o valigia, istruzioni d'uso e certificato di garanzia.
Pannelli descrittivi LOBOO 01-10, con pannello parametri: 179 × 57,9 × 38,4 mm, 191 g, contenitori 58-78 mm, tubo 25 mm, plastica tecnica ad alta resistenza; misure rilevate a mano. Sul disegno compaiono anche le quote 73,7 mm e 51,8 mm.
Video di installazione LOBOO, richiamato dal QR code del manuale.
Il produttore non dichiara certificazioni per questo articolo.

È consigliato se:

Fai viaggi lunghi in Adventure o touring e vuoi bere senza aprire borse o valigie.
La tua moto ha crash bar o paramotore tubolare da 25 mm.
Vuoi tenere a bordo un estintore portatile o un thermos.
Hai bauletto o valigie rigide e accetti di forarne la parete.

Da sapere:

Il collare funziona solo su tubi da 25 mm: misura il tuo paramotore prima di ordinare.
Il montaggio su valigia richiede foratura e, avverte LOBOO, può danneggiarla.
Il produttore non dichiara un peso massimo trasportabile.

Compatibilità

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Recensioni

5,0

★★★★★1 recensioni

5★1

4★0

3★0

2★0

1★0

Franco Della Porta19/11/2025

★★★★★

Portaborraccia per viaggi in moto

Domande frequenti

Le domande che ci fate più spesso

Which water bottles fit the CSHJ-1 bottle cage?

Any container with a diameter between 58 and 78 mm: sports bottles, water bottles, cans, thermoses, and insulated mugs, even a portable fire extinguisher. Diameter matters, not capacity. LOBOO does not state a maximum carrying weight.

Does it fit on my motorcycle's engine guard?

Yes, if the engine guard or frame tube has a diameter of 25 mm. LOBOO states that it is compatible only with 25 mm crash bars, regardless of the motorcycle model. Before purchasing, measure the diameter of the tube where you want to install it.

Can it be mounted on 22 mm tubes or tubes larger than 25 mm?

No. The two clamps are designed for 25 mm pipes, and the manufacturer does not provide adapters for other diameters.

Does it fit GIVI, Touratech, or original crash bars?

The manufacturer's page mentions GIVI, Touratech, and original bars, but there is only one criterion: the tube must measure 25 mm. If your bar has a different diameter, the clamp will not close properly.

Can I mount it on the top case or on the aluminum side cases?

Yes, the manual specifies mounting on the top case and side cases using four through-bolts tightened from the inside. You need to drill through the case wall, and LOBOO warns that installation may damage it: consider carefully before proceeding.

How do you drill holes in the suitcases to install it?

First remove the inner bag. Stick the adhesive template in the selected spot, drill through the marked crosses using the included Ø 5.5 mm drill bit, insert the four O-rings into the groove on the back of the bottle cage, and secure it from the inside with the M5×10 screws and the 3 mm hex key. The hole spacing on the template is 38.80 mm.
