KOVE 800 X Top Case Plate – PIKE TRACKER - Endurrad®KOVE 800 X Top Case Plate – PIKE TRACKER - Endurrad®KOVE 800 X Top Case Plate – PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®KOVE 800 X side case frames - PIKE TRACKER - Endurrad®
-10%Consegna in 2-3 giorni lavorativi
JPT661W Code
Single plate Content
PIKE TRACKER and TIBET Series
KOVE 800 X Motorcycle

Completa il montaggio

Spesso acquistati insieme

Scelti dal nostro team per questo prodotto
Totale per 3 accessori

Panoramica

In breve

Piastra di attacco per bauletto sulla KOVE 800X dal 2023. Si appoggia al portapacchi posteriore originale con quattro distanziali, senza rimuovere nulla dalla moto. Quattro pezzi in scatola, chiave compresa; bauletto non incluso.

Top case base

accepts PIKE TRACKER and TIBET top cases from the LOBOO range.

Dedicated mounting

on the fastening points provided by the manufacturer.

Complementary to the side frames

the plate on the rear subframe, the JP661B frames on the sides.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

It is the base that allows you to mount a top case on the KOVE 800X from 2023 onward. It rests on the original rear luggage rack with four spacers inserted between them: there is nothing to remove from the motorcycle; the manual does not require any removal.

The simplest installation in the range

The package contains four items: the plate, four 12 mm spacers, four M8×30 screws, and the key. Nothing else. It is the most basic kit among all LOBOO plates and can be installed in two steps.

The torque is 20 N·m: here the screws are M8, not M6 as on many other plates in the range, so the value is higher. As always, complete the adjustments first, then tighten to the specified torque in sequence. The manual is available in eight languages, including Italian.

Which top cases you can mount

The manual lists the PIKE TRACKER, TIBET and CONQUEROR series for this plate. The top case is not included: this page concerns the plate only, and LOBOO aluminium top cases can only be mounted on LOBOO plates and luggage racks.

The complete system

The plate mounts on the rear subframe; the JP661B side pannier racks, which have their own page, are mounted on the sides. Together, they complete the 800X luggage system.

The rear load has a limit

LOBOO does not specify a maximum load for the plate itself: the limit indicated by KOVE in the owner's manual for the rear luggage rack applies, and includes the plate, top case, and contents. Check the fasteners again after the first 100–200 km and make sure the top case does not obscure the licence plate or rear lights.

The plate material is not specified by any LOBOO source, including the manual.

Nella confezione

  • ✅ The original, new LOBOO top case plate, in manufacturer's packaging.
  • 📦 Included: the plate with screws and mounting hardware.
  • ⚠️ Not included: the top case. This page is for the support plate only. The top case is purchased separately.
  • 🔒 Closed system: LOBOO aluminum top cases can only be mounted on LOBOO plates and racks. They are not compatible with mounts from other brands.
  • 🏍️ Plate specific to the model indicated in the title: it mounts on the original fixing points, without adapters.
  • 🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
  • 🛡️ 24-month legal warranty for the consumer, according to current regulations.
  • 💳 Payment also in installments with the services available at checkout.
  • 🔧 Check the maximum load allowed on your motorcycle's rear frame: includes plate, top case and contents.

JPT661W - KOVE 800X from 2023 - 4 pieces, M8 hardware at 20 N.m

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

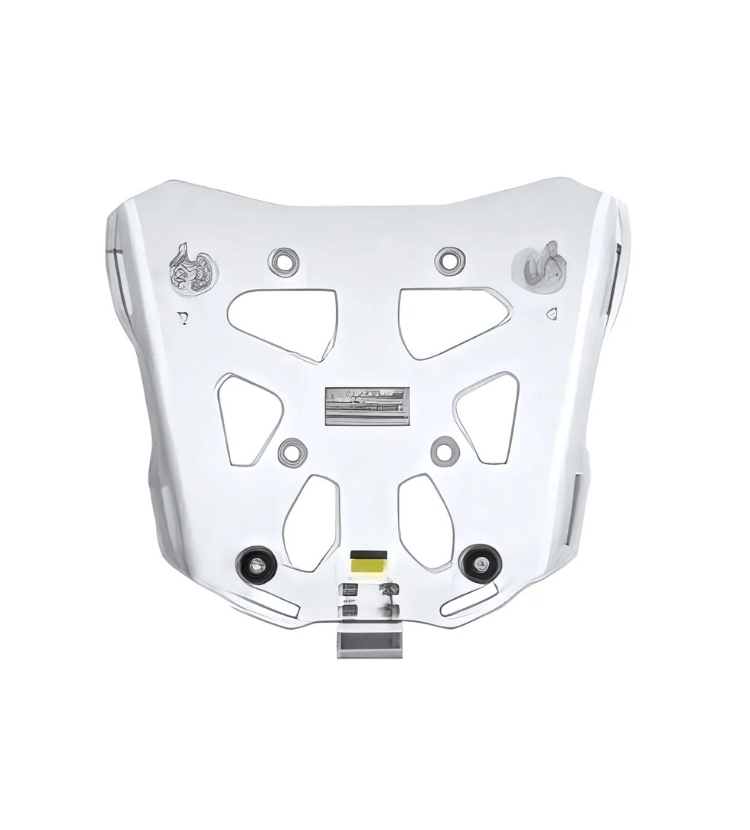

The top case base for the KOVE 800 X
01

The top case base for the KOVE 800 X

The JPT661W plate is the base onto which the top case attaches, mounted on the manufacturer’s designated mounting points. The top case is a separate item.

It combines with the JP661B side frames: the plate goes on the rear subframe, and the frames on the sides. Together, they complete the luggage system.

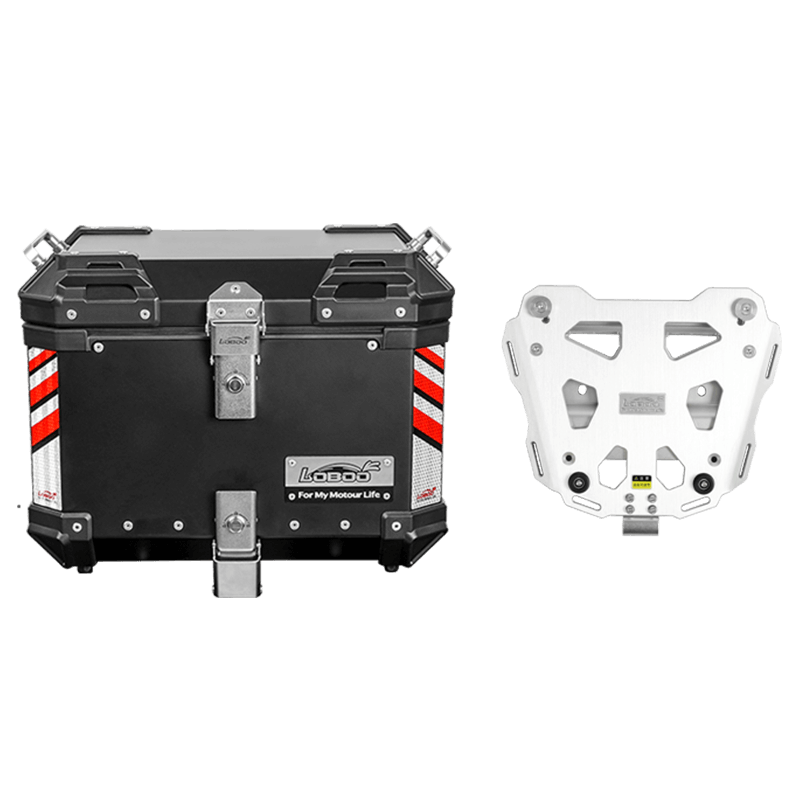

The top-case mount on the KOVE
02

The top-case mount on the KOVE

The JPT661W plate accepts the PIKE TRACKER and TIBET top cases from the LOBOO range, in black or silver.

Mounting on the manufacturer's designated attachment points, with no drilling or permanent modifications.

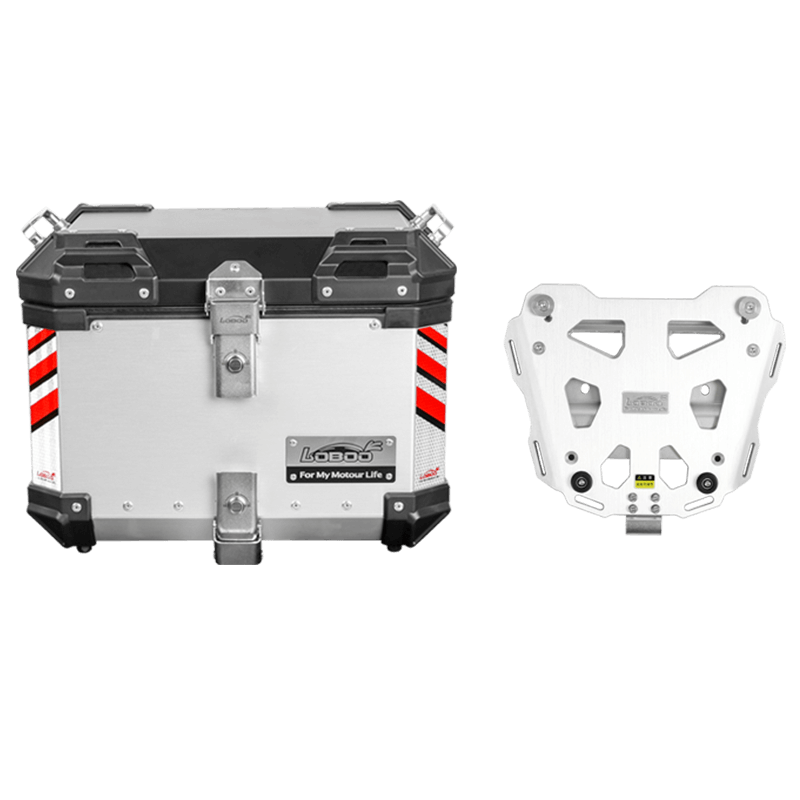

The top case is not included
03

The top case is not included

This page concerns the plate only: it is the base onto which the top case attaches, and the top case must be purchased separately.

This is also why it is best to install it first: your choice of top case remains open.

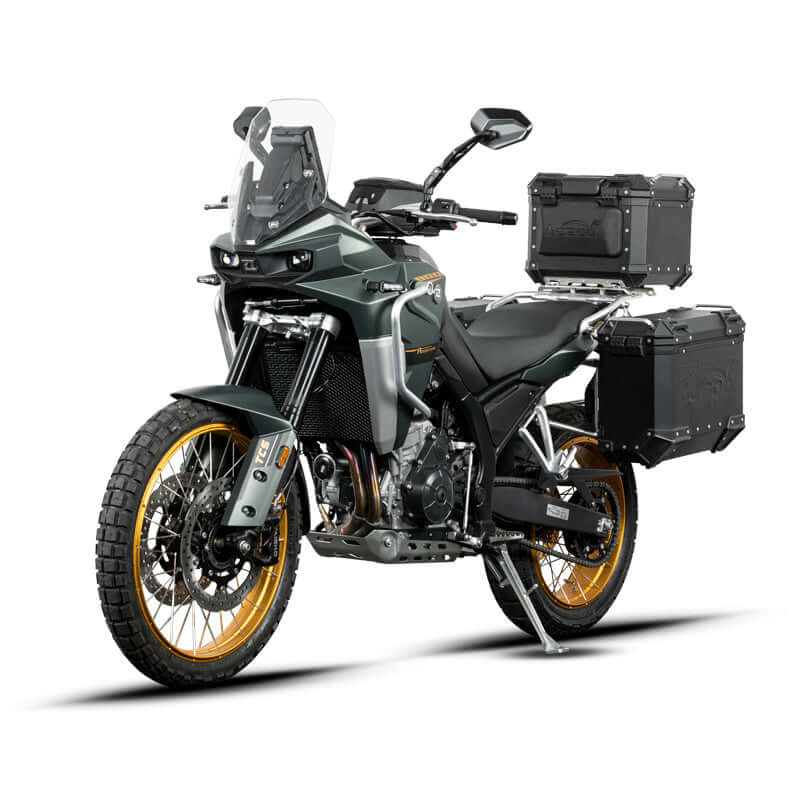

Compatible with side frames
04

Compatible with side frames

The plate mounts on the rear subframe, while the JP661B frames mount on the sides: they are complementary products and together complete the luggage system.

However, they are not required: the plate can also be installed on its own if you only need the top case.

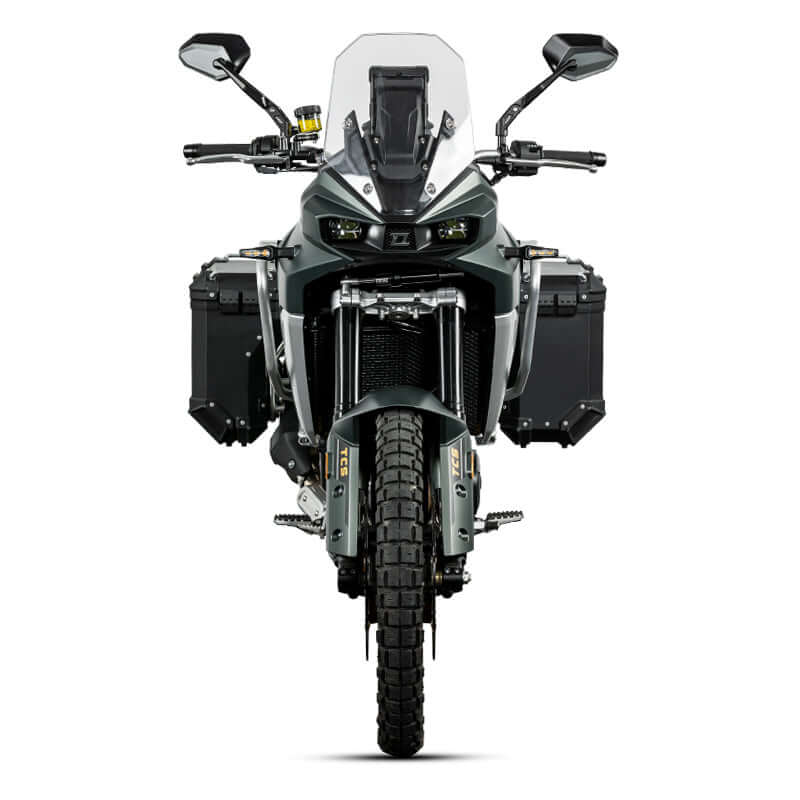

The rear load has a specific limit.
05

The rear load has a specific limit.

The manufacturer specifies a maximum load for the rear rack: this includes the mounting plate, top case, and contents.

It is the highest and rearmost point of the load: exceeding it affects stability more than the same weight in the side cases.

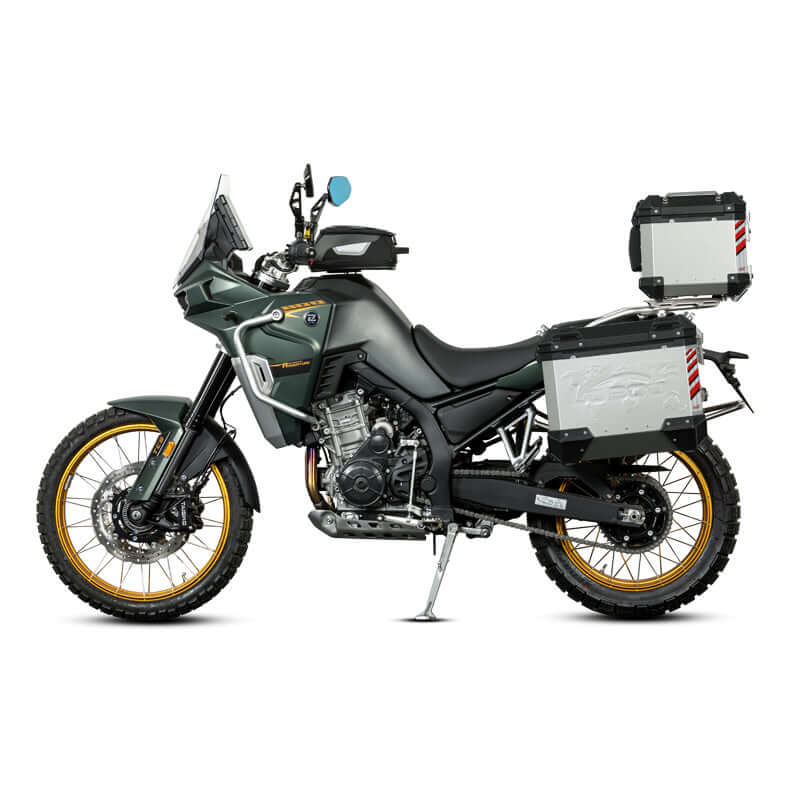

License plate and lights must remain visible
06

License plate and lights must remain visible

After installation, check that the top case does not cover the license plate or rear lights and does not extend beyond the limits established by the Highway Code.

Recheck the fasteners after the first 100–200 km: the rear rack flexes significantly when carrying a moving load.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code
JPT661W Official name Top Case Rack
Served top case series
PIKE TRACKER, TIBET and CONQUEROR As stated in the user manual

Compatibility

KOVE 800X
Since 2023 Year stated in the manual
Complementary product
JP661B side case frames The plate works on the rear subframe, and the frames on the sides

Assembly

Mounting points
Original rear rack With four spacers inserted
Parts to remove
Nobody The manual does not include any removal: both steps are for installation only.
Tightening torque
20 N·m on all four M8x30 screws To be administered in sequence after completing the adjustments
Maximum load
The one specified by KOVE for the rear luggage rack The limit includes the plate, top case, and contents. LOBOO does not specify its own value.

Equipment

Package contents
4 items: plate, 4 spacers, 4 M8x30 screws, 1 wrench It is the most essential kit in the plate range. Case not included
Spacers
4 bushings, 12 mm, 18 mm outer diameter, and 8.5 mm bore
Tool included
Assembly key included

Materials

Material
Not stated by the manufacturer The manual does not specify the material of the plate.
Weight
Not stated by the manufacturer

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, please contact us before purchasing.

Manuale d'uso della piastra top case LOBOO per KOVE 800XDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Posiziona i quattro distanziali sui punti del portapacchi posteriore originale. Non c'e nulla da rimuovere dalla moto.
  2. Appoggia la piastra e presenta le quattro viti M8x30.
  3. Non serrare a fondo subito: completa prima tutte le regolazioni, poi dai la coppia di 20 N.m in sequenza.
Istruzioni complete e note di sicurezza

Nella confezione: la piastra, quattro distanziali da 12 mm, quattro viti M8x30 e la chiave di montaggio. Sono quattro voci in tutto, il kit piu essenziale della gamma.

  • Posiziona i quattro distanziali sui punti del portapacchi posteriore originale. Non c'e nulla da rimuovere dalla moto.
  • Appoggia la piastra e presenta le quattro viti M8x30.
  • Non serrare a fondo subito: completa prima tutte le regolazioni, poi dai la coppia di 20 N.m in sequenza.

Attenzione al valore: qui le viti sono M8 e la coppia e di 20 N.m, piu alta dei 12 N.m delle piastre con viteria M6. Il produttore raccomanda di leggere il manuale e guardare il video prima di iniziare, e di ricontrollare periodicamente il serraggio.

Assembly and Notes

  • The top case is not included in the delivery.
  • Respect the maximum load on the rear rack indicated by the manufacturer: the limit includes the plate and loaded top case.
  • Recheck the tightening after the first 100-200 km.
  • The load must not cover the license plate and tail lights or extend beyond the limits of the Highway Code.

The plate is the base to which the top case attaches: the top case is a separate item and is not included.

It can be mounted together with the JP661B side racks: these are complementary products and together complete the luggage system for the KOVE 800 X.

Per moto Kove

Kove
Come verificare la compatibilità
  • KOVE 800X dal 2023
  • Richiede il portapacchi posteriore originale della moto
  • Bauletti delle serie PIKE TRACKER, TIBET e CONQUEROR
  • Prodotto complementare: telai valigie laterali JP661B
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which top cases does this plate accept?

The manual lists the plate for the PIKE TRACKER, TIBET, and CONQUEROR series, in black or silver finish. The top case is a separate item and is not included: this page concerns the plate only.

Can it be installed together with the side frames?

Yes: the plate mounts on the rear subframe, while the JP661B frames mount on the sides. They are complementary products and together complete the luggage system for the KOVE 800 X.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return the product if it isn’t suitable?

Yes, you are entitled to return the item within 14 days of delivery under online purchase regulations. The product must be intact and in its original packaging: contact us and we’ll guide you through the process.

How does shipping work?

Tracked shipping throughout Italy: the product is carefully inspected and prepared before leaving our warehouse. The mounting accessories included in the original package are included.

Can I pay in installments?

Yes: at checkout, installment payment services are available directly among the payment methods, with no additional paperwork.
