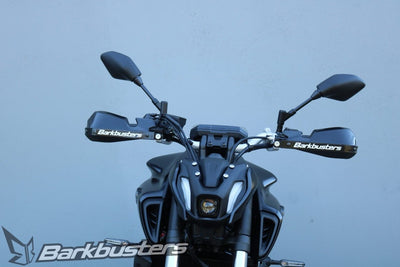

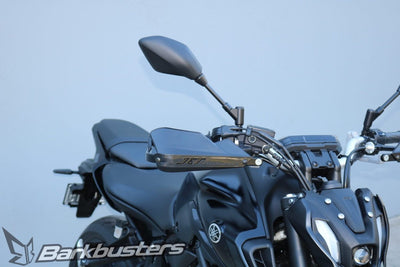

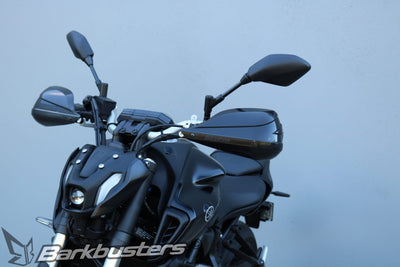

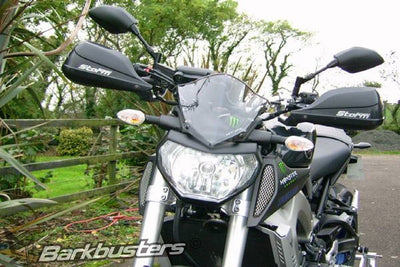

Specifications and details for Barkbusters Handguard Mounting Kit for Yamaha MT 07 / MT 09 SP / XSR 900 — two-point mount

Product Details

The Barkbusters two-point handguard kit for MT 07 / MT 09 SP / XSR 900. Covers 5 Yamaha models from '13 onwards: the table shows make, model, and years.

Overview

  • Attachment: Two-point, for impact protection.
  • Compatible models: 5, including MT 07 / MT 09 SP / XSR 900.
  • Makes: Yamaha.
  • Construction: Two-point attachment on a full-wrap aluminum frame.
  • In the box: Bar-end weights included in the kit.
  • Shipping and warranty: Free shipping in Italy over €100, 14-day returns, 1-year warranty.

Compatible Models

Make Model Years
Yamaha MT 07 '21–'24
Yamaha MT 09 '13–'20
Yamaha MT 09 SP '18–'20
Yamaha MT 09 TRACER '14–'20
Yamaha XSR 900 '16–'21

Barkbusters compatibility data, referring to the standard configuration. Doubts about your model? Contact us.

Installation

  1. Free the handlebar ends by removing the standard bar-end weights.
  2. Position the frame without tightening and check that levers and cables remain free when the steering is turned.
  3. Secure the inner mount, then the outer mount.
  4. Complete the tightening to the manufacturer's torque specifications and recheck after 100 km.

Torque settings and full sequence in the official Barkbusters instructions (INS-BHG-094-00-BK).

Frequently Asked Questions

My Yamaha is not in the table: can I still install it?
No. The kit is designed based on the handlebar geometry of the 5 models listed. Both the model and the year are needed: a Yamaha MT 07 from a different year may require a different kit.

Are the protective plastics included?
No. Barkbusters sells frames and plastics separately: this only includes the aluminum frame with the hardware. JET, VPS, STORM, and CARBON plastics are ordered separately and are interchangeable.

Do I need to reuse the original bar-end weights?
No, the kit includes its own bar-end weights and replaces the standard ones.
