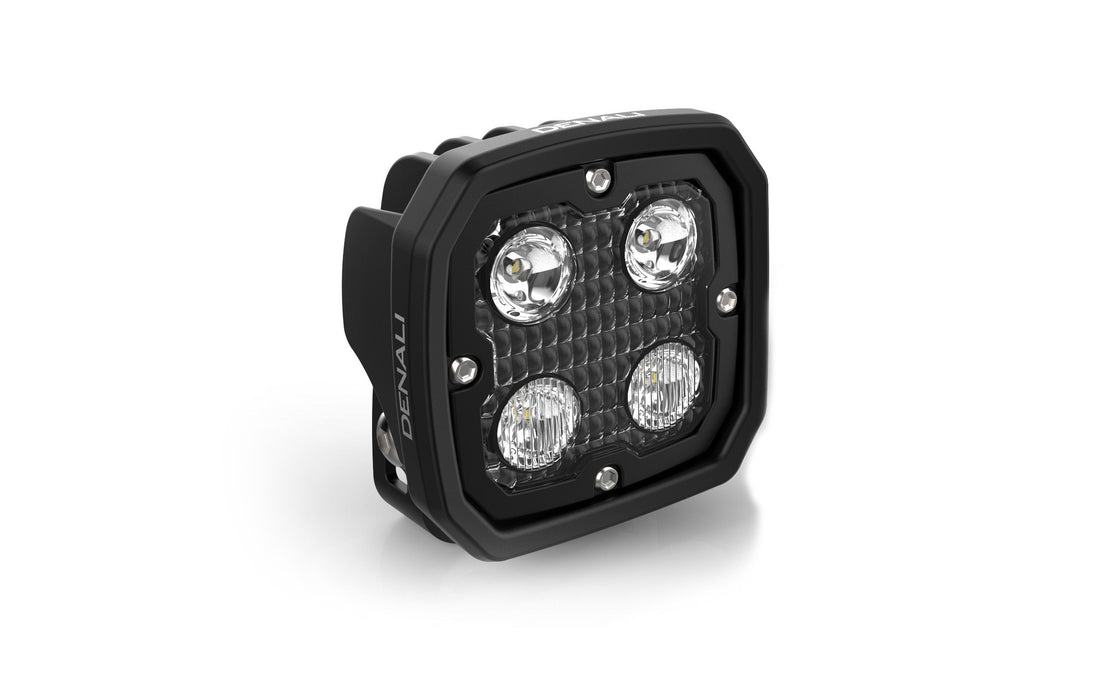

Faretto LED DENALI D4 da 4.380 lumen con fascio ibrido flood e spot

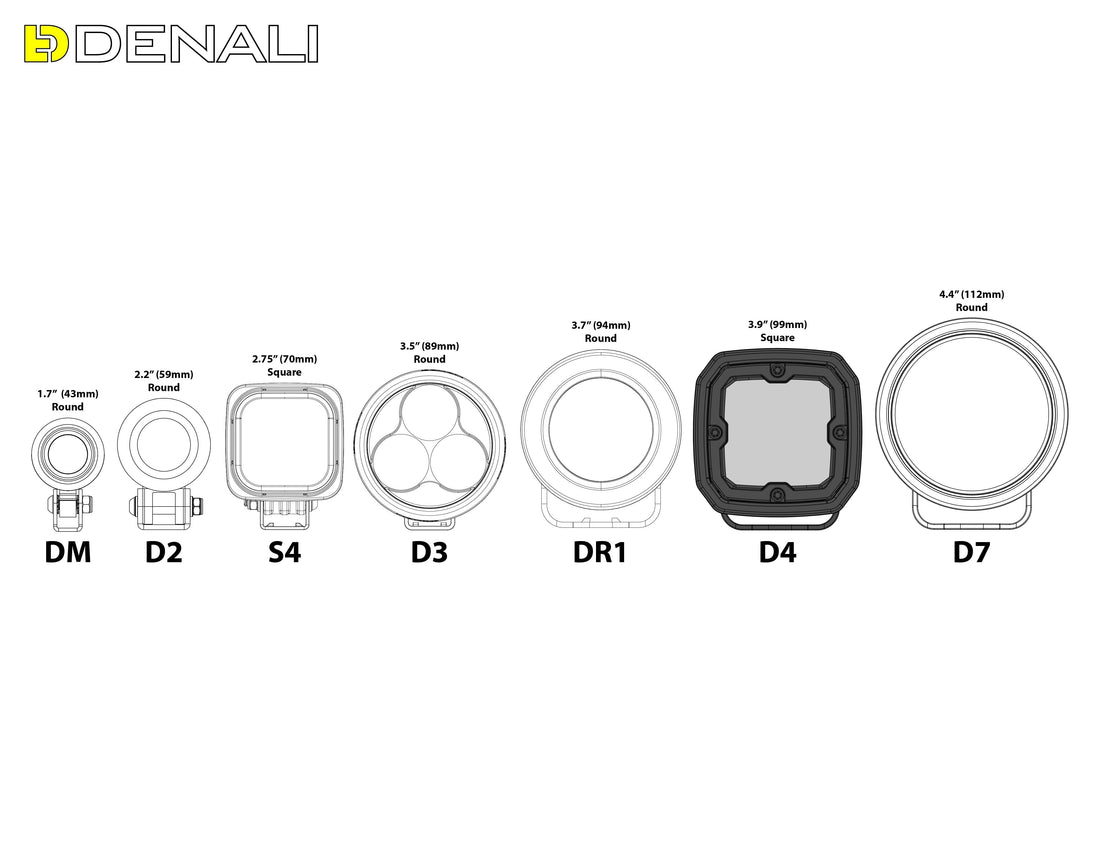

Schema dimensionale del faretto LED DENALI D4 con le misure di ingombro

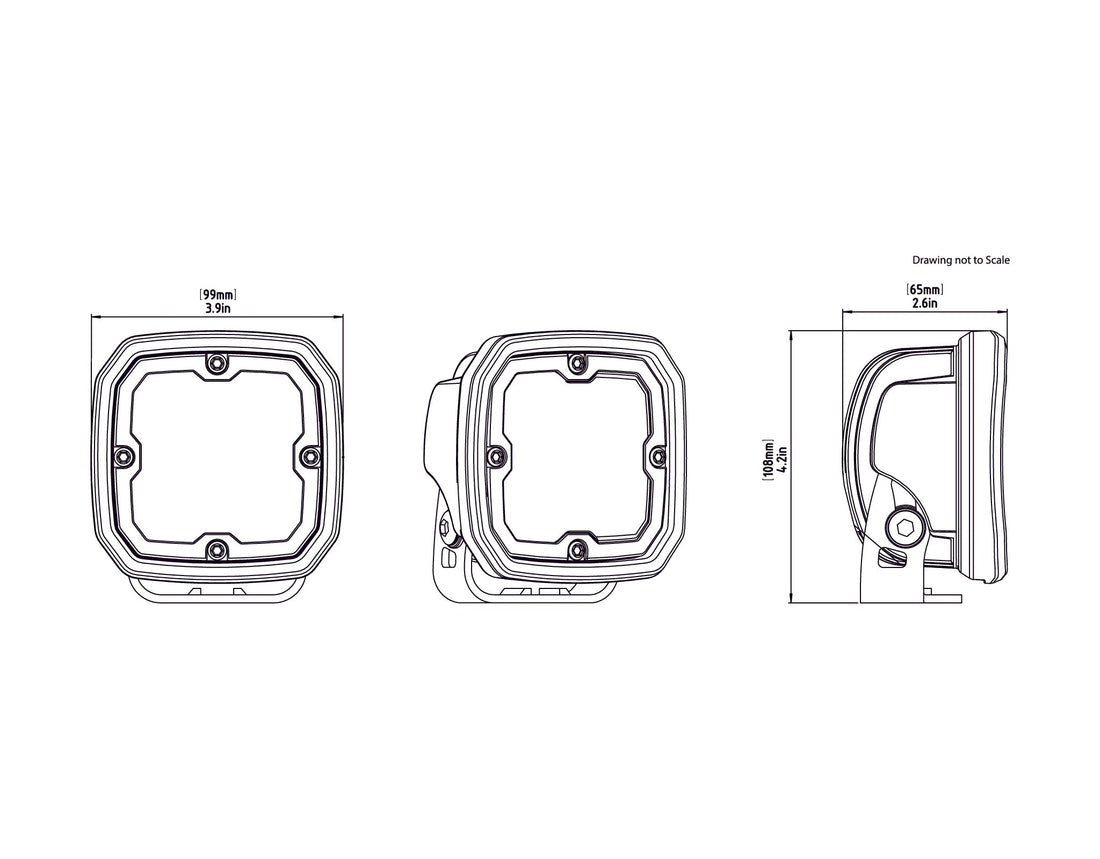

Disegno quotato del faretto LED DENALI D4: corpo quadrato da 99 mm

Vendor:DENALI

D4 motorcycle LED auxiliary light, 4,380 lumens, hybrid flood and spot beam

€291,00

Prezzo per un faretto

DNLD4050 — Cosa è compreso nel prezzo
  • Un faretto D4 con la lente ibrida trasparente già montata.
  • Viteria M8 vite, rondella, dado e cappuccio copridado per il fissaggio al supporto.
  • Codino di cablaggio per il collegamento all'impianto.
  • Lenti colorate, supporti moto e controller non compresi si acquistano a parte.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal guarantee of conformity

Original DENALI product — 24-month warranty

4.380lm per spotlight

Luminous flux

Hybridflood + spot

Bundle

3,3For spotlight socket

Absorption

IP67tin

Protection

Lighting

Spotlight track

4.380

8,760 lm per a pair

Beam type

Hybrid: two elliptical flood optics and two spot optics

TriOptic system, interchangeable spot, flood, and hybrid lenses

Spot beam range

243

Declared value for the pair, width 33 m

Electric

LED

4 × Cree XPL HI at 10 W

Absorption

3,3

12 V DC

DataDim Technology

Yes

Dual intensity with DNLWHS11000 controller

Construction

Spotlight dimensions

99 mm wide × 66 mm deep

Square body, 700 g

Protection

IP67

DrySeal sealed housing, LiveActive thermal management

Equipment

Package contents

1 spotlight with hybrid lens installed, M8 hinged bracket with stainless-steel hardware, wiring pigtail

Amber and selective yellow lenses sold separately (DNLD410100)

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale del D4.

Faretto singolo con lente ibrida: fascio largo e fascio concentrato insieme

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description D4 motorcycle LED auxiliary light, 4,380 lumens, hybrid flood and spot beam

Code DNLD4050 — DENALI code DNL.D4.050

Single 4,380-lumen LED auxiliary light with a hybrid lens installed as standard: two wide-beam elliptical optics for close range and two focused-beam optics for distance, all in the same housing. It illuminates the roadside in corners and reaches far ahead on straight roads, without needing to install two different lights.

Four 10 W Cree XPL HI LEDs in a square housing measuring 99 mm per side and 66 mm deep: it fits where a 112 mm light cannot. IP67 watertight housing, LiveActive thermal management, and an E-Mark-approved spot lens. DataDim technology adds dual intensity controlled by the original high beams.

Sold individually, with a clear hybrid lens installed. Amber and selective-yellow lenses, the specific mount for your motorcycle, and the controller are sold separately.

Why choose it

La lente ibrida montata di serie mette due fasci nello stesso corpo: due ottiche ellittiche larghe per il vicino e due concentrate per il lontano. È la ragione per cui un D4 solo copre situazioni dove di solito servirebbero due faretti diversi.

  • 4.380 lumen per faretto, 8.760 per una coppia.
  • Corpo quadrato di 99 mm: entra dove un 112 mm non passa.
  • Lenti spot, flood e ibrida intercambiabili con il sistema TriOptic.
  • Doppia intensità DataDim dal comando abbaglianti originale.
Who is it recommended for

A chi guida di notte su strade strette e tortuose, dove conta vedere il bordo strada e l'inizio della curva quanto vedere lontano. Buona scelta anche per le moto di media cilindrata, dove un faretto da 112 mm sarebbe sproporzionato.

Se invece ti serve soprattutto portata in rettilineo, il D7 arriva quasi al doppio della distanza. Se cerchi luce diurna e funzione indicatore, guarda il D7 PRO.

Complete technical specification sheet
Technical data
  • Flusso luminoso: 4.380 lm per faretto, 8.760 lm per una coppia
  • LED: 4 × Cree XPL HI da 10 W
  • Fascio: ibrido, due ottiche flood ellittiche e due spot; 243 m di portata dichiarati per la coppia
  • Assorbimento: 3,3 A per faretto, 12 V DC
  • DataDim: compatibile, doppia intensità con controller DNLWHS11000
  • Misure: 99 mm di lato × 66 mm di profondità, 700 g
  • Protezione: IP67, corpo stagno DrySeal
  • Omologazione: lente spot omologata E-Mark
Documents and manufacturer

La lente spot del D4 è omologata E-Mark. I fari supplementari vanno montati in numero pari e simmetrici rispetto all'asse della moto: verifica numero, posizione e condizioni di accensione ammesse dal codice della strada del Paese in cui circoli.

DENALI riconosce 5 anni di garanzia convenzionale del produttore. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità. Restano esclusi usura, urti, installazione errata e modifiche ai cavi originali del faretto.

How does it work, in detail?

  • Four Cree LEDs and a hybrid lens that combines a wide beam and a focused beam in the same housing.

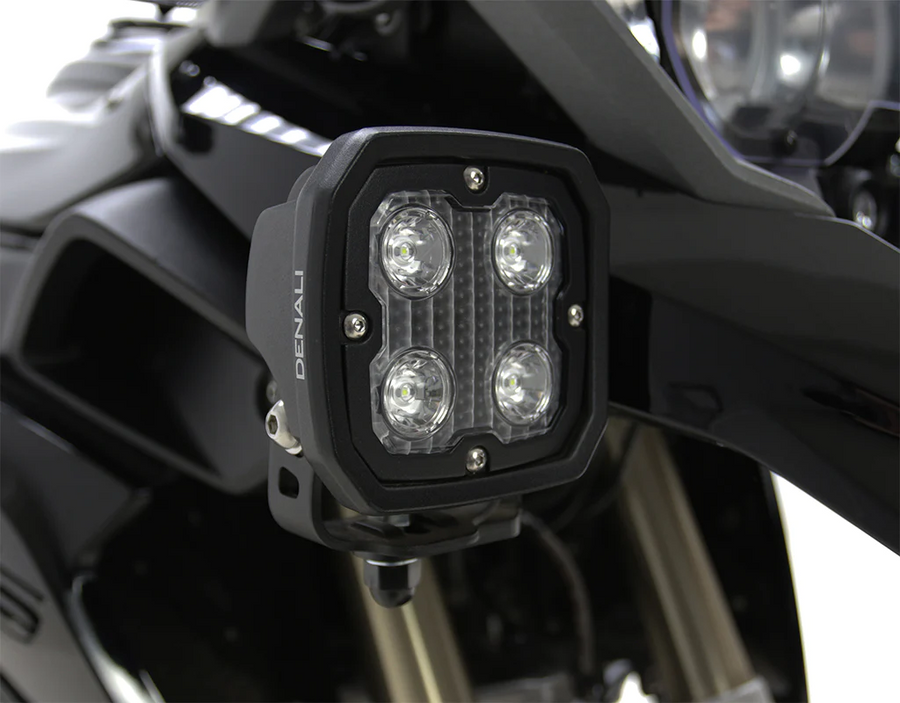

A hybrid beam: wide up close, long-range far away

A hybrid beam: wide up close, long-range far away

The standard lens is hybrid: two wide-beam elliptical optics for near-field vision and two focused-beam optics for long-range vision, all within the same housing. On bends, you see the roadside; on straight sections, you see far ahead, without having to install two different lights.

4,380 lumens from a 99 mm body

4,380 lumens from a 99 mm body

Four 10 W Cree XPL HI LEDs in a square housing measuring 99 mm per side and 66 mm deep, weighing 700 grams. It is the best compromise in the D series between light output and size on the motorcycle.

Double the intensity without cutting the system

Double the intensity without cutting the system

With DataDim technology, you connect a DENALI controller and the auxiliary light switches from half to full power using the original high-beam control. The DrySeal IP67 watertight housing and LiveActive thermal management prevent light output from decreasing after the first few minutes.

FAQs

For more information, see our FAQ of frequently asked questions.

What is the difference between the D4 and the D7?

The D7 produces almost twice the lumens and reaches much farther, but it has a pure spot beam and is larger. The D4 has a hybrid beam, so it also illuminates the area up close and the road edges, and takes up less space: 99 mm versus 112. If the motorcycle has limited space or you ride frequently on narrow roads, the D4 is more useful.

Can I change the lens color?

Yes. The light comes with the clear hybrid lens installed; the amber and selective-yellow lenses for the D4 are purchased separately and can be replaced without removing the light from the motorcycle.

Does it need a controller to work?

No, it also works with single-intensity wiring. The controller is needed if you want dual intensity from the high-beam switch (DataDim), continuous adjustment (DialDim), or full integration with the motorcycle’s controls (CANsmart).

Can I assemble just one?

Yes, this product is sold individually. However, for road use, auxiliary headlights must be mounted in even numbers and symmetrically with respect to the motorcycle’s centerline: check what is required by the road traffic regulations of the country where you ride.
