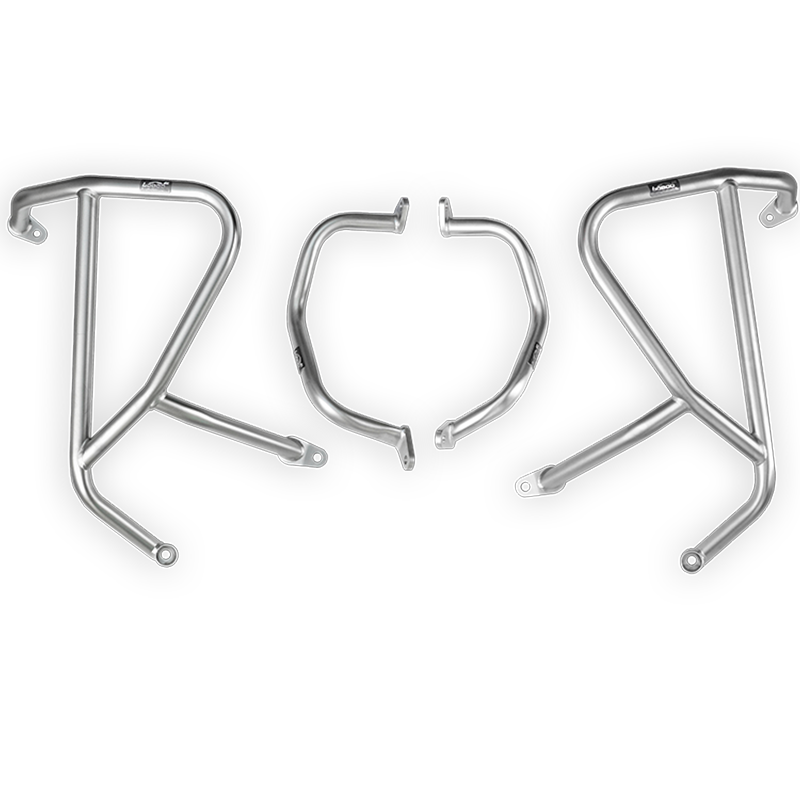

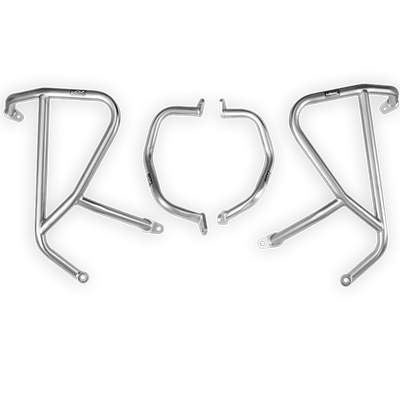

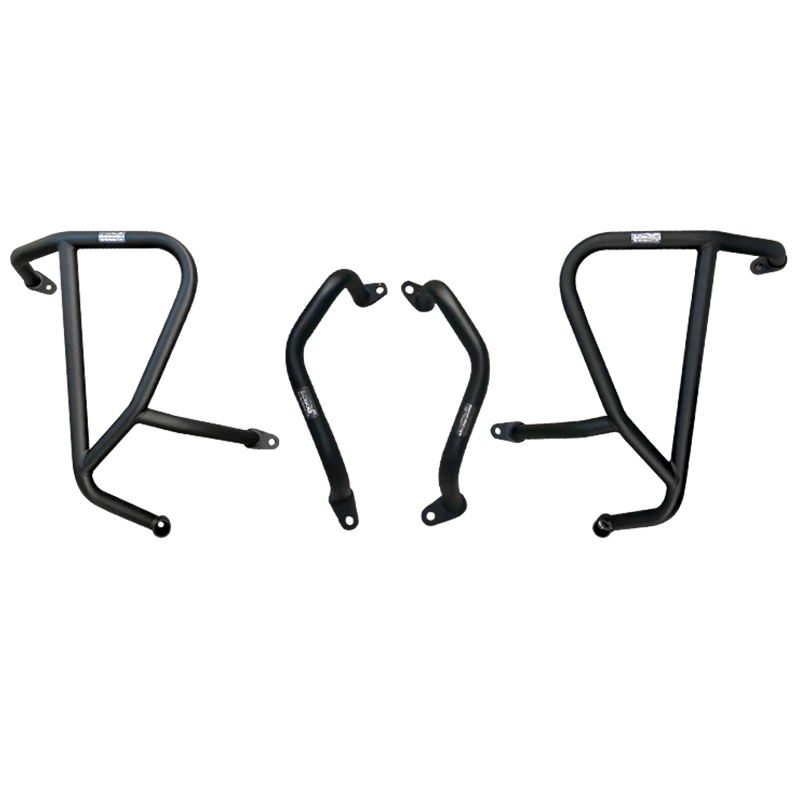

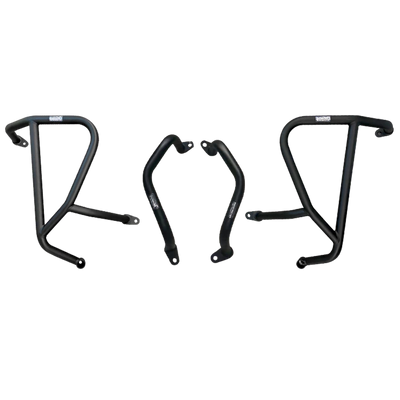

Set completo crash bar LOBOO CHG281SX nero per Honda CB500X e CB400X: due barre superiori e due inferioriBarre inferiori LOBOO CHG281X nere per Honda CB500X e CB400X, coppia destra e sinistraBarre superiori LOBOO CHG281S nere per Honda CB500X e CB400X, coppia destra e sinistraSet completo crash bar LOBOO CHG281SX argento in acciaio inox 304: due barre superiori e due inferioriBarre inferiori LOBOO CHG281X argento sabbiato per Honda CB500X e CB400X, coppia destra e sinistraBarre superiori LOBOO CHG281S argento sabbiato per Honda CB500X e CB400X, coppia destra e sinistraHonda CB400X con crash bar LOBOO CHG281 montato, vista di tre quarti anteriore destraHonda CB400X con crash bar LOBOO CHG281 montato, vista di tre quarti anteriore sinistraHonda CB400X con crash bar LOBOO CHG281 montato, vista frontaleHonda CB400X con crash bar LOBOO CHG281 montato, vista laterale sinistraHonda CB400X allestita con crash bar LOBOO CHG281, valigie e bauletto, vista di tre quartiHonda CB400X con crash bar LOBOO CHG281 e valigie laterali, vista di tre quarti anterioreCrash bar LOBOO CHG281 montato sulla Honda CB400X, vista laterale sinistra su sterratoHonda CB400X con crash bar LOBOO CHG281 e set valigie completo, vista laterale sinistraHonda CB400X con crash bar LOBOO CHG281 montato, vista di tre quarti posteriore sinistraHonda CB400X con crash bar LOBOO CHG281 montato, vista frontale su sterrato
-10%Pre-ordine
304 stainless steel Material
Ø 25 × 2 mm Tube
3 Configurations
2 Covered motorcycles

Panoramica

In breve

Sistema di barre paratelaio LOBOO in acciaio inossidabile 304 per Honda CB500X dal 2019 e CB400X dal 2021, con tubo da Ø 25 mm e parete da 2 mm. Le due moto condividono la ciclistica, quindi lo stesso codice le copre entrambe.

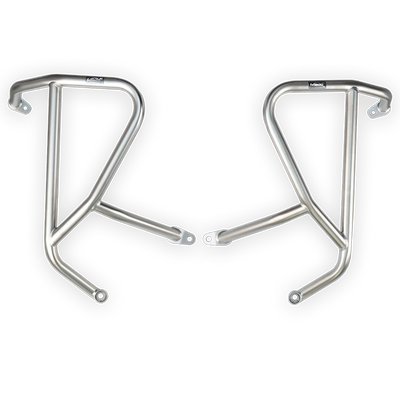

Disponibile in tre configurazioni: set completo con quattro barre, solo le due superiori all'altezza del serbatoio, oppure solo le due inferiori sul fianco motore. Montaggio sui punti originali senza forature, in argento sabbiato o nero opaco.

Full Protection: The system includes both upper and lower crash bars for maximum coverage. It protects vulnerable parts such as engine casings, radiator, and upper fairings from damage in the event of an accidental fall.

304 Stainless Steel: Constructed with durable Ø25mm (2mm thick) 304 stainless steel tubing. This material offers superior structural rigidity and exceptional rust resistance compared to steel bars.

Clean and Solid Welds: Made with excellent technology and precise, robust welds. This craftsmanship ensures that the bars withstand significant impacts without failure.

Dal produttore LOBOO

Original LOBOO product. Official designation: LOBOO Crash Bars for Honda CB400X (2021+) and CB500X (2019+) | Upper and Lower 304 Stainless Steel Engine Protection. Official documentation and catalog available in the download section.

Leggi la descrizione completa

The CHG281 is the LOBOO crash bar system for the Honda CB500X from 2019 onward and the CB400X from 2021 onward, made of 304 stainless steel with 25 mm diameter tubing and a 2 mm wall thickness. The two motorcycles share the same chassis, so the same code covers both.

It is available in three configurations. The complete CHG281SX set includes four bars—two upper bars at tank height and two lower bars alongside the engine—and contains 20 items in the parts list. The two upper bars alone are the CHG281S, with 16 items. The two lower bars alone are the CHG281X, with 9 items. Each configuration has its own manual, all of which can be downloaded from this listing.

On the CB500X and CB400X, typical falls are low-speed incidents during maneuvering or on soft ground, with damage concentrated on the engine covers, radiator, and fairings. The upper bars protect the upper area, while the lower bars protect the engine side: those who want to proceed gradually can buy the lower section first and add the upper section later.

The two finishes differ only in appearance: blasted and electropolished silver, or electrostatic-painted black. Beneath the treatment, the material is the same 304 stainless steel, which does not initiate rust where it gets chipped.

Installation uses the frame’s original mounting points, with no drilling or cutting, and reuses some of the motorcycle’s bolts. The complete-set manual specifies different torque settings for each size: 60 N·m for the M10×1.25 bolts, 40 N·m for the M10×25 bolts, 28 N·m for the M8 bolts, and 12 N·m for the M6 bolts, with threadlocker included.

The manufacturer’s recommendation should be read before starting: the specified bolts must be removed in a precise sequence, installing the lower brackets before removing the original aluminum spacers, to prevent the engine from dropping. A torque wrench is required.

The rubber bumpers shown in the manufacturer’s images are not included and must be purchased separately. A crash bar reduces damage from a fall; it does not eliminate it. LOBOO does not publish load tests or state the weight of this code. Endurrad is a retailer, not the manufacturer.

Nella confezione

  • PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
  • ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI nella dotazione originale. Supporti, telai o adattatori venduti separatamente sono indicati nella descrizione.
  • MANUALE DI MONTAGGIO incluso nella confezione.
  • COMPATIBILITÀ VERIFICABILE PRIMA DELL'ACQUISTO. Comunicaci marca, modello, anno e versione della moto e ti diciamo se il pezzo va bene.

CHG281 · 304 stainless steel · Ø 25 × 2 mm · complete set, upper only or lower only

How does it work, in detail?

Which of the three configurations do you need, what does it protect, and how is it installed?

Choose how much protection you need
01

Choose how much protection you need

Three configurations with the same code: the complete set with four bars, only the two upper bars at tank height, or only the two lower bars on the engine side. Each has its own manual and parts list.

If you want to spread out the expense, the usual approach is to start with the lower bars, which cover the area that makes contact first, and add the upper ones later.

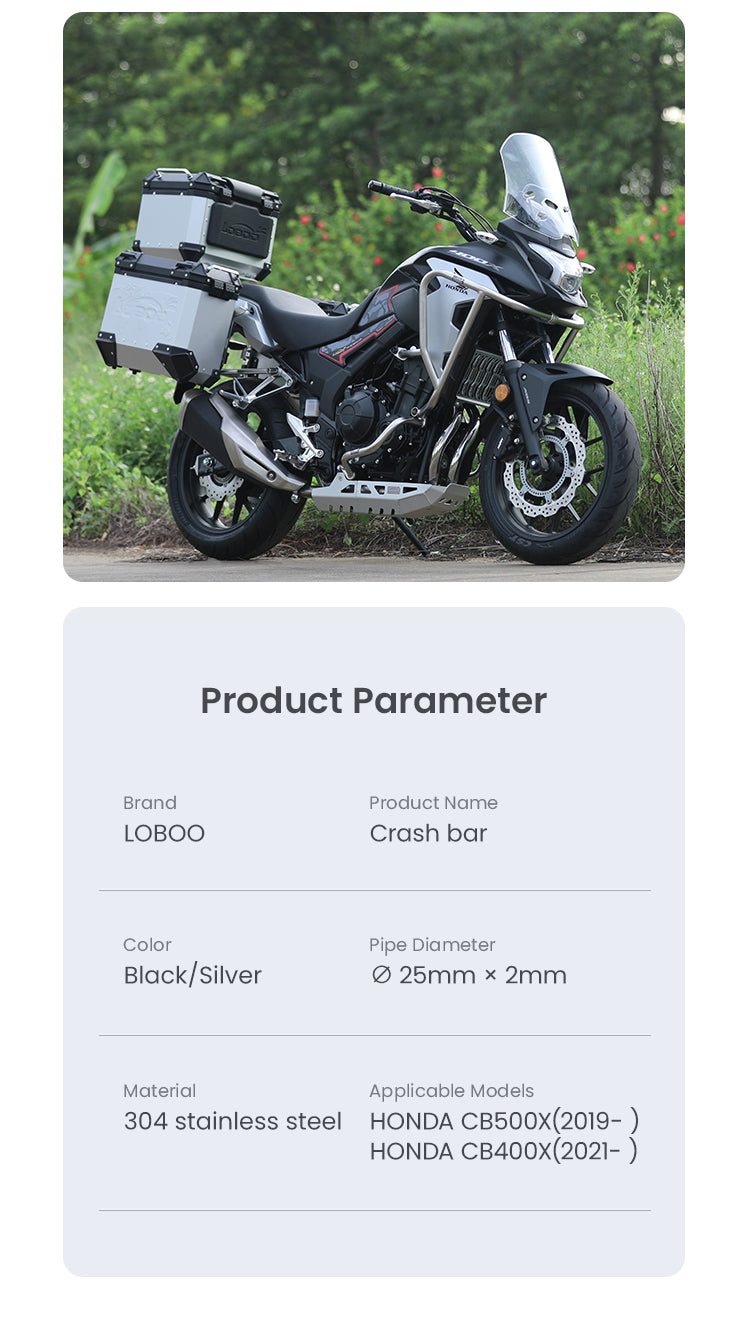

One code for two Hondas
02

One code for two Hondas

CB500X from 2019 onward and CB400X from 2021 onward share the same chassis, and LOBOO lists both on all three manuals and the parameter panel. If you switch bikes within the family, the protection remains unchanged.

Earlier model years are not listed: if you have a CB500X from before 2019, contact us before ordering.

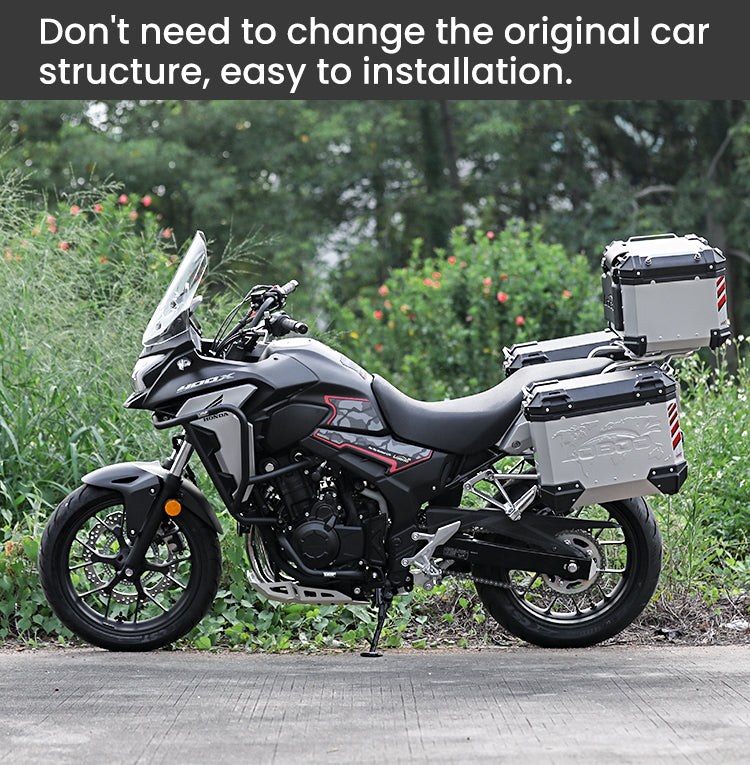

Mounts on the existing points
03

Mounts on the existing points

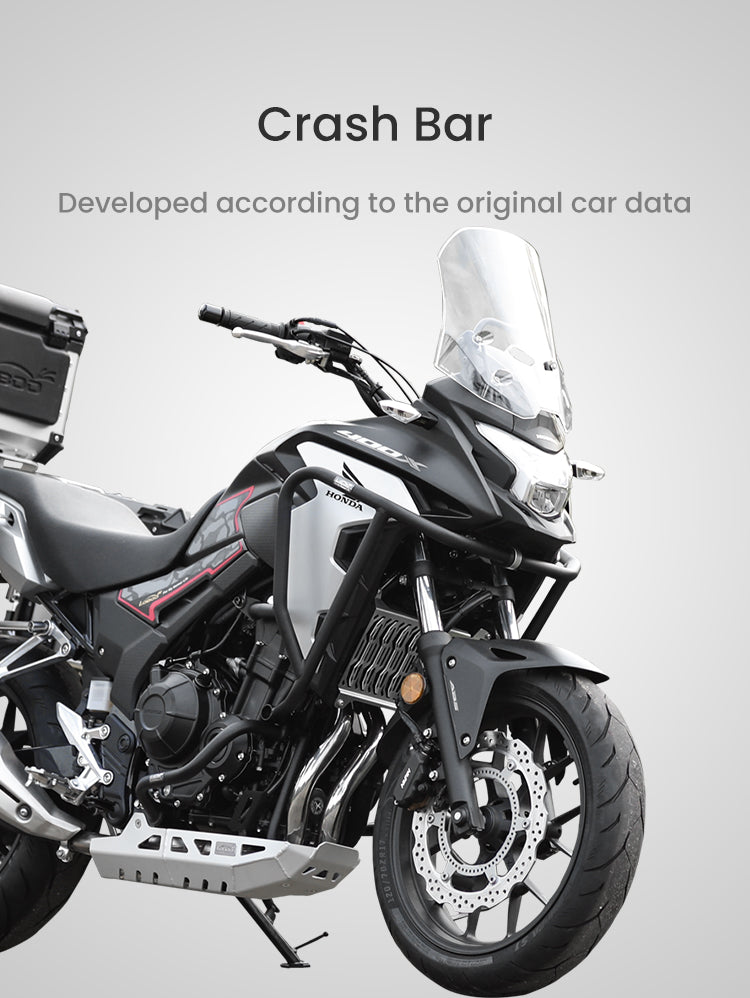

LOBOO states that it developed the part using the vehicle’s original data. It attaches to the existing mounting points on the frame, reusing some of the motorcycle’s screws: no cutting, drilling, or welding.

Removing the bars restores the motorcycle exactly to its original condition, which matters when it comes time to resell it.

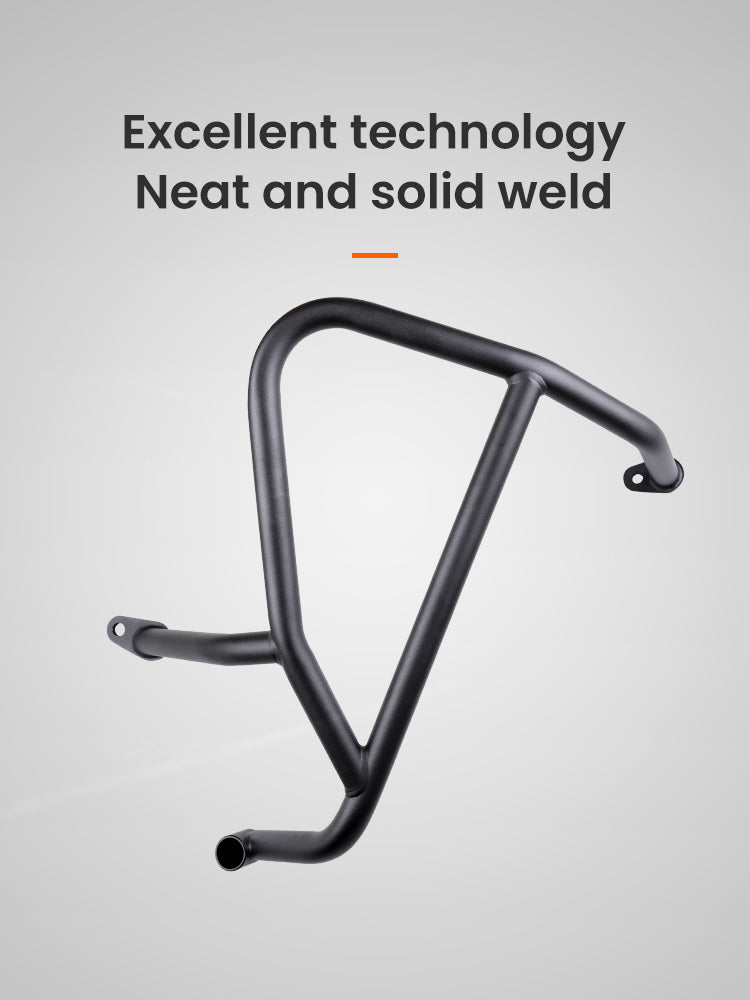

Look at the welds
04

Look at the welds

The weld beads between the tube and the mounting plates are continuous and even. These are the points that bear the load when the motorcycle is laid down, so they are the first thing worth checking before choosing a crash bar.

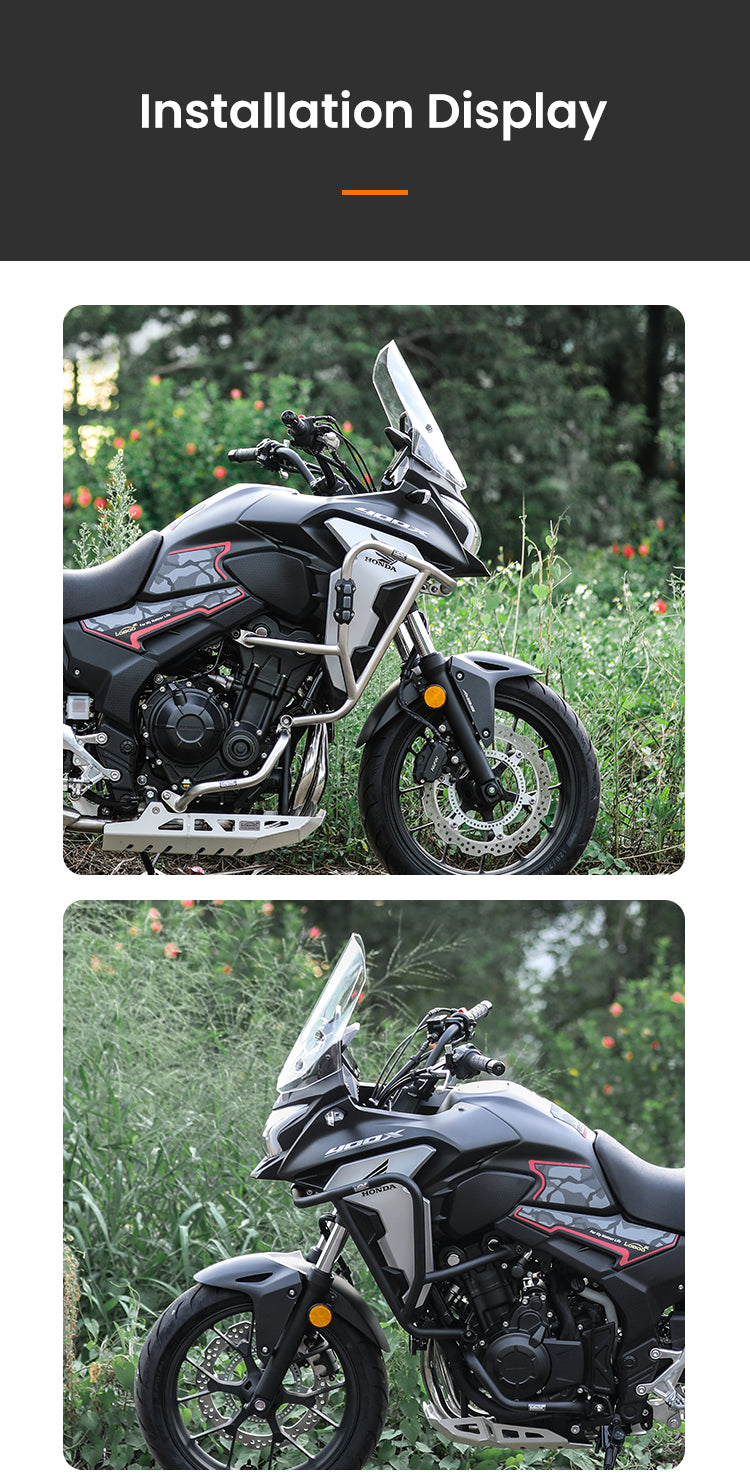

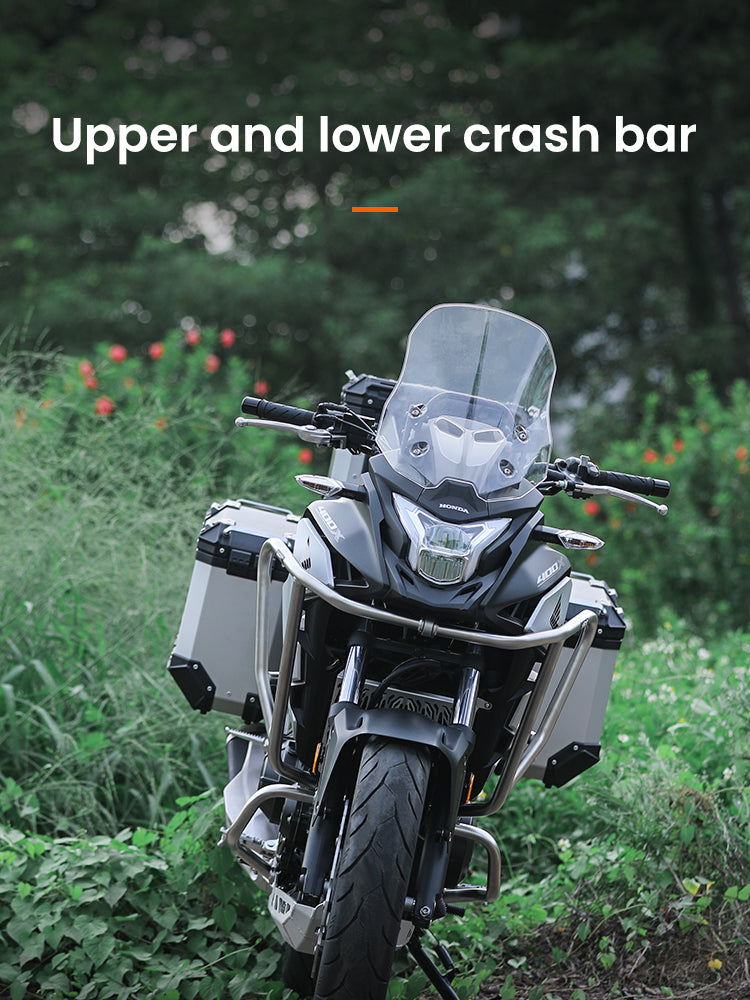

The complete two-level set
05

The complete two-level set

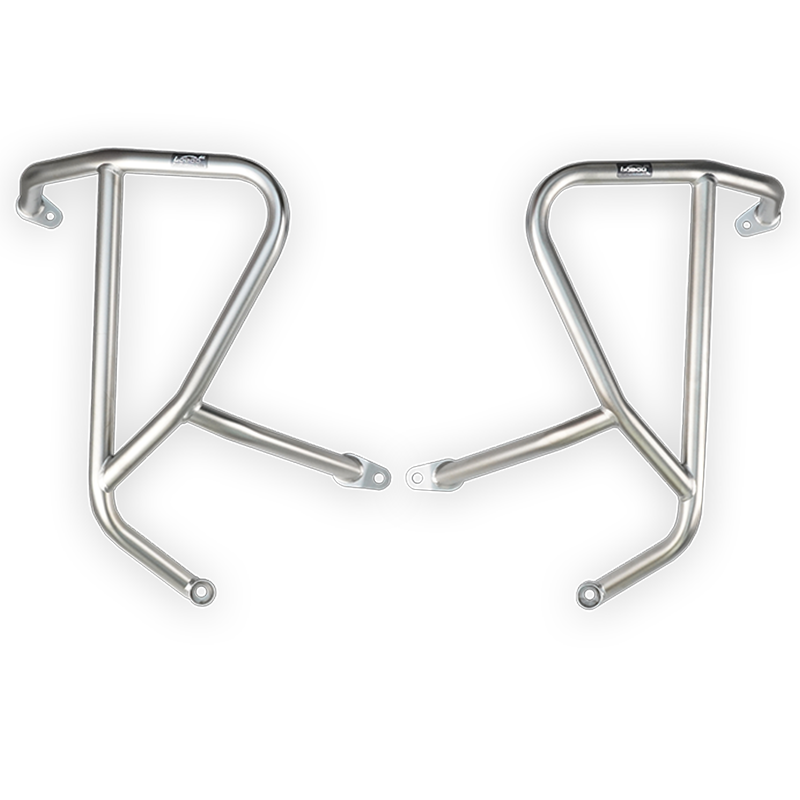

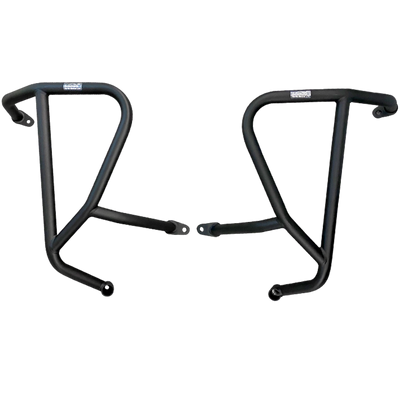

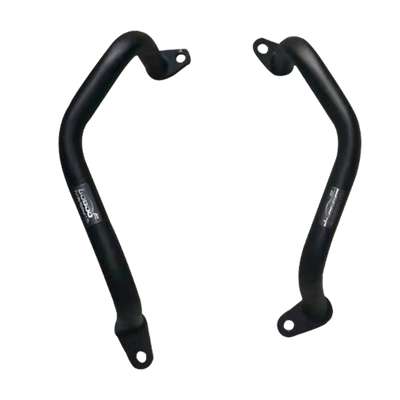

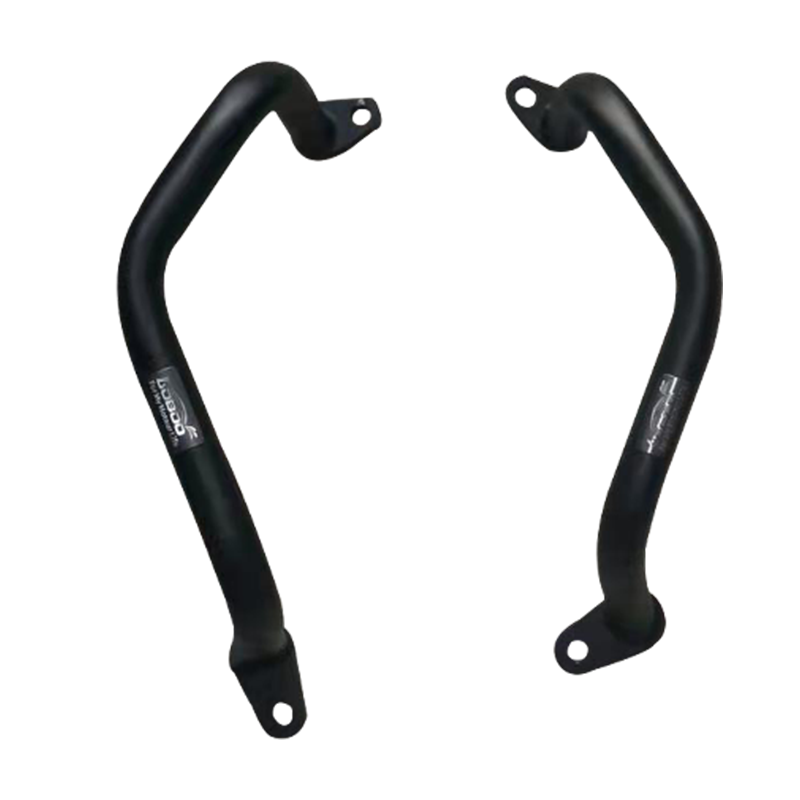

The upper bars run at tank height and protect the fairings and upper sections; the lower bars extend down along the engine side, in front of the crankcase. Together, they enclose the motorcycle’s perimeter on the two planes that make contact with the ground in a fall.

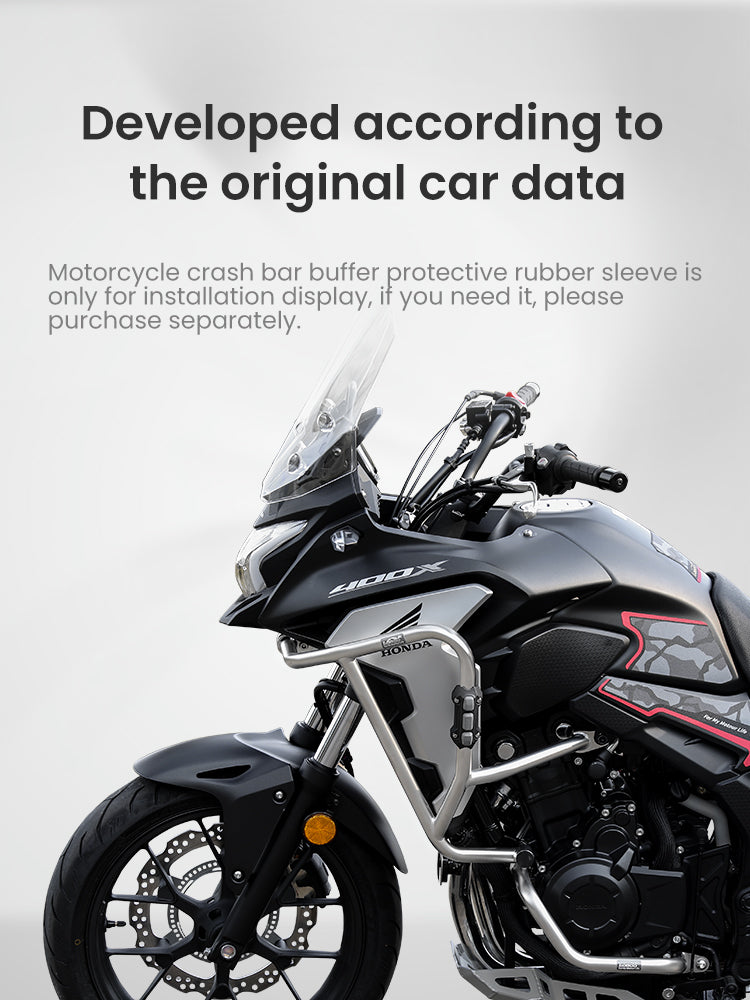

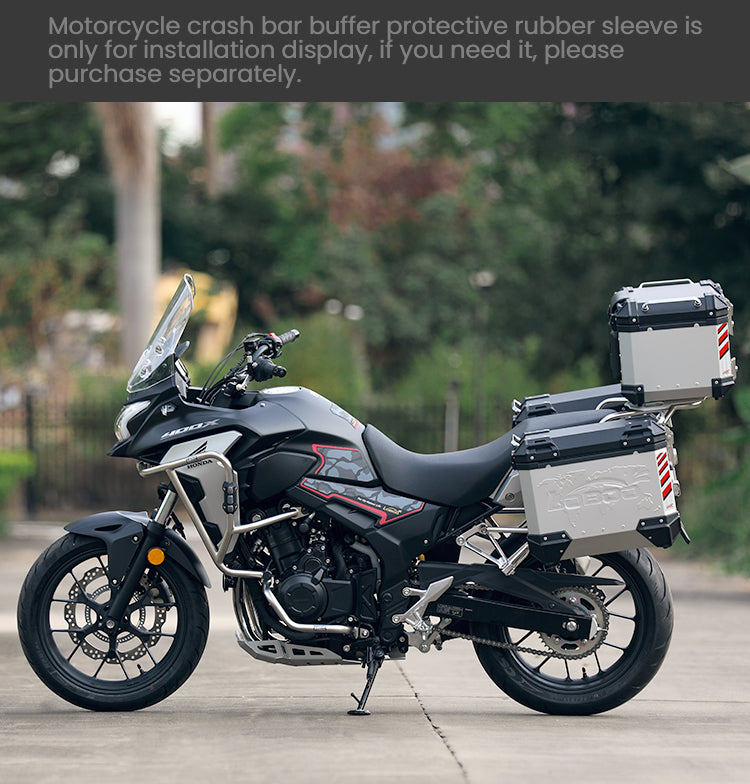

Bumpers are not included
06

Bumpers are not included

In the manufacturer's images, the bars are shown with the rubber bumpers installed: LOBOO specifies that these are for illustrative purposes only and must be purchased separately.

They are worth adding: in a scrape, the bumper gets marked, not the tube, and it can be replaced for just a few euros.

Choose stainless steel if the motorcycle stays outdoors
07

Choose stainless steel if the motorcycle stays outdoors

304 stainless steel, a Ø 25 mm tube with a 2 mm wall. The material is the same beneath and above the surface treatment: where a scuff removes the finish, stainless steel remains—not iron ready to rust.

It matters if you ride the motorcycle year-round, on winter salt or in the rain.

What’s in the box?
08

What’s in the box?

The complete set contains 20 items: four bars, three mounting brackets, three spacers of different sizes, M6, M8, and M10 hardware, washers, one nut, two rubber caps, and threadlocker. The upper-only set contains 16 items, and the lower-only set contains 9.

Some mounting screws are the motorcycle’s original screws and are reused. Rubber bumpers, cases, and accessories visible in the images are not included.

Add inflatable bags to your crash bars
09

Add inflatable bags to your crash bars

The bars you’re about to install do more than just protect: they’re already the ready-made mounting points for LOBOO Wanderer inflatable bags. A pair of 6-liter bags, each waterproof to IPX7, with keyed anti-theft locks and a stated capacity of 300 kg per inflated bag.

They inflate when you set off and deflate when you return: carry what you need without installing frames or leaving permanent bulk along the side of the motorcycle. Make use of the Ø 25 mm tube you already have and go fully equipped.

Discover the inflatable bags →

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code
CHG281SX complete set · CHG281S upper only · CHG281X lower only
Name on the manuals
Upper and Lower Crash Bar · Upper Crash Bar · Lower Crash Bar
Compatibility
Honda CB500X from 2019 · Honda CB400X from 2021

Materials

Material
304 stainless steel
Finish
Silver with sandblasting and electrolysis, or black with electrostatic painting

Capacity and measurements

Tube section
Ø 25 mm with a 2 mm wall thickness
Composition
Complete set of four bars (20 items) · upper two bars only (16 items) · lower two bars only (9 items)

Fastening and assembly

Torque pairs
60 N·m on the M10×1.25 · 40 N·m on the M10×25 · 28 N·m on the M8×40 · 12 N·m on the M6×20, with threadlocker included
Binding sequence
On the complete kit, the lower brackets must be installed before removing the original aluminum spacers, to prevent the engine from lowering.

Protection

Protected areas
Upper bars: tank and upper fairings. Lower bars: engine covers and engine side.

Equipment

Rubber bumpers
Not included: LOBOO shows them in the images for illustrative purposes only and sells them separately

Data not provided by the manufacturer

Weight and dimensions
LOBOO does not declare them in any of the three manuals. We can check them in the warehouse upon request.

Data from official LOBOO documentation.

Manuale d'uso CHG281Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Sul set completo il manuale chiede anche di serrare prima le viti M10×1.25×55 e M10×25, e solo dopo la lunga M10×1.25×168 che attraversa il motore.
  2. Coppie di serraggio: 60 N·m sulle M10×1.25, 40 N·m sulle M10×25, 28 N·m sulla M8×40, 12 N·m sulle M6×20.
  3. Non serrare mano a mano: montare prima tutti i componenti, poi applicare il frenafiletti in dotazione e stringere in sequenza.
  4. La staffa di fissaggio superiore va montata sul lato sinistro, e il distanziale da Ø 21,5 mm con la parte stretta rivolta verso l'interno.
  5. LOBOO raccomanda di ricontrollare periodicamente il serraggio di tutte le viti.
Istruzioni complete e note di sicurezza

Ogni configurazione ha il suo manuale, tutti scaricabili da questa scheda. Il montaggio è reversibile e si appoggia ai punti già presenti sul telaio, riutilizzando alcune viti originali della moto.

Attenzione alla sequenza

Sul set completo LOBOO raccomanda espressamente di rimuovere prima le viti indicate in verde e di installare le staffe di fissaggio destra e sinistra, e solo dopo togliere le viti indicate in blu e i tasselli in alluminio originali nei punti A e B. Serve a evitare che il motore si abbassi mentre si lavora: non è un dettaglio estetico, e va letto prima di iniziare.

  • Sul set completo il manuale chiede anche di serrare prima le viti M10×1.25×55 e M10×25, e solo dopo la lunga M10×1.25×168 che attraversa il motore.
  • Coppie di serraggio: 60 N·m sulle M10×1.25, 40 N·m sulle M10×25, 28 N·m sulla M8×40, 12 N·m sulle M6×20.
  • Non serrare mano a mano: montare prima tutti i componenti, poi applicare il frenafiletti in dotazione e stringere in sequenza.
  • La staffa di fissaggio superiore va montata sul lato sinistro, e il distanziale da Ø 21,5 mm con la parte stretta rivolta verso l'interno.
  • LOBOO raccomanda di ricontrollare periodicamente il serraggio di tutte le viti.

Serve una chiave dinamometrica. I manuali rimandano anche a un video di installazione tramite QR code.

  • Honda CB400X (2021 onwards)
  • Honda CB500X (2019 onwards)

Ideal for travel, adventure use, and light off-roading, where a low-speed fall can damage fairings and the engine.

Per moto Honda

Honda
Come verificare la compatibilità
  • Honda CB400X (2021 in poi)
  • Honda CB500X (2019 in poi)
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which motorcycles is it compatible with?

All three installation manuals and the parameter panel indicate the same two motorcycles: HONDA CB500X (2019–) and HONDA CB400X (2021–), meaning from those years onward with no upper limit. The two Hondas share the same chassis, which is why a single code covers both.

Which configuration should I choose?

The complete set includes four bars and covers both the upper area around the tank and the engine side. The lower bars alone protect the engine casing and engine side, which is where the motorcycle makes first contact in a slow-speed fall. The upper bars alone cover the tank and upper fairings.

If you want to spread out the cost, the most common choice is to start with the lower bars and add the upper ones later.

Can I buy one part first and add the other later?

Yes, they are sold as separate items, and LOBOO provides a dedicated manual for each one. Please note that the complete set has its own parts list, including a long through-bolt that connects the two sides: if you buy the two halves separately, you will receive the hardware specified for each configuration.

If you plan to purchase the complete set, contact us before ordering and we’ll help you determine the most cost-effective option.

Do I need to drill or modify the motorcycle?

No: it attaches to the existing mounting points on the frame, with no cutting, drilling, or welding, and in some places the motorcycle’s original screws are reused. Once the bars are removed, the CB returns exactly to its original condition, which matters when it comes time to resell it.

Is there anything I should know before starting the assembly?

Yes, and it should be read before working on the motorcycle. For the complete LOBOO kit, first remove the screws marked in green and install the right and left mounting brackets, and only then remove the screws marked in blue and the original aluminum spacers: this prevents the engine from dropping while you work.

The manual also specifies tightening the short screws first and the long one that passes through the engine only at the end. If you have any doubts, write to us before starting.

What is included in the package?

It depends on the configuration. The complete set contains 20 items: four bars, three mounting brackets, spacers, M6, M8, and M10 hardware, washers, one nut, two rubber caps, and threadlocker. The upper set alone contains 16 items, while the lower set contains 9.

Some of the mounting screws are the motorcycle’s original screws and are reused. Rubber bumpers, cases, and accessories visible in the images are not included.
