Features

What does it do

Connect the DialDim controller to the original headlight, horn, and turn signal connectors

Replaces the universal included splitter wiring harness with the DialDim

Compatibility

Covered motorcycles

KTM 1290 from 2021, including the Super Adventure R and S

Equipment

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale.

Il DialDim collegato ai connettori originali, senza derivazioni

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description Plug-and-play DialDim wiring harness for KTM 1290 Adventure

Part number DNLWHS22800 — DENALI part number DNL.WHS.22800

Wiring adapter that connects the DialDim controller to KTM 1290 models from 2021 onward, including the Super Adventure R and S, without tapping into any wires: it plugs inline into the original headlight, horn, and turn signal connectors.

It replaces the universal Posi-Tap wiring harness included with the DialDim, which requires finding the correct wire and piercing its insulation. With this adapter, installation is faster, cleaner, and completely reversible.

For use only with the DialDim controller: CANsmart control units are already vehicle-specific and have their own wiring harness.

Why choose it

Il controller DialDim arriva con un cablaggio universale da collegare a derivazione sui fili della moto. Questo adattatore lo sostituisce e si innesta in linea sui connettori originali di faro, clacson e frecce della 1290: installazione più rapida, pulita e reversibile.

Complete technical specification sheet
Technical data
  • Tipo: adattatore di cablaggio per controller DialDim
  • Collegamento: in linea sui connettori originali di faro, clacson e frecce
  • Derivazioni: nessuna, montaggio reversibile
  • Compatibilità: KTM 1290 dal 2021, comprese Super Adventure R e S
  • Non compreso: il controller DialDim

How does it work, in detail?

  • Connect the DialDim to the original connectors without splices.

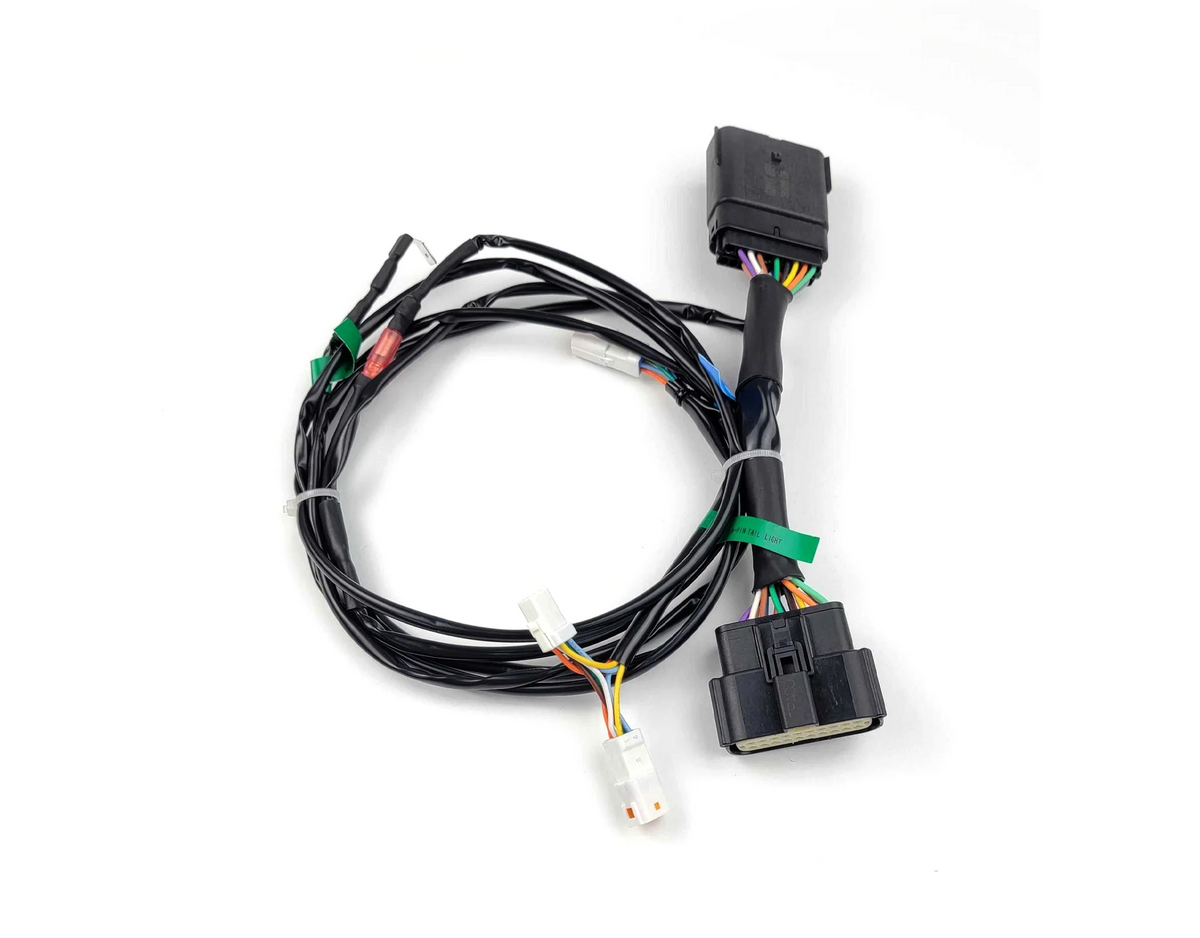

No Posi-Tap, no pierced wires

No Posi-Tap, no pierced wires

The DialDim comes with universal Posi-Tap wiring: you have to find the right wire among dozens, pierce its insulation, and hope you haven't chosen the wrong one. This adapter instead plugs into the original connectors on 2021 and newer KTM 1290 models, including the Super Adventure R and S.

FAQs

For more information, see our FAQ of frequently asked questions.

What exactly is it used for?

Replaces the universal tap-in wiring harness supplied with the DialDim controller. With this adapter, the DialDim connects inline to the motorcycle’s original headlight, horn, and turn signal connectors: no Posi-Taps, no stripped wires, and all the controller’s automatic functions activate without having to hunt for the right wires.

Is it also compatible with a CANsmart controller?

No. This adapter is designed for the DialDim controller. CANsmart control units are already vehicle-specific and come with their own wiring harness: there is no need to add anything.

Didn’t find the answer you were looking for?

Don't hesitate to contact us
