BMW R 1250 GS - ADV Side Cases - Endurrad®BMW R 1250 GS - ADV Side Cases - Endurrad®BMW R 1250 GS - ADV Side Cases - Endurrad®BMW R 1250 GS ADV pannier racks - LOBOO PIKE TRACKER - Endurrad.comBMW R 1250 GS ADV Side Cases - LOBOO PIKE TRACKER - Endurrad.comBMW R 1250 GS ADV Side Cases - LOBOO PIKE TRACKER - Endurrad.com
-10%Consegna in 2-3 giorni lavorativi
83 L Total volume
10 kg Maximum weight per suitcase
Four Covered motorcycles
20 N·m Frame tightening torque

Panoramica

In breve

Telai JP071B e coppia di valigie in alluminio 45+38 L per R 1200 e R 1250 GS

Four covered bikes

R 1200 GS, R 1200 GS Adventure, R 1250 GS and R 1250 GS Adventure.

Complete system

JP071B frames and a pair of panniers in one order.

Geometry designed around the exhaust

45 L on the left and 38 L on the right, to avoid widening the bike.

High-strength aluminum

waterproof, with key locks, in black or silver.

Leggi la descrizione completa

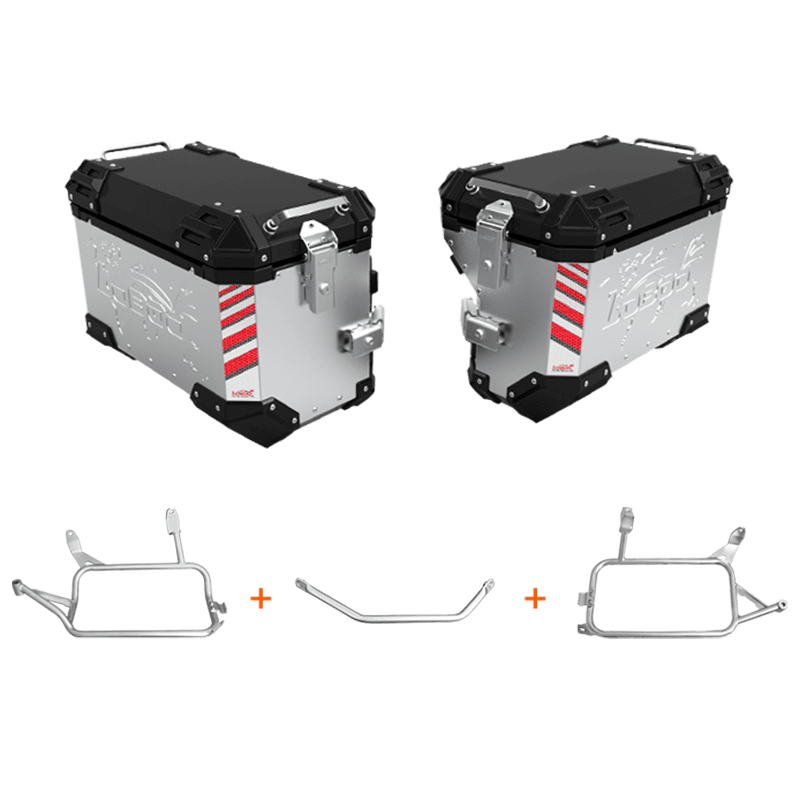

Complete kit for BMW R 1250 GS and Adventure: a pair of JP071B side frames with mounting hardware, plus two PIKE TRACKER aluminum cases measuring 45 and 38 liters, in the finish of your choice. One order, nothing else to match.

One kit for four GS models

The JP071B frame manual lists four motorcycles: R 1200 GS from 2013, R 1200 GS Adventure from 2014, and R 1250 GS and R 1250 GS Adventure from 2019. The box also includes the spacers and screws marked ADV, which are used only on Adventure models: there is no need to order a different code depending on the version. On R 1200 GS models from before 2013, the subframe geometry is different.

Why 45+38 instead of a symmetrical setup

The exhaust outlet runs along the right side of these motorcycles. The 38-liter case is shaped around the exhaust, with a recessed lower wall: it leaves the necessary space and prevents the motorcycle from becoming too wide on that side. On the R 1300 GS, where the geometry has changed, symmetrical configurations are available instead.

How much it holds and how much it can weigh

83 liters in total, 45 on the left and 38 on the right. LOBOO specifies a maximum load of 10 kg per side case: volume is not the only limit to keep in mind when loading.

Construction

  • High-strength aluminum, with lower corners protected by structural plastic bumpers
  • Key lock with a five-lever cylinder, removable and replaceable without changing the case
  • Scratch-resistant inner lining and 3M reflective inserts on the outer side

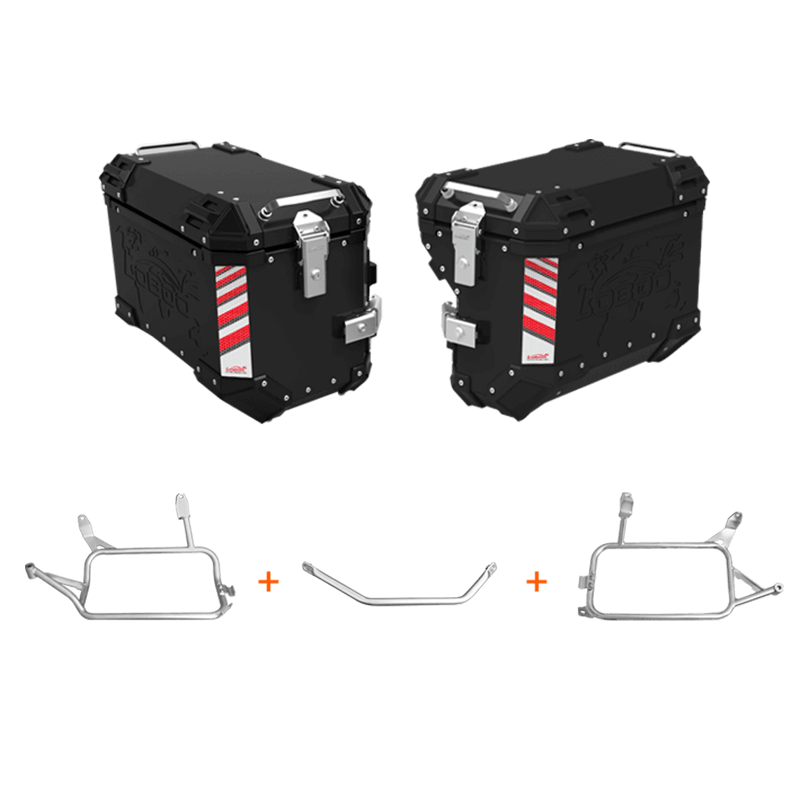

  • Finishes: polished silver or matte black, with the same construction

LOBOO states that the series is water- and dust-resistant, but does not publish an IP rating: we do not list one because it is not data certified by the manufacturer.

Installation

No drilling is required. However, the manual calls for removing some original components on both sides and around the exhaust, with one part to be reinstalled once the work is complete: these are reversible operations, using the supplied hardware and tool. The package contains 12 components, and final tightening must be carried out in sequence to 20 N·m on all M8 screws, after completing the adjustments.

What is not included

The top case and its rear plate are sold separately. Each case has its own sensor light in the lid: the kit includes two, one for each side.

Alternatives for the same frames

The JP071B frames also support the WANDERER semi-rigid cases measuring 40+30 liters, if you prefer a lighter solution: we verified this compatibility ourselves, based on the 18 mm tube requirement that LOBOO specifies for those cases. If you already have the frames, you can purchase only the cases from the PIKE TRACKER series page.

Maintenance

Wash with a water jet held at least one meter away, use a neutral detergent, and dry immediately afterward. Avoid acidic or alkaline products. Note the number stamped on the key: it is needed to make a copy.

Nella confezione

  • ✅ The complete, original, and new LOBOO kit, in manufacturer's packaging.
  • 📦 Included: JP071B pair of side racks, P45L and P38R PIKE TRACKER aluminum panniers, locks with keys, and mounting hardware.
  • ⚠️ Not included: the top case. Top case and rear plate are purchased separately.
  • 🔒 Closed system: LOBOO panniers can only be mounted on LOBOO racks. By purchasing the kit, you already have the correct combination, no adapters needed.
  • 🏍️ The same racks fit four motorcycles: R 1200 GS, R 1200 GS Adventure, R 1250 GS, and R 1250 GS Adventure.
  • ↔️ Asymmetrical configuration, 45 liters on the left and 38 on the right: the narrower right pannier leaves space for the exhaust.
  • 🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
  • 🛡️ 24-month legal warranty for consumers, according to current regulations.
  • 💳 Payment also available in installments with the services available at checkout.
  • 🔧 Respect the indicated torque settings and recheck fastenings after the first few kilometers, especially with loaded panniers.
BLACK or SILVERColors
SteelMaterial
AluminumMaterial

JP071B frames + 45+38L cases – R 1200 and R 1250 GS and Adventure

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

One kit for four GSs
01

One kit for four GSs

The JP071B frames at the heart of this system fit four motorcycles under a single code: the R 1200 GS from 2013, the R 1200 GS Adventure from 2014, and the R 1250 GS and R 1250 GS Adventure from 2019.

The 45+38 configuration is no compromise: the narrower right-hand case leaves room for the exhaust and keeps the motorcycle more compact in difficult passages.

A single frame for four GS bikes
02

A single frame for four GS bikes

The JP071B covers the R 1200 GS from 2013, the R 1200 GS Adventure from 2014, the R 1250 GS, and the R 1250 GS Adventure from 2019: four bikes with a single code.

The package also includes spacers and screws marked ADV, which are used only on Adventure models: there is no need to order a different code depending on the version. If you change bikes within the same family, the structure follows you.

45+38 isn’t a compromise; it’s the exhaust.
03

45+38 isn’t a compromise; it’s the exhaust.

On the right side of the R 1250, the exhaust silencer runs alongside the pannier. The 38-liter pannier leaves the necessary space and prevents the motorcycle from becoming too wide on that side.

On the R 1300 GS, where the geometry has changed, symmetrical configurations are available instead.

Aluminum, key locks, waterproofness
04

Aluminum, key locks, waterproofness

The PIKE TRACKER cases are made of high-strength aluminum alloy, with perimeter seals and keyed locks on each case.

It is the most popular series in the LOBOO range: the same case can be mounted on more than fifteen different motorcycles by changing only the frame.

Frames included—nothing else to search for
05

Frames included—nothing else to search for

The JP071B frames are included with the order and mount onto BMW’s designated mounting points, without drilling. The manual calls for removing some original components on both sides and around the exhaust area, with one part to be restored once the work is complete: these operations are reversible, using the supplied hardware and tool.

If you already have the JP071B frames installed, you can purchase the cases separately from the PIKE TRACKER series page.

Black or silver, and the road remains open
06

Black or silver, and the road remains open

The two finishes make no technical difference: same aluminum, same locks, same sealing. The choice is purely aesthetic.

If you prefer the semi-rigid cases in the future, the same frames support WANDERER 40+30-liter cases: you change the cases, not the structure. It’s a compatibility we verified ourselves, based on the 18 mm tube requirement that LOBOO specifies for those cases.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Capacity

Settings
45+38 L Asymmetrical: the right side leaves room for the exhaust pipe
Total volume
83 L 45 L on the left, 38 L on the right

Kit contents

Side frames
JP071B Included, in steel
Suitcases
P45L + P38R Aluminum PIKE TRACKER, top case not included

Compatibility

Covered motorcycles
Four R 1200 GS and Adventure, R 1250 GS and Adventure
Semi-rigid alternative
BCB4030TBK WANDERER 40+30 L on the same frames

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, please contact us before purchasing.

Manuale d'uso JP071B + P45L + P38RDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Distinta di 12 voci per 26 pezzi: telaio sinistro, telaio destro, traversa inferiore, due staffe, 2 distanziali Ø25×Ø8,5×5 mm, 2 viti M8×20, 2 M8×30, 2 M8×35, 10 rondelle M8, 2 tappi Ø20 e il frenafiletti.
  2. Coppia di serraggio: 20 N·m, uguale su tutte le viti M8.
  3. Attenzione, due voci sono marcate ADV dal produttore e servono solo sulle versioni Adventure: i distanziali Ø25×Ø8,5×5 mm e le viti M8×35. Sulla GS liscia restano nella scatola.
  4. Il telaio copre R 1200 GS dal 2013, R 1200 GS Adventure dal 2014, R 1250 GS e R 1250 GS Adventure dal 2019.
  5. Le valigie si agganciano ai telai a sgancio rapido, senza attrezzi, e si montano solo su telai LOBOO.
Istruzioni complete e note di sicurezza

Il kit comprende i telai laterali JP071B e la coppia di valigie. I telai si montano in sei passaggi: due di smontaggio e quattro di installazione, senza forature.

  • Distinta di 12 voci per 26 pezzi: telaio sinistro, telaio destro, traversa inferiore, due staffe, 2 distanziali Ø25×Ø8,5×5 mm, 2 viti M8×20, 2 M8×30, 2 M8×35, 10 rondelle M8, 2 tappi Ø20 e il frenafiletti.
  • Coppia di serraggio: 20 N·m, uguale su tutte le viti M8.
  • Attenzione, due voci sono marcate ADV dal produttore e servono solo sulle versioni Adventure: i distanziali Ø25×Ø8,5×5 mm e le viti M8×35. Sulla GS liscia restano nella scatola.
  • Il telaio copre R 1200 GS dal 2013, R 1200 GS Adventure dal 2014, R 1250 GS e R 1250 GS Adventure dal 2019.
  • Le valigie si agganciano ai telai a sgancio rapido, senza attrezzi, e si montano solo su telai LOBOO.

Il produttore chiede di non serrare a fondo durante il montaggio: si presentano i pezzi, si completano le regolazioni e solo alla fine si dà la coppia in sequenza, con una chiave dinamometrica.

Assembly and notes

  • The kit includes side frames and a pair of panniers: the top case and its plate are not included.
  • Respect the maximum load per side frame indicated by BMW in the motorcycle's manual.
  • Recheck the fasteners after the first 100-200 km and periodically with off-road use.
  • The load must not cover the license plate and rear lights or extend beyond the limits of the Highway Code.

Compatible motorcycles according to LOBOO official documentation:

  • BMW R 1200 GS and R 1200 GS Adventure
  • BMW R 1250 GS and R 1250 GS Adventure

Why 45+38 and not symmetrical:on these motorcycles, the exhaust takes up space on the right side. On the R 1300 GS, with a different geometry, symmetrical configurations are available.

If you prefer semi-rigid panniers, the same frames accept the 40+30 litre WANDERER BCB4030TBK.

Per moto Bmw

BMW
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Why is the configuration here 45+38 rather than symmetrical?

Because the exhaust takes up space on the right side of the R 1200 and R 1250 GS, the 38-liter pannier prevents the motorcycle from becoming too wide and reduces the risk of contact with the exhaust outlet. On the R 1300 GS, where the geometry is different, symmetrical configurations are available.

Does it work on both the GS and the GS Adventure?

Yes. The JP071B frames included in this kit are compatible with the R 1200 GS, R 1200 GS Adventure, R 1250 GS, and R 1250 GS Adventure: one part number for four motorcycles.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return the product if it isn’t suitable?

Yes, you are entitled to return the item within 14 days of delivery under online purchase regulations. The product must be intact and in its original packaging: contact us and we’ll guide you through the process.

How does shipping work?

Tracked shipping throughout Italy: the product is carefully inspected and prepared before leaving our warehouse. The mounting accessories included in the original package are included.

Can I pay in installments?

Yes: at checkout, installment payment services are available directly among the payment methods, with no additional paperwork.

Avvisami quando disponibile

Ti scriviamo appena BMW R 1250 GS - ADV side cases (Silver/Black) torna disponibile.
