BMW F 850 - 900 GS ADV top case plate - Endurrad.com
-10%Consegna in 2-3 giorni lavorativi
JP032W Code
F 850 and F 900 GS ADV Motorcycle
P45T Code
Single plate Content

Panoramica

In breve

Piastra di attacco per bauletto sulle F GS Adventure: F 850 GS ADV dal 2019 e F 900 GS ADV dal 2025. Si fissa con due morsetti sui tubi da 18 mm del portapacchi originale, piu due staffe laterali dedicate. Bauletto non incluso.

Adventure Geometry

sized for the rear subframe of the F 850 GS ADV and F 900 GS ADV from 2025 onwards, which differs from that of the standard GS models.

Plug-and-play installation

OEM points, no drilling or adapter brackets.

Steel construction

holds the top case stable even when fully loaded and on uneven surfaces.

Pre-drilled for PIKE TRACKER P45T

black or silver finish.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

This is the base that allows you to mount a top box on the rear luggage rack of the F GS Adventure models, which have different geometry from the standard GS models and require a dedicated part number.

Check the version and year

The manual lists the BMW F 850 GS Adventure from 2019 and the BMW F 900 GS Adventure from 2025. For the standard versions, F 750 GS and F 850 GS, you need the JP031W plate, which has its own page: the two are not interchangeable.

How it is secured

The system differs from that of the standard sibling: here, the plate rests on two clamps that tighten around the 18 mm tubes of the original luggage rack, plus two dedicated side brackets, one right and one left. The plate is secured on top with two M6×16 screws and four M6×40 screws.

The manufacturer specifies not to fully tighten the screws during assembly: first complete all adjustments, then apply the torque in sequence, 12 N·m to all M6 screws. The assembly wrench is included, and the manual is available in eight languages, including Italian.

The manual calls for a removal step in the original luggage-rack area before installation, but does not identify the parts involved: if you want to know exactly what needs to be removed from your motorcycle, write to us and we will send you the illustrated procedure.

Which top boxes can you mount

The manual assigns the plate to the PIKE TRACKER, TIBET and CONQUEROR series. The top box is not included: this page concerns the plate only. LOBOO aluminum top boxes can only be mounted on LOBOO plates and luggage racks, not on mounts from other brands.

The rear load has a limit

LOBOO does not specify its own maximum load for the plate: the limit indicated by BMW in the owner's manual for the rear subframe applies, and includes the plate, top box and contents. Recheck the fasteners after the first 100–200 km and make sure the top box does not cover the license plate or rear lights.

The plate material is not specified by any LOBOO source, including the manual.

Nella confezione

  • ✅ Original, new LOBOO top case plate, in manufacturer's packaging.
  • 📦 Included: the plate with screws and mounting hardware.
  • ⚠️ Not included: the top case. This page is for the support plate only. The top case is purchased separately.
  • 🔒 Closed system: LOBOO aluminum top cases can only be mounted on LOBOO plates and racks. They are not compatible with supports from other brands.
  • 🏍️ Plate specific for the model indicated in the title: it mounts on the original fixing points, without adapters.
  • 🚚 Tracked shipping throughout Italy, with product inspection before departure.
  • 🛡️ 24-month legal warranty for the consumer, according to current regulations.
  • 💳 Payment also in installments with the services available at checkout.
  • 🔧 Check the maximum load allowed on the rear frame of your motorcycle: this includes the plate, top case, and contents.

JP032W - F 850 ADV from 2019 and F 900 ADV from 2025 - clamps for 18 mm tube

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

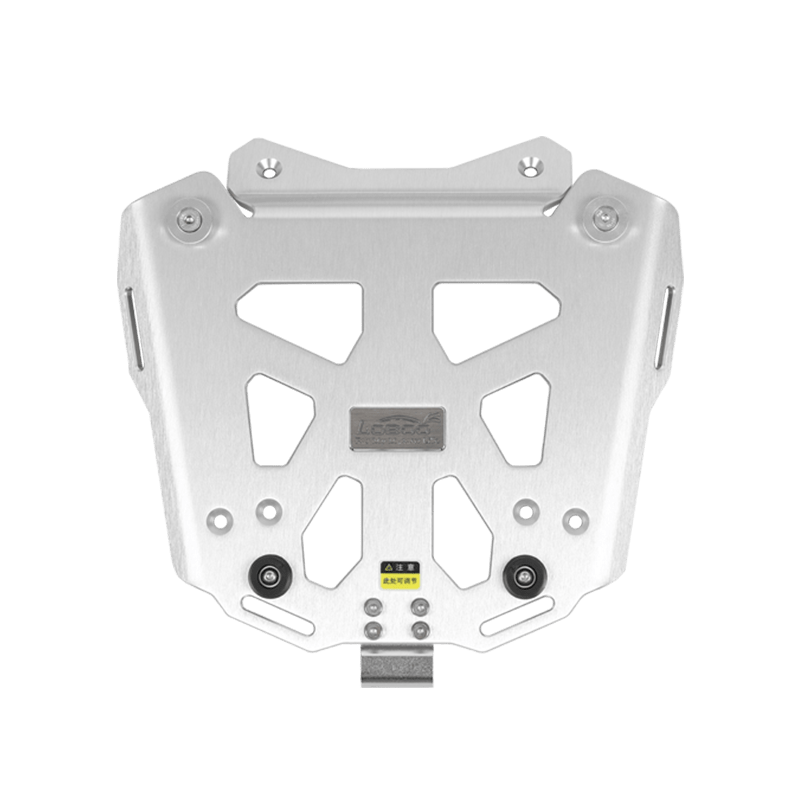

Geometry designed for Adventure versions
01

Geometry designed for Adventure versions

The luggage rack on the F 850 GS ADV and F 900 GS ADV has different mounting points and dimensions from the standard GS models. The JP032W is designed for this geometry: using the wrong model’s plate means misaligned holes and a mounting surface that does not sit flush.

It is secured with clamps onto the original luggage rack’s 18 mm tubes, using two dedicated side brackets. The manual requires preliminary removal in the luggage rack area.

F 850 ADV from 2019, F 900 ADV from 2025
02

F 850 ADV from 2019, F 900 ADV from 2025

This is the JP032W, and the manual specifies it for the F 850 GS Adventure from 2019 and the F 900 GS Adventure from 2025. The Adventure models have a luggage rack with mounting points that differ from those on the standard GS models, so a plate designed for the regular F 850 GS will not align here.

If your motorcycle is not an Adventure, the correct plate is the JP031W, which you can find on a separate page.

If in doubt, write to us with the model, year, and trim level before buying: we also reply on WhatsApp.

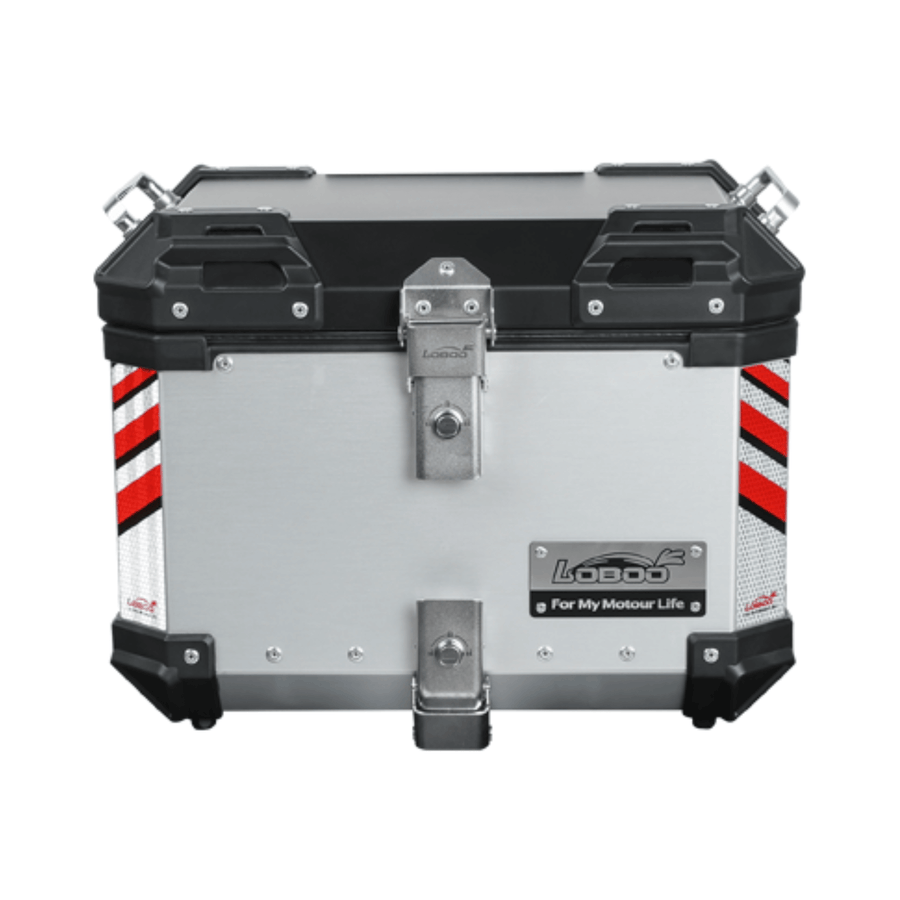

What do you mount on it: compatible top cases
03

What do you mount on it: compatible top cases

The plate is the interface between the motorcycle and the top case: on its own, it is of no use, but without it, no LOBOO top case can be attached. The 45-liter PIKE TRACKER P45T fits onto this plate, available in matte black or glossy silver.

The top case is purchased separately, leaving you free to choose later: install the plate today and decide on the capacity once you know how much luggage you really carry.

The weight above the tail is the one you feel the most.
04

The weight above the tail is the one you feel the most.

A loaded top case sits much higher and farther back than the side cases. Every kilogram up there lightens the front end and amplifies the rear's movements: that's why a motorcycle loaded evenly on the sides remains neutral, while with ten kilograms in the top case it becomes nervous on the highway.

This isn't an argument against a top case, but for loading it properly: put light, bulky items inside, such as a spare helmet, rain gear, and a change of clothes. Keep the tools and actual weight low down in the side cases.

Always observe the maximum load BMW specifies for the rear subframe: it includes the mounting plate, top case, and contents.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code
JP032W Official name Top Case Rack
Served top case series
PIKE TRACKER, TIBET and CONQUEROR As stated in the user manual

Compatibility

BMW F 850 GS Adventure
Since 2019 Year stated in the manual
BMW F 900 GS Adventure
Since 2025 Year stated in the manual
Not compatible
Standard GS versions F 750 GS and F 850 GS require code JP031W

Assembly

Fastening system
Two clamps for an 18 mm tube plus two side brackets The brackets are specific, one right and one left
Tube diameter
18 mm Original roof rack bar on which the clamps operate
Tightening torque
12 N.m on all M6 screws To be administered in sequence after completing the adjustments
Maximum load
The one specified by BMW for the rear subframe The limit includes the plate, top case, and contents. LOBOO does not specify its own value.

Equipment

Package contents
6 items: plate, 2 clamps, right and left brackets, 2 M6x16 screws, 4 M6x40 screws, 1 wrench Top case not included
Tool included
Assembly key included

Materials

Material
Not stated by the manufacturer The manual and price list do not specify the material of the plate.
Weight
Not stated by the manufacturer

Dati dal manuale d'uso LOBOO JP032W. Materiale e peso non sono dichiarati da nessuna fonte.

Manuale d'uso della piastra top case LOBOO per BMW F 850 e F 900 GS AdventureDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Il manuale prevede una rimozione nella zona del portapacchi originale prima del montaggio. I pezzi interessati non sono nominati: se hai dubbi, scrivici e ti mandiamo la sequenza illustrata.
  2. Stringi i due morsetti sui tubi da 18 mm del portapacchi e posiziona le due staffe laterali, rispettando destra e sinistra.
  3. Appoggia la piastra e fissala con le due viti M6x16 e le quattro M6x40.
  4. Non serrare a fondo subito: completa prima tutte le regolazioni, poi dai la coppia di 12 N.m in sequenza su tutte le viti M6.
Istruzioni complete e note di sicurezza

Nella confezione: la piastra, due morsetti per tubo da 18 mm, la staffa destra e la sinistra, due viti M6x16, quattro viti M6x40 e la chiave di montaggio.

  • Il manuale prevede una rimozione nella zona del portapacchi originale prima del montaggio. I pezzi interessati non sono nominati: se hai dubbi, scrivici e ti mandiamo la sequenza illustrata.
  • Stringi i due morsetti sui tubi da 18 mm del portapacchi e posiziona le due staffe laterali, rispettando destra e sinistra.
  • Appoggia la piastra e fissala con le due viti M6x16 e le quattro M6x40.
  • Non serrare a fondo subito: completa prima tutte le regolazioni, poi dai la coppia di 12 N.m in sequenza su tutte le viti M6.

Il produttore raccomanda di leggere il manuale e guardare il video prima di iniziare, di ricontrollare periodicamente il serraggio di tutte le viti e di rimontare secondo le indicazioni BMW ogni componente originale rimosso.

Assembly and Notes

  • Fixing to the OEM points of the rear subframe, without drilling or permanent modifications.
  • Respect the maximum load on the rear subframe indicated by BMW in the motorcycle's owner's manual.
  • Recheck the tightening after the first 100-200 km.
  • Verify make, model, year, and version before purchasing.

You need this plate if you have an F 850 GS Adventure or an F 900 GS Adventure from 2025 onwards and want to mount a LOBOO top case.

Please note the version:For the F 750 GS, F 850 GS, and F 800 GS standard, you need the JP031W plate, on a separate page.

The top case is not included: the plate is the base, the top case must be purchased separately.

Per moto Bmw

BMW
Come verificare la compatibilità
  • BMW F 850 GS Adventure dal 2019
  • BMW F 900 GS Adventure dal 2025
  • Richiede il portapacchi originale con tubo da 18 mm
  • Non compatibile con le GS standard, che richiedono il codice JP031W
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

What’s the difference compared with the plate for the F 750 and F 850 GS?

Replace the rear luggage rack. The JP032W is designed for the Adventure versions, the F 850 GS ADV from 2019 onward, and the F 900 GS ADV from 2025 onward, and is secured with two clamps on the 18 mm tubes plus two dedicated side brackets.

The JP031W, for the standard GS models, instead uses the subframe mounting points and requires no removal. The two mounting systems are different, not just the dimensions.

Which LOBOO top cases can I mount?

The manual lists the plate for the PIKE TRACKER, TIBET, and CONQUEROR series, each available in black or silver. The top case is not included and must be purchased separately.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return the product if it isn’t suitable?

Yes, you are entitled to return the item within 14 days of delivery under online purchase regulations. The product must be intact and in its original packaging: contact us and we’ll guide you through the process.

How does shipping work?

Tracked shipping throughout Italy: the product is carefully inspected and prepared before leaving our warehouse. The mounting accessories included in the original package are included.

Can I pay in installments?

Yes: at checkout, installment payment services are available directly among the payment methods, with no additional paperwork.
