BMW C 400 GT top case plate - Endurrad.com
-10%Consegna in 2-3 giorni lavorativi
Original BMW Floating Support
JPTC092W Code
C 400 GT Motorcycle
JPT091W2 Without Floating Support

Panoramica

In breve

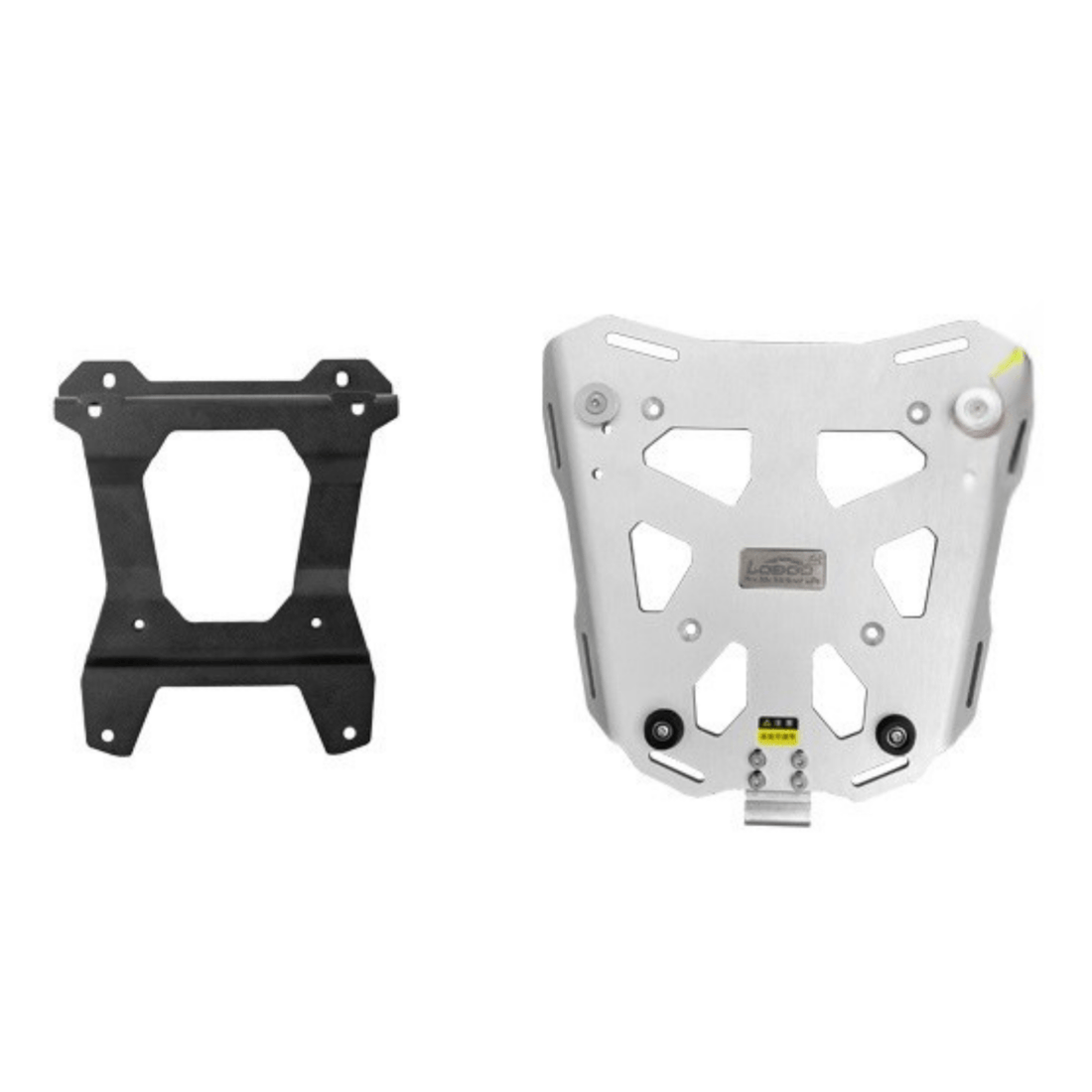

Piastra di attacco per bauletto sulla BMW C 400 GT dal 2024. Si monta sul codone con una staffa intermedia dedicata, dopo aver rimosso sei viti originali. Staffa, distanziali, viteria e chiave inclusi; bauletto non incluso.

Use what you already have

it attaches to the original BMW Floating support without dismantling or replacing it.

Access to the LOBOO range

opens compatibility with six PIKE TRACKER and TIBET top case codes.

No adapter bracket

direct attachment, without drilling or modifications.

Faster solution

if the Floating is already installed, there is nothing to remove from the tail.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

This is the plate that allows you to mount a top case on the rear of the C 400 GT from 2024 onward. The manual assigns the code to that model year only: the code is different for earlier C 400 GT models and for the C 400 X.

How to install it

Installation takes four steps. Remove six original bolts from the tail section, position the four spacers, install the intermediate bracket with the M6×25 bolts, and finally install the plate with the M6×16 bolts. Fully reversible, with no drilling required.

One detail the manual highlights with a dedicated illustration: the spacers are not symmetrical and must be oriented correctly. It is the kind of mistake you only notice when the plate does not sit properly.

The torque is 12 N·m for all M6 bolts, applied in sequence and only after completing the adjustments. The wrench is included, and the manual is available in eight languages, including Italian.

Which top cases fit

The manual lists the PIKE TRACKER, TIBET and CONQUEROR series for this plate. The top case is not included: this page covers the plate only, and LOBOO aluminum top cases fit only LOBOO plates and luggage racks.

If this is not the right one

For the C 400 X and for C 400 GT models from 2018 onward, you need the JPT091W2 plate, which has its own page. If you are unsure which one you need, send us a photo of the motorcycle’s rear area and we will confirm the code before purchase.

The rear load has a limit

LOBOO does not specify a maximum load for the plate itself: the limit stated by BMW in the owner’s manual applies, and includes the plate, top case and contents. Recheck the fasteners after the first 100–200 km and make sure the top case does not obscure the license plate or rear lights.

The plate material is not specified by any LOBOO source, including the manual.

Nella confezione

  • ✅ The original, new LOBOO top case plate, in manufacturer's packaging.
  • 📦 Included: the plate with mounting screws and small parts.
  • ⚠️ Not included: the top case. This page is for the support plate only. The top case is purchased separately.
  • 🔒 Closed system: LOBOO aluminum top cases are mounted exclusively on LOBOO plates and racks. They are not compatible with mounts from other brands.
  • 🏍️ This version requires the original BMW Floating support already present on the motorcycle: please check this before ordering.
  • 🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
  • 🛡️ 24-month legal warranty for consumers, according to current regulations.
  • 💳 Payment also available in installments with services at checkout.
  • 🔧 Check the maximum load allowed on your motorcycle's rear frame: this includes the plate, top case, and contents.

JPTC092W - only C 400 GT from 2024 - intermediate bracket included

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

Dedicated to the latest C 400 GT series
01

Dedicated to the latest C 400 GT series

The manual lists this part as being exclusively for the 2024 C 400 GT, which has a different tail section from previous model years. Installation involves removing six original screws from the tail section, then fitting the intermediate bracket and the plate on top.

One detail the manual highlights with a dedicated illustration: the four spacers are not symmetrical and must be oriented correctly.

Two paths for the C 400: which one is yours?
02

Two paths for the C 400: which one is yours?

There are two different LOBOO plates for the C 400, and the choice depends on the motorcycle’s year.

This is the JPTC092W, which the manual lists for the C 400 GT from 2024 onward only. If you have an earlier C 400 GT or a C 400 X, you need the JPT091W2, on a separate page. If in doubt, send us a photo of the rear area and we will confirm the code before purchase..

Se hai una C 400 GT precedente, o una C 400 X, ti serve la JPT091W2, in pagina separata. Nel dubbio mandaci una foto della zona posteriore e ti confermiamo il codice prima dell'acquisto.

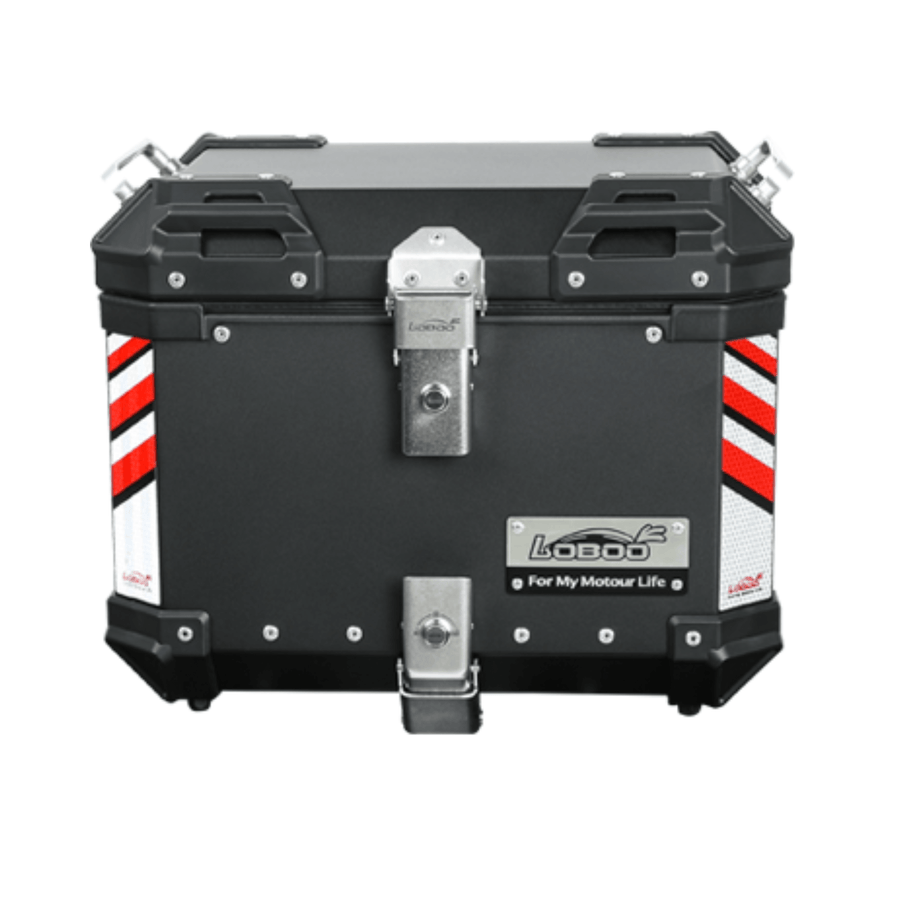

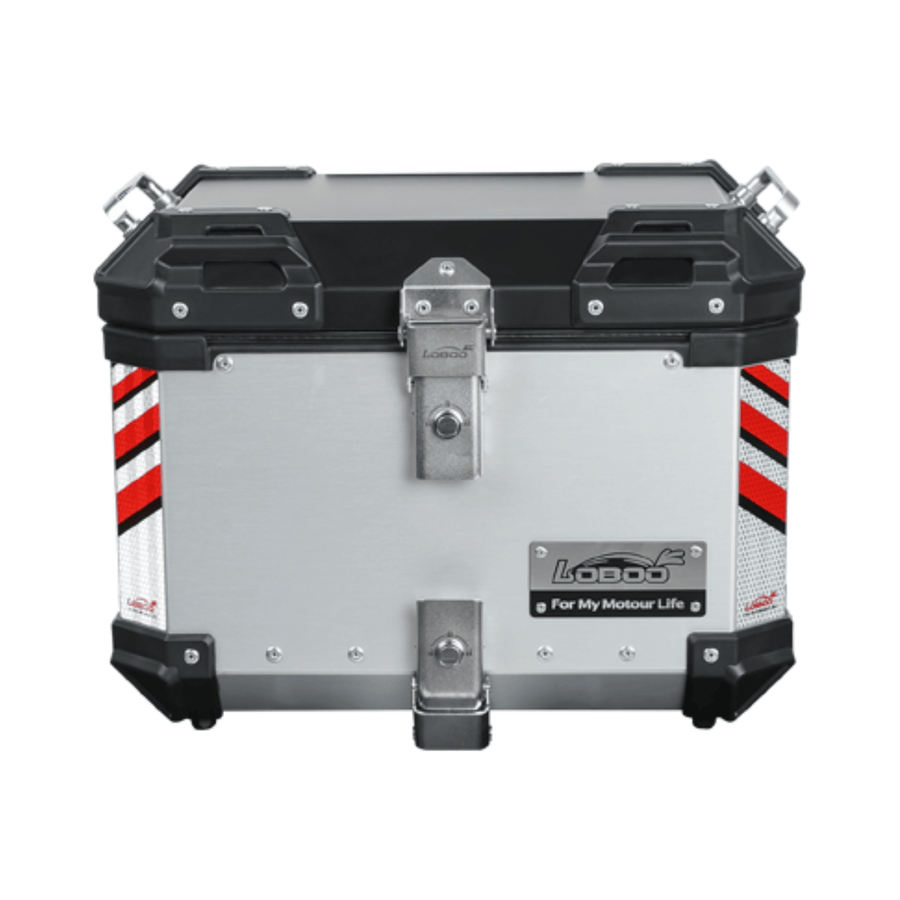

What do you mount on it: compatible top cases
03

What do you mount on it: compatible top cases

The plate is the interface between the motorcycle and the top case: on its own, it is of no use, but without it, no LOBOO top case can be attached. The 45-liter PIKE TRACKER P45T fits onto this plate, available in matte black or glossy silver.

The top case is purchased separately, leaving you free to choose later: install the plate today and decide on the capacity once you know how much luggage you really carry.

The weight above the tail is the one you feel the most.
04

The weight above the tail is the one you feel the most.

A loaded top case sits much higher and farther back than the side cases. Every kilogram up there lightens the front end and amplifies the rear's movements: that's why a motorcycle loaded evenly on the sides remains neutral, while with ten kilograms in the top case it becomes nervous on the highway.

This isn't an argument against a top case, but for loading it properly: put light, bulky items inside, such as a spare helmet, rain gear, and a change of clothes. Keep the tools and actual weight low down in the side cases.

Always observe the maximum load BMW specifies for the rear subframe: it includes the mounting plate, top case, and contents.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code
JPTC092W Official name Top Case Rack
Served top case series
PIKE TRACKER, TIBET and CONQUEROR As stated in the user manual

Compatibility

BMW C 400 GT
Since 2024 Year stated in the manual. For earlier model years, another code is required.
Not compatible
BMW C 400 X For the C 400 X, code JPT091W2 is required.

Assembly

Parts to remove
Six original screws from the tail section Reversible operation, specified in the manual as the first step
Structure
Two components, plate and intermediate bracket The bracket acts as an adapter between the tail section and the plate.
Back of the spacers
The four spacers must be oriented correctly The manual explicitly points this out with a dedicated illustration: they are not symmetrical
Tightening torque
12 N.m on all M6 screws To be administered in sequence after completing the adjustments
Maximum load
The one specified by BMW for the rear luggage rack The limit includes the plate, top case, and contents. LOBOO does not specify its own value.

Equipment

Package contents
8 items: plate, bracket, 4 spacers, 4 M6x16 screws, 4 M6x25 screws, 2 M6 nuts, 6 M6 washers, 1 wrench Top case not included
Spacers
4 bushings, 9.4 mm long, with an outer diameter of 16 mm and a 6.1 mm bore
Tool included
Assembly key included

Materials

Material
Not stated by the manufacturer The manual and price list do not specify the material of the plate.
Weight
Not stated by the manufacturer

Dati dal manuale d'uso LOBOO JPTC092W. Materiale e peso non sono dichiarati da nessuna fonte.

Manuale d'uso della piastra top case LOBOO per BMW C 400 GT dal 2024Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Rimuovi le sei viti originali dalla zona del codone. L'operazione e reversibile.
  2. Posiziona i quattro distanziali rispettando il verso: il manuale lo segnala con un disegno dedicato perche non sono simmetrici.
  3. Monta la staffa intermedia con le viti M6x25 e le rondelle.
  4. Fissa la piastra con le viti M6x16, i dadi e le rondelle rimanenti.
  5. Non serrare a fondo subito: completa prima tutte le regolazioni, poi dai la coppia di 12 N.m in sequenza.
Istruzioni complete e note di sicurezza

Nella confezione: la piastra, la staffa intermedia, quattro distanziali da 9,4 mm, quattro viti M6x16, quattro M6x25, due dadi, sei rondelle e la chiave di montaggio.

  • Rimuovi le sei viti originali dalla zona del codone. L'operazione e reversibile.
  • Posiziona i quattro distanziali rispettando il verso: il manuale lo segnala con un disegno dedicato perche non sono simmetrici.
  • Monta la staffa intermedia con le viti M6x25 e le rondelle.
  • Fissa la piastra con le viti M6x16, i dadi e le rondelle rimanenti.
  • Non serrare a fondo subito: completa prima tutte le regolazioni, poi dai la coppia di 12 N.m in sequenza.

Il produttore raccomanda di leggere il manuale e guardare il video prima di iniziare, di ricontrollare periodicamente il serraggio di tutte le viti e di rimontare secondo le indicazioni BMW ogni componente originale rimosso.

Installation and notes

  • Mandatory requirement: Original BMW Floating support already present on the motorcycle. The plate cannot be mounted on bare frame points.
  • Attaches without drilling or permanent modifications.
  • Complies with the maximum load indicated by BMW for the rear rack: the limit includes the plate and loaded top case.
  • Top case not included.

Before ordering, check the tail section of your motorcycle.

  • You already have the original BMW Floating support: this is the correct plate.
  • The tail section is bare, without a support: you need plate JPT091W2, which mounts directly to the subframe points.
  • You have a C 400 X: this plate is not compatible, you need JPT091W2.

If in doubt, send us a photo of the rear section: we will confirm the correct code before purchase.

Per moto Bmw

BMW
Come verificare la compatibilità
  • BMW C 400 GT dal 2024
  • Non compatibile con la C 400 X
  • Non compatibile con le C 400 GT precedenti al 2024, che richiedono il codice JPT091W2
  • Bauletti delle serie PIKE TRACKER, TIBET e CONQUEROR
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

How do I know if this plate fits my C 400 GT?

It matters which year. The manual assigns this code only to the C 400 GT from 2024 onward, which has a different rear end from previous model years. If your C 400 GT is older than 2024, or if you have a C 400 X, you need the JPT091W2, on a separate page. If in doubt, send us a photo of the rear area and we will confirm the correct code before purchase.

Which of the two C 400 plates do I need?

The distinguishing factor is the model year. The JPTC092W, meaning this one, is listed in the manual only for the C 400 GT from 2024 onward. The JPT091W2, on the other hand, covers the C 400 X and C 400 GT from 2018 onward, and it is also the only one of the two that fits the X.

The installation also differs: this one requires removing six original bolts from the tail section and uses an intermediate bracket, while the other mounts to the subframe mounting points without removing anything.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return the product if it isn’t suitable?

Yes, you are entitled to return the item within 14 days of delivery under online purchase regulations. The product must be intact and in its original packaging: contact us and we’ll guide you through the process.

How does shipping work?

Tracked shipping throughout Italy: the product is carefully inspected and prepared before leaving our warehouse. The mounting accessories included in the original package are included.

Can I pay in installments?

Yes: at checkout, installment payment services are available directly among the payment methods, with no additional paperwork.
