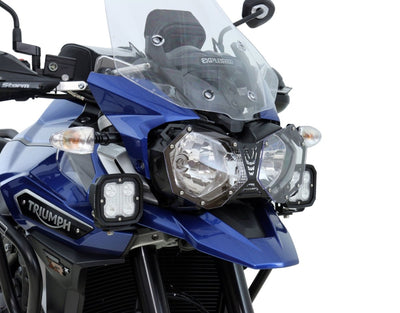

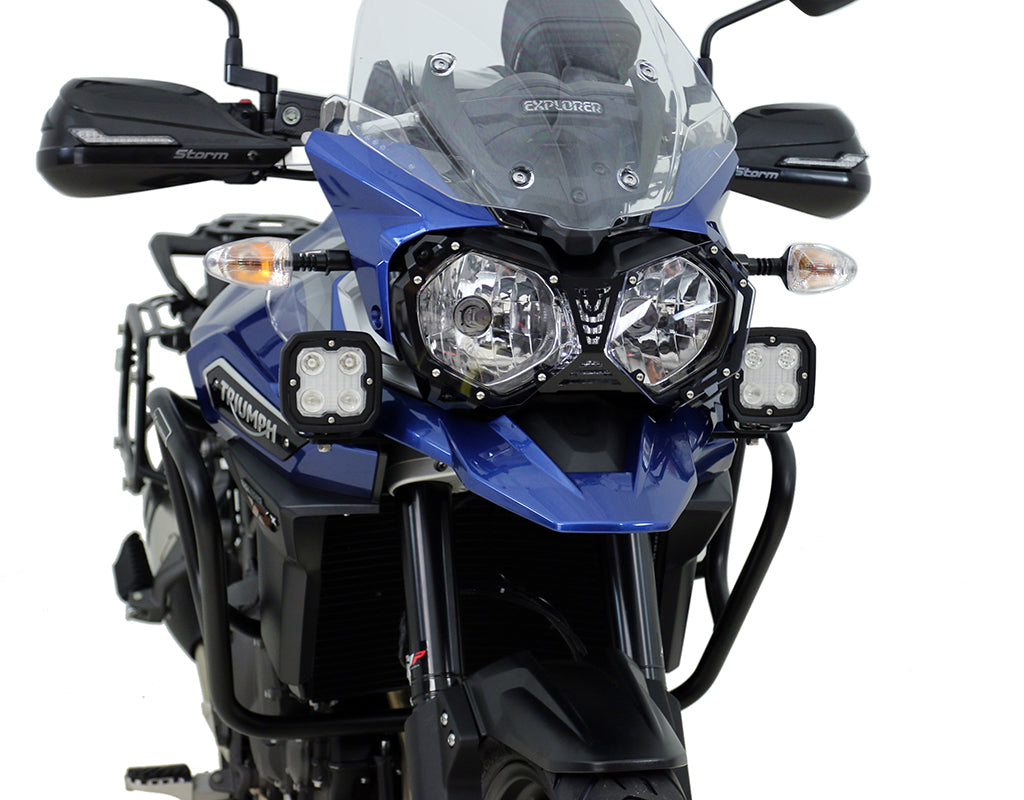

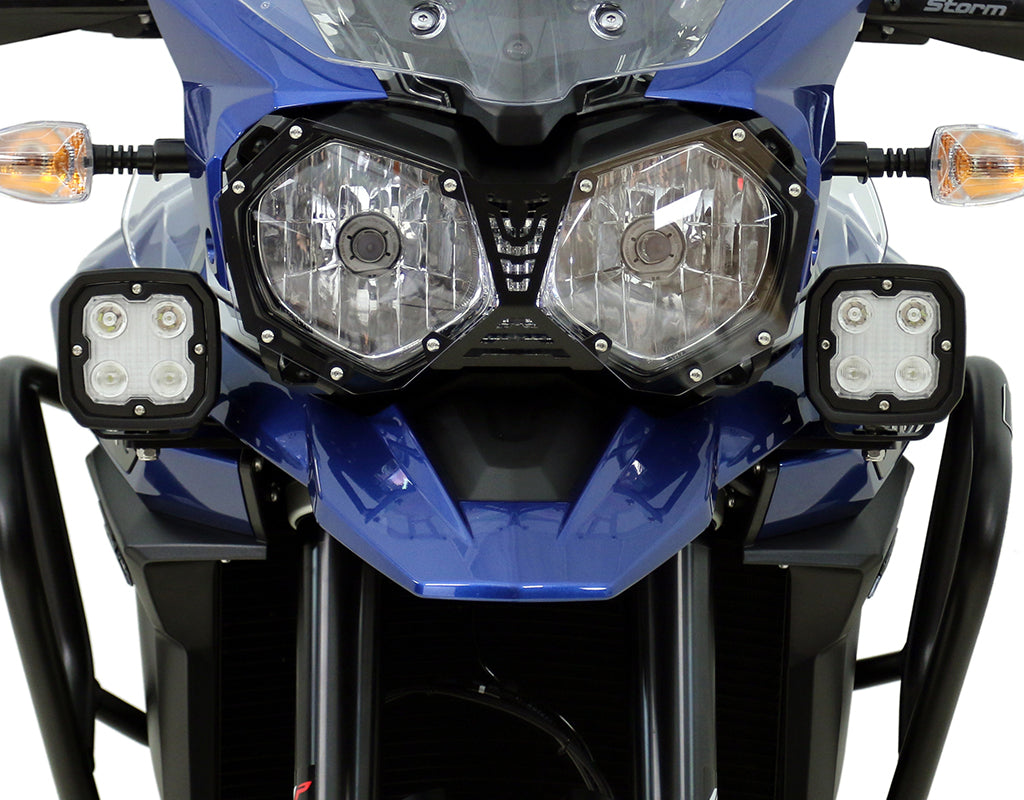

Supporti faretti DENALI LAH1110500 per Triumph Tiger Explorer 1200 dal 2016Supporti faretti DENALI montati sulla Triumph Tiger Explorer 1200Supporti faretti DENALI per Triumph Tiger Explorer 1200, dettaglio del fissaggioSupporto faretti DENALI per Triumph Tiger Explorer XCaSupporto faretti DENALI montato sulla Tiger Explorer XCaDettaglio del supporto faretti DENALI sulla Tiger Explorer XCa
Steel powder-coated Material
M8 standard DENALI Mounting hole
Serial points no punctures Assembly

Panoramica

In breve

Faretti nella posizione giusta, senza forare niente

Supporto per faretti disegnato sulla Triumph Tiger Explorer XCa, XCx, XR, XRt e XRx dal 2016 al 2021: si fissa a punti di ancoraggio già presenti sulla moto, senza forare né adattare niente.

Dal produttore DENALI

DENALI Electronics progetta illuminazione e sicurezza attiva per moto: faretti LED, moduli faro, clacson SoundBomb, indicatori e luci freno ausiliarie, e le centraline che li integrano con l'elettronica della moto.

Codice Endurrad LAH1110500 — codice DENALI LAH.11.10500.

Leggi la descrizione completa

Code LAH1110500 — DENALI code LAH.11.10500

Dedicated mount that allows you to install any DENALI auxiliary light in the optimal position on the Triumph Tiger Explorer XCa, XCx, XR, XRt, and XRx from 2016 to 2021. Powder-coated steel brackets with an M8 mounting hole and all the necessary hardware.

One mount for all five Explorer versions from those years, from the road-oriented XR models to the more off-road-focused XC models.

It attaches to the mounting points provided by the manufacturer, without drilling or modifying anything: installation is reversible.

Nella confezione

  • Le staffe in acciaio verniciato a polvere, con foro M8, per Triumph Tiger Explorer XCa, XCx, XR, XRt e XRx 2016-2021.
  • Tutta la viteria necessaria il fissaggio usa i punti già previsti dal costruttore.
  • Faretti non compresi il supporto accetta tutta la gamma DENALI.

LAH1110500 · spotlight bracket · Triumph Tiger Explorer XCa, XCx, XR, XRt and XRx 2016-2021

How does it work, in detail?

Spotlights in the right position, without drilling anything.

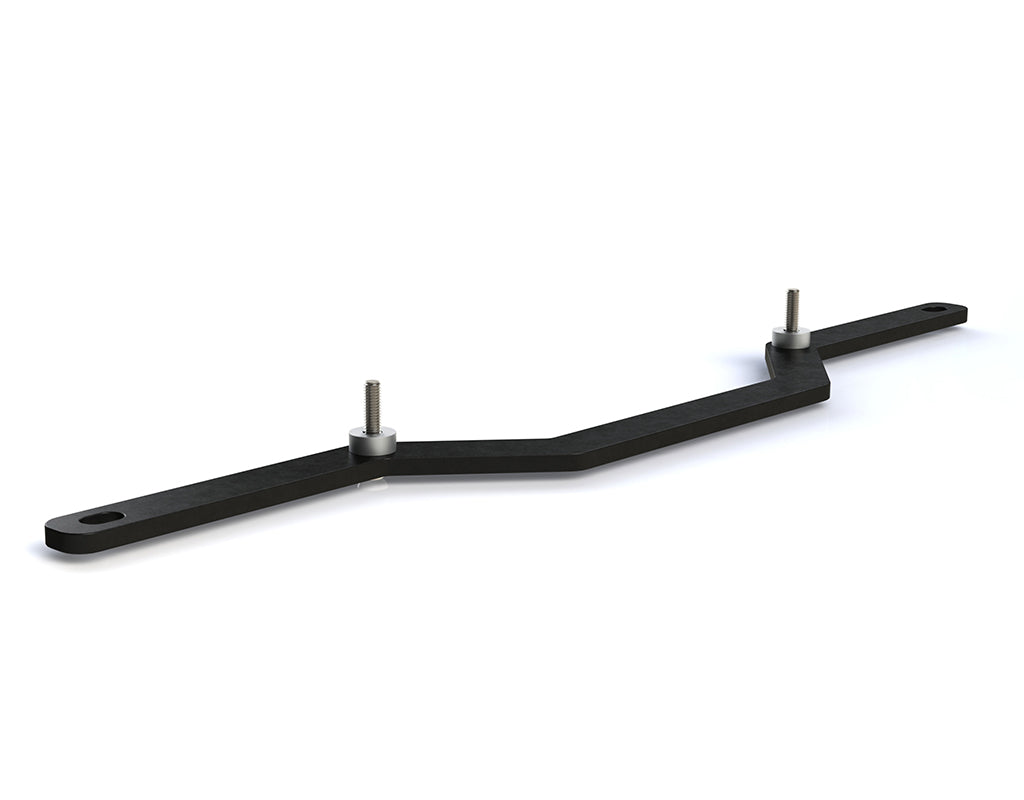

Five versions, one support system
01

Five versions, one support system

DENALI states this for the Triumph Tiger Explorer XCa, XCx, XR, XRt, and XRx from 2016 to 2021: from road versions to more off-road-oriented ones, the same mounting bracket.

Powder-coated steel brackets, M8 mounting hole, and hardware included.

Aiming in travel configuration
02

Aiming in travel configuration

On an Explorer, aim the lights with the bike loaded as you actually use it: with two people and full panniers. Rear sag raises the front end, causing the auxiliary lights to illuminate higher than when you adjusted them unloaded.

The DENALI method: place the bike on level ground 7.6 meters from a wall, with a horizontal line 5 cm below the center of the auxiliary lights.

No drilling, reversible installation
03

No drilling, reversible installation

The mount attaches to the points already provided by the manufacturer, with the required hardware included. No drilling or modifications are needed.

The M8 hole accepts any DENALI auxiliary light, from the DL4 to the D7 PRO.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Compatibility

Motorcycle
Triumph Tiger Explorer XCa, XCx, XR, XRt and XRx 2016-2021
Spotlights
The entire DENALI range

Construction

Material
Powder-coated steel

Assembly

Spotlight mount
Foro M8

Packaging

Content
Brackets and fasteners Spotlights not included

Equipment

Manufacturer’s warranty
5 years In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale europea del supporto LAH.11.10500.

Prima di ordinare

Montaggio e requisiti

Come si monta

Istruzioni complete e note di sicurezza

Compatibilità dichiarata. Triumph Tiger Explorer 1200 dal 2016. Verifica l'anno della tua moto prima di ordinare.

Montaggio. Si fissa ai punti già previsti dal costruttore, senza forare né modificare nulla. I faretti si montano poi sul supporto con la viteria M8 in dotazione con il faretto stesso.

Coppie di serraggio. Frenafiletti a media resistenza e coppie standard DENALI — 5,0 Nm per M5, 9,0 Nm per M6, 18,0 Nm per M8 — con un controllo dopo i primi 50 km.

Puntamento e verifica finale. Moto in piano con una persona in sella a 7,6 metri da una parete, riga orizzontale 5 cm sotto il centro dei faretti. Su una moto da viaggio ripeti il controllo con le valigie montate e nell'assetto in cui viaggi davvero.

DENALI riconosce 5 anni di garanzia convenzionale del produttore. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità previsti per legge.

Restano esclusi usura normale, abrasione, uso improprio, installazione errata, incidenti e modifiche. Tagliare o adattare le staffe rientra fra le modifiche e fa decadere la garanzia del produttore.

L'uso su strada pubblica dei fasci supplementari è regolato dal codice della strada del Paese in cui circoli: verifica sempre le prescrizioni locali.

A chi ha una Tiger Explorer dal 2016 al 2021, in qualsiasi versione fra XCa, XCx, XR, XRt e XRx, e passa molte ore su statali di notte: i faretti allungano la vista e rendono la moto più riconoscibile.

Ricorda di rifare il puntamento nell'assetto carico in cui viaggi davvero.

Domande frequenti

Le domande che ci fate più spesso

Does it fit all Tiger Explorers?

For all those from 2016 to 2021: DENALI states this for the XCa, XCx, XR, XRt, and XRx versions.

Should I re-aim the spotlights when traveling with a full load?

It's worth it. With two people and full luggage, the rear suspension sinks, raising the front end, and the spotlights shine higher, disturbing oncoming traffic.

Which spotlights can I install on it?

Any DENALI light: the mounting hole is M8, the standard across the entire range. On a touring motorcycle, narrower beams extend your visibility on main roads at night.
