Spotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.comSpotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.comSpotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.comSpotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.comSpotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.comSpotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.comSpotlight bracket for BMW R 1200/1250 GS Adventure - Endurrad.com
-10%Pre-ordine
471 g Weight
459 mm Width
Vertical Adjustment
No drilling required Assembly

Completa il montaggio

Spesso acquistati insieme

Scelti dal nostro team per questo prodotto
Totale per 3 accessori

Panoramica

In breve

Barra portafaretti dedicata alla BMW R 1200 GS Adventure dal 2014 e alla R 1250 GS Adventure dal 2019. Si fissa sui punti di ancoraggio già previsti dalla moto, senza tagli e senza forature, e porta i faretti all'altezza del becco: la soluzione per chi ha le barre paramotore già occupate da altri accessori.

Lega di alluminio ad alta resistenza con ossidazione anodica, 459 mm di ingombro e 471 g dichiarati. I faretti si montano alle estremità, su snodi che ne regolano l'inclinazione verticale, e al centro c'è la predisposizione per il clacson. Viteria completa e frenafiletti inclusi; faretti, clacson e cablaggi no.

High position

below the beak, the beam spreads wider, making the motorcycle more visible in traffic compared to low-mounted crash bar spotlights.

4-axis adjustment

rotating clamps, each spotlight can be independently oriented right, left, up, and down.

Central horn mount

dedicated point for an additional horn, siren, or speaker.

Anodized CNC aluminum

471 g, rust-proof, matches the premium finish of the GS.

Frees up crash bars

a solution for those who have already occupied their crash bars with other accessories.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

When the crash bars are already occupied by other accessories, mounting auxiliary lights becomes a space problem. The LOBOO CDJ082C mount solves it by positioning the lights at beak height, on the existing mounting points of the BMW R 1200 GS Adventure and R 1250 GS Adventure: LOBOO states that the mount was developed from the motorcycle’s original data and can be installed without cutting or drilling.

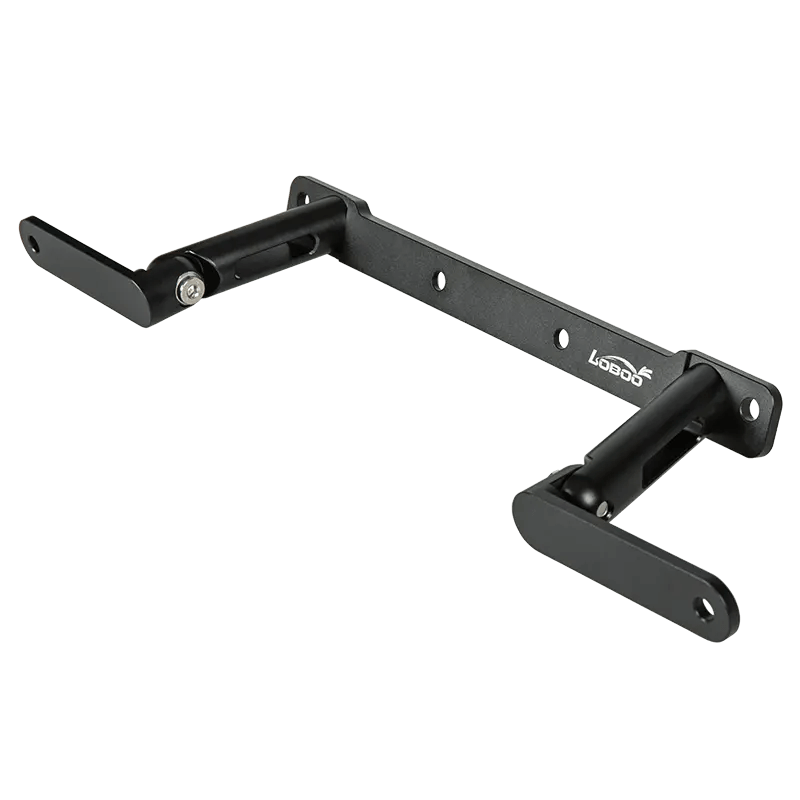

The structure is a crossbar made of high-strength aluminum alloy with an anodized oxidation treatment: 459 mm maximum overall width, 434 mm bar length, 101.5 mm height, and a stated weight of 471 g according to the technical panel. The lights are mounted at both ends, on the side joints that adjust their tilt on the vertical axis: raise or lower the beam independently on each side.

There are two holes in the center of the bar, with an 80 mm center-to-center distance: these are provided for the horn, and the installation hardware includes two M8×20 screws and two self-locking nuts. LOBOO also indicates that the same holes can be used to mount a speaker.

The LOBOO package contains five alloy components—the central bar, the two side mounts, and two brackets—two 55 mm-high spacers, and all the hardware, including the dedicated M8 and M6 screws for mounting the lights, eight M8 washers, and a tube of threadlocker. The tightening torques are specified item by item, from 10 to 20 N·m. Lights, horn, and wiring are not included: the manufacturer’s photos are for illustrative purposes only.

If you prefer to keep the lights low, on the crash bars, the CWJ082 mount is available for the same motorcycle on a separate page. The two do not exclude each other: they can coexist on the same GS Adventure.

Nella confezione

  • Barra centrale: 1 pezzo CDJ082C in lega di alluminio anodizzato
  • Fissaggi laterali: 1 sinistro, 1 destro e 2 staffe di fissaggio
  • Distanziali: 2 pezzi, Ø esterno 20 mm, Ø interno 8,5 mm, altezza 55 mm
  • Viteria di montaggio: 2 viti M8×75 (18 N·m), 2 viti M8×20 (18 N·m), 4 viti M6×16 (10 N·m), 8 rondelle M8, 2 dadi flangiati M8
  • Viteria per i faretti: 2 viti M8×18 e 2 viti M8×16 (20 N·m), 2 viti M6×16 (10 N·m), 2 rondelle M6
  • Viteria per il clacson: 2 viti M8×20 (18 N·m) e 2 dadi autobloccanti M8
  • Frenafiletti: 1 tubetto monodose
  • Faretti ausiliari non inclusi: LOBOO lo dichiara sui propri pannelli e le foto con i faretti montati sono dimostrative
  • Clacson, altoparlante, centraline e cablaggi non inclusi: vanno scelti e collegati a parte
  • Compatibilità: solo BMW R 1200 GS Adventure dal 2014 e R 1250 GS Adventure dal 2019
  • Documentazione: manuale di installazione e distinta accessori scaricabili in PDF da questa pagina

CDJ082C · 459 mm bar · anodized aluminum alloy · 471 g

How does it work, in detail?

Spotlight positioning, adjustment, materials, and equipment: every aspect explained one by one.

Install the spotlights without drilling into your GS Adventure
01

Install the spotlights without drilling into your GS Adventure

The CDJ082C attaches to the motorcycle’s existing mounting points: LOBOO states that the mount was developed using the vehicle’s original data and can be installed without cutting or drilling. If you return the GS to its original configuration one day, simply remove it.

The bar is made of high-strength aluminum alloy with a black anodized finish: 459 mm maximum overall width, 434 mm length, and a stated weight of 471 g.

Position the spotlights at the height of the beak
02

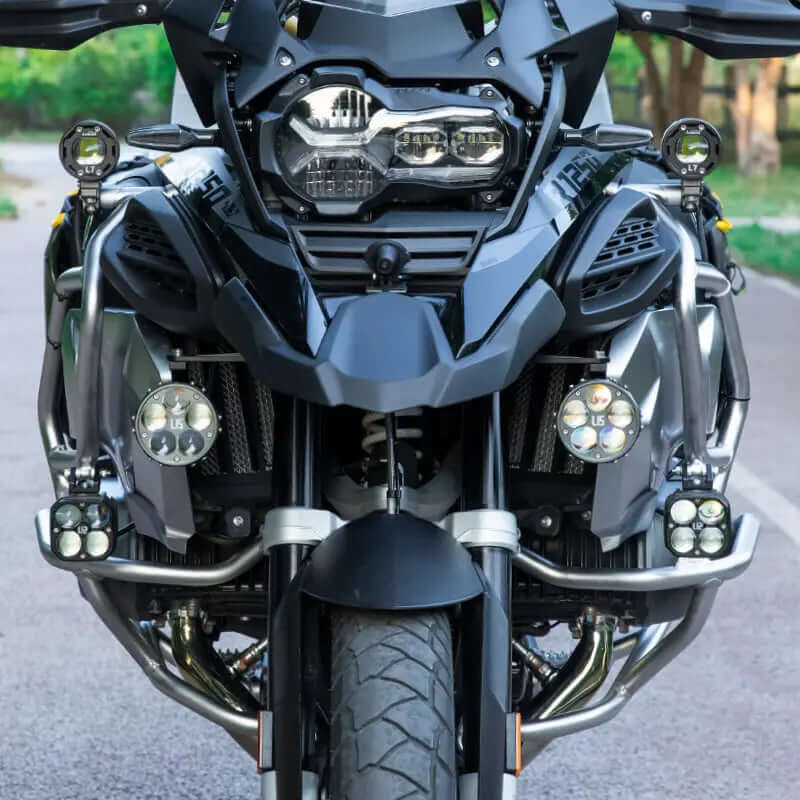

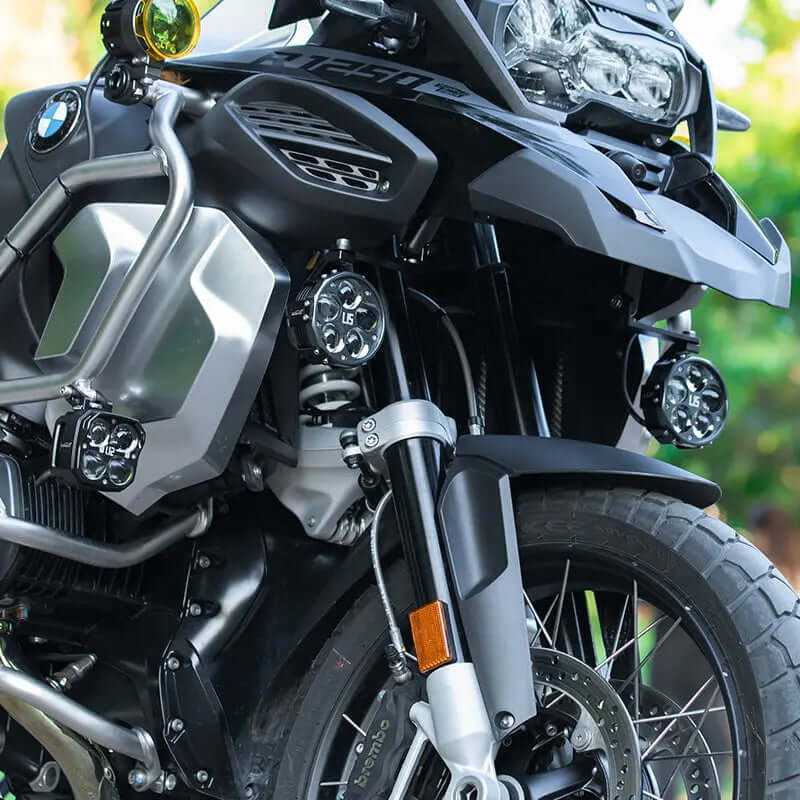

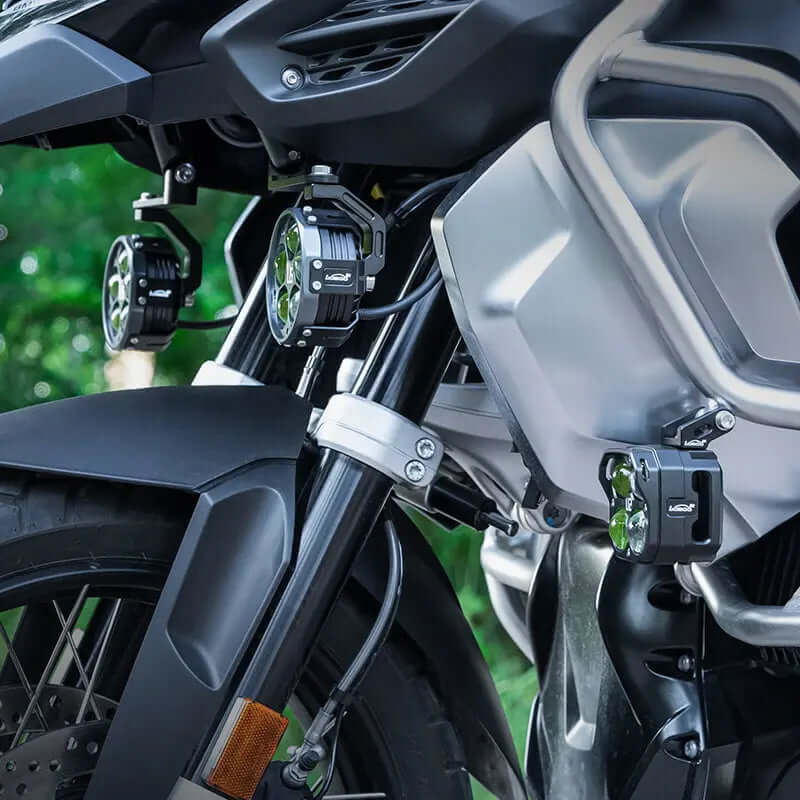

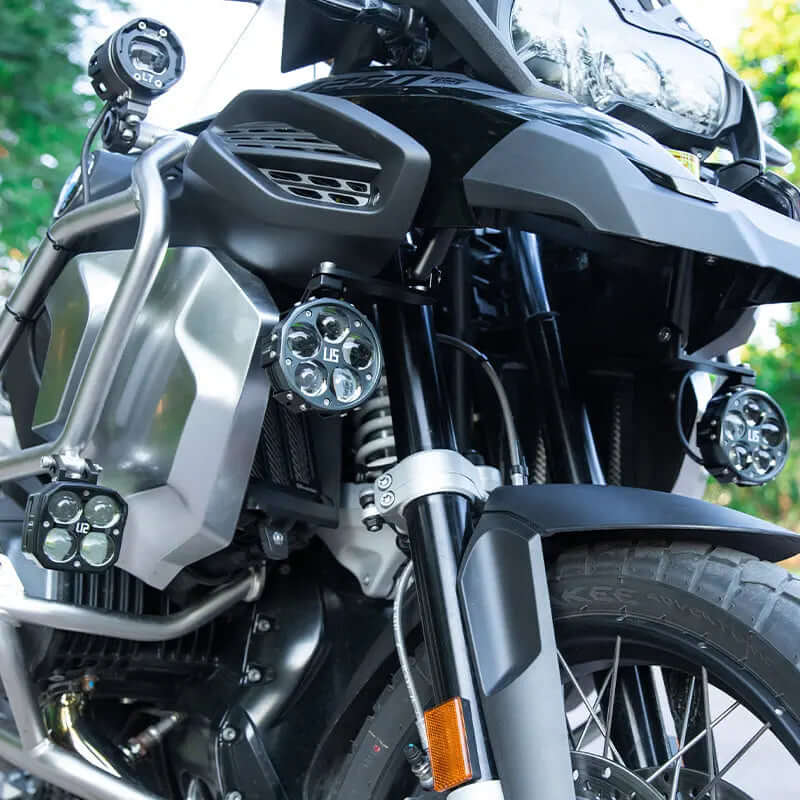

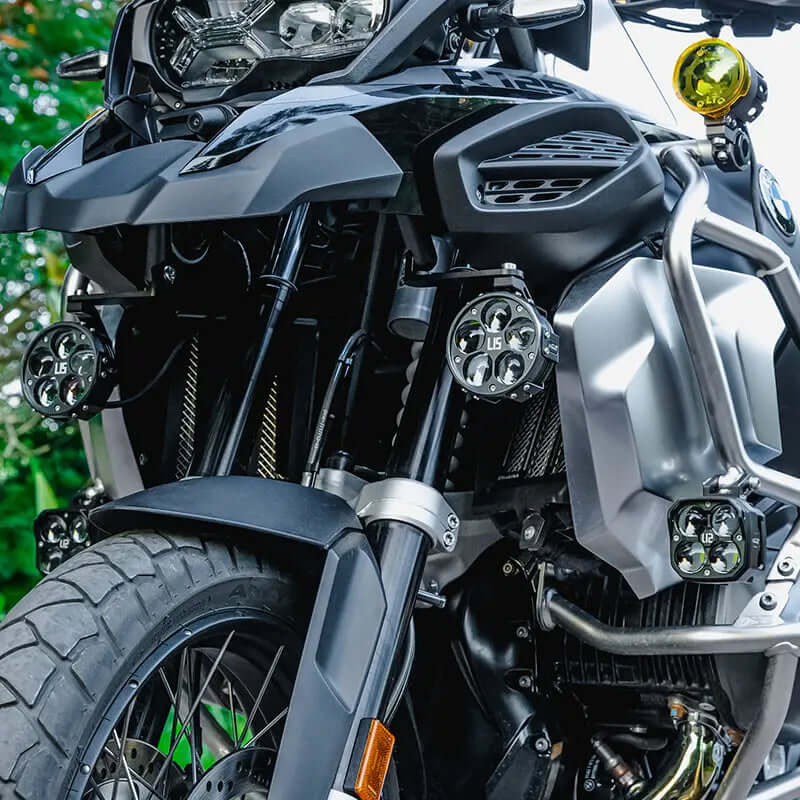

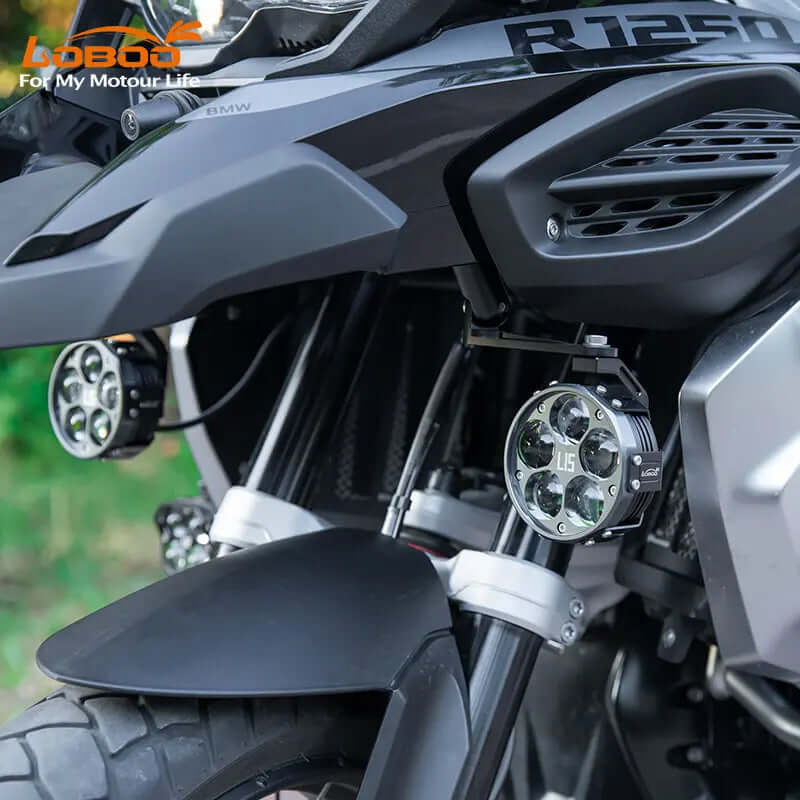

Position the spotlights at the height of the beak

With the spotlights mounted high, the lower section of the crash bars remains free for other accessories. That is why this bar is chosen by those who have already fitted bags, guards, or mounts on their crash bars.

The spotlights shown in the images are not included: the manufacturer's photos are for illustrative purposes.

Raise or lower the beam until it illuminates where needed
03

Raise or lower the beam until it illuminates where needed

The side joints of the CDJ082C adjust the spotlights’ vertical tilt independently from one side to the other. A badly aimed spotlight illuminates the roadside or bothers oncoming drivers: here, you can make the adjustment with the motorcycle stationary and carrying the load you actually use.

Lateral orientation depends instead on the spotlight and its mount. The spotlights shown in the images are not included.

Keep the engine guard bars free.
04

Keep the engine guard bars free.

The CDJ082C works at a different mounting point than the brackets that clamp onto the crash bars: it does not take up space from the other accessories already installed.

For the same motorcycle, there is also the CWJ082 bracket, which mounts the auxiliary lights on the bars. The two do not exclude each other and can coexist on the same GS Adventure. Auxiliary lights not included.

Reinstall the horn at the center of the bar
05

Reinstall the horn at the center of the bar

At the center of the bar there are two holes with an 80 mm center-to-center distance: they are intended for the horn, and the assembly parts list includes the dedicated hardware, two M8×20 screws tightened to 18 N·m, and two self-locking M8 nuts. LOBOO also indicates the same holes for mounting a speaker.

The horn, speakers, and wiring are not included in the package.

You’ll find the screws for the spotlights already in the box.
06

You’ll find the screws for the spotlights already in the box.

The LOBOO kit contains 17 pieces: five alloy components, two 55 mm-high spacers, eight M8 washers, flanged self-locking nuts, and the M8×18, M8×16, and M6×16 screws specifically for mounting the spotlights.

Threadlocker is also included, and the tightening torques are specified item by item, from 10 to 20 N·m. Installation can be completed in a single session, without any trips to the hardware store.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code
CDJ082C LOBOO name: Lights mount
Compatibility
BMW R 1200 GS Adventure from 2014, R 1250 GS Adventure from 2019 Non-Adventure versions not covered

Capacity and measurements

Maximum width
459 mm 18,07 in
Bar length
434 mm 17,09 in
Maximum height
101,5 mm 4,0 in
Center-to-center hole spacing
80 mm 3.15 in — two Ø 8.5 mm holes
Weight
471 g 1.04 lbs, net weight of the stand

Materials

Material
High-strength aluminum alloy Declared on the LOBOO technical panel
Finish
Anodized, black

Fastening and assembly

Spotlight adjustment
Tilt on the vertical axis Side hinges, independent up/down adjustment for each side

Equipment

Hardware
Complete, 17 items per list Spotlight screws and threadlocker included; spotlights, horn, and wiring harnesses not included

Data not provided by the manufacturer

Alloy designation and anodizing thickness
Undeclared LOBOO indicates only high-strength aluminum alloy and anodic oxidation

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, contact us before purchasing.

Manuale d'uso CDJ082CDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Istruzioni complete e note di sicurezza

Il montaggio sfrutta i punti di fissaggio già presenti sulla moto: due dadi flangiati M8 si installano sui punti sotto il becco, la barra centrale si collega con le viti M6×16, e i due fissaggi laterali scendono ai punti bassi attraverso i distanziali da 55 mm, le viti M8×75 e le viti M8×20, con le relative rondelle. Il manuale indica anche l'orientamento corretto della barra rispetto all'anteriore della moto.

LOBOO chiede di non serrare le viti man mano: si posizionano tutti i componenti, si applica il frenafiletti fornito e solo alla fine si serra a coppia, rispettando i valori della distinta — 18 N·m per M8×75 e M8×20, 10 N·m per M6×16, 20 N·m per le viti dei faretti. Il produttore raccomanda infine di controllare periodicamente il serraggio di tutte le viti.

Il manuale di installazione e la distinta accessori in PDF sono scaricabili da questa pagina.

Assembly and Notes

  • Install under the beak, on the designated mounting points, without drilling.
  • The auxiliary lights must be oriented so as not to dazzle: their use on public roads is subject to the Highway Code regulations.
  • Recheck the fastenings after the first 100-200 km, especially if you use the motorcycle on unpaved roads.
  • Spotlights, horn, and wiring are not included.

It's the right choice if with your R 1200 or R 1250 GS Adventure:

  • You've run out of space on the crash bars, already occupied by other accessories
  • You want a wider beam and greater visibility in traffic, not just ground illumination
  • You also need a spot to mount an additional horn or a speaker
  • You want to be able to orient each spotlight independently, which static bars don't allow

If you prefer spotlights lower down on the crash bars, the solution is the CWJ082 support, on a separate page. The two are complementary and can coexist.

Per moto Bmw

BMW
Come verificare la compatibilità
  • BMW R 1200 GS Adventure, dal 2014
  • BMW R 1250 GS Adventure, dal 2019
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Recensioni

5,0
★★★★★1 recensioni
5★1
4★0
3★0
2★0
1★0

Foto dei motociclisti

Montato sulle moto dei nostri clienti. Tocca una foto per leggere la recensione.

Federico Cella18/05/2025
★★★★★

E luce fu

Faretti L11 di ottima fabbricazione, si vede la qualità dei materiali . L effetto luce e deciso e profondo . L i stallazione è abbastanza semplice anche per chi non lo ha mai fatto. Prodotto che sto già consigliando ad amici motociclisti

Domande frequenti

Le domande che ci fate più spesso

Which motorcycles is the CDJ082C mount compatible with?

LOBOO states compatibility with the BMW R 1200 GS Adventure from 2014 onward and the BMW R 1250 GS Adventure from 2019 onward. The non-Adventure versions of the R 1200 GS and R 1250 GS are not covered; they require a different mount.

What is the difference compared with the CWJ082 spotlight bracket for the same motorcycle?

Change the mounting point. The CDJ082C attaches to the designated mounting points on the motorcycle and positions the auxiliary lights at beak height; the CWJ082, on the other hand, clamps onto the engine guard bars, lower down. They are not alternatives: those who have already occupied the crash bars with other accessories choose the CDJ082C, and the two mounts can also coexist on the same motorcycle.

Do I need to drill or cut anything on the motorcycle?

No. LOBOO states that the support is developed using the vehicle’s original data and is mounted on the existing anchor points, with no drilling or cutting. The installation is reversible: once the support is removed, the motorcycle returns to its original configuration.

Can the spotlights be adjusted once installed?

Yes, on the vertical axis: the side joints of the mount allow the beam angle to be raised and lowered independently on each side. The right/left orientation, however, depends on the type of spotlight and its fitting, not on the mount.

Are the spotlights included in the price?

No: only the mount is purchased. LOBOO explicitly states this on its panels, and the images showing the spotlights installed are for demonstration purposes. Wiring, control units, and horns must also be purchased separately.

Are the screws for mounting the spotlights included?

Yes. The LOBOO parts list includes two M8×18 screws and two M8×16 screws to be tightened to 20 N·m, two M6×16 screws to 10 N·m, and two M6 washers, all intended for mounting the auxiliary lights. The package also includes a tube of threadlocker.
