Why are there such long screws in the package?

Because on this motorcycle, the frame is secured with through-bolts that pass through the rear subframe: the parts list specifies M8×70, M8×85, and M8×110, the longest in the entire range of LOBOO frames.It is best to insert them all and position the assembly before tightening: once the specified torque is reached, there is no room left for alignment.

What torque should the frame screws be tightened to?

The manual specifies a single value: 20 N·m for all M8 frame screws, in all four supplied lengths. A torque wrench is required but not included; the service tool, however, is included.

Should we drill the motorcycle?

No. The manual does not indicate any drilling: the frame is attached to the existing mounting points, and the modification is reversible. The original parts removed must be refitted according to the torque specifications indicated by Triumph.

Are the hardware and tools included?

Yes. The frame bill of materials lists eleven items: the two halves, the crossbar, two types of spacer, four lengths of M8 screw, eight washers, and the service tool.The only tool you need is a torque wrench.

Is the assembly manual in Italian?

Yes. The frame manual is published in eight languages, including Italian, with an illustrated parts breakdown and a numbered installation view.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Triumph Tiger 900 RALLY PRO Side Cases - Endurrad®

-10%Consegna in 2-3 giorni lavorativi

Frame + 2 suitcases Kit

65 L Total volume

11,6 kg Empty suitcases

20 N·m Tightening torque

LOBOO ✓ Prodotto originaleCod. JP91B+P35L-BK+P30R-BK

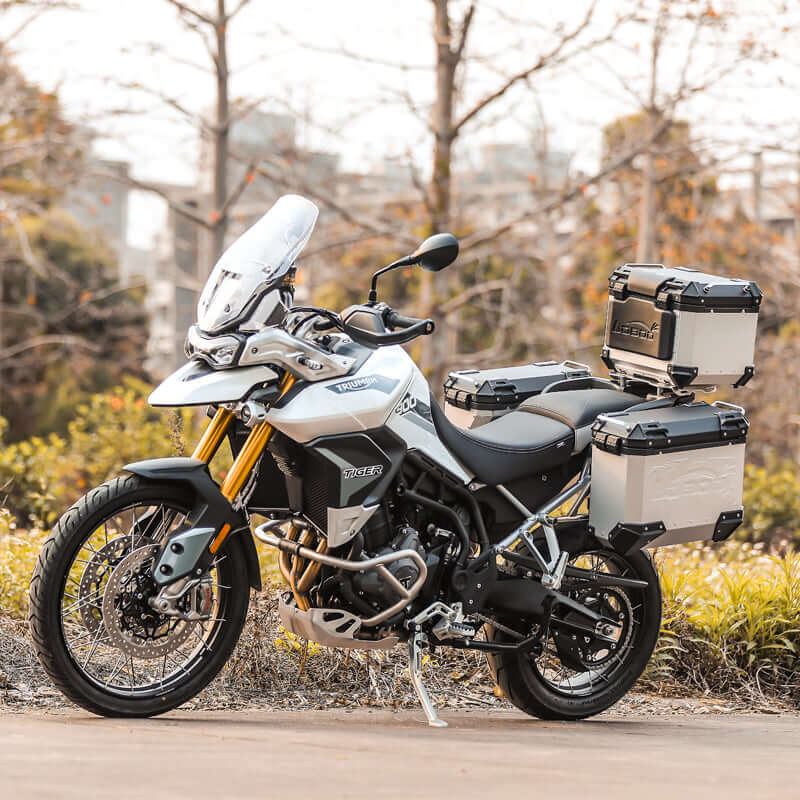

Triumph Tiger 900 RALLY PRO Side Cases

€1.040,00 ~~€1.155,00~~Risparmi €115

Paga in 3 rate da €346,66 senza interessi

Va bene per la tua moto?

Progettato per: Tiger 900, Tiger 900 Rally Pro.

LOBOO PIKE TRACKER aluminum cases (Color)

Silver/BlackNero

Disponibile, pronto per la spedizione🚚 Consegna in 2-3 giorni lavorativi

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

Telai JP91B e coppia di valigie in alluminio 35+30 L per Tiger 900 Rally Pro

Complete system

racks and pair of cases in a single order.

PIKE TRACKER aluminum cases

key locks and waterproof seal.

Two finishes

black or silver, with identical construction.

Asymmetrical configuration

leaves space for the exhaust on the right side.

Dal produttore LOBOO

Il kit riunisce due prodotti LOBOO distinti, ciascuno con la propria denominazione ufficiale.

Valigie: PIKE TRACKER Series Aluminum Case, modelli P35L per il lato sinistro e P30R per il destro.
Telaio: PIKE TRACKER & CONQUEROR Side Case Rack, modello JP91B, dichiarato per Triumph Tiger 850 Sport e Tiger 900 Rally Pro dal 2021.

Produttore: Shenzhen Loboo Motor Accessories Co., Ltd — Building F, Tianji Industry Park, Laiyin Road, Xinsheng Community, Longgang District, Shenzhen, Guangdong, Cina.

Garanzia: si applica la garanzia legale di conformità di 24 mesi prevista dal Codice del Consumo per gli acquisti effettuati da consumatori.

Leggi la descrizione completa

Complete kit for Triumph Tiger 900 Rally Pro from 2021 onward: a pair of JP91B side racks with mounting hardware, plus two PIKE TRACKER aluminum cases measuring 35 and 30 liters, in your chosen finish. One order, nothing else to match.

Check the configuration: the Tiger 900 is available in several versions, with different racks and dimensions. LOBOO documentation covers the Rally Pro from 2021 onward. If you have a GT, GT Pro, or Rally, contact us with the version and year before ordering: we will confirm compatibility in writing.

Why the two sides have different capacities

The right case holds 30 liters instead of 35 because it is shaped around the exhaust: this is the version LOBOO calls exhaust avoidance, with a recessed lower wall. On a Rally Pro, designed to leave the asphalt behind, keeping the width down is exactly what is needed for narrow passages. The left case, without this constraint, retains its full 35-liter capacity.

How much they hold and how much they can weigh

LOBOO specifies a maximum load of 10 kg per side case. The pair weighs 11.6 kg empty, excluding the racks: 6 kg for the left case and 5.6 kg for the right.

Left P35L — internal dimensions 451 x 227 x 381 mm, external dimensions 498 x 268 x 408 mm
Right P30R — internal dimensions 451 x 227/167 x 381 mm, external dimensions 498 x 244/208 x 408 mm

The two measurements for the right case refer to the upper and lower sections, where it recesses around the exhaust. These are dimensions provided by the manufacturer based on manual measurement, so some tolerance should be expected.

Construction

High-strength aluminum, with the lower corners protected by structural plastic bumpers
Key lock with a five-wafer cylinder, removable and replaceable without changing the case
Scratch-resistant inner lining, fabric pocket in the left lid, and storage net in the right lid
Lid opening stop to prevent it from hitting the rack
3M reflective inserts on the outer side
Finishes: glossy silver or matte black

LOBOO states that the series is water- and dust-resistant, but does not publish an IP rating: we do not list one because it is not a manufacturer-certified specification.

What is not included

The top case and its rear plate are sold separately. Each case has its own sensor light in the lid: the kit includes two, one per side.

Alternatives for the same racks

The JP91B racks also support the WANDERER soft cases measuring 40+30 liters, if you prefer a lighter solution: we verified this compatibility ourselves, based on the 18 mm tube requirement that LOBOO specifies for those cases. If you already have the racks, you can purchase only the cases from the PIKE TRACKER series page. However, LOBOO cases can only be mounted on LOBOO racks: they are not interchangeable with mounts from other brands.

Maintenance

Wash with a water jet held at least one meter away, use a neutral detergent, and dry immediately afterward. Avoid acidic or alkaline products. Note down the number stamped on the key: it is needed to make a copy.

Nella confezione

✅ The complete, original, and new LOBOO kit, in manufacturer's packaging.
📦 Included:the pair of JP91B side frames, the pair of PIKE TRACKER aluminum panniers P35L and P30R, locks with keys, and mounting hardware.
⚠️ Not included: the top case.Top case and rear plate are purchased separately.
🔒 Closed system:LOBOO panniers can only be mounted on LOBOO frames. By purchasing the kit, you already have the correct combination, without adapters.
🏍️ Specific frames for the Triumph Tiger 900 Rally Pro: they mount on the original fastening points, without adapters.
↔️ Asymmetrical configuration, 35 liters on the left and 30 on the right: the narrower right pannier leaves space for the exhaust.
🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
🛡️ 24-month legal warranty for the consumer, according to current regulations.
💳 Payment also in installments with the services available at checkout.
🔧 Respect the indicated tightening torques and recheck the fastenings after the first few kilometers, especially with loaded panniers.

BLACK or SILVERColors

SteelMaterial

AluminumMaterial

Complete system – JP91B frames + pair of PIKE TRACKER panniers

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

Frames and cases in a single order

The complete system for the Tiger 900 Rally Pro: JP91B frames plus a pair of PIKE TRACKER aluminum panniers, in the finish of your choice. No need to search for individual parts.

The difference in capacity between the two sides is due to the exhaust routing: the narrower right pannier keeps the bike compact in difficult passages.

Designed for the Rally Pro

The Tiger 900 is available in several configurations, with different subframes and dimensions. The official LOBOO documentation covers the Rally Pro from 2021 onward.

If you have a GT, GT Pro, or Rally, send us the version and year before ordering: we’ll confirm compatibility in writing.

Why 35 on the left and 30 on the right?

The exhaust runs along the right side of the Tiger 900. The narrower case leaves enough clearance and prevents contact with the exhaust outlet.

The Rally Pro is designed to venture off-road, so keeping the width down is exactly what’s needed when navigating tight passages.

Aluminum, key locks, waterproofness

The PIKE TRACKER cases are made of high-strength aluminum alloy, with perimeter seals and keyed locks on each case.

It is the most popular series in the LOBOO range: the same case can be mounted on more than fifteen different motorcycles by changing only the frame.

The JP91B frames are included

You don’t need to search for them separately: the JP91B frames are included in the order and mount onto the attachment points provided by Triumph.

The same frames also support the 40+30-liter WANDERER semi-rigid panniers if you change your mind about the type of luggage in the future: it’s a compatibility we verified ourselves, based on the 18 mm tube requirement that LOBOO specifies for those panniers.

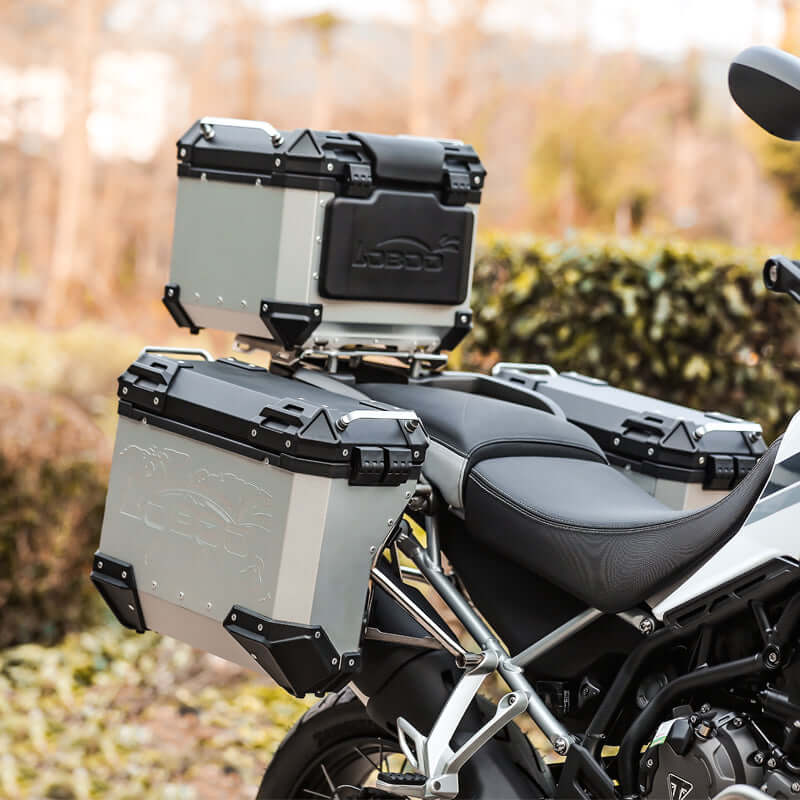

Black or silver, same construction

The two finishes make no technical difference: same aluminum, same locks, same seal. The choice is purely aesthetic.

On more understated Triumph liveries, silver visually lightens the rear, while black keeps the bike looking compact.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Kit contents

Side frames

JP91B Included, in steel

Suitcases

P35L + P30R Aluminum PIKE TRACKER, top case not included

Product

Official chassis designation

PIKE TRACKER & CONQUEROR Side Case Rack Product name as stated in the LOBOO manual

Compatibility

Motorcycle

Tiger 900 Rally Pro Triumph, from 2021. Other configurations to be verified

Second motorcycle declared

Tiger 850 Sport from 2021 The JP91B chassis manual also lists this motorcycle, in addition to the Tiger 900 Rally Pro.

Semi-rigid alternative

BCB4030TBK WANDERER 40+30 L on the same frames

Capacity

Total volume

65 L 35 L on the left, 30 L on the right

Settings

35+30 L Asymmetrical: the right side leaves room for the exhaust pipe

Dimensions

Left suitcase interior

451 x 227 x 381 mm Length × depth × height

Left suitcase external dimensions

498 x 268 x 408 mm Mounted accessories included

Right suitcase interior

451 x 227/167 x 381 mm The two measurements are the upper part and the lower part.

Right suitcase external dimensions

498 x 244/208 x 408 mm Mounted accessories included

Weight

Empty suitcases

11,6 kg 6 kg on the left, 35 L, and 5.6 kg on the right, 30 L, frames excluded

Closure

Lock

By key Five-pin tumbler cylinder, removable and replaceable

Water resistance

IP rating

Undeclared LOBOO claims water and dust resistance without publishing a rating

Assembly

Mounting points

Motorcycle originals The frame manual does not specify drilling instructions

Tightening torque

20 N·m Single value for all M8 frame screws

Through holes

Up to M8×110 The longest in the LOBOO range: they extend across the rear subframe

Equipment

Chassis components

11 Two halves, crossbar, two types of spacers, four M8 screw lengths, eight washers, and a tool

Documentation

Assembly manual

8 languages Italian included, with an illustrated parts list and numbered installation view

Dati dichiarati dal produttore LOBOO. In caso di dubbio sulla compatibilità con il tuo allestimento, contattaci prima dell'acquisto.

Manuale d'uso JP91B + P35L + P30RDocumento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Il telaio si compone di due metà unite da una traversa posteriore e si fissa ai punti di ancoraggio originali: il manuale non indica forature.
Coppia di serraggio: 20 N·m, valore unico su tutte le viti M8.
Il fissaggio avviene con viti passanti fino a M8×110, le più lunghe della gamma LOBOO: attraversano il telaietto posteriore.

Istruzioni complete e note di sicurezza

Il montaggio riguarda il telaio: le valigie si agganciano poi senza attrezzi.

Il telaio si compone di due metà unite da una traversa posteriore e si fissa ai punti di ancoraggio originali: il manuale non indica forature.
Coppia di serraggio: 20 N·m, valore unico su tutte le viti M8.
Il fissaggio avviene con viti passanti fino a M8×110, le più lunghe della gamma LOBOO: attraversano il telaietto posteriore.

Sequenza vincolante: con viti così lunghe la regola di non serrare a fondo durante il montaggio pesa più del solito: conviene infilarle tutte e presentare l'insieme prima di serrare, perché a coppia raggiunta non resta margine di allineamento. Le parti originali rimosse vanno rimontate secondo le coppie Triumph.

Assembly and Notes

The kit includes side racks and a pair of panniers: the top case is not included.
Please observe the maximum load per side rack specified by Triumph in the motorcycle's manual.
Recheck all fastenings after the first 100-200 km and periodically with off-road use.
The load must not obstruct the license plate and rear lights or extend beyond the limits set by the Highway Code.

If you're starting from scratch:This is the most direct solution, with everything compatible in a single order.
If you already have the JP91B frames:Purchase only the cases from the PIKE TRACKER series page.
If you prefer semi-rigid bags:The same frames also fit the 40+30 liter WANDERER bags.

Documented compatibility: Triumph Tiger 900 Rally Pro from 2021. For other setups, please contact us before purchasing.

Per moto Triumph

Triumph

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

What exactly does the kit include?

JP91B side frames plus a pair of PIKE TRACKER P35L and P30R panniers in the chosen finish. If you already have the frames installed, you can purchase the panniers only from the PIKE TRACKER series page.

Is it also compatible with the Triumph Tiger 850 Sport?

Yes. The cover of the frame manual lists two motorcycles: the Tiger 850 Sport and Tiger 900 Rally Pro, both from 2021 onward. It is a single part number with the same packaging because the two motorcycles share the same chassis and rear subframe.

The other models in the 900 range—GT, GT Pro, and base Rally—are not mentioned by the manufacturer; in that case, contact us before ordering.

Why do the two suitcases have different capacities, 35 and 30 liters?

Because the exhaust runs along the right side, the narrower pannier keeps the motorcycle from becoming too wide and reduces the risk of contact with the exhaust muffler. It is a design choice, not a limitation of the range.

Do the suitcases lock with a key?

Yes, with a five-lever cylinder lock that can be removed and replaced without changing the suitcase. The key is retractable and has a number stamped on it.

Make a note of it: if you lose both keys, that number lets you request a duplicate without replacing the lock.

Is the kit a better deal, or should I buy the frame and cases separately?

The kit exists to simplify purchasing: on a single page, you’ll find the combination already verified for your motorcycle, without having to cross-reference the codes.

If you already have the cases, or prefer the WANDERER soft cases, you’ll find only the JP91B frame on a separate page at Endurrad.

Can I mount luggage from other brands on them, or these on other frames?

No, in either direction. LOBOO’s documentation is explicit: LOBOO aluminum cases can only be mounted on LOBOO racks and are not compatible with racks from other brands. The same document specifies that the racks are installed without permanent modifications to the motorcycle.
