What torque should the screws be tightened to?

All screws should be tightened to 10 N·m. The manual instructs you to first assemble all the parts without tightening them, then apply the included threadlocker to each screw, and only at the end tighten them to the specified torque.

What's in the package?

According to the manual’s parts list: the grille, two 8 mm spacers and one 21 mm spacer (16 mm outer diameter, 6.5 mm inner diameter), one M6 × 18 screw, two M6 × 25 screws, one M6 × 40 screw, four M6 washers, and threadlocker.

What material and color is it?

It is made of high-strength aluminum alloy with a treated finish. The official photo for code CHW292 shows it in silver; some LOBOO panels also depict the same grille in black.

Does it reduce engine cooling?

LOBOO states that air-conducting vents accelerate airflow toward the radiator and shows a comparison before and after installation. Nevertheless, keep the grille clean of mud and insects, which can reduce airflow.

Does it need to be monitored over time?

Yes: the manual asks you to regularly check the tightness of the fastening screws.

Is there an assembly video?

Yes, the LOBOO manual includes a QR code that links to the installation video.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return it if it doesn’t fit?

Yes, you are entitled to return it within 14 days of receiving the last item in your order. The grille must be intact, unassembled, and in its original packaging: contact us and we will guide you through the process.

Protezione radiatore LOBOO CHW292 in alluminio argento per Honda CB400X e CB500X, su sfondo bianco

-10%Pre-ordine

10 N·m Tightening torque

4 Mounting points

4 M6 screws

3 Spacers

LOBOO ✓ Prodotto originaleCod. CHW292

Aluminum radiator guard for Honda CB500X and CB400X

€63,00 ~~€70,00~~Risparmi €7

Paga in 3 rate da €21,00 senza interessi

Va bene per la tua moto?

Progettato per: CB400X, CB500X.

Pre-ordine · spedizione entro 1 mese

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

Griglia di protezione radiatore in lega di alluminio argento per Honda CB400X dal 2021 e Honda CB500X. Feritoie a conduzione d'aria, fissaggio sui quattro punti originali senza forare, viteria e frenafiletti inclusi, viti a 10 N·m.

Avoid Costly Damage

a punctured radiator core often requires complete replacement.

Protection and Flow Balance

mesh sized to stop debris without stifling the radiator.

Aluminum Construction

lightweight and corrosion-resistant.

Modification-Free Installation

on designated points, reversible.

Dal produttore LOBOO

Original LOBOO product. Official designation: LOBOO Aluminum Radiator Guard for Honda CB500X (2019+) | CB400X | High Flow Protection Grille. Documentation and official catalog available in the download section.

Leggi la descrizione completa

The LOBOO CHW292 radiator guard is a high-strength aluminum alloy grille that mounts in front of the radiator on the Honda CB400X and CB500X. It stops stones and gravel thrown up by the wheel or vehicles ahead, with slots that, according to LOBOO, channel air toward the radiator core.

Does it fit my motorcycle?

Honda CB400X from 2021 onward: this is the model specified in the installation manual.
Honda CB500X: LOBOO states that it is compatible in its official listings, without specifying the model years. Contact us with your model and year before ordering.
Honda NX400 and NX500: they have a dedicated radiator guard.

How it is made

High-strength aluminum alloy, lightweight.
Air-conducting slots: they block gravel and, according to the manufacturer, accelerate airflow toward the radiator.
Treated surface finish, silver color.
Attaches at the four original mounting points around the radiator, with no drilling or cutting.

What you receive and how to install it

The grille, three spacers, four M6 screws (one 18 mm, two 25 mm, and one 40 mm), four M6 washers, and threadlocker. The manual instructs you to install all the parts without tightening them, then apply the threadlocker and tighten each screw to 10 N·m.

Discover our other radiator guards and Honda CB500X accessories to prepare your motorcycle for your next trip.

Nella confezione

PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI nella dotazione originale, con supporti, telai o adattatori venduti separatamente indicati nella descrizione.
MANUALE DI MONTAGGIO incluso nella confezione.
COMPATIBILITÀ VERIFICABILE PRIMA DELL'ACQUISTO, comunicando marca, modello, anno e versione della moto.

CHW292 · high-strength aluminum · 4 original mounting points · screws tightened to 10 N·m

How does it work, in detail?

Compatibility, construction, and step-by-step assembly, from the LOBOO manual.

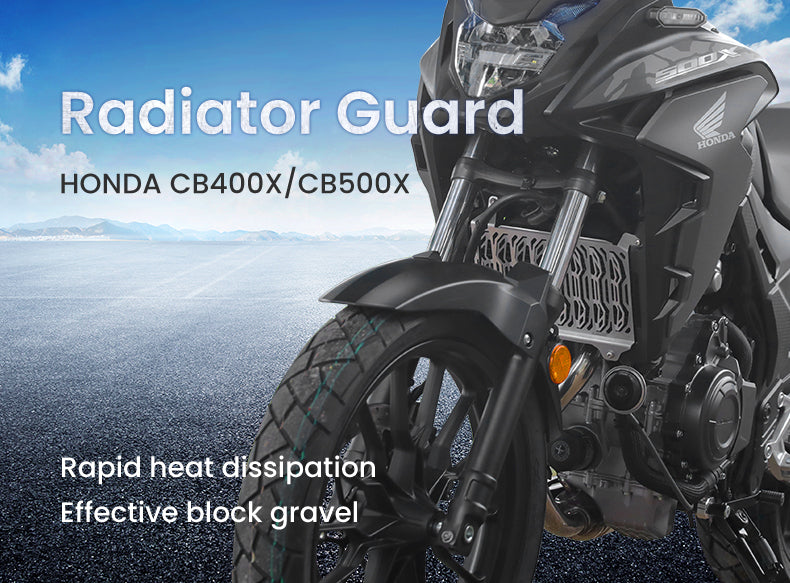

Radiator grille for Honda CB400X and CB500X

The official LOBOO panel presents it for the Honda CB400X and CB500X, shown here mounted on a CB500X: rapid heat dissipation and gravel protection.

The installation manual lists the CB400X from 2021 onward; if you have a CB500X, we’ll verify the year with you before ordering.

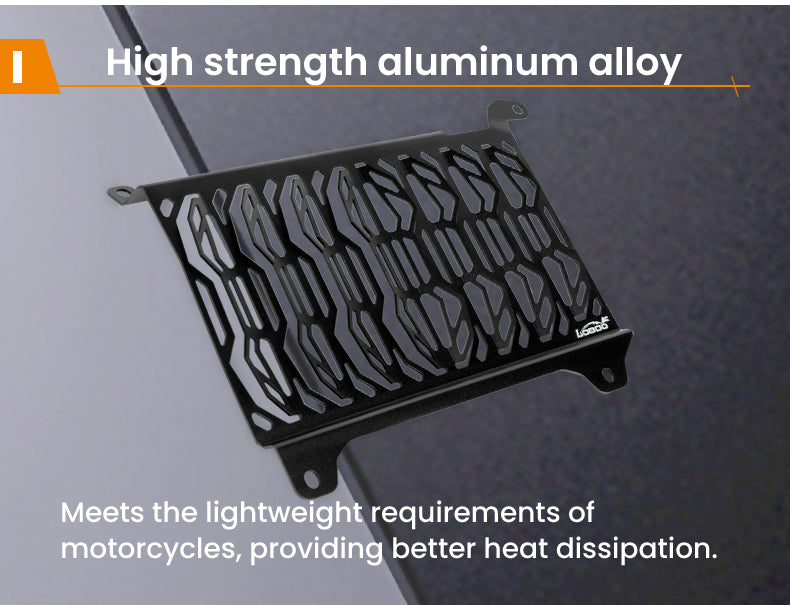

High-strength aluminum alloy

LOBOO makes it from high-strength aluminum alloy: lightweight and, according to the manufacturer, conducive to heat dissipation.

In this panel, the grille is shown in black.

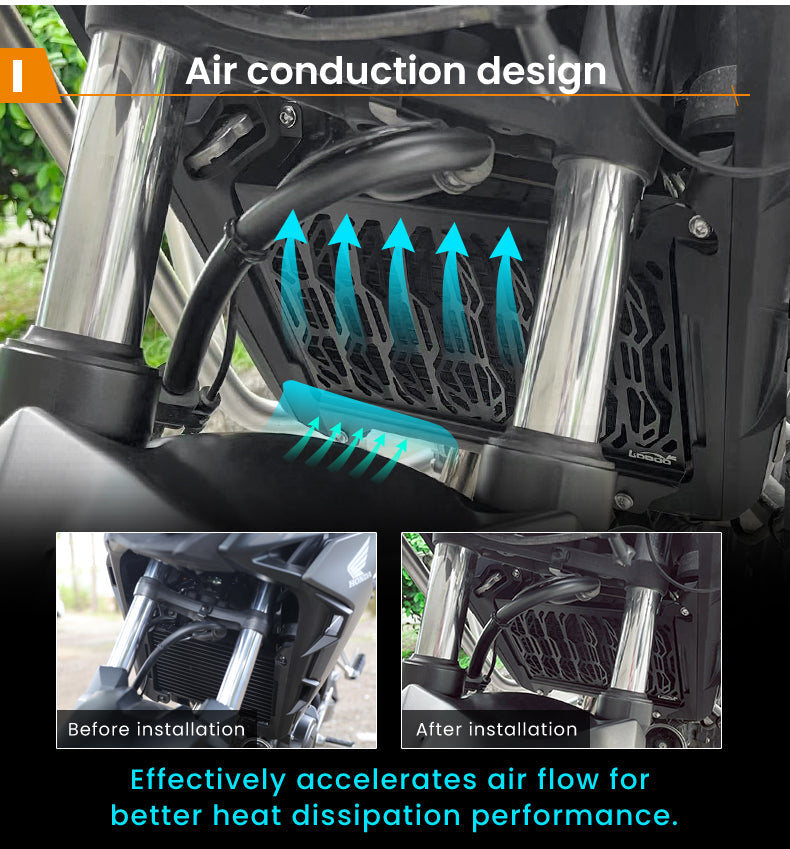

Air-directing vents

According to LOBOO, the air-guiding design accelerates airflow toward the radiator pack instead of obstructing it.

The panel compares the bare radiator with the installed grille.

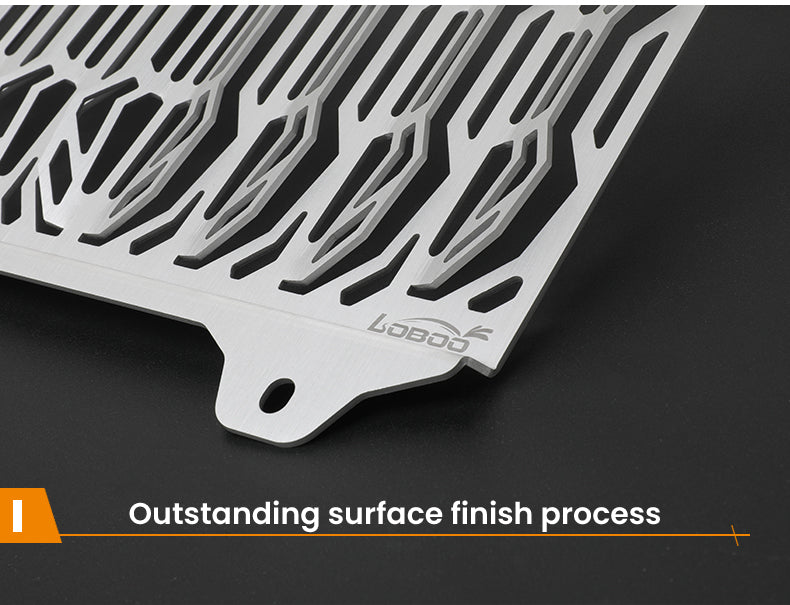

Treated surface finish

LOBOO states that careful attention was paid to the surface finishing process: specifically, the silver version with the LOBOO logo engraved.

The fastening tab with the screw hole is also visible.

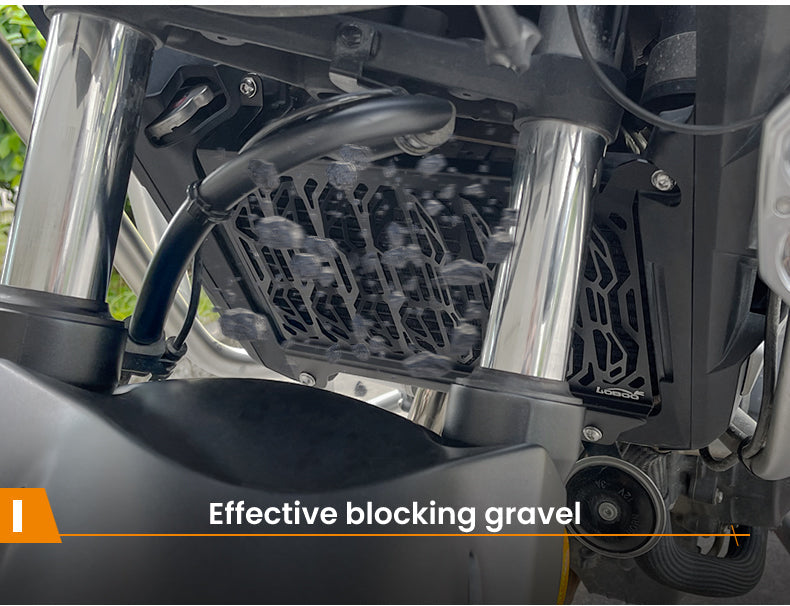

Stop the gravel before the radiator

The panel shows stones stopped by the grille in front of the radiator, between the fork legs.

It is the typical scenario on unpaved roads or sections with gravel kicked up by vehicles ahead.

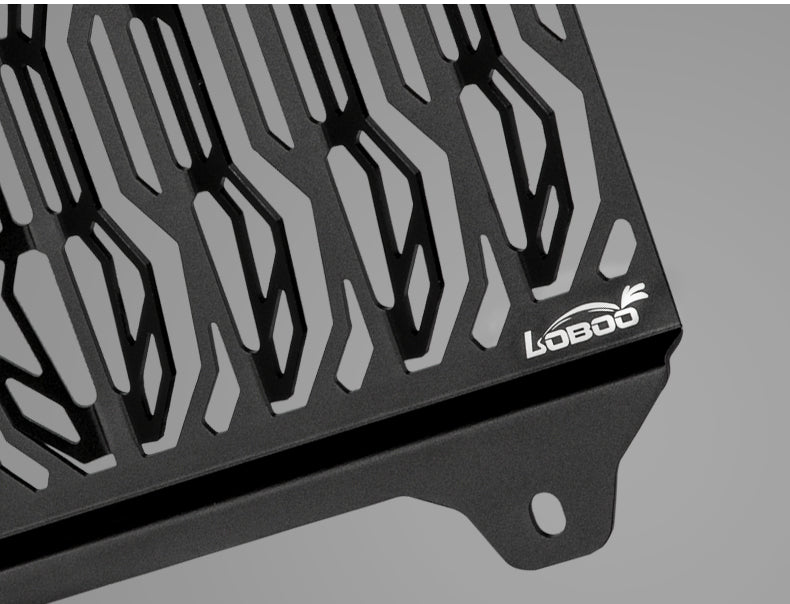

Folded edge and mounting holes

The detail shows the folded edge of the grille and one of the holes for the included M6 screws.

The grille attaches to the motorcycle’s four original mounting points.

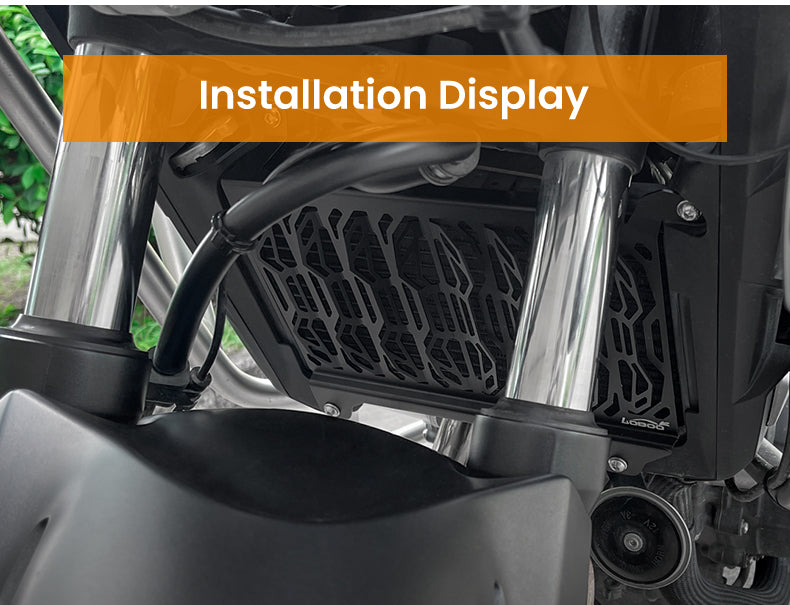

Mounted on the motorcycle

The grille installed between the fork legs, around the radiator, with the supplied screws and spacers.

The black version shown in the photo, mounted together with the protection bars.

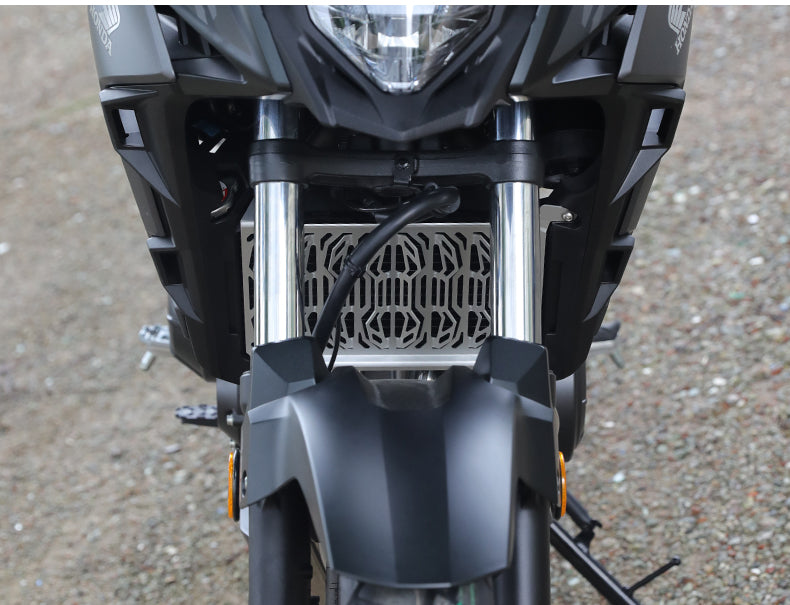

Front view after installation

The motorcycle viewed from the front with the silver grille mounted behind the front fender.

The guard covers the exposed part of the radiator without modifying the fairing.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Official name

Radiator Guard Manual title: HONDA CB400X (2021-) Radiator Guard

Product code

CHW292

EAN

6973227072072

Type

Radiator protection grille

Construction

Material

High-strength aluminum alloy LOBOO product panel and page

Color

Silver Official photo of the code; it also appears in black on the panels

Design

Air vents LOBOO claims accelerated airflow toward the radiator

Finish

Surface treatment Declared by LOBOO

Assembly

Fastening

4 original motorcycle parts Remove the original screws and use the ones provided.

Motorcycle modifications

No punctures Damage-free installation declared by LOBOO

Spacers

2 pcs 16 × 6.5 × 8 mm · 1 pc 16 × 6.5 × 21 mm Outer diameter × inner diameter × height

Years

M6 × 18 (1) · M6 × 25 (2) · M6 × 40 (1)

Washer

M6, 4 pieces

Threadlocker

Including

Tightening torque

10 N·m For all screws

Sequence

Loose assembly, then threadlocker and final tightening As per the manual

Installation video

Via the QR code in the manual

Compatibility

Verified in the manual

Honda CB400X (2021-)

Declared by LOBOO

Honda CB500X Official LOBOO panels; the manual does not specify their years

Honda NX400 / NX500

Dedicated protection LOBOO CHW289BK code

Technical data

Weight and measurements

Not declared by the manufacturer

Data from official LOBOO documentation.

Manuale d'uso CHW292Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Togli le quattro viti originali attorno al radiatore, indicate in rosso sul manuale.
In alto a sinistra fissa la griglia con la vite M6 × 40, una rondella e il distanziale da 21 mm.
In alto a destra usa la vite M6 × 18 con la sua rondella.
In basso usa le due viti M6 × 25 con rondelle e i due distanziali da 8 mm.
Monta tutto senza stringere, poi applica il frenafiletti su ogni vite e serra a 10 N·m.

Istruzioni complete e note di sicurezza

Dal manuale LOBOO CHW292:

Togli le quattro viti originali attorno al radiatore, indicate in rosso sul manuale.
In alto a sinistra fissa la griglia con la vite M6 × 40, una rondella e il distanziale da 21 mm.
In alto a destra usa la vite M6 × 18 con la sua rondella.
In basso usa le due viti M6 × 25 con rondelle e i due distanziali da 8 mm.
Monta tutto senza stringere, poi applica il frenafiletti su ogni vite e serra a 10 N·m.

Il manuale riporta anche un QR code con il video di installazione.

Assembly and maintenance

Periodically clean the grille of insects and mud: a clogged mesh significantly reduces cooling.
Check the tightening after the first few uses.
Check model and year before purchasing.

It is useful if you ride your CB500X on dirt roads, follow other vehicles in traffic, or cover many kilometers on the highway: these are the three situations where stones and insects reach the radiator.

Compatibility: Honda CB500X from 2019. Check year and trim before purchasing.

Per moto Honda

Honda

Come verificare la compatibilità

Honda CB400X (2021-), verificata sul manuale
Honda CB500X, dichiarata da LOBOO sui pannelli, anni non indicati

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Does it fit my CB400X or CB500X?

The LOBOO installation manual lists the Honda CB400X from 2021 onward. The official LOBOO panels show it for the CB400X and CB500X. If you have a CB500X, contact us with the model and year before ordering.

Which years of the CB500X does it apply to?

The LOBOO manual lists years only for the CB400X, starting in 2021. For the CB500X, LOBOO states compatibility on the product pages without specifying the years: write to us with your motorcycle’s model and year, and we’ll respond before you place your order.

Is it installed on your Honda NX400 or NX500?

No: for the NX400 and NX500, LOBOO produces a dedicated grille. radiator protection for Honda NX400 and NX500.

What is a radiator guard used for?

Prevents stones and gravel thrown up by the front wheel or vehicles ahead from hitting the radiator. On the CB400X and CB500X radiators, the grille is installed in front of the exposed section, between the fork legs.

How is it assembled?

Remove the four original screws around the radiator, indicated in red in the manual. Then position the grille: at the top left with the M6 × 40 screw and the 21 mm spacer, at the top right with the M6 × 18 screw, and at the bottom with the two M6 × 25 screws and the 8 mm spacers, using a washer for each screw.

Do you need to remove any other parts of the motorcycle?

The manual only instructs you to remove the four original screws around the radiator: the grille attaches at those same points. No drilling or cutting is required.
