Why doesn’t the plate rest directly on the frame?

Because between the two there are four Ø 20 × Ø 8.5 × 18 mm spacers, through which the four M6×35 screws holding the plate pass. As a result, the plate remains 18 mm away from the frame. LOBOO does not explain the design choice, and we do not interpret it: we report the information as stated in the parts list.

Is threadlocker included?

Yes, one pack. The manual shows it being applied to the screws during assembly: it is item 11 in the bill of materials.

Can I install it myself, or do I need a workshop?

There are nine steps, involving the removal and reinstallation of original parts of the tail section. It is manageable for anyone who works on their motorcycle and has a torque wrench. The manufacturer asks you to read the manual and watch the video before starting, lay out all the parts without fully tightening them, and apply the torque only at the end, in sequence.

How much does it weigh?

LOBOO does not state the weight of this code, either in the manual or in the technical images. We do not estimate it: we would rather tell you that the data does not exist than give you an invented number. We have asked the distributor.

What material is it made of?

Not specified. The manufacturer's images show the frame and plate with a light finish and the connecting bracket in black, but LOBOO does not publish either the alloy or the type of steel for this code, and there is no Product Specifications panel. We do not report material designations that the manufacturer does not disclose.

What is the maximum load?

Not specified by the manufacturer for this code. The practical reference remains the load limit of the top case you install and the limit BMW indicates for the motorcycle’s rear section.

How does it differ from the base version?

LOBOO identifies this code as Top Case Rack (Enhanced Version), meaning an enhanced version, but does not publish a point-by-point comparison with the base version. We will not make one up. What is documented for this code is the three-piece structure, the plate raised on four 18 mm spacers, and the four compatible top case codes.

Do you also need the frame for the side cases?

No, the luggage rack mounts on its own and does not depend on the side frame. If you also want the side cases in the future, those are a separate item with their own manual.

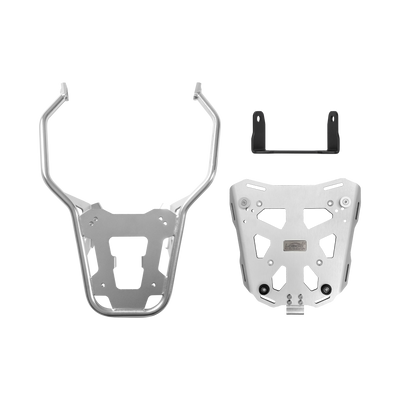

Portapacchi posteriore LOBOO JPTC025W per BMW F 900 GS: telaio tubolare, piastra in alluminio e staffa di collegamento

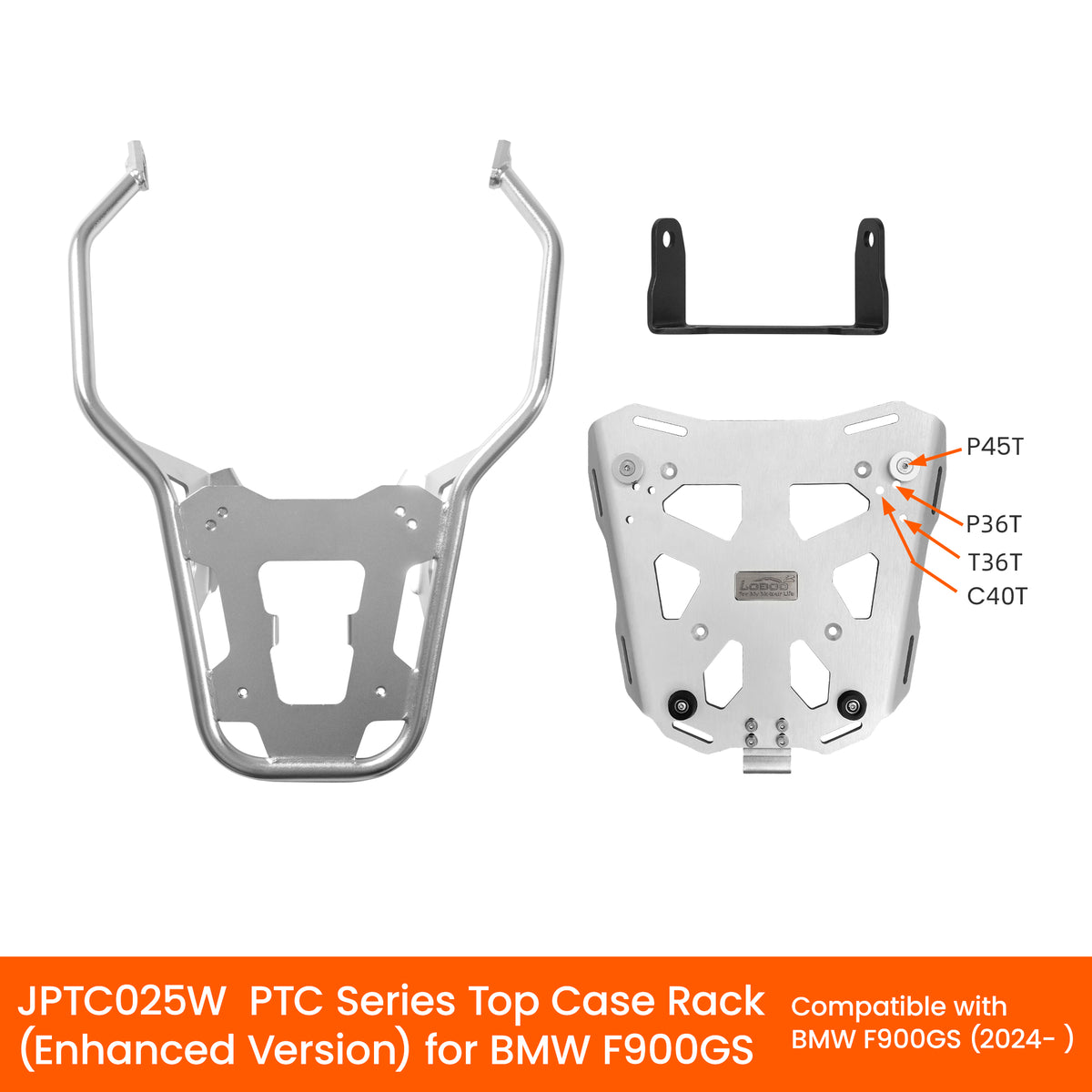

Piastra del portapacchi LOBOO JPTC025W con i punti di aggancio dei bauletti P45T, P36T, T36T e C40T

-10%Pre-ordine

F 900 GS Motorcycle

18 N·m M8 pair

32 Parts on the bill of materials

4 Compatible top cases

LOBOO ✓ Prodotto originaleCod. JPTC025W

Rear Luggage Rack with Top Case Plate for BMW F 900 GS from 2024 | top case support, enlarged version

Q: What exactly is in the package?

Eleven items totaling 32 pieces: 1 tubular frame, 1 support plate, 1 connecting bracket, 4 M6×35 screws, 4 Ø20×Ø8.5×18 mm spacers, 4 M8×25 screws, 2 M8×35 screws, 2 M8 self-locking nuts, 8 M8 washers, 4 Ø22×Ø8.5×4 mm washers, and 1 threadlocker. The box also includes the manual in eight languages, including Italian.

€306,00 ~~€340,00~~Risparmi €34

Paga in 3 rate da €102,00 senza interessi

Va bene per la tua moto?

Progettato per: F 900 GS.

Pre-ordine · spedizione entro 1 mese

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

JPTC025W · F 900 GS dal 2024 · 11 voci, 32 pezzi · nessuna foratura

Perché non è una piastra da appoggiare: è un portapacchi completo, con un telaio tubolare che si aggancia al telaietto posteriore su entrambi i lati e una staffa che lo tiene fermo al centro. La piastra di appoggio sta sopra, sollevata di 18 mm su quattro distanziali.

E perché un attacco solo serve tre serie di valigie LOBOO, PIKE TRACKER, TIBET e CONQUEROR, con quattro codici di bauletto già previsti sulla piastra: se un domani cambi serie, dietro non rifai niente.

Dal produttore LOBOO

Fabbricante: SHENZHEN LOBOO MOTOR ACCESSORIES CO., LTD — Room 101, 201, 301, Building F, No. 30 Tongfu Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, Cina. Telefono 400-858-8100 e +86-755-89386080.

Denominazione ufficiale a manuale: Top Case Rack (Enhanced Version), serie PIKE TRACKER, TIBET e CONQUEROR. Codice produttore: JPTC025W. Numero d'articolo LOBOO: 11.6.01025.203.01. Edizione del manuale: marzo 2026, otto lingue.

Leggi la descrizione completa

On the F 900 GS, the top case is the first piece of luggage you fit and the last one you remove. This is the support it needs: a complete rear luggage rack with its own structure, not just a plate resting on the standard tail section.

How it is made

Three pieces, not one. A tubular frame that drops down to attach to the rear subframe on both sides, a connecting bracket that keeps it secured in the center, and a perforated mounting plate to which the top case attaches. The plate does not rest on the frame: four Ø 20 × Ø 8.5 × 18 mm spacers hold it 18 mm away, secured by four M6×35 screws.

Four top cases, one mounting system

The plate already has the holes for four LOBOO codes, listed individually in the manufacturer's technical image: P36T and P45T from the PIKE TRACKER series, T36T from the TIBET series, and C40T from the CONQUEROR series. If you change luggage series in the future, you will not need to redo anything at the rear.

How to install it

The manual illustrates nine steps: three for disassembly (one screw on the subframe per side, the four tail-section screws, and the rear cover), one for securing the connecting bracket, two for refitting the original parts just removed, and three for installing the frame, spacers, and plate. No drilling is required. There are only two tightening torques, which must not be confused: 12 N·m for the M6×35 screws and 18 N·m for all M8 screws. Threadlocker is included in the box.

What is not included

The top case is not included, nor is the frame for the side cases, which is a separate item for this motorcycle. LOBOO does not specify the material, weight, dimensions, or maximum load capacity for this code: we do not estimate or list them. When the manufacturer publishes them, you will find them here.

Prepare the tail of your F 900 GS before your next trip: below you will find the complete parts list, tightening torques, and the codes for the top cases that attach.

Nella confezione

PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI nella dotazione originale, con supporti, telai o adattatori venduti separatamente indicati nella descrizione.
MANUALE DI MONTAGGIO incluso nella confezione.
COMPATIBILITA' VERIFICABILE PRIMA DELL'ACQUISTO, comunicando marca, modello, anno e versione della moto.

JPTC025W · F 900 GS from 2024 · 11 items, 32 pieces · no drilling

How does it work, in detail?

Frame at the original mounting points, bracket in the center, plate raised by 18 mm on four spacers.

Three pieces that work together

The tubular frame attaches to the rear subframe on both sides, the black bracket keeps it secure in the center beneath the tail, and the plate is what the top case is mounted to. In the official photo, you can see all three before installation: the frame with its attachment points, the plate with the holes for the top cases and the pass-through slots, and the connecting bracket. It is not a plate to place on the stock luggage rack: it is a structure that carries the rack along with it.

The four top cases that attach to the plate

LOBOO indicates on the plate the mounting point for each case: P45T and P36T from the PIKE TRACKER series, T36T from the TIBET series, and C40T from the CONQUEROR series. All the holes are already there, so choosing a different top case does not mean changing the luggage rack. The plate remains raised 18 mm above the frame thanks to four spacers.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Identification

Product code

JPTC025W

Official name in the manual

Top Case Rack (Enhanced Version)

LOBOO item number

11.6.01025.203.01

Compatibility

Motorcycle

BMW F 900 GS from 2024

Declared luggage series

PIKE TRACKER, TIBET and CONQUEROR

Compatible top cases by code

P36T, P45T, T36T, C40T Indicate on the LOBOO technical drawing of the code

Structure

Main components

Tubular frame, support plate, connecting bracket

Spacers under the plate

4 pcs Ø 20 × Ø 8.5 × 18 mm The plate remains 18 mm away from the frame

Package contents

Line items in the bill of materials

11 32 pieces in total

Complete itemized list

1 tubular frame, 1 support plate, 1 connecting bracket, 4 M6×35 screws, 4 Ø20×Ø8.5×18 mm spacers, 4 M8×25 screws, 2 M8×35 screws, 2 M8 self-locking nuts, 8 M8 washers, 4 Ø22×Ø8.5×4 mm washers, 1 threadlocker

Threadlocker

Included in the package

Assembly

Torque on M6×35 screws

12 N·m

Torque on the M8×25 and M8×35 screws

18 N·m

Illustrated steps in the manual

9 3 for disassembly, 1 for the bracket, 2 for restoration, 3 for installation

Drilling

None specified in the manual

Undeclared data

Material

Not stated by the manufacturer

Weight

Not stated by the manufacturer

Overall dimensions

Not stated by the manufacturer

Maximum load

Not stated by the manufacturer

Equipment

Not included

Top case, side cases, and side case frame

Assembly manual

In eight languages, including Italian, included in the package

Dati dalla pagina stampata del manuale LOBOO JPTC025W e dall'immagine tecnica ufficiale del codice. Materiale, peso, ingombro e portata non sono dichiarati da nessuna fonte.

Manuale di montaggio LOBOO JPTC025W, portapacchi posteriore per BMW F 900 GS dal 2024Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Smontaggio: una vite sul telaietto posteriore, identica sui due lati; quattro viti sul codone; la cover posteriore.
La staffa di collegamento si fissa con due viti M8×25 e le relative rondelle, poi cover e quattro viti originali tornano al loro posto.
Il telaio tubolare si monta in modo identico sui due lati: in basso vite M8×35 con rondella M8 e rondella Ø22, in alto vite M8×25 con rondelle e dado autobloccante M8.
I quattro distanziali Ø20×Ø8,5×18 mm si appoggiano sul telaio e la piastra si chiude sopra con le quattro viti M6×35.
Due coppie di serraggio, da non confondere: 12 N·m sulle M6×35 e 18 N·m su tutte le viti M8.
Il frenafiletti è nella confezione e il manuale lo mostra applicato alle viti.

Istruzioni complete e note di sicurezza

Il manuale illustra nove passaggi, nell'ordine: tre di smontaggio, uno per fissare la staffa di collegamento, due per rimontare le parti originali appena tolte e tre per montare il telaio, i distanziali e la piastra. Nessuna foratura e nessuna modifica permanente.

Smontaggio: una vite sul telaietto posteriore, identica sui due lati; quattro viti sul codone; la cover posteriore.
La staffa di collegamento si fissa con due viti M8×25 e le relative rondelle, poi cover e quattro viti originali tornano al loro posto.
Il telaio tubolare si monta in modo identico sui due lati: in basso vite M8×35 con rondella M8 e rondella Ø22, in alto vite M8×25 con rondelle e dado autobloccante M8.
I quattro distanziali Ø20×Ø8,5×18 mm si appoggiano sul telaio e la piastra si chiude sopra con le quattro viti M6×35.
Due coppie di serraggio, da non confondere: 12 N·m sulle M6×35 e 18 N·m su tutte le viti M8.
Il frenafiletti è nella confezione e il manuale lo mostra applicato alle viti.

Il manuale non indica quali chiavi servano. Per rispettare le coppie dichiarate serve comunque una chiave dinamometrica.

LOBOO non pubblica omologazioni né dichiarazioni di conformità per questo codice e il manuale non riporta marcature: non riportiamo dati normativi che il produttore non dichiara.

Avvertenze d'uso riportate sul manuale:

Leggere le istruzioni e il video di installazione prima di iniziare.
Non serrare completamente le viti durante il montaggio: completare prima tutte le regolazioni, poi dare la coppia in sequenza secondo i valori indicati.
Controllare periodicamente il serraggio delle viti di fissaggio di tutti i componenti.
Le parti e i fissaggi originali rimossi dalla moto vanno rimontati secondo le coppie e le linee guida del costruttore della moto.

A chi sulla F 900 GS il bauletto lo tiene su sempre e lo carica davvero, e a chi mette in conto di cambiare serie di valigie nel tempo senza rifare l'attacco posteriore. Meno adatto a chi dietro porta solo una borsa morbida da weekend: in quel caso serve molto meno.

Da valutare anche il tempo di montaggio: nove passaggi, con smontaggio e rimontaggio di parti originali del codone e due coppie di serraggio da rispettare. Se non te la senti, è un lavoro da officina.

Per moto Bmw

BMW

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Will it fit my F 900 GS?

The LOBOO installation manual specifies it for the BMW F 900 GS from 2024 onward. The F 900 GS Adventure is not mentioned in any manufacturer source: it has a different rear end and its own part number. If you have the Adventure, contact us before ordering and we’ll point you to the right one.

Which top cases attach to this plate?

Four LOBOO codes, each shown individually in the manufacturer's technical image: P36T and P45T from the PIKE TRACKER series, T36T from the TIBET series, and C40T from the CONQUEROR series. Holes are already provided for all four, so you don't need to change the luggage rack when switching suitcase series.

Is the top case included in the price?

No. Here you buy the rear luggage rack with its mounting plate, spacers, and all the hardware. The top case, side cases, and side-case frame are separate items.

Should we drill the motorcycle?

The manual’s nine steps require no drilling or permanent modifications: they use mounting points already present on the motorcycle, and the original parts removed during installation are reinstalled.

What needs to be removed from the motorcycle to install it?

Three disassembly steps: one screw on the rear subframe per side, four screws on the tail section, and the rear cover. The cover and the four screws are reinstalled immediately afterward, in steps 5 and 6, before mounting the luggage rack frame.

How many screws are there, and what torque should they be tightened to?

Ten screws in total, with two different pairs not to be confused: four M6×35 at 12 N·m, then four M8×25 and two M8×35, all at 18 N·m. These values are specified in the manual, so a torque wrench is required.
