Mirrorbase

Assembly

63 – 97mm

Phone width

In the open air3 axes

Anti-vibration

Assembly

Position

Rearview mirror base

Washer

Adapter rings included

Phone

Phone width

From 63 to 97 mm

Phone thickness

Up to 13 mm

Screen

From 4.7" to 7.2"

Anti-vibration

System

Air suspension (airbag) that filters vibrations along the three X, Y, and Z axes; patented according to the manufacturer

Phone

Closure

Screw clamp with removable knob, threaded rod to prevent loosening

Dedicated case

Not needed: the clamp grips the phone (even with a case, within the dimensions above)

Adjustments

Connector

25.4 mm (1") universal ball

Construction

Material

DA90 arm in aluminum, zinc, and stainless steel; clamp in aluminum alloy

Codes

Code / EAN

P100-B · 6970684670865

Alla base dello specchietto, con sospensione ad aria

Tutto quello che devi sapere prima di ordinare

Scheda tecnica, dotazione, consegna e garanzia: qui sotto ogni dettaglio verificato sulla documentazione ufficiale Outplorer e del distributore italiano.

Descrizione Anti-vibration motorcycle phone holder for mirror with Air Suspension | P100-B

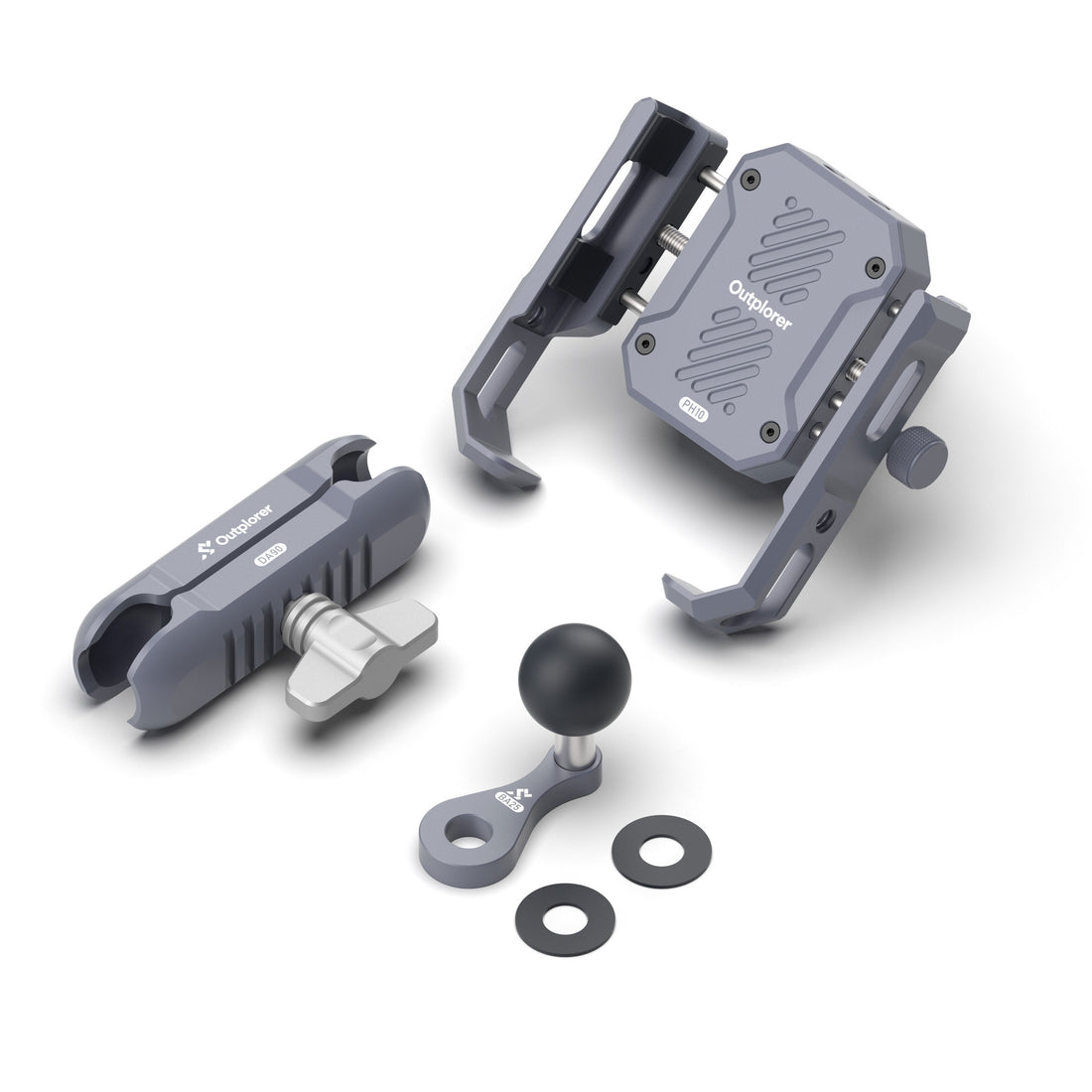

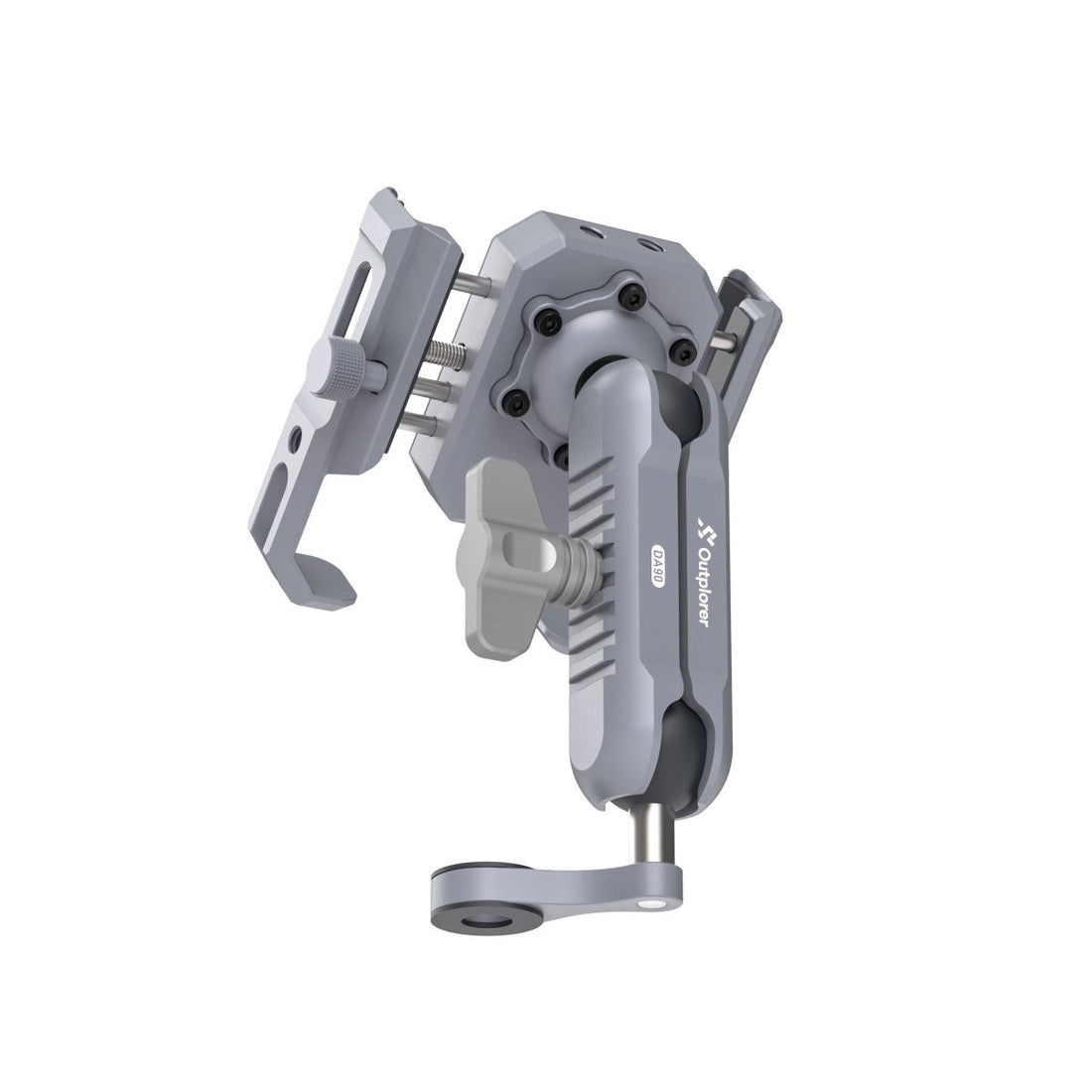

Outplorer P100-B is the Air Suspension kit that mounts at the base of the mirror: the BA25 ball locks beneath the mirror nut and leaves the handlebar clear. The air suspension filters vibrations across all three axes, and the screw clamp holds phones from 63 to 97 mm wide.

Unlike the P100-A and the P100-C, it does not take up space on the handlebar: it is the right choice when controls, handguards, and risers leave little room.

See all Outplorer smartphone mounts to choose the right attachment.

Perché sceglierlo

Sfrutta il fissaggio dello specchietto, robusto e già presente su tutte le moto: manubrio libero e telefono vicino al campo visivo.

A chi è consigliato

A chi ha il manubrio affollato o non vuole collari sul manubrio.

Prima dell'ordine scrivici modello e anno della moto: ti confermiamo il filetto dello specchietto.

How does it work in detail

  • At the base of the mirror, with air suspension.

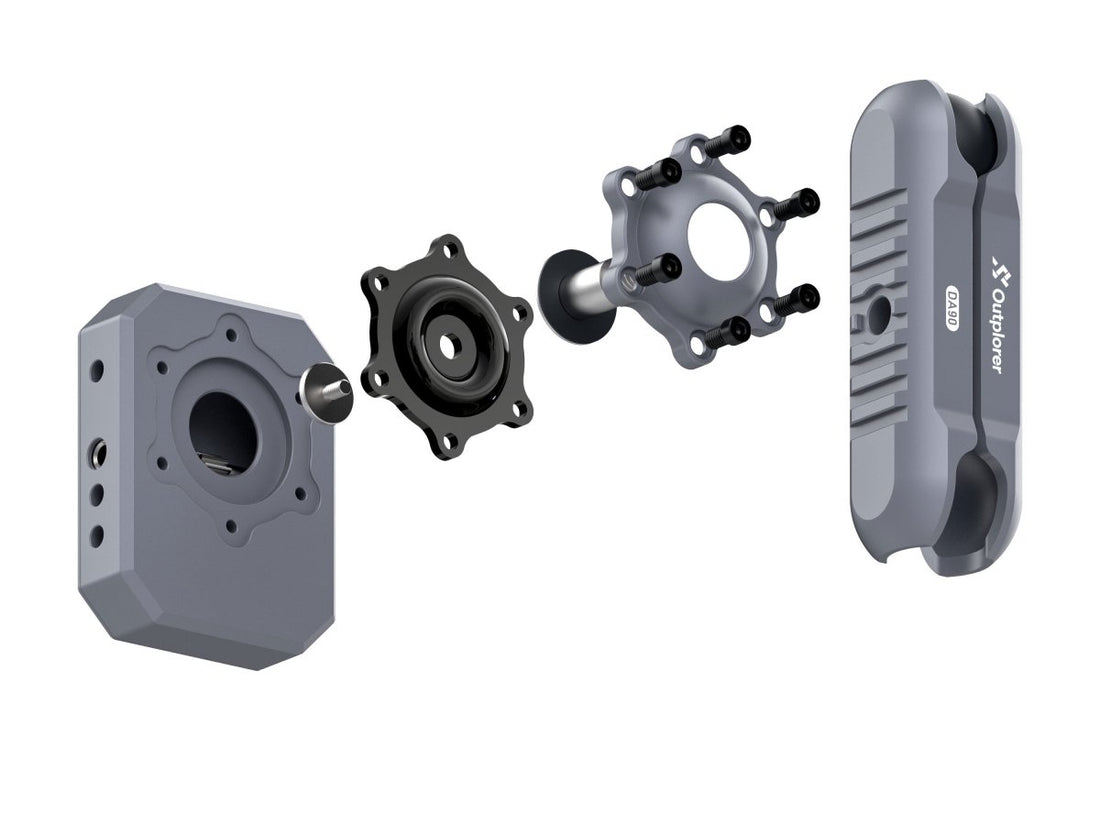

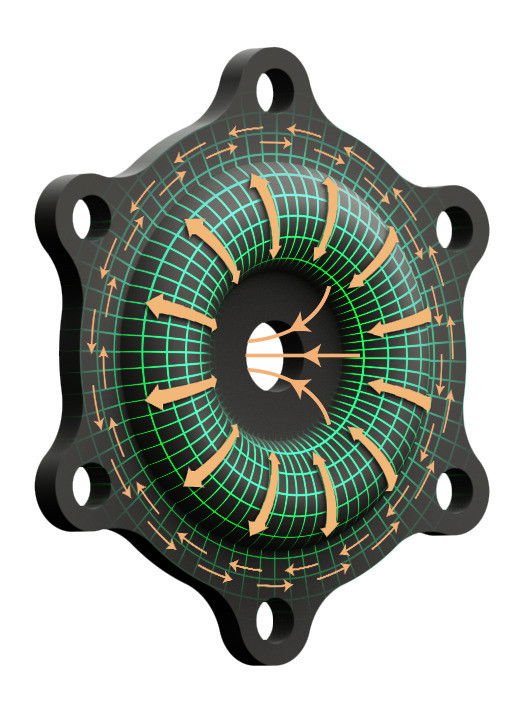

Air suspension, not the usual rubber mounts

Air suspension, not the usual rubber mounts

Instead of the four rubber rings at the corners, there is an air chamber that absorbs the engine’s high-frequency vibrations along all three axes.

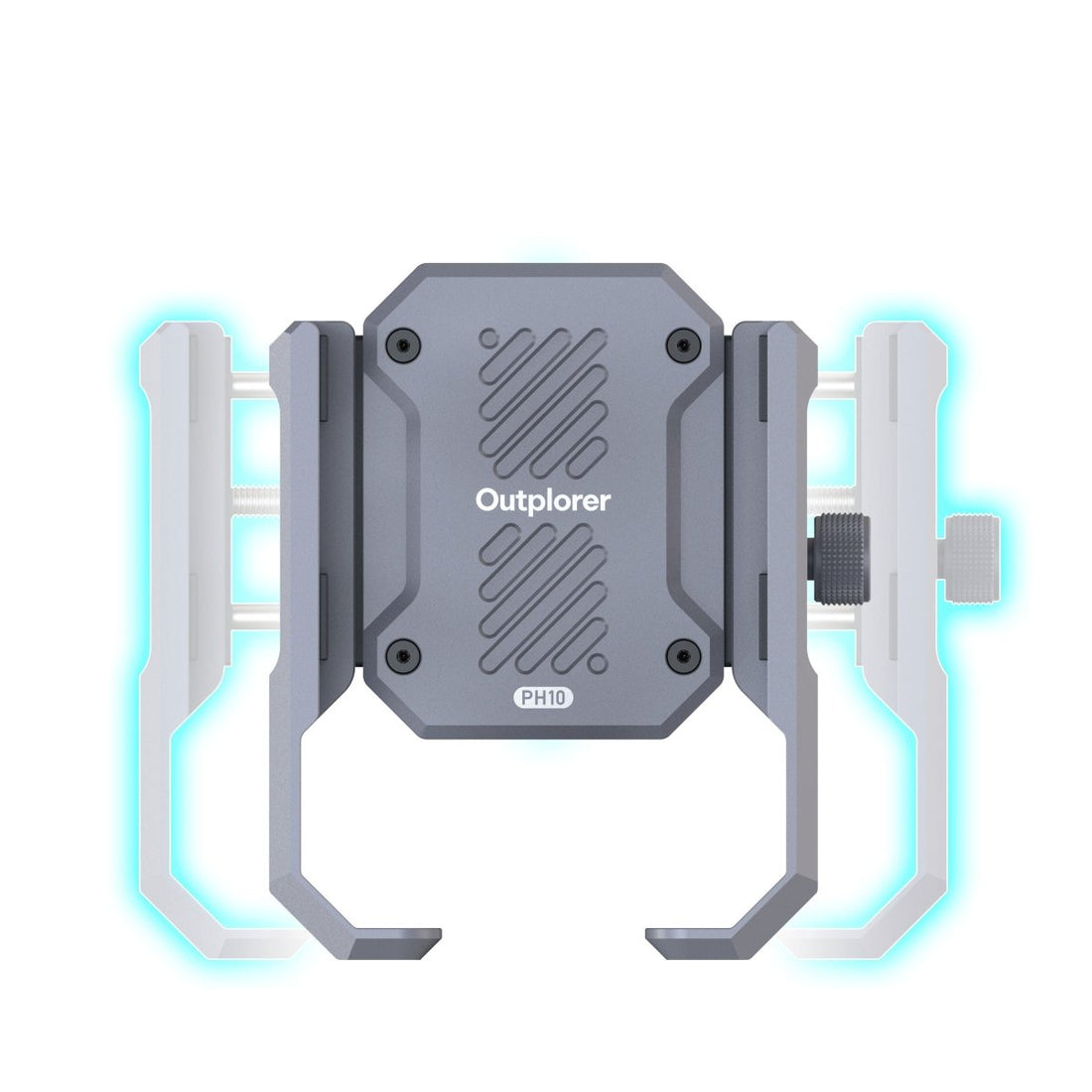

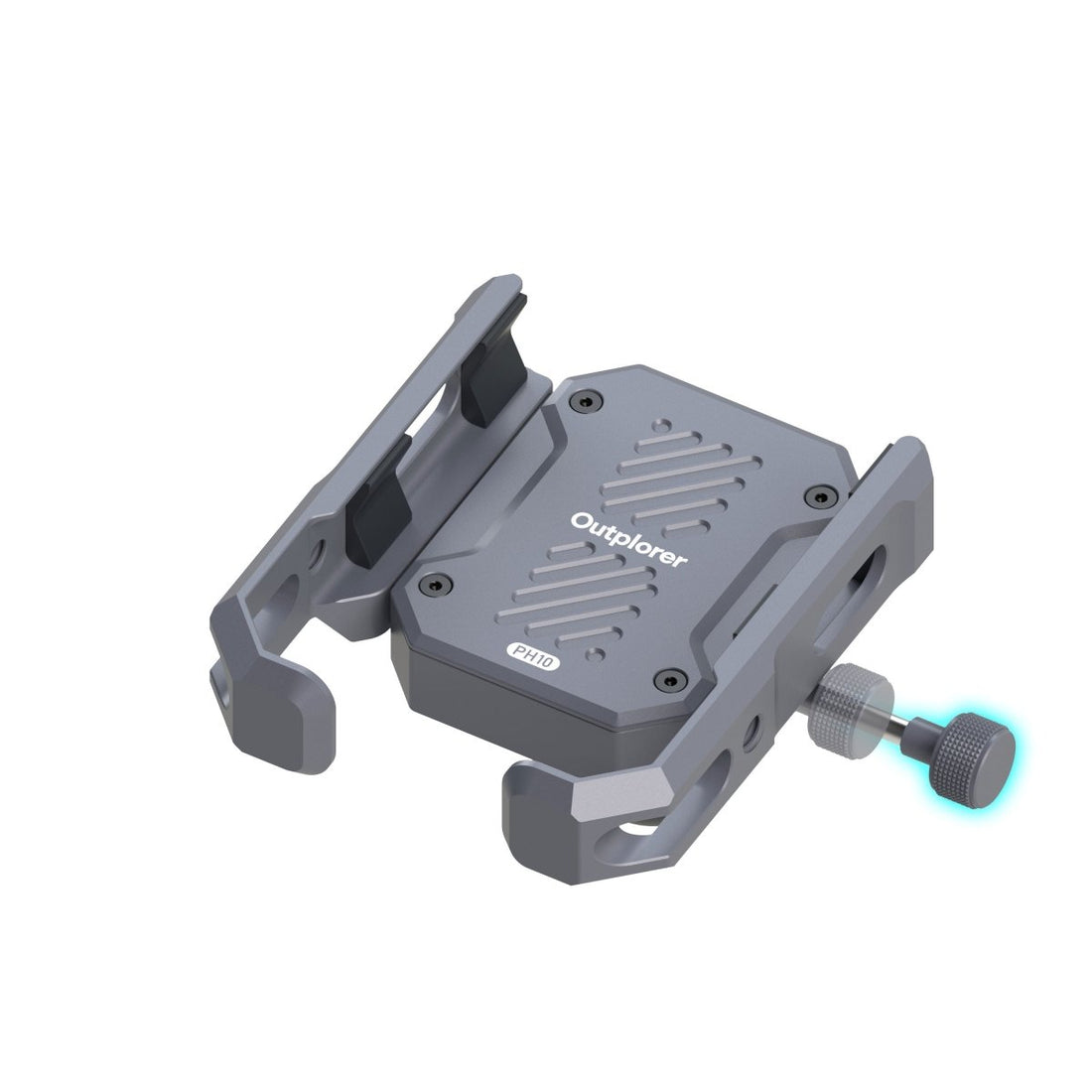

A phone clamp for phones from 63 to 97 mm

A phone clamp for phones from 63 to 97 mm

Tighten the clamp with the knob: it holds phones from 4.7" to 7.2" and up to 13 mm thick, without dedicated cases. The knob pulls out for a better grip, even when wearing gloves.

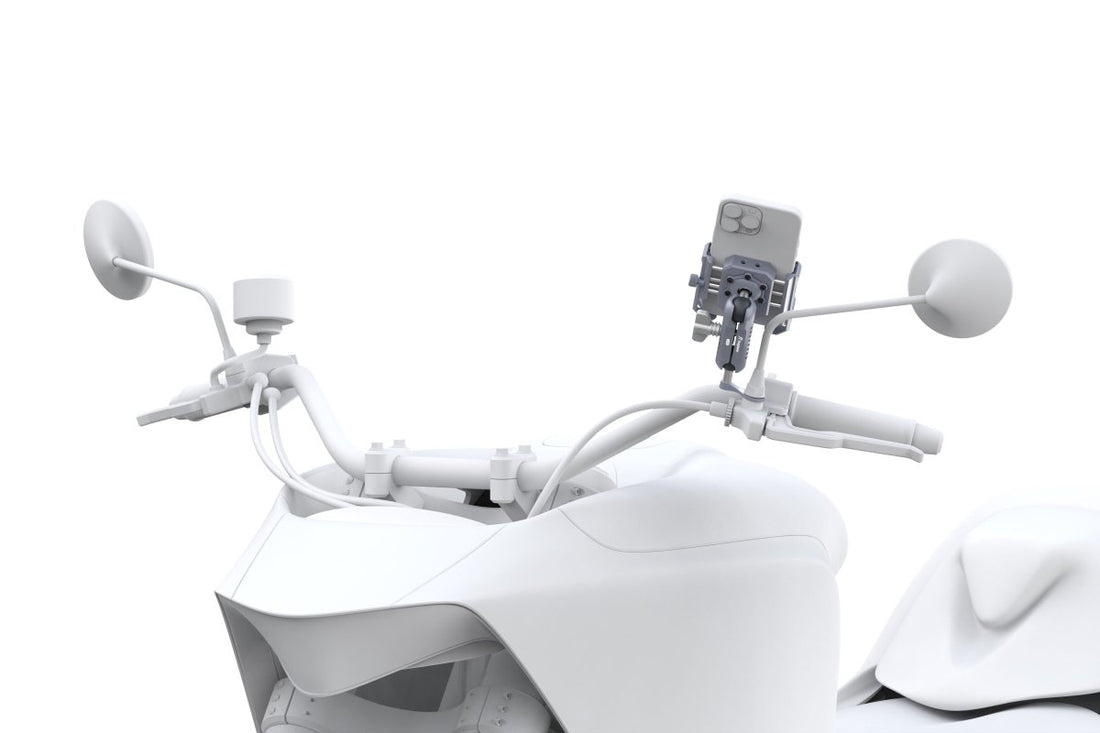

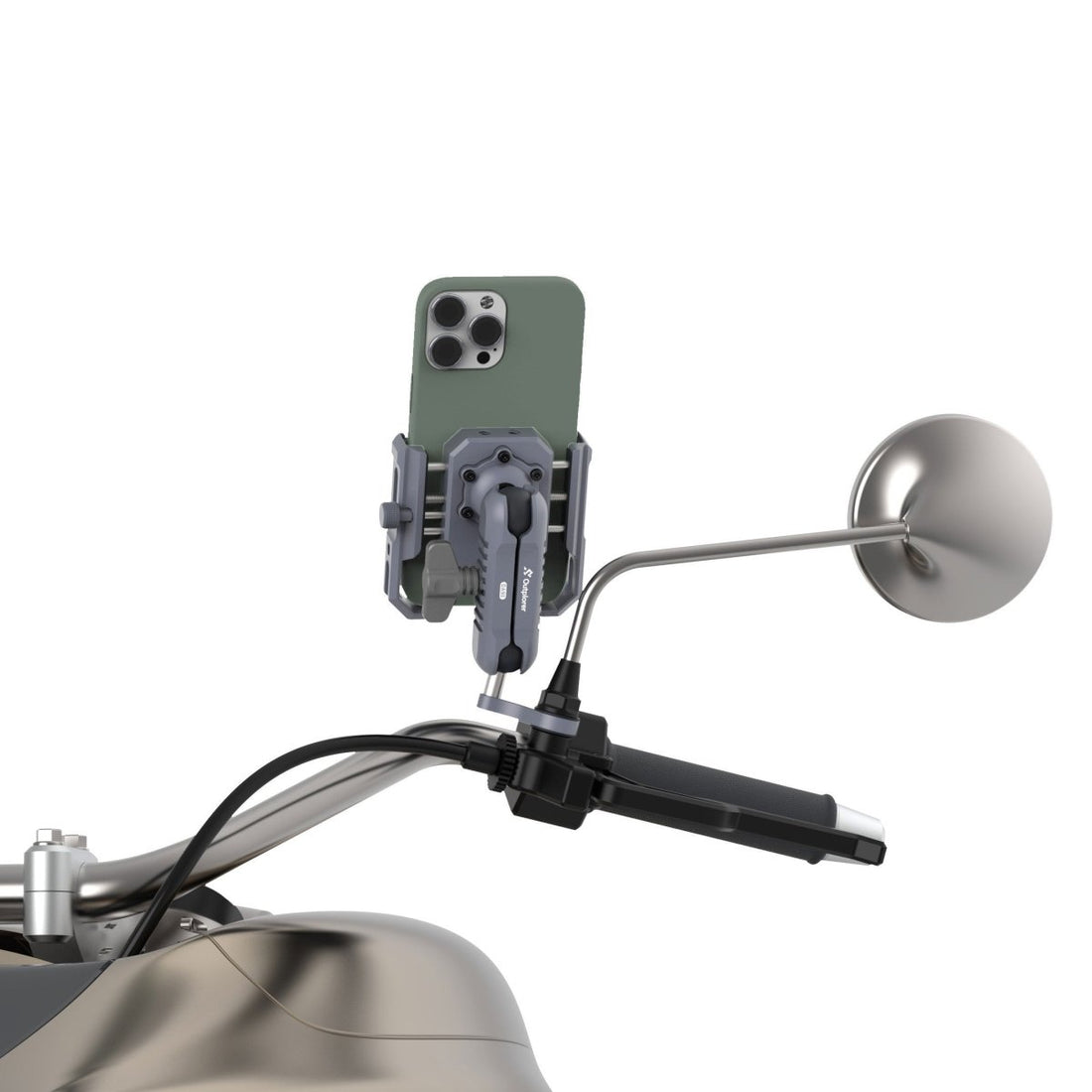

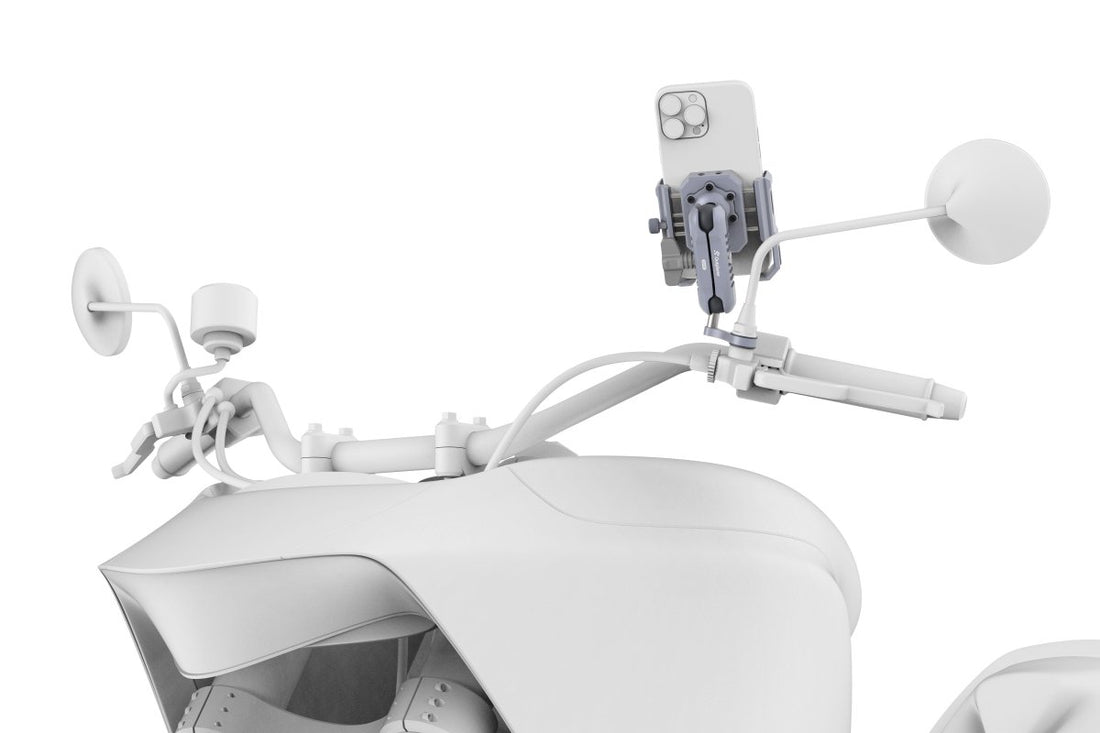

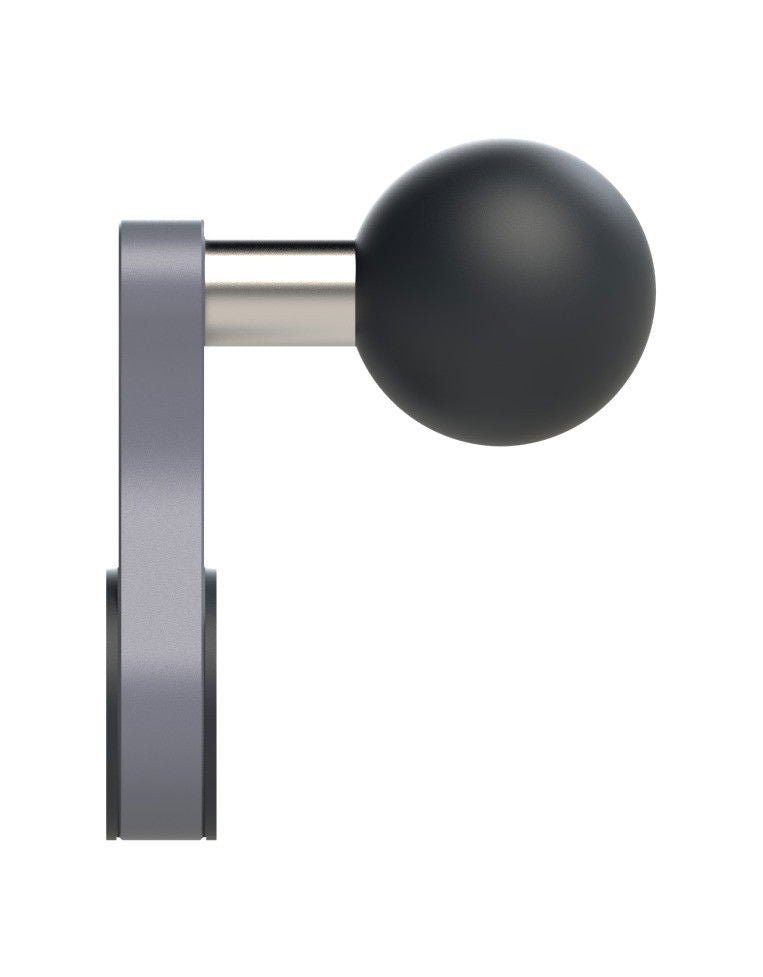

It mounts beneath the mirror

It mounts beneath the mirror

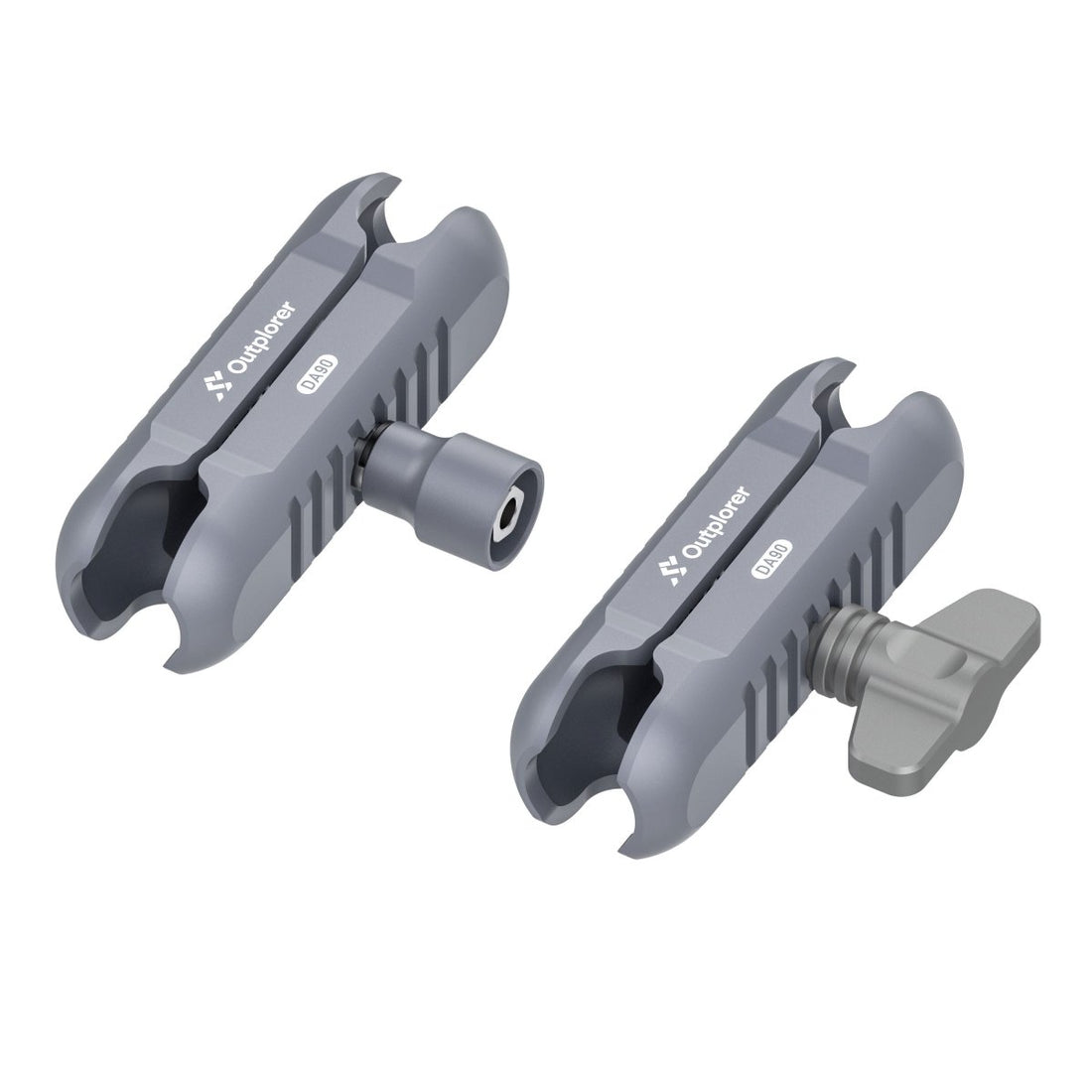

The BA25 ball fits between the mirror and its mount: the DA90 arm connects it to the phone clamp, leaving the handlebar free.

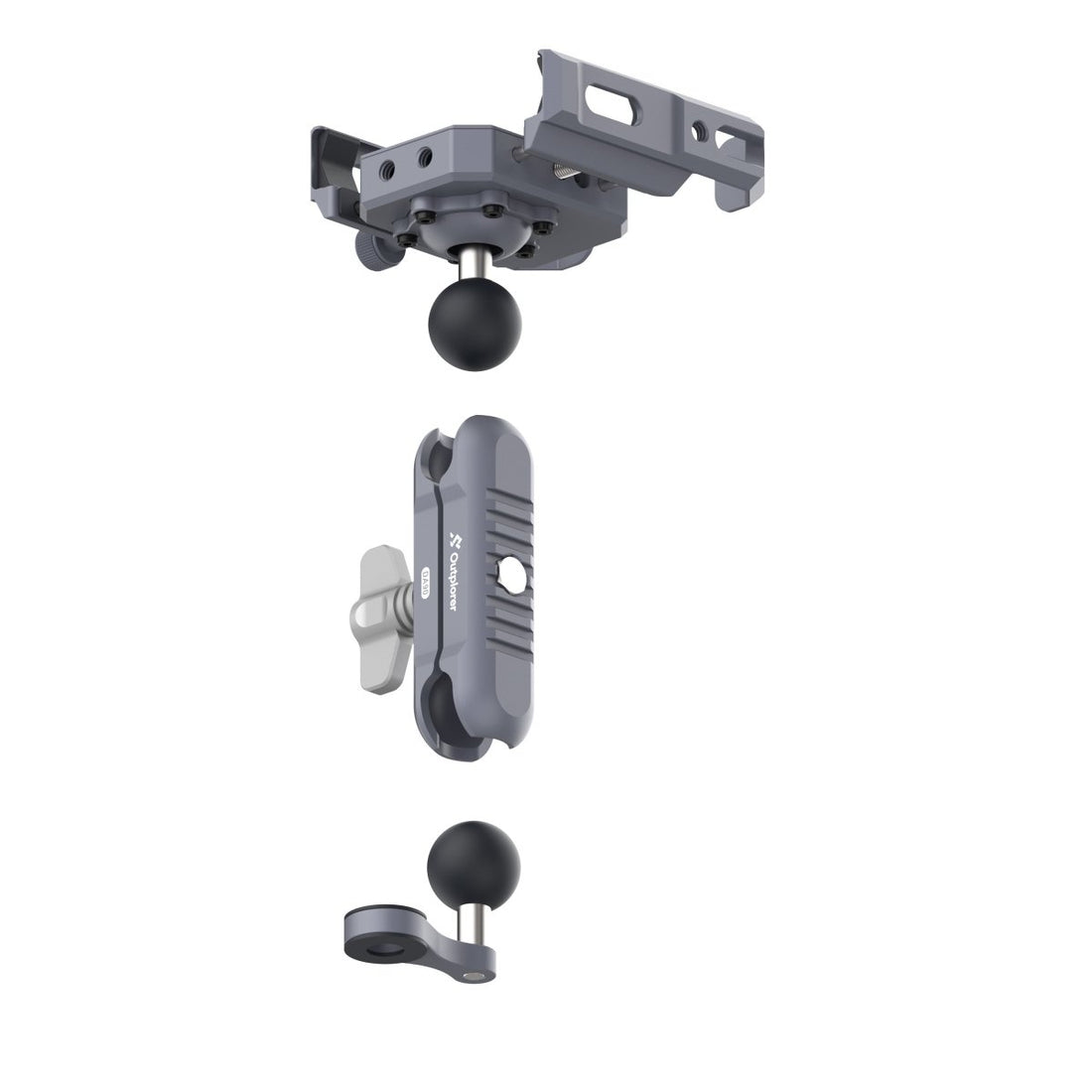

1" ball joint: position it however you like

1" ball joint: position it however you like

The dual-jointed arm and 25.4 mm ball let you position your phone vertically or horizontally and at the right angle.

FAQs

Per ulteriori informazioni, consulta la nostra FAQ delle domande frequenti.

Does it fit on my motorcycle mirror?

It fits mirrors secured with a nut or screw at the base: the BA25 ball locks under the mounting point. Tell us the make, model, and year of the motorcycle, and we’ll confirm compatibility.

Do you need an Outplorer phone case?

No. The Air Suspension clamp grips the phone directly, even with the case on, as long as it stays within 97 mm in width and 13 mm in thickness. PRO cases are only for Quick Launch mounts.

Does it protect the phone's camera from vibrations?

It is designed for this: the air suspension filters high-frequency engine vibrations along all three axes, which can damage the camera’s optical image stabilization (OIS). On very vibratory motorcycles, no mount completely eliminates the risk.

Does the mirror remain adjustable?

The ball locks under the mirror mount, which remains in place. After installation, check that the mirror is securely tightened and adjusted.
