What material is it made of, and how much does it weigh?

High-strength CNC-machined aluminum alloy. The manufacturer does not publish the alloy designation, so we do not report it.There is no parameter sheet for this code, so neither the weight nor the dimensions are specified, and we do not estimate them. If you need them before ordering, write to us and we will verify them with the distributor.

Do anti-slip grooves really work?

They are needed for something other than sinking: lateral sliding. A wide but smooth plate distributes weight well, but on gravel, wet grass, or sloping concrete, it can slip.LOBOO adds grooves to the sides and bottom of the base specifically to grip the supporting surface. For a motorcycle as heavy as the Gold Wing, that makes a significant difference.

Is it really necessary on a Gold Wing?

Perhaps no other motorcycle is affected more: the GL1800 weighs nearly 400 kg in running order, and all that weight rests on a side stand with a small footprint.You don't need off-road terrain: sun-softened summer asphalt or a gravel parking lot is enough. And lifting a Gold Wing back up off the ground isn't something you can do alone.

Is it an original LOBOO product?

Yes: we sell exclusively genuine, brand-new LOBOO products in the manufacturer’s original packaging, with the assembly manual included in eight languages.

How is shipping handled, and can I return it?

Tracked shipping throughout Italy, free for orders over 100 euros; in Europe, it is free for orders over 250 euros.You have 14 days from receipt of the last item in your order to request a return, in accordance with the conditions in the returns and refunds policy. The product must be returned intact and in its original packaging.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

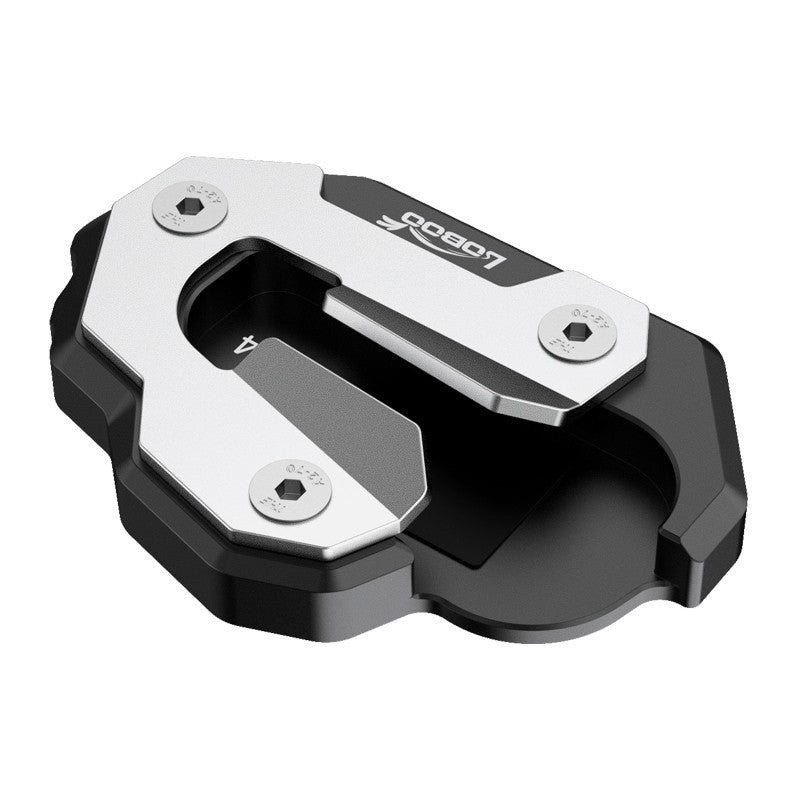

Piastra cavalletto LOBOO CJC34 per Honda GL1800 Gold Wing vista dall'alto, base nera e cover argento

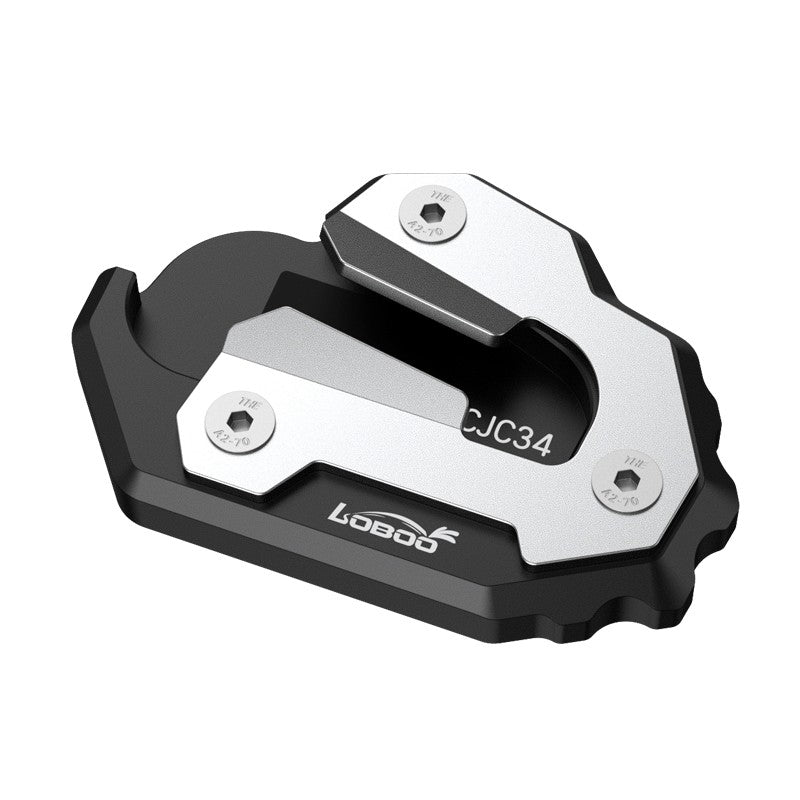

Incisione del codice CJC34 sulla cover della piastra cavalletto LOBOO per Gold Wing

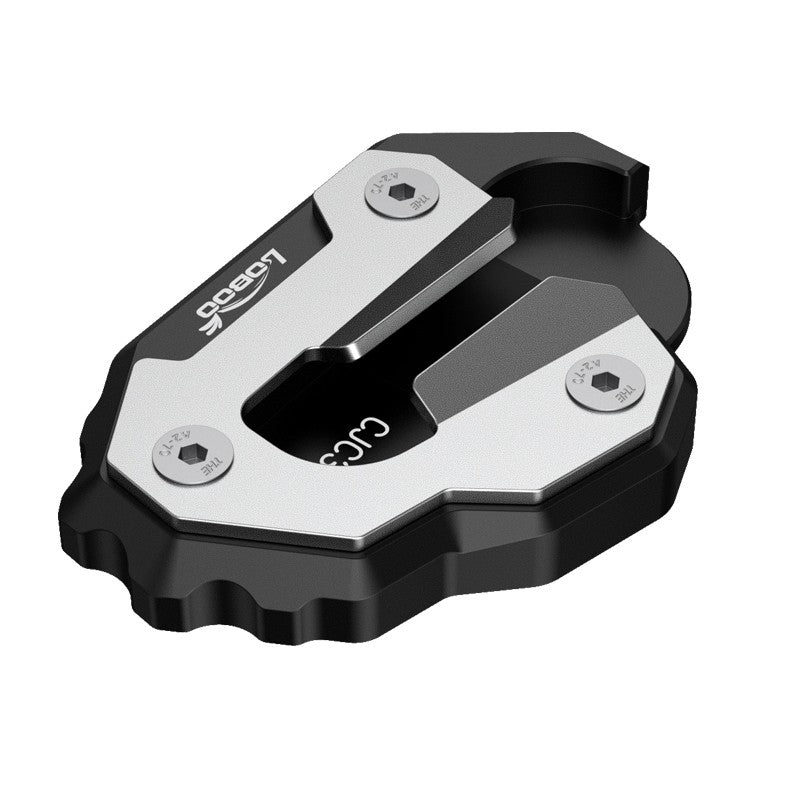

Piastra cavalletto LOBOO CJC34 in vista tre quarti, profilo basso lavorato CNC

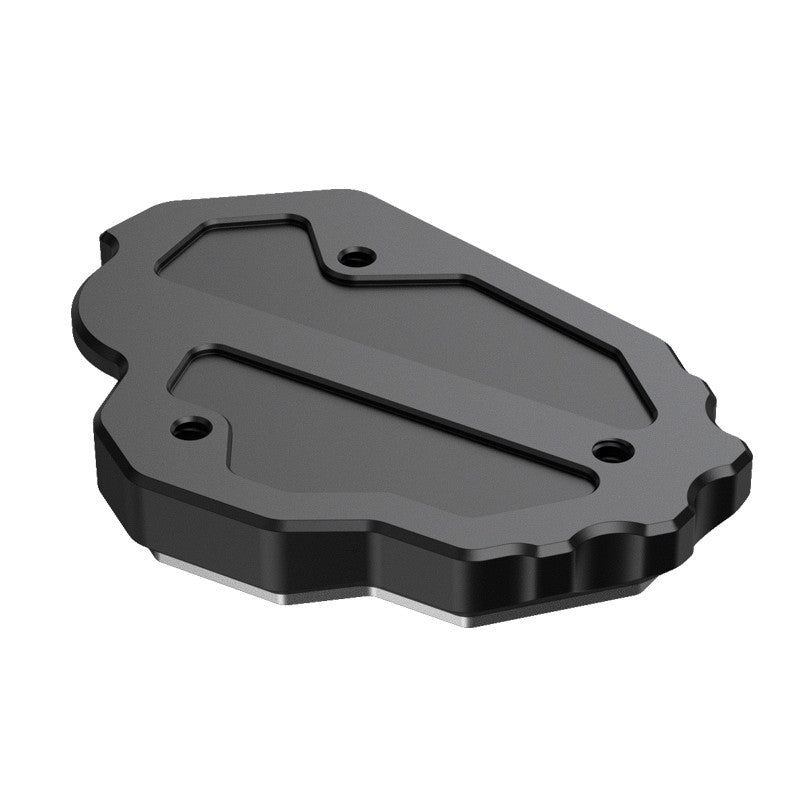

Fondo della piastra cavalletto LOBOO CJC34 con le scanalature antiscivolo

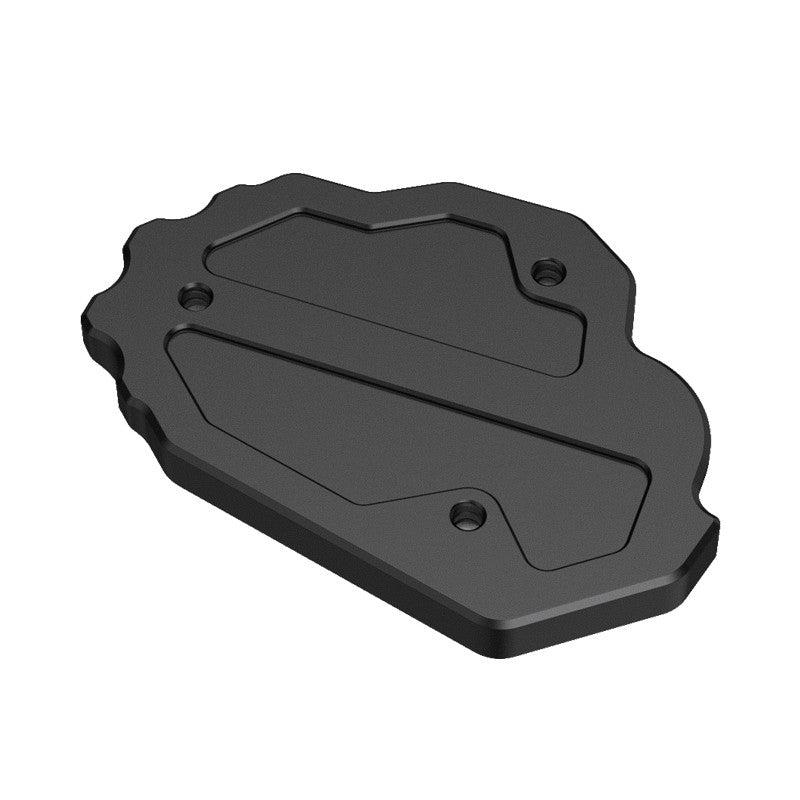

Dettaglio del fondo della piastra cavalletto LOBOO CJC34, con i fori di fissaggio

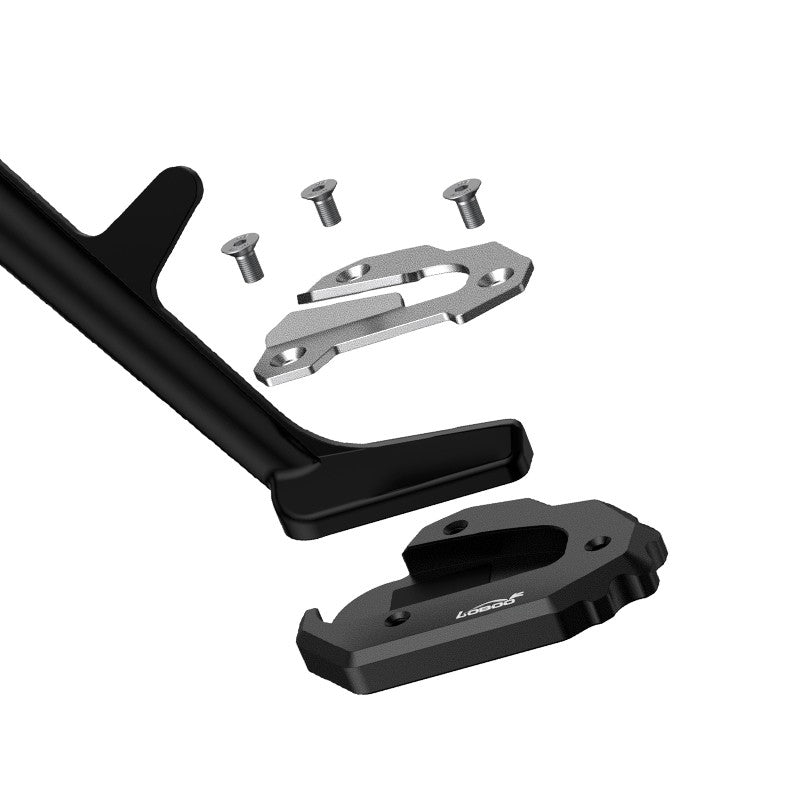

Componenti della piastra cavalletto LOBOO CJC34: base, cover e viti M5×12 sul cavalletto originale

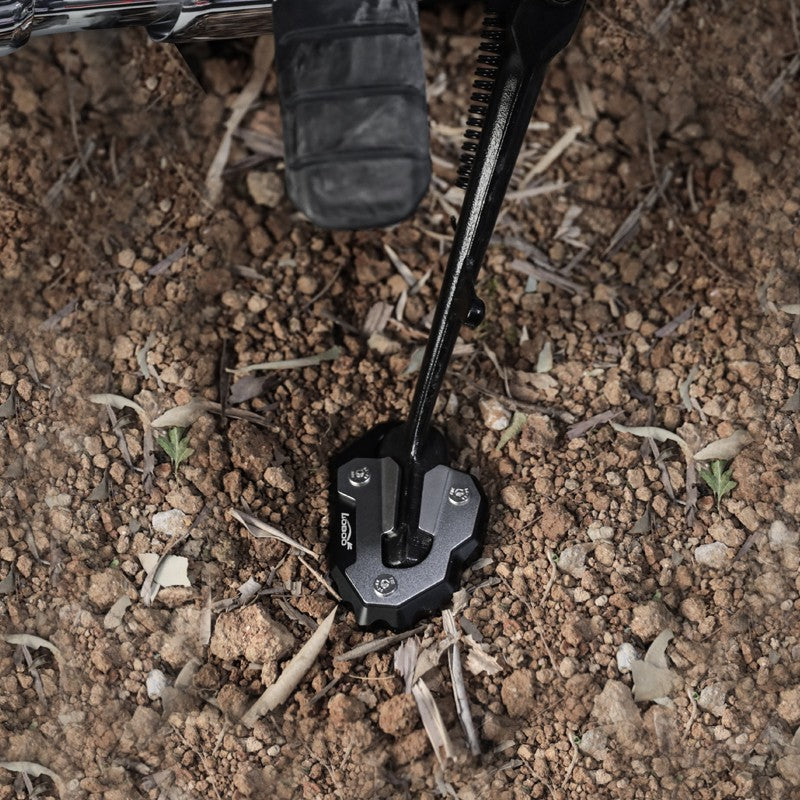

Piastra cavalletto LOBOO CJC34 installata sul cavalletto della Honda GL1800 Gold Wing

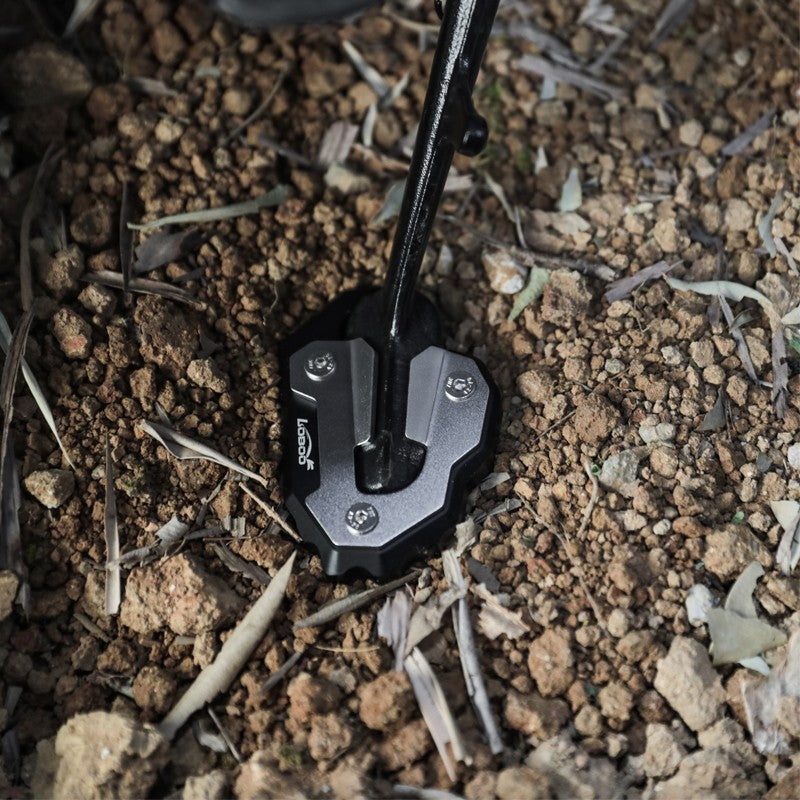

Piastra cavalletto LOBOO CJC34 in appoggio su terreno smosso senza affondare

-9%Pre-ordine

4 N·m Pair of screws

3 M5×12 Supplied screws

3 mm Allen key Tool included

LOBOO ✓ Prodotto originale

Kickstand plate for Honda GL1800 Gold Wing from 2020 | high-strength CNC aluminum

€41,00 ~~€45,00~~Risparmi €4

Paga in 3 rate da €13,66 senza interessi

Va bene per la tua moto?

Progettato per: Gold Wing.

Pre-ordine · spedizione entro 1 mese

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

CJC34 · alluminio ad alta resistenza CNC · Honda GL1800 Gold Wing dal 2020

Pensata per una moto pesante

la GL1800 in ordine di marcia sfiora i quattro quintali, tutti scaricati su un piede piccolo.

Impronta maggiorata

distribuisce il peso su un'area ampia, dove il piede di serie lo concentra su pochi centimetri quadrati.

Alluminio ad alta resistenza, CNC

finitura curata e fori a posizione precisa, che è quello che serve per accoppiarsi al piede originale.

Scanalature antiscivolo

su fianchi e fondo, contro lo scorrimento laterale sui fondi in pendenza.

Installazione non distruttiva

il piede originale resta al suo posto, niente forature né modifiche permanenti.

Tutto incluso

viti M5×12, chiave a brugola e frenafiletti sono nella scatola.

Dal produttore LOBOO

Prodotto originale LOBOO. Denominazione ufficiale: Side Stand Support Extension. Il codice inciso sul pezzo è CJC34; il manuale di montaggio è intestato CJC341. Costruttore: Shenzhen Loboo Motor Accessories Co., Ltd.

Il manuale di montaggio in otto lingue è incluso nella confezione e scaricabile da questa scheda. Per questo codice il produttore non pubblica una scheda parametri con peso e dimensioni.

Leggi la descrizione completa

The LOBOO CJC34 side stand plate widens the footprint of the Honda GL1800 Gold Wing from 2020 side stand: when parked, the motorcycle’s weight is distributed over a much larger area instead of the few square centimeters provided by the standard foot.

There is little margin on a Gold Wing

The GL1800 weighs nearly 400 kg in running order. All that weight passes through a side stand resting on a small surface, and on asphalt softened by the sun or on slightly yielding ground, the foot leaves an imprint and the motorcycle sinks. Lifting it back up, moreover, is not something you can do alone.

High-strength aluminum, CNC-machined

LOBOO specifies high-strength aluminum alloy and computer numerical control machining, identifying CNC as the reason for the surface finish and precise hole placement: these are the holes that must align with the shape of the original foot.

The anti-slip grooves are machined into the sides and underside of the base to prevent lateral sliding on sloping ground. Widening the footprint without adding grip would solve only half the problem.

Mounts over the original foot

The standard side stand foot does not need to be removed: it remains enclosed between the base and cover, which are tightened with three M5×12 screws. No drilling, no permanent modifications, and if you resell the motorcycle, you can return it to its original configuration in just a few minutes. LOBOO states that it developed the shape using the vehicle’s original data.

What the manual states

Contents: base, cover, 3 M5×12 screws, 3 mm hex key, single-dose threadlocker
Tightening torque: 4 N·m for all three screws
Do not fully tighten immediately: make all adjustments first, then perform the final tightening in sequence
Periodically check the mounting screws
Manual included in eight languages

Pay attention to the torque: 4 N·m, not 5. It is 5 for most other LOBOO codes, and anyone who has already installed one may be tempted to rely on memory.

For this code, the manufacturer does not specify either the weight or the dimensions: unlike other codes in the range, there is no specification sheet. We prefer to state that rather than estimate.

The plate reduces the risk of sinking, but does not eliminate it: assessing the ground where you park remains your responsibility.

For other models, see all side stand plates.

Nella confezione

PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI nella dotazione originale, con supporti, telai o adattatori venduti separatamente indicati nella descrizione.
MANUALE DI MONTAGGIO incluso nella confezione.
COMPATIBILITÀ VERIFICABILE PRIMA DELL'ACQUISTO, comunicando marca, modello, anno e versione della moto.

CJC34 · high-strength CNC aluminum · Honda GL1800 Gold Wing from 2020

How does it work, in detail?

Materials, assembly, and torque specifications, with the data declared by the manufacturer and the data it does not disclose.

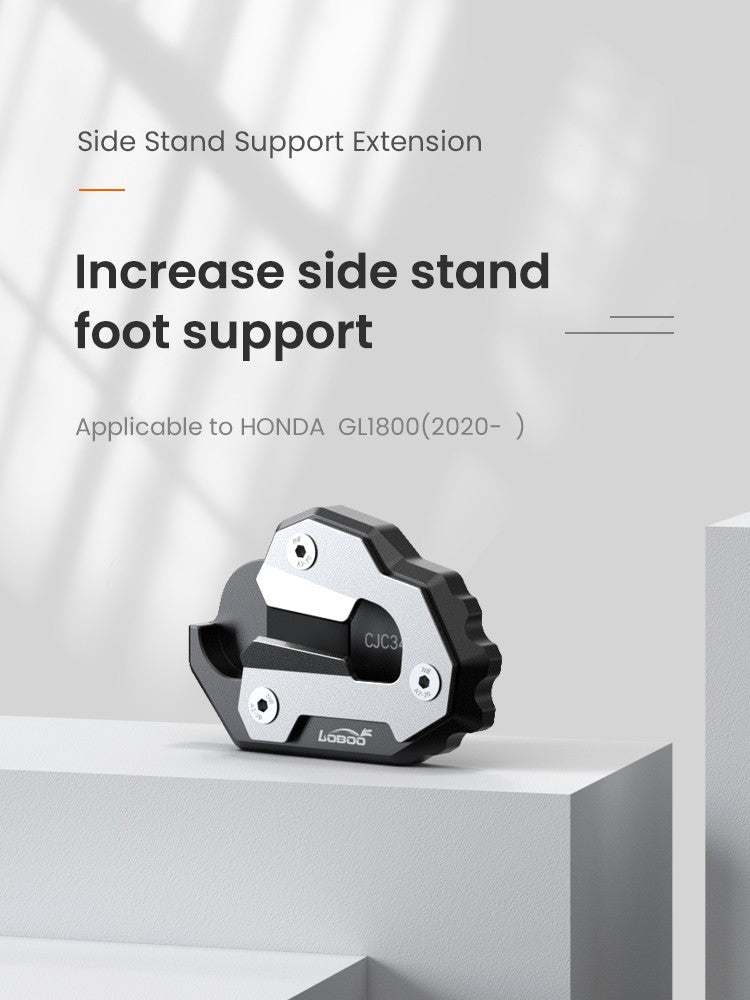

Four quintals on a small foot

The GL1800 weighs nearly 400 kg ready to ride, and all that weight rests on a side stand that contacts just a few square centimeters.

The plate enlarges that surface and distributes the load over a much wider area. You don’t need to go off-road to run into problems: a summer afternoon and an old asphalt parking lot are enough.

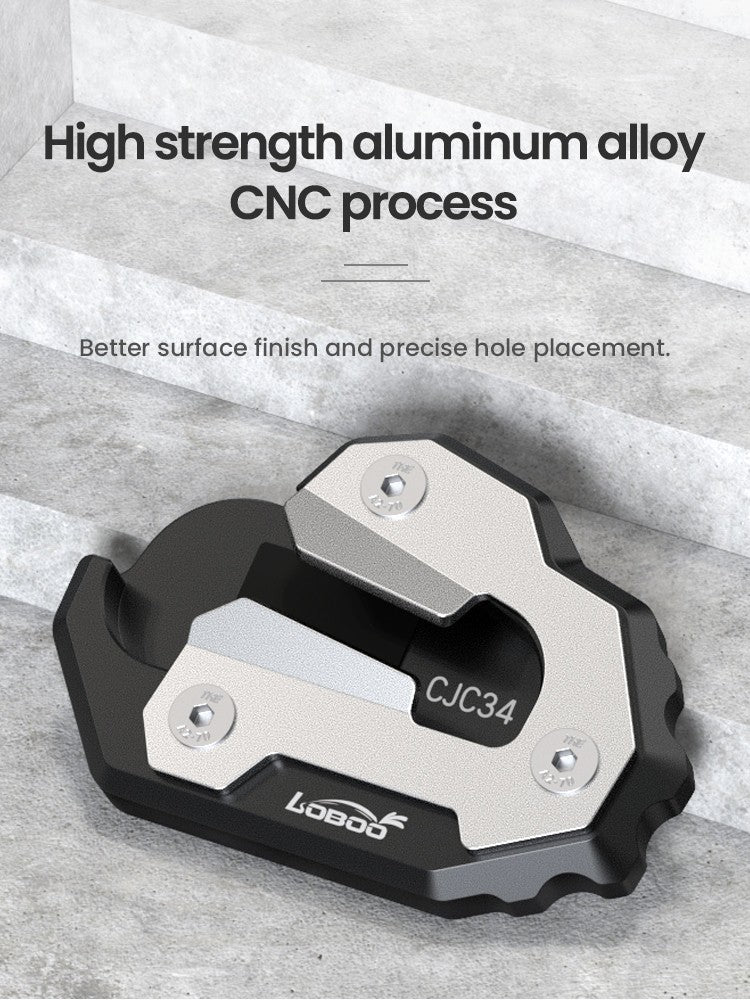

High-strength aluminum alloy, CNC-machined

LOBOO states that it uses high-strength aluminum alloy and computer numerical control machining, and identifies CNC as the reason for the surface finish and precise hole positioning.

These are the holes that must align with the original foot shape: even one millimeter out of position is immediately noticeable during installation.

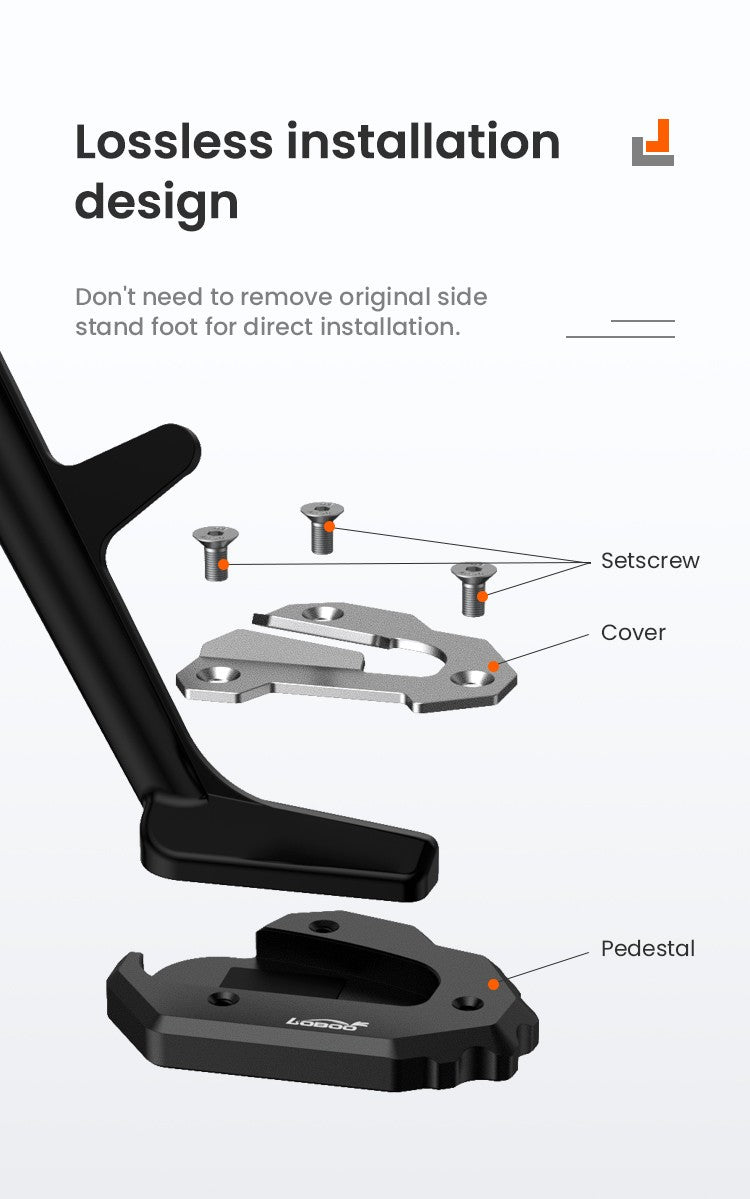

It mounts on the original foot without drilling.

The original kickstand foot does not need to be removed. The base is positioned underneath, the cover on top, and three M5×12 screws clamp them together around the stock foot.

No drilling and no permanent modifications: if you sell the motorcycle, you can return it to its original condition in just a few minutes. LOBOO states that it developed the shape using the vehicle’s original data.

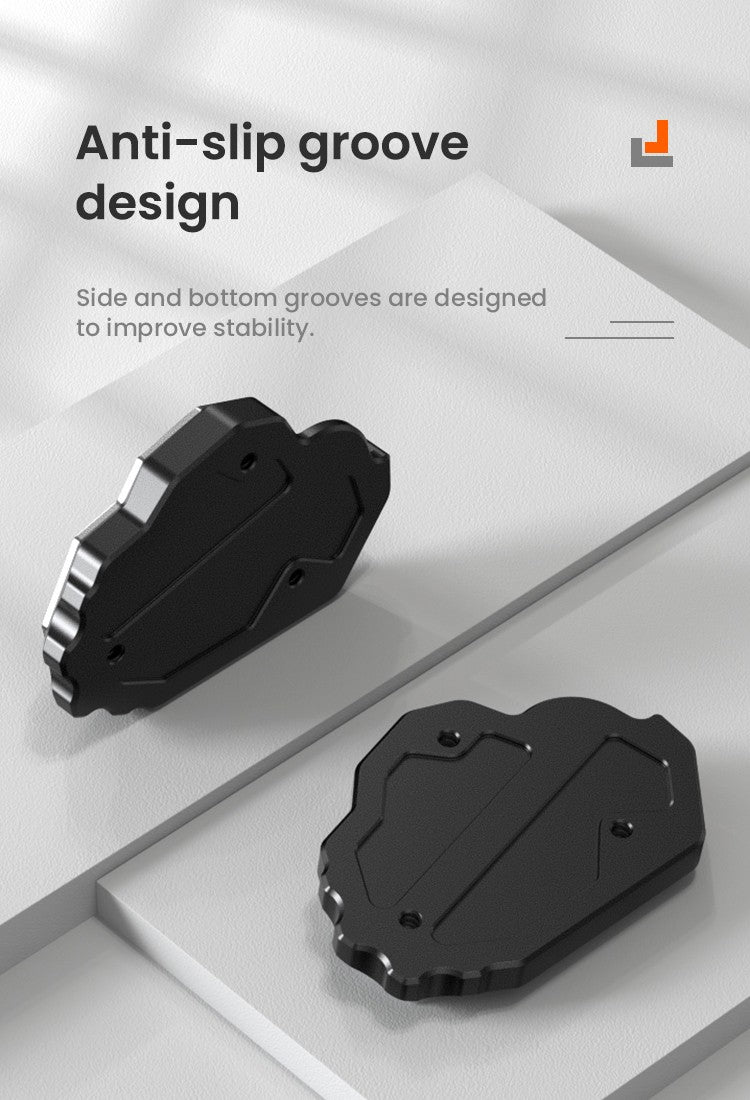

Non-slip grooves on the sides and bottom

The grooves are carved into the sides and bottom of the base, preventing lateral sliding.

On gravel, wet grass, or sloping concrete, a wide but smooth surface tends to slip, and with a motorcycle of this weight, sliding is more dangerous than sinking.

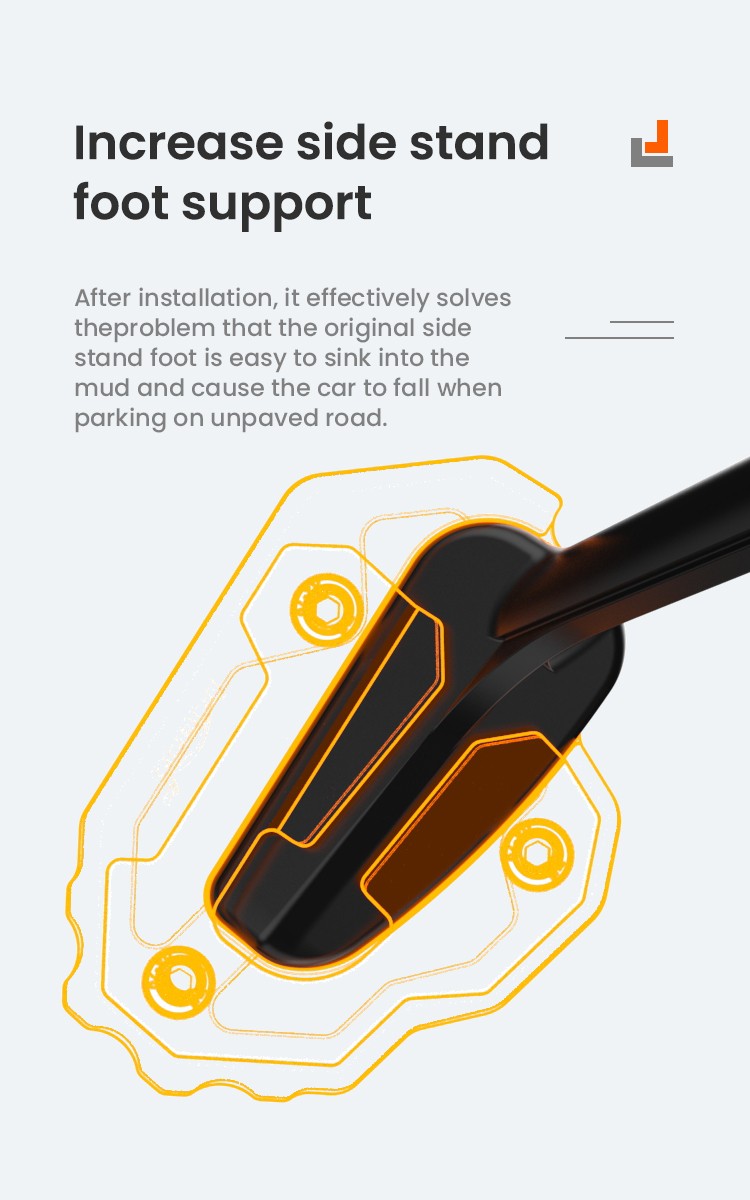

How much do you earn in support?

The manufacturer’s panel compares the outline of the original foot with that of the plate: the difference is the area over which the same mass is distributed.

For the same weight, more surface area means lower pressure per square centimeter, below the threshold at which most real surfaces give way.

Four N·m, not five

The box contains the base, the cover, three M5×12 screws, a 3 mm Allen key, and a single-use tube of threadlocker. Nothing else is needed.

The torque specified in the manual is 4 N·m, not the 5 used for most other LOBOO models. If you have already installed a plate from the range on another motorcycle, don't rely on memory: this one must be tightened less.

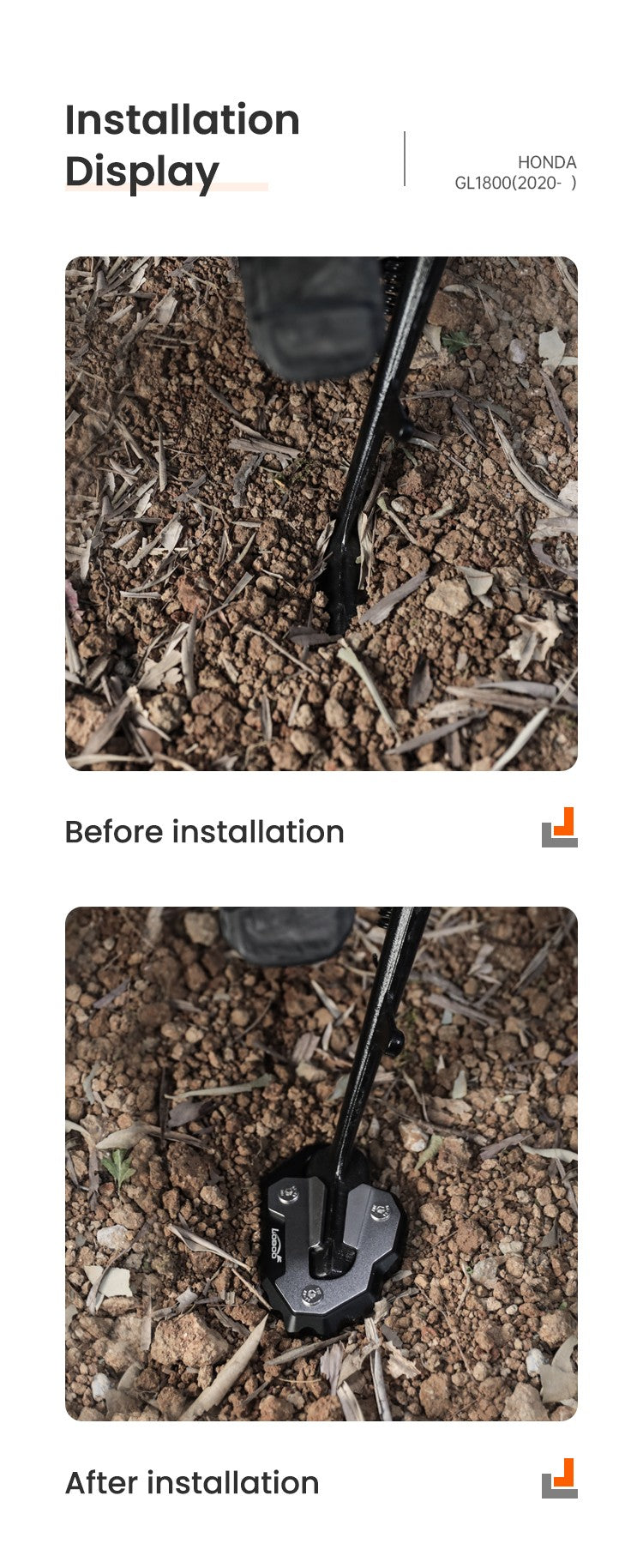

Before and after, on the same plot of land

The manufacturer’s two photos show the same kickstand on the same loose ground: without the plate, the foot cuts into the ground and sinks; with the plate, it stays on the surface.

With a Gold Wing, it’s not just a matter of the fairings: lifting it off the ground alone, on a yielding surface, is not something you can improvise.

The part says CJC34, while the manual says CJC341.

They are the same item, with two different forms of the code. CJC34 is engraved on the plate cover, and it is also the code under which the Italian distributor lists it; the assembly manual in the box is labeled CJC341.

If you receive a manual labeled CJC341, you have not received the wrong part. The manufacturer does not publish a specification sheet for this code, so the weight and dimensions are not stated—we prefer to say so rather than estimate them.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Model

Product code

CJC34 Marked on the part this way; the assembly manual is labeled CJC341

Compatible motorcycle

Honda GL1800 Gold Wing from 2020 Open window, indicated in the manual and on the technical panel

Official manual name

Side Stand Support Extension

Materials and construction

Material

High-strength aluminum alloy

Processing

CNC Refined surface finish and precisely positioned holes

Construction

Two pieces: support base and upper cover

Surface

Non-slip grooves on the sides and bottom

Weights

Weight

Not stated by the manufacturer There is no LOBOO parameter sheet for this code: we do not estimate it.

Dimensions

Overall dimensions

Not stated by the manufacturer

Assembly

Mounting type

On top of the original foot, without drilling The foot of the standard kickstand must not be removed

Hardware included

3 M5×12 screws

Tightening torque

4 N·m Lower than the 5 N·m of most other LOBOO codes: this must be observed

Tool included

3 mm Allen key

Package

Content

Base, cover, 3 M5×12 screws, 3 mm Allen key, single-use threadlocker

Assembly manual

Also, in 8 languages Also downloadable from this page

Features

Service

Free shipping from €100 in Italy and €250 in Europe · Returns within 14 days

Dati dal manuale di montaggio LOBOO e dai pannelli tecnici. Peso e dimensioni non sono dichiarati dal produttore.

Manuale d'uso CJC34Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Viteria: 3 viti M5×12, incluse.
Coppia di serraggio: 4 N·m.
Attrezzo: chiave a brugola da 3 mm, inclusa nella confezione.
Frenafiletti monodose incluso: va applicato sulle viti prima del serraggio.
Manuale di montaggio incluso, in otto lingue.

Istruzioni complete e note di sicurezza

La piastra si monta sopra il piede originale del cavalletto, che resta al suo posto: non si smonta nulla della moto e non si fora.

Viteria: 3 viti M5×12, incluse.
Coppia di serraggio: 4 N·m.
Attrezzo: chiave a brugola da 3 mm, inclusa nella confezione.
Frenafiletti monodose incluso: va applicato sulle viti prima del serraggio.
Manuale di montaggio incluso, in otto lingue.

Attenzione alla coppia: qui sono 4 N·m, non 5 come su gran parte delle altre piastre cavalletto LOBOO. Su una moto pesante come la Gold Wing il serraggio corretto conta: usa una chiave dinamometrica e ricontrollalo dopo i primi utilizzi.

Montaggio e note del produttore

Il piede originale del cavalletto non va rimosso: la base si posiziona sotto, la cover sopra.
Coppia dichiarata: 4 N·m su tutte e tre le viti M5×12, con chiave a brugola da 3 mm. È più bassa dei 5 N·m della maggior parte degli altri codici LOBOO: non andare a memoria.
Non serrare completamente le viti subito: prima tutti gli aggiustaggi, poi il serraggio finale in sequenza.
Frenafiletti monodose incluso.
Controllo periodico delle viti di fissaggio.
La piastra riduce il rischio di affondamento ma non sostituisce la valutazione del fondo di appoggio.

Serve se con la tua Gold Wing parcheggi abitualmente su:

Asfalto caldo d'estate, dove il bitume ammorbidito cede sotto il piede del cavalletto
Ghiaia o terra battuta, tipiche dei parcheggi di agriturismi e aree di sosta
Fondi in pendenza o irregolari, dove la moto tende a scendere lentamente

Su una moto di questo peso non serve il fuoristrada per avere problemi: basta un pomeriggio d'agosto e un parcheggio in asfalto vecchio.

È da valutare con attenzione se:

Hai una Gold Wing precedente al 2020: il produttore non la nomina, chiedici una verifica
Ti servono peso o ingombro esatti: il produttore non li dichiara per questo codice
Parcheggi quasi solo in garage su fondo compatto: il beneficio si assottiglia

Per moto Honda

Honda

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Is it compatible with my Gold Wing?

The LOBOO installation manual and technical panel list only one motorcycle for this code: the Honda GL1800 from 2020 onward, with an open window.

As always, before purchasing, it is advisable to verify your vehicle’s year and version. If you have any doubts, write to us.

Will it fit a Gold Wing from before 2020?

The manufacturer lists the GL1800 from 2020 onward and does not mention earlier model years, either positively or negatively.

If you have an older Gold Wing, write to us before ordering with the year and version: we prefer to verify rather than give you a guess.

Why does the manual list CJC341 while the part is labeled CJC34?

They are the same item. The code engraved on the plate is CJC34, which is also the code under which the Italian distributor lists it in its catalog; the assembly manual, however, is labeled CJC341.

We published CJC34, which is what you read on the product when you have it in hand. If you receive a manual labeled CJC341, it is not the wrong part.

Do I need to remove the foot of the original kickstand?

No. The standard stand stays in place, enclosed between the base and the plate cover, which are tightened with three screws. LOBOO describes it as a non-destructive installation: no drilling and no permanent modifications, and it can be returned to its original state in just a few minutes if the vehicle is resold.

What tool is needed, and what torque should the screws be tightened to?

A 3 mm Allen key, included in the package along with the three M5×12 screws and a single-use tube of threadlocker. The torque specified in the manual is 4 N·m.

Attention: for most other LOBOO part numbers, the torque is 5 N·m; here, it is 4. If you have already installed a LOBOO plate on another motorcycle, do not rely on memory.

What’s in the package?

The manual lists five items: the support base, the top cover, three M5×12 screws, a 3 mm Allen key, and a single-use packet of threadlocker. The box also contains the assembly manual in eight languages.
