What tools are needed for assembly?

A torque wrench is required to meet the specified 18 and 12 N·m values, in addition to the wrenches for the included M6 and M8 hardware. The manual does not specify the wrench sizes or an assembly time, and refers to the installation video accessed via the QR code.

What material are they made of?

Aluminum alloy, which LOBOO describes as high-strength to reduce weight without compromising durability. The exact alloy designation is not published by the manufacturer, so we do not report it. The shields in the complete set are made of plastic.

The manufacturer states a length of 307.7 mm, a height of 126.3 mm, and a depth of 197.7 mm, referring to the assembled handguard. LOBOO specifies that the measurements were taken manually and that the actual product is authoritative. The weight is not specified.

Is the weight stated by the manufacturer?

No. LOBOO does not publish the weight of this code, either of the brackets alone or of the assembled handguard, so we do not list it. If you need the information before ordering, ask us and we will verify it with the distributor.

Can the deflector really be adjusted without tools?

Yes: LOBOO states that the upper extension of the shield can be adjusted in height or removed by hand, without tools, in three positions. This applies to the CHP001 shield, so it is a feature of the full-set variants or for those who already have the shields.

Can I buy just the shields or just the bumpers separately?

Yes, you can find them in the catalog as separate products: the CHP001 shields with deflector, in black or white, and the CFCK001 impact buffers. This is LOBOO's intended way to restore the handguard after a slide without replacing the aluminum bar.

How much protection do they provide in the event of a fall?

LOBOO does not publish standardized impact tests for this product code, and we do not invent them. What the manufacturer states is the structure: an aluminum bar anchored at two points, with rubber pads on the sides that cushion unexpected impacts. These are handguards for road use and light adventure riding, not approved safety devices.

Is the product covered by a warranty?

Yes: all LOBOO products sold on Endurrad are covered by the 24-month statutory consumer warranty. In the event of a lack of conformity, we will handle the claim with the manufacturer.

Can I return the product if it isn’t suitable?

Yes, you are entitled to return the item within 14 days of delivery under online purchase regulations. The product must be intact and in its original packaging: contact us and we’ll guide you through the process.

Archetti paramano in alluminio LOBOO CHS511 per Honda ADV350

Scudo per paramano LOBOO CHP001 nero, con deflettore regolabile

Tampone paracolpi per paramani LOBOO CFCK001

Pannello LOBOO: il paramano si compone di archetto, scudo e tampone paracolpi

Pannello LOBOO: archetto in lega di alluminio ad alta resistenza

Pannello LOBOO: struttura leggera a protezione di mani e leve

Pannello LOBOO: doppio punto di fissaggio e tamponi laterali in gomma

Pannello LOBOO: deflettore regolabile su tre posizioni di altezza

Pannello LOBOO: regolazione del deflettore senza attrezzi

Pannello LOBOO: parti di usura sostituibili singolarmente

-10%Pre-ordine

307,7 mm Length

12-18 N·m Torque pairs

2 per side Mounting points

2025 Compatible from

LOBOO ✓ Prodotto originale

Aluminum handguards for Honda ADV350 | Brackets or complete set with shields

€112,00 ~~€125,00~~Risparmi €13

Paga in 3 rate da €37,33 senza interessi

Va bene per la tua moto?

Progettato per: ADV350.

Configuration

Headband only · blackHeadband only · silverComplete set · black headband and shieldComplete set · silver headband and white shield

Pre-ordine · spedizione entro 1 mese

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

Archetti paramano in lega di alluminio per Honda ADV350 dal 2025: riparano mani e leve di freno e frizione e si ancorano su due punti, senza forature né modifiche permanenti.

Scegli la coppia di soli archetti, se gli scudi li hai già, oppure il set completo con scudi e deflettore regolabile su tre altezze e tamponi paracolpi. Viteria e frenafiletti sono nella confezione.

Windscreen: 3 adjustable height positions

SKU (Arch): CHS511BK (Black) / CHS511SL (Silver)

SKU (Tank Protector): CHP001BK (Black) / CHP001WT (White)

Dal produttore LOBOO

Original LOBOO product. Official designation: LOBOO Aluminum Handguard Mounting Kit for Honda ADV350 2025 – Drill-Free Installation. Documentation and official catalog available in the download section.

Leggi la descrizione completa

Aluminum alloy handguard bars designed for the Honda ADV350 from 2025 onward. They protect your hands and brake and clutch levers from wind, rain, and debris, while cushioning low-speed impacts - the kind that can bend a lever in traffic or on a dirt road and leave you stranded.

Mounting is at two points, at the end of the handlebar and on the inner side: LOBOO calls this a double-point mount, and it provides rigidity without drilling or modifying the motorcycle. Rubber bumpers on the sides absorb impacts instead of transferring them to the handlebar.

The LOBOO handguard consists of three parts

The manufacturer sells them separately, so each wear-prone part can be replaced on its own: the aluminum bar, the plastic shield with adjustable deflector, and the impact bumper. This page offers both options.

Bars only - a pair of aluminum bars with hardware and threadlocker, in black or silver. Without shields: the right choice if you already have the shields or want to fit different ones.
Complete set - bars, a pair of shields with a deflector adjustable to three heights, and impact bumpers. This is the configuration LOBOO describes as the complete handguard.

Stated compatibility

Honda ADV350 - from 2025 onward

This is the only model LOBOO lists for this part number. If you have an earlier ADV350 or another scooter in the range, contact us before ordering.

Installation

The official manual provides the complete parts list and tightening torques: 18 N·m for the M8 bolts and 12 N·m for the M6 bolts, with threadlocker included in the package. No drilling or permanent modifications are required.

Nella confezione

PRODOTTO LOBOO ORIGINALE nuovo, nella confezione prevista dal produttore.
ACCESSORI DI MONTAGGIO INCLUSI QUANDO PREVISTI dalla dotazione originale; supporti, telai o adattatori venduti separatamente sono indicati nella descrizione.
MANUALE DI MONTAGGIO incluso nella confezione.
COMPATIBILITÀ VERIFICABILE PRIMA DELL'ACQUISTO, comunicando marca, modello, anno e versione della moto.

CHS511 · aluminum · double fastening · 307.7 mm

How does it work, in detail?

Equipment, dimensions, and tightening torques from the official LOBOO manual for code CHS511.

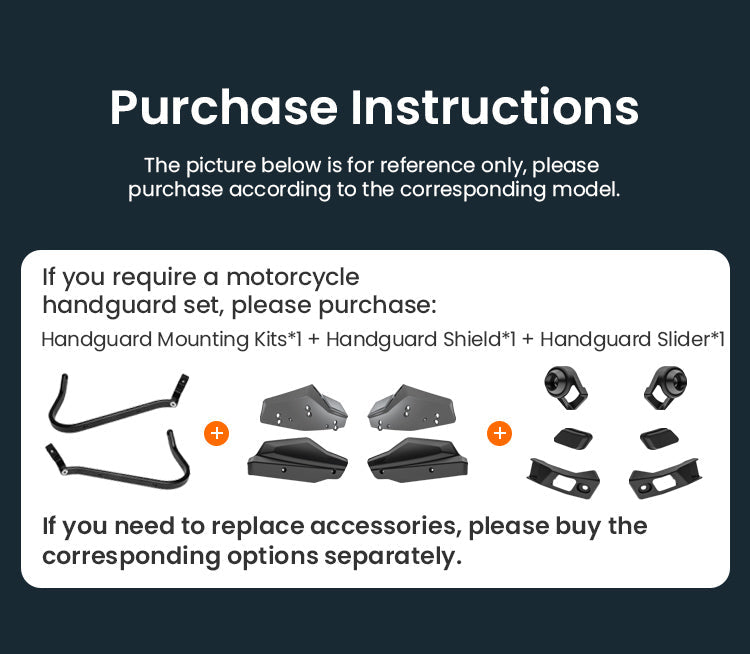

One handguard, three separate pieces

LOBOO builds the complete handguard from three independent elements: the aluminum bar, the shield with the deflector, and the impact pad. This is intentional: if one part gets damaged, you can replace it on its own without throwing away the rest. On this page, you can get just the bars or the complete set.

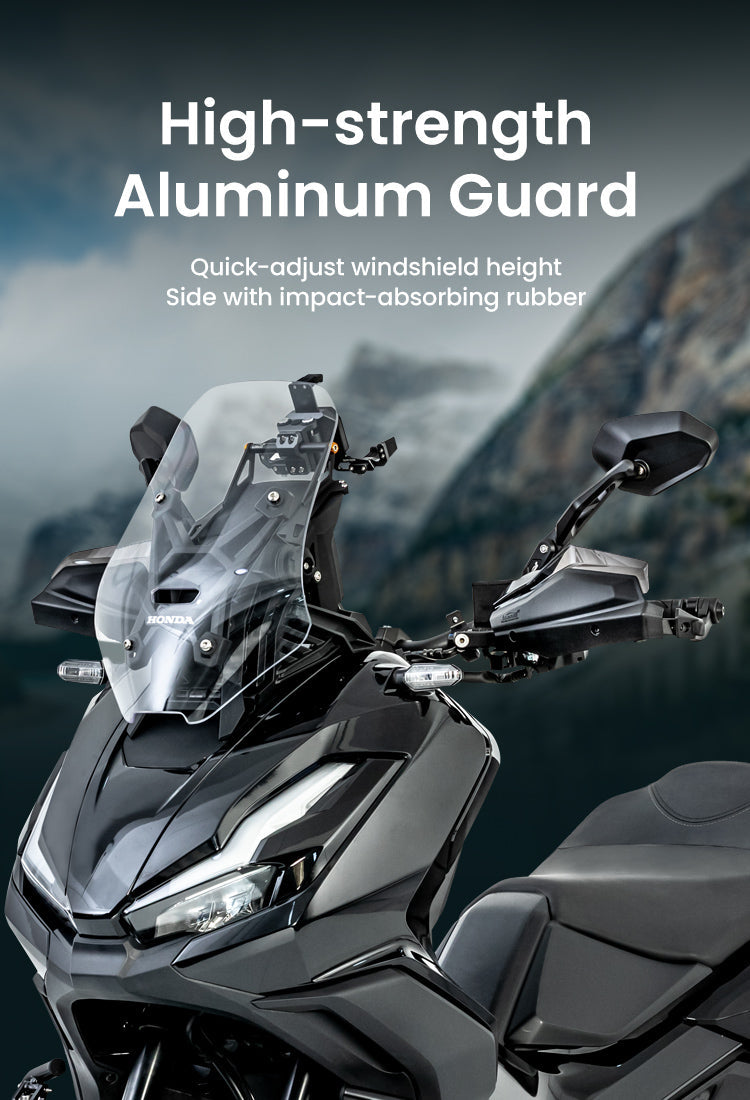

High-strength aluminum frame

The load-bearing structure is made of aluminum alloy, with shock-absorbing rubber on the side and a height-adjustable deflector on the shield. It is the part that absorbs the impact and keeps the lever away from the asphalt in the event of a low-speed fall.

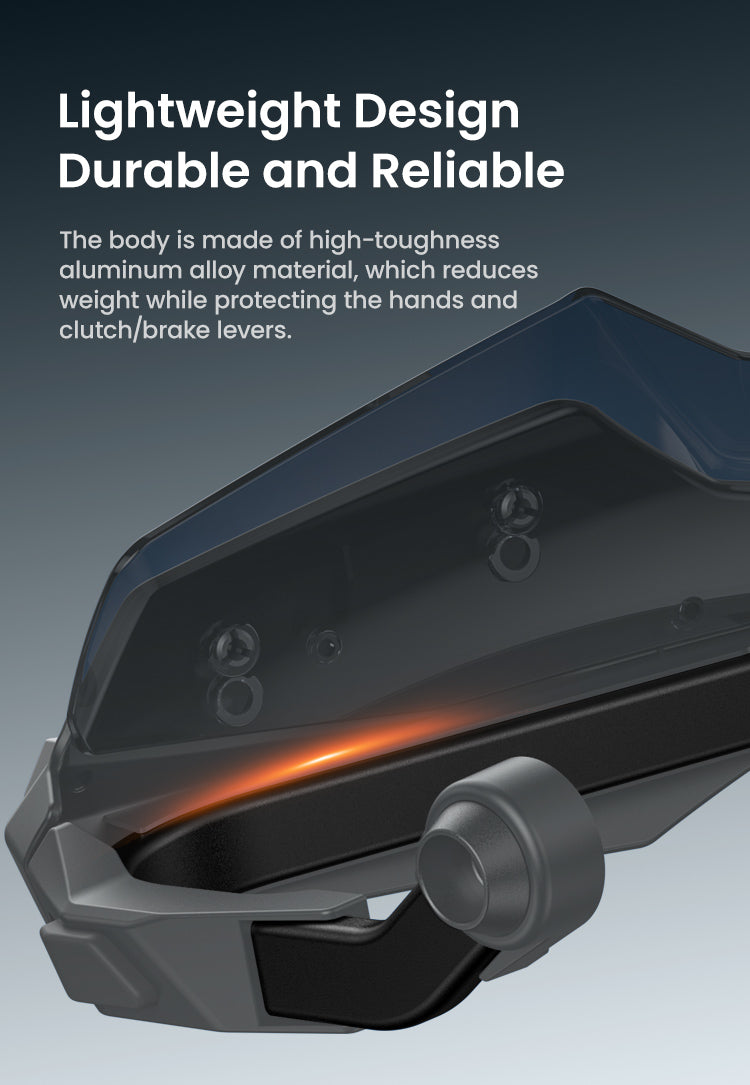

Lightweight, but protects hands and levers

The manufacturer states that it is made of a high-toughness aluminum alloy: it contains the added weight at the end of the handlebar, where it is felt most on the steering, while also protecting the hands and the brake and clutch levers.

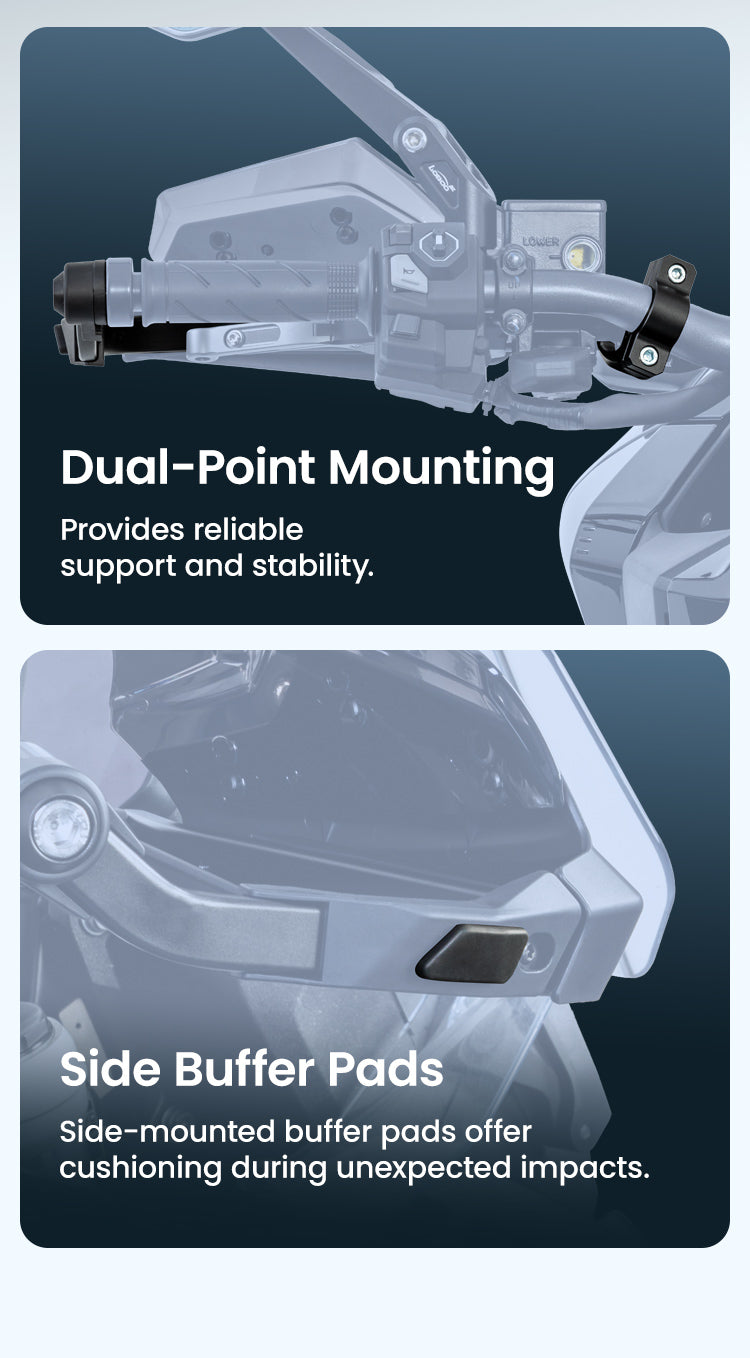

Dual mounting and side pads

The bracket anchors at two points instead of just one: the manufacturer describes this solution as ensuring stability and rigidity. Rubber pads on the sides cushion unexpected impacts instead of transferring them all to the handlebar.

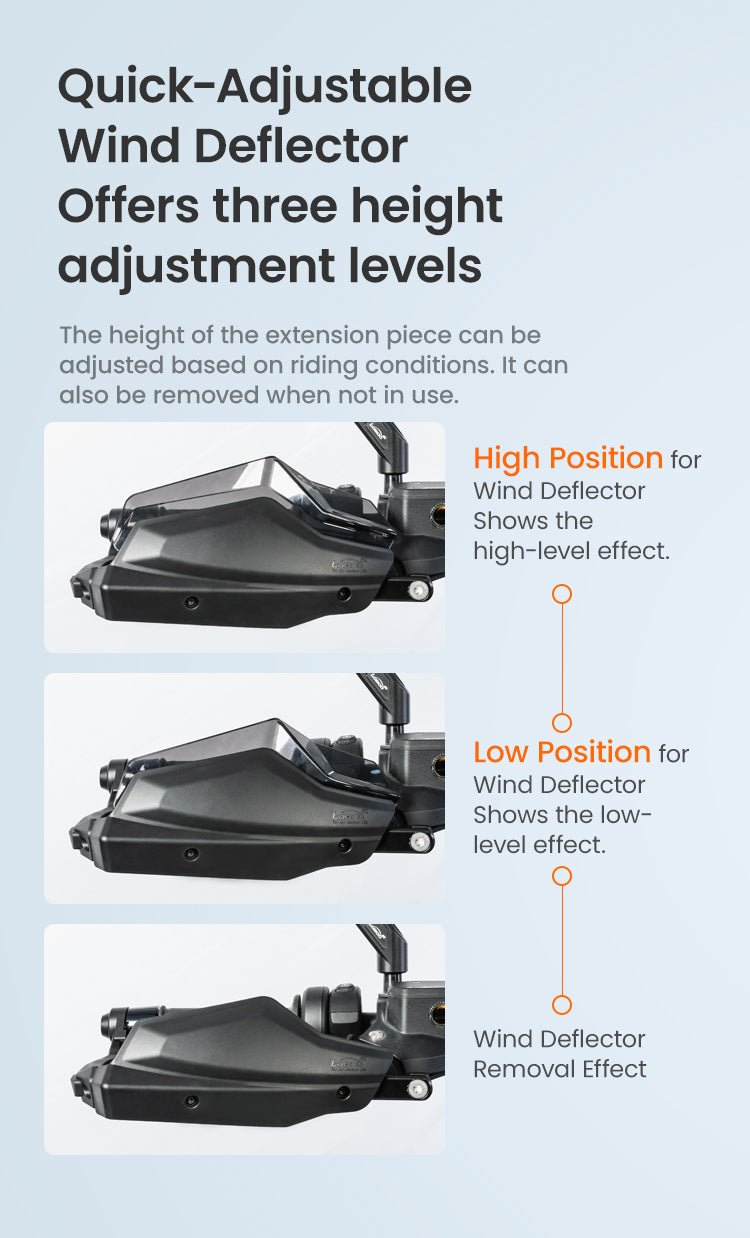

Adjustable deflector with three height settings

The upper extension of the shield raises, lowers, or comes off completely depending on the season and type of route: more protection in winter and on the motorway, a clean profile when it is not needed. It is a function of the CHP001 shield, so it is available on the complete-set variants.

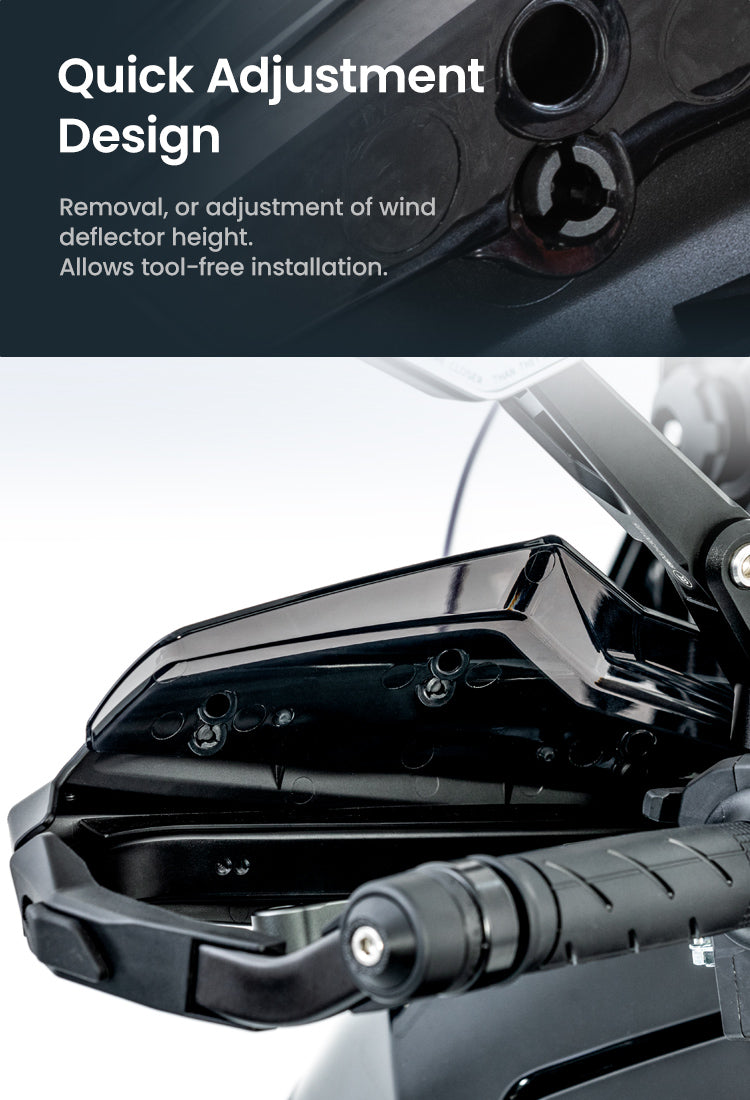

Adjusts without tools

Changing the deflector height or removing it requires no tools: LOBOO states that it can be adjusted by hand. It is the difference between an accessory you adapt to each day's journey and one that stays as you installed it in January.

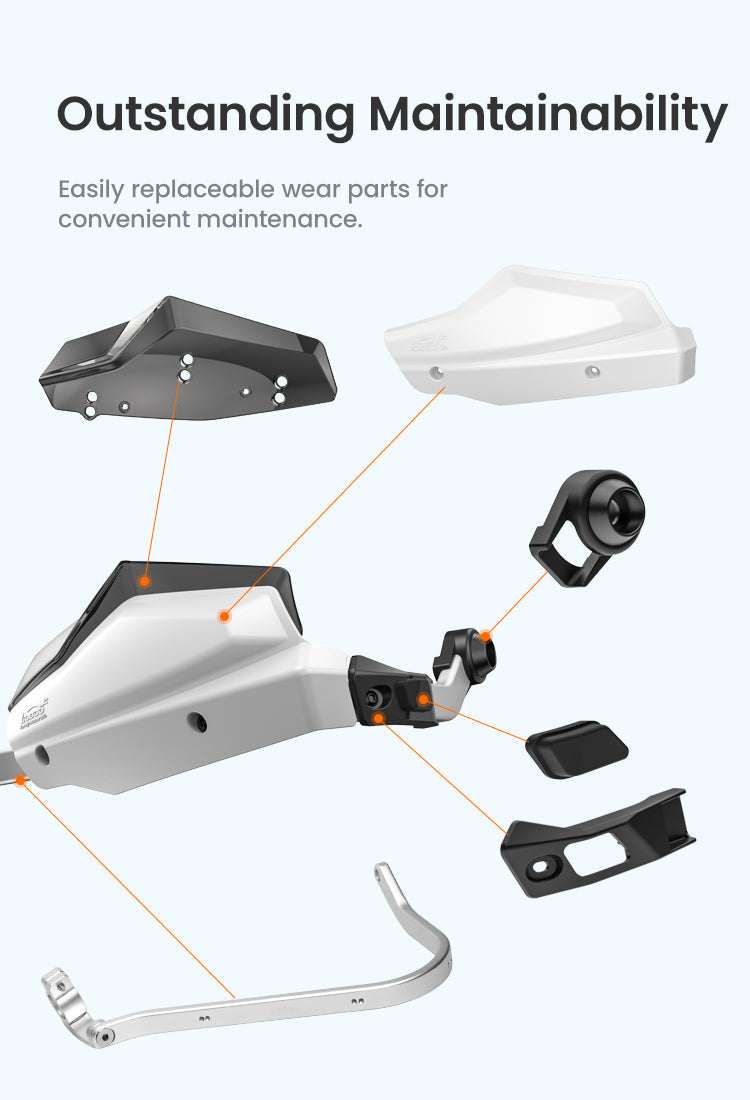

Worn parts replace themselves automatically

The shield and bumper pad are the parts that take the scratches and impacts. Since they are separate codes, after a slide you can restore the handguard by replacing only the damaged piece: the aluminum arch stays in place.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Structure and materials

Material

Aluminum alloy The alloy designation is not stated by the manufacturer

Headband finish

Black or silver

Side tampons

Shock-absorbing rubber Mounted on the sides of the headband to absorb shocks

LOBOO name

Handguard, model CHS511

Dimensions

Length

307,7 mm

Height

126,3 mm

Depth

197,7 mm Assembled handguard dimensions, manually measured by the manufacturer

Equipment

Structural components

8 pz Four right/left pairs; the manual does not provide their designation.

M8×20 screws

2 pz Tightening torque 18 N·m

M6×12 screws

2 pz Tightening torque 12 N·m

M6×16 screws

2 pz Tightening torque 12 N·m

M6×60 screws

2 pz Tightening torque 12 N·m

Threadlocker

1 pz Tube included in the package

Handguard shields

Only in the complete set LOBOO CHP001 code; in the Solo archetti variant, they are not included

Bumper pads

Only in the complete set LOBOO CFCK001 code; in the Solo archetti variant, they are not included

Installation and compatibility

Torque pairs

18 N·m (M8) / 12 N·m (M6) Values stated in the official LOBOO manual

Mounting type

Colon Handlebar end and inner point, as specified by the manufacturer

Drilling

None The manual does not provide for permanent modifications to the motorcycle

Deflector

Three heights, removable It is a feature of the CHP001 shield, adjustable without tools

Compatible motorcycles

Honda ADV350 From 2025, the only model declared by LOBOO for this code

Data from official LOBOO documentation.

Manuale d'uso CHS511Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Guarda il manuale e il video di installazione richiamato dal QR code prima di iniziare: è la prima prescrizione del produttore.
Monta gli elementi di fissaggio destro e sinistro sui due punti previsti, all'estremità del manubrio e sul punto interno, con la viteria corrispondente.
Posiziona gli archetti senza serrare: il manuale chiede di completare prima tutte le regolazioni.
A regolazione conclusa serra in sequenza alle coppie dichiarate: 18 N·m sulle viti M8, 12 N·m sulle M6, usando il frenafiletti in dotazione.
Rimonta secondo le coppie previste da Honda tutte le viti e i componenti rimossi dalla moto: il manuale lo richiede esplicitamente.
Controlla periodicamente il serraggio delle viti di ogni componente.

Istruzioni complete e note di sicurezza

Guarda il manuale e il video di installazione richiamato dal QR code prima di iniziare: è la prima prescrizione del produttore.
Monta gli elementi di fissaggio destro e sinistro sui due punti previsti, all'estremità del manubrio e sul punto interno, con la viteria corrispondente.
Posiziona gli archetti senza serrare: il manuale chiede di completare prima tutte le regolazioni.
A regolazione conclusa serra in sequenza alle coppie dichiarate: 18 N·m sulle viti M8, 12 N·m sulle M6, usando il frenafiletti in dotazione.
Rimonta secondo le coppie previste da Honda tutte le viti e i componenti rimossi dalla moto: il manuale lo richiede esplicitamente.
Controlla periodicamente il serraggio delle viti di ogni componente.

Il manuale non indica tempi di montaggio né misure delle chiavi. Serve una chiave dinamometrica per rispettare le coppie.

Honda ADV350 (2025)

È la scelta giusta se:

Hai una Honda ADV350 dal 2025 e la usi tutti i giorni, anche d'inverno
Vuoi proteggere leve e mani nei contatti a bassa velocità
Cerchi un riparo dal vento che si possa regolare o togliere secondo la stagione
Preferisci un accessorio fatto di parti sostituibili singolarmente

È da valutare con attenzione se:

Hai una ADV350 precedente al 2025 o un altro scooter: LOBOO non dichiara la compatibilità, scrivici prima
Cerchi paramani da enduro con prove d'urto certificate: qui non ce ne sono dichiarate
Vuoi i soli scudi o i soli tamponi: sono a catalogo come prodotti separati, non serve prendere il set
Non hai una chiave dinamometrica: il manuale prescrive 12 e 18 N·m

Per moto Honda

Honda

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which motorcycles are these handguards compatible with?

LOBOO declares only one model for code CHS511: Honda ADV350 from 2025 onward. Compatibility is not declared for earlier ADV350 models or other scooters in the range: write to us with the year and version, and we will check it before the order.

What does the bow package contain?

The manual lists 13 items: eight structural components in right and left pairs, 2 M8×20 screws, 2 M6×12 screws, 2 M6×16 screws, 2 M6×60 screws, and a tube of threadlocker. The assembly manual is included. The shields and impact bumpers are not part of this package.

Are the shields included with the bows?

No. LOBOO sells the three components that make up the handguard separately: brace (CHS511), shield with deflector (CHP001), and bumper pad (CFCK001). By choosing Braces only, you receive the two braces with the hardware; by choosing Complete set, you also receive shields and pads.

What is the difference between Brackets only and Complete set?

Solo archetti is the pair of CHS511 aluminum bars with hardware: it protects the levers but does not shield against the wind. The complete set adds the pair of CHP001 shields with the three-height deflector and CFCK001 impact buffers, which is the configuration the manufacturer refers to as the complete handguard.

How are they mounted? Do you need to drill into the handlebars?

No drilling and no permanent modifications. Each bar is secured at two points, at the end of the handlebar and at an inner mounting point, using the supplied hardware. The manual instructs you not to tighten immediately: first position and adjust all components, then tighten them in sequence to the specified torque values.

What are the tightening torques?

The manual specifies 18 N·m for the M8×20 screws and 12 N·m for all M6 screws (M6×12, M6×16, and M6×60). Threadlocker is included in the package. The manual also reminds you to reinstall the screws and components removed from the motorcycle using Honda's specified torque values.
