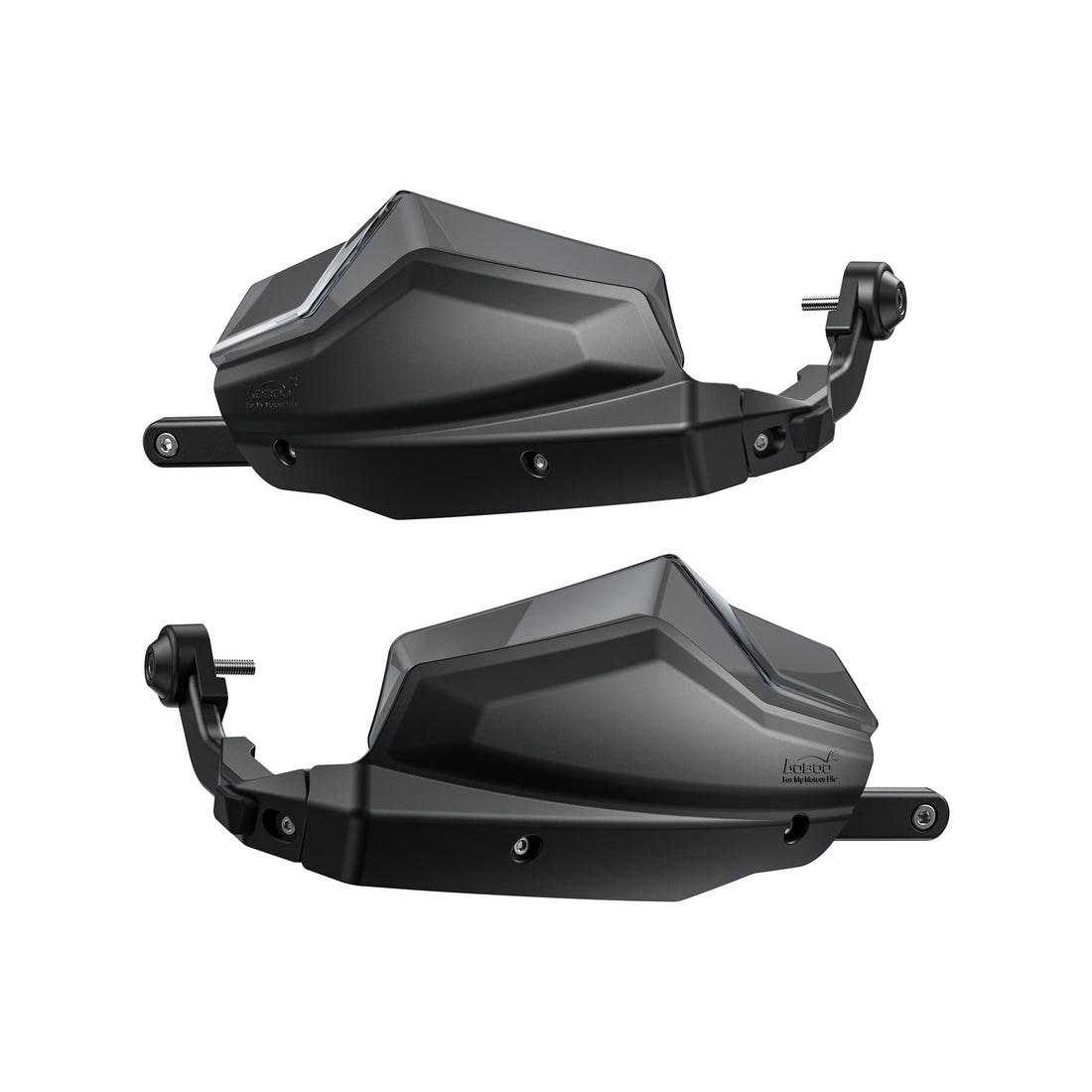

Coppia di paramani LOBOO CHS931 assemblati, vista di tre quarti su fondo chiaro

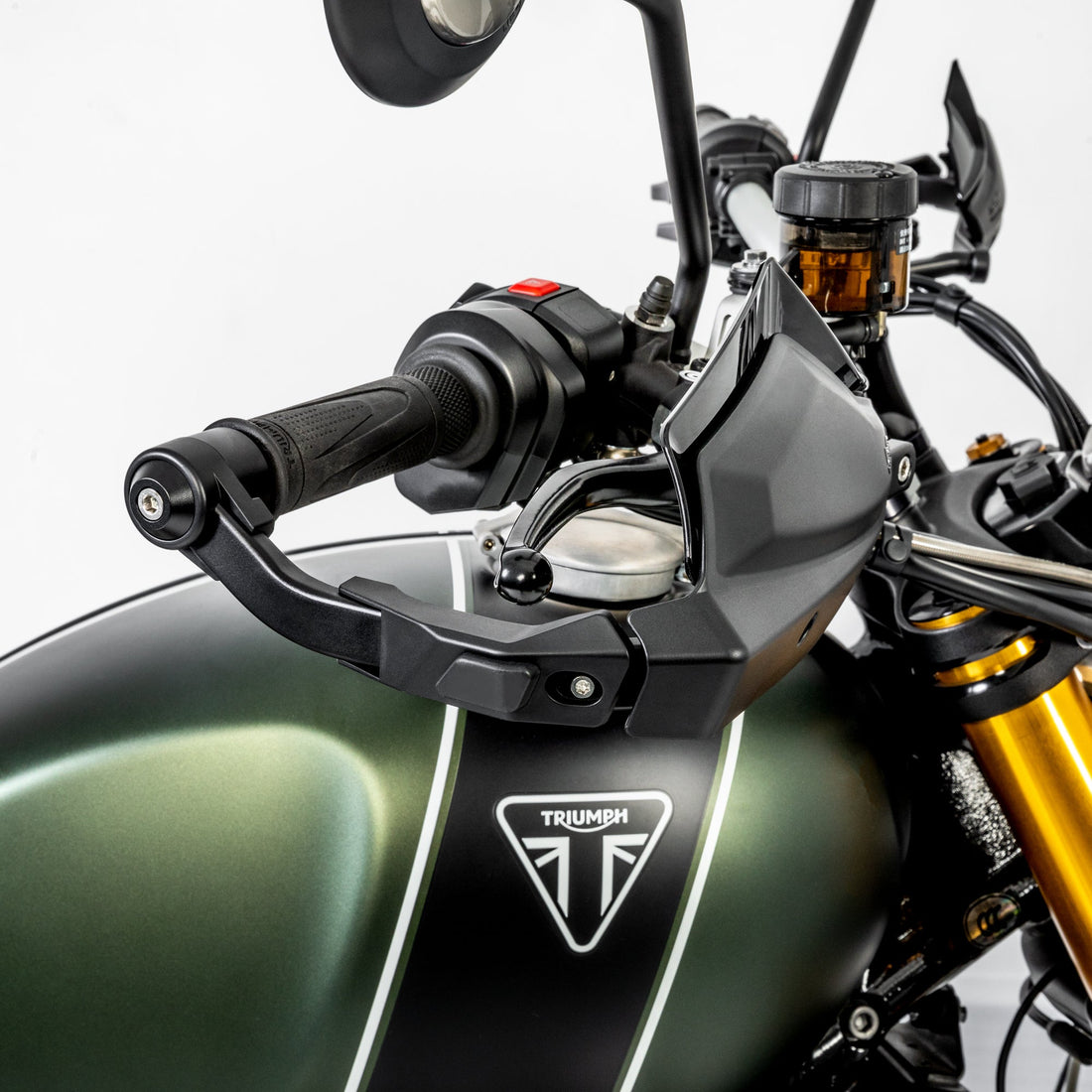

Paramani LOBOO CHS931 neri montati sulla Triumph Scrambler 1200XE, vista dal pilota

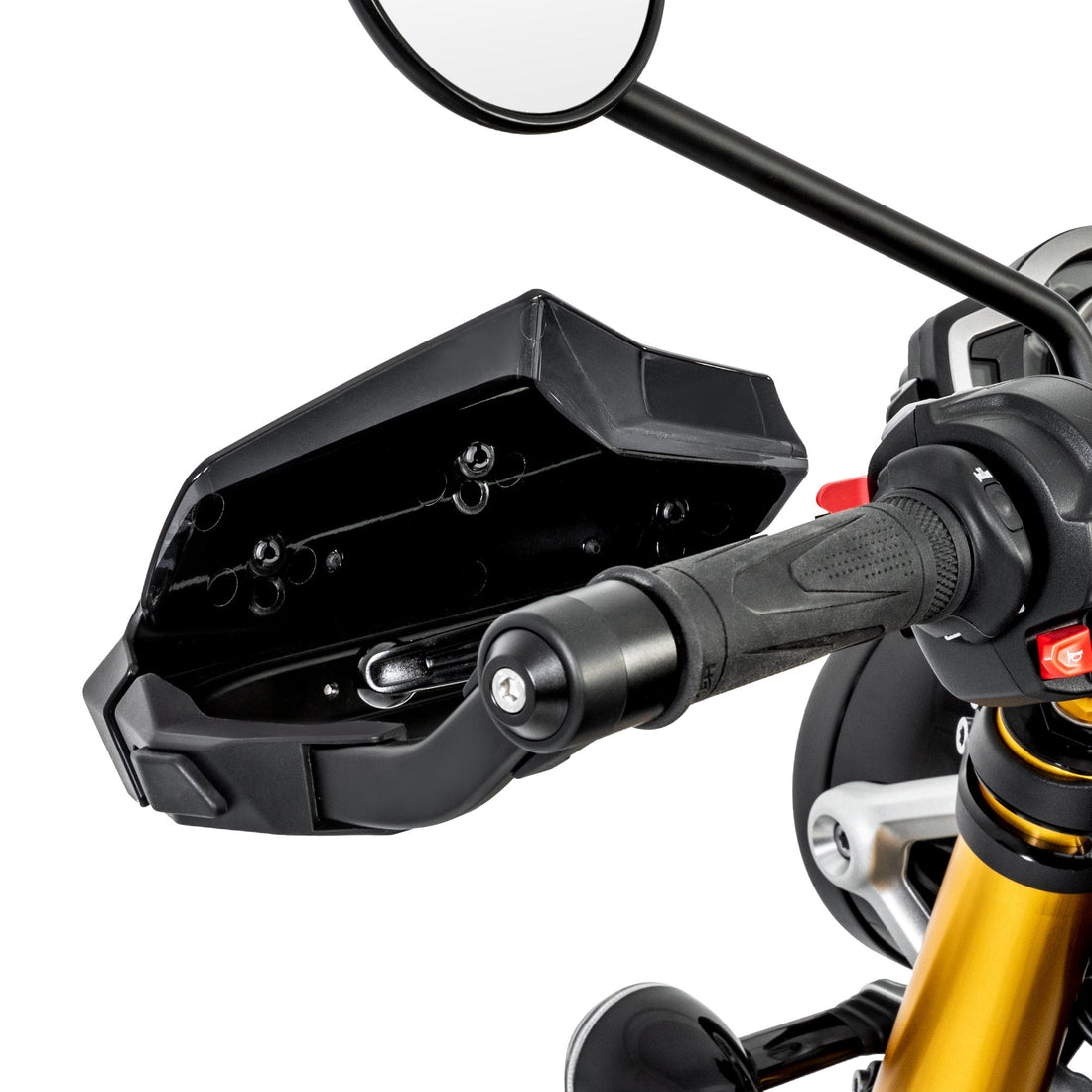

Dettaglio dell'attacco bar-end del paramano LOBOO CHS931 sul manubrio della Scrambler 1200XE

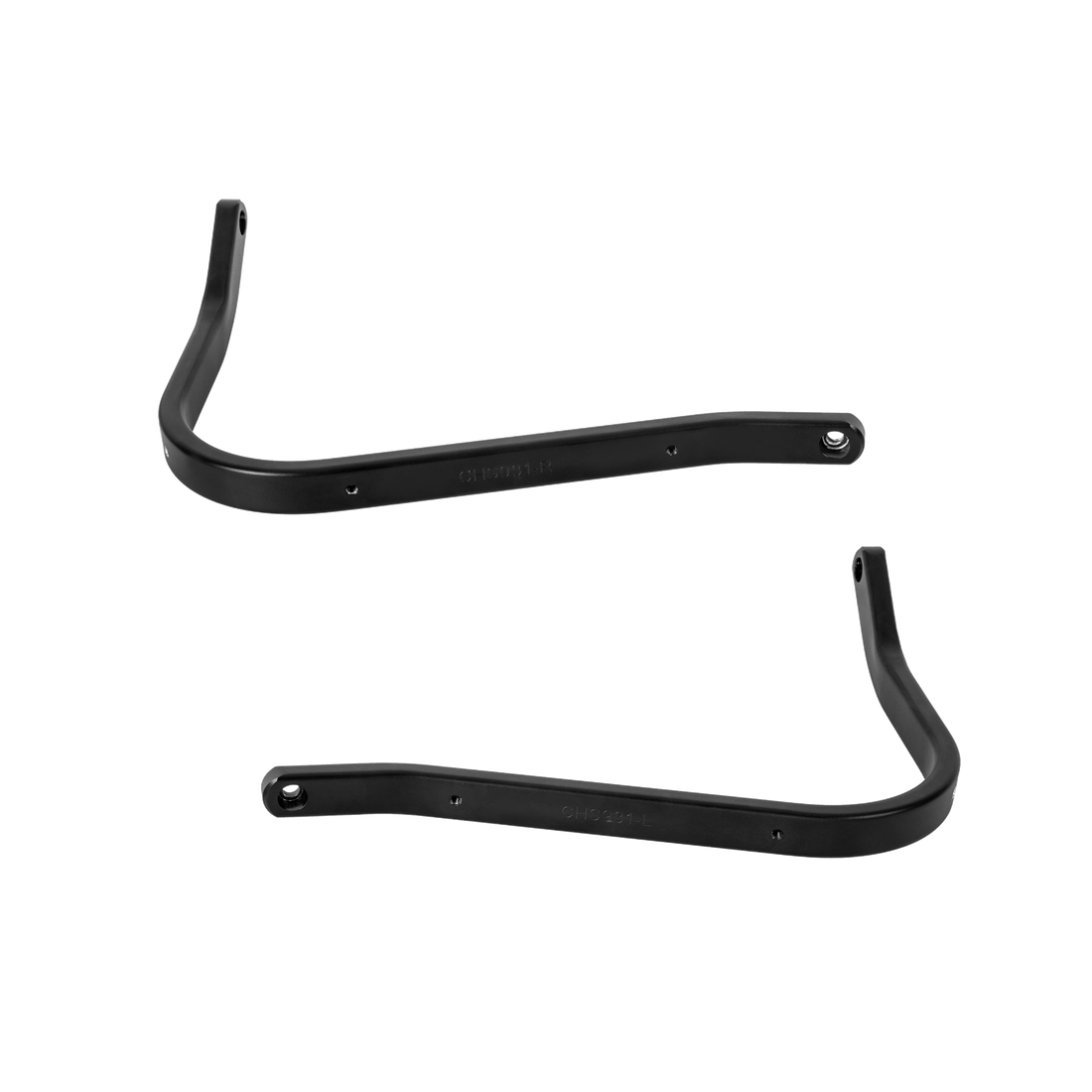

Coppia di staffe in alluminio LOBOO CHS931 per Triumph Scrambler 1200XE, vendute anche singolarmente

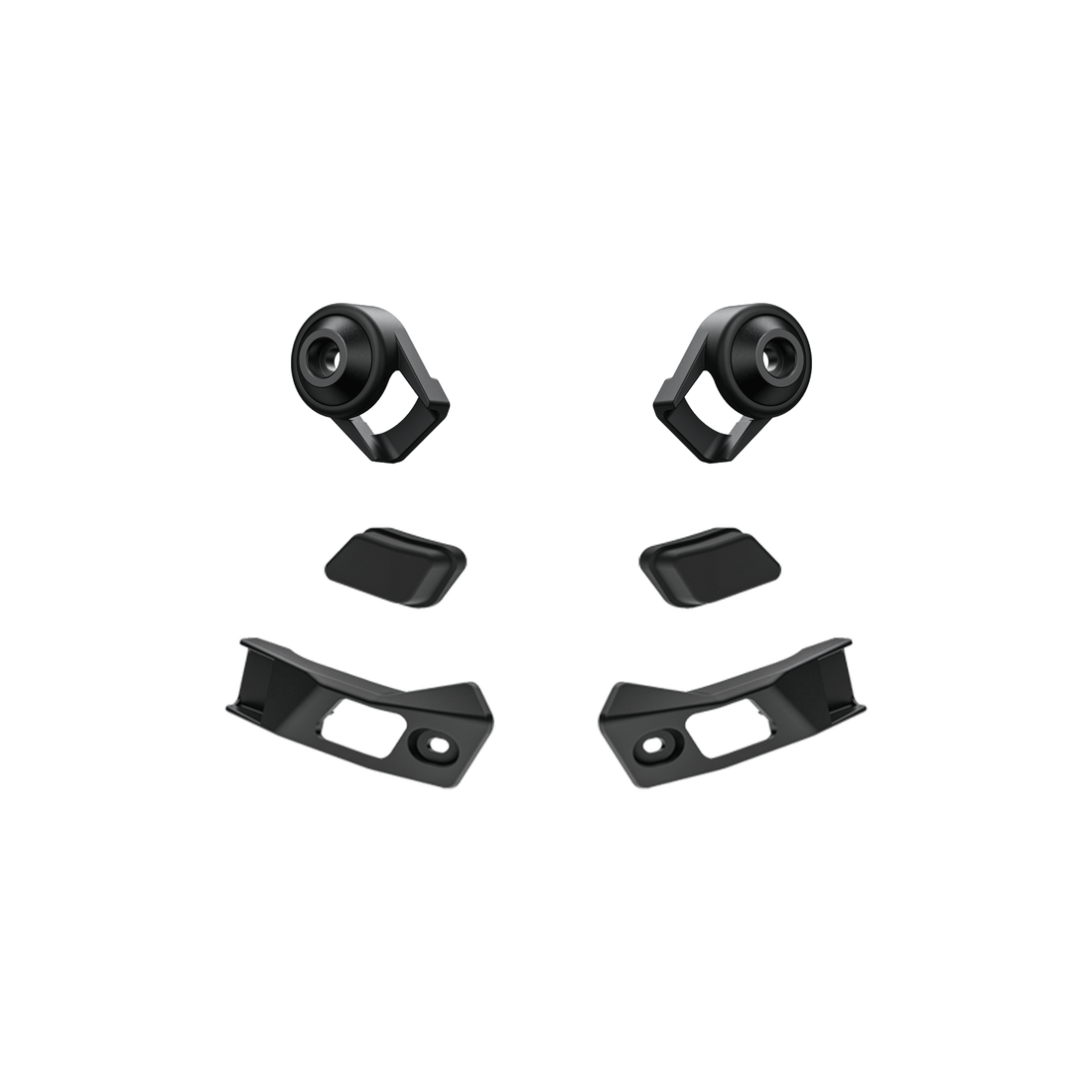

Kit tamponi paracolpi LOBOO CFCK001 con tappi bar-end e piastrine di fissaggio

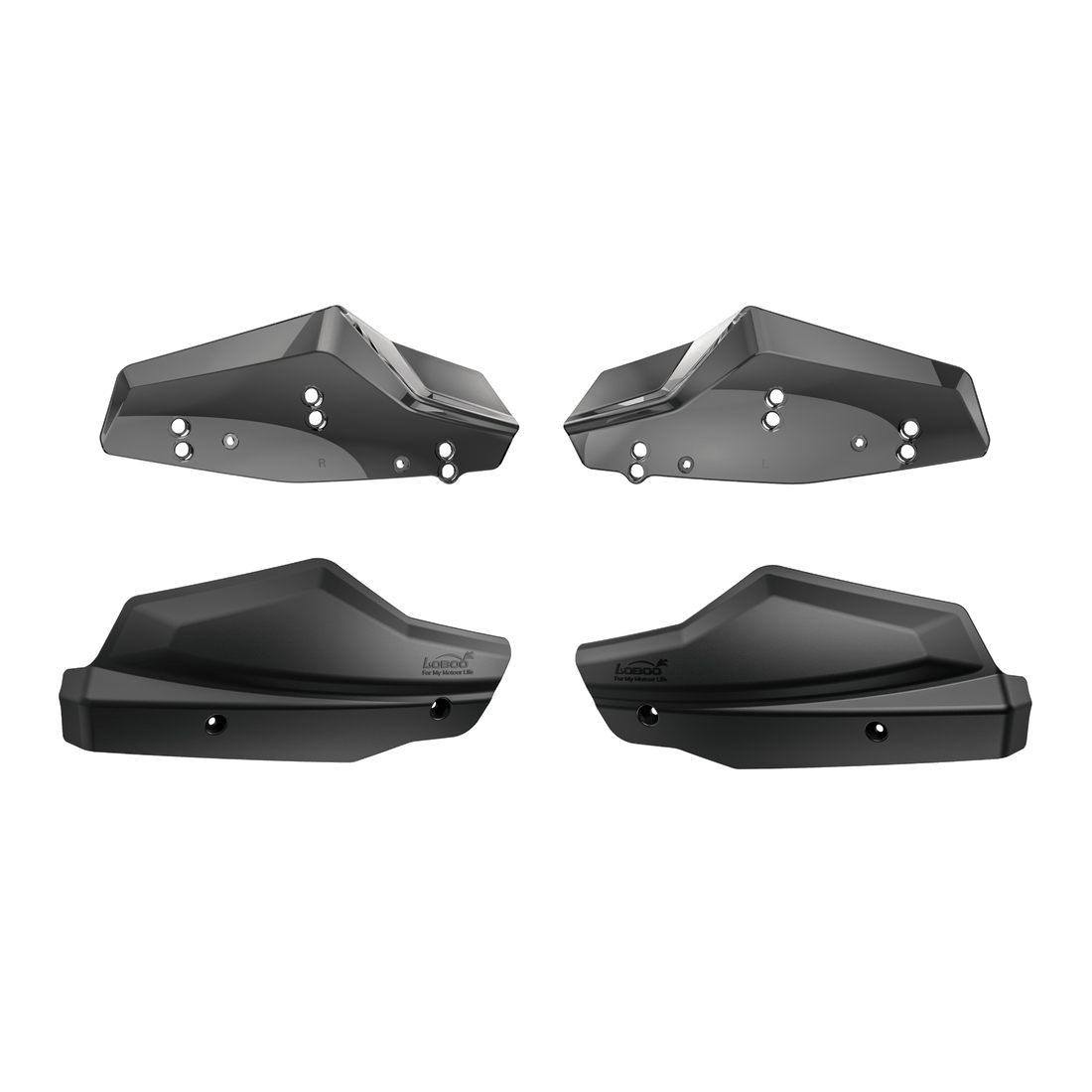

Set completo paramani LOBOO CHS931 con scudi neri CHP001, quattro elementi in studio

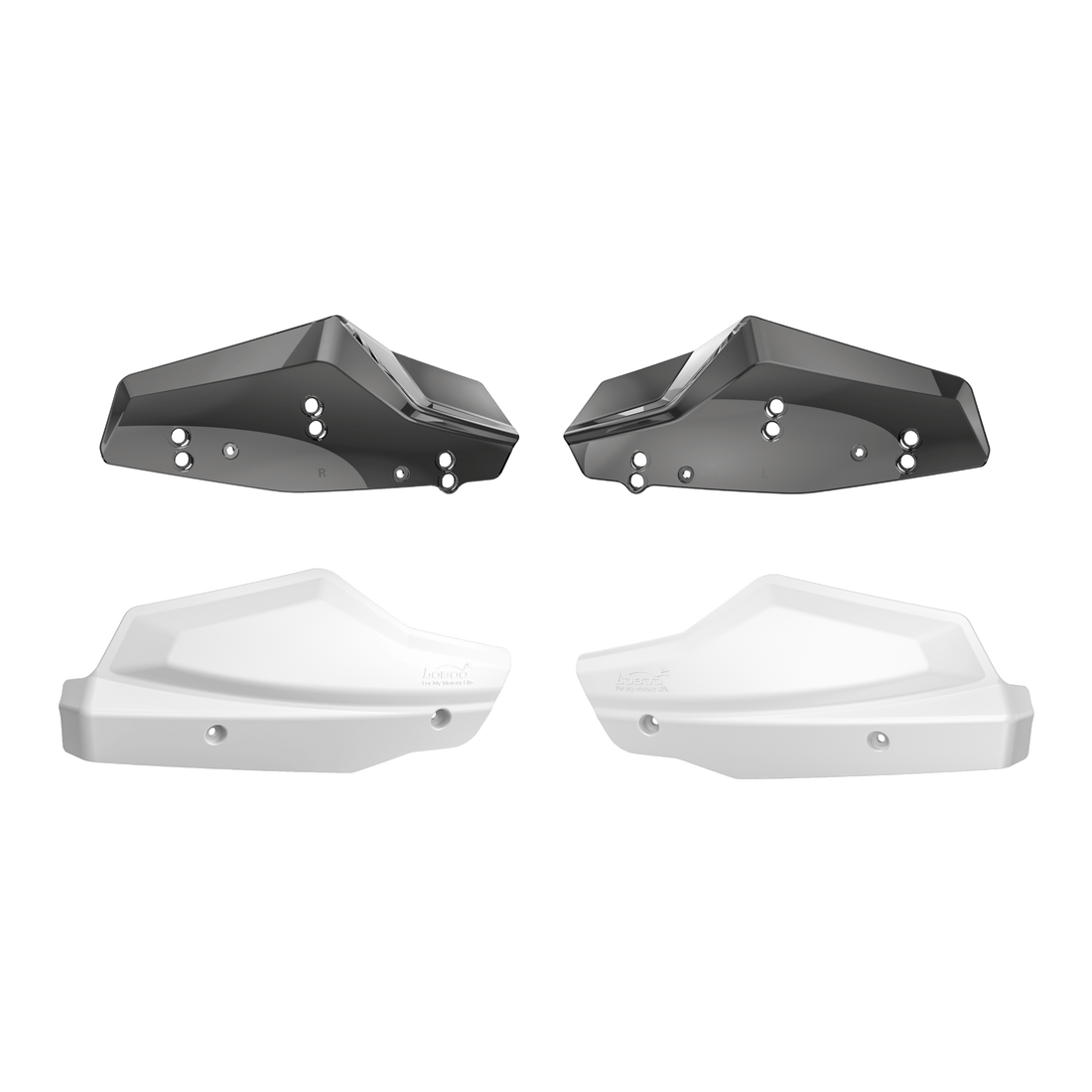

Scudi paramani LOBOO CHP001 a confronto nelle due finiture, nero e bianco

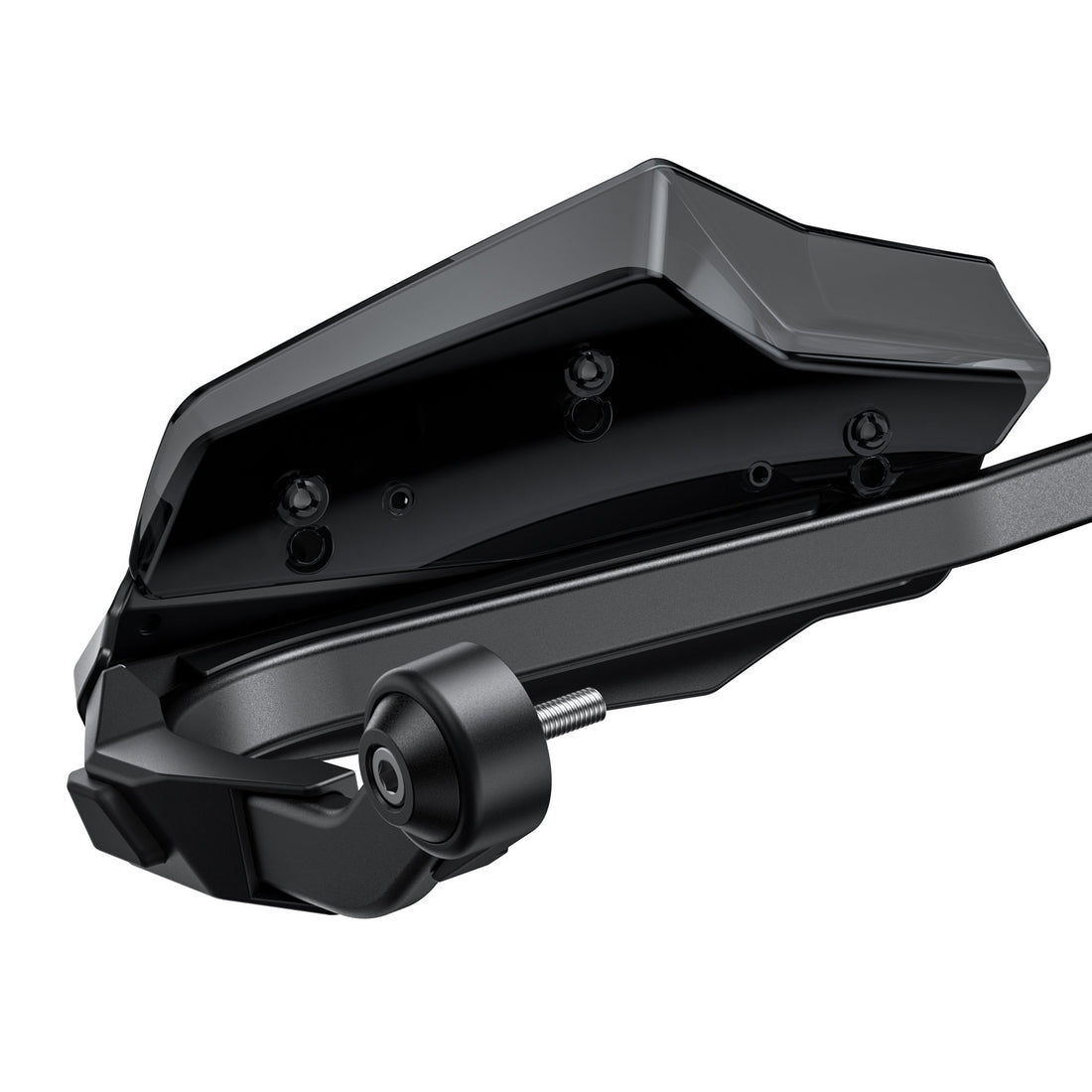

Paramano LOBOO CHS931 singolo con morsetto bar-end e deflettore vento montato

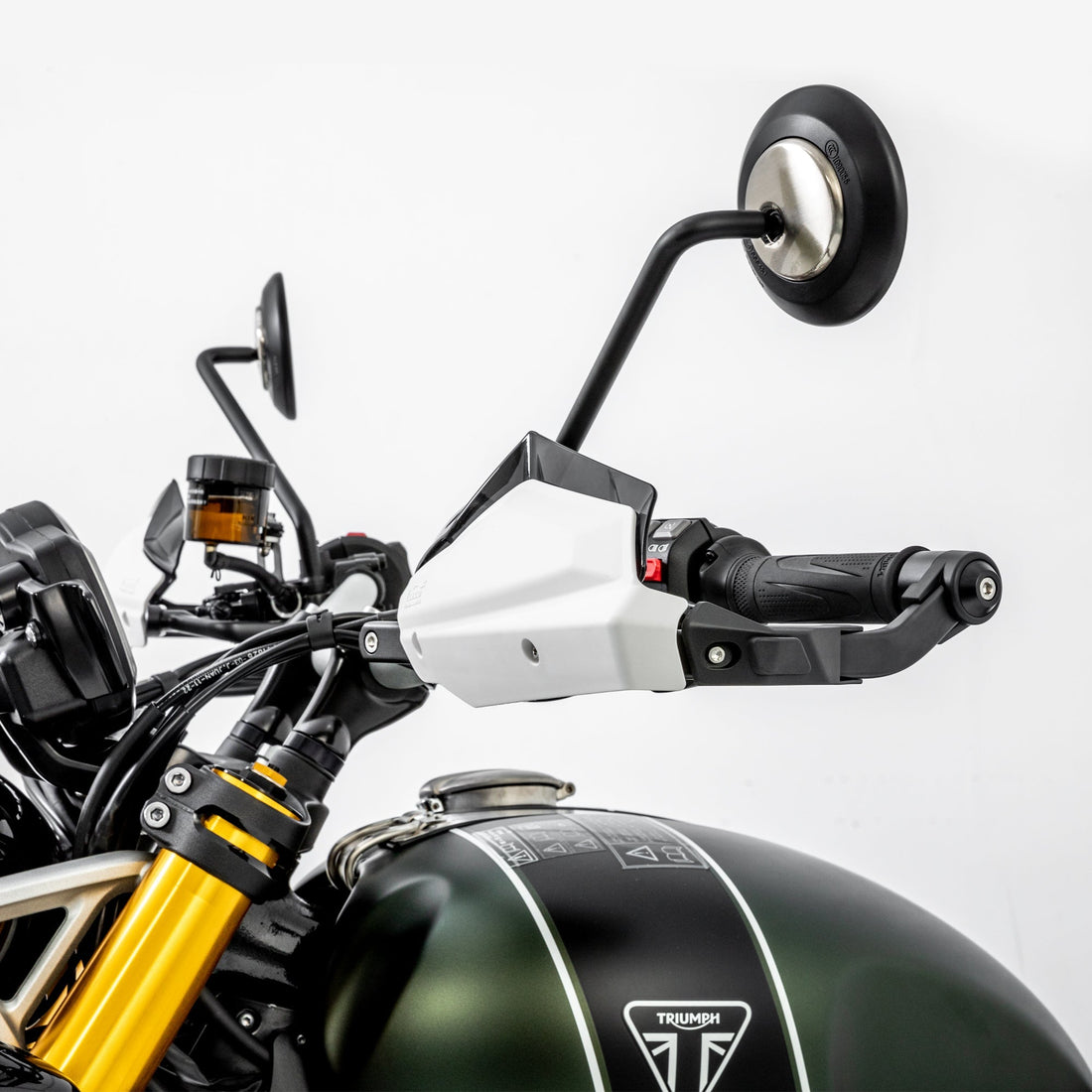

Paramano LOBOO CHS931 con scudo bianco montato sulla Triumph Scrambler 1200XE

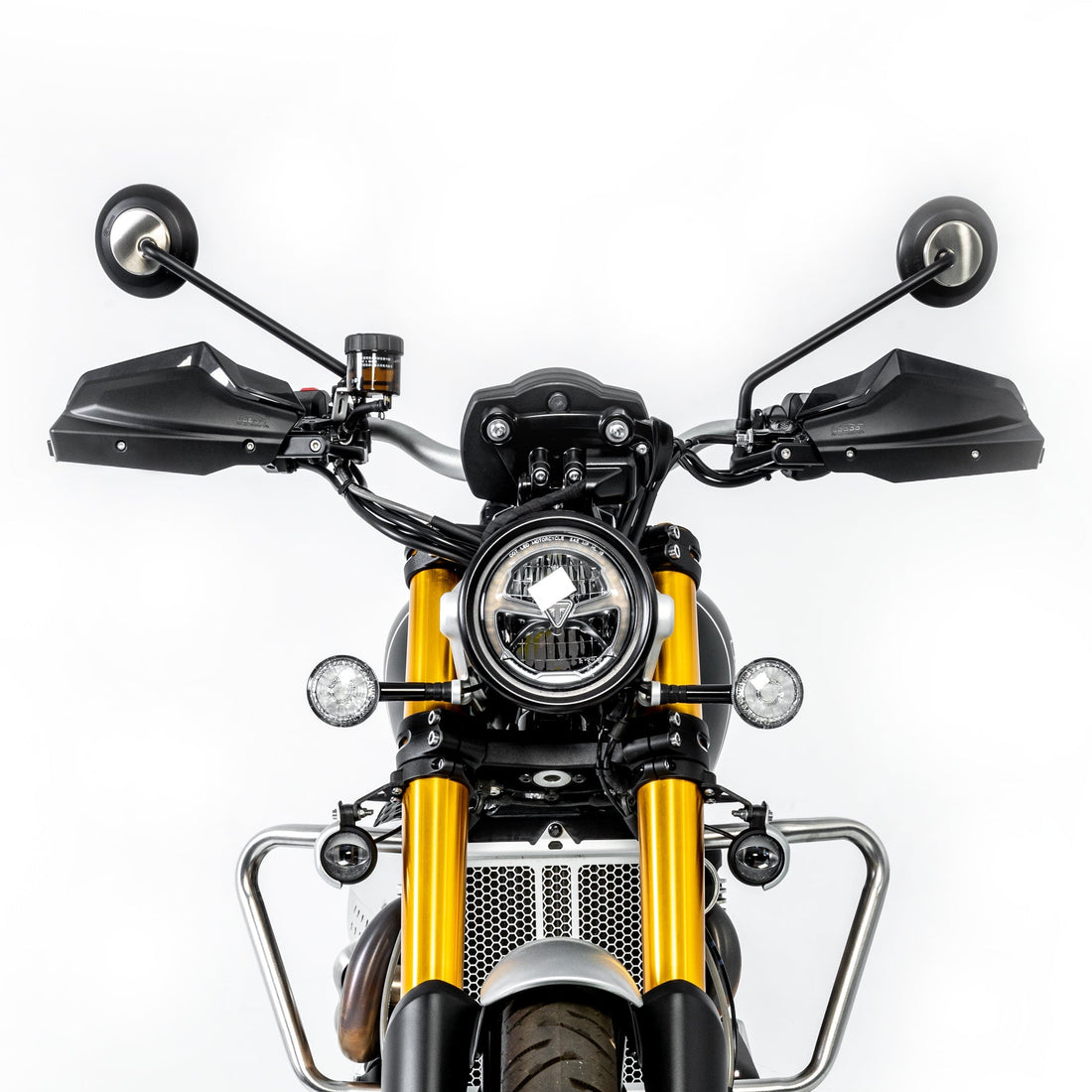

Triumph Scrambler 1200XE vista frontale con paramani LOBOO CHS931 neri installati
Aluminum handguards for Triumph Scrambler 1200XE

Vendor:LOBOO

Aluminum handguards for Triumph Scrambler 1200XE

Sale price€148,50Regular price €165,00
Out of stock

Complete kit – replaces original Triumph handguards

CHS931BK+CHP001BK+CFCK001BK — Cosa è compreso nel prezzo

Complete set— the three components that LOBOO indicates as necessary for a complete handguard:

  • 1 pair of CHS931 black aluminum brackets, specific for the Scrambler 1200XE
  • 1 pair of CHP001 shields in the chosen color, with wind deflector
  • 1 CFCK001 bumper kit, with bar-end plugs and plates

The other variants on this page are the individual components, which can be purchased separately as spare parts.

Not included:the accessories shown in the manufacturer's photos, i.e., auxiliary lights, engine guards, and luggage racks. LOBOO indicates these images as purely indicative.

  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal conformity warranty

Original LOBOO product, guaranteed

3positions

Deflector

2points

Fastening

288,7mm

Length

Aluminum

Body

Identification

Product code

CHS931 (black bracket CHS931BK)

Manufacturer SKU 11.3.34931.002.11

Type

Handguards with adjustable wind deflectors

Set contents

Bracket, shield, and bumpers: 1 pair each

Manufacturer-specified composition for a complete handguard

Capacity and measurements

Dimensions

288,7 × 126,3 × 193

Per single handguard. Dimensions manually measured by the manufacturer

Length

288,7

11.37 inches

Weight

Not stated by the manufacturer

LOBOO panels claim the lightweight aluminum body but not its value

Colors

Black stem; black or white shield

Materials

Body

High-toughness aluminum alloy

Declared by LOBOO technical panels

Bumper pads

Shock-absorbing side inserts, one on each side

In the CFCK001 kit, together with the bar-end plugs and plates

Spare parts

Individually replaceable wear parts

Shield, deflector, clamps, bracket, and bumpers are replaced separately

Fastening/Mounting

Fastening system

Two points

At the handlebar end and on the clamp, for rigidity and stability

Original handguards

To be removed

The LOBOO panel states this explicitly. The CHS931 takes its place using the same mounting points, without drilling.

Wind deflector

Adjustable to three positions, removable

High position, low position, or extension removed. Tool-free adjustment

Compatible models

Triumph Scrambler 1200XE

From 2024. The bracket is specific to this model בלבד.

Protection

What does it protect?

Brake and clutch levers

Wind, rain, insects, debris, and accidental contact

IP rating

No IP rating declared by the manufacturer

Equipment

Accessories shown in the photos

Not included

LOBOO indicates that the images are for illustrative purposes only: spotlights, engine guard, and luggage rack are not included in the set.

Torque pairs

Not stated by the manufacturer

For this model, LOBOO does not publish an installation manual.

Data from LOBOO technical panels for CHS931 and SEFO price list. Measurements manually taken by the manufacturer. No installation manual available for this model.

Aluminum alloy, two-point mounting, three-position adjustable deflector

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description Aluminum handguards for Triumph Scrambler 1200XE

Handguards with a high-strength aluminum alloy body for the Triumph Scrambler 1200XE from 2024 onward. They replace the motorcycle’s original handguards: the CHS931 bracket attaches to the same two mounting points, the handlebar end and the collar near the controls. The wind deflector can be adjusted to three positions or removed completely, without tools.

Why choose this LOBOO product

  • High-strength aluminum alloy body: a rigid cage around the hands and brake and clutch levers. Original levers cost much more than a handguard.
  • They replace the original handguards: they are not added to the Scrambler 1200XE’s standard handguards; they take their place using the same mounting points.
  • Three-position wind deflector: high on the highway and in winter, low in the shoulder seasons, or removed off-road when airflow and visibility are needed. It adjusts by hand.
  • Two-point mounting: handlebar end and collar. The handguard remains secure at high speeds and in crosswinds.
  • Side impact bumpers: replaceable cushioning inserts that absorb impacts and can be replaced yourself when scratched.

What the complete set includes

LOBOO lists three components as necessary for a complete handguard:

  • 1 pair of CHS931 aluminum brackets, black, specific to the Scrambler 1200XE
  • 1 pair of CHP001 shields in the selected color, with wind deflector
  • 1 CFCK001 arch kit, with clamps, non-slip blocks, and impact bumpers

On this page you will find the complete set and the brackets alone. The shield and arch kit have a dedicated page, because they are shared across the entire LOBOO handguard range: you will find them among the recommended products below, useful as replacements or for changing the shield color. The accessories shown in the manufacturer’s photos—auxiliary lights, engine guard, and luggage rack—are not included in the set: LOBOO states that these images are for illustrative purposes only.

Technical specifications

Model CHS931 (black CHS931BK bracket)
Material High-strength aluminum alloy
Dimensions 288.7 × 126.3 × 193 mm per handguard
Colors Black bracket; black or white shield
Mounting Two points: handlebar end and collar
Wind deflector Three positions: high, low, or removed
Weight, IP rating, tightening torques Not specified by the manufacturer

Motorcycle compatibility

Brand Model Years Notes
Triumph Scrambler 1200XE from 2024 onward The original handguards must be removed

Compatibility applies to the CHS931 bracket. The CHP001 shield and CFCK001 arch kit are shared components across the entire LOBOO handguard range. Before purchasing, we recommend checking the motorcycle’s brand, model, year, version, and any accessories already installed.

Why choose it
  • High-strength aluminum alloy body:a cage around the controls. Original levers cost much more than a handguard.
  • Replaces the originals:the bracket replaces the stock handguards of the Scrambler 1200XE, using the same anchoring points.
  • Three-position deflector:high for highway and winter, low for mid-season, removed for off-road. No tools required.
  • Two-point fastening:no wobbling at high speeds, unlike single attachments.
  • Modular system:after contact, the scratched part is replaced, not the entire handguard. And you can switch from a black to a white shield while keeping the bracket.
Who is it recommended for

Compatible Models

  • Triumph Scrambler 1200XE (2024-)

Compatibility refers to the CHS931 bracket. The shield and pads on this page are the same as those for the entire LOBOO handguard range and are also suitable for other brackets.

This is the right choice if:

  • You want to replace the original Scrambler handguards with a double-mount aluminum structure
  • You use your motorcycle all year round and want to change the level of protection with the season
  • You alternate between asphalt and dirt roads, where levers are exposed to rocks, branches, and low-speed falls
  • You want to be able to replace individual components instead of the entire handguard
Documents and manufacturer

Assembly

  • Remove the original handguards of the Scrambler 1200XE: the CHS931 replaces them, without drilling.
  • Mount the bracket on the two fixing points, handlebar end and clamp, without tightening fully.
  • Screw the shield onto the bracket and mount the bumper pads on the sides.
  • Adjusting or removing the deflector does not require tools.
  • Once assembled, test the steering to full lock on both sides and check that cables and controls remain free.
  • Recheck the tightenings after the first 100-200 km. The manufacturer does not publish the prescribed torques for this model.

Use and maintenance

  • Clean with water and mild soap. Avoid solvents on the transparent deflector.
  • After an impact or fall, check brackets, clamps, and pads before getting back on the road.
  • Handguards reduce the exposure of hands and levers, but do not replace gloves and protective clothing.
Download files

LOBOO CHS931 aluminum handguards for the Triumph Scrambler 1200XE

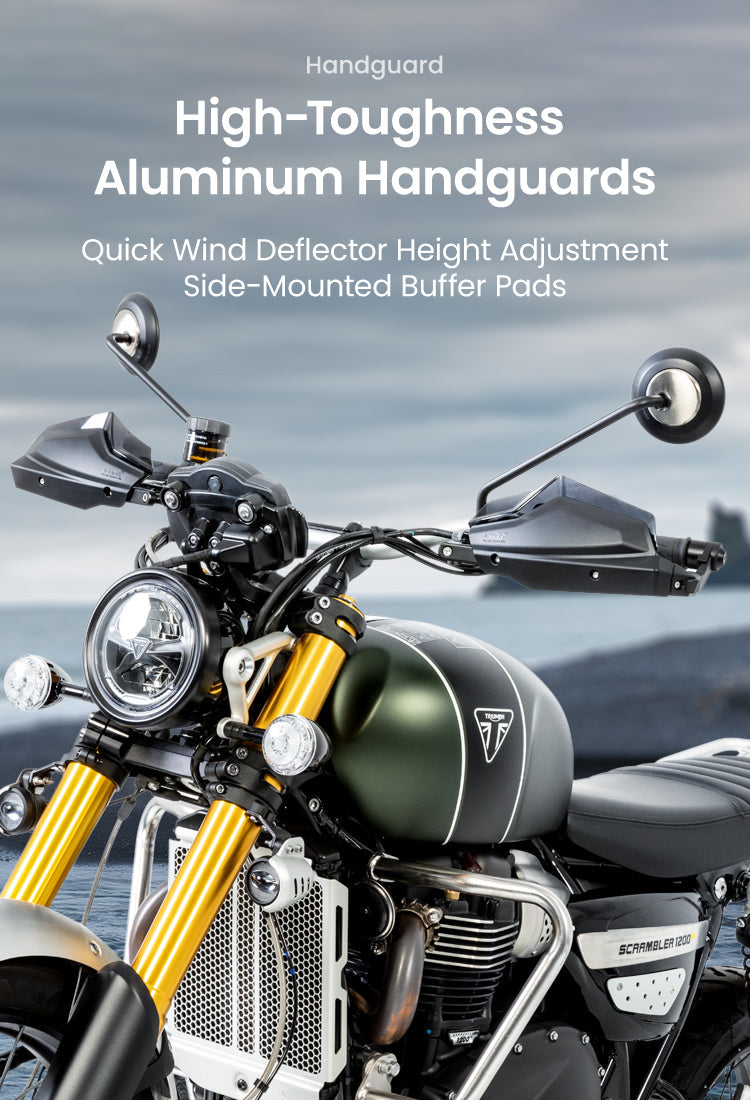

Aluminum alloy handguards for Triumph Scrambler 1200XE

Aluminum alloy handguards for Triumph Scrambler 1200XE

The handguard body is made of high-strength aluminum alloy. On the Scrambler 1200XE, it replaces the original handguards and encloses the levers and controls within a rigid structure, with a wind deflector that can be raised, lowered, or removed depending on the season.

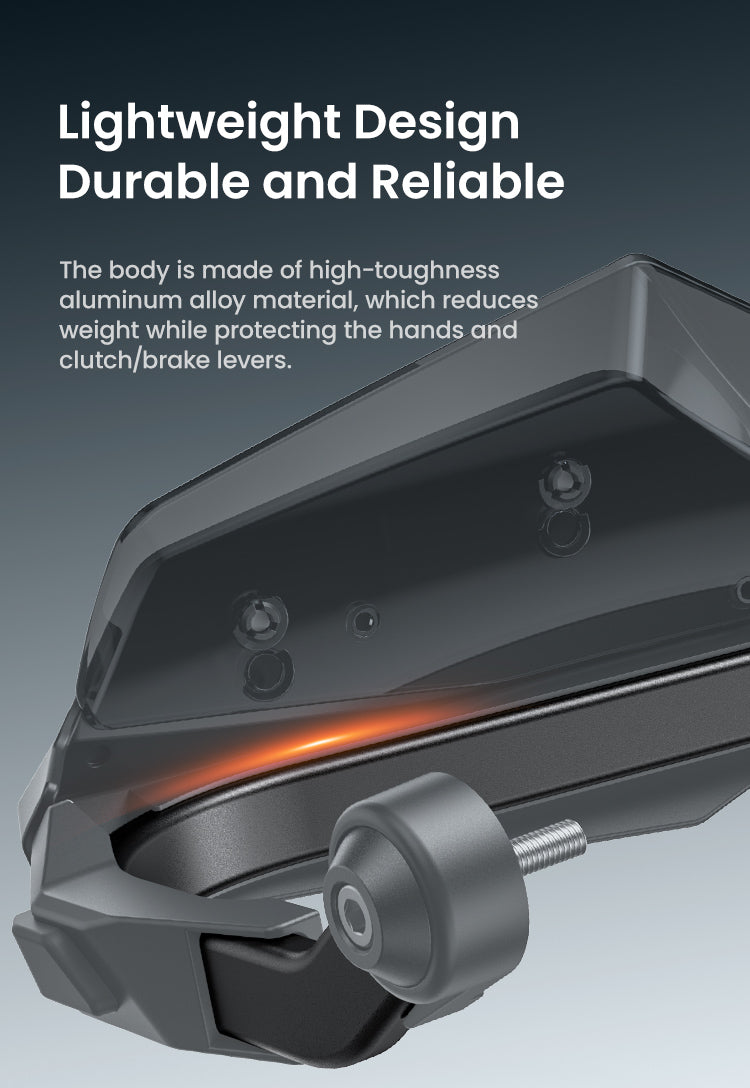

Lightweight, but protects hands and levers

Lightweight, but protects hands and levers

LOBOO states that the high-strength aluminum alloy body reduces weight while protecting the brake and clutch levers. The weight in grams has not been published: if you need the exact figure, contact us and we’ll ask the manufacturer.

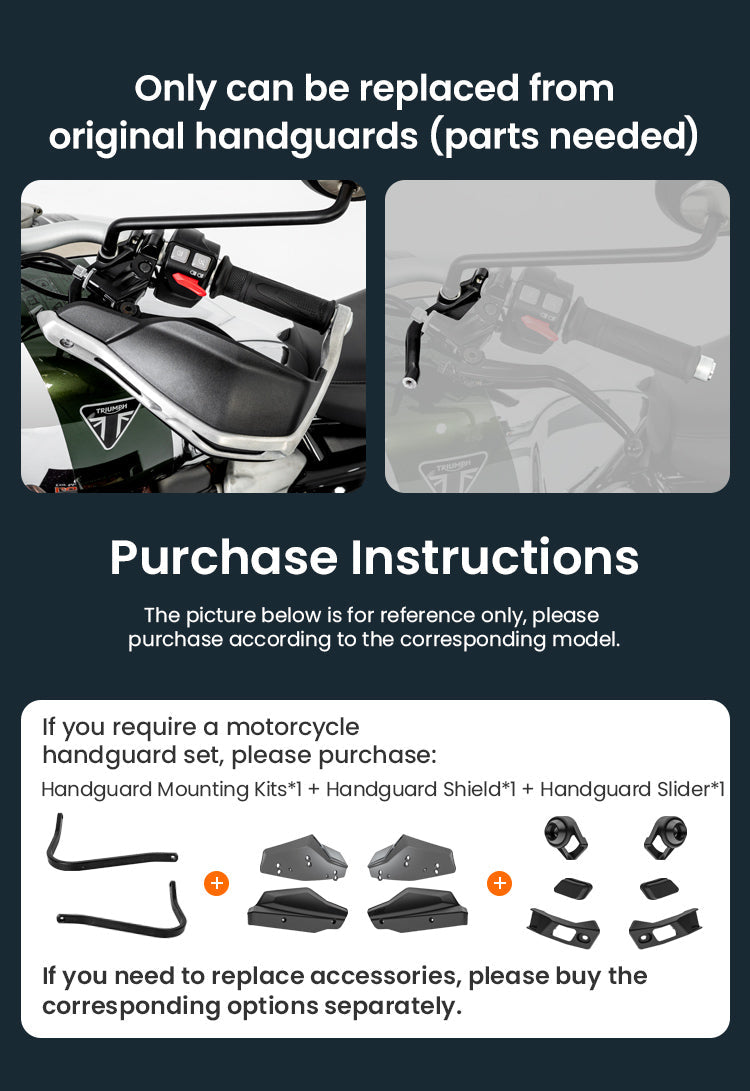

They replace the original Triumph handguards

They replace the original Triumph handguards

This is the key point to keep in mind before ordering: the CHS931 does not attach to the standard handguards on the Scrambler 1200XE; it replaces them. The original handguards must be removed, and the LOBOO bracket is mounted at the same points, at the handlebar end and on the collar.

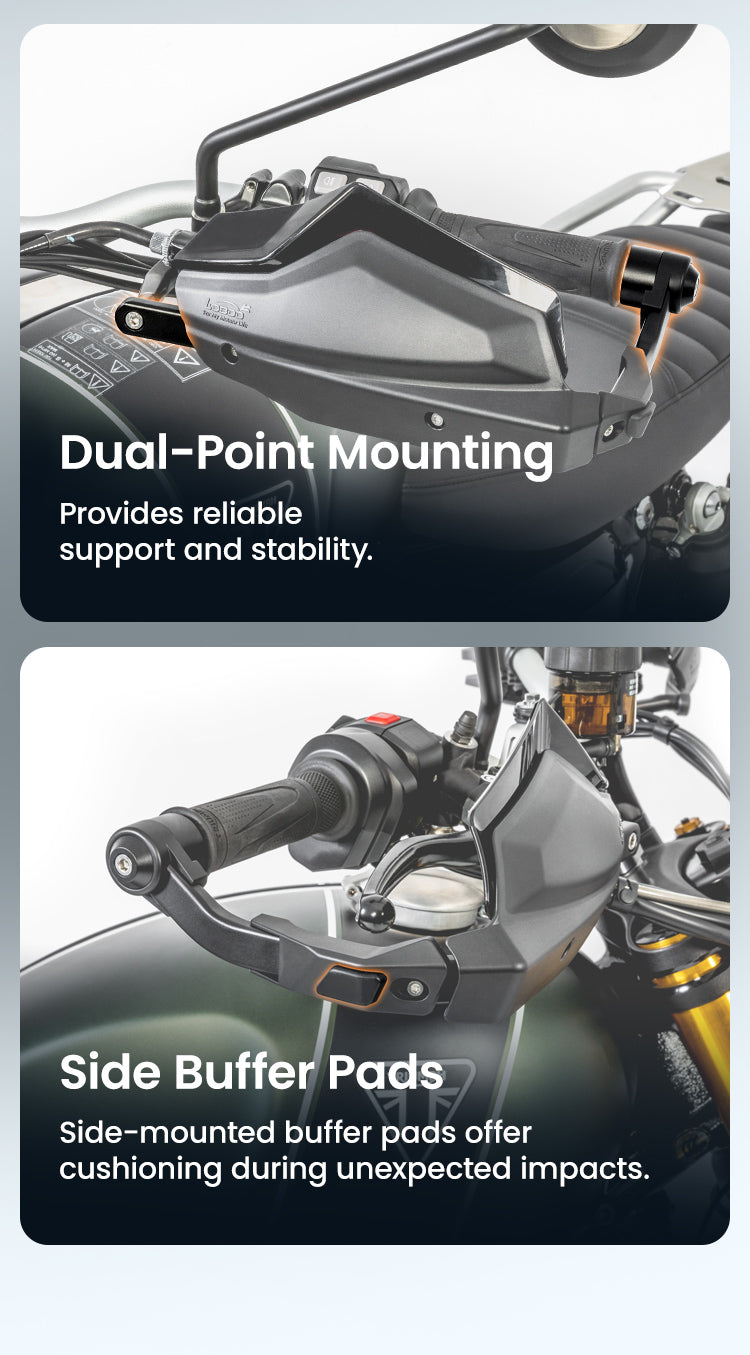

Two-point mounting and bumper pads

Two-point mounting and bumper pads

Two mounting points instead of one: the handlebar end and the clamp near the controls. This is what keeps the handguard secure at high speeds and in crosswinds. The sides feature impact bumpers, shock-absorbing inserts that cushion contact and can be replaced individually when they become scratched.

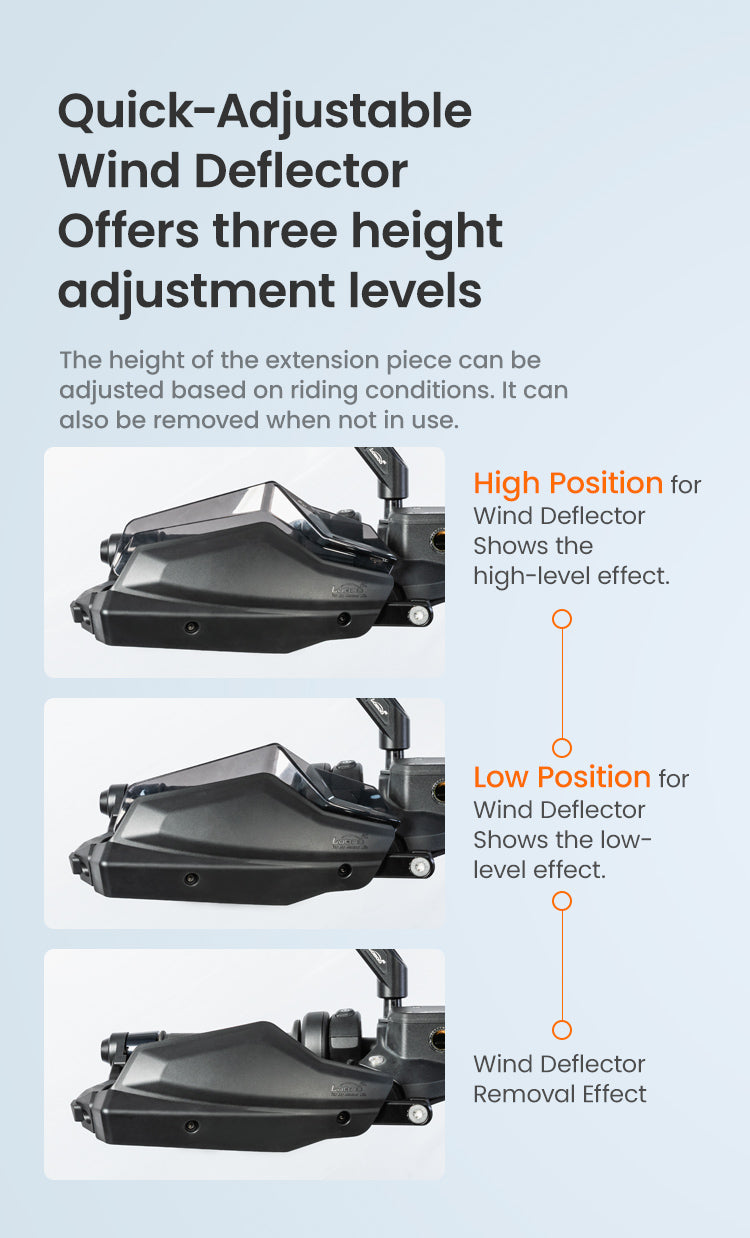

Three-position wind deflector

Three-position wind deflector

The transparent extension at the top of the shield can be adjusted in height: use the high position in cold weather or when riding on the highway, the low position in mild weather, and remove it off-road when airflow and visibility are needed.

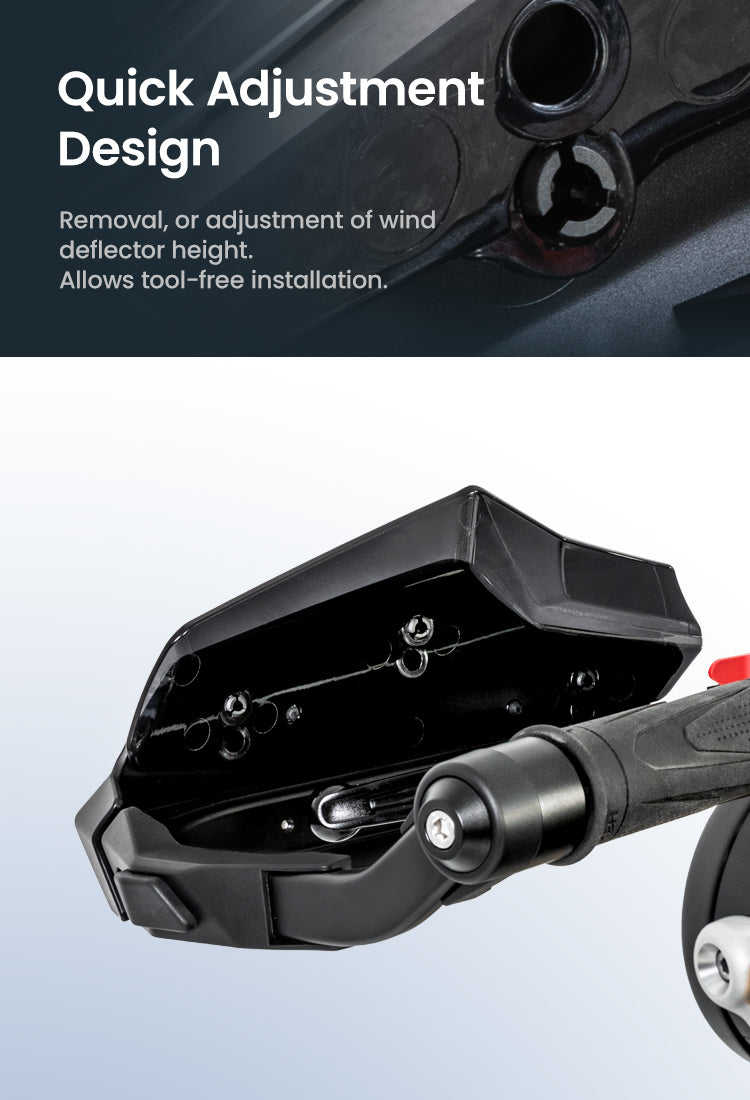

Adjusts without tools

Adjusts without tools

Height adjustment and deflector removal are done by hand, without tools. It takes five minutes with the motorcycle stationary—not a workshop job.

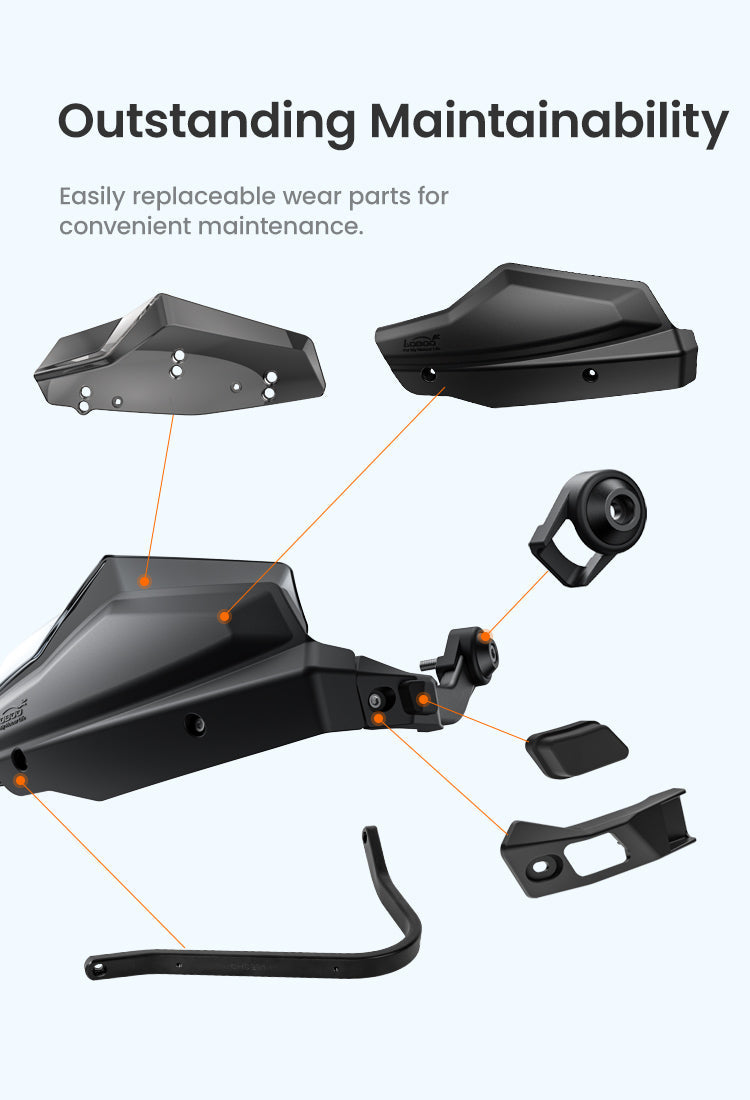

Replace the part, not the handguard.

Replace the part, not the handguard.

The shield, deflector, bar-end clamp, bracket, and bumpers are separate parts. After contact, order only the marked part: this is also why this page offers the three components individually, rather than only as a complete set.

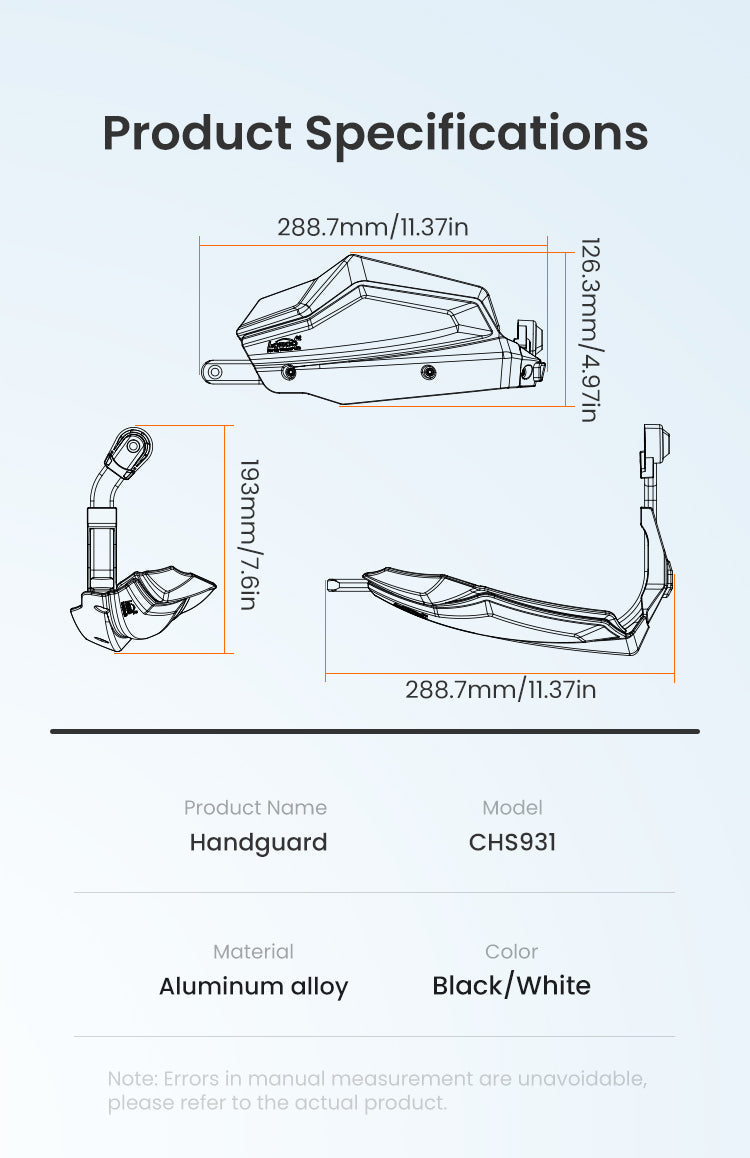

Dimensions: 288.7 × 126.3 × 193 mm

Dimensions: 288.7 × 126.3 × 193 mm

Measurements for each handguard, taken manually by the manufacturer: 288.7 mm long, 126.3 mm deep, and 193 mm high. The stated material is aluminum alloy; Black and White refer to the shield, while the bracket is always black.

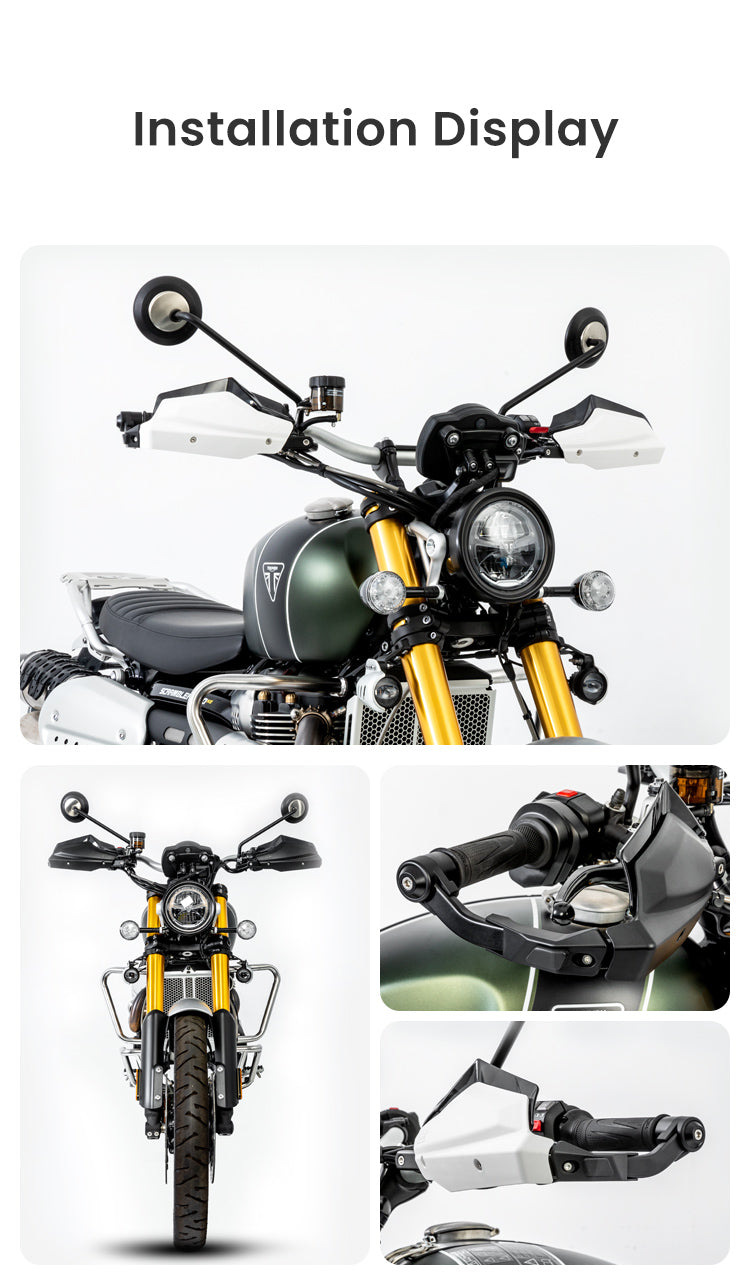

Mounted on the Triumph Scrambler 1200 XE

Mounted on the Triumph Scrambler 1200 XE

The manufacturer's installation photos show the black shield and the white shield on the same motorcycle. The same images also feature auxiliary lights, an engine guard, and a luggage rack: these accessories are not included in this set.

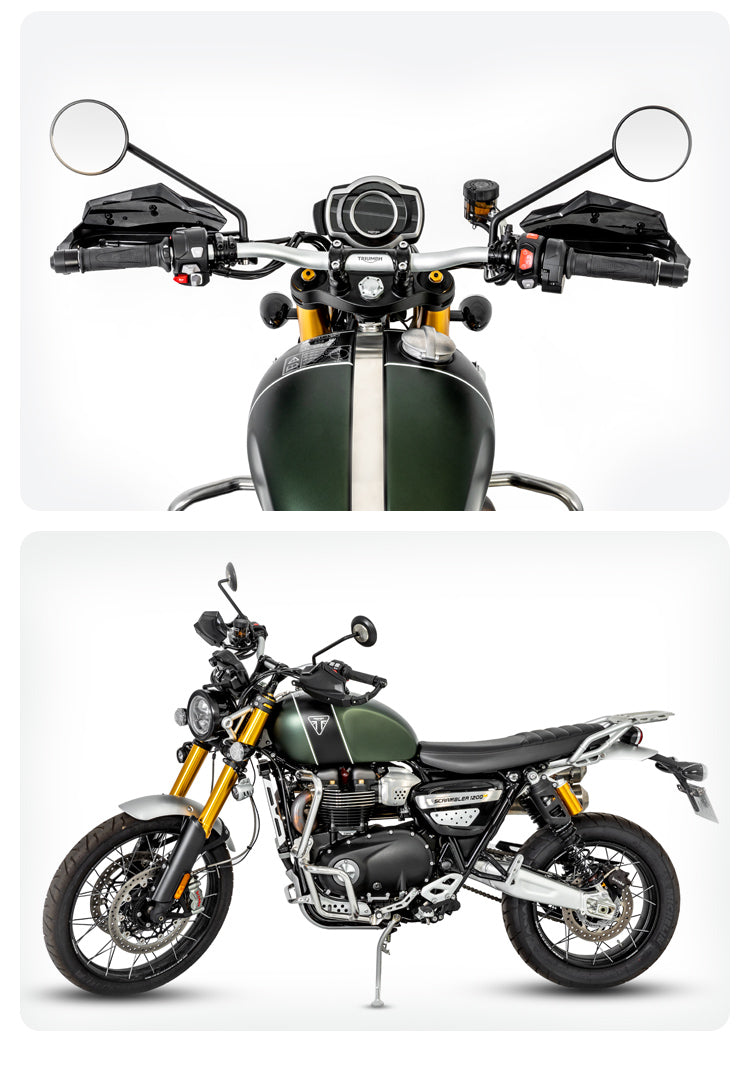

Riding position on the motorcycle

Riding position on the motorcycle

View from the saddle and side view: the handguard follows the handlebar line without extending beyond the grips. Once installation is complete, it is still advisable to test the steering at full lock on both sides.

FAQs

For more information, please see our FAQ.

What do I need to buy to get a complete handguard?

Three components are required, as indicated by the manufacturer: a pair of CHS931 brackets specifically for the Scrambler 1200XE, a pair of CHP001 shields in your preferred color, and a CFCK001 protective bumper kit. The Complete set variant already contains all three; the other variants on this page are individual pieces, useful as replacements.

Do I need to remove the original handguards from the Scrambler 1200XE?

Yes. LOBOO's technical panel states this explicitly: the CHS931 replaces the stock handguards; it is not installed alongside them. They must be removed before mounting the bracket.

Which motorcycles do they fit?

The CHS931 bracket is specifically designed for the Triumph Scrambler 1200XE from 2024 onward. The CHP001 shield and CFCK001 bumpers, on the other hand, are common components across the entire LOBOO handguard range and can also be fitted to other brackets.

What size are they?

288.7 × 126.3 × 193 mm per individual handguard. These dimensions were measured manually by the manufacturer, so they should be considered accurate only to within a millimeter.

How does the adjustable deflector work?

The transparent extension above the shield has three configurations: high, low, or removed. It can be changed by hand, without tools: high in winter and on the motorway, low in the mid-seasons, and removed off-road when airflow and visibility are needed.

Do you need to drill into or modify the motorcycle?

No. LOBOO specifies a drilling-free installation: the bracket is secured at two points, at the end of the handlebar and on the collar near the controls, where the original handguards are anchored and removed. For this model, the manufacturer does not publish an installation manual. If you want confirmation for your specific vehicle, contact us before ordering.

Why two-point mounting?

A single mount leaves the handguard free to move in the wind and under load. With two anchor points—the bar end and clamp—the structure stays firmly in place, which is also why it withstands side impacts better.

Do they provide protection in the event of a fall?

They are designed to protect hands and brake and clutch levers from wind, debris, and accidental contact, while the impact pads absorb shocks in the event of a low-speed fall. They are not an approved safety device and do not replace gloves and protective clothing.

Is assembly within everyone’s reach?

It is a simple mechanical job, but it requires removing the original handguards and working near levers and controls. For this model, LOBOO does not publish torque specifications: tighten carefully, recheck after the first 100–200 km, and make sure the cables and controls remain unobstructed.

Can I change the shield color later?

Yes. The shield and bracket are separate pieces: you can later order only the pair of CHP001 shields in the other color and keep the bracket already installed. The bracket is always black.

Do they interfere with mirrors and controls?

In the manufacturer's images, the handguard stays within the handlebar line without extending beyond the grips. After installation, still test the steering at full lock on both sides and check that the mirrors, cables, and controls do not touch anything.

Are the accessories shown in the photos included?

No. LOBOO identifies its images as for illustrative purposes only: the additional spotlights, engine guard, and luggage rack shown in the installation photos are not included in this set.

How do you clean them?

Water and mild soap. Avoid solvents on the clear deflector, as they can cloud it. After an impact, check the brackets, clamps, and bump stops before getting back on the road.

Didn't find the answer you were looking for?

Do not hesitate to contact us

Buying guides, technical comparisons, and news on adventure motorcycle accessories

Before choosing

View all

Borsa posteriore impermeabile per moto in PVC nero con chiusura roll-top

Motorcycle tail bag: 40, 50, 66, or 90 liters?

Liters don’t measure the luggage; they measure the container. What matters is the number of nights away and the tent: the selection chart, what IPX6 really means, and how it’s secured.

Read moreabout Motorcycle tail bag: 40, 50, 66, or 90 liters?

Gamma completa di valigie in alluminio per moto, versioni nera e argento affiancate

Aluminum motorcycle cases: it’s the frame that matters, not the case

The cases are always the same, but the frames aren’t: the frame determines whether the system fits your motorcycle. Actual measurements, nine-point mounting, maximum load, and the frame chart for BMW GS.

Read moreabout Aluminum motorcycle cases: it’s the frame that matters, not the case

Motociclista che sgancia la borsa serbatoio dalla moto con una sola mano

Magnetic tank bag: why it won’t stay on your motorcycle and how to fix it

Magnets do not stick to modern tanks. The solution is a fastening ring screwed onto the cap: how to choose one, the complete compatibility chart, and the two measurements to check before ordering.

Read moreabout Magnetic tank bag: why it won’t stay on your motorcycle and how to fix it

Let customers speak for us

from 1125 reviews

Excellent quality
Good price
Very fast shipping and very well managed

Lea Rosset
6L Waterproof Crash Bar Bags
Waterproof Crash Bar Bags 6L
Premium upgrade on my BMW GS

I installed the JADO S6 on my BMW GS (non-"dedicated" version), and although I don't use the BMW base, the display and features are still top notch. The night visibility is impressive, and the "X-Ray" mode, as they call it, makes evening riding much safer. I also appreciate Endurrad's quick support for pre-purchase clarifications: fast shipping, careful packaging. A product that is really worth the expense for a premium upgrade.

Andrea
JADO S6 smart motorcycle driving system
JADO S6 smart motorcycle guidance system
Robust, complete, and perfect for long trips

As a motorcyclist who travels many miles, both on asphalt and off-road, I was looking for a solid display with advanced features: well, the JADO S6 exceeded my expectations. The body is sturdy, and the IP69K waterproof rating won me over from the very first downpour. The WiFi/BT connection is stable, and the dedicated app makes downloading dashcam videos super fast. All in one device, without having to mount 3-4 different accessories. Excellent value for money.

Filippo
JADO S6 smart motorcycle driving system
JADO S6 smart motorcycle driving system
The ultimate system for motorcycle travelers

Installed a few weeks ago on my adventure bike: the JADO S6 is truly a quantum leap in quality. The 6" screen is ultra-bright (even in direct sunlight it is perfectly visible) and the CarPlay/Android Auto interface works first time. The integrated dual dashcam gives me peace of mind on every trip. Installation was simple, with a clean fit without any invasive systems. Highly recommended for serious travelers who want a single smart control unit that does everything.

Giordi
JADO S6 smart motorcycle driving system
JADO S6 smart motorcycle guidance system
PROTECTION FOR MOTORCYCLE CRASH BARS

Excellent product, highly recommended. Be aware that it sells like hot cakes and is often out of stock... As soon as it's available, I'll buy more...

Eugenio
Protection for motorcycle crash bars - Endurrad
Protection for motorcycle crash bars - Endurrad

Bottle holder for motorcycle trips

Franco Della Porta
Bottle holder for motorcycle trips
Bottle holder for motorcycle trips
Great product, good value for money

The bag is of excellent quality and comes with all the necessary straps and a shoulder strap. The two methods of attaching it to the motorcycle are well designed and offer a range of options. I will also buy the larger model.

Andra Frois
Additional 20L Bag for Suitcases
20L Additional Bag for Suitcases

Excellent service

Manuele Mazzocato
Smart Protection for 12V Motorcycle Battery - Loboo CB20
Smart Protection for 12V Motorcycle Battery - Loboo CB20
Very satisfied

I saw the Endurrad ad on Facebook and immediately set about getting Loboo inflatable bags for my motorcycle...... But due to a technical error, I entered the wrong information on the order, which had already been shipped. Alarmed, I sent emails to the Endurrad staff, who, with their professionalism (and I must add, their patience), corrected the information both in the registration and with the courier, who was already on his way to deliver the order...Within two days, I received the bags and immediately tried them out and fitted them to my motorcycle. So I must say with great satisfaction that I was very pleased with the staff, with the product, and above all with the professionalism with which the marketing of all these products was carried out..... 🙂

Walter Fanale
Wanderer Inflatable Bags for Crash Bars - Endurrad
Wanderer Inflatable Bags for Crash Bars - Endurrad

CGRC CAN for AIO 5 Play BMW - Endurrad

Fabrizio Ghione
CGRC CAN for AIO 5 Play BMW - Endurrad
CGRC CAN for AIO 5 Play BMW - Endurrad
Excellent

Excellent product... Fast and punctual shipping. Giuseppe is knowledgeable, kind, and helpful.

CONTU ROBERTO
KOVE 800 X Side Cases - LOBOO PIKE TRACKER
KOVE 800 X Side Cases - LOBOO PIKE TRACKER
The most beautiful hand guards around

Materials, design, ease of assembly, height-adjustable spoiler, alloy core, all really beautiful and functional

Franco Pesci
Gloves for BMW GS: Protection and Comfort on Every Adventure
Handguards for BMW GS: Protection and Comfort in Every Adventure
Loboo L 11 spotlights

Very powerful light, very easy to install, even for someone like me who knows nothing about electrical systems.
Very happy

Franco Pesci
L11 15,000 Lumen Motorcycle Spotlights - Endurrad
L11 15,000 Lumen Motorcycle Spotlights - Endurrad
Untitled... just one thing: SERIOUS

I would say serious, honest, friendly professionals without controversy, because advertising is the basis of sales! As a motorcyclist, only excellent reviews!

Andrea Azzaroni
Wanderer Inflatable Bags for Crash Bars - Endurrad
Wanderer Inflatable Bags for Crash Bars - Endurrad
Loboo motorcycle bags

Reliability and professionalism...product as described...I was surprised by the quality of the details, starting with the box and everything else...top..top.....top

Carlo Di Domenico
6L Waterproof Crash Bar Bags
Waterproof Crash Bar Bags 6L
