What is the difference compared with the STM-002-NP version?

The NP version is the assembly kit only, without plastics: the official PDF explicitly states this and refers to code STM-003 to purchase them separately. This listing, however, is the complete set, including black STORM plastics.

Is it suitable for a custom or a cruiser?

Yes: 25.4 mm is indeed the typical size for cruisers and custom bikes, and Barkbusters states that the STORM series is designed for street bikes, cruisers, naked bikes, adventure bikes, and scooters. The requirement for 18 mm of clearance inward from the controls still applies, which should be checked on very crowded handlebars.

Can I install plastics in a different color?

Yes. The plastic parts replace themselves with code STM-003, available in black or white.

Can I adjust the handguard's angle?

Partly: the manufacturer provides several mounting positions for the bracket, so there is room to orient the handguard in relation to the handlebar and controls.

Do I need to recheck the tightening after installation?

Yes. Barkbusters asks you to check the tightness of all screws again after the first 50 km and recommends using a medium-strength threadlocker on all fasteners.

Is it suitable for winter use on the motorway?

This is exactly its area of expertise. The STORM plastic one is the largest in the range, 275 by 140 mm, and the manufacturer says it is designed to provide excellent protection from wind and cold. What it does not do is protect you in a fall.

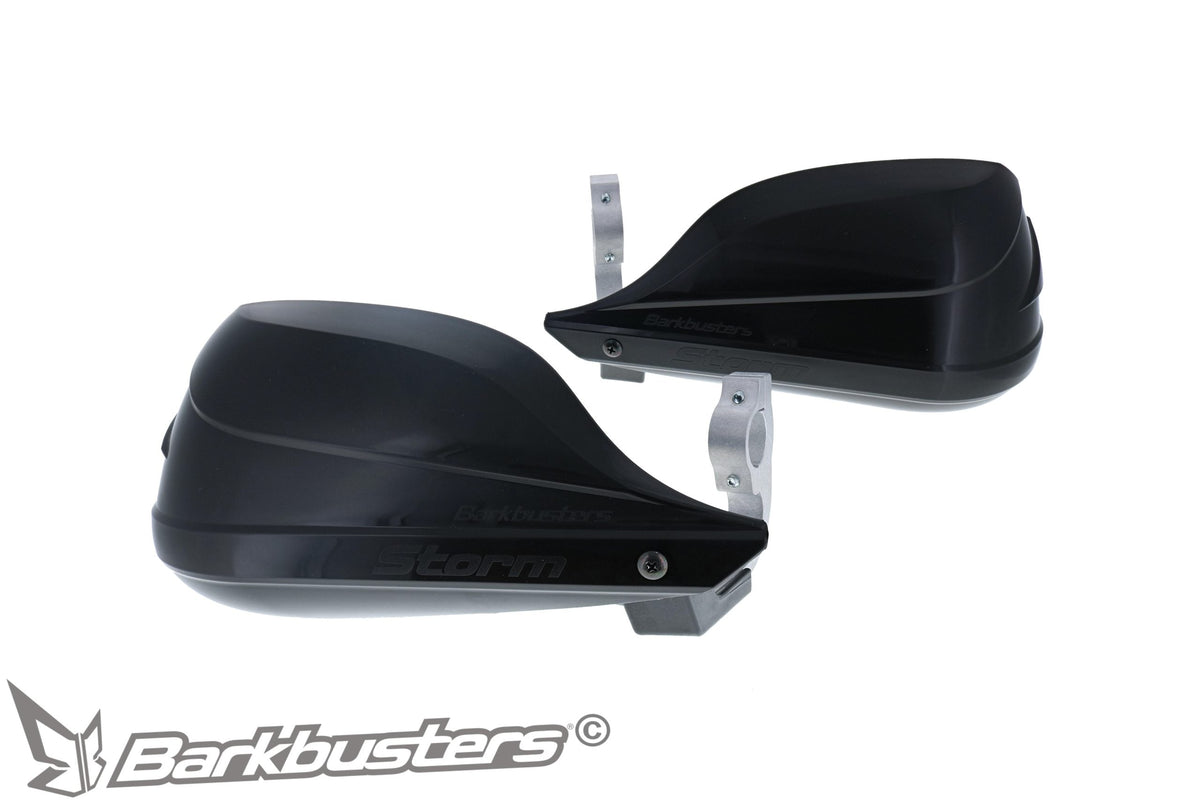

Paramano completo Barkbusters STORM STM-002 nero a punto singolo con morsetto da 25,4 mm

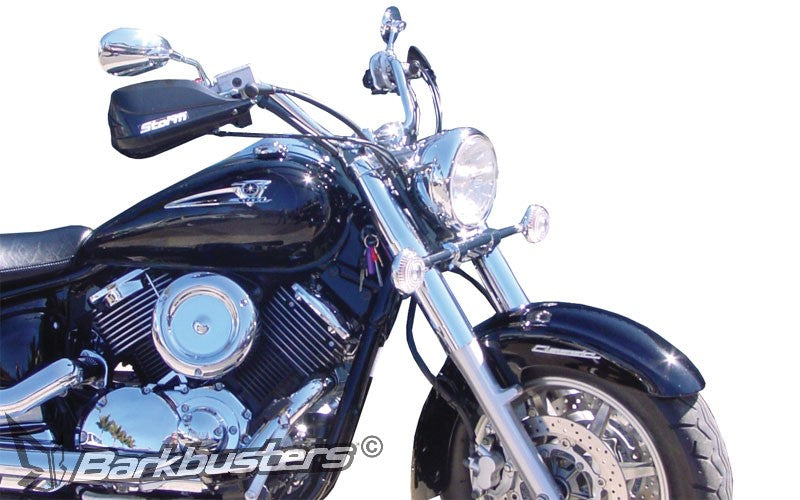

Paramani Barkbusters STORM STM-002 montati su una Yamaha Royal Star

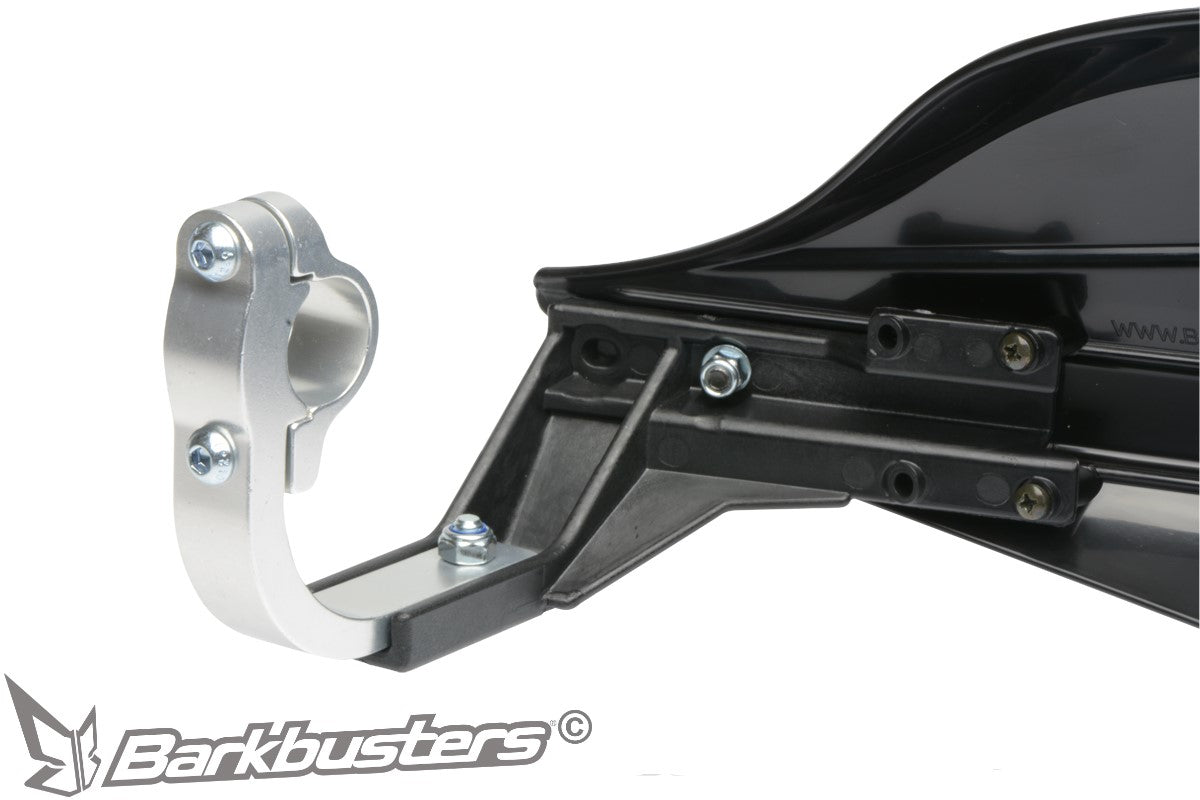

Paramano Barkbusters STORM STM-002, vista del morsetto e della staffa a L

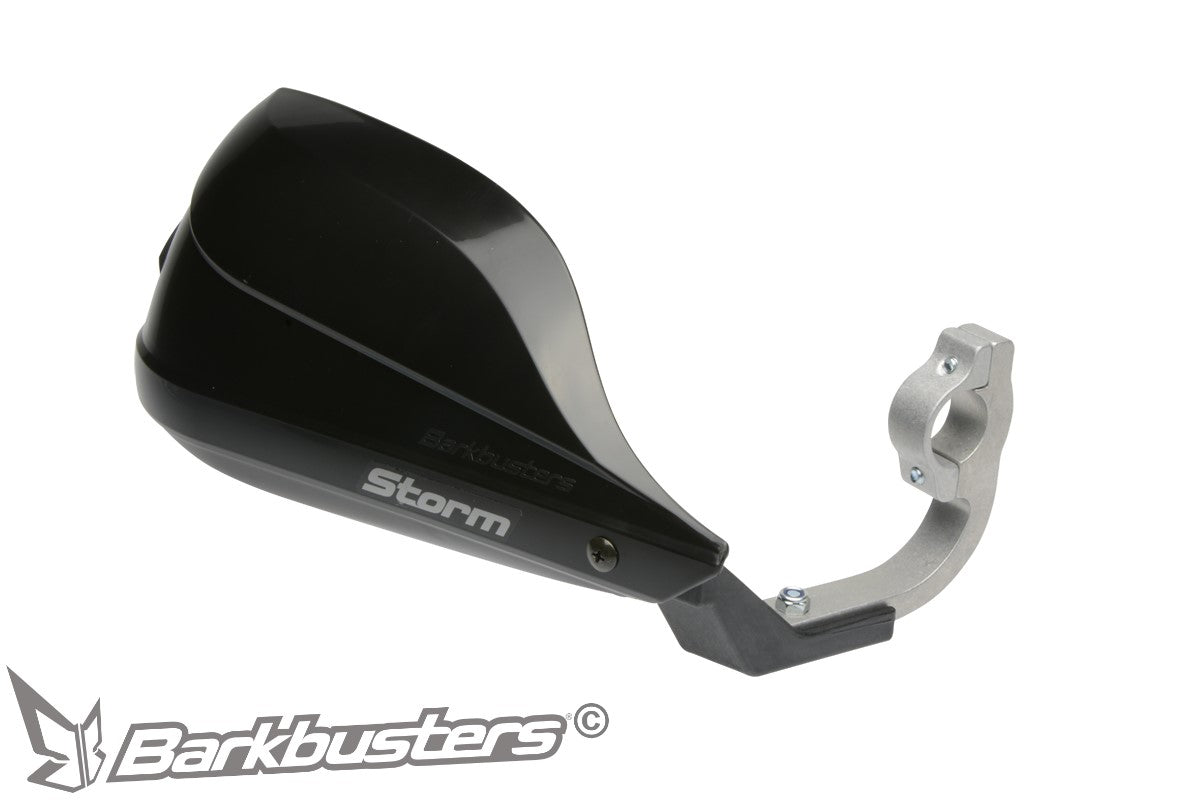

Paramano Barkbusters STORM STM-002 nero, vista di prodotto

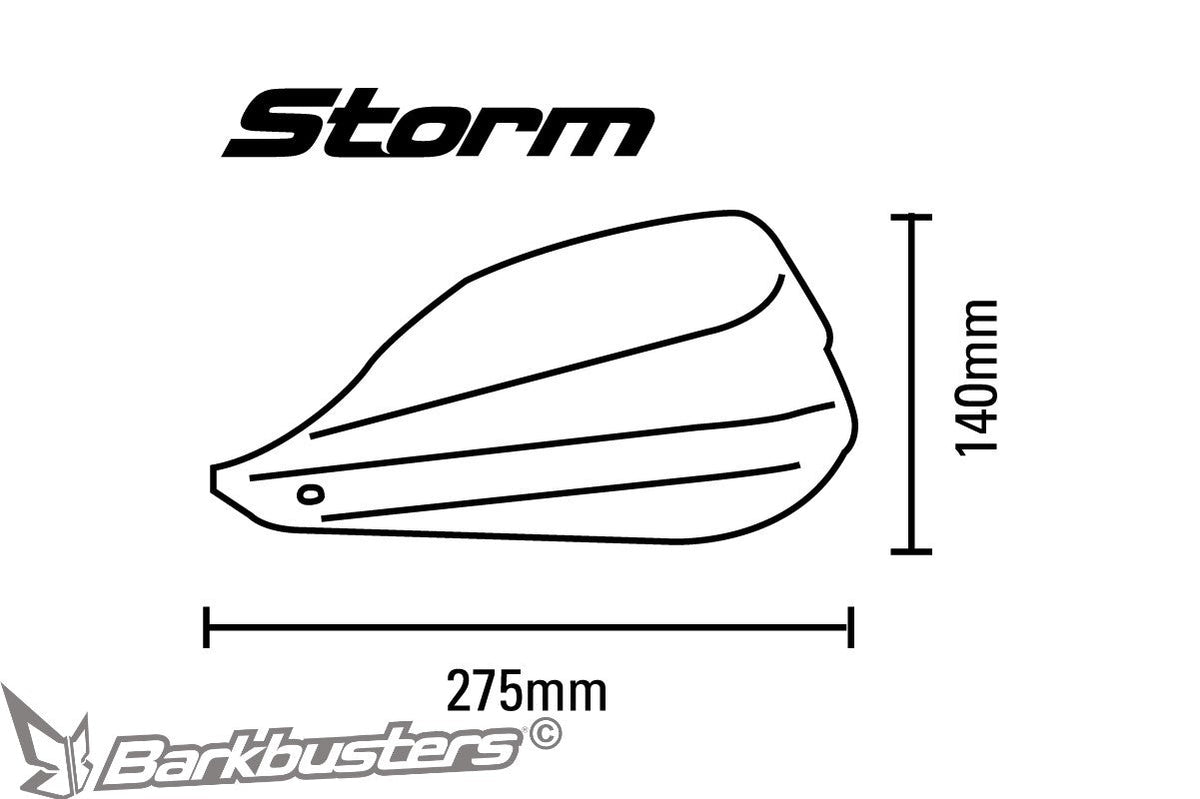

Disegno quotato della plastica paramano Barkbusters STORM: 275 mm di lunghezza e 140 mm di altezza

25,4 mm Handlebar

18 mm Free space

1 Attachment point

BARKBUSTERS ✓ Prodotto originaleCod. BR-STM-002-01-BK

Barkbusters STORM STM-002 full handguards, single-point, 25.4 mm handlebar

€109,50

Paga in 3 rate da €36,50 senza interessi

Va bene per la tua moto?

Accessorio universale: va su qualsiasi moto adventure e touring.

Configuration

Single dot 25.4 mm, black

Disponibile, pronto per la spedizione🚚 Consegna in 5 giorni lavorativi

Spedizione gratuitaoltre 100 € in Italia

Reso entro 14 giornidalla consegna

Garanzia 24 mesigaranzia legale

Pagamento sicurocarte, PayPal e Klarna

Dubbi sulla compatibilità? Scrivici, ti rispondiamo noi. WhatsApp

Panoramica

In breve

Kit completo a punto singolo per manubri da 25,4 mm. Intemperie, non impatti.

La copertura più estesa della gamma.

275 per 140 mm di plastica: nessun altro paramano Barkbusters ripara di più da vento e freddo.

Per il manubrio da un pollice.

La misura di cruiser e custom, dove le alternative sono poche.

Non tocca l'estremità del manubrio.

Contrappesi originali al loro posto e manopole intatte.

Kit completo.

Plastiche, staffe, morsetti e viteria in una confezione.

Plastiche sostituibili.

Si cambiano da sole con il codice STM-003, nero o bianco.

Dal produttore BARKBUSTERS

Barkbusters è un marchio di Rideworx Pty Ltd, azienda australiana che progetta e produce paramani per moto dal 1984. La gamma è costruita su un principio preciso: la struttura di montaggio e le plastiche di protezione restano due articoli distinti, così che le seconde siano sostituibili e intercambiabili sulla stessa struttura.

Il produttore distingue sempre due configurazioni di fissaggio: due punti, indicato per la protezione dagli impatti, e punto singolo, indicato solo per la protezione da vento e intemperie. La STM-002 appartiene alla seconda, e Barkbusters lo dichiara esplicitamente sulla scheda del prodotto.

Leggi la descrizione completa

The STM-002 is the complete handguard from the STORM series in the single-point clamp-mounted version, for 25.4 mm handlebars, i.e. one inch: the typical size for cruisers, customs and many American motorcycles. Everything is included: black STORM plastics, brackets, clamps and hardware.

Protects against the elements, not impacts

Barkbusters states this unequivocally: this product is designed solely for protection against the elements and NOT for impact protection. The handguard attaches at just one point on the handlebar and is not anchored at the end: the triangle that absorbs the impact is missing.

If what you are looking for is lever protection in a fall, the correct choice is a two-point model: see the specific kits for your motorcycle or the universal kits.

Measure 18 mm before ordering

The manufacturer requires 18 mm of straight, unobstructed handlebar space inward from the controls: this is where the clamp goes. Measure with a ruler from the inner edge of the switchgear toward the center of the handlebar. If you have less than 18 mm of clear space, this handguard cannot be mounted, and no adapter will solve the problem. On cruisers and customs, where the handlebar is often crowded with controls and accessories, this is a check worth doing twice.

On the other hand, the handlebar end remains free: the original bar-end weights stay in place and the grips do not need to be cut.

Declared compatibility

Requirement	Value
Handlebar	25.4 mm (1")
Clear space inward	At least 18 mm
22 mm handlebar	Requires the STM-001

It is a universal kit: no make, model or year-specific code is required. Barkbusters states compatibility for vehicles in their original factory configuration.

What you will find in the package

Two black STORM plastics, right and left.
Two L-shaped brackets, one right and one left.
Clamps and saddles sized for 25.4 mm handlebars.
Complete hardware: Allen screws, button-head screws, mushroom-head screws, self-locking nuts and washers.

What is NOT included

Nothing essential: the kit is complete. If you need replacement plastics someday, the code is STM-003.

Installation

The manufacturer provides several bracket mounting positions, leaving room to adjust the handguard orientation. Check the operation of the throttle, front brake, clutch and kill switch before riding, use a medium-strength threadlocker and check the tightness again after the first 50 km.

Why buy it from Endurrad

Free shipping in Italy over €100 and in Europe over €250, 14-day returns, and support in Italian. If you are unsure about the diameter or available space, send us a photo of the handlebar before ordering.

Nella confezione

Plastiche STORM nere — coppia destra e sinistra, già incluse nel kit.
Staffe a L — una destra e una sinistra, che reggono la plastica a sbalzo.
Morsetti e selle da 25,4 mm — dimensionati per il manubrio da un pollice.
Viteria completa — viti, dadi autobloccanti e rondelle: quattordici voci a distinta in tutto.
Protezione dagli impatti non dichiarata — il produttore indica questo prodotto per le sole intemperie: per il riparo in caduta servono i modelli a due punti.

STM-002 · Complete kit · Single clamp point · 25.4 mm handlebar

Before ordering, measure 18 mm

The clamp requires 18 mm of straight, unobstructed handlebar space inward from the controls. This is what determines whether it can be installed.

Single point: what does it mean?

The L bracket starts from a clamp on the straight section of the handlebar and supports the plastic as a cantilever: a single anchor point, without the second point at the end. This is why Barkbusters specifies this product for weather protection only, not for impacts.

Mounted on a Yamaha Royal Star

25.4 mm is the typical size for cruisers and custom bikes, and that's where this kit fits in: broad protection against wind and rain on long-distance motorcycles, without interfering with the handlebar end.

The most extensive coverage in the range

275 mm long by 140 mm high: the STORM plastic is the largest in the Barkbusters range. For comparison, the VPS is 250 by 105 and the JET is 245 by 110. It is the road and cold-season handguard, where protection matters more than lightness.

Grips and bar-end weights stay where they are

The clamp mount works only on the straight section: the handlebar end is not touched. No grips to cut, no bar-end weights to remove. In return, 18 mm of free handlebar space is required inward from the controls.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Structure and materials

Type

Complete single-point handrail STORM frame and plastics included

Structure

25.4 mm L-shaped bars and saddle clamps

Plastics

STORM black crescent moon-shaped magnet Included, replaceable with code STM-003

Plastic length

275 mm

Plastic height

140 mm

Production

Australia Rideworx Pty Ltd

Assembly

Handlebar

25,4 mm 1-inch bars: the typical size for cruisers and customs

Required free space

18 mm From the straight handlebar to the inside edge of the controls: measure before ordering

Mounting type

Single point Clamp on the straight section, handlebar end free

Mounting positions

Optional The manufacturer provides multiple bracket mounting positions

Retightening check

after 50 km Manufacturer-recommended medium-strength threadlocker

Protection

Impact protection

NOT declared Barkbusters declares that this product is designed solely for protection from the elements

Coverage

Extended Wind and cold protection, the widest in the Barkbusters range

Declared use

Street, cruiser, naked, adventure, and scooter

Packaging

Content

14 line items STORM plastic panels, right- and left-hand L brackets, 25.4 mm clamps and saddles, hardware and washers

Color

Black

Dati dichiarati da Barkbusters (Rideworx Pty Ltd) sulla pagina ufficiale del codice STM-002, sul disegno quotato della serie STORM e sulle istruzioni di montaggio INS-STM-002. Il peso non è dichiarato dal produttore.

Manuale d'usoDocumento originale BARKBUSTERS Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

Verifica di avere almeno 18 mm di manubrio dritto e libero verso l'interno rispetto al blocchetto comandi.
Monta il morsetto con la sua sella da 25,4 mm sulla sezione dritta, senza serrare.
Fissa la staffa a L al morsetto, scegliendo fra le posizioni di montaggio previste quella che orienta meglio il paramano. Le staffe sono marcate destra e sinistra.
Fissa la plastica STORM alla staffa con le viti a testa fungo.
Serra tutte le viti e verifica il funzionamento di gas, freno anteriore, frizione e interruttore di arresto prima di partire.
Ricontrolla il serraggio dopo i primi 50 km.

Istruzioni complete e note di sicurezza

Procedura dichiarata da Barkbusters nelle istruzioni ufficiali INS-STM-002, allegate a questa scheda.

Verifica di avere almeno 18 mm di manubrio dritto e libero verso l'interno rispetto al blocchetto comandi.
Monta il morsetto con la sua sella da 25,4 mm sulla sezione dritta, senza serrare.
Fissa la staffa a L al morsetto, scegliendo fra le posizioni di montaggio previste quella che orienta meglio il paramano. Le staffe sono marcate destra e sinistra.
Fissa la plastica STORM alla staffa con le viti a testa fungo.
Serra tutte le viti e verifica il funzionamento di gas, freno anteriore, frizione e interruttore di arresto prima di partire.
Ricontrolla il serraggio dopo i primi 50 km.

Frenafiletti di media resistenza su tutti i fissaggi. Il produttore considera il montaggio dei paramani un intervento rilevante per la sicurezza, da affidare a un tecnico se non hai dimestichezza.

A chi ha una cruiser, una custom o una moto con manubrio da un pollice e vuole il massimo riparo da vento, freddo e pioggia.

A chi macina chilometri su strada e non vuole toccare manopole e contrappesi.

Non è la scelta giusta per chi cerca protezione della leva in caduta, e nemmeno per chi ha meno di 18 mm di manubrio libero verso l'interno rispetto ai comandi.

Compatibilità

Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Does it protect the lever in a fall?

No, and the manufacturer explicitly states it: the STM-002 is designed solely for protection from the elements and NOT for impact protection. It attaches to the handlebar at only one point, without anchoring at the end. If you want lever protection in a fall, you need two-point models.

How can I tell if my handlebar is 25.4 mm?

Measure it with calipers on the straight section where the clamp attaches. 25.4 mm corresponds to one inch and is the typical size for cruisers, customs, and many American motorcycles; 22 mm, or 7/8 inch, is the standard for European enduro, trail, and naked bikes. If yours is 22 mm, you need the STM-001.

What is the 18 mm of clearance, and how do I measure it?

These are the millimeters of straight, unobstructed handlebar needed for the clamp, inward from the controls. Measure them with a ruler from the inner edge of the control housing toward the center of the handlebar: if you have less than 18 mm of clear space, the clamp will not fit.

Is the kit complete, or do I need to buy anything else?

It's complete. The package includes the black STORM plastics, the right and left L brackets, the clamps with 25.4 mm saddles, and all the hardware: fourteen items on the bill of materials.

Should I remove the bar ends or cut off the grips?

No, and that's the practical advantage of the single clamp mount: the handlebar end remains free, so the original bar-end weights stay in place and the grips don't need to be cut. Installation only affects the straight section.

What is the difference between STM-002 and STM-001?

Only the handlebar diameter differs: the STM-002 is for 25.4 mm handlebars, while the STM-001 is for 22 mm handlebars. The plastic parts, brackets, and level of protection are identical.
