32-38mm

Tube diameter

Octagonalinternal profile

Dam

M8standard DENALI

Mounting hole

2 clampsincluding VAT

Content

Assembly

Tube diameter

From 32 to 38 mm

Support type

Universal clamp mounts for crash bars, frame tubes, and forks

Standard DENALI mount, compatible with all lights in the range. Lights not included

Equipment

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale.

Faretti su qualsiasi tubo da 32 a 38 millimetri

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description Universal clamps for auxiliary lights on bars from 32 to 38 mm

Code LAH0010400B — DENALI code LAH.00.10400.B

Pair of articulated clamps for mounting any DENALI auxiliary light on crash bars, frame tubes, or any tube 32 to 38 mm in diameter.

The octagonal inner profile grips both round tubes and tubes with irregular cross-sections, preventing the clamp from rotating under vibration. The articulation lets you aim the light even when the bar is not aligned.

Measure the tube before ordering: the diameter, not the motorcycle model, determines which clamp you need.

Why choose it

Quando per la tua moto non esiste un supporto specifico, questi morsetti a fascetta risolvono: si stringono su una barra paramotore, un tubo di telaio o uno stelo forcella e ci montano sopra i faretti. La posizione la scegli tu.

Prima di ordinare misura il diametro esterno del tubo: le quattro versioni coprono da 21 a 60 mm e vanno prese in base a quella misura.

Who is it recommended for

A chi ha un paramotore di sezione maggiore o un tubo del telaio da 32 a 38 mm. Sulle custom e sulle Harley è il diametro più diffuso delle barre di protezione motore.

Misura sempre il tubo con un calibro: DENALI offre anche le misure 21-29, 39-49 e 50-60 mm.

Complete technical specification sheet
Technical data
  • Diametro tubo: da 32 a 38 mm
  • Uso tipico: paramotore di sezione maggiore e tubi del telaio
  • Presa: profilo interno ottagonale, antirotazione
  • Orientamento: articolato
  • Foro di montaggio: M8, compatibile con tutti i faretti DENALI
  • Contenuto: 2 morsetti e viteria
Documents and manufacturer

DENALI riconosce 5 anni di garanzia convenzionale del produttore. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità previsti per legge.

Restano esclusi usura normale, abrasione, uso improprio, installazione errata, incidenti e modifiche. Il montaggio su tubi di diametro fuori dall'intervallo dichiarato rientra fra le installazioni non conformi alle istruzioni del produttore.

L'uso su strada pubblica dei fasci supplementari è regolato dal codice della strada del Paese in cui circoli: verifica sempre le prescrizioni locali.

How does it work, in detail?

  • Attach the spotlights to any tube of the correct diameter.

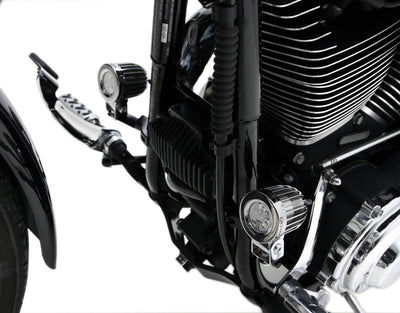

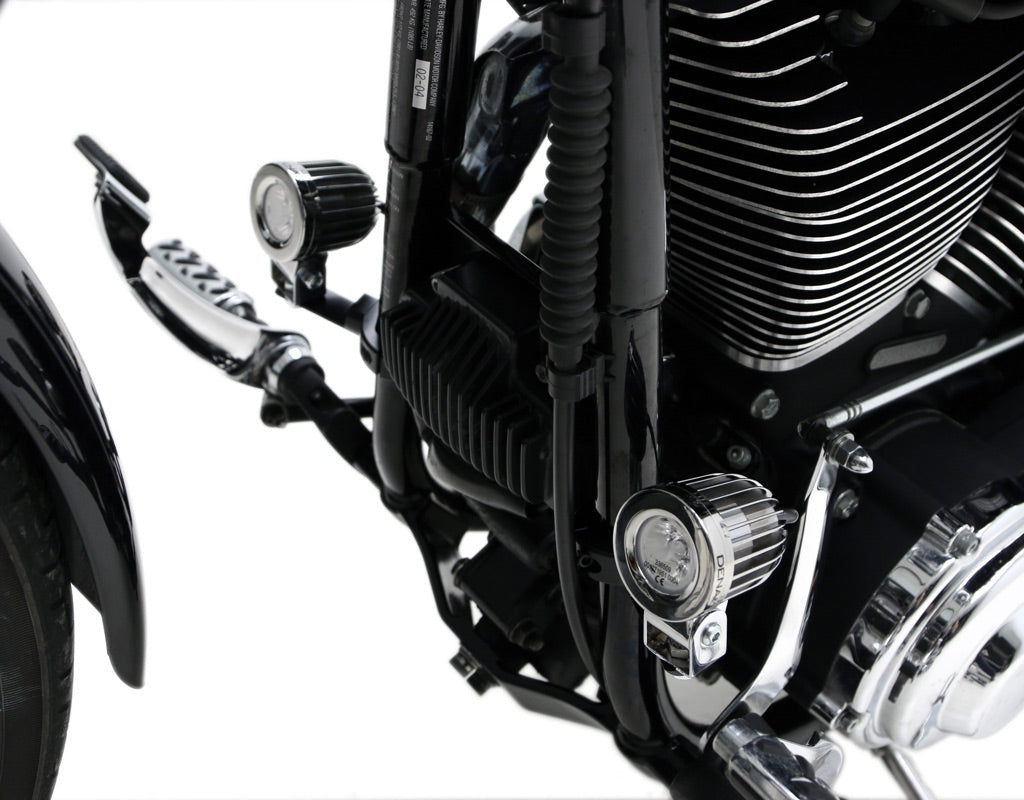

Engine guard and frame tubes

Engine guard and frame tubes

From 32 to 38 mm is the size of larger-section engine guards and many frame tubes. On custom bikes and Harley-Davidsons, it is the most common diameter for engine protection bars.

Measure your tube with calipers before ordering: the diameter, not the motorcycle model, determines which clamp you need.

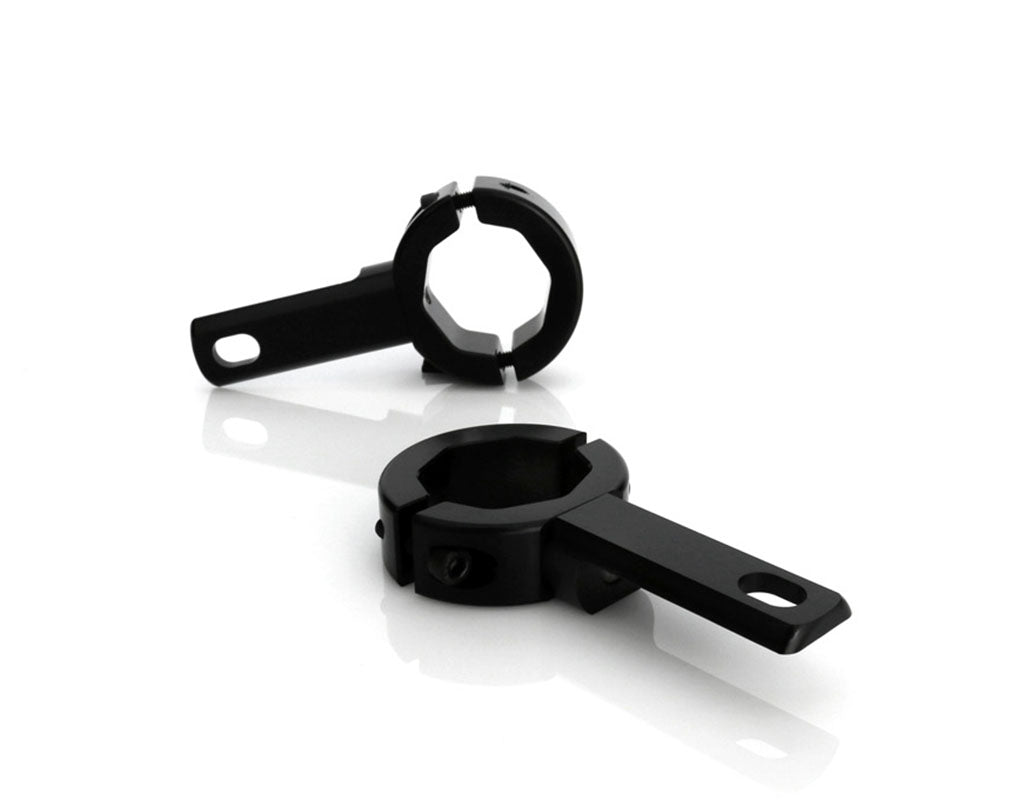

The octagonal profile does not allow rotation

The octagonal profile does not allow rotation

That’s the difference between these and a generic clamp: the octagonal inner profile grips tubes with an irregular or not perfectly round cross-section, and prevents the clamp from rotating under vibration.

A spotlight that rotates a few degrees after a hundred kilometers illuminates the wrong place and has to be realigned every time. The joint, on the other hand, lets you orient it as needed for installation.

FAQs

For more information, see our FAQ of frequently asked questions.

How do I know which size I need?

Measure the diameter of the tube with calipers. DENALI offers four sizes: 21-29 mm for adventure engine guards, 32-38 mm for larger engine guards and frame tubes, 39-49 mm for inner fork tubes, and 50-60 mm for outer fork tubes.

Does it work with an aftermarket crash bar?

Yes, provided the diameter falls within the range. The octagonal inner profile also grips tubes whose cross-section is not perfectly round, which is often the case with aftermarket ones.

Which spotlights can I install on it?

Any DENALI spotlight: the hole accepts the M8 bolt, the standard across the entire range.
