Cavo LOBOO C-CW230 Type-C a gomito da 230 mm, ricarica fino a 60 WCavo LOBOO C-LW230 da Type-C a Lightning, 230 mm, fino a 27 WScheda tecnica dei cavi LOBOO a gomito: 230 mm, 60 W e 27 W, rame puroCavo LOBOO a gomito collegato a un supporto smartphone da manubrio
-10%Pre-ordine
230 mm Length
60 W Maximum power
Copper Conductor
Elbow crescent moon-shaped panel Connector

Panoramica

In breve

230 mm with angled connector, for PH02S and PH06 supports

Angled connector

the cable exits sideways and runs parallel to the mount, without protruding towards the windshield or stressing the phone's charging port.

230 mm, just the right length

covers the distance between the socket and the phone without excess cable to be hidden with cable ties.

Pure copper core

lower resistance than the copper-clad aluminum used in cheap cables, meaning less heat and less voltage drop.

Braided sheath with anti-kink collars

reinforced at the two points where a motorcycle cable typically fails first.

Two versions

Type-C to Type-C up to 60W, or Type-C to Lightning up to 27W.

Leggi la descrizione completa

The 230mm LOBOO angled cable does one thing, and does it well: it connects your smartphone to the mount without the cable making a wide loop in front of the handlebars. The charger-side connector is right-angled, so it exits parallel to the mount body instead of sticking out forward, where it would end up getting snagged or bent with every turn.

It's the accessory designed for LOBOO PH02S and PH06 mounts, but it works with any mount or charging socket: 230 millimeters is the right length for the stretch between the socket on the handlebars and the phone, without messy coils to hide.

Two versions

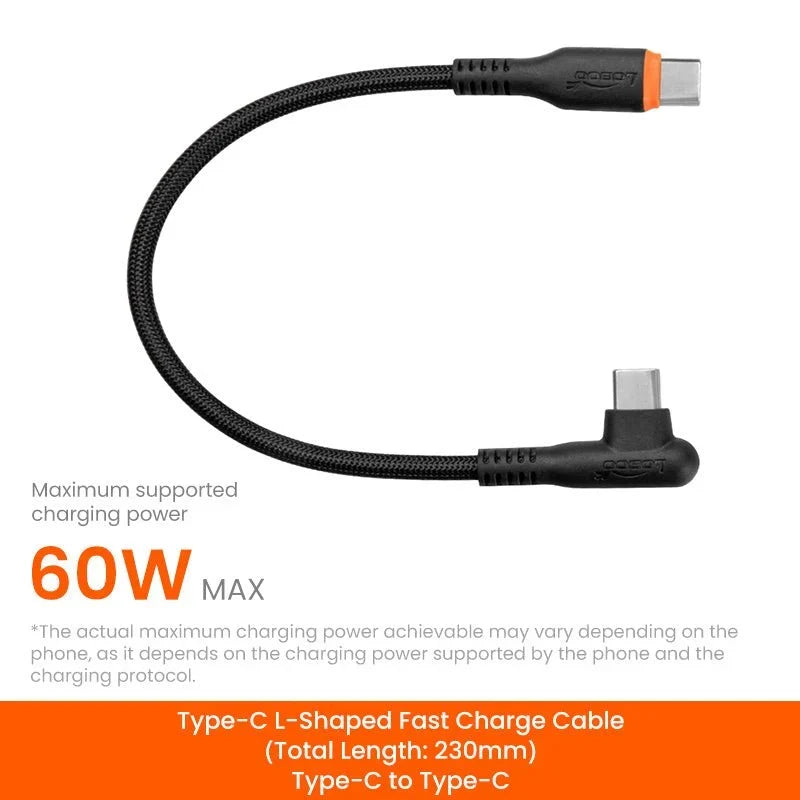

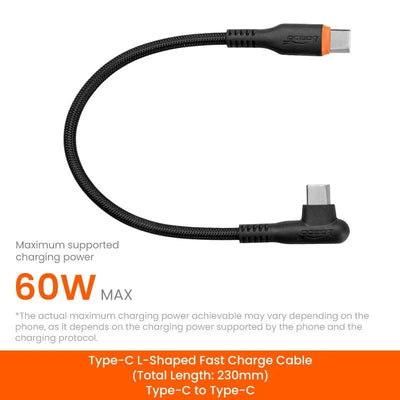

  • C-CW230 — Type-C to Type-C, up to 60 W. For Android, iPhone 15 and later, tablets, and action cameras with a USB-C port.

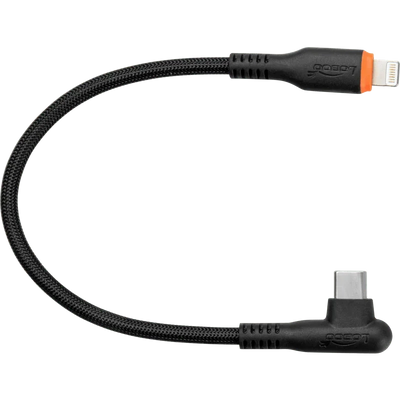

  • C-LW230 — Type-C to Lightning, up to 27 W. For iPhones up to 14 and other Apple devices with a Lightning port.

In both, the angled connector is the Type-C one on the power side; the other end is straight and goes into the phone.

Features

  • 230 mm total length, including connectors
  • Braided nylon sheath, with anti-kink collars at the ends
  • Right-angled connector on the power side, for clean cable routing
  • Universal: no compatibility linked to the motorcycle model

What you need to know

  • 60 W and 27 W are the maximum supported by the cable. The actual power you get depends on the phone and the charging protocol it supports: the manufacturer itself specifies this.
  • It's a cable, not a power supply: you need a charging socket on the motorcycle or a power bank.
  • LOBOO does not declare any IP rating for this accessory.

Nella confezione

  • 1 × LOBOO 230mm elbow charging cable, in the chosen version: C-CW230 Type-C to Type-C or C-LW230 Type-C to Lightning

Not included: power supply, handlebar charging socket, power bank and smartphone holder. The cable connects to a power source already present on the motorcycle.

C-CW230 and C-LW230 · 230 mm · elbow connector · for PH02S and PH06 mounts

How does it work, in detail?

Which version does your phone need, and how do you switch to support?

The elbow that frees the dumbbell
01

The elbow that frees the dumbbell

The power-side connector is right-angled: the cable exits to the side and runs parallel to the mount instead of protruding forward toward the windshield, where it gets caught and bends with every turn.

There’s also a less obvious reason: a straight cable puts leverage on the phone’s port with every vibration, and that’s exactly where cables tend to break first.

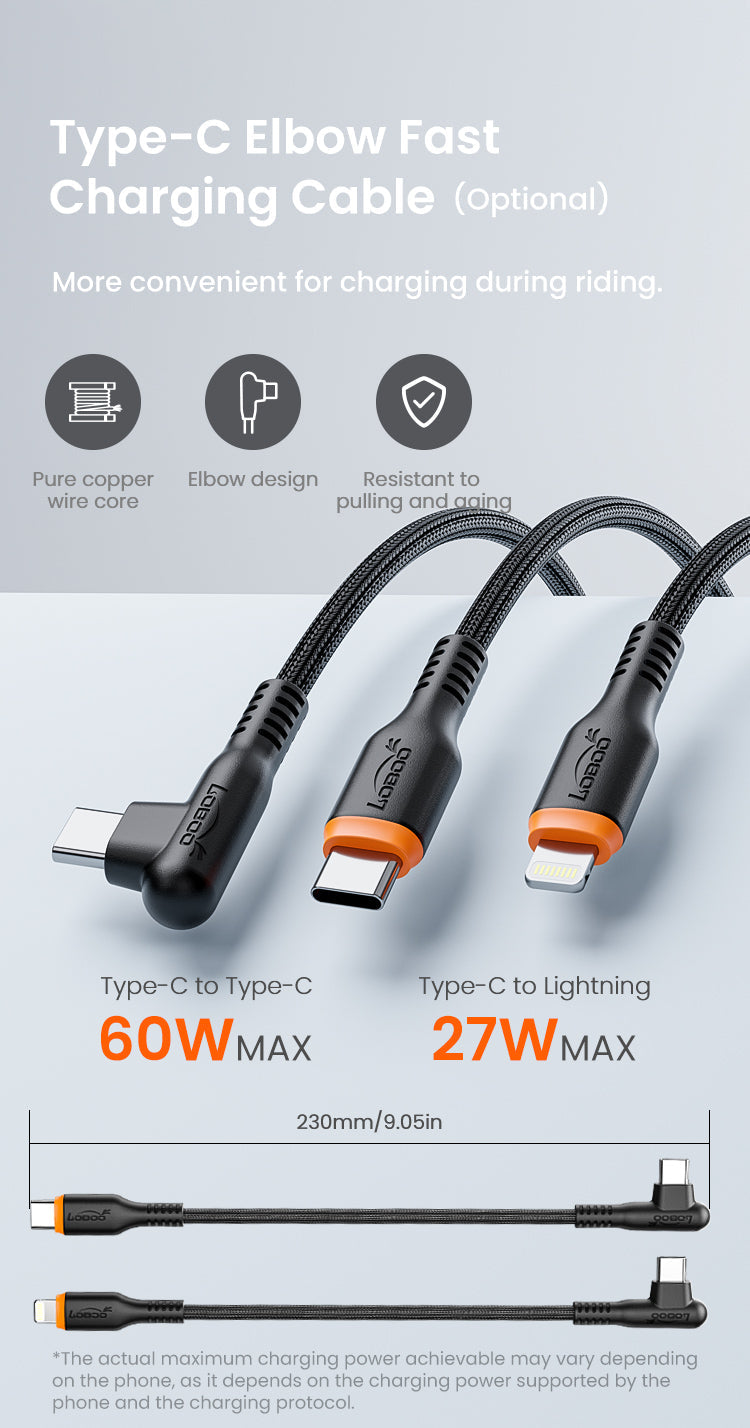

230 mm, pure copper, braided sheath
02

230 mm, pure copper, braided sheath

Exactly two hundred and thirty millimetres, including connectors: the length needed between a socket on the handlebar and the phone in the mount, with no excess cable to hide with cable ties.

The core is pure copper, not copper-clad aluminium: lower resistance, less heat and less voltage drop, which is essential for genuinely handling the stated wattage. The braided sheath is rated for resistance to tensile stress and ageing, with reinforced collars at both ends.

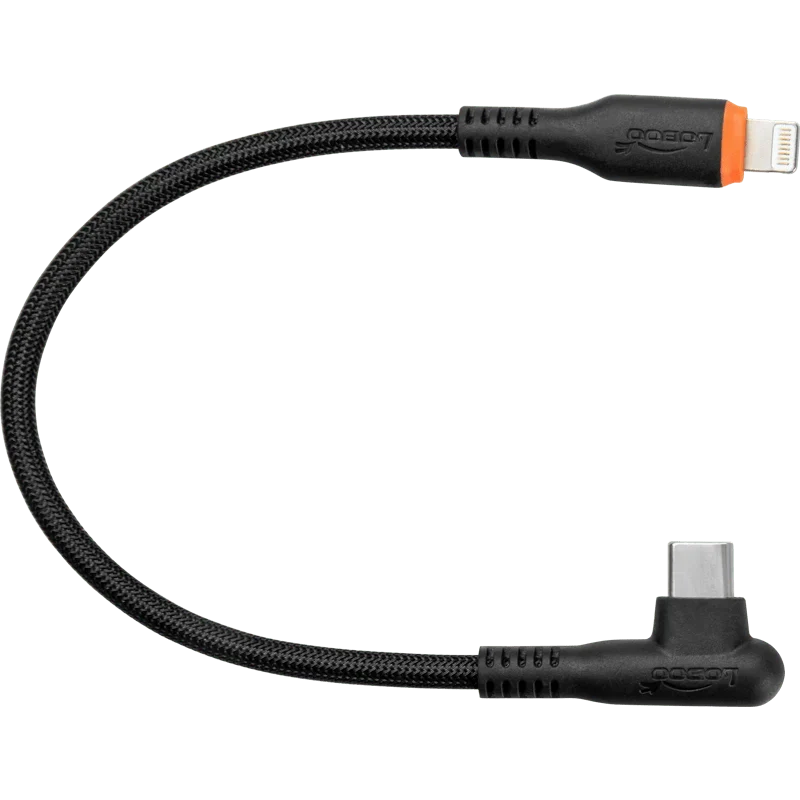

Type-C to Lightning for iPhones up to the 14th generation
03

Type-C to Lightning for iPhones up to the 14th generation

The second version has the Type-C elbow on the power side and ends with a straight Lightning connector, up to 27 W. It’s for iPhones up to the 14 and other Apple devices with a Lightning port.

If you have an iPhone 15 or later or a recent Android device, the right version is the other one: Type-C to Type-C, up to 60 W.

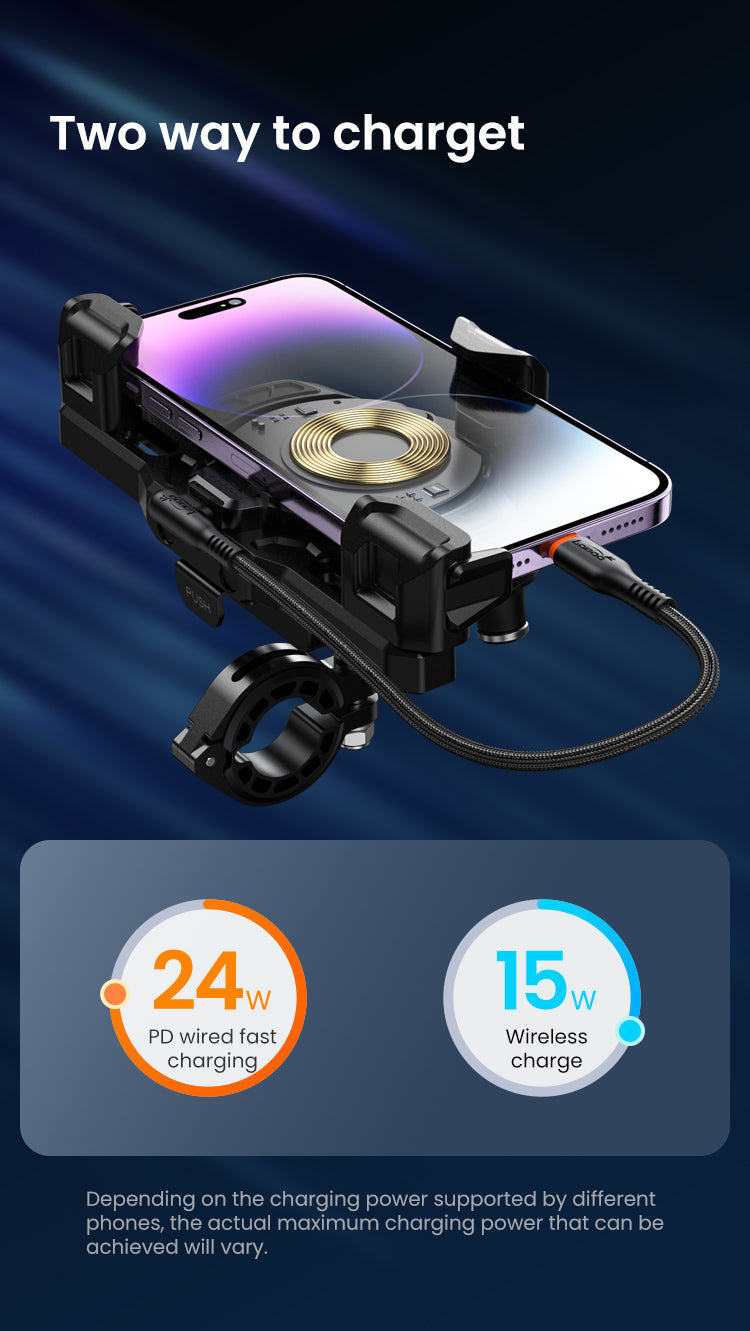

Connected to the stand, phone always charged
04

Connected to the stand, phone always charged

It was designed as an accessory for the LOBOO PH02S and PH06 mounts, but it is a standard USB cable: it works with any mount, handlebar socket, or power bank. Compatibility depends on the phone’s connector, not the motorcycle model.

It also pairs well with tank bags featuring a dedicated cable pass-through—BTB06, BTB20BK, and BTB13BK: power bank inside the bag, cable out through the opening, phone on the handlebar.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Identification

Product code
C-CW230 (Type-C) / C-LW230 (Lightning) Manufacturer SKUs 11.52.903 and 10.52.904
Type
Right-angle charging cable for motorcycle smartphone mounts

Capacity and measurements

Overall length
230 mm 9.05 inches, including connectors
C-CW230 Connectors
Angled Type-C → Straight Type-C
C-LW230 Connectors
Angled Type-C → straight Lightning

Materials

Conductor
Pure copper
Sheath
Woven nylon Resistant to tensile stress and aging
Connector collars
Reinforced, wrinkle-resistant

Fastening/Mounting

Connector geometry
Right-angle power connector The cable comes out parallel to the mount instead of extending forward.
Compatibility
Universal Designed for LOBOO PH02S and PH06 mounts, it works with any USB-C port.

Protection

IP rating
No IP rating declared by the manufacturer

Equipment

Maximum supported power
60 W (Type-C) / 27 W (Lightning) Maximum cable ratings. Actual power depends on the phone and the supported charging protocol
Content
1 cable in the selected version Power adapter and charging cable not included

Data declared by LOBOO on the cable's technical sheet and in the distributor's price list.

Prima di ordinare

Montaggio e requisiti

Come si monta

Istruzioni complete e note di sicurezza

Use and warnings

  • The angled connector goes into the charging socket or holder; the straight end into the phone.
  • 60W and 27W are the maximum supported by the cable: the actual power depends on the phone, charging protocol, and power outlet.
  • No IP rating is declared: in heavy rain, disconnect the cable and close the socket with its cap.
  • Check that the cable does not interfere with the steering movement at full lock on both sides.
  • Do not pull the cable to disconnect it: always grasp the connector body.

How to choose the version

  • Phone with USB-C port (recent Android, iPhone 15 onwards) — Type-C 60W version, code C-CW230
  • Phone with Lightning port (iPhone up to 14) — Lightning 27W version, code C-LW230

What it pairs with

  • LOBOO PH02S and PH06 smartphone mounts, for which it was designed
  • Tank bags with charging cable pass-through: BTB06, BTB20BK, BTB13BK. Power bank inside, cable out of the hole, phone on the handlebars
  • Any USB-C handlebar socket already installed on the motorcycle

No need to check motorcycle make, model, or year: compatibility depends only on the phone connector.

Montate su moto di 20 marche

Accessorio universale per moto adventure e touring.

ApriliaBenelliBMWCFMotoDucatiHarley-DavidsonHondaHusqvarnaKawasakiKoveKTMMoto guzziMv agustaQJMotorRoyal enfieldSuzukiTriumphVogeYamahaZontes
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Which version do I need?

Check your phone’s port. If it’s USB-C—which means all recent Android phones and iPhones from the 15 onward—choose the C-CW230, Type-C to Type-C, up to 60 W. If it’s Lightning, meaning iPhones up to the 14, choose the C-LW230, Type-C to Lightning, up to 27 W. In both cases, the end that plugs into the charging port is Type-C.

Why is the cable so short?

Because 230 millimeters is exactly the distance needed between a handlebar outlet and the phone in its mount. A one-meter cable on a motorcycle is a problem: there’s excess cable that flaps around, gets caught on the controls, and has to be tucked away with cable ties. With this one, there’s no excess.

What is the elbow connector used for?

The right-angle connector routes the cable out to the side instead of straight ahead. On the handlebars, this makes quite a difference: the cable runs parallel to the mount, doesn’t protrude toward the windshield, and doesn’t catch on the lever when you turn the handlebars. It’s also the position that puts the least strain on the phone connector, which is where cables tend to break first.

Does it really charge at 60 W?

Sixty watts is the maximum the cable can carry, not what will reach your phone. The actual power is determined by three things: the phone, the charging protocol it supports, and the outlet you draw power from. The manufacturer itself makes this clear. In practice, the cable will never be the bottleneck.

Which way does the elbow go?

The elbow connector is always the Type-C one, and it goes into the charging port or the holder. The other, straight end, goes into the phone. This applies to both versions.

Does it only work with LOBOO mounts?

No. It was designed as an accessory for the PH02S and PH06 mounts, but it is a standard USB cable: it works with any mount, handlebar USB-C socket, or power bank. Compatibility depends on the phone’s connector, not the mount brand or motorcycle model.
