11.600per pod

Lumen

2flood e spot

Optical circuits

32-38mm

Terminals

DialDimthe ring

Controller

Equipment

Kit contents

Two D7 PRO spotlights, articulated clamps for 32 to 38 mm bars, and a universal DialDim controller

DENALI codes DNL.D7P.050, LAH.00.10400-B, and DNL.WHS.20500

Lighting

Luminous flux

11.600

Independent dual circuit, central flood and external spot, both dimmable

Optics

X-Lens System

Clear, amber, and yellow lenses included

With the amber lens, the central circuit can flash together with the turn signals

Protection

Water resistance

IP68 and IP69K

Assembly

Terminals

Articulated, from 32 to 38 mm

You need an engine guard or a bar of that size: measure it before ordering.

Command

Controller

Universal DialDim

Ring switch with multicolor illuminated ring, for mounting on the handlebar

Compatibility

Models

Indian Chieftain, Pursuit and Challenger

Composizione dalla scheda ufficiale DENALI, che dichiara il controller DialDim e morsetti da 32 a 38 mm. Il listino Forbikes indica CANsmart e staffa dedicata: in verifica.

D7 PRO e DialDim per le Indian

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description D7 PRO auxiliary light kit with DialDim controller for Indian Chieftain and Challenger

Code DNL25KIT002C — DENALI code DNL.25.KIT.002C

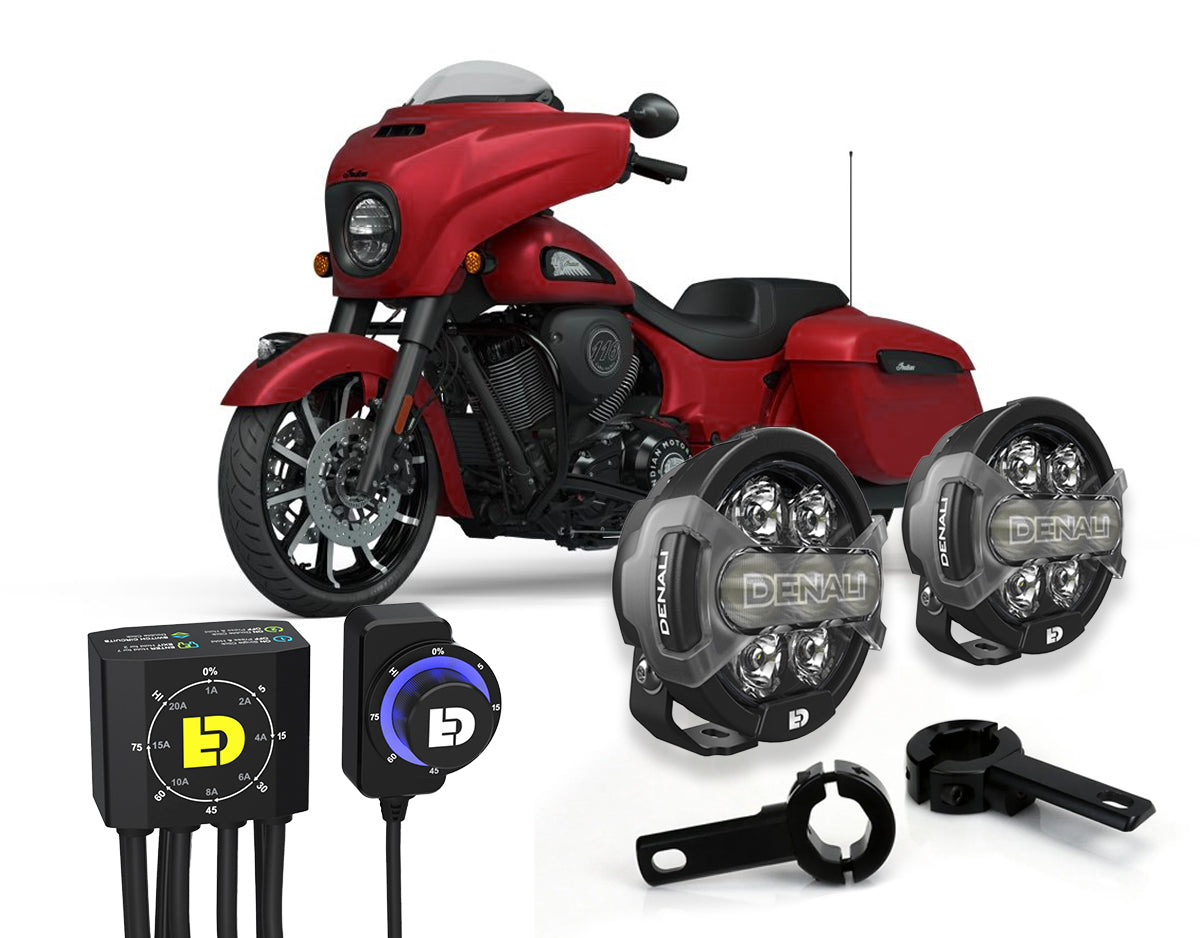

The premium package for the Indian Chieftain, Pursuit, and Challenger: two dual-circuit D7 PRO auxiliary lights, articulated clamps for 32 to 38 mm bars, and the DialDim controller with its handlebar switch.

DialDim is a universal controller: it does not connect to the motorcycle's bus or read the CAN bus, but puts all adjustment functions on a handlebar switch. On Indian motorcycles, this is the solution specified by DENALI because no CANsmart controller exists for these models.

In the kit: 2× D7 PRO auxiliary lights with X-Lens system (DNLD7P050), 1× articulated clamps for 32 to 38 mm bars (LAH0010400B), 1× universal DialDim controller (DNLWHS20500).

Measure the bar before ordering: the included clamps fit 32 to 38 mm.

Why choose it

Il D7 PRO ha due circuiti indipendenti nello stesso corpo e il sistema X-Lens a innesto rapido per cambiare lente senza smontarlo.

Il controller compreso è il DialDim universale, non una centralina CANsmart: per le Indian una CANsmart dedicata non esiste, e il DialDim porta tutta la regolazione su una manopola da manubrio.

Who is it recommended for

A chi vuole il massimo sulla Indian. È il pacchetto di punta disponibile per queste moto.

A chi preferisce la manopola. Con il DialDim la regolazione è diretta e continua.

Misura il paramotore. I morsetti sono da 32-38 mm.

Complete technical specification sheet
Technical data
  • Faretti: 2× D7 PRO a doppio circuito, sistema X-Lens
  • Controller: DialDim universale, manopola da manubrio, non legge il CANbus
  • Morsetti: articolati, per barre da 32 a 38 mm
  • Alimentazione: dalla batteria, senza innesto sul bus della moto
  • Compatibilità: Indian Chieftain, Pursuit e Challenger
Documents and manufacturer

I faretti ausiliari vanno installati e impiegati nel rispetto delle prescrizioni del codice della strada su numero, posizione e altezza dei proiettori supplementari.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • The D7 PRO on the Chieftain, Pursuit, and Challenger, with a dial control.

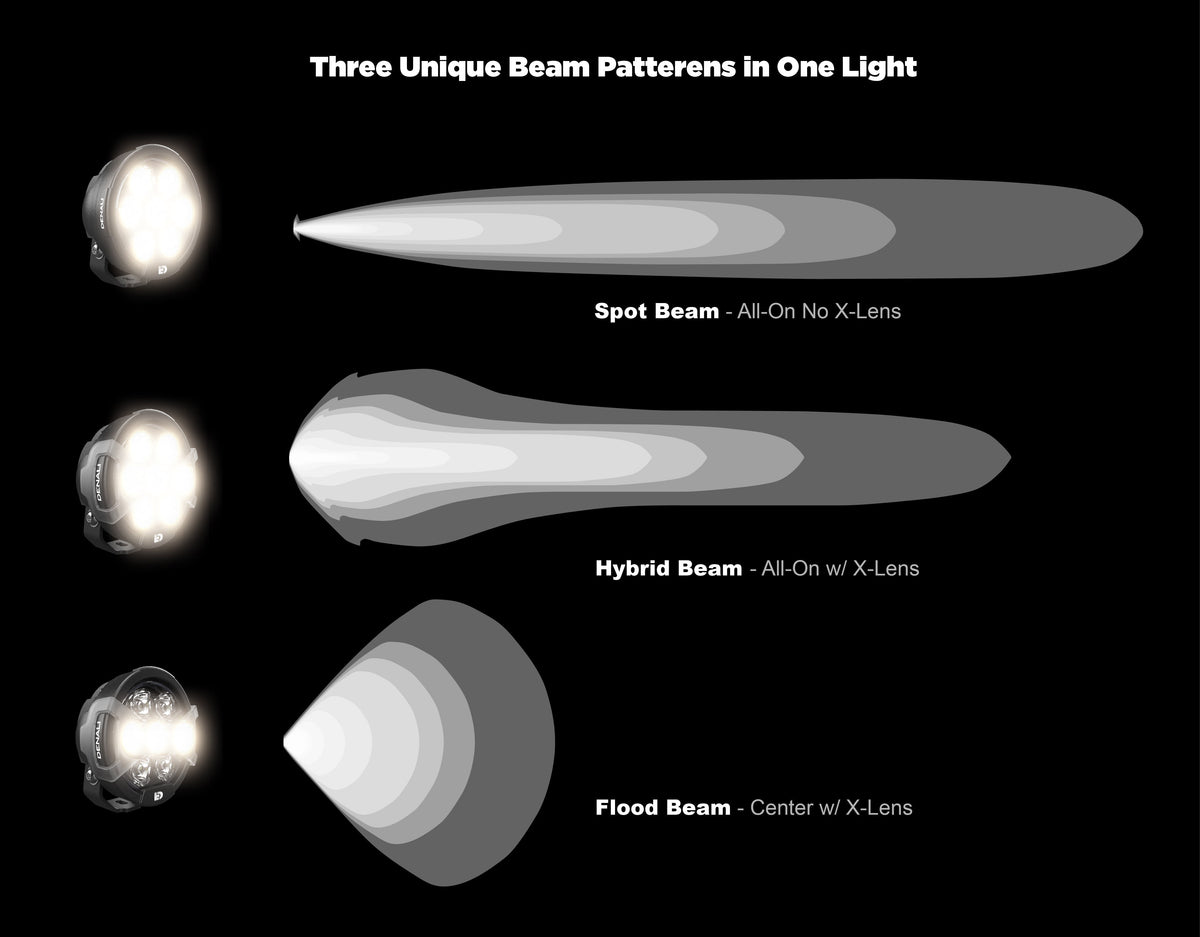

Two lights within a single body

Two lights within a single body

The D7 PRO has two independent circuits in the same spotlight: the central amber or yellow one and the outer white one. The quick-change X-Lens system allows you to change the lens without removing the spotlight.

The DialDim, not the CANsmart

The DialDim, not the CANsmart

The included controller is the universal DialDim: it does not connect to the motorcycle’s bus, but puts all the adjustments on a handlebar knob. A CANsmart control unit does not exist for Indian motorcycles, and this is the solution provided by DENALI.

FAQs

For more information, see our FAQ of frequently asked questions.

Which controller is included in this kit?

The universal DialDim (DNLWHS20500), not a CANsmart controller. DENALI’s official documentation identifies it as the DialDim, while some listings indicate the CANsmart: we followed the manufacturer, especially since there is no dedicated CANsmart for Indian motorcycles.

What is the difference between DialDim and CANsmart?

The CANsmart connects to the motorcycle’s bus and puts the auxiliary lights under the original controls, but it is only available for models that DENALI has developed it for. The DialDim connects to the battery, and all adjustments are made using a handlebar-mounted dial: on motorcycles without a dedicated CANsmart, it is the only way to have complete control.

Where are the clamps mounted?

For an engine guard bar with a diameter of 32 to 38 mm. Measure your engine guard before ordering: thinner or thicker tubes require clamps of a different size, which we have available in our catalog.
