11.600per pod

Lumen

2flood e spot

Optical circuits

IP68and IP69K

Protection

3compresses

Lenses

Equipment

Kit contents

Two D7 PRO spotlights, articulated clamps for 21 to 29 mm bars, CANsmart GEN II control unit, and two 137 cm extensions

DENALI codes DNL.D7P.050, LAH.00.10300-B, DNL.WHS.11702, and DNL.WHS.059

Lighting

Luminous flux

11.600

Independent dual circuit, central flood and external spot, both dimmable

Optics

X-Lens System

Clear, amber, and yellow lenses included

With the amber lens, the central circuit can flash together with the turn signals

Protection

Water resistance

IP68 and IP69K

Assembly

Terminals

Articulated, from 21 to 29 mm

You need an engine guard or a bar of that size: measure it before ordering.

Electric

Control unit

CANsmart GEN II DNLWHS11702

Amber circuit synchronized with the turn signals, white with the high beams

Compatibility

Models

BMW K 1600, R nineT, R 18, S 1000 XR, F 900 GS and XR, F 800 GS, F 850 GS, F 750 GS

Compatibility is provided by the DNLWHS11702 control unit: check your model in the DENALI table

Composizione e compatibilità dichiarate da DENALI sulla scheda ufficiale.

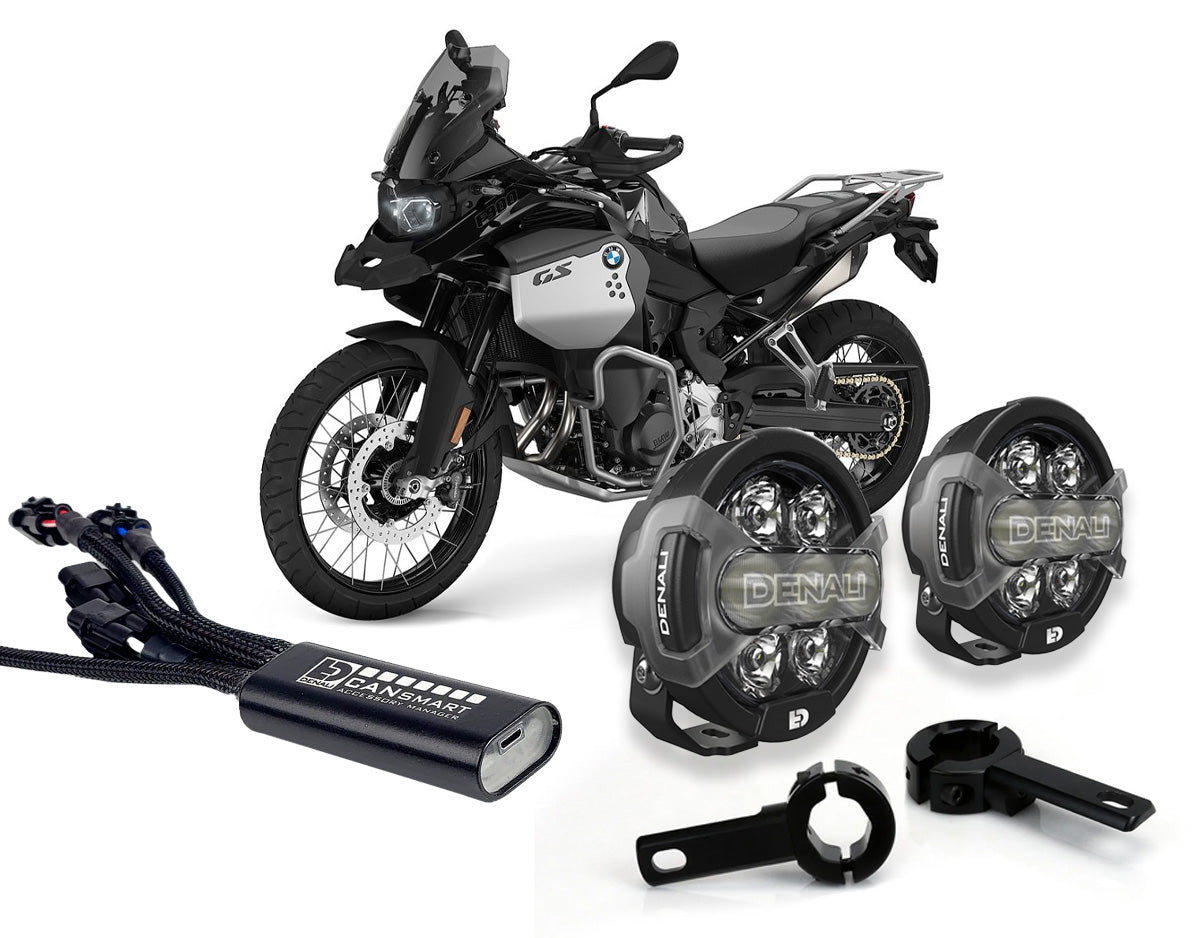

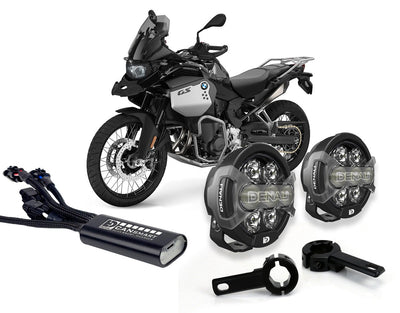

D7 PRO sul paramotore, comandati dal CANsmart

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

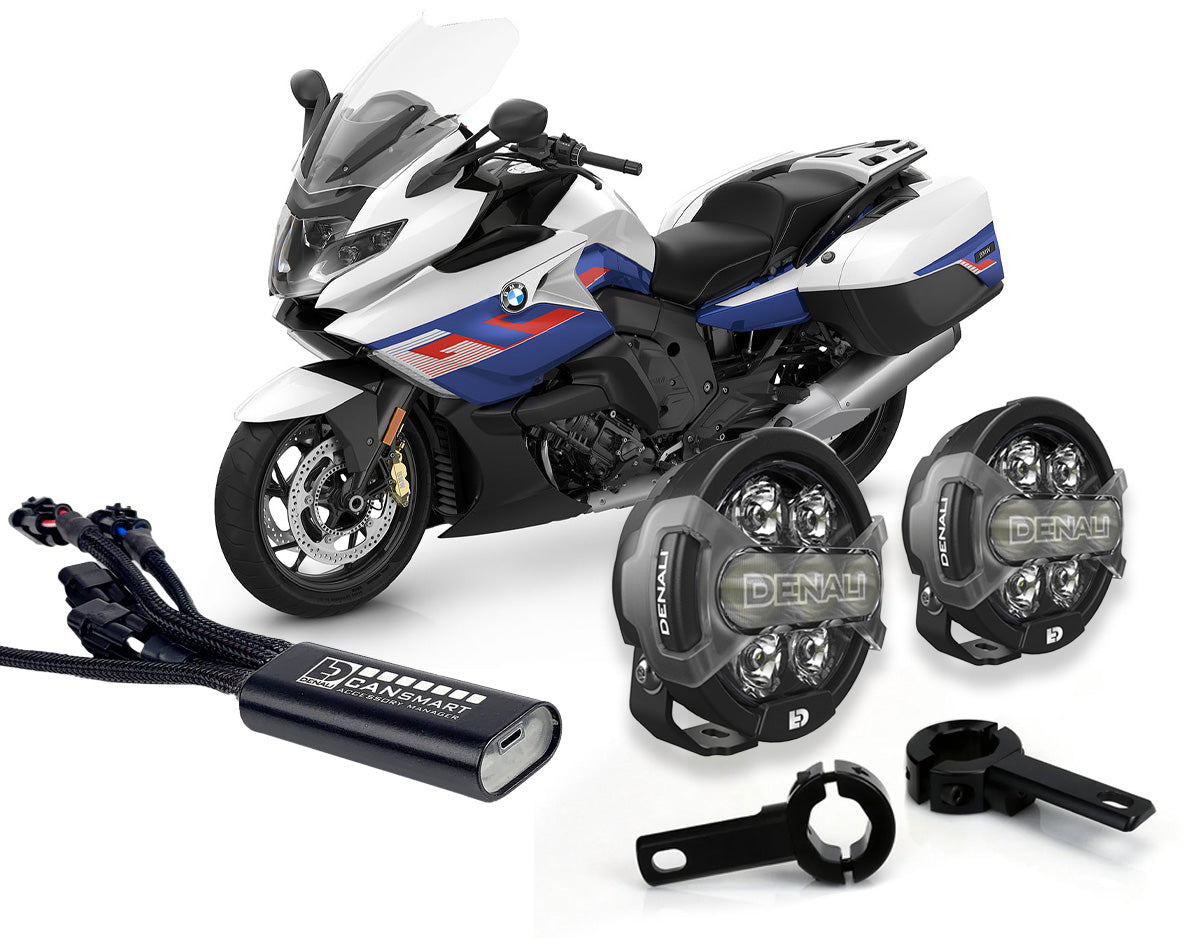

Description D7 PRO auxiliary light kit with crash bar clamps and control unit for BMW K 1600 and F GS

Code DNL07KIT030C — DENALI code DNL.07.KIT.030C

The range-topping package, with dual-circuit D7 PRO auxiliary lights and articulated clamps that attach them to the engine guard: two lights in a single housing, with a central amber or yellow circuit and an outer white circuit controlled separately by the control unit.

The configuration specified by DENALI splits the right and left amber circuits so they flash in sync with the original turn signals, while the outer white circuit works with the high beams at the intensity you choose. It uses three of the control unit's four circuits: one remains free.

Kit includes: 2× D7 PRO auxiliary lights with X-Lens system (DNLD7P050), 1× articulated clamps for 21 to 29 mm bars (LAH0010300B), 1× CANsmart GEN II control unit (DNLWHS11702), 2× 137 cm wiring extensions (DNLWHS059).

Declared compatibility: BMW K 1600, R nineT, R 18, S 1000 XR, F 900 GS, F 900 XR, F 800 GS, F 850 GS and F 750 GS.

Why choose it

Il D7 PRO ha due circuiti indipendenti nello stesso corpo: centrale ambra e esterno bianco. La configurazione prevista da DENALI li usa per due funzioni diverse, e questo lo distingue da qualsiasi faretto tradizionale.

I circuiti ambra destro e sinistro restano separati e lampeggiano con le frecce originali, mentre il bianco segue gli abbaglianti. Restano tre circuiti impegnati sulla centralina e uno libero.

Who is it recommended for

A chi ha già un paramotore. I morsetti stringono su barre da 21 a 29 mm: è il presupposto del kit.

A chi vuole il massimo dall'elettronica. Faretti che fanno anche da visibilità laterale in svolta sono una funzione che nessun kit più economico offre.

Copre molte moto diverse. Non dipende dal frontale, quindi la stessa centralina serve dalla K 1600 alla F 750 GS.

Complete technical specification sheet
Technical data
  • Faretti: 2× D7 PRO a doppio circuito, sistema X-Lens
  • Circuiti: centrale ambra o giallo e esterno bianco, indipendenti
  • Configurazione: ambra sincronizzati con le frecce, bianco con gli abbaglianti
  • Centralina: CANsmart GEN II, 3 circuiti su 4 impegnati
  • Montaggio: morsetti articolati per barre 21-29 mm, richiede paramotore
  • Compatibilità: BMW K 1600, R nineT, R 18, S 1000 XR, F 900 GS, F 900 XR, F 800 GS, F 850 GS, F 750 GS
Documents and manufacturer

I faretti ausiliari vanno installati e impiegati nel rispetto delle prescrizioni del codice della strada su numero, posizione e altezza dei proiettori supplementari. La funzione di lampeggio in sincrono con gli indicatori va impiegata nei limiti ammessi dalla normativa del Paese in cui circoli.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • The D7 PRO on BMWs with an engine guard, controlled by the factory buttons.
Two lights within a single body

Two lights within a single body

The D7 PRO has two independent circuits in the same spotlight: the central amber or yellow one and the outer white one. They don't have to work together, which changes what you can make it do compared with a standard spotlight.

They flash with the turn signals

They flash with the turn signals

The setup planned by DENALI keeps the right and left amber circuits separate and makes them flash in sync with the original indicators. The outer white circuit remains linked to the high beams at the intensity you choose. Three of the four control unit circuits are required: one remains free for a horn or brake light.

On the crash bar, not on the front fairing

On the crash bar, not on the front fairing

The articulated clamps fit bars from 21 to 29 mm and can be adjusted after installation. That’s why this kit fits a wide range of motorcycles: it doesn’t depend on the front mounting points, but on the crash bars you already have.

FAQs

For more information, see our FAQ of frequently asked questions.

Do you already need to have a paramotor?

Yes. The included clamps attach to a tubular bar with a diameter of 21 to 29 mm, typically the engine guard. If your motorcycle does not have one, you will need a specific front mount instead of the clamps: write to us and we’ll tell you which one.

Are colored lenses included?

The D7 PRO uses the quick-release X-Lens modular system, allowing you to change the lens without removing the light. Check the product sheet to see which lenses are included with this code: the contents vary between the single pod and the pair kit.

Does it also cover my F 900 GS or the R nineT?

Yes. The included control unit is the same for the K 1600, R nineT, R 18, S 1000 XR, F 900 GS, F 900 XR, F 800 GS, F 850 GS and F 750 GS. Not all of these models appear in the site's filters, so if you cannot find your motorcycle in the list on the side, refer to this compatibility information.

Didn’t find the answer you were looking for?

Don't hesitate to contact us
