11.600per pod

Lumen

2flood e spot

Optical circuits

IP68and IP69K

Protection

3compresses

Lenses

Equipment

Kit contents

Two D7 PRO auxiliary lights, pivoting clamps for 21 to 29 mm bars, a CANsmart GEN II control unit for the Tiger 900 and 1200, and two 137 cm extensions

DENALI codes DNL.D7P.050, LAH.00.10300-B, DNL.WHS.24600 and DNL.WHS.059

Lighting

Luminous flux

11.600

Independent dual circuit, central flood and external spot, both dimmable

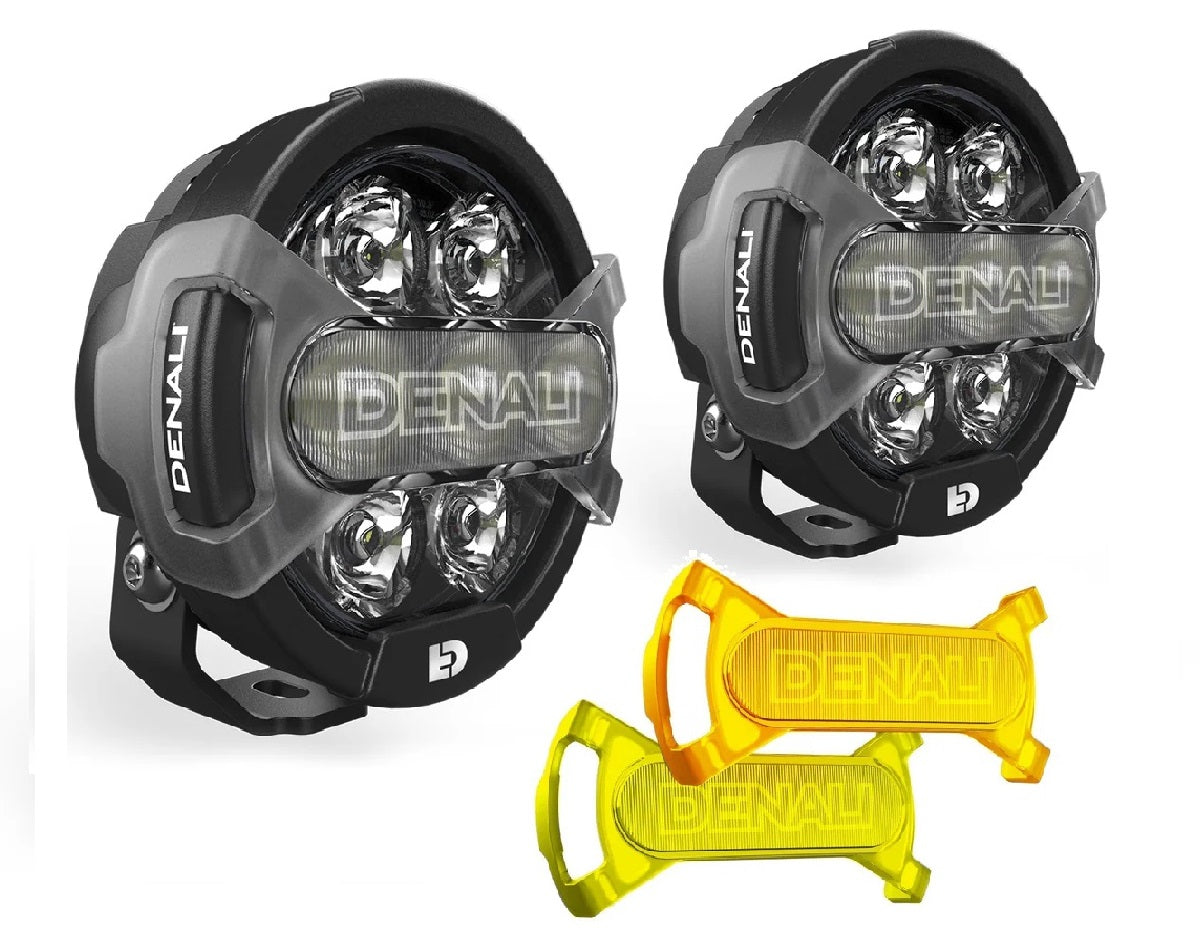

Optics

X-Lens System

Clear, amber, and yellow lenses included

With the amber lens, the central circuit can flash together with the turn signals

Protection

Water resistance

IP68 and IP69K

Electric

Control unit

CANsmart GEN II for Tiger 900 and 1200

Spotlights controlled by the motorcycle's original buttons

Composizione dalla scheda ufficiale DENALI, che dichiara morsetti da paramotore. Il listino Forbikes indica una staffa dedicata: in verifica.

D7 PRO e CANsmart per Tiger 900 e 1200

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description D7 PRO auxiliary light kit with brackets and control unit for Triumph Tiger 900 and 1200

Code DNL11KIT002C — DENALI code DNL.11.KIT.002C

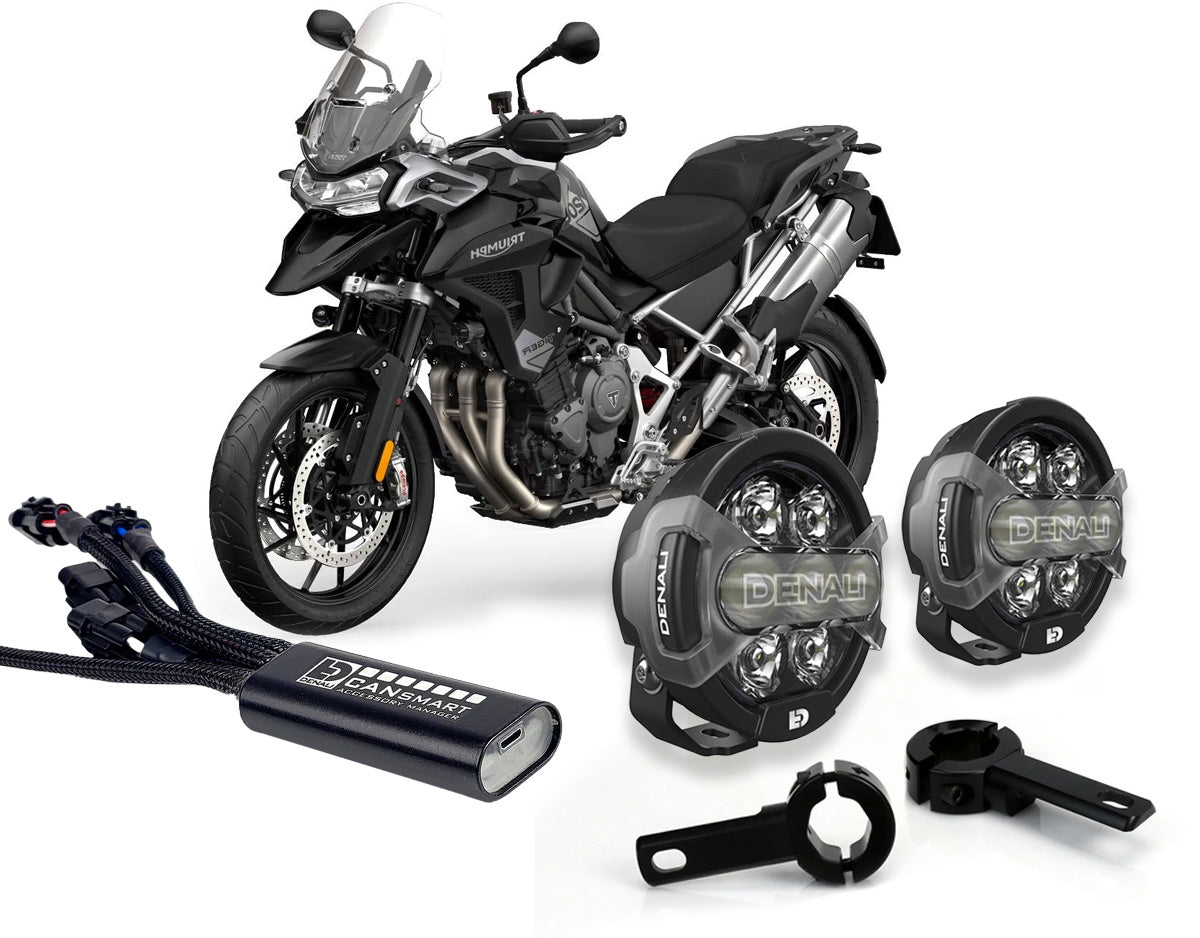

The premium package for the Triumph Tiger 900 and Tiger 1200: two dual-circuit D7 PRO auxiliary lights, articulated clamps that secure them to the engine guard, and the CANsmart GEN II control unit for the Tiger series.

The configuration specified by DENALI splits the right and left amber circuits so they flash in sync with the original turn signals, while the outer white circuit operates with the high beams. It uses three of the control unit's four circuits: one remains free.

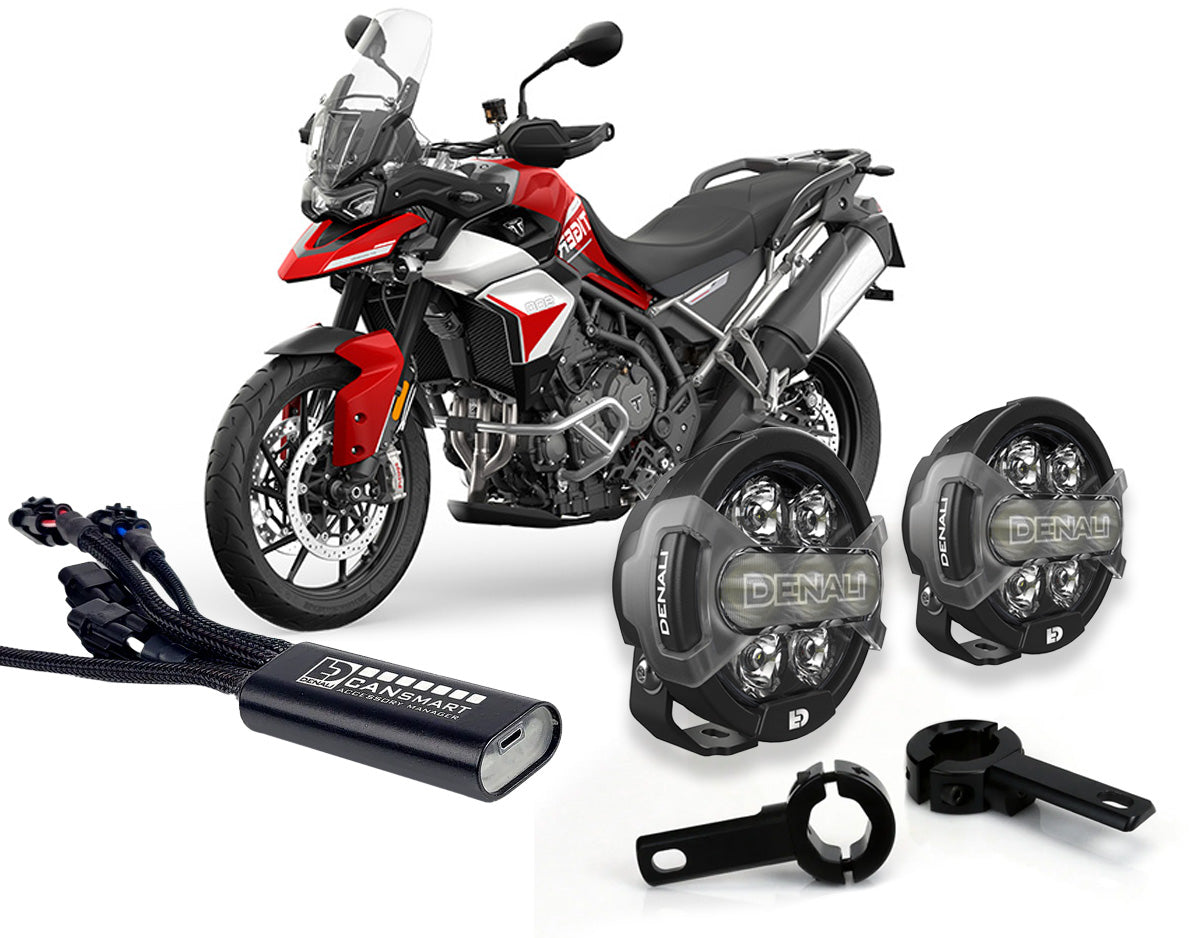

Kit contents: 2× D7 PRO auxiliary lights with X-Lens system (DNLD7P050), 1× articulated clamps for 21 to 29 mm bars (LAH0010300B), 1× CANsmart GEN II control unit for the Tiger 900 and 1200 (DNLWHS24600), 2× 137 cm wiring extensions (DNLWHS059).

Stated compatibility: Triumph Tiger 900 from 2020 and Tiger 1200 from 2022.

Why choose it

Il D7 PRO ha due circuiti indipendenti nello stesso corpo: gli ambra lampeggiano con le frecce originali, il bianco segue gli abbaglianti.

Il CANsmart compreso copre entrambe le serie Tiger, la 900 e la 1200: una sola centralina per due moto diverse.

Who is it recommended for

A chi ha già un paramotore. La fonte dichiara morsetti da 21-29 mm.

Copre Tiger 900 e 1200. Una sola centralina per entrambe le serie.

Resta un circuito libero. Per aggiungere dopo un clacson o una luce freno.

Complete technical specification sheet
Technical data
  • Faretti: 2× D7 PRO a doppio circuito, sistema X-Lens
  • Configurazione: ambra sincronizzati con le frecce, bianco con gli abbaglianti
  • Centralina: CANsmart GEN II serie Tiger, 3 circuiti su 4 impegnati
  • Morsetti: articolati, per barre da 21 a 29 mm, orientabili
  • Compatibilità: Triumph Tiger 900 dal 2020, Tiger 1200 dal 2022
Documents and manufacturer

I faretti ausiliari vanno installati e impiegati nel rispetto delle prescrizioni del codice della strada su numero, posizione e altezza dei proiettori supplementari. La funzione di lampeggio in sincrono con gli indicatori va impiegata nei limiti ammessi dalla normativa del Paese in cui circoli.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • The D7 PRO kit for Tiger 900 and Tiger 1200, clamps included.
Two lights within a single body

Two lights within a single body

The D7 PRO has two independent circuits in the same light: the central amber or yellow one and the outer white one. With the CANsmart, the amber lights flash in sync with the original turn signals, while the white one follows the high beams.

An ECU for Tiger 900 and 1200

An ECU for Tiger 900 and 1200

The included CANsmart is specified for both Tiger series, the 900 from 2020 and the 1200 from 2022: one control unit covers two different motorcycles. The clamps are tightened onto the engine guard and adjusted after installation.

FAQs

For more information, see our FAQ of frequently asked questions.

Do you already need to have a paramotor?

Yes. The official DENALI product page states that the kit includes 21 to 29 mm articulated clamps, which tighten onto a tubular bar. However, some price lists describe a dedicated bracket instead: if this is decisive for you, contact us before ordering and we will verify it with the supplier.

Does it work on both the Tiger 900 and the 1200?

Yes. The included control unit is specified for the Tiger 900 from 2020 onward and for the Tiger 1200 from 2022 onward. The clamps depend only on the bar diameter, not the model.

Is there any room left on the control unit for anything else?

Yes. The configuration with the split amber circuits uses three of the four, leaving one unused 10 A circuit: enough for a SoundBomb horn or a B6 brake light.

Didn’t find the answer you were looking for?

Don't hesitate to contact us
