11.600per pod

Lumen

2flood e spot

Optical circuits

IP68and IP69K

Protection

3compresses

Lenses

Equipment

Kit contents

Two D7 PRO spotlights, articulated clamps for 21 to 29 mm bars, a CANsmart GEN II control unit for the Africa Twin 1100, and two 137 cm extensions

Codes DENALI DNL.D7P.050, LAH.00.10300-B, DNL.WHS.21800 and DNL.WHS.059

Lighting

Luminous flux

11.600

Independent dual circuit, central flood and external spot, both dimmable

Optics

X-Lens System

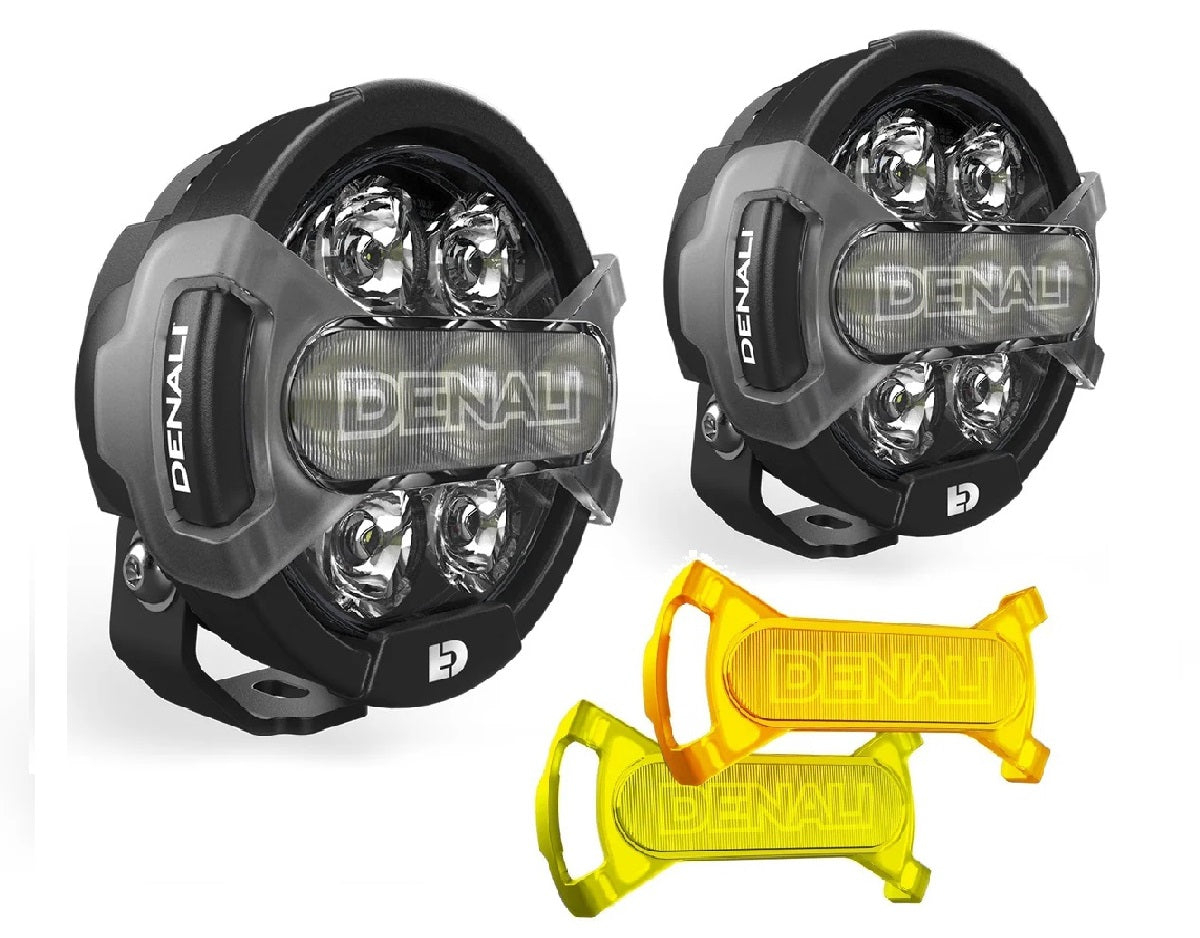

Clear, amber, and yellow lenses included

With the amber lens, the central circuit can flash together with the turn signals

Protection

Water resistance

IP68 and IP69K

Electric

Control unit

CANsmart GEN II for Africa Twin 1100

Spotlights controlled by the motorcycle's original buttons

Composizione e compatibilità dichiarate da DENALI sulla scheda ufficiale.

D7 PRO sul paramotore dell'Africa Twin

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

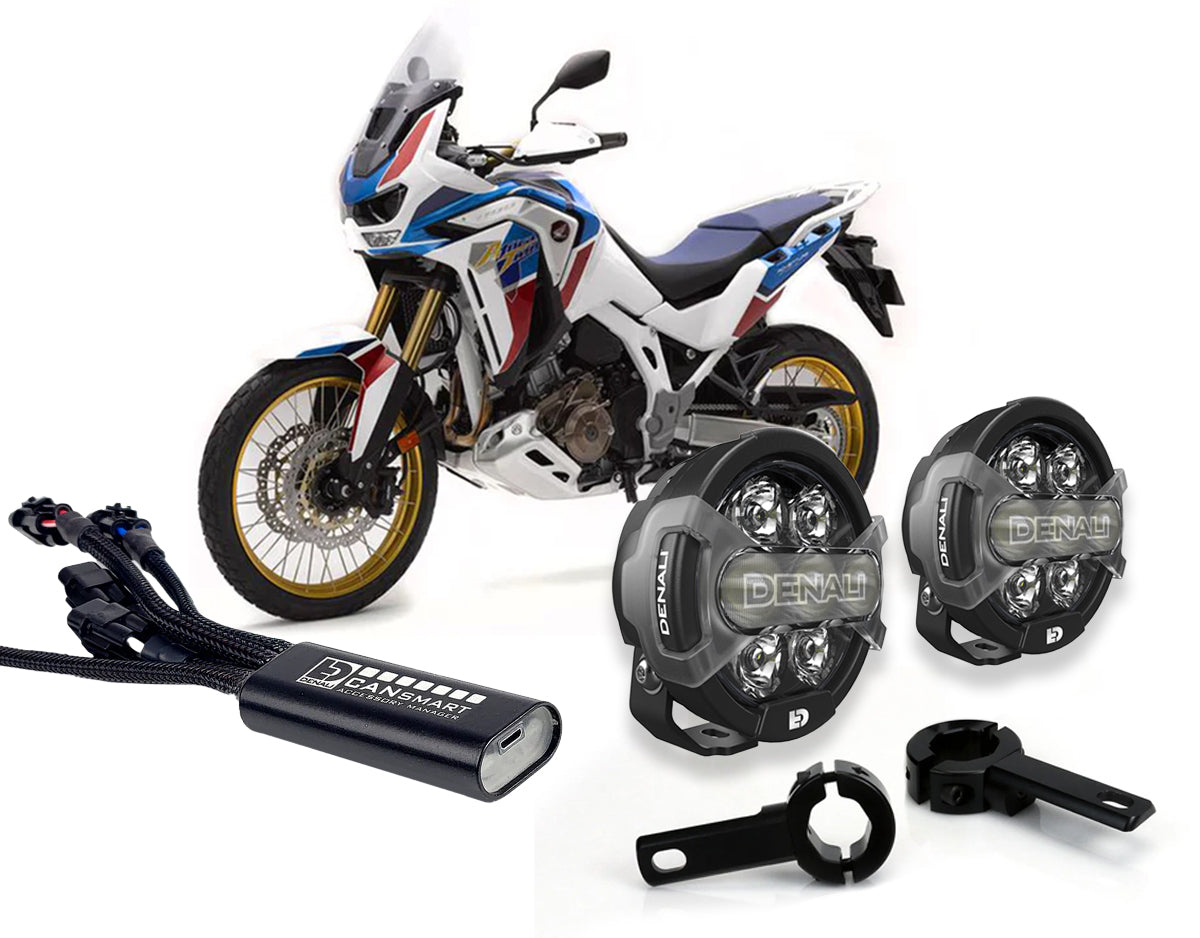

Description D7 PRO auxiliary light kit with brackets and control unit for Honda Africa Twin CRF1100L

Code DNL01KIT002C — DENALI code DNL.01.KIT.002C

The flagship package for the Honda Africa Twin CRF1100L: two D7 PRO dual-circuit auxiliary lights, articulated clamps that secure them to the engine guard, and the CANsmart GEN II control unit specifically designed for this motorcycle.

The configuration specified by DENALI splits the right and left amber circuits so they flash in sync with the original turn signals, while the outer white circuit operates with the high beams. It uses three of the control unit's four circuits: one remains available.

In the kit: 2× D7 PRO auxiliary lights with X-Lens system (DNLD7P050), 1× articulated clamps for bars from 21 to 29 mm (LAH0010300B), 1× CANsmart GEN II control unit for Africa Twin 1100 (DNLWHS21800), 2× 137 cm wiring extensions (DNLWHS059).

Declared compatibility: Honda Africa Twin CRF1100L and 1100 Adventure Sports from 2020 to 2023.

Why choose it

Il D7 PRO ha due circuiti indipendenti nello stesso corpo, usati per due funzioni diverse: gli ambra lampeggiano con le frecce originali, il bianco segue gli abbaglianti.

La centralina si innesta sulla porta diagnostica dell'Africa Twin e porta tutto sotto i comandi originali, senza interruttori aggiuntivi.

Who is it recommended for

A chi ha già un paramotore. Con barra fra 21 e 29 mm: è il presupposto del kit.

Controlla la sigla. La centralina è per la CRF1100L: sulla CRF1000L non va.

Resta un circuito libero. Per aggiungere dopo un clacson o una luce freno.

Complete technical specification sheet
Technical data
  • Faretti: 2× D7 PRO a doppio circuito, sistema X-Lens
  • Configurazione: ambra sincronizzati con le frecce, bianco con gli abbaglianti
  • Centralina: CANsmart GEN II Africa Twin 1100, 3 circuiti su 4 impegnati
  • Morsetti: articolati, per barre da 21 a 29 mm, orientabili
  • Compatibilità: Africa Twin CRF1100L e 1100 Adventure Sports 2020-2023
Documents and manufacturer

I faretti ausiliari vanno installati e impiegati nel rispetto delle prescrizioni del codice della strada su numero, posizione e altezza dei proiettori supplementari. La funzione di lampeggio in sincrono con gli indicatori va impiegata nei limiti ammessi dalla normativa del Paese in cui circoli.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

How does it work, in detail?

  • The D7 PRO kit for the Africa Twin 1100, including clamps.
Two lights within a single body

Two lights within a single body

The D7 PRO has two independent circuits in the same spotlight: the central amber or yellow circuit and the outer white one. With the CANsmart, the amber lights flash in sync with the original turn signals, while the white lights follow the high beams: the spotlights also provide side visibility when cornering.

On the engine guard, adjustable later.

On the engine guard, adjustable later.

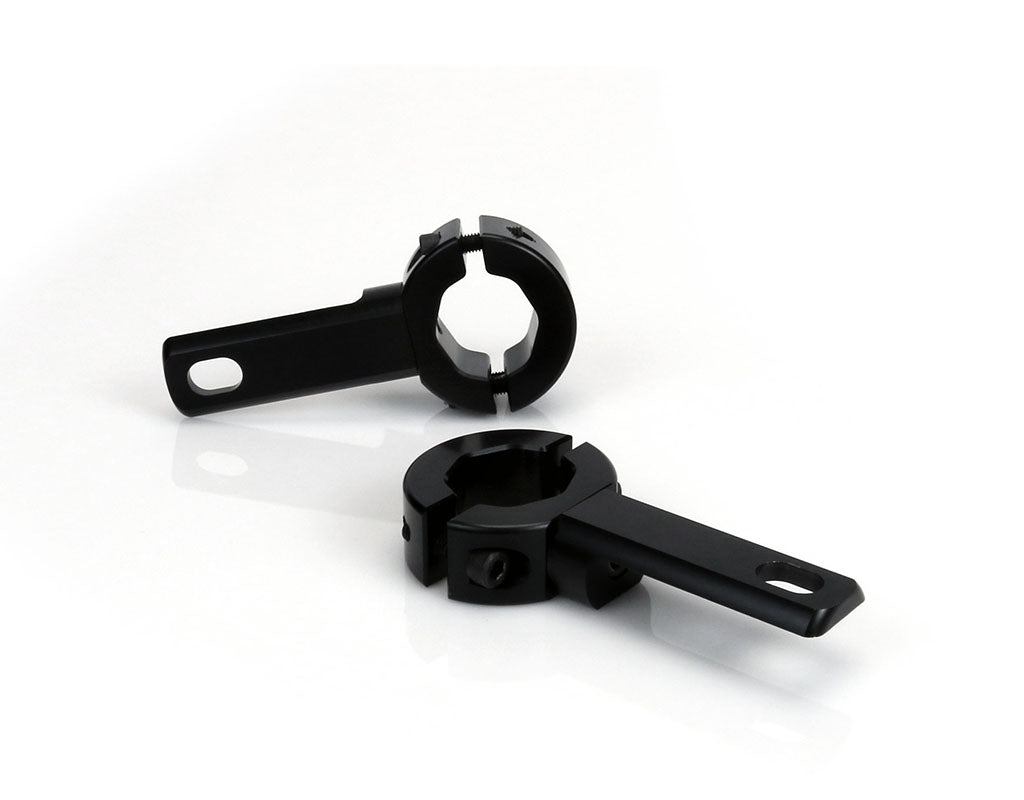

The articulated clamps fit bars from 21 to 29 mm and can be adjusted with the kit installed, so aiming can be done while stationary with the beam on. Before ordering, measure the crash bar tube on your Africa Twin.

FAQs

For more information, see our FAQ of frequently asked questions.

Is it compatible with the CRF1000L?

No. The included control unit is specified for the Africa Twin 1100, namely the CRF1100L from 2020 onward. The electronics on the previous CRF1000L are different: write to us with the model and year, and we’ll see what we can offer you.

Do you already need to have a paramotor?

Yes, with a bar between 21 and 29 mm in diameter: that is the kit’s requirement. If your Africa Twin doesn’t have one, contact us and we’ll offer you the dedicated mount instead of the clamps.

Is there any room left on the control unit for anything else?

Yes. The configuration with the split amber circuits uses three of the four, leaving one free 10 A circuit: enough for a SoundBomb horn or a B6 brake light, if you decide to add them later.

Didn’t find the answer you were looking for?

Don't hesitate to contact us
