Kit DENALI DNL00KIT001 con due faretti D7 e controller DialDim universaleFaretto LED D7 DENALI con tecnologia DataDim, vista frontaleDettaglio costruttivo del faretto LED D7 DENALI
2× D7 DataDim Spotlights
DialDim the ring Controller
2 independent Lighting groups
Not included Support

Panoramica

In breve

D7 e DialDim, per qualsiasi moto

Il DialDim accende, spegne e regola due gruppi separati di luci a tre fili da un cablaggio unico, con un anello luminoso che mostra l'impostazione in corso.

Essendo universale va su qualsiasi moto, ma il supporto di montaggio va scelto a parte.

Dal produttore DENALI

DENALI Electronics progetta illuminazione e sicurezza attiva per moto: faretti LED, moduli faro, clacson SoundBomb, indicatori e luci freno ausiliarie, e le centraline che li integrano con l'elettronica della moto.

Codice Endurrad DNL00KIT001 — codice DENALI DNL.00.KIT.001. Componenti: DNLD7050, DNLWHS20500.

Leggi la descrizione completa

Code DNL00KIT001 — DENALI code DNL.00.KIT.001

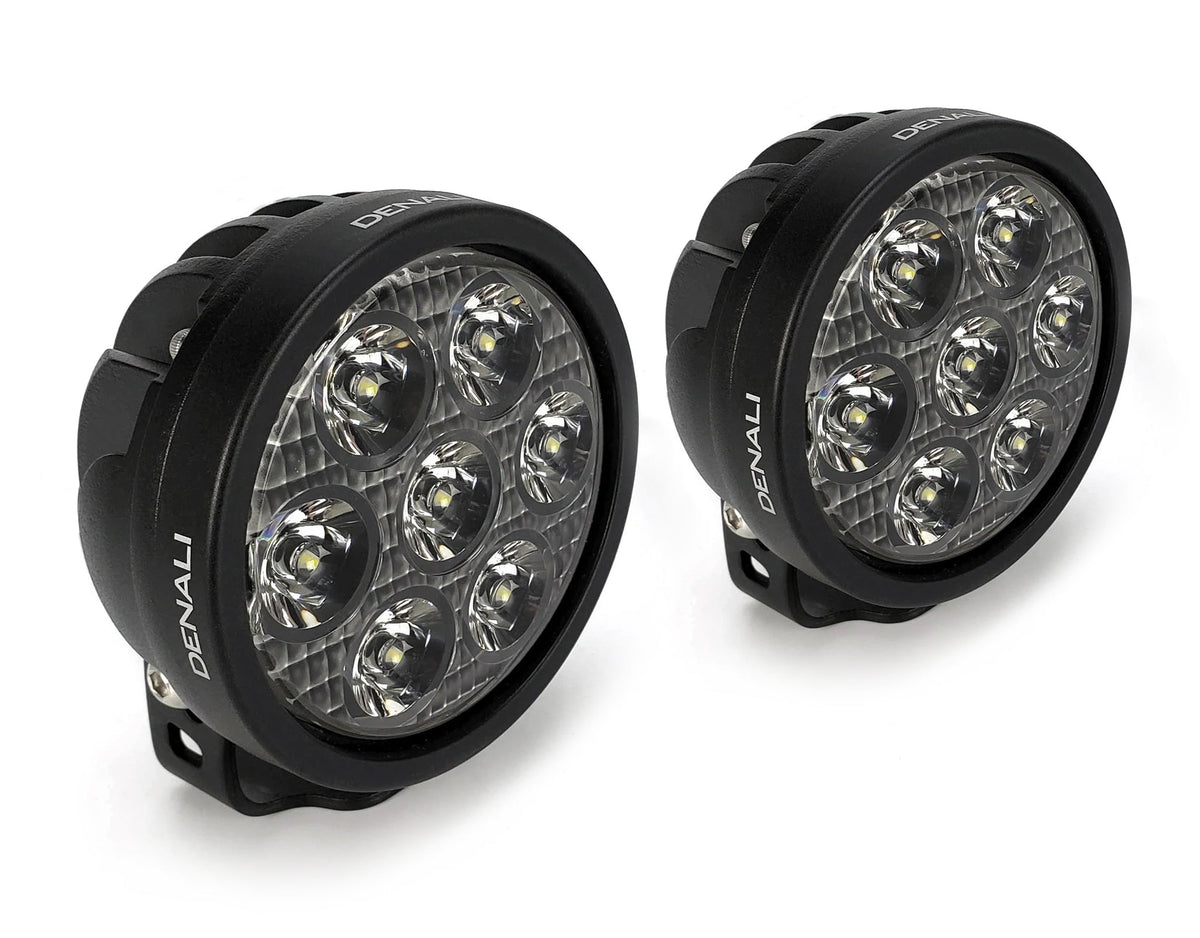

Two D7 auxiliary lights with DataDim technology and the universal DialDim controller: the kit that brings the most powerful auxiliary lights in the standard range to any motorcycle, with adjustment from a handlebar-mounted dial.

DialDim turns two separate groups of three-wire lights on and off and adjusts their brightness through a single wiring harness, with a multicolor illuminated ring that shows the current setting.

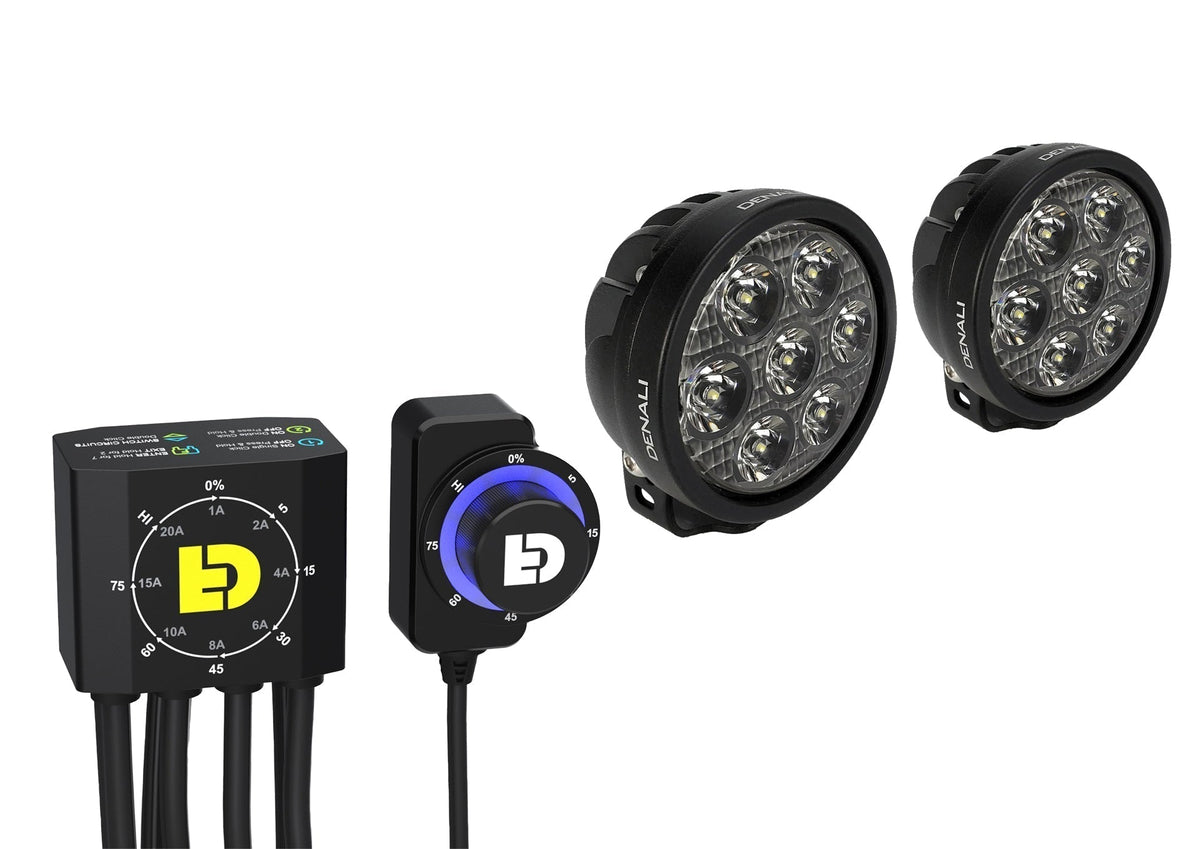

Kit includes: 2× white D7 LED auxiliary lights (DNLD7050), 1× universal DialDim controller (DNLWHS20500).

Mounting hardware is not included. It must be chosen based on your motorcycle: crash bar clamps, dedicated brackets, or a fender mount. Send us your model and we will tell you which one to choose.

For BMW motorcycles: since this kit is universal, it does not read the CANbus and does not allow the lights to be controlled from the Wonder Wheel or the high-beam switch. A specific CANsmart controller is required for that.

Nella confezione

Due faretti LED D7 bianchi con tecnologia DataDim (DNLD7050) e il controller DialDim universale (DNLWHS20500).

Il supporto di montaggio non è compreso e va scelto in base alla moto.

DNL00KIT001 · D7 spotlights and universal DialDim

How does it work, in detail?

More range on any motorcycle, mount to be selected separately.

Two light groups, one wiring harness
01

Two light groups, one wiring harness

The DialDim turns two separate groups of three-wire lights on and off and adjusts their brightness from a single wiring harness, with a multicolor light ring showing the current setting. At night, even while wearing gloves, you don't have to guess where you are in the adjustment.

You choose the mount
02

You choose the mount

The kit includes spotlights and a controller, but not the mount: that’s what makes it universal. You’ll need to decide how to attach them to the motorcycle, choosing between crash bar clamps, brackets designed for your model, or a fender mount. Tell us your motorcycle and we’ll let you know which one to choose.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Equipment

Kit contents
Two white D7 spotlights and a universal DialDim controller DENALI codes DNL.D7.050 and DNL.WHS.20500

Lighting

Spotlights
White D7 nozzles with DataDim technology

Command

Controller
Universal DialDim Ring switch with multicolor illuminated ring, for mounting on the handlebar
Controlled groups
Two sets of three-wire lights Independent switching on and adjustment for each group

Electric

CANbus
Unread The DialDim does not connect to the bus: the auxiliary lights do not respond to the motorcycle's original controls

Equipment

Not included
The mounting bracket Choose based on the motorcycle: dedicated brackets or bar clamps

Composizione dichiarata da DENALI sulla scheda ufficiale.

Prima di ordinare

Montaggio e requisiti

Come si monta

Istruzioni complete e note di sicurezza

Cosa manca per finire il lavoro. Il supporto di montaggio non è compreso: va scelto in base alla moto, fra le staffe dedicate e i morsetti per barra. È l'unico pezzo che manca.

Perché questo kit è universale. Il DialDim non si innesta sul CANbus: prende corrente dalla batteria e comanda i faretti dalla ghiera sul manubrio. Va quindi su qualsiasi moto, anche senza una centralina dedicata a listino.

Cosa rinunci. Non accendi né regoli i faretti dai comandi originali della moto. Se la tua ha una centralina CANsmart dedicata e quel comando ti interessa, il kit giusto è quello con CANsmart.

Due gruppi separati. Il DialDim gestisce due set di luci a tre fili con accensione e regolazione indipendenti: i faretti ora, e in futuro una barra o dei DRL.

Posizione della ghiera. Scegli un punto raggiungibile col pollice senza lasciare la presa, e provalo con i guanti invernali prima di stringere.

I faretti ausiliari vanno installati e impiegati nel rispetto delle prescrizioni del codice della strada su numero, posizione e altezza dei proiettori supplementari.

DENALI riconosce 5 anni di garanzia convenzionale del produttore, che si aggiunge ai 24 mesi di garanzia legale di conformità.

A chi ha una moto senza CANsmart dedicata. È il modo per avere comunque il controllo completo.

Aggiungi il supporto all'ordine. Non è compreso: scrivici la moto e ti diciamo quale serve.

Non a chi ha una BMW e vuole la Wonder Wheel. Per quello serve una centralina CANsmart.

Domande frequenti

Le domande che ci fate più spesso

Is the mounting bracket included?

No, and that’s the thing to know before ordering. The kit includes two D7 spotlights and the DialDim controller. The mount must be selected based on your motorcycle: send us the model and we’ll tell you which mount you need.

Can I control the lights on my BMW using the Wonder Wheel?

No. This kit is universal, and the DialDim does not read the CAN bus, so it cannot intercept the motorcycle's original controls. To turn the auxiliary lights on and adjust them using the Wonder Wheel or the high-beam switch, you need a CANsmart control unit specific to your model.

What’s the difference compared to the D4 kit?

Only the spotlights: the controller is the same. The D7s are more powerful and bulkier, while the D4s fit motorcycles with limited space at the front. The D4 kit is DNL00KIT002.
