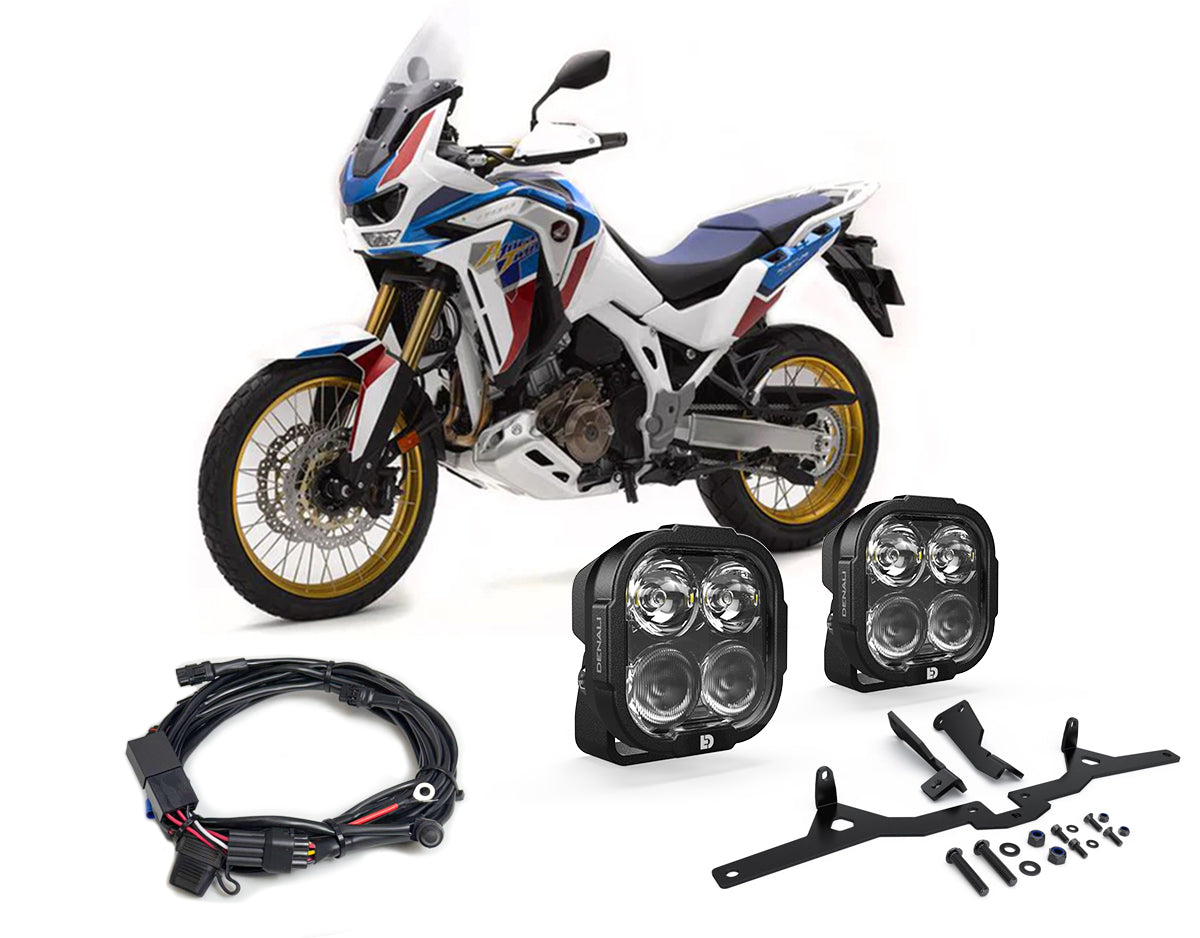

Kit faretti DL4 con cablaggio e supporto DENALI per Honda Africa Twin 1100 Adventure Sports ES

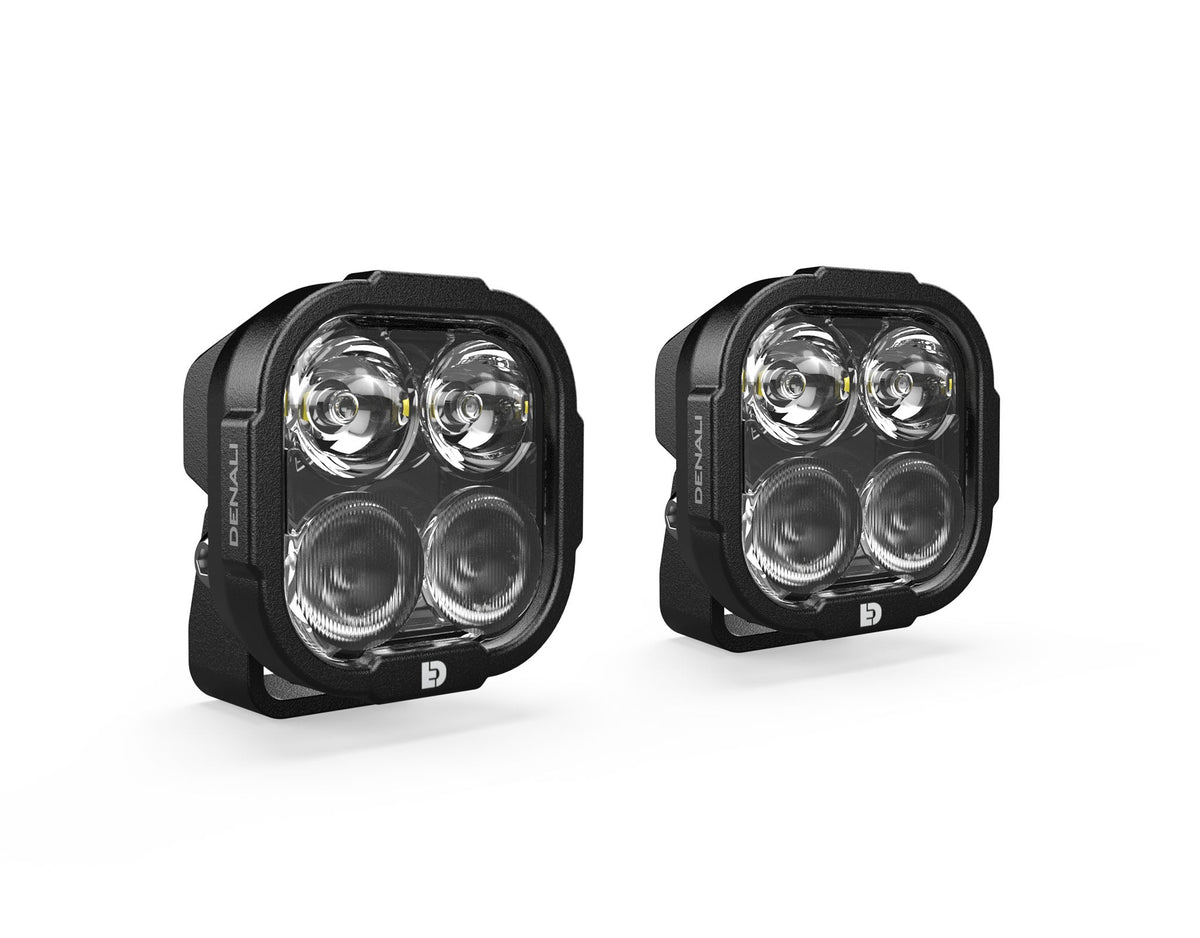

Coppia di faretti DL4 DENALI con tecnologia DataDim

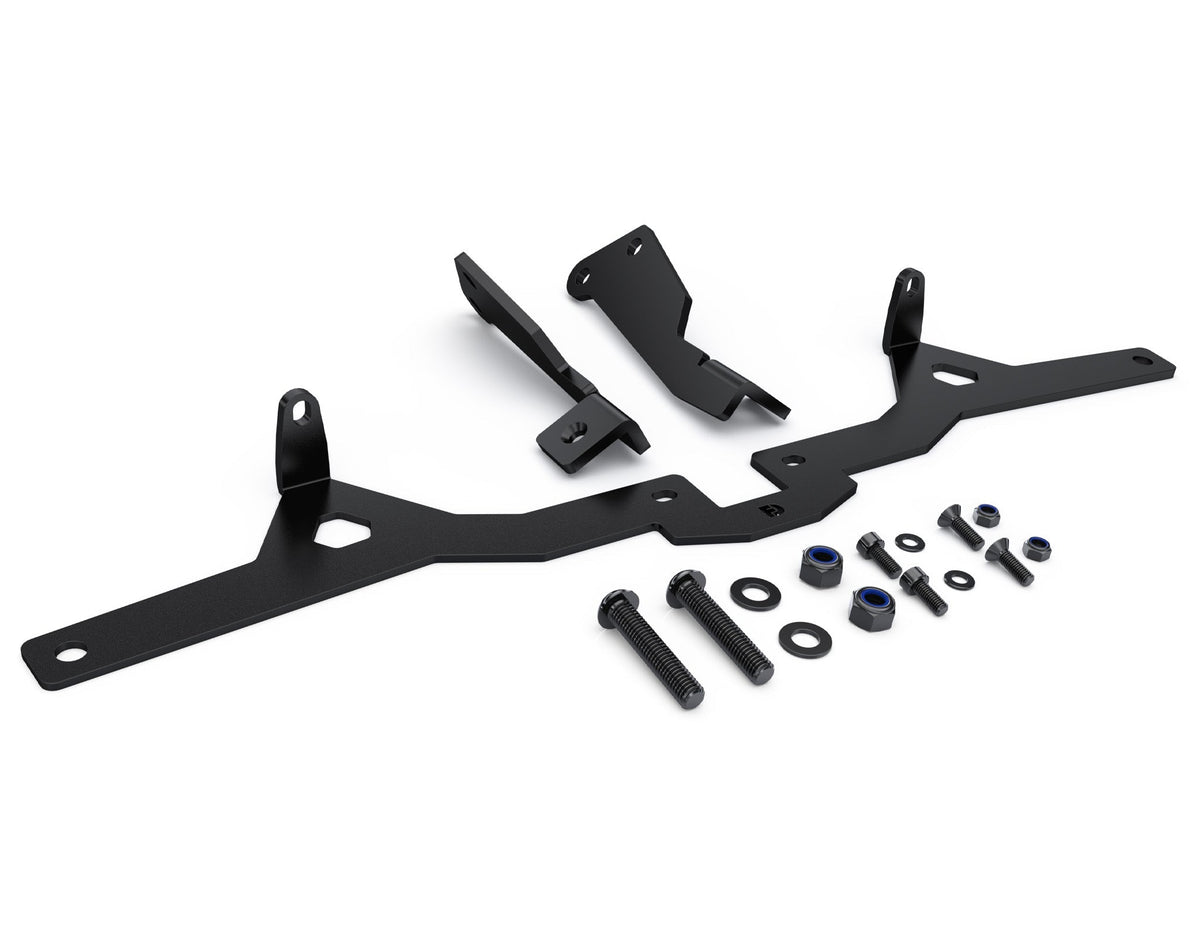

Supporto faretti DENALI dedicato per Honda Africa Twin 1100 Adventure Sports ES

Vendor:DENALI

DL4 auxiliary light kit with wiring harness and mount for Honda Africa Twin 1100

€397,35

Prezzo del kit completo: faretti, supporto e cablaggio

DNL01KIT001 — Cosa è compreso nel prezzo
  • 2 faretti DL4 (DNLDL4050W) con tecnologia DataDim.
  • 1 supporto dedicato (LAH0110700) per Africa Twin 1100 Adventure Sports ES 2020-2023.
  • 1 kit cablaggio universale (DNLWHS12400) standard Powersport, con relè e interruttore.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal guarantee of conformity

Original DENALI product — 24-month warranty

3.400lm per spotlight

Luminous flux

Universal wiringrelay and switch included

Power supply

Dedicatedno punctures

Support

Africa Twin 1100 AS ES2020-2023

Motorcycle

Lighting

Luminous flux

3,400 lm per spotlight

6,800 lm per pair

Beam type

Elliptical hybrid, oversized TIR optics

Beam performance

250 × 48 m single, 333 × 64 m in pairs

Range × width

Color temperature

6000

Type approval

Hybrid beam

ECE R149, main or supplementary high beam

White lens only. EMC R10, CISPR 25, CE, UKCA

Electric

LED and power

4 × Cree XPL HI at 8 W, 32 W per spotlight

2.7 A per spotlight, 5.4 A per pair

Voltage and connector

9–32 V DC, DT and 3-wire DataDim

Plug and play with wiring, DialDim and CANsmart DENALI

Construction

Measurements and protection

76 × 76 mm × 51 mm deep, 545 g

IP68 and IP69K, 4 mm steel brackets, 21 grms vibration resistance

Dati dichiarati da DENALI sulle schede ufficiali europee del faretto DL4 e dei componenti del kit.

Coppia di faretti DL4, supporto dedicato e cablaggio con relè per l'Africa Twin 1100

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description DL4 auxiliary light kit with wiring harness and mount for Honda Africa Twin 1100

Code DNL01KIT001 — DENALI code DNL.01.KIT.001

Complete kit for equipping the front end of the Honda Africa Twin 1100 Adventure Sports ES from 2020 to 2023: two DL4 auxiliary lights producing 3,400 lumens each, a mount designed for this version, and wiring with relay and switch. Together they produce 6,800 lumens, with a 333-meter range and a 64-meter width.

The DL4 lights use one-piece TIR optics and a sealed housing: fewer components, no gasket to fail, and IP68 and IP69K protection. The clear lens is approved under ECE R149 as a high beam.

Unlike the kit with a CANsmart controller, this kit does not require lifting the fuel tank to access the IMU: the wiring connects directly to the battery. The lights feature DataDim technology and remain ready for a controller to be added later.

Why choose it

Perché è tutto quello che serve in una scatola sola, e perché sull'Africa Twin evita il passaggio più impegnativo di un allestimento con centralina: sollevare il serbatoio per raggiungere la centralina IMU.

  • 6.800 lumen in coppia, 333 metri di portata.
  • Lente bianca omologata ECE R149 come abbagliante.
  • Ottica TIR monoblocco e corpo sigillato: IP68 e IP69K.
  • Supporto sui punti di serie, nessuna foratura.
Who is it recommended for

A chi guida un'Africa Twin 1100 Adventure Sports ES dal 2020 al 2023 e vuole luce vera davanti con un montaggio alla portata di un pomeriggio in garage.

Sulle altre versioni della CRF1100L faretti e cablaggio restano gli stessi, ma serve un attacco diverso. E se vuoi la regolazione dai comandi originali, la strada è il kit con centralina CANsmart.

Complete technical specification sheet
Technical data
  • Flusso luminoso: 3.400 lm per faretto, 6.800 lm la coppia
  • LED: 4 × Cree XPL HI da 8 W, 32 W e 2,7 A per faretto
  • Fascio: ibrido ellittico con ottiche TIR; 333 × 64 m in coppia
  • Temperatura colore: 6000 K
  • Omologazione: ECE R149 come abbagliante con lente bianca; EMC R10, CISPR 25, CE, UKCA
  • Tensione: 9-32 V DC, connettore DT a 3 fili DataDim
  • Misure faretto: 76 × 76 × 51 mm, 545 g
  • Protezione: IP68 e IP69K, staffe in acciaio da 4 mm
  • Attacco: supporto dedicato Africa Twin 1100 Adventure Sports ES '20-'23
  • Alimentazione: kit cablaggio universale Powersport con relè e interruttore
Documents and manufacturer

DENALI riconosce 5 anni di garanzia convenzionale del produttore sui componenti di questo kit. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità previsti per legge.

Restano esclusi usura normale, abrasione, uso improprio, installazione errata, incidenti, modifiche e smontaggio dell'elettronica. Tagliare o modificare i cavi originali dei faretti annulla la garanzia del produttore.

L'uso su strada pubblica dei fasci supplementari è regolato dal codice della strada del Paese in cui circoli: verifica sempre le prescrizioni locali su numero, posizione e accensione dei fari supplementari.

Come funziona, nel dettaglio

  • Due faretti DL4 omologati ECE, il supporto per l'Africa Twin Adventure Sports ES e il cablaggio pronto.
Tre pezzi, e l'Africa Twin è allestita

Tre pezzi, e l'Africa Twin è allestita

Nella scatola c'è tutto e niente da cercare dopo: due faretti DL4 con tecnologia DataDim, il supporto disegnato sull'Africa Twin 1100 Adventure Sports ES e il kit cablaggio con relè e interruttore.

In coppia sono 6.800 lumen sull'avantreno, con 333 metri di portata e 64 di larghezza.

Il serbatoio resta dov'è

Il serbatoio resta dov'è

È la differenza che pesa di più su questa moto. Il kit con centralina CANsmart richiede di raggiungere la centralina IMU sotto la parte posteriore del serbatoio, quindi sella, pannelli e sollevamento del serbatoio: il montaggio più impegnativo della gamma.

Qui il cablaggio va direttamente alla batteria. L'installazione si riduce a supporto, faretti e collegamento.

Predisposti per crescere

Predisposti per crescere

I DL4 hanno la tecnologia DataDim: il terzo filo del connettore porta il segnale di regolazione. Con il cablaggio universale di questo kit i faretti funzionano acceso e spento da interruttore, ma restano pronti per un controller.

Aggiungendo poi un DialDim o la centralina CANsmart per l'Africa Twin passi alla regolazione dai comandi originali, senza cambiare faretti né supporto.

FAQs

For more information, see our FAQ of frequently asked questions.

Do I need to lift the tank as with the CANsmart kit?

No, and that is the difference that matters most. The Premium kit requires access to the IMU control unit beneath the rear of the tank; here, the wiring runs directly to the battery. Installation is limited to mounting the bracket, installing the lights, and connecting them.

Is it suitable for the standard Africa Twin?

The included bracket is designed for the 2020–2023 CRF1100L Adventure Sports ES. On other versions of the CRF1100L, the auxiliary lights and wiring remain the same, but a different mounting bracket is required.

What is the DataDim technology in DL4 spotlights?

It is the DENALI system that allows you to adjust the intensity of the auxiliary lights via a dedicated third wire when they are connected to a DENALI controller such as the DialDim or CANsmart. With only this kit’s universal wiring harness, the auxiliary lights operate simply as on or off, but they remain ready for use if you add a controller in the future.
