Kit faretti DL4 con cablaggio e supporto DENALI per BMW R 1300 GS

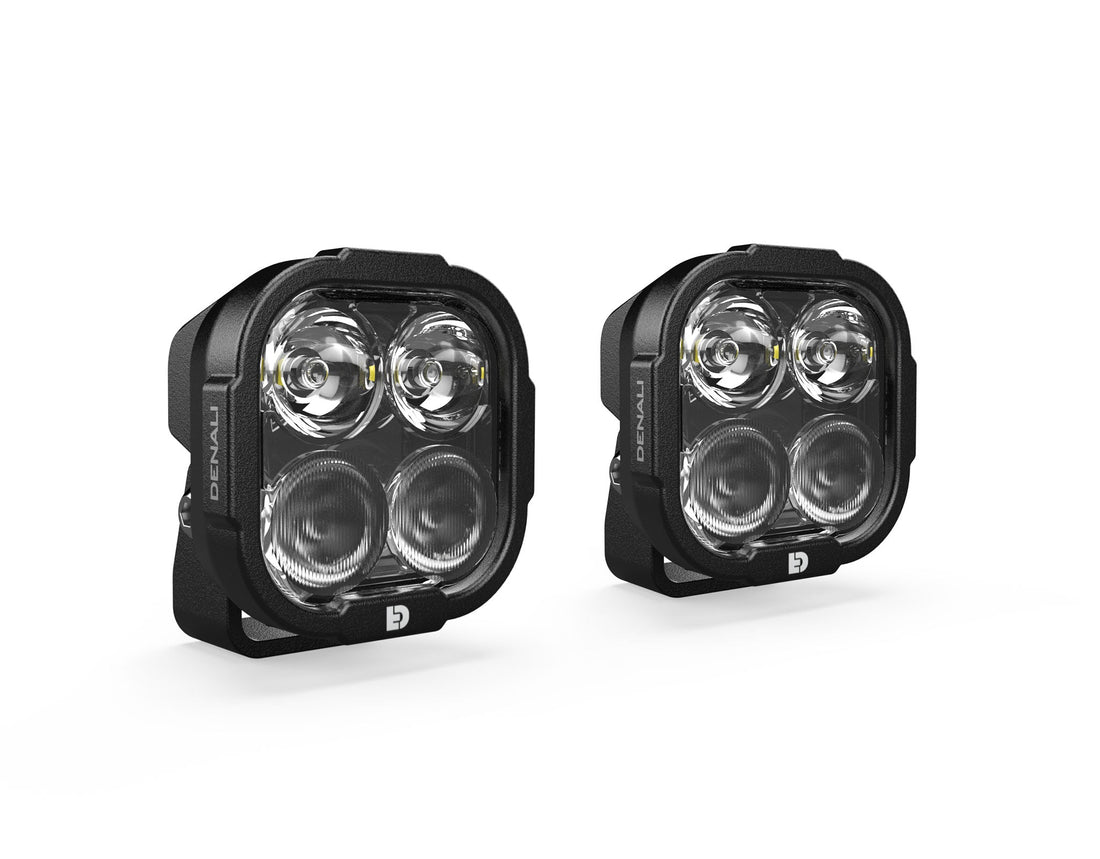

Coppia di faretti DL4 DENALI con tecnologia DataDim

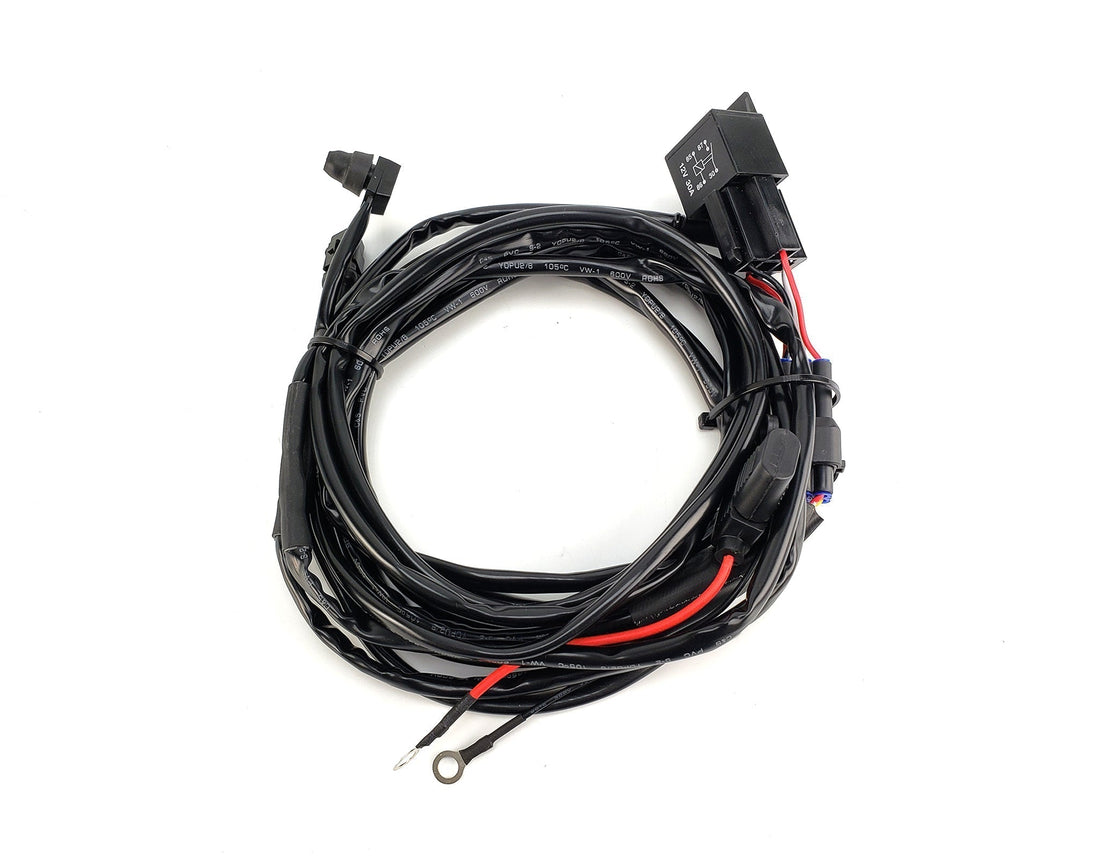

Kit cablaggio universale DENALI con relè e interruttore

Vendor:DENALI

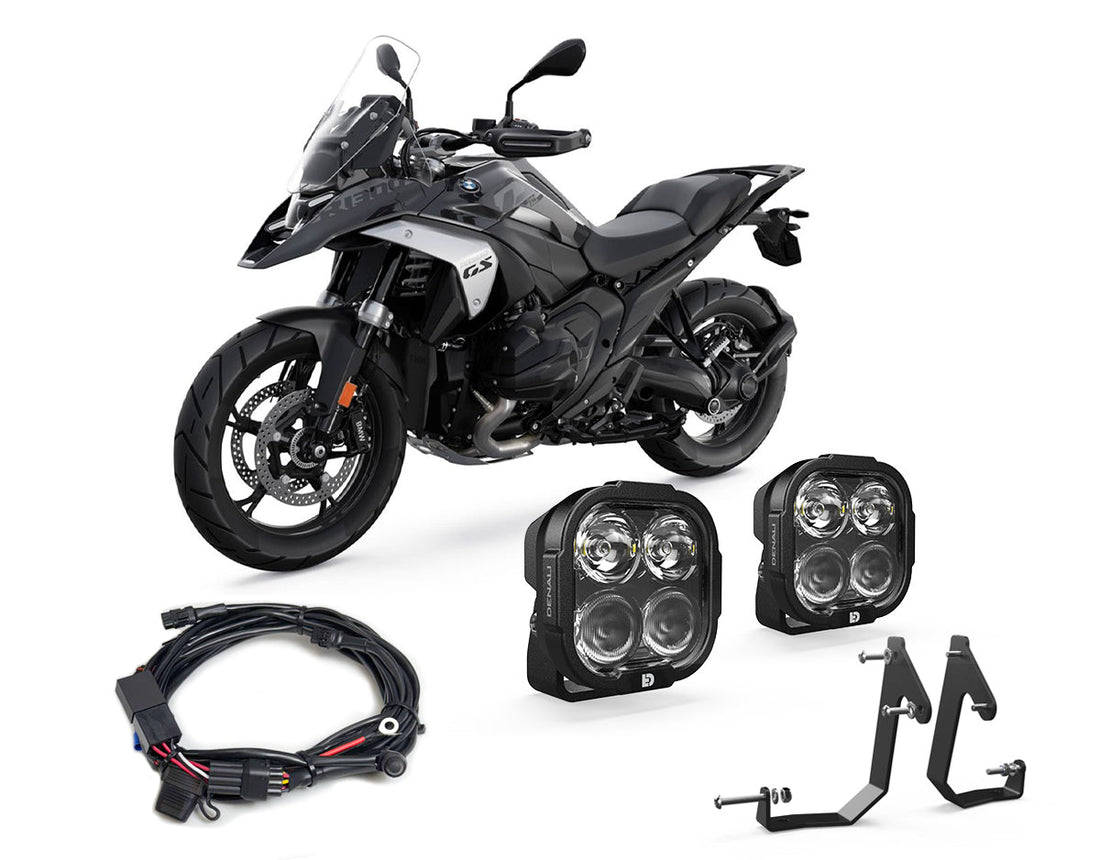

DL4 auxiliary light kit with wiring and mount for BMW R 1300 GS

€409,49

Prezzo del kit completo: faretti, supporto e cablaggio

DNL07KIT020 — Cosa è compreso nel prezzo
  • 2 faretti DL4 (DNLDL4050W) con tecnologia DataDim.
  • 1 supporto superiore dedicato (LAH0711600) per BMW R 1300 GS.
  • 1 kit cablaggio universale (DNLWHS12400) standard Powersport, con relè e interruttore.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp
Denali

Original DENALI product — 24-month warranty

3.400lm per spotlight

Luminous flux

Universal wiringrelay and switch included

Power supply

Dedicatedno punctures

Support

R 1300 GS and GS Adventurefrom 2024

Motorcycle

Lighting

Luminous flux

3,400 lm per spotlight

6,800 lm per pair

Beam type

Elliptical hybrid, oversized TIR optics

Beam performance

250 × 48 m single, 333 × 64 m in pairs

Range × width

Color temperature

6000

Type approval

Hybrid beam

ECE R149, main or supplementary high beam

White lens only. EMC R10, CISPR 25, CE, UKCA

Electric

LED and power

4 × Cree XPL HI at 8 W, 32 W per spotlight

2.7 A per spotlight, 5.4 A per pair

Voltage and connector

9–32 V DC, DT and 3-wire DataDim

Plug and play with wiring, DialDim and CANsmart DENALI

Construction

Measurements and protection

76 × 76 mm × 51 mm deep, 545 g

IP68 and IP69K, 4 mm steel brackets, 21 grms vibration resistance

Dati dichiarati da DENALI sulle schede ufficiali europee del faretto DL4 e dei componenti del kit.

Coppia di faretti DL4, supporto dedicato e cablaggio con relè per la R 1300 GS

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

Description DL4 auxiliary light kit with wiring and mount for BMW R 1300 GS

Code DNL07KIT020 — DENALI code DNL.07.KIT.020

Complete kit for equipping the front end of the BMW R 1300 GS: two DL4 auxiliary lights rated at 3,400 lumens each, the upper mount designed for this motorcycle, and wiring with relay and switch. Together they produce 6,800 lumens, with a range of 333 meters and a width of 64 meters.

The DL4 lights use single-piece TIR optics and a sealed construction: fewer components, no gaskets to fail, and IP68 and IP69K protection. The white lens is ECE R149 approved as a high beam.

The mount uses the same code as the mounts included in the D7 PRO kits for the R 1300 GS, so if you upgrade later, you only need to change the lights and can keep the mount. The lights feature DataDim technology and remain ready for a CANsmart control unit.

Why choose it

Perché è tutto quello che serve in una scatola sola, con il supporto disegnato sulla R 1300 GS. Ed è la via d'ingresso all'illuminazione DENALI, a un terzo del prezzo di un allestimento con centralina.

  • 6.800 lumen in coppia, 333 metri di portata.
  • Lente bianca omologata ECE R149 come abbagliante.
  • Ottica TIR monoblocco e corpo sigillato: IP68 e IP69K.
  • Stesso supporto dei kit D7 PRO: si sale di gamma senza rifare il montaggio.
Who is it recommended for

A chi ha una R 1300 GS e vuole luce vera davanti con un montaggio semplice, senza collegarsi al connettore dell'antifurto e senza passare dal software di una centralina.

Da sapere: con questo kit i faretti si accendono anche a motore fermo, perché manca la protezione che la centralina CANsmart applica sui circuiti più assorbenti. Se preferisci quel comportamento e la regolazione dai comandi originali, la strada è il kit con CANsmart.

Complete technical specification sheet
Technical data
  • Flusso luminoso: 3.400 lm per faretto, 6.800 lm la coppia
  • LED: 4 × Cree XPL HI da 8 W, 32 W e 2,7 A per faretto
  • Fascio: ibrido ellittico con ottiche TIR; 333 × 64 m in coppia
  • Omologazione: ECE R149 come abbagliante con lente bianca; EMC R10, CISPR 25, CE, UKCA
  • Tensione: 9-32 V DC, connettore DT a 3 fili DataDim
  • Misure faretto: 76 × 76 × 51 mm, 545 g
  • Protezione: IP68 e IP69K, staffe in acciaio da 4 mm
  • Attacco: supporto superiore dedicato BMW R 1300 GS
  • Alimentazione: kit cablaggio universale Powersport con relè e interruttore
Documents and manufacturer

DENALI riconosce 5 anni di garanzia convenzionale del produttore sui componenti di questo kit. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità previsti per legge.

Restano esclusi usura normale, abrasione, uso improprio, installazione errata, incidenti e modifiche. Tagliare o modificare i cavi originali dei faretti annulla la garanzia del produttore.

L'uso su strada pubblica dei fasci supplementari è regolato dal codice della strada del Paese in cui circoli: verifica sempre le prescrizioni locali su numero, posizione e accensione dei fari supplementari.

How does it work, in detail?

  • Two ECE-approved DL4 spotlights, the upper bracket for the R 1300 GS, and the ready-to-install wiring harness.
Three pieces, and the R 1300 GS is ready.

Three pieces, and the R 1300 GS is ready.

Everything is included in the box, so there’s nothing else to look for: two DL4 auxiliary lights with DataDim technology, the top mount designed for the R 1300 GS, and the wiring kit with relay and switch.

Together, they deliver 6,800 lumens at the front, with a range of 333 meters and a beam width of 64 meters.

They turn on whenever you want them to.

They turn on whenever you want them to.

On the R 1300 GS, the CANsmart control unit has a safeguard that keeps the higher-consumption circuits switched off until the engine is running: the auxiliary lights activate only after two seconds of stable engine speed.

With this kit, the auxiliary lights are powered by the battery through a switch, so they also turn on when the engine is stopped. Depending on how you use the motorcycle, this is either one less limitation or an added convenience.

Built to grow

Built to grow

The DL4s feature DataDim technology, and the mount is the same part used in the D7 PRO kits for this motorcycle: if you want to move up the range in the future, you can replace the lights and keep the mount.

By adding the CANsmart DNLWHS25900 control unit, you can adjust them using the original controls without redoing the mechanical installation.

FAQs

For more information, see our FAQ of frequently asked questions.

Do the auxiliary lights on the R 1300 GS remain off when the engine is stopped?

No, and here that is an advantage. That behavior is specific to the CANsmart control unit, which keeps the circuits off until the engine is running. With this kit, the auxiliary lights are powered by the battery through a switch, so they turn on whenever you want.

Is the bracket the same as the D7 PRO kits for this motorcycle?

Yes, the dedicated upper bracket for the R 1300 GS has the same part number. The auxiliary lights change—DL4 instead of D7 PRO—as does the way they are powered.

Can I add a CANsmart controller later?

Yes. The DL4 spotlights feature DataDim technology and remain ready for adjustment via a DENALI controller. Adding a CANsmart or DialDim enables control using the original buttons without changing the spotlights or mounting bracket.
