Kit clacson SoundBomb DENALI montato su BMW R 1250 GSClacson ad aria SoundBomb Split DENALI a doppio tonoCablaggio universale DENALI per clacson SoundBomb
120 decibel Sound power
Two-tone reed instrument with compressor Type
Doubled separate compressor and horn Body
Dedicated no punctures Bracket

Panoramica

In breve

Clacson ad aria da 120 dB, staffa dedicata e cablaggio per R 1250 GS e R 1200 GS

120 dB a un metro, bitonale ad aria compressa.

Compressore e tromba separati: si trova posto anche dove non ce n'è.

Staffa dedicata compresa, nessuna foratura.

Con centralina CANsmart si collega senza relè.

Dal produttore DENALI

Il SoundBomb è il clacson ad aria compressa di DENALI, distribuito con il marchio Twisted Throttle. DENALI Electronics progetta illuminazione e sicurezza attiva per moto, dalle luci alle centraline CANsmart.

Codice Endurrad DNL07KIT016 — codice DENALI DNL.07.KIT.016. I componenti sono acquistabili anche singolarmente: clacson TTSB10100B, staffa HMT0711002, cablaggio DNLELC10000.

Leggi la descrizione completa

Code DNL07KIT016 — DENALI code DNL.07.KIT.016

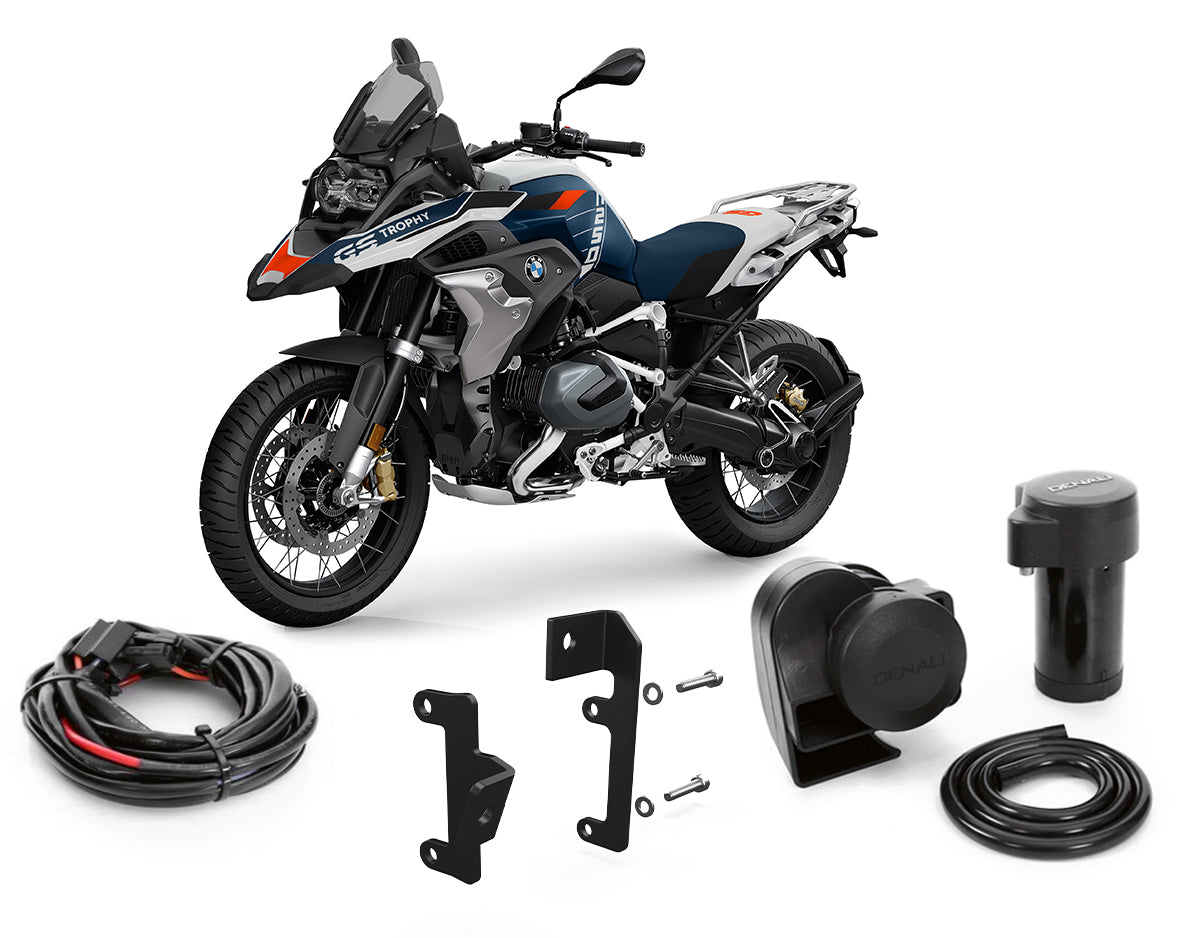

Complete kit for mounting a 120 dB SoundBomb Split air horn on the BMW R 1200 GS and R 1250 GS, including the GS Adventure: horn, dedicated bracket, and wiring harness with relay and fuse.

That is about twenty decibels louder than a standard disc horn, which on a logarithmic scale means a sound that DENALI claims is four times louder. The horn is a dual-tone electropneumatic model, with a separate compressor and acoustic unit that can be positioned up to 90 cm apart.

If you already have a CANsmart controller, the horn connects to its dedicated circuit without a relay or additional wiring.

Nella confezione

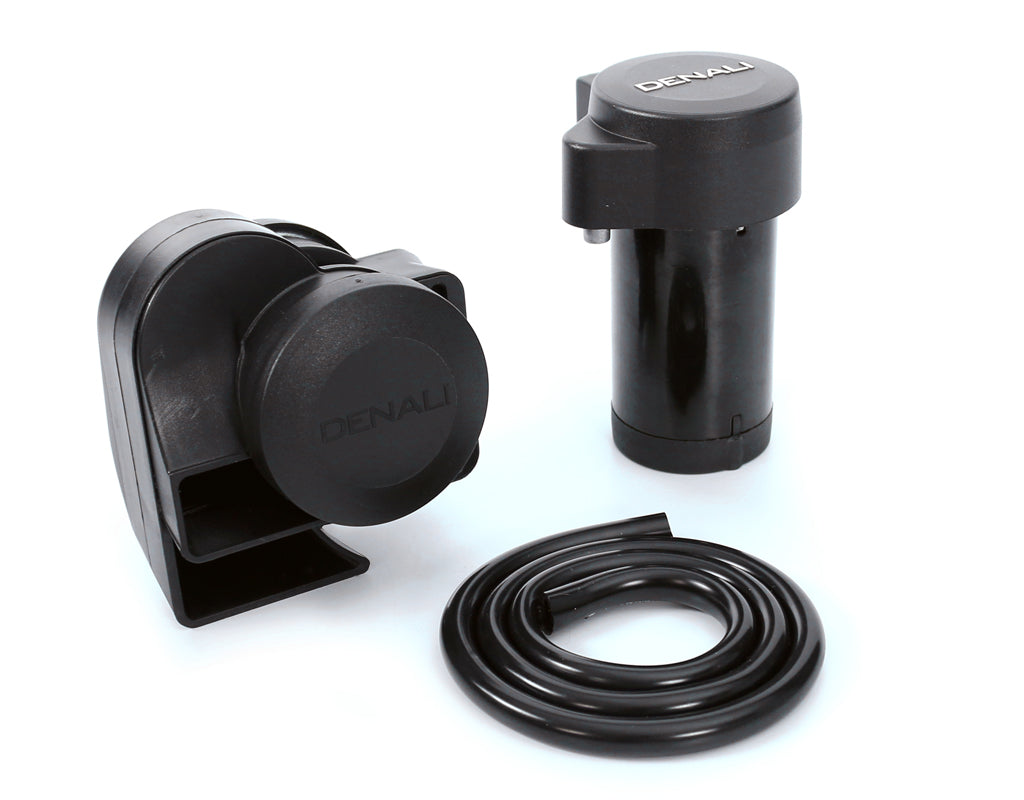

  • 1 clacson ad aria SoundBomb Split (TTSB10100B) bitonale, con compressore e unità acustica separati.
  • 1 staffa dedicata (HMT0711002) per R 1200 GS e R 1250 GS / GSA.

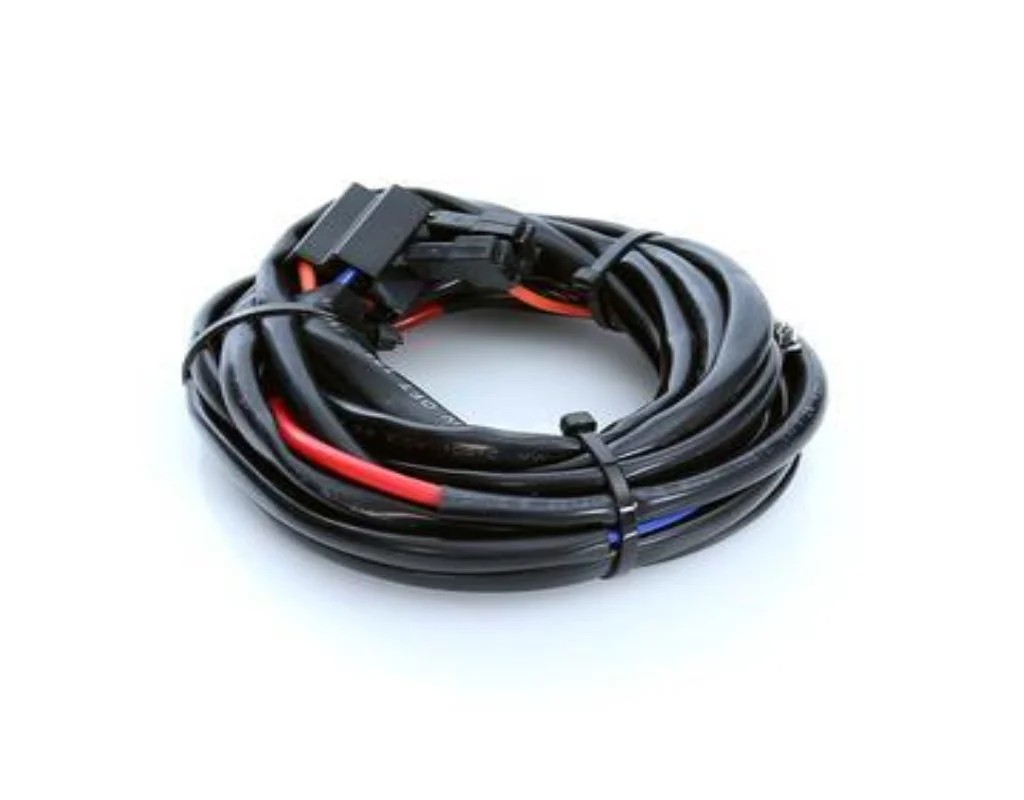

  • 1 cablaggio universale (DNLELC10000) da 1,67 m per clacson SoundBomb.

DNL07KIT016 · SoundBomb Split 120 dB · dedicated bracket · wiring harness with relay

How does it work, in detail?

An air horn four times louder than the stock one, with the right bracket for your GS.

Four times the horn you have now
01

Four times the horn you have now

120 decibels measured at one meter, compared with around 100 for a standard disc horn. The scale is logarithmic, so an extra twenty decibels is not a minor tweak: DENALI claims the SoundBomb is four times louder.

It’s the least expensive way to make yourself heard by the motorist about to turn in front of you.

Two separate bodies, to find the space
02

Two separate bodies, to find the space

The Split version has separate compressor and acoustic unit, connected by a tube, and they can be up to 90 cm apart. In a crowded front compartment, you can find two small spaces much more easily than one large space.

There is one requirement to observe: the compressor cylinder must be vertical, with a maximum tolerance of 25 degrees, in a spot protected from splashes.

With the CANsmart, a relay isn’t needed
03

With the CANsmart, a relay isn’t needed

The included wiring is for those installing the horn themselves: the SoundBomb draws 20 A and cannot be powered by the original system, so it must run through a relay.

If you already have a CANsmart controller, the horn connects to its dedicated circuit: green wire to positive, black to negative, and that's it. If you have installed a spotlight kit with a controller, the remaining free channel is for this.

Scheda tecnica

Specifiche tecniche

Tutti i dati

Acoustics

Sound pressure
120 dB at 1 meter Four times a typical motorcycle horn, twice that of a car horn
Sound type
Compressed-air bitonal horn, electropneumatic

Electric

Power supply
12 V, 20 A current draw Compatible with CANbus systems

Construction

Compressor dimensions
114 × 74 × 76 mm
Acoustic unit measurements
104 × 94 × 86 mm Installable up to 90 cm from the compressor

Equipment

Package contents
Compressor, acoustic unit, 12 V 30 A relay, heat-resistant air hose, mounting hardware for both bodies

Dati dichiarati da DENALI sulla scheda ufficiale del clacson SoundBomb e dei componenti del kit.

Prima di ordinare

Montaggio e requisiti

Come si monta

Istruzioni complete e note di sicurezza

Compatibilità dichiarata. La staffa in dotazione è prevista per BMW R 1200 GS e R 1250 GS / GS Adventure.

Il clacson è a due corpi separati. Il SoundBomb Split ha compressore e unità acustica distinti, collegati da un tubo: risolve il problema dello spazio sugli avantreni affollati, ma va deciso prima dove va ciascuno dei due e per dove passa il tubo.

Il vincolo da rispettare sul compressore. Il cilindro va montato verticale, con una tolleranza massima di 25 gradi dalla verticale, in un punto riparato da detriti e spruzzi delle ruote. Fuori da quell'angolo il clacson non lavora come deve.

Passaggio del tubo. Si fa correre il tubo fra le due unità evitando le zone di forte calore come testa motore e scarico, poi lo si taglia a misura e si infilano le estremità sui raccordi. Scaldare le estremità con una pistola ad aria calda prima di infilarle rende l'operazione molto più facile.

Collegamento con il cablaggio in dotazione. Il clacson assorbe troppo per l'impianto originale, quindi passa da un relè: terminale 85 alla massa del clacson originale, 30 al positivo batteria con il portafusibile in linea, 87 al positivo del compressore, un filo di massa dal negativo del compressore al telaio, 86 al positivo del clacson originale. Il fusibile da 30 A si inserisce per ultimo.

Se hai già una centralina CANsmart, il relè non serve. Il circuito clacson blu della CANsmart alimenta direttamente il SoundBomb: filo verde al positivo, nero al negativo, e nessun cablaggio aggiuntivo da montare.

Coppie di serraggio. Se il manuale della moto non indica altro: 5 Nm per M5, 9,6 Nm per M6 e 18 Nm per M8, con frenafiletti a media resistenza e ricontrollo del serraggio dopo i primi 50 km.

Prima di richiudere. Gira il manubrio a fondo corsa da entrambi i lati e comprimi le sospensioni: né il tubo né i cavi devono andare in tiro.

Dati presi dalla scheda ufficiale DENALI e dal manuale TT-SB.10100.B rev00.

DENALI riconosce 5 anni di garanzia convenzionale del produttore sui componenti di questo kit. Si aggiunge, e non sostituisce, i 24 mesi di garanzia legale di conformità previsti per legge.

Restano esclusi usura normale, abrasione, uso improprio, installazione errata, incidenti e modifiche. Il montaggio con il cilindro fuori dalla tolleranza di 25 gradi dalla verticale, o in posizione esposta agli spruzzi, rientra fra le installazioni non conformi alle istruzioni del produttore.

L'uso del dispositivo di segnalazione acustica su strada pubblica è regolato dal codice della strada del Paese in cui circoli: verifica sempre le prescrizioni locali.

A chi guida una R 1200 GS o una R 1250 GS e GS Adventure in città o su strade trafficate, e vuole un clacson che si senta davvero. Il montaggio è alla portata di chiunque sappia collegare un relè.

Se hai già una centralina CANsmart il cablaggio compreso resta inutilizzato, ma il kit conviene lo stesso perché ti dà clacson e staffa giusta in un colpo solo.

Avvisami quando disponibile

Ti scriviamo appena SoundBomb horn kit with bracket and wiring harness for BMW R 1250 GS torna disponibile.

Frequently asked questions

For more information, see our FAQ of frequently asked questions.

How much louder is it than the stock horn?

The SoundBomb produces 120 decibels compared with around 100 for a standard disc horn. DENALI claims it is four times louder: the decibel scale is logarithmic, so twenty decibels more is a huge difference, not a minor adjustment.

Is a relay needed, or is everything included?

The universal wiring harness included in the kit contains everything needed for connection with a relay, which is necessary because the horn draws too much current for the original system. If you already have a CANsmart control unit, however, the relay is not needed: the horn connects to the control unit’s dedicated circuit.

Why does the compressor have to be mounted vertically?

It is a requirement in the manual: the cylinder must be vertical, with a maximum tolerance of 25 degrees; otherwise, the horn will not work as it should. A location protected from debris and wheel spray must also be chosen.
