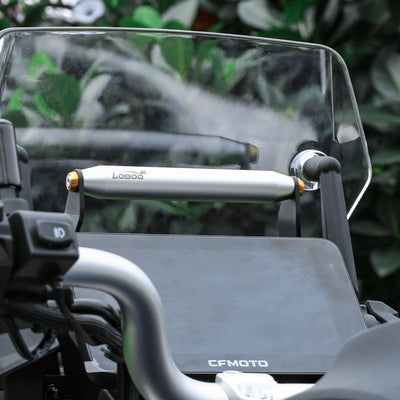

Dettaglio della traversa portanavigatore montata dietro il cupolino della CFMOTO 800MT
Supporto navigatore CFMOTO 800MT visto dall'alto, con le due staffe e la traversa

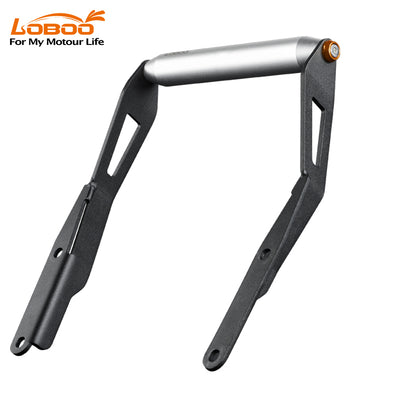

Kit supporto navigatore per CFMOTO 800MT visto di tre quarti, staffe nere e traversa in alluminio
Supporto navigatore CFMOTO 800MT visto di fronte, traversa da 150 mm fra le due staffe

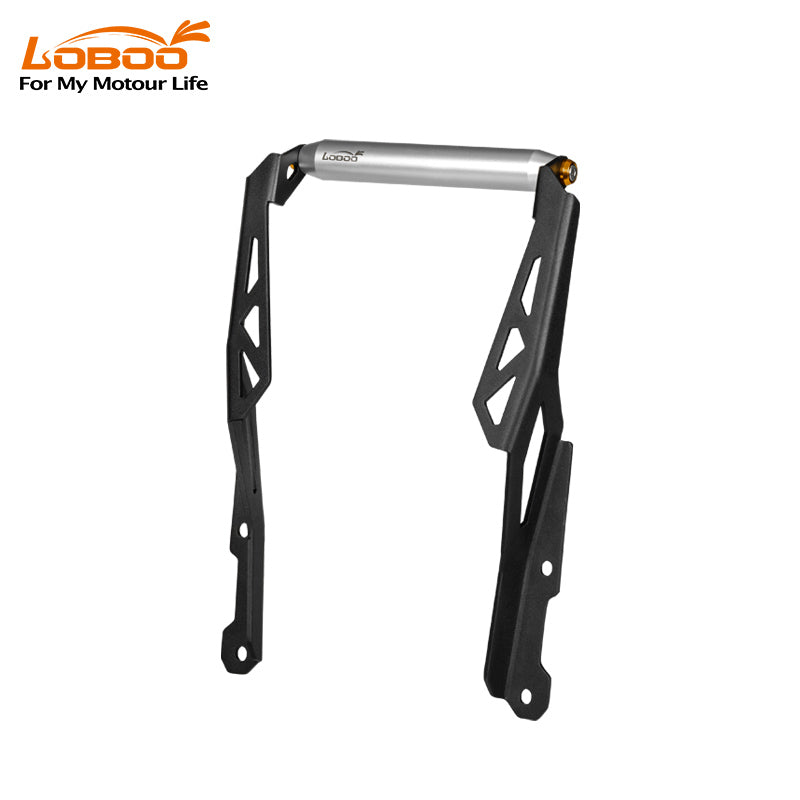

Supporto navigatore CFMOTO 800MT visto di lato, con il profilo curvo delle staffe

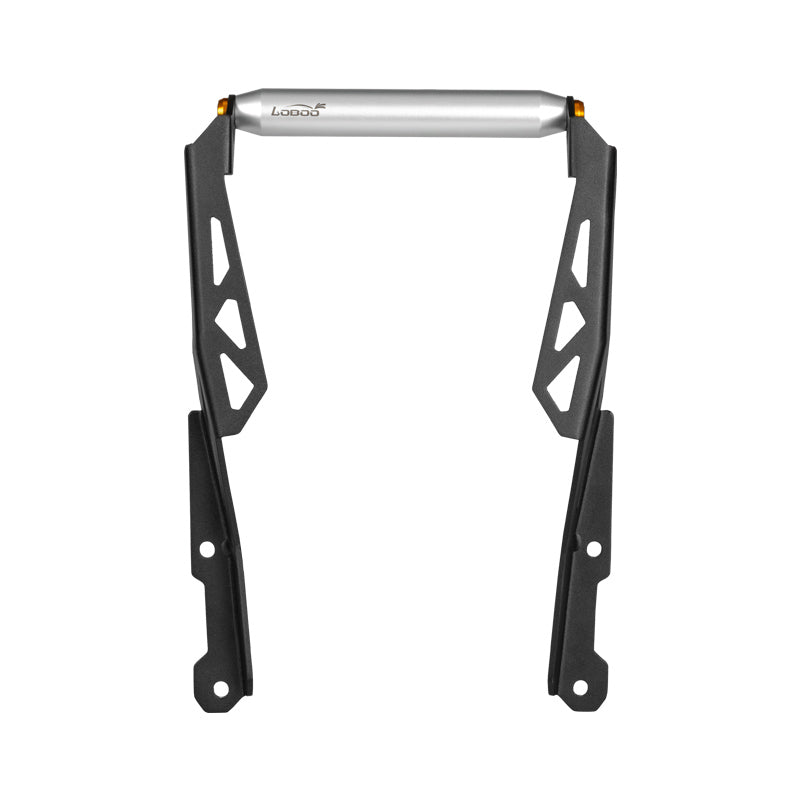

Kit supporto navigatore CFMOTO 800MT con traversa in alluminio anodizzato argento

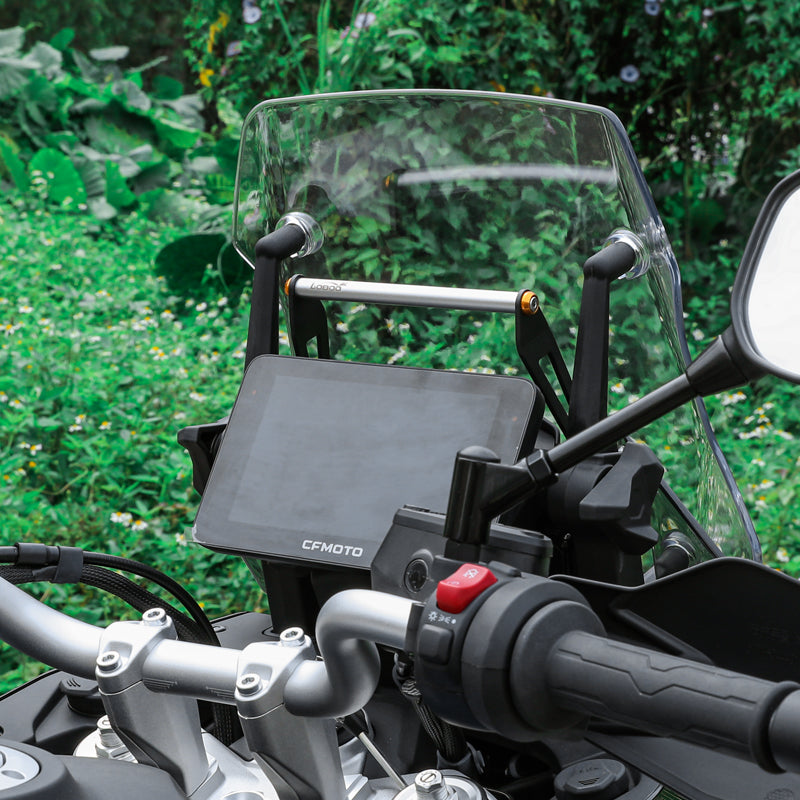

Supporto navigatore montato sulla CFMOTO 800MT con un display collegato, in uso su strada

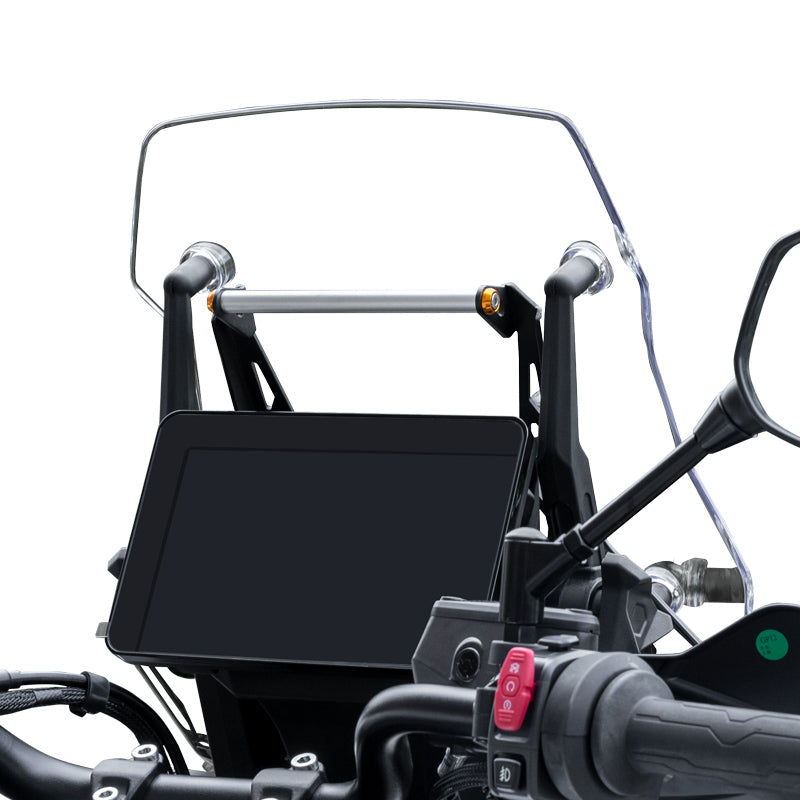

Navigatore montato sulla traversa LOBOO dietro il cupolino della CFMOTO 800MT

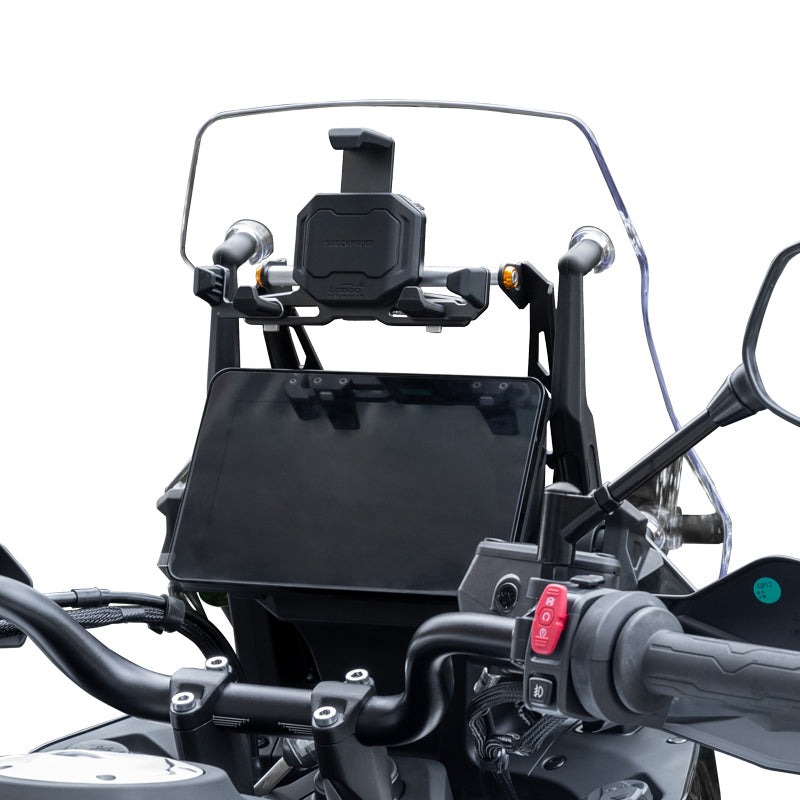

Porta smartphone montato sulla traversa del supporto navigatore per CFMOTO 800MT

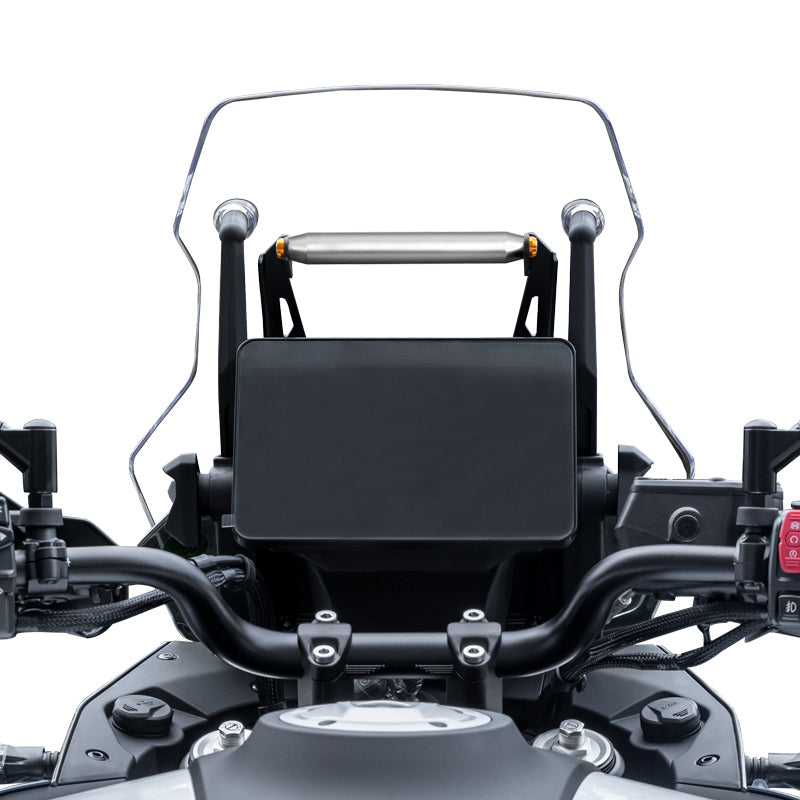

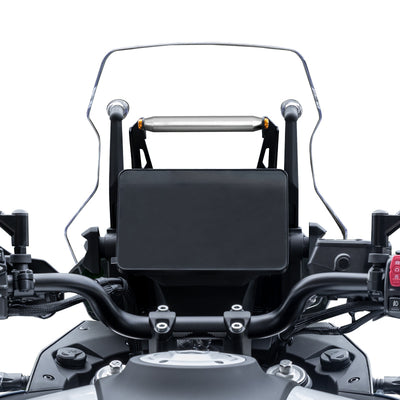

Supporto navigatore con traversa argento montato sulla CFMOTO 800MT, vista frontale

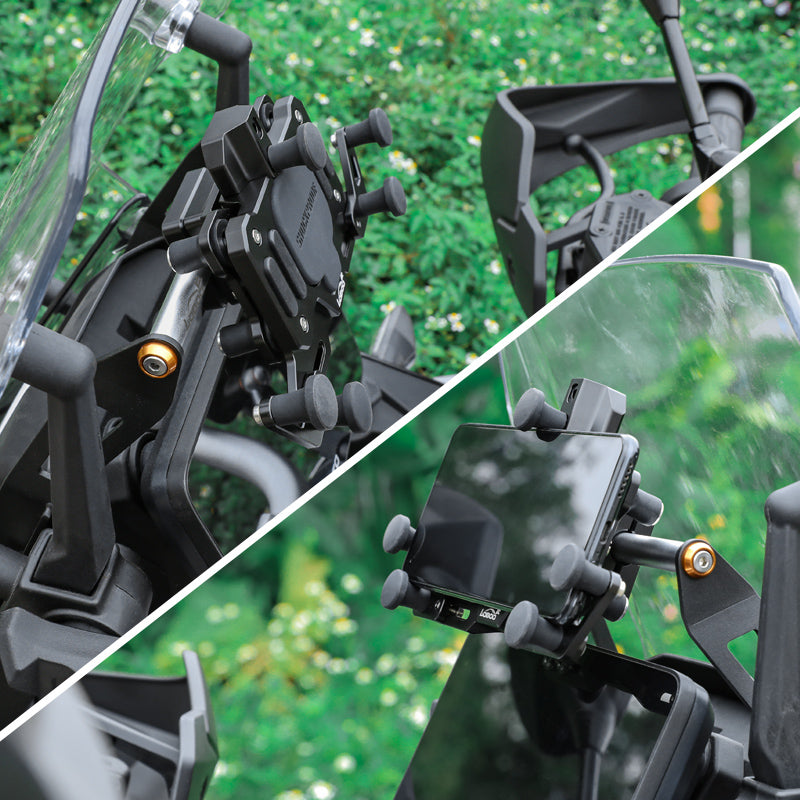

Dettagli reali del supporto navigatore installato sulla CFMOTO 800MT

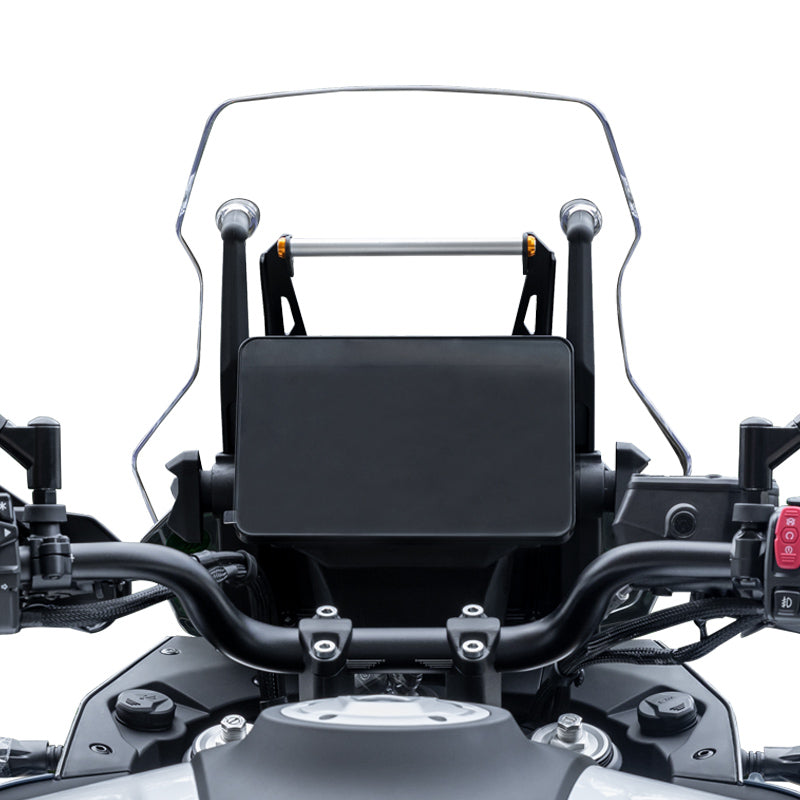

Il supporto navigatore visto dalla posizione di guida della CFMOTO 800MT

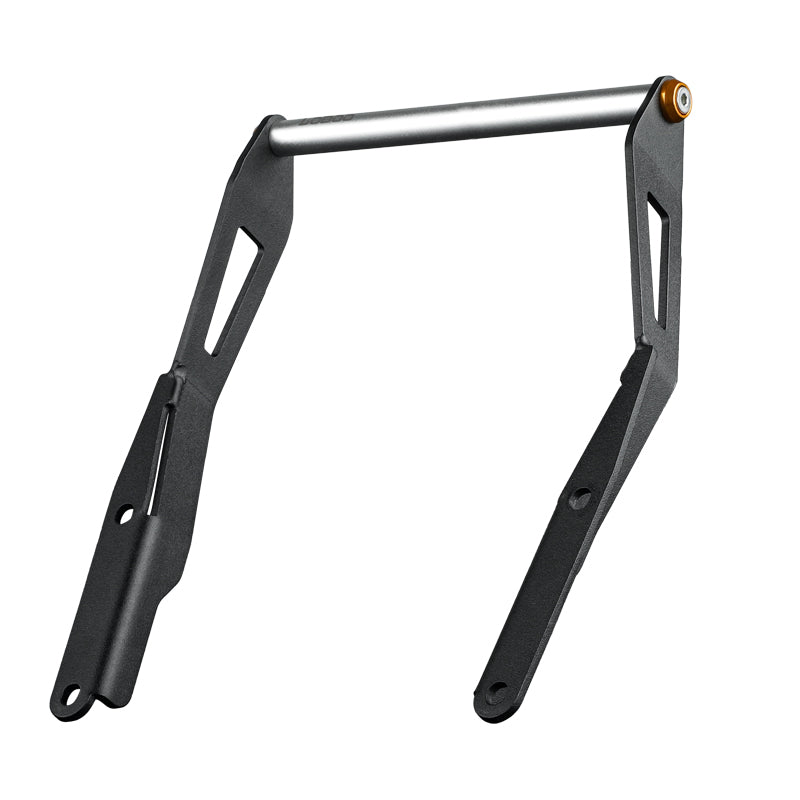

Staffe e traversa del supporto navigatore CFMOTO 800MT viste di lato

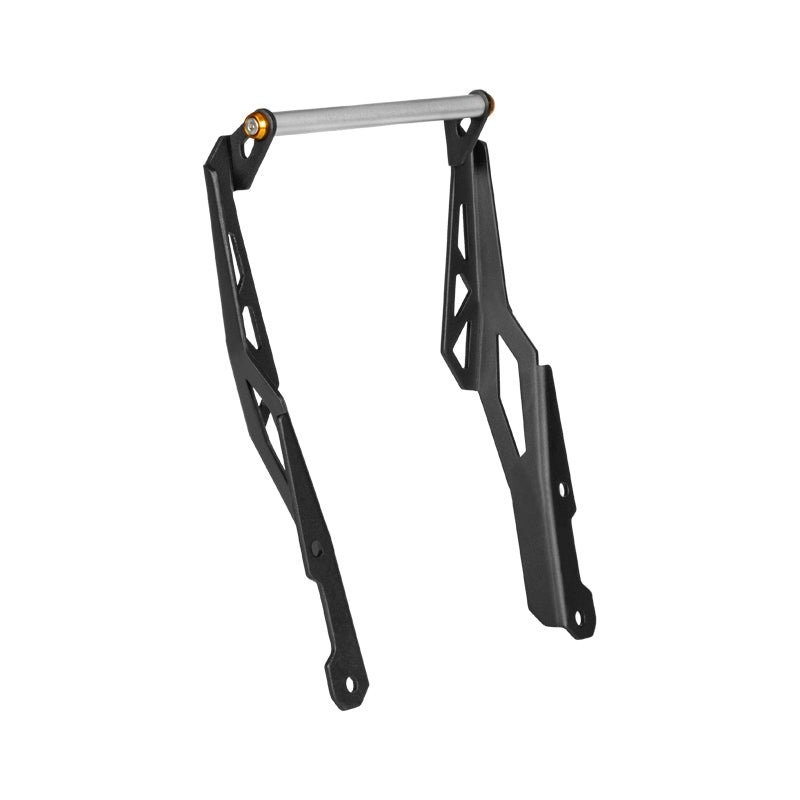

Staffe e traversa del supporto navigatore viste di profilo

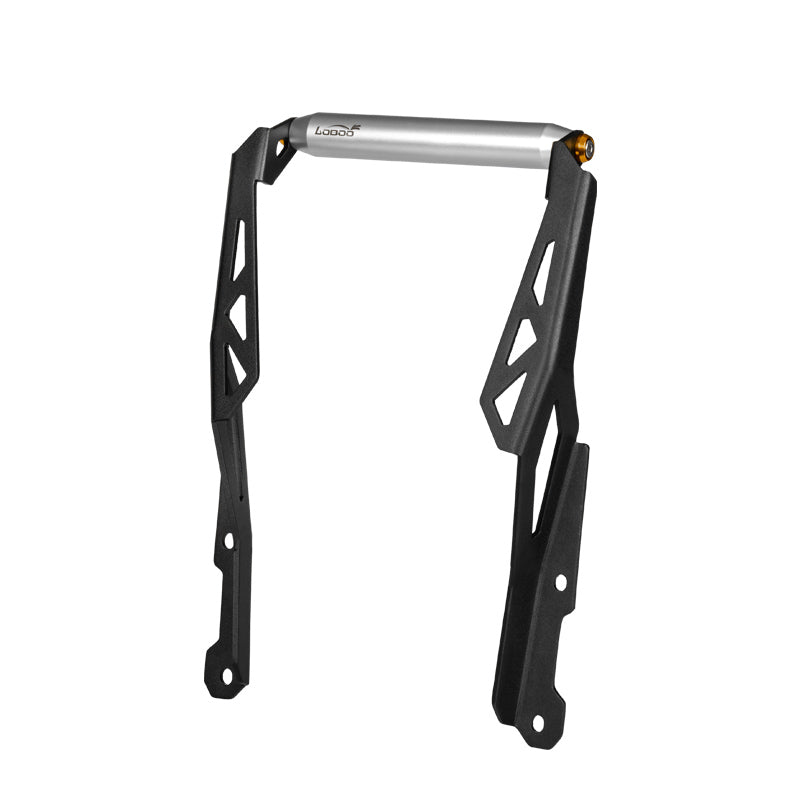

Staffe e traversa del supporto navigatore viste di tre quarti

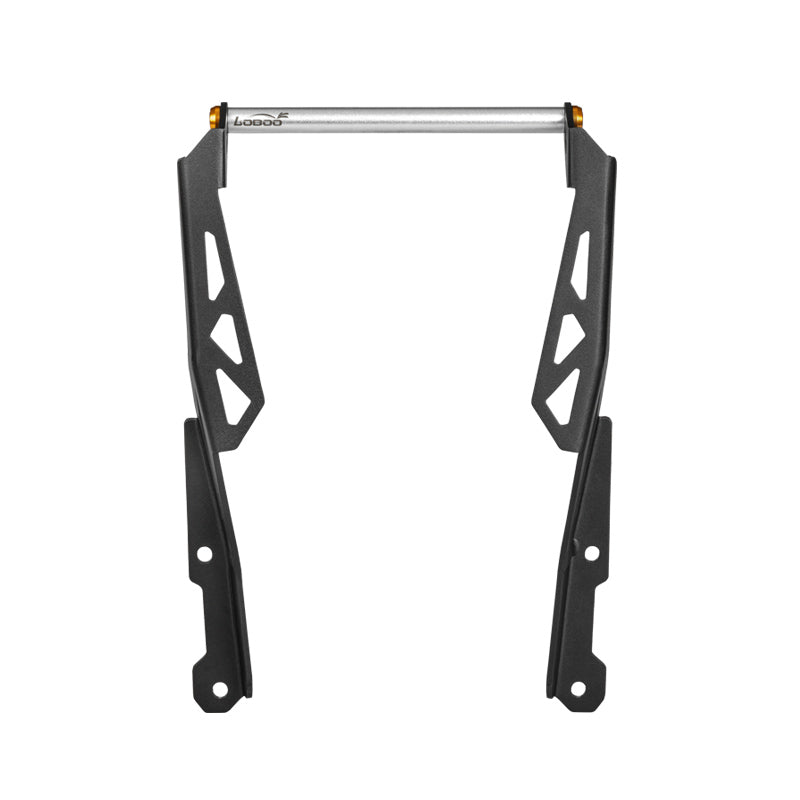

Le due staffe laterali del supporto navigatore CFMOTO 800MT viste dall'alto

Vendor:LOBOO

GPS navigator mount for CFMOTO 800 MT | 150 mm crossbar, 12 or 22 mm version, no drilling

Sale price€54,00Regular price €60,00
In stock, ready to ship

Choose the version: 12 mm bar or 22 mm handlebar

CDZ602-12MM — Cosa è compreso nel prezzo
  • Nella confezione: due staffe laterali, la traversa, tutta la viteria (2 viti M5×16, 4 viti M6×16, 4 rondelle M6, 4 rondelle Ø15, 2 boccole) e la chiave di montaggio.
  • Cosa non c'è: il supporto per navigatore o smartphone. Questa è la traversa su cui montarlo.
  • Da scegliere prima: la variante da 12 o 22 mm, in base al diametro che accetta il morsetto del tuo supporto.
  • Coppie di serraggio: 12 N·m sulle viti M6×16 delle staffe, 5 N·m sulle viti M5×16 della traversa. Il manuale raccomanda di ricontrollarle periodicamente.
  • Spedizione gratuitaoltre 100 € in Italia, oltre 250 € in Europa
  • Garanzia 24 mesigaranzia legale di conformità
  • Pagamento a ratedisponibile al checkout
  • Reso entro 14 giornidalla ricezione dell'ordine

Hai dubbi sulla compatibilità? Contattaci prima dell'acquisto →

I recommend them to you!
Contattaci su WhatsApp

Returns within 14 days

24-month legal conformity warranty

Original LOBOO product, guaranteed

12mm

Mounting options

12mm

Which variant should I use?

12mm

Double option of

Model

Motorcycle model

CFMOTO 800 MT (dedicated)

Assembly

Mounting options

12 mm navigation bar or 22 mm handlebar (selectable as a variant)

Features

Device compatibility

Wide compatibility with major GPS navigation systems

Features

Anti-vibration, adjustable angle, aesthetic integration

Assembly

Assembly

Easy installation with instructions included

Features

Service

Free shipping on orders over €100 (Italy) / €250 (Europe) • 15-day returns

Assembly

Dual mounting option

on your 12 mm bar or 22 mm handlebar (select the variant).

Specifications declared by the manufacturer LOBOO. If in doubt about compatibility with your model, please contact us before purchasing.

Traversa da 150 mm dietro il cupolino, nelle versioni da 12 o 22 mm di diametro

All you need to know before ordering

Technical specifications, equipment, delivery, and warranty: find every detail, verified against official LOBOO documentation, below.

Description GPS navigator mount for CFMOTO 800 MT | 150 mm crossbar, 12 or 22 mm version, no drilling

The LOBOO CDZ602 GPS Navigation Bracket for CFMOTO 800 MT positions the navigator within view, reducing vibrations that make the display difficult to read on uneven surfaces and strain the eyes over long rides.

It is available in two versions, to be selected according to the mounting point:

  • 12 mm — mounting on the dedicated bar
  • 22 mm — direct mounting on the handlebar

Measure the diameter before ordering: choosing the wrong size is the most common mistake with this product.

Main features

  • Anti-vibration design for a stable view on paved and unpaved roads
  • Angle adjustment to eliminate glare and adapt to the riding position
  • Wide compatibility with major GPS navigators
  • Weather-resistant materials for year-round use
  • Aesthetic integration with the lines of the 800 MT

Compatible with CFMOTO 800 MT from 2023 onward. Navigator not included.

Why choose it
  • Dual mounting option:on a 12mm bar or directly on the 22mm handlebar.
  • Anti-vibration design:readable display even on uneven terrain, without eye strain.
  • Angle adjustment:eliminates reflections and adapts the inclination to your riding posture.
  • Dedicated to CFMOTO 800 MT:integrates with the bike's lines rather than overlapping them.
  • All-weather materials:weather-resistant for year-round use.
Who is it recommended for

How to choose the correct version:

  • 12 mm version: for mounting on the dedicated bar.
  • 22 mm version: for direct mounting on the handlebar.

Measure the diameter of the spot where you want to install the mount before ordering: this is the most common mistake made when choosing this product. The navigator is not included.

Documents and manufacturer

Assembly and Notes

  • Easy installation with included instructions, on a 12 mm bar or 22 mm handlebar depending on the chosen variant.
  • Check the steering range at full lock with the device mounted.
  • Re-check the fastenings after initial use and periodically.
  • Navigator and device mounts are not included.
Download files

How does it work, in detail?

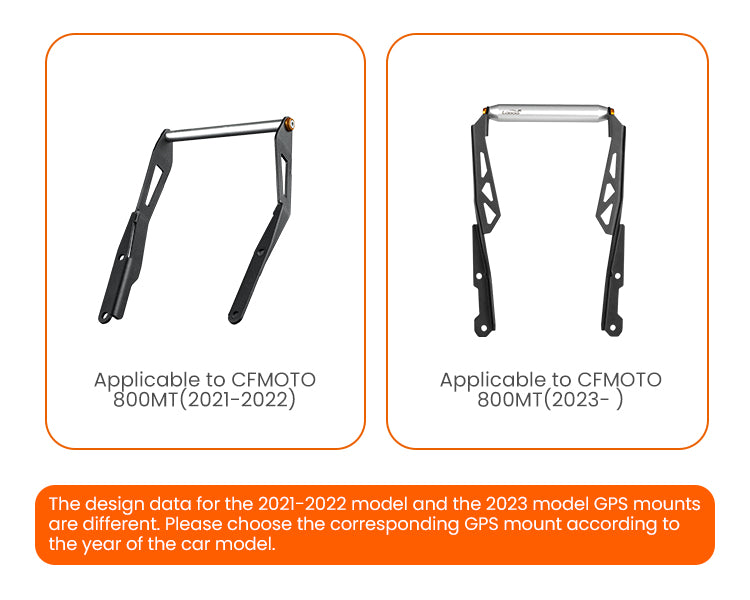

Check the year before ordering

Check the year before ordering

LOBOO produces different brackets for the 800MT because the windshield mounting hole dimensions have changed. This one is for model years from 2023 onward.It cannot be installed on 2021–2022 models. This is the first thing to check.

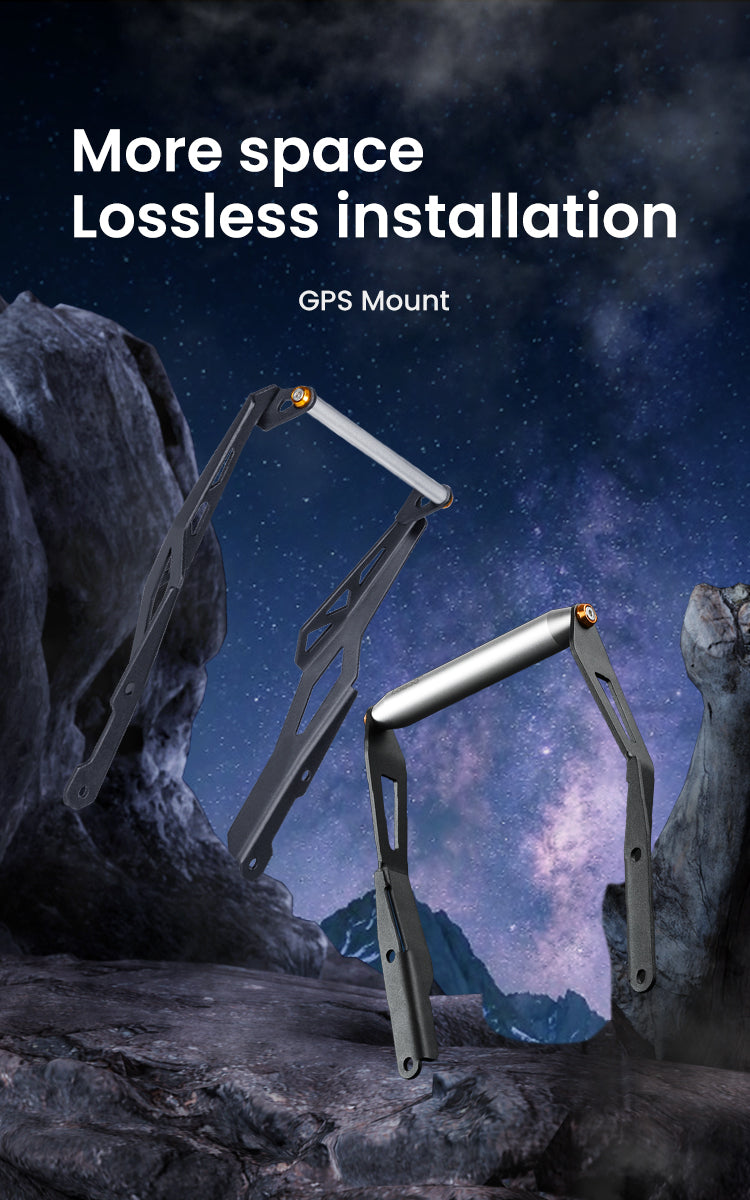

The handlebar remains loose

The handlebar remains loose

The crossbar is mounted behind the windscreen, not on the handlebars: the navigator sits at eye level and is sheltered from the wind, while heated grips, controls, and other accessories retain their space. This is also why the display does not move with the steering.

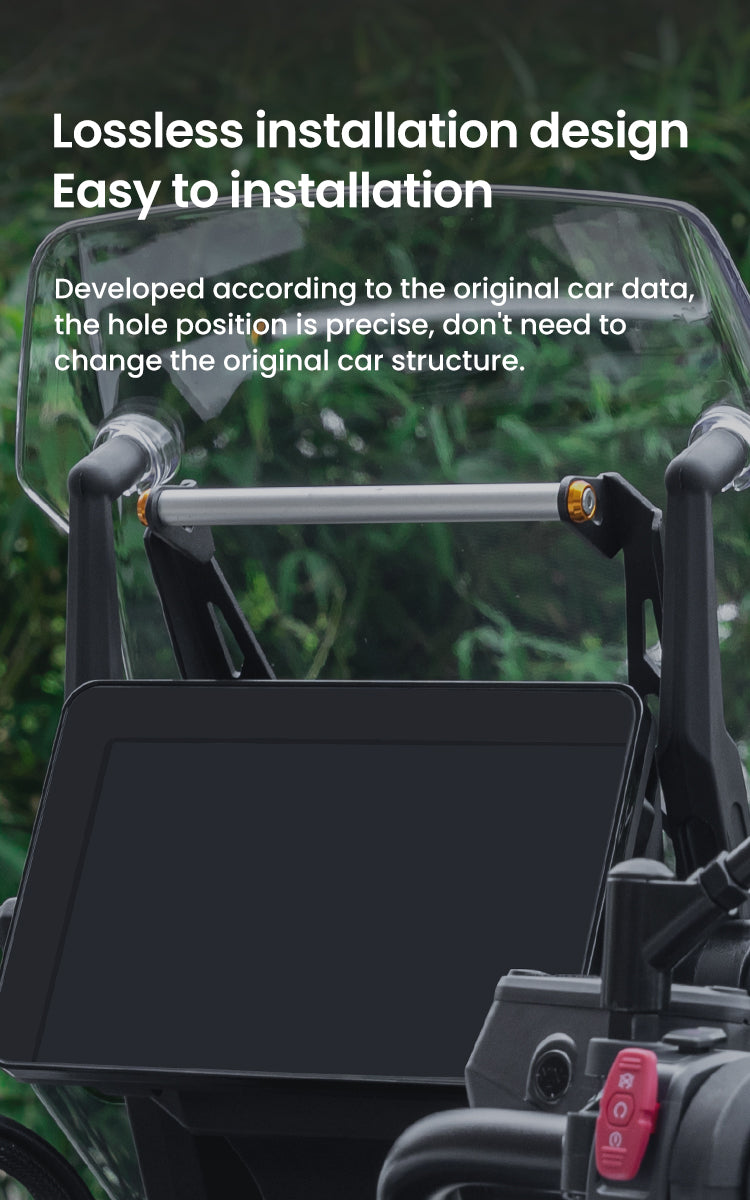

The existing holes are used

The existing holes are used

The bracket is developed based on the vehicle’s original data: the brackets attach to the windscreen mounting points using the existing holes. No drilling, no structural modifications, and you can return to the stock configuration in ten minutes.

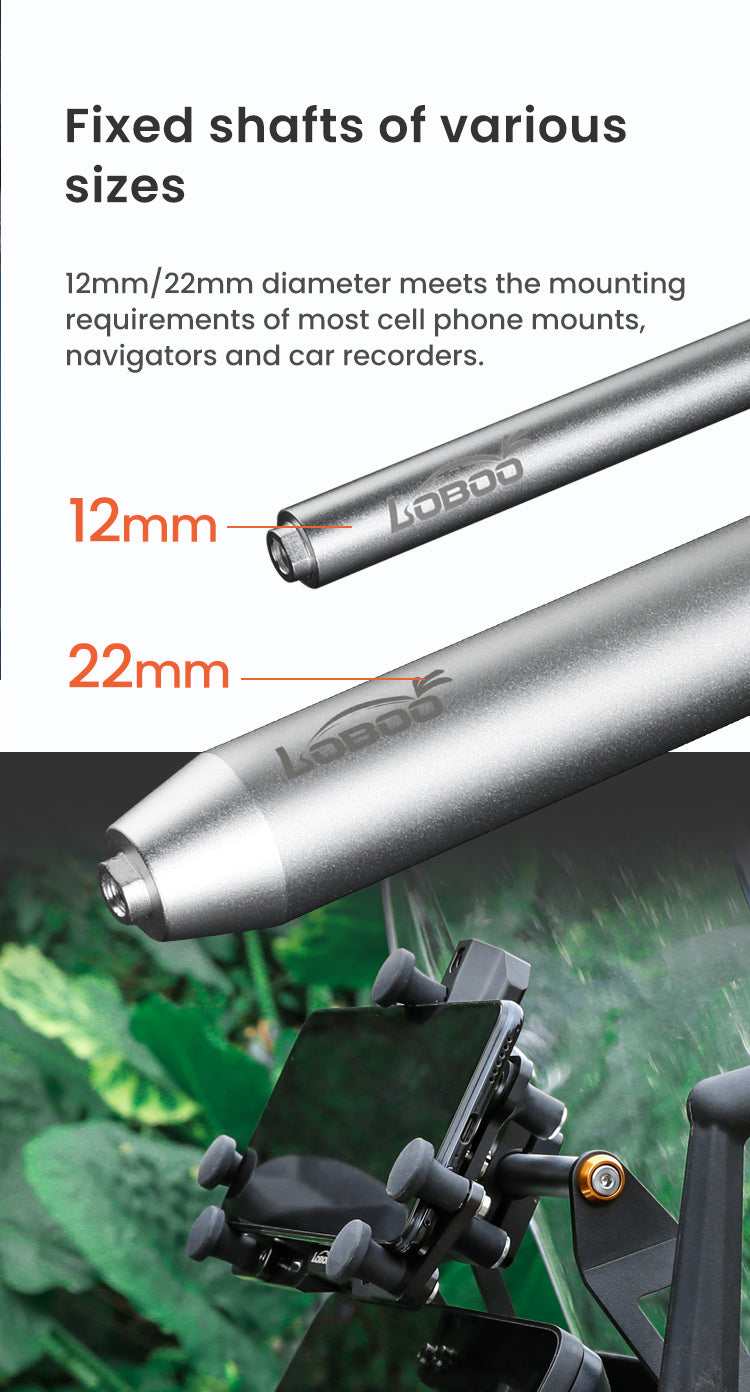

12 or 22 mm: it depends on your mount

12 or 22 mm: it depends on your mount

The variant does not concern the motorcycle but the clamp that you will attach to it. The two diameters cover most smartphone mounts, sat-navs, and dashcams on the market: check which one yours accepts, then choose.

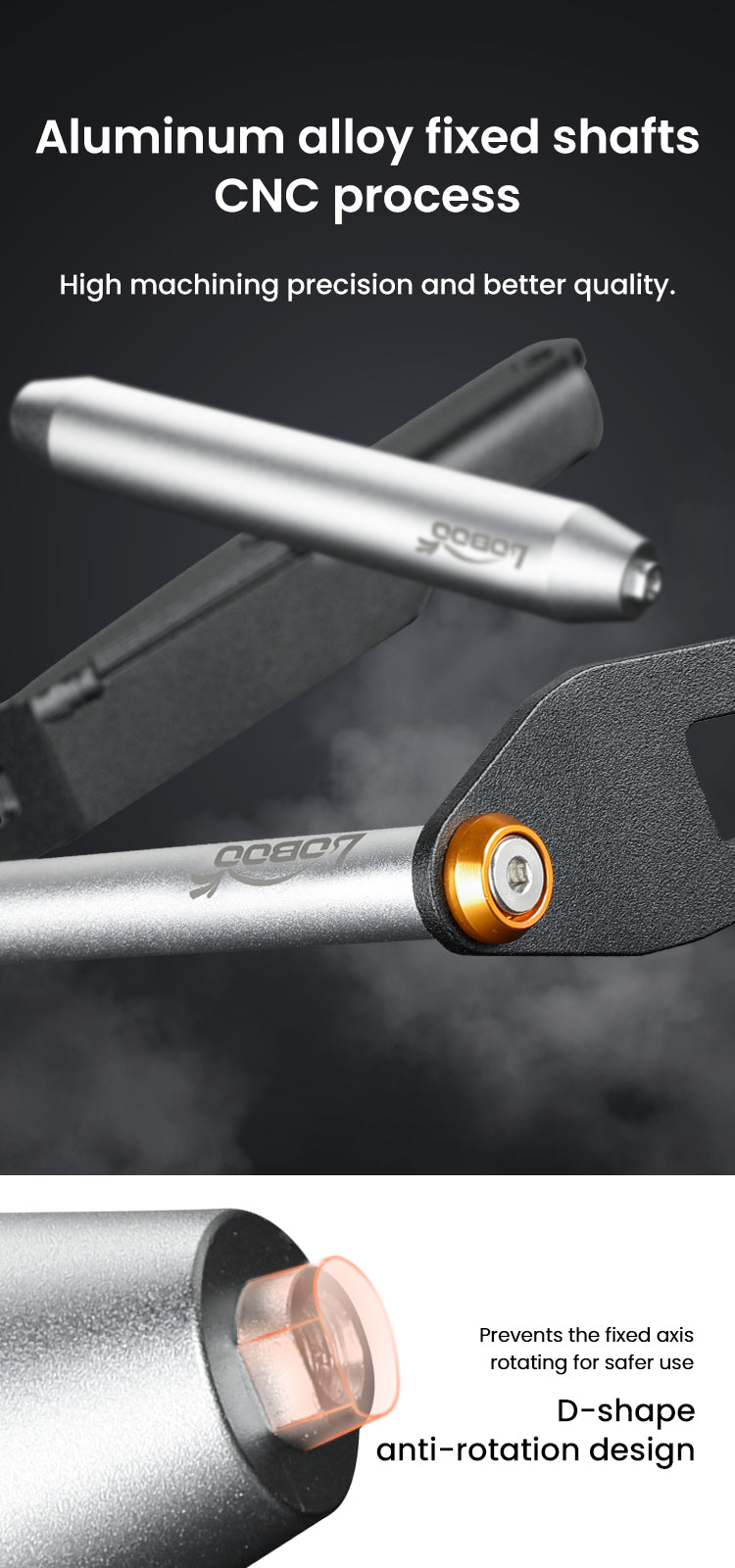

D-profile: the clamp does not rotate

D-profile: the clamp does not rotate

The ends of the crossbar are not cylindrical but have a D-shaped cross-section. It’s a detail you appreciate after the first time off-road: once tightened, the mount cannot rotate around the axle, so the display stays at the angle you left it.

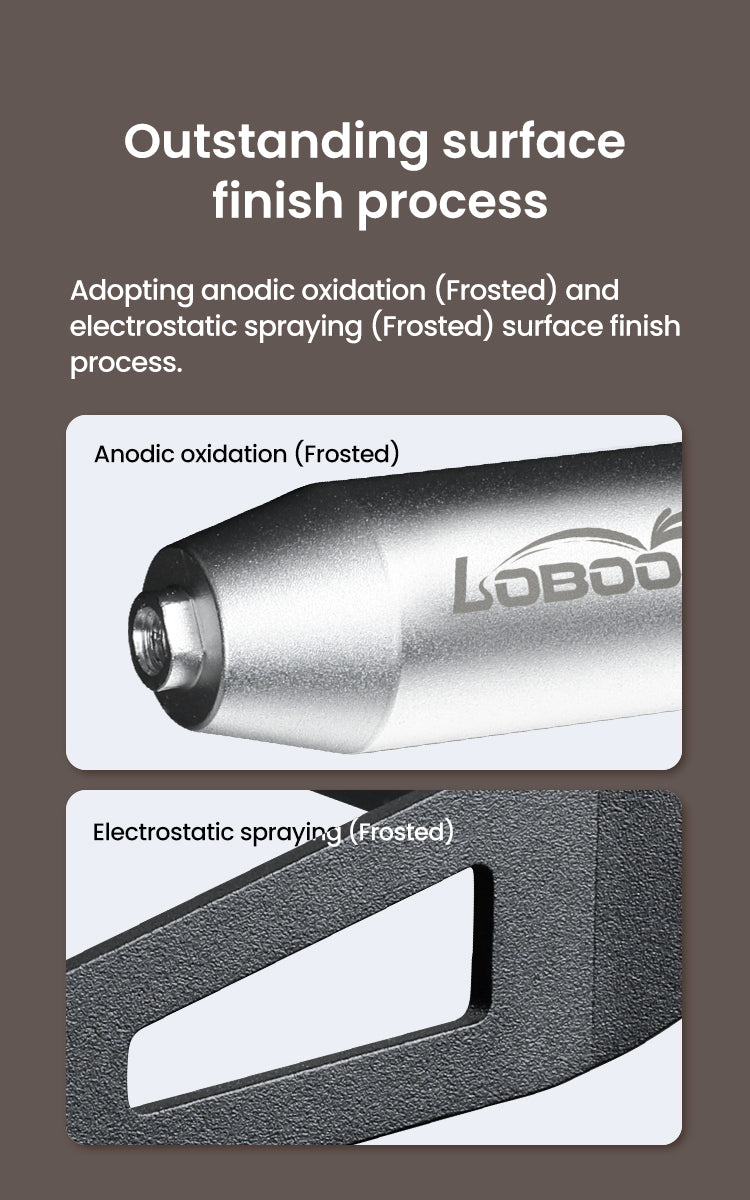

Two finishes, silver and black

Two finishes, silver and black

The silver crossbar is treated with a matte anodized finish, while the black one has a matte powder coating. Both are intentionally matte: on a surface in front of your eyes, sunlight reflection is a flaw, not a virtue.

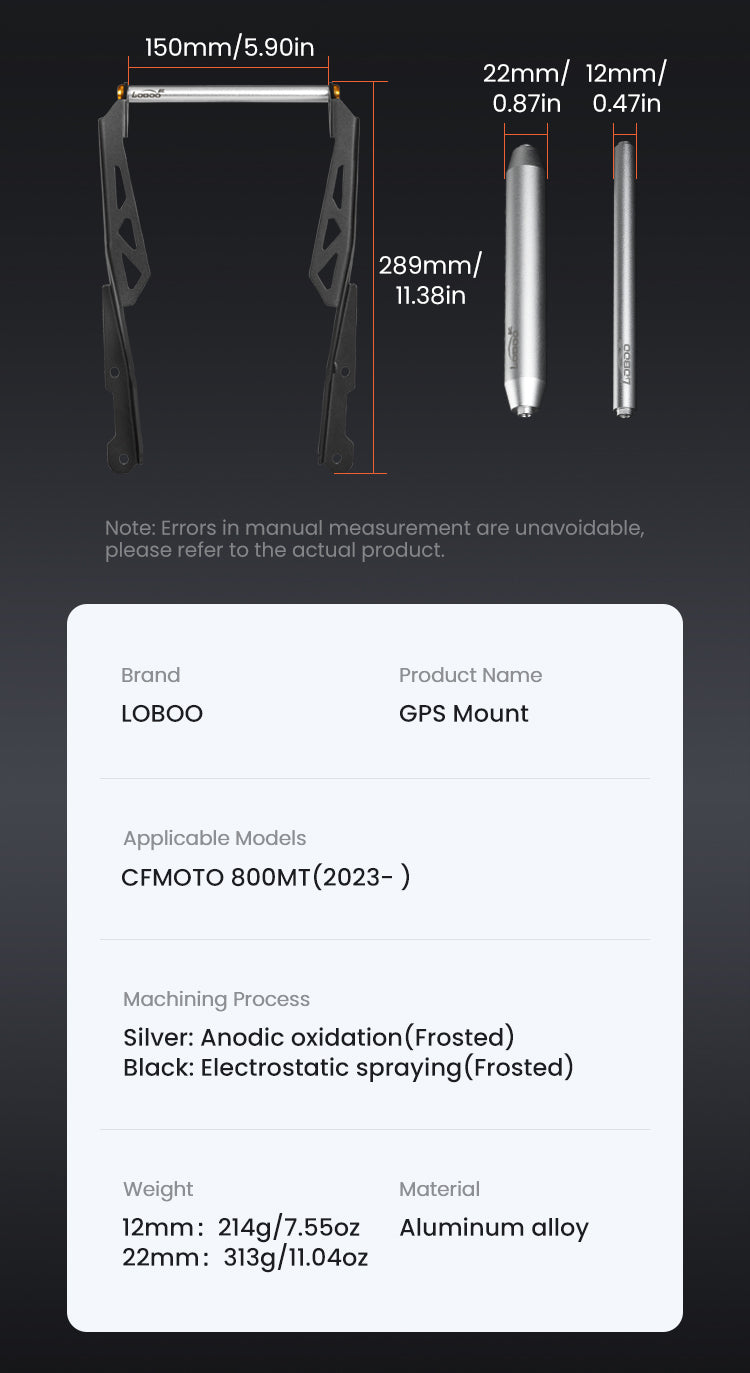

The measurements stated by the manufacturer

The measurements stated by the manufacturer

Width 150 mm between the brackets, overall height 289 mm. The kit weighs 214 g in the 12 mm version and 313 g in the 22 mm version, made of aluminum alloy. The 150 mm is the usable space for your mount.

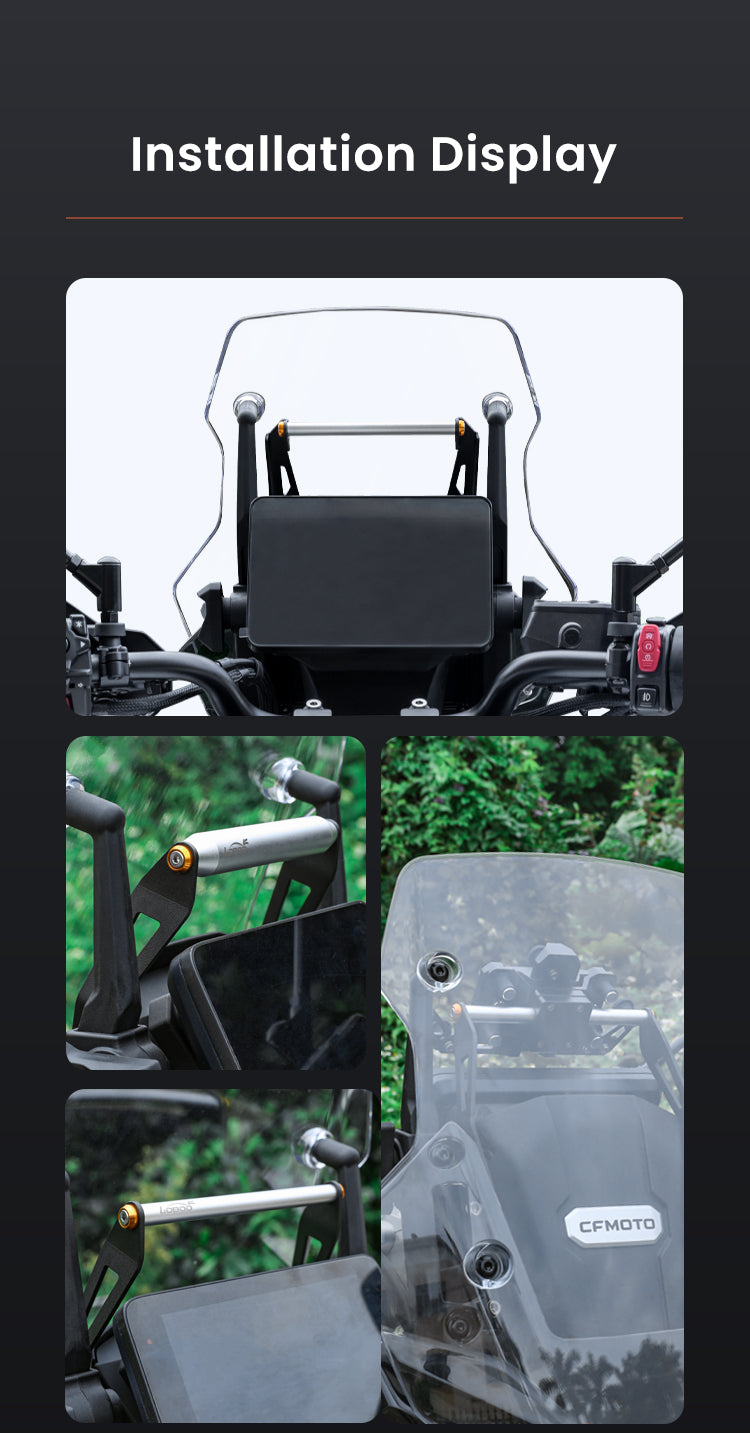

How does it look on the motorcycle?

How does it look on the motorcycle?

Photo of an actual installation, not a rendering. The crossbar follows the profile of the fairing and remains within the motorcycle’s overall dimensions, so it does not interfere with handlebar rotation or the adjustable windshield.

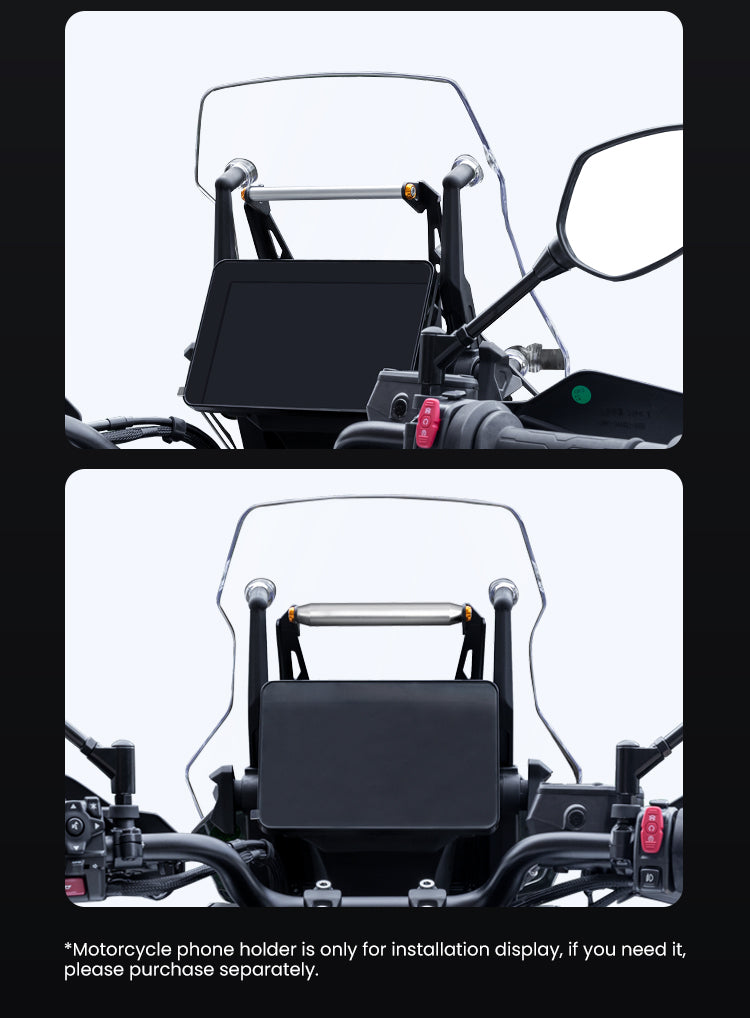

The phone holder is not included

The phone holder is not included

The photos show sat navs and smartphone holders: they demonstrate how to use the crossbar, but are not included in the package. Here you are buying the structure on which to mount them, including the hardware and key.

FAQs

For more information, please see our FAQ.

Will it fit my 2022 CFMOTO 800MT?

No. The manufacturer produces two separate brackets because the windscreen mounting hole dimensions have changed: this one is specified for the 800MT from 2023 onward. For the 2021 and 2022 model years, you need the other part number, which we do not currently have in our catalog. Contact us and we will check availability.

I need to choose between 12 mm and 22 mm: how do I know which one I need?

It is the diameter of the crossbar onto which your mount’s clamp will tighten, so check the mount, not the motorcycle. You’ll find the accepted diameter on the packaging or in the instructions for the phone or GPS mount: many are designed for 12 mm, while others are made for handlebars and therefore for 22 mm.

Is the smartphone holder included?

No. The package contains the two brackets, the crossbar, all the hardware, and the assembly wrench. The smartphone or GPS holder must be purchased separately: they appear in the photos only to show how the crossbar is used.

Do I need to drill or modify the windshield?

No. The brackets attach to the mounting points already present on the windscreen, reusing the original mounting locations. Installation is reversible: removing the bracket returns the motorcycle to exactly how it was before.

How tight should the screws be?

12 N·m on the four M6×16 screws securing the brackets and 5 N·m on the two M5×16 screws of the crossbar. The manual specifies that they should not be fully tightened immediately: first complete the adjustments, then tighten them in sequence to the indicated values, and recheck periodically.

How much space do I have to install the navigation system?

The crossbar is 150 mm long between the two brackets: this is the usable space for positioning the clamp. It is enough for a single mount or, if they are compact, for a sat-nav and a smartphone holder side by side.

Does the mount rotate or shift due to vibrations?

The ends of the crossbar have a D-shaped rather than cylindrical cross-section: once tightened, the clamp cannot rotate around the axis. This is the detail that keeps the display at the selected angle even after traveling over a bumpy section.

How much does it weigh?

214 g in the version with the 12 mm bar and 313 g in the 22 mm version, including hardware. The entire difference is in the bar, which has more material in the thicker version.

What material is it made of?

CNC-machined aluminum alloy. The silver version has a matte anodized finish, while the black version has a matte powder-coated finish: neither reflects light into your eyes.

Does it interfere with the adjustable windshield or the steering?

The mount is fixed to the fairing and stays within the motorcycle’s overall dimensions, so it does not turn with the handlebars or obstruct steering rotation. If you install a particularly bulky device, check the clearance with the windshield in its lowest position.

Should I choose the 12 mm version or the 22 mm one?

It depends on where you want to attach the mount. The 12 mm version attaches to the dedicated bar, while the 22 mm version mounts directly on the handlebar. Measure the diameter of the place where you want to install it before ordering: choosing the wrong size is the most common mistake with this product.

Does the navigation device vibrate while driving on unpaved roads?

The structure is designed to reduce the shaking that makes the display difficult to read on uneven terrain. You can also adjust the tilt to eliminate glare and adapt the angle to your driving position.
