Lighting

Features

Main beam and perimeter ring as daytime running light

Direct replacement for 4.5-inch sealed auxiliary headlights

Electric

Power supply

9–32 V DC, H4 connector

6 W perimeter ring, to be powered with a separate wire

Equipment

Manufacturer’s warranty

5

In addition to the 24-month statutory conformity warranty

Dati dichiarati da DENALI sulla scheda ufficiale.

Sostituiscono i fari supplementari sigillati da 114 mm

Everything you need to know before ordering

Technical specifications, equipment, delivery, and warranty: below you’ll find every detail verified against the official DENALI documentation.

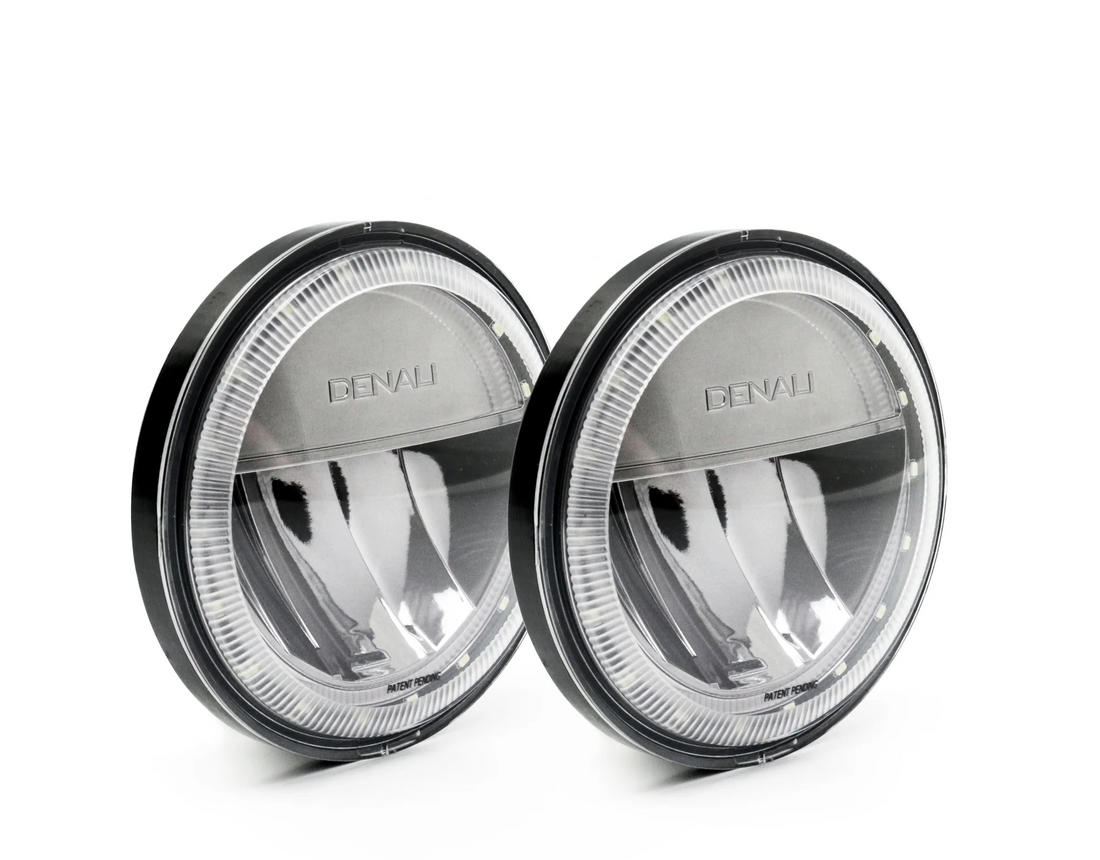

Description 114 mm pair of LED auxiliary lights with luminous ring M4

Code TTM4 — DENALI TT-M4 code

Pair of LED modules that replace the 4.5-inch sealed auxiliary headlights, 114 mm: those mounted on either side of the main headlight on many cruisers and touring motorcycles.

Each module has a main beam that combines range and width, plus a perimeter ring as a daytime running light. The pair delivers 1,564 raw lumens on the main beam and 540 on the ring, with a range of 152 meters.

They fit into the existing headlight housings and connect to the standard H9 and H11 connectors, with no wiring modifications. Aluminum body, black chrome finish, IP68 rating.

Package contents: two modules and Posi-Tap connectors.

Why choose it

Coppia di moduli LED che prende il posto dei fari supplementari sigillati da 4,5 pollici, quelli montati ai lati del faro principale su molte cruiser e granturismo. Fascio principale più anello perimetrale come luce diurna, con lo stesso ingombro degli originali.

Complete technical specification sheet
Technical data
  • Tipo: coppia di moduli LED per fari supplementari, sostituzione diretta
  • Misura: 4,5 pollici (114 mm) di diametro
  • Funzioni: fascio principale e anello perimetrale come luce diurna
  • Luce per la coppia: 1.564 lumen grezzi sul fascio principale, 540 sull'anello
  • Assorbimento per la coppia: 20 W sul fascio principale, 4,5 W sull'anello
  • Portata: 152 metri
  • Connettori: H9 e H11
  • Corpo: alluminio, finitura black chrome, IP68
  • Nella confezione: 2 moduli e connettori Posi-Tap

How does it work, in detail?

  • They replace sealed 4.5-inch auxiliary headlights.
They fit into the headlight housings you already have

They fit into the headlight housings you already have

They are direct-replacement modules for 4.5-inch sealed auxiliary headlights, the ones beside the main headlight on many cruisers and touring bikes. They fit into the existing headlight housing and connect to the factory H9 and H11 connectors: no wiring modifications.

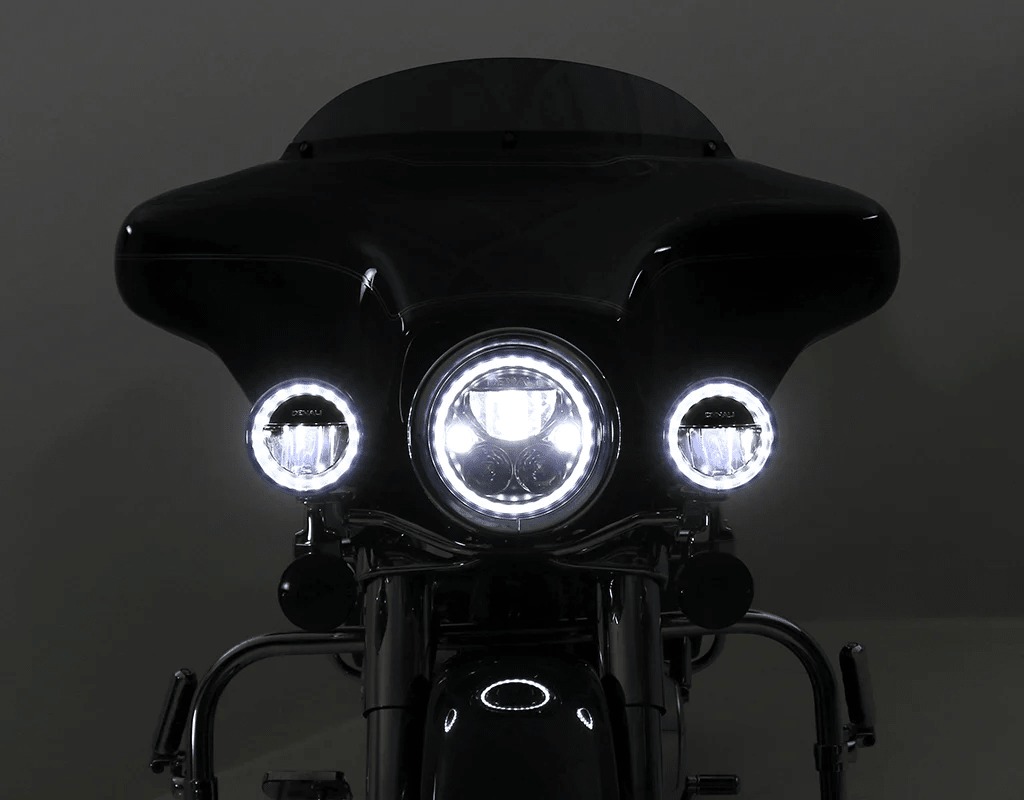

Main beam plus daytime running light ring

Main beam plus daytime running light ring

Each module has two functions: a main beam that combines distance and width, and a perimeter ring that works as a daytime running light. Together they deliver 1,564 raw lumens from the main beam and 540 from the ring, with power consumption of 20 W and 4.5 W.

FAQs

For more information, see our FAQ of frequently asked questions.

Does the ring light work as a daytime running light?

Yes, the perimeter ring is designed as a daytime running light and consumes 6 W. However, it must be powered with a separate wire: it does not turn on by connecting only the headlight connector.
