Ducati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S side case frames - Endurrad.comDucati Multistrada V4 S con valigie laterali e bauletto LOBOO PIKE TRACKER argento sui telai JP571B
-10%Consegna in 2-3 giorni lavorativi
JP571B LOBOO code
Multistrada V4S Motorcycle
20 Components
12 and 22 N·m Torque pairs

Panoramica

In breve

The steel base for cases and side bags on Multistrada V4 S, Pikes Peak, and V4 Rally.

Three motorcycles with a single code

Multistrada V4 S, V4 Pikes Peak, and V4 Rally, all from 2022.

Dual pannier compatibility

PIKE TRACKER aluminum or WANDERER semi-rigid, no initial restriction.

Steel construction

transfers the load's weight to the motorcycle's frame.

Dedicated mounting

on the manufacturer's designated fastening points, without adaptations.

Dal produttore LOBOO

Original LOBOO product, a brand specializing in adventure and touring motorcycle accessories. Official manufacturer documentation available upon request.

Leggi la descrizione completa

The JP571B side frames are the motorcycle-specific part: they are installed once and remain in place even if you change the type of case over the years.

The LOBOO installation manual lists the Ducati Multistrada V4S from 2022. The distributor also indicates compatibility with the V4 Pikes Peak and V4 Rally, but these do not appear in the manufacturer's technical documentation: if you have one of these two versions, write to us before ordering and we will ask for confirmation on your behalf.

What is included

Twenty listed items: the two frame halves, the crossbar, the central plate, the bracket, four types of spacer, seven bolt sizes from M6 to M8, fourteen washers, two finishing caps, and the service tool. The only tool you need to have is a torque wrench.

Installation

Only three steps, all illustrated in the manual: the central plate under the tail section, followed by the left and right halves on the original mounting points. The manual does not specify any drilling. The torque settings are 12 N·m for the M6 bolts and 22 N·m for the M8 bolts: values specific to this part number and different from those of other LOBOO frames.

Compatible cases, not included

  • PIKE TRACKER aluminum cases — 35 liters on the left and 30 on the right, the latter shaped to clear the exhaust outlet. Black or silver.
  • WANDERER semi-rigid cases — 40+30 liters.

LOBOO aluminum cases can only be mounted on LOBOO frames: the manufacturer's documentation excludes use on frames from other brands.

If you prefer to purchase everything together, the Ducati Multistrada V4 Side Cases page offers the frames and cases in a single kit.

Nella confezione

  • ✅ New, original LOBOO pannier frames, in manufacturer's packaging.
  • 📦 Included: A pair of side frames with screws and mounting hardware.
  • ⚠️ Not included: side panniers. This page is for frames only. Panniers are purchased separately, or together with the frames on the complete kit page.
  • 🔒 Closed system: LOBOO panniers can only be mounted on LOBOO frames, and only LOBOO panniers can be mounted on these frames. They are not compatible with frames or panniers from other brands.
  • 🏍️ Frames specific to the model indicated in the title: they mount to original fixing points, without adapters.
  • 🚚 Tracked shipping throughout Italy, with product inspection before dispatch.
  • 🛡️ 24-month legal warranty for consumers, according to current regulations.
  • 💳 Payment also available in installments with the services available at checkout.
  • 🔧 Observe the indicated tightening torques and recheck the fastenings after the first few kilometers, especially with loaded panniers.
1 PCQuantity
SteelMaterial

JP571B · Multistrada V4 from 2022 · 3-stage installation · panniers excluded

How does it work, in detail?

Materials, construction, and everyday use: every aspect explained one by one.

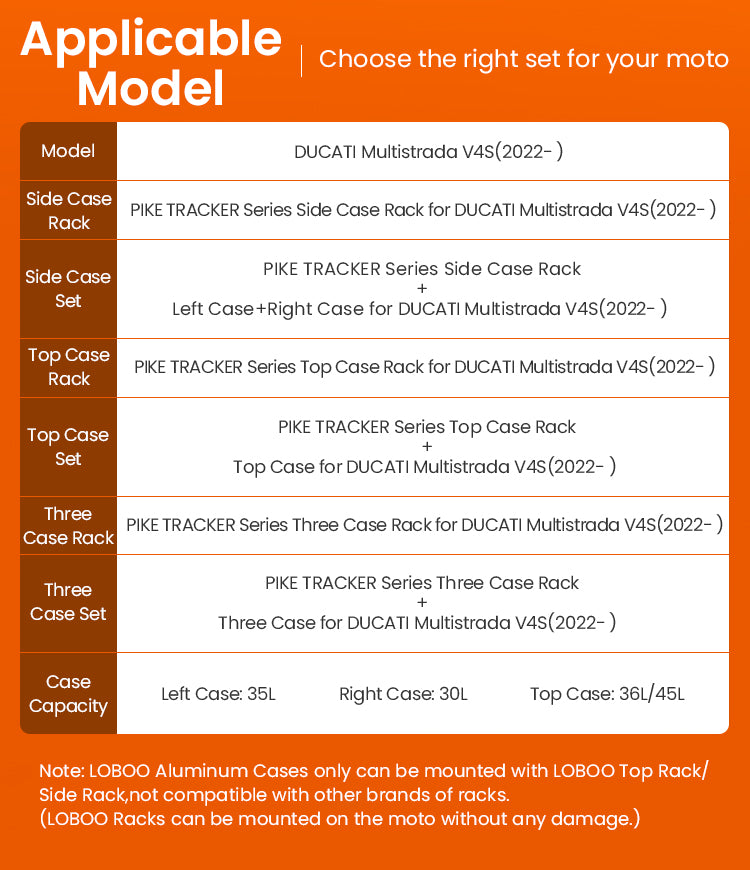

Which Multistrada models does it fit?
01

Which Multistrada models does it fit?

LOBOO’s applicable models panel lists the Ducati Multistrada V4S from 2022 onward, and the same motorcycle is the only one shown on the cover of the installation manual.

The distributor lists the Multistrada V4 Pikes Peak and V4 Rally as compatible, but they do not appear in the manufacturer’s technical documentation. We sell them as compatible and want to be transparent: if you have one of these two versions, write to us before ordering and we’ll request confirmation for you.

The panel also reminds you that LOBOO aluminum cases can only be mounted on LOBOO frames, and that the frames can be installed without permanent modifications to the motorcycle.

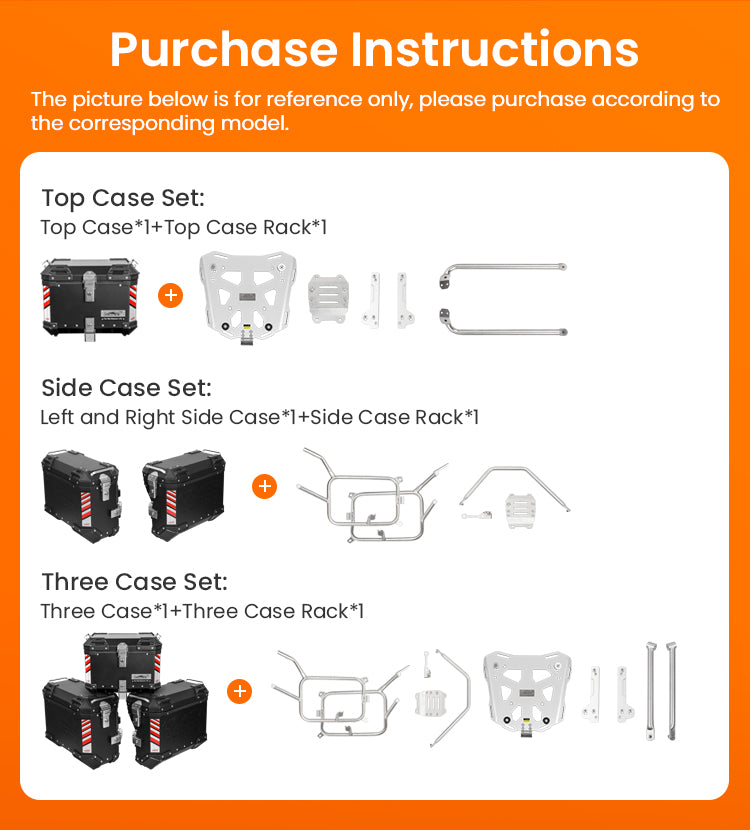

Frame only, side set, or complete set: what does each include?
02

Frame only, side set, or complete set: what does each include?

This page sells the item shown at the top left of the diagram: the side frame only, meaning the part intended for the motorcycle.

The side set adds the pair of panniers, while the three-case set also adds the top case and rear plate. These are separate products, and you can find them all on Endurrad: buying the frame first keeps your options open and means you will not have to redo the installation if you change the type of case in the future.

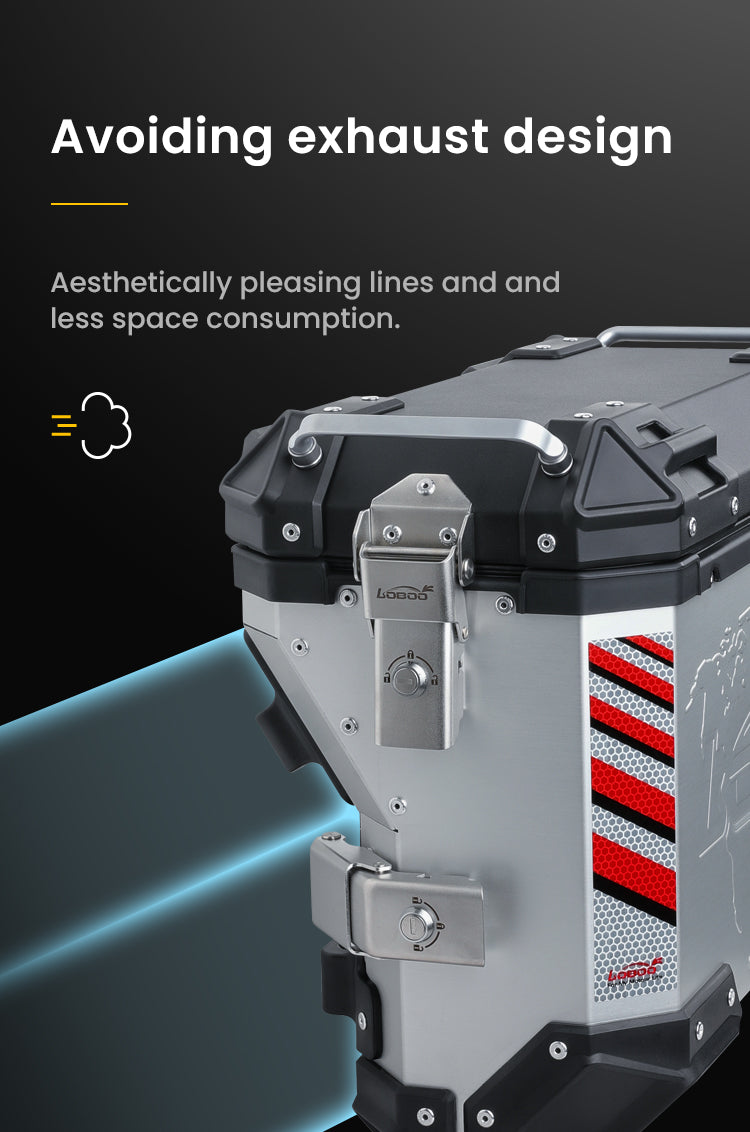

35 on the left, 30 on the right: why aren’t they equal?
03

35 on the left, 30 on the right: why aren’t they equal?

These frames fit the PIKE TRACKER 35+30: 35 liters on the left, 30 on the right. It’s not a cut-rate compromise; it’s the exhaust outlet. The right case has a recess that clears it, visible in the image alongside.

The alternative would be to widen both sides to equalize the volumes, ending up with a wider motorcycle just to gain five liters. This way, the profile stays compact, and the difference is noticeable in tight passages or in traffic.

The only thing to remember is the orientation: the bulkier luggage goes on the left. The same frames also support the WANDERER 40+30 semi-rigid cases.

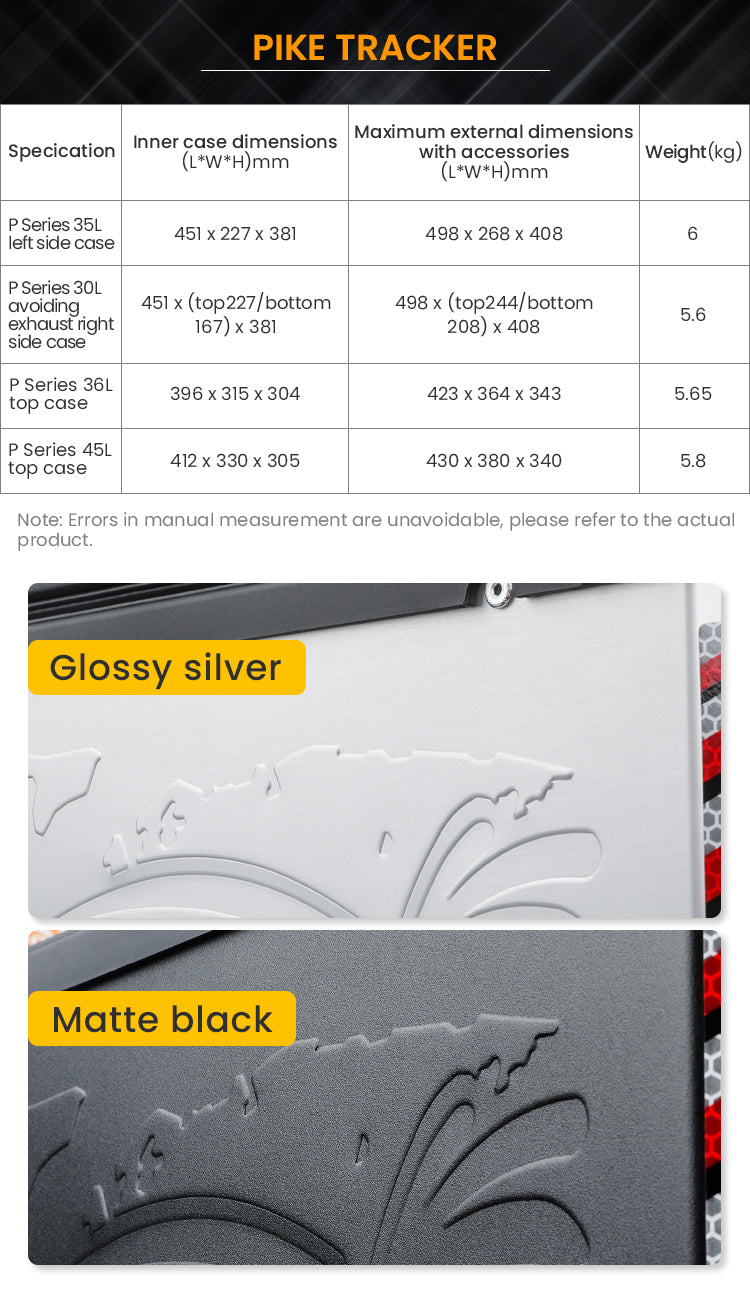

How big and how heavy are the cases you mount on it?
04

How big and how heavy are the cases you mount on it?

The manufacturer's table provides the figures you need to understand how far the motorcycle will protrude and how much weight you are adding before you even fill the cases.

The 35 L left case measures 451 × 227 × 381 mm and weighs 6 kg; the 30 L right case, shaped around the exhaust, measures 451 × 227 mm at the top and 167 mm at the bottom × 381 mm and weighs 5.6 kg. That's 11.6 kg for the empty cases alone, in addition to the frame and luggage.

The external dimensions with the accessories fitted increase to 498 mm in length: that's the figure to use to determine whether the motorcycle will fit through the space where you usually keep it.

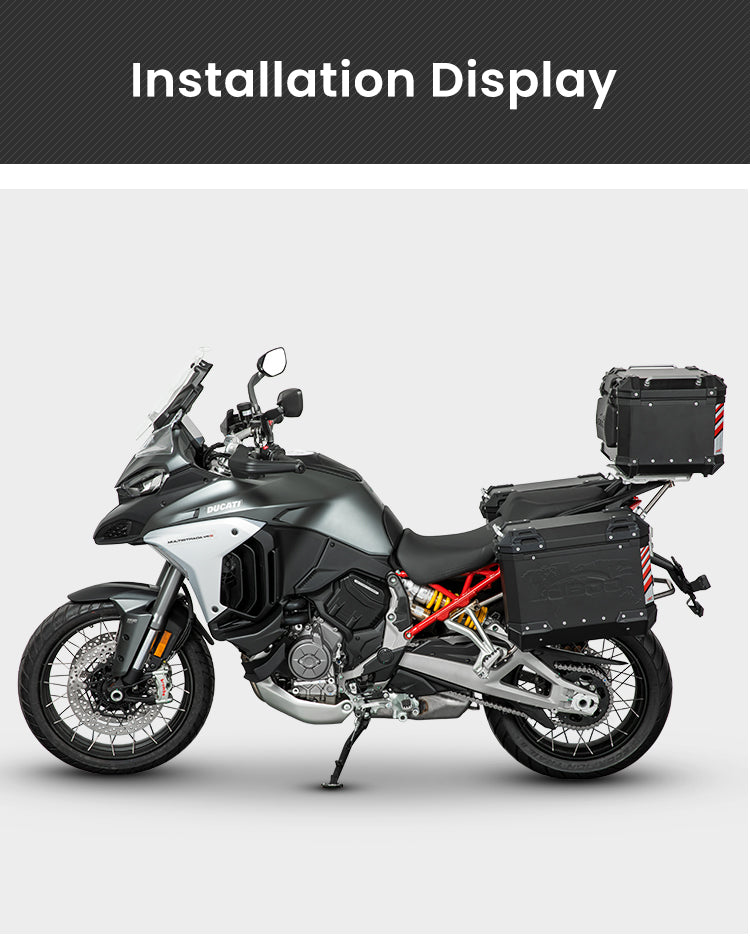

What does it look like with the frame mounted?
05

What does it look like with the frame mounted?

The frame follows the line of the tail section and remains behind the passenger footrest: the cases sit farther back, without encroaching on legroom.

Installation is one of the quickest in the range: just three steps, with the central plate beneath the tail section, followed by the two halves of the frame on the original mounting points. The manual does not require drilling.

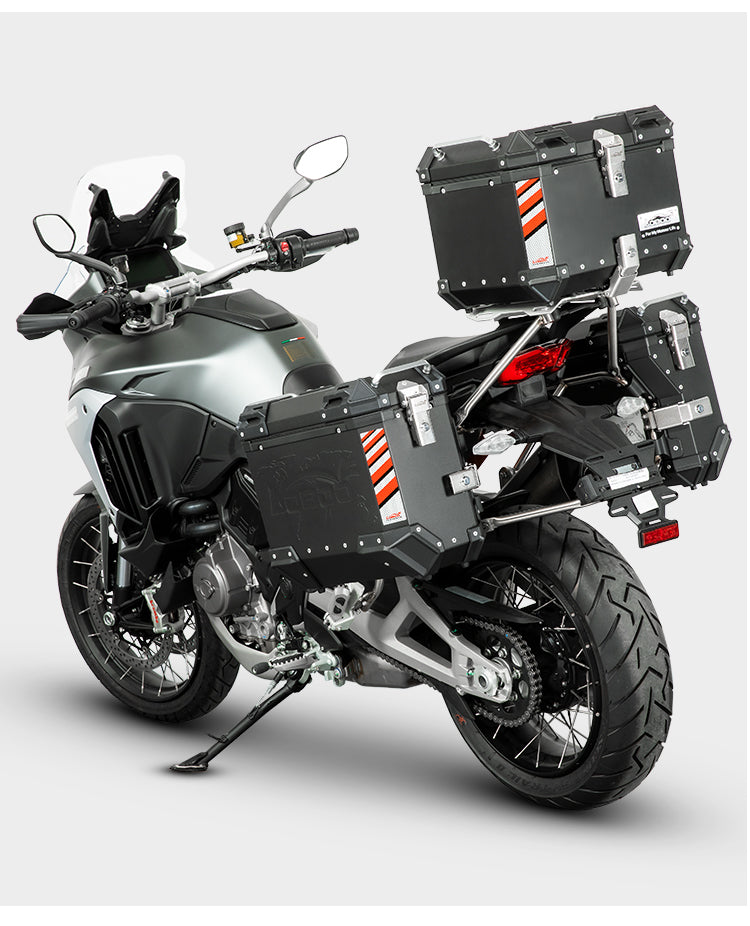

Can the top case be added later?
06

Can the top case be added later?

The three-case configuration exists and is documented by the manufacturer: in addition to the two side cases, it includes a rear plate and top case, available in 36- or 45-liter versions.

The top-case plate is a separate item with its own code and is not included on this page. The side frame you are viewing remains the same: you can start with the side cases and complete the setup later.

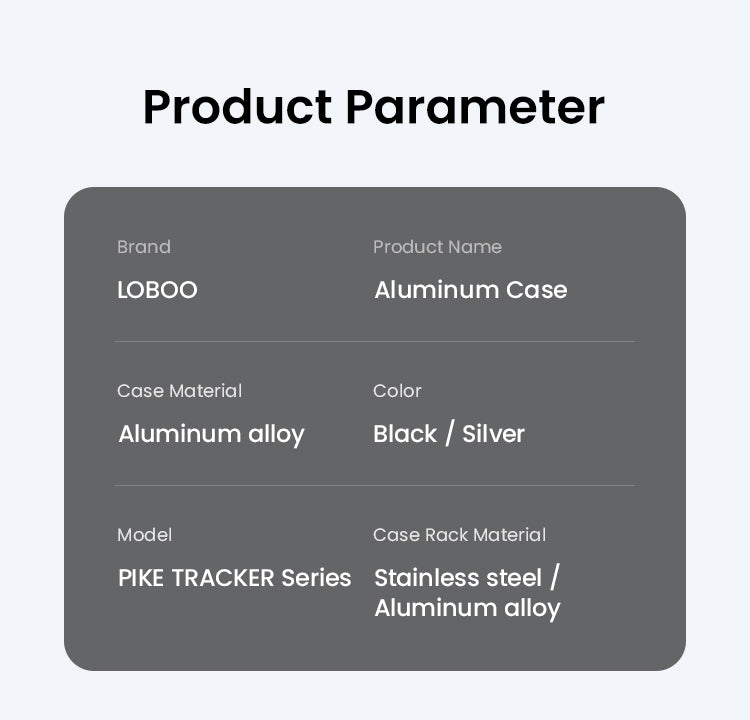

The materials declared by the manufacturer
07

The materials declared by the manufacturer

The PIKE TRACKER series specifications sheet states that the cases are made of aluminum alloy and the frames of stainless steel or aluminum alloy.

This is a range-level specification, not one for the individual code: the JP571B manual does not specify which of the two materials this frame is made of, and we prefer to tell you that rather than choose one ourselves. If you need this information for a precise assessment, ask us and we will verify it with the manufacturer.

Check the maximum load in the vehicle registration document
08

Check the maximum load in the vehicle registration document

LOBOO does not specify a maximum load for this frame, so the Ducati reference remains applicable: the Multistrada owner's manual states the limit for each side case, including both the case and its contents.

On a touring motorcycle, this is the limit that is exceeded first, often without realizing it. The same practical rule applies after installation: check the fasteners again after the first 100–200 km, once the structure has settled, and before every long trip.

Dati dal manuale d'uso LOBOO

Specifiche tecniche

Tutti i dati

Product

Code
JP571B Pair of side pannier racks, cases excluded
Official name
PIKE TRACKER & CONQUEROR Side Case Rack Product name as stated in the LOBOO manual
Content
Frames only Panniers and top cases not included

Compatibility

Motorcycle declared as manual transmission
Ducati Multistrada V4S from 2022 It is the only trim level indicated on the cover and on the panel listing the applicable models.

To be verified

Pikes Peak and V4 Rally
Not declared by the manufacturer They appear in the distributor’s price list but not in the manual or on the LOBOO panels: to be confirmed before purchase

Compatible suitcases

Aluminum
P35L + P30R PIKE TRACKER, black or silver
Semi-rigid
BCB4030TBK WANDERER 40+30 L

Assembly

Mounting points
Motorcycle originals The manual does not indicate any drilling; the removed original parts must be reinstalled at the Ducati torque specifications
Torque pairs
12 and 22 N·m 12 N·m on the M6 bolts, 22 N·m on the M8 bolts: values specific to this code
Installation steps
3 Central plate, then left and right halves of the frame

Equipment

M6 hardware included
3 sizes M6×16, M6×20, and M6×55, with eight M6 washers
M8 hardware included
4 sizes M8×16, M8×20, M8×25 and M8×45, with six M8 washers
Spacers
Four types Ø13.5×Ø8.2×5.2 mm, Ø25×Ø7×6.5 mm, Ø25×Ø7×43.5 mm and a 15 mm spacer
Finishing caps
Ø20×T11 mm Two pieces that close the openings left after assembly.
Service tool
Including Included in the bill of materials. The torque wrench is not included.

Documentation

Assembly manual
8 languages Italian included, with an illustrated parts list, numbered installation view, and three photographed stages

Loading

Recommended load
10 and 5 kg The LOBOO aluminum luggage manual recommends 10 kg per side case and 5 kg for the top case due to vibrations while riding. The manufacturer does not state the frame’s material or weight.

Specifications stated by the manufacturer LOBOO. If you have any doubts about compatibility with your model, please contact us before purchasing.

Manuale di montaggio dei telai valigie laterali LOBOO JP571B per Ducati Multistrada V4S dal 2022Documento originale LOBOO Scarica ↓

Prima di ordinare

Montaggio e requisiti

Come si monta

  1. Si fissa la piastra centrale sotto il codone, con i distanziali lunghi e le viti M6.
  2. Si monta la metà sinistra del telaio sui punti di ancoraggio originali.
  3. Si monta la metà destra, completando l'insieme con la traversa e la staffa.
Istruzioni complete e note di sicurezza

Il manuale descrive tre fasi, tutte fotografate.

  1. Si fissa la piastra centrale sotto il codone, con i distanziali lunghi e le viti M6.
  2. Si monta la metà sinistra del telaio sui punti di ancoraggio originali.
  3. Si monta la metà destra, completando l'insieme con la traversa e la staffa.

Coppie di serraggio: 12 N·m sulle viti M6, 22 N·m sulle M8. Sono valori propri di questo codice e non coincidono con quelli degli altri telai LOBOO.

Sequenza vincolante: il manuale prescrive di non serrare a fondo durante il montaggio, di completare prima tutte le regolazioni e di serrare in sequenza alla coppia indicata. Le parti originali rimosse vanno rimontate secondo le coppie e le indicazioni di Ducati.

Attrezzi: l'attrezzo di servizio è nella confezione, la chiave dinamometrica no.

Assembly and notes

  • Panniers are not included: the frames are the only support structure.
  • Observe the maximum load per side frame indicated by Ducati in the motorcycle's manual.
  • Check the fasteners again after the first 100-200 km.
  • The load must not cover the license plate and tail lights or extend beyond the limits of the Highway Code.

Compatible bikes according to official LOBOO documentation:

  • Ducati Multistrada V4 S, from 2022
  • Ducati Multistrada V4 Pikes Peak, from 2022
  • Ducati Multistrada V4 Rally, from 2022

Compatible panniers, to be purchased separately:PIKE TRACKER P35L+P30R in black or silver, or WANDERER semi-rigid BCB4030TBK 40+30 liters.

Per moto Ducati

Ducati
Hai un dubbio sulla compatibilità?Mandaci una foto su WhatsApp: ti rispondiamo noi. Scrivici →

Domande frequenti

Le domande che ci fate più spesso

Does it also work on the Pikes Peak and V4 Rally?

The LOBOO manual and applicable models panel list only one configuration: the 2022 Ducati Multistrada V4S. Pikes Peak and V4 Rally appear in the distributor’s price list, but not in the manufacturer’s technical documentation.

We would rather tell you than make assumptions: if you have either of these two versions, contact us before ordering and we will check with the distributor. It is the quickest way to avoid a return.

Which suitcases are compatible with the JP571B frame?

The aluminum PIKE TRACKER cases, in black or silver, in the 35-liter left and 30-liter right configuration: the right case is narrower at the bottom because it has to clear the exhaust, so the sides cannot be reversed.

Alternatively, the 40+30-liter WANDERER semi-rigid cases. The cases are not included with the frame and must be purchased separately.

How far do the suitcases I mount on it protrude, and how much do they weigh?

The 35-liter PIKE TRACKER cases measure 451 × 227 × 381 mm and weigh 6 kg; the 30-liter right-hand case, shaped to clear the exhaust, measures 451 × 227 mm at the top and 167 mm at the bottom × 381 mm and weighs 5.6 kg.

With the handles and hardware installed, the external length increases to 498 mm. That is 11.6 kg for the empty cases alone: useful information for understanding whether the motorcycle can fit where you usually keep it and how much weight you are adding before loading anything.

Can I mount aluminum cases from other brands on it?

No, and the opposite is also true. LOBOO’s documentation is explicit: LOBOO aluminum cases can only be mounted on LOBOO racks and are not compatible with racks from other brands.

However, the same document specifies that LOBOO racks can be installed on the motorcycle without permanent modifications.

Are suitcases included in the price?

No: this page sells the pair of frames, which is the part dedicated to the motorcycle. The cases are chosen separately, which is why the frame is installed only once: you can change the type of case without redoing the work.

Is this page or the kit with the cases already included a better deal?

It depends on what you already have. This page is for those who already own the panniers, those who want to choose them at their leisure, or those who only need to replace the frame.

If you’re starting from scratch, the kit page offers frames and panniers already matched in the correct combination, so you don’t have to cross-reference the codes. The frame is the same in both cases.
